The Terex 82-50 skid steer loader is a machine that has garnered mixed opinions among operators, dealers, and equipment enthusiasts. With its unique styling and performance characteristics, the 82-50 has been debated as either a reliable workhorse, an underwhelming machine, or simply an unattractive design in the competitive skid steer market. This article aims to provide a detailed, balanced analysis of the Terex 82-50’s strengths, weaknesses, and overall standing in the industry.
Background and Design Overview
Terex, a well-known global equipment manufacturer, released the 82-50 model as part of its skid steer loader lineup targeting medium-duty applications. The model name reflects its rated operating capacity and size class. Visually, the 82-50 is distinctive for its somewhat boxy and unconventional styling, which some find unattractive, leading to the “just ugly” label among certain users.
Despite the controversial aesthetics, the machine was engineered with practical features aiming for durability, ease of maintenance, and operator comfort.
Performance and Mechanical Features
The Terex 82-50 is equipped with a diesel engine offering a balance of power and fuel efficiency suitable for varied construction, landscaping, and agricultural tasks. Key mechanical highlights include:

• Engine: Typically a Tier 3 or equivalent emissions-certified diesel engine with horsepower in the mid-50s range.

• Hydraulic System: Designed to provide smooth and responsive control of attachments, the hydraulic flow rate supports both standard bucket work and auxiliary hydraulic tools.

• Lift Capacity and Reach: With an operating capacity close to 2,000 pounds, the 82-50 is capable of handling medium-weight loads efficiently. Its lift height and reach are competitive with peers in the same class.

• Undercarriage and Tires: The loader comes with durable tires suited for mixed terrain but may require periodic replacement on abrasive surfaces.


• Electrical System: Some reports mention occasional sensor or wiring problems requiring attention.

• Hydraulic Leaks: As with many skid steers, hydraulic seals may wear, necessitating periodic inspection.

• Parts Availability: Since Terex’s skid steer division has changed hands over the years, sourcing certain replacement parts can sometimes be challenging.

• Aesthetic Durability: The external panels and paint may show wear or chipping faster compared to competitors, contributing to the “ugly” impression over time.


• Operating Capacity: The maximum load the skid steer can handle safely.

• Hydraulic Flow Rate: The volume of hydraulic fluid delivered to actuators per minute, affecting attachment speed and power.

• Tier Emissions Standards: Regulations controlling engine pollutants; Tier 3 indicates a certain compliance level.

• Undercarriage: The lower structural frame, including wheels or tracks and suspension.

• Auxiliary Hydraulics: Additional hydraulic circuits for powering tools like augers, grapples, or breakers.


• Regularly inspect hydraulic hoses and seals for leaks.

• Perform scheduled engine oil and filter changes to preserve engine health.

• Monitor electrical connectors and sensor functionality.

• Keep the exterior clean and touch up paint to prevent corrosion.

• Use recommended fuel and lubricants to ensure system compatibility.


• Pros:
  • Solid mechanical design with reliable engine

  • Spacious and comfortable operator cab

  • Competitive hydraulic performance

  • Good fuel efficiency for class

• Cons:
  • Unconventional styling often seen as unattractive

  • Some electrical system issues reported

  • Parts availability can be limited

  • Exterior wear and paint durability concerns


Introduction
An excavator owner faces a persistent issue: gear‑oil leaking from a seam below the swing motor on a 2001 model. Pulling the pump unit (swing motor) means tackling heavily torqued bolts—locked tightly and reluctant to yield. The following steps integrate tried‑and‑tested approaches, terminology notes, practical anecdotes, and adds context from similar machinery repairs.
The Challenge of High‑Torque Lock‑Fasteners
Removing the swing motor means first extracting the base bolts—usually torqued down with red anaerobic adhesive (commonly “Loctite”) to prevent vibration‑induced loosening. These bolts resist conventional hand tools—even a ¾‑inch drive plus a long cheater bar may fail to break them loose.
Technical Terms (Glossary)

• Impact Wrench: A pneumatic or electric tool that delivers rotational blows to loosen tight fasteners.

• Torque Multiplier: A mechanical tool that increases torque output through gear reduction, often 4:1. It allows high‑torque application with manageable input force.

• Red Loctite: A high‑strength threadlocker adhesive used to secure fasteners permanently unless heat‑released (often around 400 °F).

• Anaerobic Adhesive: Cures in absence of air, common in threaded‑lock applications.

• Bullet Heater (Space Heater): Portable heater used to melt hardened grease/oil emulsions in cold environments.


1. Assess and Prepare
   • Inspect bolt heads for corrosion or round‑off. If severely damaged, prepare for extraction tools.

   • Plan for adequate ventilation and fire safety when using heat.

2. Primary Loosening: Heavy‑Duty 1‑inch Impact Wrench
   • Use a powerful 1‑inch drive impact tool with a short, robust extension. Long extensions flex and reduce effective torque.

   • A user substitution remark: “I have a special extension bar … from a cylinder rod that does not twist near torque spec” illustrates the importance of rigidity in the tool chain.

3. Torque Multiplier Alternative
   • When the impact fails, a 4:1 torque multiplier can amplify your manual input. The “pull on the wrench is opposite the push on the multiplier” helps maintain alignment and avoids lateral stress.

   • This method is effective when bolt heads are heat‑resistant or impact tools are inaccessible.

4. Heat Application When Sticky Loctite Is Involved
   • Carefully apply heat to bolt heads—enough to burn off paint but not reach cherry‑red, to avoid warping or fire hazards. Once red heat‑levels are reached, Loctite typically turns into powder.

   • Extreme caution: never leave heaters unattended, and clear surrounding flammables.

5. Victory! Bolt Removal and Swing Motor Extraction
   • Once bolts yield, the swing motor lifts away, granting access to the leaking seal below. A refreshed hydraulic seal (costing around USD 60) restores containment and function.


• 1.5 in greasy emulsion

• 0.5 in standing water


• Pressure Washing: Powerful but may not reach underside or corners.

• Bullet Heater Method: Tar the cabin to protect electronics, then melt the emulsion for easy removal. One operator worked through a snowstorm using this technique.

• Drain Plate Access: Remove a small access cover (approx. 3‑inch square) under the car body. Snake a hose or bath towel tied to a rope around the tub to soak up residue.

• Grease Re‑fill: After cleaning, use HP2 (High‑Performance) grease pumped into the cavity to re‑lubricate. But ensure the main swivel (central top seal) is in good condition—otherwise, moisture may re‑enter and ruin the cleaning effort.


• A mechanic recounts: “I tarped in the car body and used a bullet heater … worked really slick (I did it in middle of a snow storm).”

• Another recalls: “I fished a hose … tied a bath towel … pulled it around the tub … cleaned up pretty good. Pumped in a 20 liter pail of HP2 grease…”


• On a Deere 892, both impact tools and heat failed; only a torque multiplier succeeded.

• For a Hitachi‑style swing motor, the greasier cavity and tighter bolt access yield similar outcomes.

• In cold climates, oil‑moisture emulsions solidify quickly—heat becomes not just useful, but essential.


• Secure high‑capacity 1‑inch impact wrench, short adapter bars

• Keep a torque multiplier on hand, especially for stubborn, locked bolts

• Apply targeted heat safely, to melt sealants only—not to overheat surrounding material

• After removal, clean the slew area thoroughly (bullet heater or drain‑plate methods)

• Inspect central swivel seal, then re‑lubricate with high‑grade grease (e.g. HP2)

• Replace the leaking seal (approx. USD 60) to resume oil containment


The ZX120-3 is a popular medium-sized excavator known for its versatility and robust hydraulic performance. Operators and technicians often need to adjust certain machine parameters to optimize performance, adapt to working conditions, or troubleshoot issues. Understanding these parameter changes, how to access them, and what effects they have is essential for efficient machine management.
Overview of ZX120-3 Parameter Adjustments
The ZX120-3 utilizes an electronic control system that allows fine-tuning of operational parameters via its onboard display or diagnostic tools. These parameters govern various aspects such as hydraulic flow rates, engine speed limits, and control response sensitivities. Adjusting these settings can enhance machine responsiveness, fuel efficiency, and overall productivity.
Key Parameter Categories
The main parameter types typically adjusted on the ZX120-3 include:

• Hydraulic System Settings: Controls for pump flow, pressure limits, and valve responsiveness.

• Engine Performance Parameters: Settings related to engine RPM limits, idle speed, and fuel injection timing.

• Operator Control Sensitivity: Adjustments to joystick response curves and travel speed limits.

• Safety and Warning Thresholds: Parameters defining alarm triggers and operational limits for protection.


• Enter the machine’s maintenance or service mode via the control panel interface.

• Use a diagnostic tool or laptop with manufacturer-specific software for advanced adjustments.

• Follow specific navigation steps to reach the “Parameter Setting” or “Option Setting” menus.


• Max Engine RPM Limit: Raising or lowering this affects engine speed ceiling, influencing power and fuel consumption.

• Hydraulic Pump Flow Rate: Adjusting flow rate can increase digging speed or smooth operation depending on job demands.

• Swing Speed Limit: Changing this controls the maximum rotational speed of the excavator’s upper structure.

• Travel Speed Settings: Modifying travel speed limits can optimize movement speed for site safety or efficiency.

• Boom and Arm Response Curves: Adjusting these affects how the machine responds to joystick inputs, improving operator comfort and precision.


• Parameter: A configurable setting within the machine’s control system affecting operation.

• Hydraulic Flow Rate: The volume of hydraulic fluid moving through the system per unit time, impacting speed and force.

• RPM (Revolutions Per Minute): The speed at which the engine crankshaft rotates.

• Joystick Response Curve: The mapping of joystick position to hydraulic movement speed or force.

• Diagnostic Tool: Specialized software and hardware used for programming and troubleshooting heavy equipment.


• Always document original settings before making adjustments.

• Make incremental changes and test machine response thoroughly.

• Consult manufacturer guidelines or a qualified technician if unsure.

• Avoid unauthorized parameter changes to prevent warranty issues or machine damage.


• Engine RPM limit settings

• Hydraulic pump flow rate adjustments

• Swing speed maximum limit

• Travel speed caps

• Joystick sensitivity and response curves

• Safety alarm thresholds

• Idle speed control

• Fuel injection timing

• Hydraulic pressure limits


When it comes to engine swaps between Bobcat skid steer loaders, a common question among operators and mechanics is whether the engine from a Bobcat 974 model can be directly fitted into a Bobcat 975 model. This topic encompasses several mechanical, electrical, and logistical factors that need careful evaluation to ensure a successful swap with minimal complications.
Engine Model Overview
The Bobcat 974 and 975 are very closely related skid steer loaders produced in the mid to late 1990s, sharing much of the same chassis and hydraulic system design. However, their engines, while similar in many ways, have notable differences that affect interchangeability.
The 974 typically comes equipped with a certain style of engine — often a Kubota diesel engine model with specific mounting points, fuel injection system, and electrical connections. The 975, meanwhile, uses a similar but slightly updated engine variant that may differ in fuel system controls, sensor placement, or emission-related components.
Mechanical Fitment
From a mechanical perspective, the physical size and mounting points of the 974 engine and the 975 engine are nearly identical. This similarity means that physically installing the 974 engine into a 975 skid steer frame can generally be accomplished without major structural modification.
Key points to verify include:

• Engine Mounting Brackets: Both engines use the same mounting frame or closely compatible mounts, simplifying direct bolt-in installation.

• Transmission Coupling: The interface between the engine and transmission must align perfectly. Since the 974 and 975 share similar drivetrains, this is usually straightforward.

• Cooling System Connections: Hose fittings and radiator placement are generally compatible, but hose lengths and clamps should be checked.


• Wiring Harness Compatibility: The connectors for sensors, fuel injectors, and the engine control module (ECM) should be compatible or adapted. Mismatched connectors can require splicing or a custom harness.

• ECM Differences: If the 975 uses an updated ECM with different programming or sensor inputs, installing the 974 engine may cause error codes or operational issues unless the ECM is swapped or reprogrammed.

• Sensor Placement: Differences in sensor types or locations on the 974 engine might necessitate adjustments to the 975's wiring or control system.


• Fuel Injection Systems: Differences between mechanical and electronic fuel injection setups must be noted. The 974’s engine might have a different injection pump or sensors than the 975.

• Emission Devices: The 975 engine could have additional emission controls like EGR valves or particulate filters absent on the 974 engine, affecting compliance.


• Mechanical installation is generally successful due to shared chassis and engine mount designs.

• Electrical integration is the most time-consuming part, often requiring wiring adjustments or borrowing the ECM from the donor engine.

• Testing after installation is critical to detect any sensor mismatches or fuel delivery issues.


• Engine Mounting Brackets: The metal supports used to secure the engine to the skid steer's frame.

• Transmission Coupling: The physical connection between engine output and the transmission input shaft.

• ECM (Engine Control Module): The onboard computer managing engine functions such as fuel injection timing and emissions.

• Fuel Injection Pump: A device that delivers fuel into the combustion chamber at high pressure.

• EGR (Exhaust Gas Recirculation) Valve: An emissions control device that reduces nitrogen oxide emissions.

• Wiring Harness: A bundled collection of electrical wires and connectors transmitting power and signals.


• Obtain detailed service manuals for both the 974 and 975 engines to compare wiring diagrams, mounting details, and sensor layouts.

• Inspect the donor engine for compatibility of auxiliary components like alternators, starters, and cooling fans.

• Prepare for potential software or firmware updates if ECM replacement or reprogramming is needed.

• If possible, source a donor wiring harness from the 974 engine along with the engine itself to minimize wiring headaches.

• Test the machine thoroughly under various operating conditions to ensure reliability and safety.


Whether you’re handling demolition, landscaping, or material loading, a hydraulic thumb transforms your Case 580SM II from a simple digger into a versatile grappling powerhouse. Choosing the right model ensures efficiency, durability, and operator confidence under real‑world conditions.

Why a Hydraulic Thumb Is Essential

• Enables solid grip on irregular materials like logs, pipes, or rock.

• Enhances productivity by reducing reliance on manual rigging or slings.

• Improves safety by minimizing manual handling and keeping operators clear of pinch points.

• Offers greater control during placement and loading onto trucks or stockpiles.


• Hinge-style thumb
  • Mounted externally on the boom or stick.

  • Simple mechanical pivot.

  • Pros: Cost-effective, rugged.

  • Cons: Less precise control, slower operation.

• Hydraulic cylinder thumb (full hydraulic)
  • Uses a dedicated hydraulic cylinder to power the thumb.

  • Pros: Smooth, precise, fast movement. Ideal for frequent use.

  • Cons: Higher cost, requires extra plumbing and space.

• Stick-mounted versus boom-mounted fitment
  • Stick-mounted places the thumb on the dipper arm—often closer to the load for precise positioning.

  • Boom-mounted uses the main arm—providing broader reach but slightly less dexterity at the tip.


• Material handling needs
  • Frequent use with heavy or sharp objects? Hydraulic cylinder design offers best control.

  • Occasional, rough use? A hinge-type might suffice and save cost.

• Attachment compatibility
  • Ensure the thumb bracket aligns with the 580SM II’s stick geometry and pin centers.

  • Welding may be required—check if bracket kits fit without major modification.

• Hydraulic requirements
  • Confirm if your machine has an auxiliary hydraulic circuit or can support a tee from existing lines.

  • Cylinder thumb installations typically need 3‑4 gpm (gallons per minute); verify pump capacity.

• Operator ergonomics
  • Thumb control via a joystick makes it intuitive and quick to toggle, especially if integrated into the existing control layout.

  • Manual lever systems cost less but add hand fatigue.

• Durability and maintenance
  • Look for hardened pins, grease fittings, and replaceable wear pads.

  • Cylinder seals must be heavy-duty—exposed parts near the bucket face wear quickly on rugged sites.

• Cost versus longevity
  • A high-grade hydraulic package may cost double the hinged thumb but lasts longer with better performance, especially in high‑utilization operations.


• Auxiliary hydraulic circuit: A separate set of hydraulic lines (flow and return) used to power attachments like thumbs or hammers.

• Hinge-style thumb: A simple mechanical attachment that swings via a pivot without hydraulic assistance.

• Cylinder thumb: A powered thumb operated by a hydraulic cylinder for movement control.

• Pin centers: The distance between mounting holes used to align attachments with existing construction.

• Wear pads: Replaceable surfaces on the thumb and stick contact areas to absorb abrasion and minimize weld or metal wear.

• Grease fittings: Zerk fittings used for periodic lubrication of pivot points.


• Regularly grease all pivot points and the thumb cylinder, especially in dusty or abrasive work zones.

• Inspect hydraulic hoses and fittings periodically for wear or chafing. Use protective sleeves where needed.

• Monitor cylinder seals for leakage—minor drips can lead to rod scoring and eventual failure.

• Check wear pads monthly—replace when worn to maintain proper clearances and prevent metal fatigue.

• Keep bracket bolts torque‑checked—vibration can loosen fasteners over time.


• For frequent, precise material handling: go for a hydraulic cylinder thumb, stick-mounted if you need fine control close to the bucket.

• For occasional or budget-conscious use: a hinge-style thumb offers rugged simplicity.

• Match the thumb design to your hydraulic capabilities and ensure the mount brackets align with the 580SM II’s geometry.

• Prioritize lubrication, wear protection, and cylinder seal health for long-term performance.

• A well-chosen thumb not only boosts productivity but also promotes operator comfort and equipment versatility.


The Ford F800 is a classic heavy-duty truck widely used in construction, hauling, and utility work. Many buyers contemplate acquiring one due to its rugged build and versatile applications. This article provides a detailed exploration of what potential buyers should know before purchasing a Ford F800, covering technical specifications, common issues, maintenance considerations, and ownership experiences. It incorporates relevant terminology and practical advice, complemented by real-life stories and industry insights.
Key Terminology

• GVWR (Gross Vehicle Weight Rating): Maximum allowable weight of the truck including load and passengers.

• Diesel Engine: A fuel-efficient engine type commonly used in heavy-duty trucks for torque and longevity.

• Manual Transmission: Gear system requiring manual shifting by the operator.

• Hydraulic Brakes: Braking system utilizing fluid pressure for operation.

• Chassis: The truck’s frame and base structure.

• Cab and Chassis: A truck configuration with the cab and chassis only, allowing custom bodies to be mounted.

• Suspension: The system of springs and shock absorbers supporting the vehicle.

• Power Take-Off (PTO): A mechanism to transfer engine power to auxiliary equipment.


• Robust and durable construction suited for heavy loads.

• Availability of parts from both Ford and aftermarket suppliers.

• Versatile chassis allowing customization for different equipment.

• Relatively simple mechanical systems facilitating easier repairs.

• Good resale value among vintage truck enthusiasts.


• Older design may lack modern comfort and safety features.

• Manual transmissions can be challenging for inexperienced drivers.

• Rust and corrosion common in aged chassis and body panels.

• Fuel efficiency lower compared to modern trucks.

• Potential difficulty finding qualified mechanics familiar with older models.


• Regular inspection for rust and frame integrity is essential.

• Engine tune-ups and fuel system cleaning help maintain performance.

• Brake system maintenance critical for safety.

• Hydraulic system checks necessary if equipped with PTO-driven accessories.

• Cooling system maintenance important to prevent overheating.


• Ford F800 is a durable, versatile medium to heavy-duty truck popular for various industrial uses.

• Offers robust engines, customizable chassis, and straightforward mechanics.

• Challenges include older design features, manual transmissions, and potential rust.

• Proper maintenance and inspection are key to longevity.

• Real-life users value its ruggedness but recommend skillful operation.

• Ideal for buyers interested in classic trucks with practical applications.


Picture this: you’re on a remote job site, ready to fire up your Cat CB24B engine—perhaps on a generator or machinery—and the engine sits silently. No starter spin. A few minutes later, everything functions perfectly again. What’s causing this frustrating on‑again, off‑again no‑crank behavior? It’s a subtle but impactful problem that blends electrical gremlins, component wear, and sometimes unexpected operator techniques.

Potential Culprits Behind the Intermittent No‑Crank
This issue can stem from multiple sources. Here are the most common suspects:

• Battery connections and corrosion
  Loose or corroded battery terminals may produce intermittent power loss. Even a thin film of oxidation can break the starter circuit under load.

• Starter motor solenoid or brushes
  A failing solenoid might engage erratically. Likewise, worn starter brushes can cause the rotor to fail intermittently.

• Ignition switch or key assembly wear
  The mechanical contacts inside an ignition or starter key switch degrade over time, sometimes refusing to close the circuit.

• Safety interlocks or neutral start switches
  Machinery often includes safety switches—for example, to ensure the transmission is neutral. Faulty or misaligned interlocks can interrupt the starting signal randomly.

• Wiring fractures or shaky connections
  Bends, vibrations, or chafed routes in wiring harnesses may lead to intermittent continuity—especially when the engine or machine moves slightly.


• Check battery voltage under load and inspect all cable ends for corrosion or looseness.

• Tap gently on the starter body while attempting cranking. If the engine fires, the solenoid or motor internals are suspect.

• Wiggle the ignition switch or key assembly; if cranking behavior changes, investigate the switch contacts.

• Engage and test any neutral-start or safety interlock switches; use a multimeter to verify consistent continuity when conditions are correct.

• Inspect wiring harnesses visually and manually move wiring bundles—especially around pivot points—for intermittent breaks.


• Solenoid: An electromagnetic switch that engages the starter motor’s drive gear to turn the flywheel. Faulty engagement can prevent cranking even if the starter is healthy.

• Brushes (in starters): Carbon components that supply current to the starter’s rotating armature. Wear can lead to poor contact.

• Neutral-start switch: A safety device that only allows engine cranking when the transmission (or machine control) is in neutral position.

• Key ignition switch: The manual switch assembly the operator uses to initiate the starting circuit. Interior wear can lead to intermittent failure.


• Inspect and clean battery terminals, cable connections, and ground straps.

• Test starter motor function by manually tapping to detect hidden faults.

• Wiggle and evaluate ignition switch—replace if suspect.

• Test neutral/start safety switches for alignment and continuity.

• Visually trace wiring harnesses for wear or stress cracks.

• Document observations: cause, repair, results—so patterns emerge with persistent issues.


The Kobelco SK130LC is a widely used hydraulic excavator known for its durability and efficiency. However, travel system problems can significantly affect its performance and productivity on job sites. This article presents an in-depth overview of common travel troubles encountered on the SK130LC, diagnostic methods, technical explanations, and practical repair strategies. It also incorporates relevant terminology, real-life cases, and industry insights for a holistic understanding.
Key Terminology

• Travel System: The hydraulic and mechanical components that enable the excavator to move on its tracks.

• Travel Motor: Hydraulic motor responsible for driving the sprocket and tracks.

• Final Drive: Gear assembly transmitting power from the travel motor to the tracks.

• Hydraulic Pump: Supplies pressurized fluid to the travel motors.

• Control Valve: Directs hydraulic fluid flow to control movement.

• Track Tension: Proper adjustment of track slackness to ensure smooth operation.

• Hydraulic Leak: Loss of fluid causing pressure drop and performance issues.

• Electrical Sensors: Components monitoring position, speed, and control signals.

• Travel Pedal: Operator control to command machine movement.


• Hydraulic Motor or Final Drive Failure
  • Worn or damaged internal components causing loss of torque.

  • Leaking seals leading to hydraulic fluid loss and pressure drop.

  • Bearing failure causing noise and reduced efficiency.

• Hydraulic System Issues
  • Contaminated or low hydraulic fluid affecting pump and motor performance.

  • Faulty hydraulic pump delivering inadequate pressure.

  • Control valve sticking or malfunctioning, disrupting fluid flow.

• Track and Undercarriage Problems
  • Improper track tension causing slipping or binding.

  • Worn sprockets, rollers, or track links leading to uneven movement.

  • Debris accumulation causing mechanical resistance.

• Electrical and Control System Faults
  • Defective travel pedals or sensors causing erratic response.

  • Wiring issues resulting in intermittent control signals.

  • Faulty travel controller modules.

• Operator Error
  • Incorrect operation of travel controls or overloading.

  • Ignoring machine warm-up or maintenance protocols.


• Check hydraulic fluid level and condition; change fluid and filters if contaminated.

• Inspect travel motors and final drives for leaks, noise, and overheating.

• Test hydraulic pump output pressure and flow.

• Examine travel control valves for proper function.

• Adjust track tension to manufacturer specifications.

• Inspect undercarriage components for wear or damage.

• Use diagnostic tools to read error codes and sensor data.

• Verify travel pedal operation and wiring integrity.


• Replace worn travel motors or final drive assemblies as needed.

• Seal hydraulic leaks promptly to maintain pressure.

• Flush and replace hydraulic fluid regularly to avoid contamination.

• Repair or replace malfunctioning control valves.

• Maintain correct track tension and clean undercarriage frequently.

• Check and repair electrical components including sensors and wiring.

• Train operators on proper travel control usage and preventive maintenance.


• Travel issues on the Kobelco SK130LC often stem from hydraulic motor or final drive problems, hydraulic system faults, undercarriage wear, electrical/control system defects, or operator error.

• Diagnosing travel troubles requires fluid checks, component inspections, control testing, and electronic diagnostics.

• Repairs focus on seal replacement, hydraulic fluid maintenance, control valve servicing, track adjustment, and electrical system repair.

• Real-world cases emphasize the importance of a holistic maintenance approach.

• Proper operator training and preventive maintenance extend machine life and reduce costly downtime.


Caterpillar’s track loaders have been indispensable machines on construction sites, mines, and heavy industry for decades. Among these, the CAT 951 and CAT 955 stand out as iconic models that shaped the evolution of tracked loaders. This article thoroughly explores the key differences between the CAT 951 and CAT 955, detailing their technical specifications, design improvements, operational characteristics, and historical context. It also provides relevant terminology explanations, industry anecdotes, and practical insights for users and collectors alike.
Key Terminology

• Track Loader: A heavy machine combining the features of a bulldozer and a loader, running on tracks for enhanced traction.

• Operating Weight: The total weight of the machine ready for operation, including fluids and attachments.

• Bucket Capacity: The volume of material the loader bucket can carry.

• Horsepower (HP): Engine power rating.

• Hydraulic System: Network of pumps and cylinders controlling the boom and bucket movements.

• Swing Frame: The pivoting frame allowing loader arms to move up and down.

• Transmission: System transferring engine power to the tracks.

• Undercarriage: The tracked system supporting and moving the machine.


• Engine and Power
  • CAT 951: Equipped with a diesel engine producing approximately 130-140 HP.

  • CAT 955: Upgraded engine offering around 150-160 HP, providing better performance and fuel efficiency.

• Operating Weight
  • CAT 951: Weighs approximately 32,000 lbs.

  • CAT 955: Slightly heavier at about 36,000 lbs, contributing to increased stability.

• Bucket Capacity
  • CAT 951: Standard bucket capacity ranges from 2.5 to 3 cubic yards.

  • CAT 955: Larger bucket options up to 3.5 cubic yards, improving productivity.

• Hydraulic and Control Systems
  • CAT 951: Basic hydraulic controls with mechanical linkages.

  • CAT 955: Improved hydraulic system with better control sensitivity and reliability.

• Undercarriage and Tracks
  • CAT 951: Standard track design suitable for most terrains.

  • CAT 955: Reinforced undercarriage components for durability in tougher environments.

• Operator Comfort
  • CAT 951: More basic cab design with minimal ergonomics.

  • CAT 955: Enhanced operator station with improved visibility, seating, and control layout.


• CAT 955 is an improved successor to the CAT 951 with more power, larger bucket capacity, and enhanced hydraulic controls.

• The 955 offers better operator comfort and machine stability due to increased weight and refined design.

• Both models have proven reliability but differ in performance, efficiency, and maintenance convenience.

• Real-world experience highlights the 955’s operational advantages in demanding environments.

• The evolution from 951 to 955 reflects Caterpillar’s response to industry needs and technological progress.




In 2005, Hurricane Katrina unleashed devastation on New Orleans unlike anything seen before. The levees—crucial flood defense walls designed to keep water from inundating the city—failed in multiple places, flooding vast areas and causing tragic loss of life and property. The aftermath revealed systemic flaws in design, construction, maintenance, and governance of this vital infrastructure. Since then, a monumental and ongoing levee rebuilding effort has sought to restore and surpass prior flood protection standards. This article explores the causes of failure, the technical and political challenges faced, the engineering innovations introduced, and the ongoing importance of resilient levee systems for New Orleans and flood-prone regions worldwide.

Historical Context: The Levees Before Katrina

• New Orleans is built largely below sea level on soft deltaic soils formed by the Mississippi River over centuries.

• Its original levee system was constructed over 200 years ago, initially as low earthen embankments to protect farmland and settlements from flooding.

• Over time, the system expanded in a piecemeal fashion with additions, patches, and upgrades by multiple agencies without a single unified plan.

• The system included earthen levees, concrete floodwalls, canal walls, and pumping stations—each component designed with different standards and overseen by varied local, state, and federal agencies.

• This fragmented system left the city vulnerable to high water events, and some flood defenses were known to be under-designed for the increasingly severe storm surge risks posed by climate change and subsidence.


• Overtopping: Surge waters from Katrina exceeded levee heights in many locations, washing away tops of earthen levees and causing breaches.

• Structural Failures of Floodwalls: Some concrete I-walls (vertical floodwalls with a thin “I” shape cross-section) failed catastrophically due to soil instability beneath them, causing them to collapse inward.

• Internal Erosion (Piping): Water seeped beneath levees through porous foundation soils, washing away fine particles and weakening the structure until failure occurred.

• Inadequate Foundations: Many levees and walls were built on weak, compressible soils, and design models underestimated these geotechnical risks.

• System Fragmentation: Disjointed responsibility between the Army Corps of Engineers, local levee boards, and other agencies led to inconsistent maintenance and inspection protocols.


• Use of Sheet Piling: Steel sheet piles driven deep into the ground are now widely used beneath levees and floodwalls to create impermeable barriers against seepage.

• Seepage Control Measures: Construction of cutoff walls, slurry walls, and relief wells to reduce internal erosion risks.

• Levee Raising and Strengthening: Many levees have been raised several feet above the historical levels to accommodate higher predicted storm surges and future sea level rise.

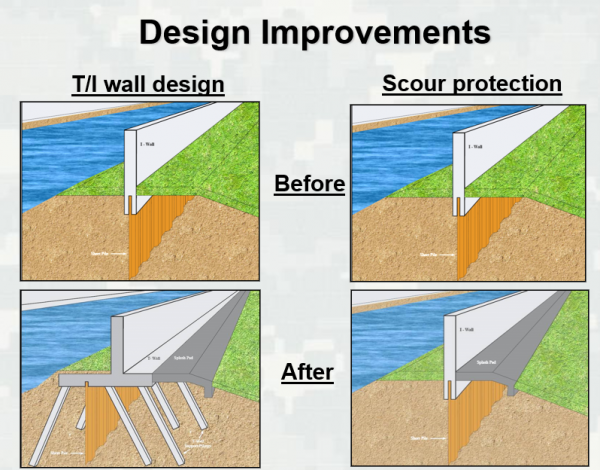

• Redesign of Floodwalls: Transition from thin I-walls to T-walls and other more robust designs with better soil-structure interaction.

• Hydraulic Modeling Improvements: Use of advanced computer models to simulate surge impacts, overtopping scenarios, and wave action for design validation.

• Integrated Flood Control Systems: Incorporation of pumping stations, surge barriers (like the IHNC Surge Barrier), and floodgates to control water flow dynamically.


• Coordination between the U.S. Army Corps of Engineers, state and local levee boards, FEMA, and community stakeholders.

• Billions of dollars allocated via federal emergency funds, grants, and infrastructure bills.

• Public scrutiny and debates on priorities, maintenance responsibility, and transparency.

• Emphasis on community education about flood risks and evacuation preparedness.


• Levee: An embankment constructed to prevent the overflow of a river or the sea.

• Floodwall: A vertical barrier, often concrete, designed to hold back floodwaters.

• I-wall: A type of floodwall with an I-shaped cross-section, prone to instability if soil conditions degrade.

• Sheet Piling: Steel sections driven vertically into the ground to form a barrier against water seepage.

• Piping: Internal erosion caused by water flow through soil, creating underground channels that weaken structures.

• Cutoff Wall: An underground barrier installed to block water seepage beneath levees or floodwalls.


• During Katrina, residents in neighborhoods like the Lower Ninth Ward witnessed levee breaches turn streets into rivers. One family’s desperate climb onto their roof while waiting for rescue encapsulates the human toll of structural failure.

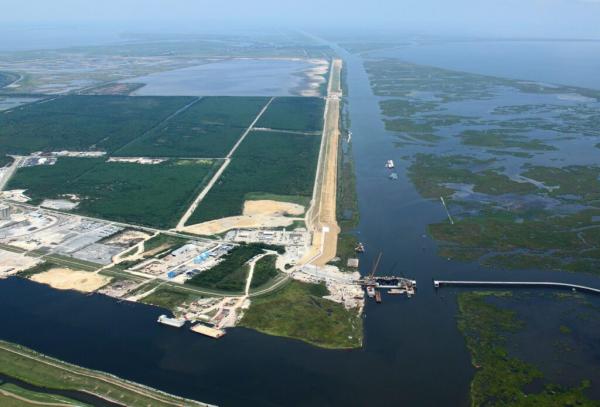

• The IHNC Surge Barrier, completed post-Katrina, is one of the largest surge barriers in the world, able to close off canals to protect the city during storms—a testament to engineering ingenuity born from disaster.

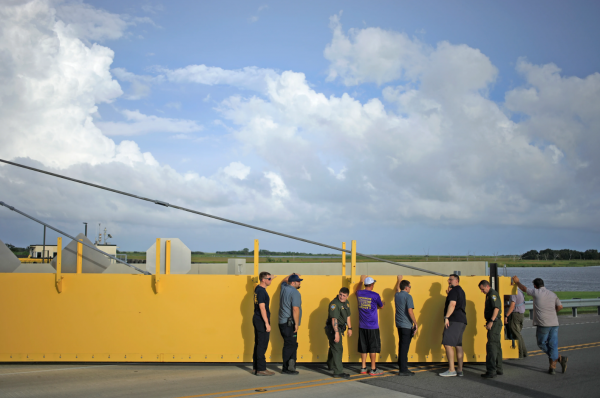

• Ongoing maintenance remains a community effort, with citizen watch groups participating in inspections and emergency drills.


• Rising sea levels and increasing hurricane intensity due to climate change mean New Orleans’ levee system must continue evolving.

• Adaptive management strategies, including natural wetlands restoration and flexible barrier systems, complement hard infrastructure.

• Investments in smart sensors and real-time monitoring allow faster detection of seepage or structural issues, enhancing response times.


• Deep sheet piling for seepage prevention

• Higher, stronger levees and floodwalls

• Replacement of vulnerable I-walls with robust designs

• Advanced hydraulic modeling for design accuracy

• Integrated pumping and surge barrier systems

• Improved governance and public engagement

• Emphasis on adaptive and climate-resilient design
