The Volvo A45G is a powerful articulated hauler designed to handle heavy loads in challenging terrains. However, like any complex piece of machinery, it is not immune to issues. Brake problems are among the most critical and urgent maintenance concerns for operators, as they directly affect the safety and performance of the equipment. Understanding the potential causes of brake issues and how to address them is essential for ensuring the long-term reliability of the A45G.
Common Causes of Brake Issues on the Volvo A45G
Brake issues on the A45G can arise from a variety of sources. The braking system is complex, involving both mechanical and hydraulic components that work together to bring the hauler to a stop safely. Below are some of the most common causes of brake problems:
1. Air in the Brake System

• Symptom: Soft or spongy brake pedal feel, reduced braking efficiency, and increased stopping distance.

• Cause: Air trapped in the brake system can result in inconsistent brake pressure. This typically occurs when there is a leak in the brake lines or when the system is not properly bled.

• Solution: Bleed the brake system to remove air. Inspect the brake lines for any visible leaks or damage, and replace any faulty components. If the problem persists, check the brake master cylinder for potential issues.


• Symptom: Grinding noise when applying the brakes, reduced stopping power, or a pulsing brake pedal.

• Cause: Brake pads or shoes wear down over time due to friction. When they become too thin, they can no longer provide sufficient braking force.

• Solution: Regularly inspect the brake pads or shoes for wear. Replace them if they are below the manufacturer’s recommended thickness. It is also important to replace the brake discs or drums if they show signs of significant wear or damage.


• Symptom: A noticeable decrease in braking power or brake fluid pooling under the vehicle.

• Cause: Leaks in the brake lines, master cylinder, or brake calipers can result in a loss of brake fluid, leading to insufficient hydraulic pressure in the braking system.

• Solution: Inspect the entire brake system for leaks. Start by checking the brake lines and hydraulic components for any signs of fluid leakage. Tighten loose connections or replace damaged parts as needed. Be sure to top up the brake fluid to the recommended level.


• Symptom: Soft brake pedal feel, reduced braking performance, or brake system overheating.

• Cause: Contaminants such as dirt, water, or other foreign particles can enter the brake fluid, compromising its effectiveness and causing the braking system to malfunction.

• Solution: Drain and replace the contaminated brake fluid. Use the recommended brake fluid type specified by Volvo for the A45G. Also, inspect the fluid reservoir and brake lines for any signs of contamination and clean them if necessary.


• Symptom: Difficulty in applying brakes, increased effort required to stop the vehicle.

• Cause: The brake booster uses air pressure to assist in braking. A malfunctioning booster can result in the need for excessive force to engage the brakes.

• Solution: Test the brake booster to ensure it is functioning correctly. If the booster is faulty, it may need to be replaced. Check for any vacuum leaks or damage to the booster components.


• Conduct regular inspections of the brake system, including the pads, shoes, fluid levels, and hoses. Early detection of wear or damage can prevent costly repairs down the line.


• Replace brake pads, shoes, and other components at regular intervals according to the manufacturer’s recommendations. Don't wait for parts to become excessively worn before replacing them.


• Regularly check the brake fluid for contamination and ensure it is at the proper level. Replace the fluid at the intervals recommended by Volvo to maintain the performance of the braking system.


• Keep an eye on how the brakes perform during operation. Any unusual noises, vibrations, or changes in pedal feel should be addressed immediately to prevent more serious problems.


• Clean the brake components, including the calipers, master cylinder, and hoses, to prevent the buildup of dirt and debris that could cause contamination and damage to the system.


Introduction
The New Holland LB75B backhoe loader, equipped with a 4-cylinder turbocharged diesel engine, relies on precise injector pump timing to ensure optimal engine performance. Injector timing influences fuel combustion, power output, and emissions. Incorrect timing can lead to hard starting, rough idling, excessive smoke, or engine knocking. This guide provides a detailed overview of injector pump timing procedures, common challenges, and practical solutions for the LB75B model.
Understanding Injector Pump Timing
Injector pump timing refers to the precise moment when fuel is injected into the combustion chamber relative to the piston’s position. In diesel engines, this timing is critical for efficient combustion. Typically, the injection occurs just before the piston reaches top dead center (TDC) during the compression stroke. For the LB75B, the Bosch VE-type rotary injection pump is commonly used.
Common Symptoms of Incorrect Timing
Operators may notice several indicators of improper injector pump timing:

• Hard Starting: Difficulty in starting the engine, especially when cold.

• Rough Idling: Engine runs unevenly at idle speeds.

• Excessive Smoke: Black or white smoke from the exhaust, indicating incomplete combustion.

• Engine Knocking: Unusual knocking noises during operation.

• Poor Acceleration: Lack of responsiveness when increasing throttle.


1. Preparation
   • Tools Required:
     • Dial indicator with magnetic base

     • Injection pump timing tool or alignment pin

     • Torque wrench

     • Service manual specific to LB75B

   • Safety Precautions:
     • Ensure the engine is cool before starting work.

     • Disconnect the battery to prevent accidental cranking.

     • Wear appropriate personal protective equipment (PPE).

2. Aligning the Engine
   • Rotate the engine manually using the crankshaft pulley bolt until the timing marks align.

   • For LB75B, the flywheel should have timing marks visible through an inspection port.

   • If marks are not visible, consult the service manual for alternative alignment methods.

3. Setting the Injector Pump
   • Install the injection pump timing tool or alignment pin into the pump.

   • Align the tool according to the specifications in the service manual.

   • Secure the injection pump mounting bolts without tightening them fully.

4. Adjusting the Pump Timing
   • Loosen the injection pump mounting bolts slightly to allow rotation.

   • Rotate the pump to achieve the specified timing.

   • Use a dial indicator to measure the plunger travel and set it to the recommended value.

   • Tighten the mounting bolts to the specified torque.

5. Verification
   • Recheck the timing to ensure it remains within specifications.

   • Reinstall any components removed during the procedure.

   • Reconnect the battery and start the engine to verify proper operation.


• Absence of Timing Marks: In some cases, timing marks may not be visible. In such situations, refer to the service manual for alternative alignment methods.

• Incorrect Alignment Tool: Using an incorrect alignment tool can lead to improper timing. Ensure the tool is compatible with the LB75B model.

• Pump Wear: Over time, the injection pump may wear, affecting timing accuracy. Regular maintenance and timely replacement of the pump can prevent this issue.


• Regular Inspection: Periodically check the injector pump timing to ensure it remains within specifications.

• Fuel Quality: Use high-quality diesel fuel to prevent injector clogging and pump wear.

• Routine Maintenance: Follow the manufacturer's recommended maintenance schedule for the LB75B.


The John Deere 410G backhoe loader is a robust piece of equipment, widely used in construction, landscaping, and other industries for its versatility and reliable performance. However, like any heavy machinery, it is not immune to mechanical issues, and hydraulic leaks are among the most common problems encountered by owners and operators. Understanding how to troubleshoot and fix these leaks is crucial for maintaining the machine’s efficiency and extending its lifespan.
Common Causes of Hydraulic Leaks
Hydraulic leaks on the John Deere 410G can stem from several sources, and identifying the root cause is essential to fixing the issue correctly. Below are some of the most common causes:
1. Damaged Hydraulic Hoses

• Symptom: Fluid dripping from the hoses, particularly near connection points or along the length of the hose.

• Cause: Over time, hydraulic hoses can degrade due to exposure to harsh environmental conditions, abrasion, or improper handling. Cracks or pinholes can develop, leading to leaks.

• Solution: Inspect the hoses thoroughly for any visible damage. If damage is found, replace the hose. Always use hoses that are designed for the specific pressure and temperature ratings required by the hydraulic system.


• Symptom: Slow or uneven movement of the hydraulic arms, accompanied by fluid leakage around the seals.

• Cause: Hydraulic seals prevent fluid from leaking out of the system. If these seals become worn or damaged, they can allow fluid to escape, leading to performance issues and leaks.

• Solution: If a seal is compromised, it must be replaced. Ensure that the correct seals are used for the John Deere 410G, as improper seals can lead to further issues.


• Symptom: A consistent leak at the point where hydraulic lines connect to valves, cylinders, or pumps.

• Cause: Over time, hydraulic connections can become loose due to vibration or improper tightening during maintenance. This can cause fluid to leak out from the connection point.

• Solution: Tighten any loose connections, but be cautious not to overtighten, as this can cause damage to threads or fittings. Check all connections regularly as part of routine maintenance.


• Symptom: Fluid leaking from the cylinder body, often near the piston or seals.

• Cause: Hydraulic cylinders are critical components of the John Deere 410G’s hydraulic system, and they can wear out over time. Damage to the piston, seals, or barrel can cause fluid to leak.

• Solution: Inspect the hydraulic cylinders for visible damage or wear. If leakage is detected, the cylinder may need to be rebuilt or replaced.


• Symptom: Excessive heat, foaming, or discoloration of the hydraulic fluid.

• Cause: Contaminants such as dirt, water, or other foreign particles can enter the hydraulic system, leading to leaks, poor performance, and possible damage to internal components.

• Solution: Regularly inspect the hydraulic fluid for signs of contamination. If the fluid is contaminated, replace it and ensure the system is flushed to remove any debris. Install filters if not already in place to prevent future contamination.


• Inspect hoses, connections, and fittings during routine maintenance checks. Look for signs of wear, abrasions, or loose connections.


• Worn seals can lead to leaks and loss of hydraulic pressure. Keep an eye on the performance of your hydraulic system and replace seals at the first sign of wear.


• Always use the manufacturer-recommended hydraulic fluid for your John Deere 410G. High-quality fluid helps prevent contamination and ensures smooth operation of the hydraulic components.


• Regularly check the hydraulic fluid levels to ensure that the system is properly lubricated and pressurized. Low fluid levels can cause overheating and internal damage.


• Regularly clean hydraulic components, including the pump, valves, and cylinders. This reduces the risk of dirt and debris entering the system and causing contamination.


Introduction
The Case 580C CK backhoe loader, a cornerstone in construction and agricultural machinery, has earned its reputation for durability and versatility. Manufactured between 1968 and 1978, this model was designed to handle a myriad of tasks, from digging trenches to lifting heavy loads. However, like all machinery, it is susceptible to wear and tear, especially as it ages. Understanding common issues and their solutions can extend the life of this robust machine.
Engine and Fuel System Troubles
A prevalent issue among the 580C CK is engine performance problems, often manifesting as rough idling or stalling. These symptoms can be attributed to fuel contamination or injector clogging. Over time, sediment and water can accumulate in the fuel system, leading to injector nozzle blockages. This disrupts the fuel spray pattern, causing inefficient combustion.
Case Study: Fuel Contamination
An operator reported that their 580C CK would run for a few minutes before stalling. After cleaning the fuel filter and blowing out the lines, the problem persisted. Upon further inspection, it was discovered that the injectors were clogged due to accumulated debris and water in the fuel system. Cleaning or replacing the injectors resolved the issue, restoring normal engine operation.
Hydraulic System Challenges
The hydraulic system is another area where the 580C CK may experience issues. Operators have reported that when attempting to operate multiple levers simultaneously, only one function works, indicating insufficient hydraulic pressure. Additionally, some have noted that lifting the backhoe at idle speed should cause the engine to stall or nearly stall; if no change in RPM is observed, it suggests a problem with the hydraulic system's performance.
Case Study: Hydraulic Pressure Issues
An operator experienced difficulty operating multiple hydraulic functions at once. Despite the hydraulic pressure gauge reading 2000 psi, the system lacked the power to perform multiple tasks simultaneously. This issue was traced back to a faulty relief valve setting in the hydraulic pump, which was not allowing adequate pressure buildup. Adjusting the relief valve setting restored proper hydraulic function.
Transmission and Clutch Concerns
Transmission issues in the 580C CK often present as difficulty in shifting gears or unexpected stalling. These problems can arise from low transmission fluid levels, contaminated fluid, or worn clutch components. Regular maintenance and timely fluid changes are crucial to prevent such issues.
Case Study: Transmission Fluid Contamination
A 580C CK owner reported that the machine would stall unexpectedly during operation. Upon inspection, it was found that the transmission fluid was contaminated with debris and had lost its lubricating properties. Draining the old fluid, replacing the filter, and refilling with fresh, clean fluid resolved the stalling issue and improved shifting performance.
Electrical and Instrumentation Problems
Electrical issues, such as malfunctioning instrument panels, are not uncommon in older 580C CK models. Corroded connections or faulty wiring can lead to inaccurate readings or complete failure of the instrument cluster. Regular inspection and cleaning of electrical connections can help prevent these problems.
Case Study: Instrument Panel Malfunction
An operator noticed that the instrument panel on their 580C CK was displaying erratic readings. After removing the panel, they discovered several corroded connections and frayed wires. Cleaning the connections and repairing the wiring restored proper function to the instrument panel.
Preventive Maintenance Tips
To ensure the longevity and optimal performance of the Case 580C CK backhoe loader, consider the following preventive maintenance practices:

• Regularly inspect and replace fuel filters to prevent contamination and ensure proper fuel flow.

• Monitor hydraulic fluid levels and quality, and replace the fluid as recommended by the manufacturer.

• Check transmission fluid levels and condition, and replace as necessary to maintain smooth shifting.

• Inspect electrical connections and wiring for signs of wear or corrosion, and address issues promptly.

• Perform routine lubrication of moving parts to reduce wear and prevent mechanical failures.


The Grove TM-9120 is a powerful 120-ton capacity truck-mounted crane, designed for heavy lifting and versatile operations. As a key piece of equipment in construction, industrial, and infrastructure projects, the TM-9120 combines strong lifting capabilities with mobility, making it ideal for a variety of applications ranging from construction site work to emergency response operations. This article covers the key features of the Grove TM-9120, common issues, maintenance tips, and best practices for optimizing its performance.
Overview of the Grove TM-9120 120-Ton Crane
The Grove TM-9120 is a robust, versatile crane known for its ability to handle heavy loads in demanding environments. With its compact truck-mounted design, it offers a significant advantage in terms of mobility, allowing it to be easily transported to job sites and set up quickly.
Key Specifications:

• Lifting Capacity: 120 tons (240,000 lbs)

• Boom Length: Up to 45.7 meters (150 feet), which allows for flexible lifting at various heights.

• Engine: Powered by a diesel engine, providing the necessary power for both lifting and mobility.

• Transmission: Equipped with a reliable transmission system designed to provide smooth power transfer and easy handling.

• Axles: Four-axle configuration for added stability, essential for handling heavy loads.

• Hydraulic System: A highly efficient hydraulic system that powers the boom, winches, and other crane operations.

• Outrigger System: Provides stability and prevents tipping during operations, ensuring safe load lifting.


• Symptom: Slow or unresponsive boom movement, jerky operation, or leaks.

• Potential Causes:
  • Low hydraulic fluid levels.

  • Contaminated hydraulic fluid.

  • Worn hydraulic seals or valves.

• Solution: Ensure that hydraulic fluid levels are regularly checked and maintained within the manufacturer’s specifications. It’s important to replace the hydraulic fluid at regular intervals and to clean or replace hydraulic filters when necessary. Inspect the hydraulic lines for leaks and check the seals and valves for any signs of wear.


• Symptom: Reduced engine power, difficulty starting, or the engine stalling.

• Potential Causes:
  • Clogged air or fuel filters.

  • Fuel system problems, including a clogged fuel pump or injectors.

  • Issues with the exhaust system.

• Solution: Regularly inspect and replace the air and fuel filters. If the engine continues to perform poorly, check the fuel system for blockages or failures. Also, ensure that the exhaust system is free of restrictions, as this can negatively affect engine performance.


• Symptom: Hard shifting, delayed engagement, or difficulty controlling speed.

• Potential Causes:
  • Low transmission fluid levels.

  • Worn-out clutch or gear components.

  • Problems with the transmission sensors or linkage.

• Solution: Regularly inspect the transmission fluid levels and replace the fluid when necessary. If the issue persists, inspect the clutch and gear components for wear and replace them as needed. Also, ensure that the transmission sensors and linkage are functioning correctly.


• Symptom: Faulty control panel, unresponsive controls, or loss of power to critical systems.

• Potential Causes:
  • Loose or corroded wiring connections.

  • Fuses or relays malfunctioning.

  • Battery or alternator failure.

• Solution: Perform routine inspections of the electrical wiring and connections, looking for signs of corrosion or loose connections. Replace faulty fuses or relays and check the condition of the battery and alternator to ensure they are working properly.


• Symptom: Unusual vibrations, instability, or visible cracks in the boom or undercarriage.

• Potential Causes:
  • Overloading the crane beyond its rated capacity.

  • Wear and tear from extended usage or harsh working conditions.

  • Lack of proper maintenance and lubrication of moving parts.

• Solution: Always operate the crane within its specified load limits. Perform routine checks of the structural components, particularly the boom and undercarriage, for cracks, corrosion, or signs of wear. Regularly lubricate moving parts and inspect the boom and rigging for any structural issues.


• Engine Oil: Change engine oil regularly to ensure that the engine is properly lubricated and to prevent excessive wear. Check the oil level frequently, especially before extended use.

• Hydraulic Fluid: Hydraulic fluid is the lifeblood of a crane’s operation. Regularly check fluid levels and look for signs of contamination. Clean or replace filters as needed.

• Transmission Fluid: Ensure that the transmission fluid is at the proper level and replace it according to the manufacturer’s recommended intervals.


• The boom and rigging are subject to stress and wear with heavy lifting. Regularly inspect the boom for cracks, corrosion, and deformation. Check the rigging and ensure that all cables, pulleys, and winches are functioning properly.


• The outriggers provide stability when the crane is in operation. Inspect them for damage, and ensure they deploy and retract correctly. Ensure that the outriggers are fully extended and locked in place before operating.


• Inspect wiring and connectors for signs of corrosion, wear, or loose connections. Clean and tighten all connections to ensure proper electrical flow. Regularly check the condition of the battery and alternator.


• Inspect tires for wear and tear, checking for proper inflation and damage to sidewalls. Check the undercarriage for damage or signs of wear, particularly when the crane operates in rough or uneven terrain.


• Never exceed the rated lifting capacity of the crane. Overloading can lead to structural damage, hydraulic failure, or engine strain. Always use the crane’s load chart to determine the maximum capacity for a given lift height and radius.


• Using the appropriate lifting attachments for the job is crucial. For example, use spreader bars, lifting beams, or other accessories designed for specific lifting tasks to increase safety and efficiency.


• Ensure that the crane’s load sensors, hydraulic systems, and control panels are properly calibrated. This ensures that the crane’s lifting capabilities are accurately monitored and that the system functions correctly.


• Proper planning of each lift can significantly reduce operational strain on the crane. This includes assessing the weight, center of gravity, and load distribution before performing a lift. Work with a spotter or ground crew to ensure safe operation.


• Extreme temperatures, high winds, and poor visibility can all affect crane performance. Always monitor environmental conditions and adjust operations accordingly to avoid unnecessary strain on the crane and reduce the risk of accidents.


Introduction
Delco Remy alternators are widely used in heavy-duty applications, including construction and agricultural machinery. However, like all mechanical and electrical systems, they are prone to issues that can disrupt operations. Understanding the common problems and diagnostic procedures can help technicians efficiently identify and resolve charging system failures.
Common Symptoms of Charging System Failures
Operators and technicians often observe the following symptoms when a Delco Remy charging system fails:

• Squealing Noises: Indicates potential issues with the alternator belt or bearings.

• Dim or Flickering Lights: Suggests inadequate voltage output from the alternator.

• Dashboard Voltmeter Fluctuations: Erratic readings can point to voltage regulator or rectifier problems.

• Repeated Headlight Burnouts: Caused by unstable voltage supply.

• Battery Drain: Continuous power draw even when the engine is off, often due to faulty diodes.


1. Visual Inspection
   • Belt Condition: Check for glazing, cracking, or excessive wear.

   • Pulley Alignment: Ensure pulleys are properly aligned and free from damage.

   • Electrical Connections: Inspect cables and terminals for corrosion, chafing, and proper torque.

2. Battery Assessment
   • Physical Inspection: Look for signs of damage, leaks, or loose terminals.

   • State of Charge: Ensure batteries are at least 80% charged before testing.

   • Testing Methods:
     • Automated Tester: Follow on-screen prompts.

     • Carbon Pile Test:
       • Adjust to half the Cold Cranking Amps (CCA) rating.

       • Apply load for 15 seconds.

       • Measure voltage drop and compare with temperature-specific standards.

3. Voltage Measurement
   • At Battery Terminals: With engine running, voltage should be ≥13.8V.

   • At Alternator B+ Terminal: If voltage is between 12.6V and 13.7V, consider alternator replacement.

   • Voltage Drop Test: Perform to identify potential wiring issues.

4. Alternator Output Test
   • Automated Tester: Use for a comprehensive assessment.

   • Manual Testing: Measure output voltage and current to ensure they meet specifications.

5. Rectifier Bridge Inspection
   • Disassembly: Remove the alternator's rectifier bridge.

   • Diode Testing:
     • Use an analog multimeter or self-powered test light.

     • Test each diode for directional current flow.

     • A faulty diode may allow current in both directions, leading to battery drain.


• Faulty Diodes: Lead to parasitic battery drain.

• Worn Brushes: Cause inconsistent voltage output.

• Failed Voltage Regulators: Result in overcharging or undercharging.

• Loose or Corroded Connections: Impair electrical flow.

• Incorrect Wiring: Especially at the field terminal, can prevent alternator excitation.


• Regular Inspections: Check belts, pulleys, and electrical connections periodically.

• Battery Maintenance: Keep terminals clean and ensure proper charge levels.

• Proper Wiring: Verify correct excitation voltage at the field terminal.

• Use Quality Components: Opt for OEM or high-quality aftermarket parts.


The John Deere 670B motor grader is a versatile and powerful piece of construction equipment, designed to handle a range of heavy-duty grading and earth-moving tasks. Whether you're working in road construction, mining, or landscaping, the 670B is built to provide precision and reliability. However, like any complex piece of machinery, it requires regular maintenance and sometimes troubleshooting to ensure its longevity and optimal performance.
This guide will provide you with a comprehensive overview of common issues, troubleshooting tips, maintenance best practices, and performance optimization for the John Deere 670B motor grader.
Overview of the John Deere 670B Motor Grader
The John Deere 670B is part of the 670 series of motor graders from Deere, designed to provide excellent performance in both rough and fine grading applications. Some of the key specifications of the 670B include:

• Engine Power: The 670B is equipped with a powerful 6-cylinder engine that delivers ample horsepower for various grading and earth-moving tasks.

• Blade Length: The grader features a standard 14-foot blade, offering excellent control and stability during operations.

• Hydraulic System: The hydraulic system is engineered to provide efficient power transmission for the blade, steering, and other systems.

• Articulating Frame: The 670B is equipped with an articulating frame, enhancing maneuverability in tight spaces and improving the overall stability of the machine.


• Symptom: If the hydraulic system fails to operate properly, the grader may experience slow or unresponsive blade movement, difficulty in lifting or lowering the blade, or a lack of power in steering.

• Potential Causes:
  • Low hydraulic fluid levels.

  • Clogged filters.

  • Hydraulic pump or valve failure.

• Solution: Check fluid levels regularly and replace the hydraulic fluid as recommended by the manufacturer. Inspect the filters for blockages, and clean or replace them if necessary. If the issue persists, you may need to inspect the hydraulic pump and valves for damage and replace any faulty components.


• Symptom: The grader may exhibit sluggish engine performance, lack of power, or difficulty starting.

• Potential Causes:
  • Fuel system issues, such as clogged filters or a faulty fuel pump.

  • Air intake or exhaust system blockages.

  • Worn engine components such as spark plugs or injectors.

• Solution: Start by inspecting the fuel system, including filters and lines, for blockages. Ensure that the fuel pump is functioning properly. Inspect the air intake and exhaust systems for any restrictions, and clean or replace filters as needed. If the engine continues to perform poorly, a deeper inspection of the engine components may be required.


• Symptom: Difficulty in shifting gears, delayed engagement, or the grader failing to move properly.

• Potential Causes:
  • Low or contaminated transmission fluid.

  • Worn-out clutch or gear components.

  • Faulty shift linkage or transmission sensors.

• Solution: Regularly check the transmission fluid levels and condition, replacing the fluid and filter as necessary. If the problem persists, inspect the clutch and gear components for wear. It may be necessary to replace these parts to restore proper transmission function.


• Symptom: Flickering lights, electrical malfunctions, or a non-functioning control panel.

• Potential Causes:
  • Battery failure or poor charging system performance.

  • Loose or corroded electrical connections.

  • Faulty wiring or fuses.

• Solution: Test the battery to ensure it is charging properly and replace it if necessary. Inspect all electrical connections, paying close attention to signs of corrosion. Clean the connections and replace any damaged wiring or fuses. If the electrical issues persist, check the alternator and voltage regulator to ensure they are operating correctly.


• Symptom: Unresponsive or stiff steering, difficulty in articulating the frame, or abnormal handling.

• Potential Causes:
  • Low steering fluid levels.

  • Hydraulic system issues.

  • Damaged steering linkage or frame components.

• Solution: Ensure that the steering system is properly lubricated and the fluid levels are adequate. Inspect the hydraulic system for leaks or damaged components. If the issue persists, check the steering linkage and frame for any signs of damage or wear, and replace parts as needed.


• Regularly check the levels of engine oil, hydraulic fluid, and transmission fluid.

• Follow the manufacturer's recommended intervals for fluid changes to keep the systems running smoothly and prevent premature wear.


• Replace air, fuel, and hydraulic filters at the recommended intervals to maintain system efficiency and prevent contamination.

• Clogged filters can lead to decreased performance and even system failures.


• Ensure that all moving parts, such as joints, bearings, and hydraulic components, are properly lubricated.

• Use high-quality grease to minimize friction and reduce wear on these components.


• Inspect the tires or tracks regularly for signs of wear, cracks, or damage.

• Properly inflate tires to the correct pressure to ensure proper traction and prevent uneven wear.


• Check the radiator and cooling system for leaks, corrosion, or blockages.

• Flush and replace coolant as recommended to prevent overheating and engine damage.


• Regularly inspect the grader blade and frame for damage, wear, or misalignment.

• Adjust the blade and ensure that all components are securely fastened to avoid operational issues.


• Use the grader’s blade tilt and angle adjustments to achieve precise grading results. Fine-tuning these adjustments based on the terrain can help ensure a smooth and level surface.

• Consider adding a laser leveling system for more accurate grading, particularly in applications requiring high precision.


• Regular maintenance of the fuel system and engine will ensure that the 670B operates at optimal fuel efficiency.

• Avoid overworking the grader and allow the engine to operate at its recommended RPM levels to reduce fuel consumption.


• Avoid overloading the grader, as this can put unnecessary strain on the engine and hydraulic system.

• Distribute the load evenly across the grader to ensure balanced performance and minimize the risk of damage to the frame or transmission.


The CAT 953 Track Loader is an essential piece of machinery in construction and heavy equipment operations, known for its strength, reliability, and performance. However, like any complex machine, it can experience electrical issues over time, one of which is the alternator failure. The alternator is a crucial component of the electrical system, responsible for charging the battery and powering various electrical systems within the loader.
This article will guide you through the process of troubleshooting, removing, and replacing the alternator on the CAT 953, while discussing common symptoms of alternator failure and offering valuable tips for maintenance.
Importance of the Alternator in Heavy Equipment
The alternator in the CAT 953 Track Loader plays a key role in maintaining electrical power during operation. Its primary functions include:

1. Battery Charging: The alternator ensures the battery remains charged, even when the loader is running, by converting mechanical energy from the engine into electrical energy.

2. Powering Electrical Systems: In addition to charging the battery, the alternator powers the electrical systems in the loader, such as the lights, control panels, and other vital systems.

3. Preventing Battery Drain: A functioning alternator prevents the battery from draining while operating the loader, which is essential for the loader’s continuous use during long hours on the job.


1. Battery Warning Light: One of the first indicators of alternator issues is the battery warning light appearing on the control panel. This light often indicates that the alternator is not charging the battery properly.

2. Dim or Flickering Lights: If the electrical system is not receiving adequate power, lights and other electrical components may appear dim or flicker.

3. Slow Engine Cranking: A failing alternator can result in the battery losing its charge, leading to slow engine cranking when starting the loader.

4. Dead Battery: A completely dead battery that cannot hold a charge, even after charging, can be a sign that the alternator is not charging it properly.

5. Unusual Noise: A grinding or whining noise coming from the alternator area could indicate a bearing issue or another mechanical problem within the alternator.


• Wrenches and Socket Set: For removing bolts and nuts.

• Ratchet and Extensions: To reach hard-to-access fasteners.

• Torque Wrench: For proper reinstallation torque.

• Alternator Replacement: Ensure you have the correct replacement alternator that matches the specifications of the CAT 953.

• Battery Terminals Tool: For disconnecting and reconnecting battery cables safely.

• Safety Gear: Gloves and safety glasses to protect yourself during the procedure.


• Begin by parking the loader on a flat surface and engaging the parking brake.

• Disconnect the negative terminal of the battery to prevent accidental electrical short-circuits. Always disconnect the negative terminal first to avoid any accidental sparks.


• The alternator is typically located on the engine, near the front of the engine block, and is driven by a belt. On the CAT 953, the alternator is accessible from the side of the loader, but in some cases, other components may need to be removed for better access.

• Identify the alternator, noting its position relative to the engine belt and wiring.


• Before removing the alternator, the drive belt that powers the alternator must be loosened. Use a wrench or socket to loosen the tensioner pulley or the mounting bolts securing the belt. Carefully slide the belt off the alternator pulley and set it aside.

• If the belt appears worn or damaged, it’s a good idea to replace it at the same time as the alternator.


• The alternator will have electrical wiring connected to it, typically including a large positive wire and a smaller exciter wire. Carefully remove these connections using a wrench or socket.

• It’s important to remember the correct order of disconnection and reconnection for safety and proper installation.


• The alternator will be secured to the engine with several bolts. Use the appropriate wrench or socket to remove the mounting bolts. Depending on your specific machine configuration, you may need a ratchet extension to reach the bolts.

• Gently remove the alternator from its mounting position once the bolts are removed. It may require some slight wiggling to release it from the bracket.


• Place the new alternator into the mounting bracket, ensuring it aligns with the mounting holes. Reinstall the mounting bolts and tighten them securely using a torque wrench to ensure proper fitment.

• Reconnect the electrical wiring to the new alternator, starting with the large positive wire and then the exciter wire.


• With the alternator securely mounted, reinstall the drive belt over the alternator pulley. Use the tensioner pulley to adjust the belt tension and ensure that the belt is properly aligned and tight.


• Reconnect the negative terminal of the battery, ensuring the connection is secure.

• Perform a quick visual inspection to ensure that all tools have been removed from the engine area and that all components are properly reassembled.


• Start the engine and check the battery warning light on the control panel. If the alternator is functioning correctly, the warning light should turn off. You should also notice that the lights and electrical components in the loader are brighter and functioning properly.

• Test the system by operating the loader briefly to ensure the alternator is charging the battery.


1. Worn Brushes: The brushes inside the alternator can wear down over time, leading to poor charging performance. If this happens, the alternator may need to be replaced or refurbished.

2. Failed Diodes: Diodes are responsible for converting AC (alternating current) to DC (direct current) in the alternator. A failure of the diodes can cause the alternator to produce an inconsistent or unreliable charge.

3. Overcharging: In some cases, the voltage regulator within the alternator may fail, leading to overcharging of the battery. This can damage the battery and other electrical components.

4. Loose Wiring: Loose or corroded wiring connections can cause a drop in charging performance. Always check for clean and tight connections when working with the alternator.


1. Regular Inspections: Periodically check the alternator for signs of wear, such as loose connections, worn belts, or signs of overheating.

2. Clean Electrical Contacts: Regularly clean the battery terminals and alternator connections to prevent corrosion from building up.

3. Monitor Battery Health: Keep an eye on your battery’s performance. A failing battery can sometimes put excessive strain on the alternator, reducing its lifespan.

4. Check Belt Tension: Ensure the drive belt is properly tensioned and free from damage, as a loose or worn belt can cause the alternator to function improperly.




Removing injectors from a Caterpillar 3406B engine is a critical procedure that requires precision and the right tools to ensure optimal engine performance. This guide provides a detailed, step-by-step approach to safely and effectively remove the injectors, incorporating industry best practices, real-world insights, and practical tips.

1. Preparation and Safety Measures
Before commencing the injector removal process, it's essential to prepare adequately and prioritize safety:

• Gather Necessary Tools: Ensure you have the following tools at hand:
  • Socket wrench set with appropriate sockets

  • Injector puller tool (e.g., Caterpillar 10110 Nozzle Puller)

  • Torque wrench

  • Clean rags

  • Safety goggles and gloves

• Ensure Engine Coolness: Verify that the engine is cool to the touch to prevent burns or other injuries.

• Disconnect the Battery: Always disconnect the negative terminal of the battery to eliminate any electrical hazards.

• Park in a Safe Location: Park the vehicle in a well-ventilated area and engage the parking brake to prevent any unintended movement.

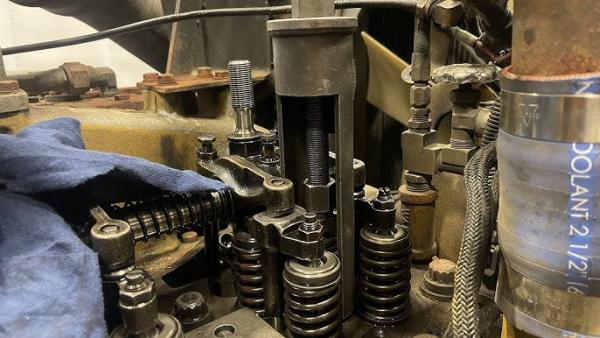

• Remove Valve Covers: Carefully remove the valve covers to expose the injectors. If the engine is equipped with Jake brakes, these will need to be removed first.

• Remove Fuel Lines: Using the appropriate wrench, disconnect the fuel lines from each injector. It's advisable to use a special 3/4-inch line wrench to prevent damage to the fuel lines and fittings.

• Remove Retaining Nuts or Bolts: Loosen and remove the retaining nuts or bolts securing each injector to the cylinder head. Keep track of these fasteners for reinstallation.

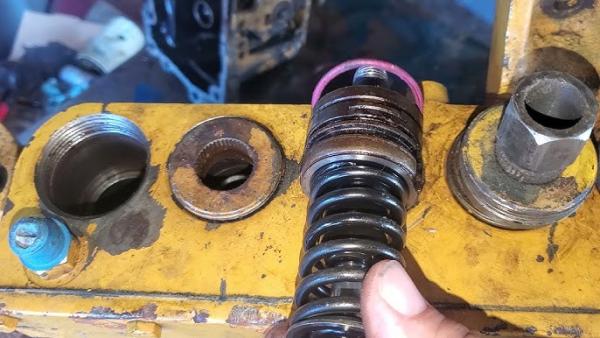

• Use an Injector Puller Tool: Attach a suitable injector puller tool to the injector body. Apply steady and even pressure to gradually pull the injector upward, detaching it from the cylinder head.

• Alternative Methods: In the absence of a dedicated puller tool, some technicians have successfully used homemade slide hammers with a 1/4-inch NPT pipe and cap to extract stubborn injectors.

• Inspect for Seals: Ensure that the compression seal washer and carbon dam seal come out with the injector. Leaving these seals behind can cause improper seating of the new injector, leading to performance issues.


• Clean Injector Bores: Thoroughly clean the injector bores in the cylinder head to remove any carbon deposits or debris. This ensures proper seating of the new injectors.

• Inspect for Damage: Check the removed injectors for signs of wear or damage. If any injector is found to be faulty, replace it with a new or remanufactured unit.


• Install New Seals: Place new compression seal washers and carbon dam seals onto the injectors.

• Apply Anti-Seize Compound: Apply a small amount of anti-seize compound to the threads of the injector adapters to facilitate future removal.

• Insert Injectors: Carefully insert the injectors into their respective bores in the cylinder head.

• Secure with Retaining Nuts or Bolts: Reinstall and tighten the retaining nuts or bolts to the manufacturer's specified torque settings.

• Reconnect Fuel Lines: Reconnect the fuel lines to the injectors and tighten them securely.

• Reinstall Valve Covers: Replace the valve covers and tighten them to the specified torque settings.


• Reconnect Battery: Reconnect the negative terminal of the battery.

• Check for Leaks: Start the engine and check for any fuel leaks around the injectors.

• Monitor Engine Performance: Observe the engine's performance to ensure smooth operation and verify that the injector replacement has resolved any previous issues.


The CAT 931B Skid Steer is a reliable and durable piece of heavy equipment, commonly used for digging, lifting, and other earth-moving tasks. However, like any machine, the starter motor can eventually fail, causing difficulty in starting the engine. If you're experiencing problems with your CAT 931B and suspect the starter motor is the culprit, this guide will walk you through the process of removing and replacing it.
This article covers everything you need to know about starter motor removal for the CAT 931B, from understanding the symptoms of a faulty starter to step-by-step instructions, tools required, and helpful tips for installation.
Symptoms of a Faulty Starter on the CAT 931B
Before diving into the removal process, it's important to confirm that the starter motor is indeed the source of the problem. Some common symptoms of a faulty starter motor include:

1. Clicking Sound: When you turn the key or press the starter button, you hear a clicking noise but the engine does not turn over.

2. No Response: The engine does not respond at all when you attempt to start the machine, and there’s no sound from the starter motor.

3. Intermittent Starting: The starter motor works intermittently, and sometimes the engine starts fine while other times it doesn't start at all.

4. Slow Cranking: The engine cranks very slowly and struggles to start, which could indicate a problem with the starter motor or its components.


• Wrenches and Socket Set: For removing bolts and nuts.

• Ratchet and Extension: To reach hard-to-access bolts.

• Screwdrivers: To remove smaller components and electrical connections.

• Wire Brush: For cleaning electrical terminals and contacts.

• Torque Wrench: To reassemble the starter motor with the correct torque settings.

• New Starter Motor: If you're replacing the old one.

• Safety Gear: Gloves and safety glasses for protection.


1. Safety First
   • Before starting any work, ensure the skid steer is parked on a level surface and the engine is turned off. Disconnect the negative terminal of the battery to avoid electrical shorts or accidental starting of the engine.

   • Wear appropriate safety gear, including gloves and safety glasses, to protect yourself from any debris or sharp parts.

2. Locate the Starter Motor
   • The starter motor on the CAT 931B is typically located on the lower part of the engine, near the flywheel housing. It’s mounted on the engine block and secured with bolts.

   • Depending on the machine's configuration, it may be necessary to remove other components to gain clear access to the starter motor, such as air filters or hydraulic lines. Take care not to damage any parts during the disassembly.

3. Disconnect the Electrical Wiring
   • Begin by removing the electrical connections from the starter motor. Typically, there will be two connections: a large wire from the battery (positive terminal) and a smaller wire that activates the starter solenoid.

   • Use a wrench or socket to carefully disconnect these wires. If corrosion is present on the terminals, use a wire brush to clean the connections before removing them to avoid damage.

4. Remove the Starter Motor Mounting Bolts
   • The starter motor is typically secured with two or three bolts. Using a wrench or socket set, carefully remove the bolts that secure the starter motor to the engine block.

   • If the bolts are difficult to access, use a ratchet extension to reach the fasteners. In some cases, you may need to remove or move other components (such as air hoses or covers) to create enough space.

5. Remove the Starter Motor
   • Once the bolts are removed, carefully slide the starter motor away from the engine block. It may require some wiggling or slight prying to free it from its position.

   • Be cautious during this process to avoid damaging the surrounding components. If the starter motor is stuck, gently tap it with a soft hammer to loosen it.

6. Inspect the Starter Motor and Components
   • After removing the starter motor, inspect it for signs of wear, such as burnt or corroded parts. Pay close attention to the solenoid, which is the component responsible for engaging the starter motor when you turn the key.

   • If you find any damaged parts, it's best to replace the starter motor entirely rather than attempt repairs.


1. Position the New Starter
   • Position the new starter motor in place, ensuring it aligns correctly with the engine block and mounting holes.

   • If needed, replace any gaskets or seals that may have been disturbed during the removal process.

2. Secure the Starter Motor
   • Install the mounting bolts and torque them to the manufacturer’s recommended specification. Make sure the starter motor is securely fastened to the engine block.

   • Use a torque wrench to tighten the bolts to the correct torque to avoid over-tightening or under-tightening.

3. Reconnect the Electrical Wires
   • Reconnect the electrical connections to the starter motor. Start by attaching the large wire from the battery to the positive terminal on the starter.

   • Next, reconnect the small wire that activates the starter solenoid. Ensure the connections are tight and clean to ensure optimal performance.

4. Test the New Starter Motor
   • Reconnect the negative terminal of the battery and attempt to start the machine. The engine should crank and start smoothly.

   • If the engine does not start, double-check all electrical connections to ensure there are no loose wires or faulty connections.


• Corroded Electrical Connections: Over time, the electrical terminals can corrode, leading to poor connections. Always inspect and clean the terminals before reinstalling the starter motor.

• Sticking Solenoid: If the starter motor still doesn’t engage after replacement, the solenoid may be stuck or faulty. This is a common issue, particularly in older machines.

• Starter Motor Failure: If your machine experiences frequent starter motor failures, it could be a sign of a larger electrical or mechanical issue, such as a faulty alternator or weak battery.
