In the world of heavy equipment and machinery, the efficiency and safety of hydraulic systems are paramount. One of the most significant innovations in this domain is the OilQuick system, which offers a quick and reliable way to connect and disconnect hydraulic attachments on construction machinery, like excavators and skid steer loaders. The system has rapidly gained popularity due to its time-saving benefits, improved safety, and ease of use.
What is OilQuick?
OilQuick is a fully automatic quick coupling system designed for fast, safe, and efficient hydraulic connections between machines and attachments. The system eliminates the need for manual connections, which traditionally involved getting out of the cab, physically connecting hoses, and ensuring there were no leaks. With OilQuick, the operator can stay inside the machine, operate the system from the cab, and complete the hydraulic connection within seconds.
This automated system uses a hydraulic coupling process to connect the attachments to the machine's hydraulic system. The core components of the system include a quick coupler and a hydraulic locking mechanism. The system ensures that the hydraulic hoses are safely connected, which reduces the risk of accidents and enhances operational efficiency.
Benefits of the OilQuick System

1. Time Efficiency:
   One of the main advantages of the OilQuick system is the time saved when changing attachments. In traditional setups, operators would need to manually connect and disconnect hydraulic hoses, a process that could take several minutes. With OilQuick, the same task takes only a few seconds, allowing for faster switching between attachments and increasing productivity on job sites.

2. Enhanced Safety:
   Manual coupling of hydraulic lines can be dangerous, especially when workers have to handle high-pressure hoses. OilQuick's design eliminates the need for manual connection, reducing the risk of accidents caused by pressure release, oil spills, or improper hose handling. This system also minimizes the need for workers to be around dangerous machinery during coupling, contributing to overall site safety.

3. No Spillage or Leaks:
   Traditional hydraulic couplers often result in oil spills and leaks, especially if not properly connected or disconnected. The OilQuick system ensures that oil is contained within the system during coupling and uncoupling, thus preventing contamination of the job site. The system’s sealed hydraulic couplers make it highly effective in avoiding oil spills, which is both environmentally friendly and cost-efficient.

4. Reduced Downtime:
   With OilQuick, downtime is minimized because the system is designed for fast attachment changes. Machines can quickly be reconfigured to perform different tasks without waiting for manual coupling or disconnecting. Whether it's a bucket, hammer, or grapple, operators can make swift transitions, ensuring that projects stay on schedule.

5. Increased Machine Versatility:
   Since the OilQuick system allows for the quick and efficient switching of attachments, machines become far more versatile. Operators can move seamlessly between tasks without needing to wait for hydraulic connections, thus expanding the range of work that can be accomplished with a single machine. Whether it’s digging, lifting, or demolition, OilQuick enhances machine capabilities.


1. Automatic Coupling: The operator moves the machine’s hydraulic circuit toward the attachment's hydraulic coupler. When activated, the OilQuick system automatically locks the hydraulic hoses into place, ensuring a secure connection.

2. Quick Release: When the operator wants to detach the attachment, the system automatically releases the hydraulic hoses without the need to manually loosen or tighten any connections. The hydraulic locking mechanism disengages, and the attachment can be swiftly detached and replaced with another.

3. Hydraulic Pressure Control: One of the key features of the OilQuick system is its ability to handle hydraulic pressure during connection and disconnection. The system maintains constant pressure regulation, preventing pressure spikes that could damage the hoses or equipment.

4. Sealed System: The hydraulic connections are fully sealed during the coupling process, meaning there are no leaks or spills, even under high-pressure conditions. This is particularly important for ensuring that the worksite remains safe and clean.


1. Excavators: OilQuick is highly popular with excavator operators, as it enables quick switching between attachments like buckets, breakers, grapples, and augers. Excavators working on tight schedules and in varying conditions can benefit significantly from the reduced downtime and increased flexibility that OilQuick offers.

2. Skid Steer Loaders: Skid steers equipped with the OilQuick system can switch between different attachments such as forks, sweepers, or trenchers. This versatility improves the efficiency of the machine on various projects, from landscaping to material handling.

3. Backhoe Loaders: Operators of backhoe loaders, particularly those involved in urban infrastructure projects or road repairs, often use OilQuick to change attachments quickly. The system makes it easier to move between digging and lifting tasks without any significant delays.

4. Demolition and Recycling: In demolition and recycling tasks, rapid attachment changes are crucial. OilQuick facilitates the use of a wide range of hydraulic attachments, including shears, crushers, and compactors, thus improving the overall efficiency of demolition and material handling operations.


• Regular Inspection: The hydraulic connections and seals should be regularly inspected for wear and tear. Any signs of leakage or damage should be addressed immediately to prevent operational disruptions.

• Lubrication: Keeping the coupling components lubricated ensures smooth operation and prevents excessive wear. Regular lubrication should be done according to the manufacturer’s guidelines.

• Hydraulic Fluid Quality: The quality of hydraulic fluid used in the system is crucial. Contaminants in the fluid can affect the performance of the OilQuick system, leading to issues like leaks or poor coupling performance. Operators should ensure that the hydraulic fluid is regularly checked and replaced as needed.

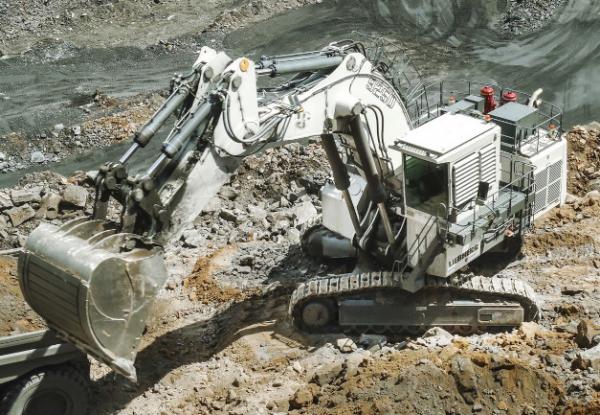

The Liebherr R 9250 stands as a formidable force in the realm of heavy mining equipment. Designed to tackle the most demanding excavation tasks, this machine has been a cornerstone in large-scale mining operations worldwide.
Impressive Specifications

• Engine Power: The R 9250 is equipped with a Cummins QSK45 engine, delivering 960 kW (1,287 hp) at 1,800 rpm. This 12-cylinder turbocharged V-engine ensures the excavator can handle the rigorous demands of mining environments.

• Operating Weight: With a backhoe attachment, the R 9250 weighs approximately 250,000 kg (551,150 lbs), while the face shovel configuration increases this to about 253,500 kg (558,870 lbs).

• Bucket Capacity: The excavator's bucket capacity ranges from 13.00 to 17.00 m³ (17.0 to 22.2 yd³), making it suitable for loading large mining trucks efficiently.

• Tear-Out Force: The R 9250 boasts a maximum tear-out force of 780 kN (175,351 lbf), facilitating the extraction of tough materials.

• Swing Torque: Its swing torque reaches up to 1,600 kNm, allowing for swift and powerful movements.


The Volvo BL70 is a versatile backhoe loader designed to handle a variety of construction and agricultural tasks. Known for its robust build, powerful engine, and user-friendly features, it has become a staple for contractors and operators seeking a reliable piece of machinery for digging, lifting, and material handling. This article takes a deep dive into the features, performance, and common issues related to the Volvo BL70, while offering practical advice and solutions for users.
Key Features of the Volvo BL70
The Volvo BL70 combines the power of a loader and an excavator into a single machine, making it ideal for projects that require both lifting and digging capabilities. Below are some of the standout features that make this model popular among heavy equipment operators.
Engine and Power
The Volvo BL70 is powered by a turbocharged diesel engine, typically delivering around 70 horsepower. This engine offers a balanced mix of fuel efficiency and power, allowing the machine to perform well in various applications, including digging, lifting, and material transport. With an advanced cooling system, the engine maintains optimal performance even during long operating hours.
Transmission and Drivetrain
The BL70 features a hydrostatic transmission that allows for smooth and efficient control of both the loader and the backhoe. This system enables quick response times, making it suitable for tasks that require precision and quick adjustments. The 4WD drivetrain ensures superior traction in tough terrain, enabling the operator to maintain control even in wet, muddy, or uneven ground conditions.
Loader and Backhoe Performance
One of the Volvo BL70’s key strengths is its powerful loader and backhoe performance. The loader arm offers strong lifting capabilities, while the backhoe is equipped with a high-performance digging system. The backhoe has an extended reach, allowing for deeper excavations and better maneuverability in tight spaces.
Loader specifications:

• Maximum lift height: 3.5 meters (11.5 feet)

• Maximum lifting capacity: 2,300 kg (5,070 lbs)


• Maximum digging depth: 5.9 meters (19.4 feet)

• Bucket capacity: 0.3 to 1 cubic meter (depending on attachment)


1. Daily Inspections: Before using the machine, always check for obvious issues such as leaks, loose components, or worn-out tires. Regularly check fluid levels, including engine oil, hydraulic fluid, and coolant.

2. Lubrication: Keep the machine well-lubricated to reduce friction and wear on moving parts. Pay special attention to the loader and backhoe joints, as these areas are heavily used during operation.

3. Filter Changes: Changing the engine oil filter, air filter, and fuel filter at the intervals recommended by Volvo will help maintain engine performance and prevent breakdowns.

4. Hydraulic System Care: Inspect hoses for damage and check for leaks regularly. Change the hydraulic fluid and filters as per the maintenance schedule to keep the hydraulic system working efficiently.

5. Tire Maintenance: Check tire pressure and condition frequently. Properly inflated tires ensure better traction and prolong tire life.


The John Deere 544H wheel loader is a robust machine widely used in construction and material handling. However, operators have occasionally reported issues with the throttle pedal sticking, leading to inconsistent engine speeds and potential safety concerns. Understanding the causes and solutions for this problem is crucial for maintaining optimal machine performance.
Understanding the Throttle Pedal Mechanism
The throttle pedal in the 544H controls the engine's speed by adjusting the throttle linkage connected to the fuel injection pump. This linkage is typically composed of rods, springs, and pivots that transmit the pedal's movement to the engine's throttle valve. A sticking pedal can result from various factors affecting this system.
Common Causes of Throttle Pedal Sticking

1. Dirt and Debris Accumulation
   Over time, dirt, dust, and debris can accumulate around the pedal assembly and linkage, leading to friction and hindering smooth movement. Regular cleaning can help prevent this issue.

2. Worn or Damaged Components
   Components such as springs, bushings, and pivot points can wear out or become damaged, causing misalignment or binding. Inspecting and replacing worn parts is essential for proper function.

3. Corrosion
   Exposure to moisture and harsh environments can lead to rust and corrosion on metal parts, increasing friction and causing sticking. Applying anti-corrosion treatments can mitigate this risk.

4. Improper Lubrication
   Insufficient or inappropriate lubrication can cause parts to seize or move erratically. Using the correct lubricants and applying them to the right areas ensures smooth operation.


1. Visual Inspection
   Begin by visually inspecting the throttle pedal and surrounding area for any visible signs of damage, wear, or obstruction.

2. Check for Obstructions
   Ensure that there are no objects or debris obstructing the pedal's movement or the linkage components.

3. Test Pedal Movement
   Manually move the pedal through its full range of motion to identify any resistance points or sticking.

4. Inspect Linkage Components
   Examine the throttle linkage for signs of wear, corrosion, or damage. Check for proper alignment and secure connections.


1. Cleaning
   Regularly clean the pedal assembly and linkage components to remove dirt and debris. Use compressed air or a brush to clean hard-to-reach areas.

2. Lubrication
   Apply the appropriate lubricant to all moving parts, including pivots and bushings. Ensure that the lubricant is compatible with the materials and operating conditions.

3. Component Replacement
   Replace any worn or damaged components promptly. Use OEM parts to ensure compatibility and maintain the integrity of the system.

4. Corrosion Protection
   Apply anti-corrosion treatments to metal parts exposed to moisture or harsh environments. Regularly inspect for signs of corrosion and address them promptly.


• Regular Inspections
  Conduct routine inspections of the throttle pedal and linkage components to identify potential issues before they become major problems.

• Proper Storage
  Store the machine in a clean, dry environment to minimize exposure to moisture and contaminants that can cause corrosion and wear.

• Operator Training
  Train operators to recognize signs of throttle pedal issues and encourage prompt reporting and maintenance.


The John Deere 510 backhoe loader, a robust machine renowned for its versatility and reliability, is equipped with a complex hydraulic system that powers various attachments and functions. Understanding the routing and maintenance of its hydraulic hoses is crucial for ensuring optimal performance and longevity of the equipment.
Hydraulic System Overview
The hydraulic system of the John Deere 510 operates on a closed-center design, utilizing a radial piston pump to deliver hydraulic fluid under pressure to various components. This system is designed to provide consistent power to the loader and backhoe functions, including lifting, digging, and tilting operations.
Key Hydraulic Hoses and Their Functions

1. Loader Lift and Tilt Cylinders (Bore Ends):
   • Function: These hoses connect the loader's lift and tilt cylinders to the hydraulic system, enabling the lifting and tilting movements of the loader arm.

   • Specifications: Typically, these hoses are rated for high-pressure operations, often up to 5500 psi, and are constructed with abrasion-resistant covers to withstand harsh working conditions.

   • Maintenance Tip: Regularly inspect these hoses for signs of wear, leaks, or abrasions, especially in areas where they are in constant motion.

2. Loader Bucket Tilt Cylinders (Rod Ends):
   • Function: These hoses facilitate the tilting of the loader bucket, allowing for precise dumping and scooping actions.

   • Specifications: Similar to the lift and tilt hoses, these are high-pressure hoses designed to handle the dynamic forces during operation.

   • Maintenance Tip: Check for any hydraulic fluid leaks around the rod ends, as this can indicate seal wear or hose damage.

3. Boom to Stick Flexible Line:
   • Function: This flexible hose connects the boom to the stick, transmitting hydraulic fluid to the cylinders that control the backhoe's digging and extending actions.

   • Maintenance Challenge: Replacing this hose can be challenging due to its location inside the boom. Operators have reported difficulties accessing the hose without disassembling significant portions of the boom structure.

   • Maintenance Tip: If replacement is necessary, consider extending the backhoe to its maximum reach to create more space for accessing the hose connections.


• Hydraulic Leaks: Leaks can occur at hose connections, fittings, or along the hose itself. Common causes include worn seals, loose fittings, or hose abrasion.
  • Solution: Regularly inspect all hose connections for tightness and signs of leaks. Replace any damaged hoses promptly to prevent further system contamination or pressure loss.

• Reduced Hydraulic Performance: If the loader or backhoe functions exhibit reduced power or responsiveness, it may indicate issues within the hydraulic system.
  • Solution: Check for air in the hydraulic fluid, low fluid levels, or clogged filters. Bleeding the system and replacing filters can often restore performance.


• Use OEM Parts: Whenever possible, use Original Equipment Manufacturer (OEM) parts for replacements to ensure compatibility and maintain the integrity of the hydraulic system.

• Proper Installation: Ensure that all hoses are routed correctly, avoiding sharp bends or contact with hot surfaces, which can lead to premature wear.

• Regular Inspections: Implement a routine inspection schedule to check for signs of wear, leaks, or damage. Early detection can prevent costly repairs and downtime.


When it comes to choosing a heavy-duty agricultural tractor, the Bell 4206 and the Case STX530 are two standout options in the market. Both machines offer robust performance and are built to handle demanding tasks, but they come with their own set of features, strengths, and weaknesses. This article will provide an in-depth comparison of the Bell 4206 and Case STX530, breaking down their specifications, performance, and suitability for various tasks.
Bell 4206: A Versatile Workhorse
The Bell 4206 is part of Bell Equipment’s lineup of four-wheel drive tractors, known for their powerful engines and high versatility. This model is specifically designed for heavy-duty applications such as fieldwork, hauling, and construction.
Key Features of the Bell 4206

1. Engine and Power
   • The Bell 4206 is equipped with a turbocharged engine that delivers impressive horsepower, typically in the range of 200 to 250 HP, depending on the model and configuration.

   • This engine provides ample power for demanding tasks such as towing and operating large attachments.

2. Transmission and Drivetrain
   • The Bell 4206 comes with a fully automatic transmission system, offering a smooth, efficient operation.

   • The 4WD drivetrain ensures excellent traction on rough terrain, making it a good choice for farm work and construction sites.

3. Comfort and Ergonomics
   • The operator’s cabin is designed for comfort with easy-to-use controls and a clear, wide view of the work area.

   • The suspension system reduces operator fatigue, especially during long hours of operation.

4. Hydraulic System
   • The Bell 4206 is known for its powerful hydraulic system, which can be used to operate a variety of attachments, including plows, mowers, and seeders.


1. Engine and Power
   • The Case STX530 is powered by a Cummins QSX15 engine, delivering approximately 530 horsepower. This powerful engine makes it capable of handling large tillage implements and pulling heavy loads.

   • It’s perfect for jobs that demand high horsepower, such as deep ripping or large-scale planting.

2. Transmission and Drivetrain
   • The STX530 features the well-known Case IH PowerShift transmission system. This transmission allows for seamless shifting between gears and helps maintain optimum engine performance under load.

   • The 4WD system ensures superior traction in slippery or uneven conditions, making the STX530 ideal for both farming and construction environments.

3. Cab and Control System
   • The Case STX530’s cabin is built with operator comfort in mind, featuring advanced controls, a user-friendly dashboard, and climate control to ensure a productive environment, even in harsh conditions.

   • The precision steering and ergonomic layout of the controls allow the operator to make minute adjustments with ease, contributing to overall job efficiency.

4. Hydraulic System
   • The hydraulic system in the STX530 is designed for high-flow, allowing for the operation of large attachments, such as air seeders and planters, with ease.

   • The tractor is capable of lifting significant weight, and its hydraulic capabilities make it ideal for working with high-demand implements.


• Engine Power:
  • Bell 4206: 200 - 250 HP

  • Case STX530: 530 HP

• Transmission:
  • Bell 4206: Automatic 4WD

  • Case STX530: PowerShift Transmission with 4WD

• Hydraulic Capacity:
  • Bell 4206: Strong hydraulic system, good for medium tasks

  • Case STX530: High-flow hydraulics, designed for heavy-duty implements

• Cab Comfort:
  • Bell 4206: Comfortable with good visibility

  • Case STX530: Advanced cabin with climate control

• Performance:
  • Bell 4206: Ideal for versatile, medium-scale tasks

  • Case STX530: Perfect for heavy-duty, large-scale operations

• Price Range:
  • Bell 4206: Lower cost compared to larger models

  • Case STX530: Premium price, but excellent for high-performance tasks


• Bell 4206: If you’re looking for a versatile, budget-friendly option for medium-scale agricultural or construction tasks, the Bell 4206 offers great value. Its lower power output and automatic transmission make it ideal for tasks such as hauling, light to medium tillage, and general fieldwork. Its efficient hydraulic system is perfect for a variety of attachments and implements, making it a well-rounded machine for diverse tasks.

• Case STX530: If your operations require more power for larger, high-demand jobs like deep tillage or heavy hauling, the Case STX530 is the better choice. Its higher horsepower, advanced transmission, and superior hydraulic capacity make it a perfect match for larger agricultural tasks that demand both precision and power. This tractor is best suited for large-scale farming operations where the need for heavy-duty equipment is constant.


The Caterpillar 963C is a powerful track loader that is widely used in construction, agriculture, and heavy-duty operations. Known for its robust build and impressive versatility, the 963C is engineered to handle tough tasks. However, like all heavy machinery, it is not immune to mechanical issues. One of the common problems experienced by owners and operators is drive-related issues. These issues can stem from a variety of sources, ranging from simple hydraulic malfunctions to more complex mechanical failures.
In this article, we will explore the potential causes of drive problems in the Caterpillar 963C and provide solutions, advice, and tips to diagnose and fix these issues. We will discuss common symptoms, identify the likely causes, and offer practical solutions to get your machine back in operation.
Common Symptoms of Drive Problems in Caterpillar 963C
When experiencing drive issues with the Caterpillar 963C, it’s essential to understand the common symptoms that can indicate a problem. Recognizing these early on can help you prevent further damage and minimize downtime.

1. Loss of Power or Reduced Speed
   • Symptoms: The loader struggles to move at full speed, or there is a noticeable loss of power when driving. It may move slowly, even when the throttle is pushed fully.

   • Possible Causes: This can be a sign of issues with the transmission, hydraulic system, or the drive motors.

2. Uneven Movement
   • Symptoms: The 963C moves in an uneven or jerky manner, with one side of the machine moving faster than the other, or it drifts to one side even when the controls are neutral.

   • Possible Causes: This could be due to faulty hydraulic pumps, uneven wear on the tracks, or issues with the drive motors.

3. Strange Noises
   • Symptoms: Unusual sounds such as whining, grinding, or clunking noises coming from the drive system.

   • Possible Causes: Damaged bearings, worn-out drive sprockets, or a failing hydraulic pump could be the culprits.

4. Hydraulic System Failure
   • Symptoms: The loader’s hydraulic system may fail to respond or operate at full capacity, especially during digging or lifting tasks.

   • Possible Causes: Low hydraulic fluid levels, dirty filters, or hydraulic pump failure can cause sluggish or unresponsive hydraulic performance.

5. Hydraulic Leaks
   • Symptoms: Oil leaking from hydraulic lines, pumps, or cylinders can also indicate a failure in the drive system.

   • Possible Causes: Cracked or loose hydraulic lines, damaged seals, or faulty pumps.


• Description: The 963C uses hydraulic pumps to transmit power to the drive motors. If the pumps malfunction or lose efficiency, the result can be sluggish or unresponsive movement.

• Symptoms: Slow response, loss of power, or difficulty moving the machine.

• Solution: Inspect the hydraulic pumps for signs of wear or damage. Check for low pressure or inconsistent flow. If the pumps are faulty, they should be replaced or repaired.


• Description: Contaminated hydraulic fluid can cause a range of problems, from reduced power to total hydraulic failure.

• Symptoms: Poor hydraulic response, noise in the hydraulic system, or difficulty in moving.

• Solution: Check the fluid for contamination, which could be dirt, water, or air. If contamination is present, replace the hydraulic fluid and flush the system thoroughly. Ensure that the filters are replaced and that the hydraulic system is kept clean to prevent further issues.


• Description: The 963C uses hydraulic drive motors to transfer power to the tracks. If the motors wear out or become damaged, it can lead to uneven movement or loss of power.

• Symptoms: Uneven movement, jerky operation, or slow movement.

• Solution: Inspect the drive motors for wear and tear. If the motors are faulty, they may need to be rebuilt or replaced.


• Description: Issues with the transmission, such as low fluid levels or internal wear, can lead to power loss and poor driving performance.

• Symptoms: Sluggish movement, loss of gears, or failure to change gears.

• Solution: Check the transmission fluid level and condition. If the fluid is dirty or low, top it up with the correct type of oil. If the transmission is still not functioning properly, it may require internal repairs or replacement of parts like the clutch packs.


• Description: Over time, the tracks and sprockets of the 963C can wear out, leading to uneven movement or difficulty in turning.

• Symptoms: Slipping tracks, poor traction, or uneven movement.

• Solution: Inspect the tracks and sprockets for wear. If the tracks are stretched, worn, or damaged, they should be replaced. Check the sprockets for damage as well, as they can cause further issues if they are not in good condition.


• Description: Worn or damaged bearings or bushings in the drive system can cause noise, irregular movement, and additional wear on other parts.

• Symptoms: Grinding or whining noises, jerky movement, or vibrations.

• Solution: Inspect the bearings and bushings in the drive system for wear or damage. Replace any parts that are showing signs of failure.


• Description: Issues with the electrical control system, including the drive motors' electrical connections, can cause erratic behavior.

• Symptoms: Sudden loss of power, electrical fault codes, or failure to respond to controls.

• Solution: Inspect the wiring and electrical components for damage or loose connections. Check for any fault codes in the system and use diagnostic tools to identify the exact issue. Repair any faulty electrical connections or components as needed.


1. Visual Inspection
   • Start with a thorough visual inspection of the machine’s hydraulic system, including hoses, pumps, and drive motors. Look for any signs of leaks, cracks, or damage.

2. Check Hydraulic Fluid Levels
   • Ensure the hydraulic fluid is at the correct level and that it is clean and free of contamination. Contaminated or low hydraulic fluid can cause a host of problems.

3. Test the Hydraulic System
   • If the machine’s response is sluggish or jerky, test the hydraulic system's pressure and flow. A drop in pressure or inconsistency in flow could indicate a problem with the hydraulic pump or motor.

4. Monitor the Tracks and Sprockets
   • Check the condition of the tracks and sprockets. Worn or damaged tracks can cause uneven movement and poor traction.

5. Use Diagnostic Tools
   • Utilize the machine’s diagnostic system to check for any electrical faults or error codes. This can help identify issues with the electrical or control systems.

6. Perform a Pressure Test
   • If hydraulic pressure is low, perform a pressure test to determine whether the hydraulic pump, valve, or motor is malfunctioning.

7. Consult the Service Manual
   • Always refer to the machine’s service manual for specific troubleshooting steps and repair procedures. The manual will provide detailed instructions on how to properly address each issue.


Hydraulic oil contamination is a critical issue in heavy machinery, particularly in Caterpillar D5G dozers. This problem can lead to reduced performance, increased wear, and potential system failures. Understanding the causes, symptoms, and solutions is essential for maintaining the efficiency and longevity of these machines.
Causes of Hydraulic Oil Contamination

1. Engine Oil Leaks: One of the primary sources of hydraulic oil contamination is engine oil leaks. In the D5G model, a failing engine oil cooler or a cracked gasket can allow engine oil to enter the hydraulic system. This contamination typically results in a dark and opaque appearance of the hydraulic fluid. Regular inspection of the engine oil cooler and associated seals is crucial to prevent this issue.

2. Environmental Factors: Operating in dusty or wet conditions can introduce contaminants like dirt, water, and debris into the hydraulic system. Even with closed hydraulic tanks, improper maintenance procedures or equipment wear can lead to contamination. For instance, broken filters or worn-out seals can allow external particles to enter the system. Additionally, using outdated or inappropriate oil can degrade the fluid's quality, leading to chemical contamination.

3. Internal Wear: As hydraulic components such as pumps, valves, and cylinders wear out, they can release metal particles into the fluid. These particles can cause further wear and potentially lead to system blockages. Regular monitoring and maintenance of these components are essential to minimize internal contamination.


• Erratic System Behavior: Contaminated oil can cause unpredictable movements or delayed responses in hydraulic functions.

• Increased Operating Temperatures: Contaminants can increase friction within the system, leading to higher temperatures and potential overheating.

• Unusual Noises: The presence of debris can cause grinding or whining noises during operation.

• Visible Fluid Changes: Contaminated oil often appears darker or milky, indicating the presence of foreign substances.


• Regular Inspections: Frequent checks of the engine oil cooler, seals, and hydraulic filters can help detect potential issues before they lead to contamination.

• Proper Maintenance Practices: Ensuring that all maintenance procedures are conducted in clean environments and with clean tools can prevent the introduction of contaminants.

• Use of Quality Fluids: Always use the recommended hydraulic oils and avoid mixing different types, as this can lead to chemical reactions and degradation of the fluid.

• Sealing and Filtration: Maintaining the integrity of seals and using high-quality filters can prevent the ingress of external contaminants.


One of the more perplexing issues that can arise with a Massey Ferguson 230 tractor—or any diesel-powered machinery—is when diesel fuel finds its way into the engine oil pan. The problem of diesel contamination in the oil can cause major engine damage if left unresolved. When diesel fuel mixes with engine oil, it significantly reduces the oil’s lubricating properties, leading to increased wear on the engine components and potential failure of critical parts. This issue needs to be addressed promptly to prevent more severe and costly damage.
Causes of Diesel Fuel in the Oil Pan
There are a number of reasons why diesel fuel might find its way into the oil system of a Massey Ferguson 230. Below are some of the most common causes:
1. Leaking Fuel Injector

• Symptoms: Diesel fuel accumulates in the oil pan, excessive black smoke from the exhaust, poor engine performance.

• Cause: A leaking fuel injector can allow diesel fuel to seep into the combustion chamber. When this happens, the unburned fuel can seep past the piston rings into the crankcase and mix with the engine oil. This is often the most common cause of diesel contamination in the oil.

• Solution: Inspect the fuel injectors for signs of leakage or wear. Fuel injectors should be tested to ensure they are properly sealing and functioning. If an injector is faulty, it should be replaced or repaired.


• Symptoms: Similar to a leaking injector, but the diesel contamination might be more gradual.

• Cause: If the fuel return line or the injection pump is damaged or improperly sealed, fuel can leak into areas of the engine where it should not be, potentially leading to contamination of the oil. In some cases, the fuel system might inject excess fuel into the combustion chamber, which can then mix with the oil.

• Solution: Check the fuel return lines and injection pump for leaks, cracks, or improper connections. Ensure that the return lines are correctly routed and in good condition.


• Symptoms: Diesel in the oil pan after extended periods of priming the system, difficulty starting the engine.

• Cause: Over-priming the fuel system can sometimes cause diesel to flow into the oil pan, especially if the fuel system has been excessively bled or if the fuel pressure is too high. This could force fuel past seals or into the crankcase.

• Solution: Follow the manufacturer’s instructions for priming the fuel system and avoid over-priming. Ensure the fuel pressure is regulated and consistent.


• Symptoms: High oil levels, oil becomes thinner and less viscous, poor engine performance.

• Cause: Worn piston rings can allow diesel fuel to bypass into the oil system. In engines that are under heavy load or have significant hours, the rings may no longer create an effective seal, leading to fuel leakage into the oil pan.

• Solution: Perform a compression test on the engine to assess the condition of the piston rings. If the rings are worn, they will need to be replaced, and the engine may need to be overhauled to correct the issue.


• Symptoms: Diesel in the oil pan, poor engine performance at startup.

• Cause: In cold weather, a diesel engine may experience incomplete combustion as it struggles to reach operating temperatures. This incomplete combustion can lead to excess fuel entering the crankcase.

• Solution: Ensure the engine is properly warmed up before use, and make sure the glow plugs or intake heaters are functioning correctly to aid in combustion during cold starts.


• Symptoms: Oil that has a thinner consistency, a strong diesel smell, or is lighter in color than normal.

• Action: Inspect the oil for any changes in appearance or smell. If the oil is diluted with diesel, it will appear thinner, may smell like diesel fuel, and will have reduced lubricating properties.


• Action: Conduct a thorough inspection of the fuel injectors, return lines, and the injection pump. Check for any visible fuel leaks and confirm the integrity of all seals. If a fuel injector is leaking or malfunctioning, it should be replaced.


• Action: Perform a compression test to assess the health of the engine's piston rings. A significant loss of compression can indicate that the piston rings are worn or damaged, potentially allowing fuel to enter the crankcase.


• Action: Look for any cracks or signs of wear in the fuel return line. If the fuel line is compromised, it could allow fuel to leak into the engine’s oil system.


• Action: Ensure that the engine is starting correctly and warming up to the proper operating temperature. Consider using block heaters or pre-heaters during cold weather to help with proper combustion.


• If a leaking injector or damaged fuel component is causing the issue, replace or repair the faulty part as soon as possible. This will stop further diesel from entering the engine oil.


• Once the cause of contamination has been identified and addressed, the engine oil should be drained and replaced with fresh oil. Contaminated oil loses its ability to lubricate and protect the engine, which can lead to premature wear and damage.


• If the piston rings are worn, they should be replaced to prevent further fuel contamination. This may require an engine rebuild or overhaul, depending on the severity of the wear.


• To prevent future issues with diesel contamination, it’s important to regularly inspect the fuel system and perform routine maintenance. This includes cleaning or replacing fuel filters, checking for leaks, and ensuring that the fuel system is in good working order.


The John Deere 27C is a compact, powerful mini excavator that provides impressive maneuverability and versatility for various construction and landscaping tasks. However, like any piece of machinery, it can experience issues from time to time. One such issue that may arise with the John Deere 27C is the inability to perform a zero-turn maneuver. This problem can be frustrating and may affect the machine’s overall performance, especially when working in tight spaces.
Common Causes of Zero-Turn Issues
Zero-turn functionality is crucial for excavators, especially when operators need precise control in confined areas. When a machine like the John Deere 27C fails to perform a zero-turn, it typically points to a mechanical or hydraulic issue. Below are some of the most common causes of zero-turn problems:
1. Hydraulic System Issues

• Symptom: Inability to make tight turns or the machine will not rotate at all.

• Cause: A failure in the hydraulic system is often the primary culprit behind zero-turn issues. The John Deere 27C relies on hydraulic motors to control the movement of each track independently, enabling it to turn. If there is a problem with the hydraulic pump, motor, or fluid levels, it can cause a lack of movement in one or both tracks.

• Solution: Check the hydraulic fluid levels and ensure they are within the recommended range. Low fluid levels can lead to a lack of pressure in the system. Additionally, inspect the hydraulic hoses for any leaks or damage. If the fluid levels are normal but the problem persists, the hydraulic motor or pump may need to be inspected for wear or damage.


• Symptom: One side of the machine is not responsive, or one track is moving while the other remains stationary.

• Cause: The drive motors control the movement of the tracks. A malfunction in the drive motor on one side of the machine can prevent proper turning. This can be caused by a variety of issues, such as a damaged motor, worn bearings, or internal leaks.

• Solution: If the issue is isolated to one track, the drive motor on that side may need to be inspected. Check for signs of wear, oil leaks, or unusual noises that could indicate a problem with the motor. In some cases, the motor may need to be replaced or rebuilt.


• Symptom: Difficulty turning, uneven movement, or excessive wear on one track.

• Cause: Improper track tension can significantly affect the machine’s ability to turn. If one track is too tight or too loose, it can prevent smooth operation and zero-turn functionality.

• Solution: Check the track tension on both sides of the machine. The tracks should have a slight sag when the machine is in the neutral position. If the tracks are too tight, loosen the tension by adjusting the track adjuster. If they are too loose, tighten them to the correct tension.


• Symptom: The machine does not respond as expected when trying to make a turn, or there is a warning light or error code displayed.

• Cause: The John Deere 27C may be equipped with sensors or electronic controls that monitor the movement of the tracks. A malfunction in these components can cause the machine to behave erratically and affect the zero-turn functionality. This could be due to faulty wiring, a damaged sensor, or an issue with the control system.

• Solution: Inspect the electrical system for any damaged wires, corroded connectors, or malfunctioning sensors. If error codes are present, refer to the operator’s manual or diagnostic tool to identify the specific fault. Resetting the system or replacing the faulty sensor may resolve the issue.


• Symptom: Inability to perform a zero-turn maneuver, particularly when trying to reverse or turn sharply.

• Cause: The John Deere 27C may have a brake system that locks the tracks to prevent movement. If the brakes are stuck or not releasing properly, the machine may struggle to turn.

• Solution: Check the brake system for any signs of sticking or excessive wear. Ensure that the brake calipers are releasing freely and that the brake fluid levels are adequate. If the brakes are malfunctioning, they may need to be adjusted, repaired, or replaced.


• Ensure the hydraulic fluid is at the correct level as per the manufacturer’s specifications. Low fluid levels can lead to a lack of pressure in the hydraulic system, causing sluggish or unresponsive movements.

• Action: If the fluid is low, top it up using the recommended hydraulic oil. If the fluid is contaminated or excessively dirty, drain and replace it with fresh fluid.


• Inspect all hydraulic lines and hoses for leaks. Leaks can cause a loss of pressure in the system, affecting the functionality of the drive motors and preventing a smooth turn.

• Action: Tighten any loose connections and replace damaged hoses.


• If one track is not responding or is moving slower than the other, the drive motor may be malfunctioning.

• Action: Listen for unusual noises and check for fluid leaks around the motor. If the motor is damaged, it may need to be repaired or replaced.


• If the tracks are not moving properly, check for incorrect track tension.

• Action: Adjust the track tension by loosening or tightening the adjusters until both tracks have an appropriate level of slack.


• Electrical faults or issues with the sensors may cause the machine to behave erratically.

• Action: Check for error codes and inspect the electrical wiring and sensors for faults. Use a diagnostic tool to help identify specific issues if error codes are present.


• If the machine is unable to turn or move properly, the brakes may be causing resistance.

• Action: Inspect the brake system for signs of wear or malfunction. Ensure that the brakes are releasing properly, and check brake fluid levels.


• Change the hydraulic fluid regularly to ensure the system runs efficiently. Contaminated fluid can cause blockages, which reduce performance.


• Regularly check the track tension and condition. Worn or damaged tracks should be replaced to maintain proper turning ability.


• Keep an eye on the brake system to ensure it operates smoothly. Regularly check brake fluid and inspect the calipers for wear.


• Periodically inspect the wiring and control systems for damage or corrosion. Faulty wiring or sensors can be difficult to detect but can have a significant impact on machine performance.


• Conduct regular functional checks to ensure the machine is performing as expected. Test the zero-turn functionality after maintenance or repairs to confirm that it’s operating properly.
