Restoring or tearing down an old piece of equipment like the Allis-Chalmers 7G can be both a rewarding and challenging experience. Known for its rugged design and reliability, the 7G loader backhoe was a staple in the construction and agricultural industries for decades. However, after years of service, these machines inevitably encounter wear and tear, requiring detailed inspections, parts replacement, and often, a complete rebuild.
This article delves into the process of tearing down an old Allis-Chalmers 7G, providing insights into its engine, hydraulic systems, and mechanical components. We will also discuss the common issues encountered during the disassembly process and offer tips on how to approach each stage effectively.
Introduction to the Allis-Chalmers 7G
The Allis-Chalmers 7G backhoe loader was produced during a time when machines were built to last. While newer models have since overtaken it in terms of technology and efficiency, the 7G still holds a special place for its straightforward design and durability.
Key Specifications of the Allis-Chalmers 7G:

• Engine: 4-cylinder gas or diesel engine (varies by model and market)

• Operating Weight: Approximately 11,000 lbs (5,000 kg)

• Maximum Bucket Capacity: 1.0 cubic yard (0.76 m³)

• Horsepower: Around 58 HP

• Loader Lift Capacity: 3,500 lbs (1,588 kg)

• Maximum Digging Depth: 14 feet (4.3 meters)


• Basic Hand Tools: Wrenches, screwdrivers, sockets, and pliers.

• Torque Wrench: For precise tightening of critical bolts.

• Lifting Equipment: A hoist, crane, or heavy-duty jack for lifting the backhoe arms and other components.

• Jack Stands: To secure the vehicle while working underneath it.

• Hydraulic Oil Drainer: For safely removing fluid from the hydraulic system.

• Parts Washer: To clean components once disassembled.

• Manuals: The service manual and maintenance guidelines for the Allis-Chalmers 7G will be indispensable in ensuring that the teardown is done correctly.


• Work in a well-ventilated area: Ensure that the area is free of combustible materials and has good airflow, especially when working with fuel or hydraulic fluids.

• Wear protective gear: Gloves, safety glasses, and steel-toe boots are essential to protect yourself from debris and potential hazards.

• Disconnect the battery: Always start by disconnecting the machine’s battery to avoid accidental starts or electrical short circuits.


• Engine Oil: Unscrew the drain plug and allow the oil to flow into a designated container.

• Hydraulic Fluid: Use a fluid drainer to remove the hydraulic fluid from the tank. Be careful, as hydraulic systems often hold a large volume of fluid.

• Fuel: Disconnect the fuel lines and drain the fuel tank to prevent any leaks during the teardown.


• Front Loader Arms: Begin by removing the hydraulic lines and unbolting the connections between the loader arms and the frame. Use a hoist or crane to carefully lift and remove the loader arms from the machine.

• Backhoe Arms: Similar to the front loader arms, the backhoe arms must be unbolted from the frame. Pay close attention to any hydraulic lines that may need to be disconnected before the arms can be fully removed.

• Pins and Bushings: Inspect the pins and bushings that hold these components in place. Worn-out pins can result in loose and noisy operation, so these should be replaced if necessary.


• Disconnect All Connections: Unbolt the engine from the frame, disconnect all fuel lines, electrical connectors, and exhaust systems.

• Lifting the Engine: Use a hoist to carefully lift the engine out of its compartment. This step may require some finesse, as the engine is heavy and must be carefully removed without damaging surrounding components.

• Transmission Removal: Once the engine is out, disconnect the transmission from the engine and remove it from the chassis. Be sure to note the position of the transmission mounting bolts for reinstallation.


• Hydraulic Cylinder Inspection: Check for any signs of leaks or damage on the hydraulic cylinders. Look for cracks or corrosion on the cylinder rods and seals.

• Hydraulic Hoses: Inspect the hoses for wear, cracks, or bulging. These are signs that the hoses may be under stress and need replacing.

• Pump Check: Hydraulic pumps can suffer from wear and loss of pressure over time. Check the pressure relief valve and ensure that the pump is not overly worn.


• Rebuild or Replace the Engine: Inspect the engine for any wear on the pistons, rings, and valves. If the engine is beyond repair, consider a full rebuild or sourcing a replacement engine.

• Transmission Rebuild: If the transmission is slipping or leaking, it may require a rebuild. This can be a complicated process, so refer to the service manual for detailed instructions on disassembling and reassembling the transmission.


• Torque Specifications: Refer to the manufacturer’s manual to ensure that all bolts are tightened to the correct torque specifications to avoid over-tightening or under-tightening, which can cause damage.

• Hydraulic Lines: Reconnect all hydraulic lines carefully, ensuring that they are free from contamination and securely tightened.

• Reassemble the Arms: Reinstall the loader and backhoe arms and make sure that all pins and bushings are properly fitted.


Why Tilt Buckets Matter in Compact Excavation
Tilt buckets have become indispensable tools for contractors seeking precision in grading, trenching, and finish work—especially in confined spaces. On compact excavators like the Kubota U17, which features retractable tracks for tight access, the addition of a tilt bucket transforms the machine from a basic digger into a versatile grading instrument. The ability to angle the bucket side-to-side allows operators to contour surfaces, trim slopes, and match grades without repositioning the machine.
Choosing the Right Tilt Bucket Size
One of the first considerations is bucket width. While a 36" tilt bucket may seem large for a U17, it can be used effectively with proper technique. To mitigate overloading:

• Avoid fully filling the bucket during heavy material movement

• Install internal baffles at 45° angles to reduce volume and create a tapered scoop

• Use the bucket primarily for finish grading, not bulk excavation


• One-way flow: Suitable for tools like hydraulic breakers; fluid flows in one direction and returns passively

• Two-way flow: Required for rams and actuators; fluid must be actively pushed in both directions

• Relief valve: Protects the system from overpressure; essential for attachments with variable resistance

• Crossover valve: Allows fluid to bypass when pressure spikes, preventing damage to rams or hoses


• Installing a ball valve with a tee to redirect return flow directly to the tank

• Adding an external control valve with integrated relief and crossover functions

• Using quick-connect couplers of different sizes to prevent misconnection by helpers


• EU versions often include a “Change Valve” allowing selection between one-way and two-way flow

• Pan Pacific (PP) versions may lack this valve, requiring manual plumbing modifications


• Hydraulic Ram Tilt: Offers up to 90° total tilt (45° each way); simple and robust

• Rotary Actuator Tilt: Provides up to 180° tilt; more compact and precise but costlier


• Verify hydraulic pressure ratings; ensure the tilt ram is rated for system pressure

• Use color-coded or size-differentiated quick couplers to prevent misconnection

• Mount control valves in accessible but protected locations

• Label all auxiliary lines clearly for multi-operator environments

• Test the system under load and monitor for pressure spikes or erratic movement


Roadside mowing is a crucial aspect of maintaining highways, roadways, and other public spaces. Whether it's clearing grass along highways for visibility, preventing overgrowth that could obstruct traffic, or simply maintaining aesthetics, roadside mowing requires careful planning, the right equipment, and an awareness of safety protocols. This article delves into the various techniques, types of equipment, and safety considerations involved in roadside mowing, providing insights into best practices and real-world examples from the field.
Why Roadside Mowing Is Important
Mowing along roadways serves several key purposes. The most important include:

1. Safety: Regular mowing ensures that tall grasses or bushes do not obscure drivers' sightlines, signs, or intersections, which could lead to accidents.

2. Visibility: Mowing helps keep road markings visible, preventing obstructions from impairing road users' ability to see lanes, curves, and pedestrian crossings.

3. Wildlife Control: Mowing helps keep roadside habitats in check, reducing the risk of wildlife encroaching onto roads and causing collisions with vehicles.

4. Aesthetic Appeal: Well-maintained roadways with trimmed grass offer a more visually appealing environment for both drivers and pedestrians.

5. Preventing Fire Hazards: Tall, dry grass can become a fire risk, particularly in areas with high heat or drought conditions. Regular mowing reduces this risk.


• Advantages:
  • Can reach difficult areas like steep embankments, bridges, and around guardrails.

  • Highly flexible with long reach and adjustable height.

  • Can be used for both small and large-scale mowing tasks.

• Considerations:
  • Requires skilled operators, especially when working near traffic.

  • Boom mowers can be expensive, making them less accessible for smaller municipalities.


• Advantages:
  • Excellent for maneuvering around obstacles such as trees, signs, and other roadside features.

  • Provides a smooth, even cut, making it a preferred choice for aesthetic mowing.

• Considerations:
  • Less suitable for steep terrains or hard-to-reach areas.

  • May struggle in heavy, thick vegetation.


• Advantages:
  • Can handle dense vegetation and tough grasses.

  • Effective for clearing undergrowth or managing invasive plant species.

• Considerations:
  • Requires more maintenance due to the high level of wear and tear.

  • Slower mowing speed compared to other equipment, which may be inefficient for large-scale mowing tasks.


• Advantages:
  • Affordable and easy to operate.

  • Suitable for well-maintained or urban areas.

• Considerations:
  • Limited to small-scale mowing tasks and flat terrain.

  • Ineffective for heavy-duty tasks or overgrown areas.


• Spring and Summer: More frequent mowing, every 2-4 weeks, may be needed during periods of rapid grass growth.

• Fall and Winter: Mowing frequency can be reduced as growth slows.


• Intersections and Corners: Mowing along intersections and corners ensures that drivers have clear visibility and are able to see oncoming traffic, pedestrians, or signage.

• Guardrails and Road Sign Bases: Keep the area around guardrails and road signs clear to ensure proper visibility, especially in areas with heavy traffic.

• Bridges and Overpasses: Mowing around elevated structures can be challenging but is crucial for maintaining clear sightlines.


• Use of Cones and Signage: Mark areas where mowing is taking place with cones or warning signs to alert drivers. This is particularly important in high-traffic areas.

• Operator Awareness: Mowers should always be operated with a focus on maintaining control and awareness of traffic, especially when working near moving vehicles.


• Optimal Height: For standard grass, a height of 2-3 inches is ideal. However, adjustments may need to be made for thicker vegetation or specific terrain.


• High-Visibility Vests: To ensure operators are visible to passing traffic.

• Ear Protection: Mowers can be loud, so ear protection should be worn to prevent hearing damage.

• Gloves and Safety Boots: For general protection, particularly in areas with debris or uneven terrain.


• Road Closures or Lane Shifts: In cases of high-speed or high-traffic areas, closing off lanes or sections of the road may be necessary to protect workers and minimize the risk of accidents.

• Warning Signs: Signage that warns drivers about mowing operations ahead can significantly reduce the risk of accidents.


• Rainy Weather: Wet grass and mud can make mowing operations hazardous, reducing visibility and creating slippery conditions.

• High Winds: Strong winds can increase the risk of flying debris, which can damage equipment or injure workers.

• Nighttime Operations: Mowing should be done during daylight hours to ensure that operators have full visibility of the area.


Introduction
Hydraulic systems are the backbone of modern construction equipment, powering everything from excavators to loaders. A hydraulic schematic diagram serves as a blueprint, illustrating the flow of hydraulic fluid and the interaction of various components within the system. For technicians and operators, interpreting these schematics is crucial for maintenance, troubleshooting, and efficient operation.
Core Components of Hydraulic Systems

1. Hydraulic Pump: Converts mechanical energy into hydraulic energy by pressurizing the fluid. Common types include gear, piston, and vane pumps.

2. Directional Control Valves: Direct the flow of hydraulic fluid to different parts of the system, enabling movement of actuators.

3. Hydraulic Cylinders: Convert hydraulic energy back into mechanical energy to perform tasks like lifting or digging.

4. Hydraulic Motors: Transform hydraulic energy into rotary motion, often used in tracks or wheels of construction equipment.

5. Pressure Relief Valves: Protect the system from overpressure by diverting excess fluid.

6. Filters and Coolers: Ensure the hydraulic fluid remains clean and within optimal temperature ranges.

7. Accumulator: Stores hydraulic energy for later use, helping to smooth out pressure fluctuations and provide additional power when needed.


• Open-Center System: Hydraulic fluid flows continuously through the control valve and back to the reservoir when not in use.

• Closed-Center System: Hydraulic fluid is pressurized and directed to the actuators only when needed, improving efficiency.

• Load-Sensing System: Adjusts the pump output based on the load, optimizing fuel consumption and performance.


• Low Pressure: Check for blockages or leaks in the pump or pressure relief valve.

• Slow Actuation: Inspect directional control valves for sticking or improper operation.

• Erratic Movements: Examine accumulators and filters for contamination or wear.


• Carr Lane Manufacturing: Provides detailed explanations of hydraulic symbols and their applications.

• Hydraulic Parts: Offers step-by-step tutorials on reading basic hydraulic schematics.

• Diesel Laptops: Features a guide tailored for diesel technicians on interpreting hydraulic systems.


The Challenge of Post-Grinder Identification
When metal fragments emerge from a horizontal wood grinder, the task of identifying their origin becomes a blend of mechanical forensics and educated guesswork. These fragments are often twisted, deformed, and stripped of context—making visual identification difficult. Yet, understanding what went through the grinder is crucial for preventing future damage, ensuring operator safety, and maintaining equipment integrity.
In one such case, a set of thick-walled, tubular metal pieces appeared after a grinding session. The parts were heavily distorted, but some retained features like welded saddles and flanges, hinting at their original function.
Initial Observations and Hypotheses
The fragments included:

• A vertically standing tubular section with a welded saddle

• Thick-walled steel, suggesting structural or load-bearing use

• No visible part numbers or manufacturer markings


• The parts may have originated from an automotive axle housing, possibly from a heavy-duty truck or trailer

• The saddle-like welds suggested suspension components, such as spring perches

• The material thickness ruled out lightweight consumer-grade equipment


• Seamless or DOM (Drawn Over Mandrel) steel tubing

• Welded spring perches or control arm mounts

• Flanged ends for differential or hub integration


• Structural pipe used in fencing or scaffolding

• Hydraulic cylinder housings from industrial machinery

• Frame components from compact equipment trailers


• Install magnetic separators or metal detectors upstream of the grinder

• Maintain a photographic log of recovered fragments for future reference

• Train operators to recognize common industrial components by shape and weld patterns

• Use part number databases and reverse image search tools to assist identification

• Collaborate with local scrap yards or equipment dealers for forensic support


• Blade chipping or fracture

• Rotor imbalance

• Motor overload or shutdown

• Fire risk from sparks and friction


Introduction
Excavators are essential machines in construction, mining, and various earthmoving tasks. Among mid-sized excavators, the CAT 320D2 and Sumitomo SH210-5/6 are popular models known for reliability and performance. This article provides a detailed comparison of these two models to help operators, fleet managers, and buyers make an informed decision.
Overview of CAT 320D2
The CAT 320D2 is a mid-sized hydraulic excavator from Caterpillar, known for its robust design and advanced technology integration. It is widely used in construction sites requiring high power and efficiency.

• Engine: CAT C6.4 ACERT, delivering about 150 horsepower, designed for fuel efficiency and low emissions.

• Operating Weight: Approximately 22,700 kg (50,000 lbs), providing stability on uneven terrains.

• Hydraulic System: Advanced electro-hydraulic system offering smooth operation and precise control.

• Fuel Efficiency: Improved compared to previous models, with features such as auto idle and engine shutdown.

• Cab and Operator Comfort: Spacious cab with ergonomic controls, air conditioning, and excellent visibility.

• Technology: Equipped with CAT’s Product Link for remote monitoring and diagnostics.


• Engine: Sumitomo SAA6D102E-1, producing around 150 horsepower, meeting Tier 3/Stage II emission standards.

• Operating Weight: Approximately 22,000 kg (48,500 lbs), slightly lighter than the CAT 320D2.

• Hydraulics: Equipped with advanced load-sensing hydraulics for efficient fuel consumption and smooth operation.

• Fuel Efficiency: Highly regarded for low fuel consumption and emissions.

• Cab Features: Comfortable operator environment with ergonomic design and noise reduction.

• Maintenance: Designed for easy access to service points to reduce downtime.


• Power and Efficiency: Both models offer similar horsepower. The CAT 320D2 emphasizes fuel efficiency through engine technology and smart systems, while the Sumitomo excels in load-sensing hydraulics for operational economy.

• Hydraulic Performance: CAT’s electro-hydraulic system provides fine control, beneficial for precision work. Sumitomo’s system is optimized for smoothness and fuel savings.

• Durability: CAT has a reputation for ruggedness and a global support network. Sumitomo, while less widespread, is praised for component longevity and build quality.


• CAT: Extensive dealer network and parts availability make maintenance more accessible worldwide. Advanced diagnostics enable proactive servicing.

• Sumitomo: While parts may be less available in some regions, the machine is engineered for long intervals between services, reducing maintenance frequency.


• CAT 320D2: Ideal for large construction projects, mining, and applications requiring advanced technology and diagnostics.

• Sumitomo SH210-5/6: Suited for contractors seeking fuel-efficient, reliable machines for general excavation and earthmoving with a focus on cost-effective operation.


• Project Size and Complexity: Larger projects with diverse requirements may benefit from CAT’s technology suite.

• Fuel Economy Needs: Sumitomo may offer lower operational costs in fuel-sensitive environments.

• Maintenance Infrastructure: Availability of local dealer support should weigh heavily in decision-making.

• Operator Preference: Comfort, controls, and brand familiarity affect operator productivity and satisfaction.


The Case 580 Super K backhoe loader, a popular model in the heavy equipment industry, has earned a solid reputation for its versatility and performance. However, like any piece of machinery, it can encounter mechanical issues over time, with hydraulic problems being some of the most common and frustrating. Hydraulic systems are the lifeblood of backhoe loaders, powering everything from the boom to the bucket and the stabilizers. When the hydraulic system fails, it can lead to poor performance, downtime, and costly repairs.
This article delves into common hydraulic problems faced by the 1994 Case 580 Super K and offers solutions and maintenance tips to help prevent these issues from recurring.
Understanding the Hydraulic System of the Case 580 Super K
Before diagnosing hydraulic issues, it's essential to understand how the hydraulic system of the Case 580 Super K operates. The hydraulic system in these machines is responsible for powering the loader arms, steering, and other functions that rely on fluid pressure to operate.
Key components of the hydraulic system include:

• Hydraulic Pump: Draws fluid from the reservoir and pressurizes it for use by the various hydraulic circuits.

• Hydraulic Cylinder: A mechanical actuator that uses pressurized hydraulic fluid to create linear motion, essential for lifting and lowering the loader arms and bucket.

• Control Valves: Direct hydraulic fluid flow to the appropriate cylinders or motors based on operator input.

• Reservoir: Holds the hydraulic fluid that circulates through the system.

• Hydraulic Hoses and Fittings: Carry hydraulic fluid between the pump, valves, and cylinders.


• Low Hydraulic Fluid Level: The most common cause of power loss is insufficient hydraulic fluid. If the fluid level drops too low, the pump cannot generate the required pressure to operate the system effectively.

• Contaminated Hydraulic Fluid: Dirt, debris, and moisture in the fluid can cause internal wear and clogging of filters, resulting in reduced efficiency and performance.

• Faulty Hydraulic Pump: A worn-out or malfunctioning pump may fail to create the required pressure, leading to loss of hydraulic power.

• Air in the System: Air trapped in the hydraulic lines can cause spongy or inconsistent movement of the loader arms and bucket.


• Check and Top Off Fluid: Regularly inspect the hydraulic fluid level and top it off as necessary using the recommended fluid type. Always use clean fluid to prevent contamination.

• Change the Hydraulic Fluid: If fluid contamination is suspected, drain the hydraulic system and replace the fluid with fresh, clean hydraulic fluid.

• Inspect the Pump: Test the hydraulic pump to check for wear or malfunction. If the pump is faulty, it will need to be replaced.

• Bleed the System: If air is suspected in the hydraulic lines, use the appropriate bleeding procedure to remove trapped air and restore proper fluid flow.


• Worn or Damaged Seals: Hydraulic seals can wear out over time due to the high pressure and heat they are exposed to, leading to leaks.

• Loose Fittings: Over time, hydraulic fittings can loosen, causing leaks at connection points.

• Cracked Hoses: Hoses are vulnerable to wear and tear, especially when exposed to extreme temperatures, friction, or physical damage.

• Cylinders with Worn Seals: The hydraulic cylinders themselves may develop leaks if their seals wear out or become damaged.


• Inspect and Replace Seals: Regularly check hydraulic seals for wear or damage, and replace them as needed. This includes seals on hoses, fittings, and cylinders.

• Tighten Loose Fittings: Inspect all hydraulic fittings for tightness. Use a wrench to tighten any loose fittings, but avoid overtightening to prevent damage to threads.

• Replace Cracked Hoses: If hoses are cracked or worn, replace them promptly to avoid further damage and loss of hydraulic fluid.

• Cylinder Seal Replacement: If hydraulic cylinders are leaking, inspect the seals and replace them as necessary. This may involve disassembling the cylinder to access the seals.


• Clogged Hydraulic Filter: A clogged or dirty hydraulic filter can restrict fluid flow, causing slow or erratic movement.

• Low Fluid Pressure: If the hydraulic fluid pressure is too low, the system will not operate at full capacity, leading to sluggish performance.

• Faulty Control Valve: A malfunctioning control valve may fail to direct hydraulic fluid properly to the cylinders, causing erratic movement.


• Clean or Replace Filters: Regularly inspect and clean or replace hydraulic filters to ensure proper fluid flow.

• Check Fluid Pressure: Use a hydraulic pressure gauge to check the fluid pressure at the pump. If the pressure is low, it may be due to a faulty pump, low fluid, or an obstruction in the lines.

• Inspect and Repair Control Valves: If the control valve is suspected to be faulty, it may need to be repaired or replaced. A technician can diagnose and replace damaged valves to restore smooth operation.


• Worn Pump Components: Over time, the internal components of the hydraulic pump can wear out, reducing its ability to generate pressure.

• Contaminated Fluid: Dirty or contaminated fluid can cause internal damage to the pump, leading to failure.

• Overheating: Excessive heat can cause the pump to fail prematurely, especially if the hydraulic fluid is not adequately cooled.


• Replace the Pump: If the hydraulic pump is found to be faulty, it must be replaced. This can be an expensive repair, so regular maintenance of the pump is essential to avoid premature failure.

• Use Clean Fluid: Always use clean hydraulic fluid to prevent contamination from damaging the pump and other components.

• Cool the System: Ensure the hydraulic system is operating within the recommended temperature range. Install a cooling system if necessary to prevent overheating.


• Low Fluid Levels: Low hydraulic fluid levels can cause the pump to work harder, leading to increased heat generation.

• Faulty Cooling System: If the hydraulic fluid cooler is not working properly, the fluid may overheat.

• Excessive Load: Continuously operating the machine under heavy load can cause the system to overheat.


• Monitor Fluid Levels: Regularly check and top off hydraulic fluid to ensure proper operation and cooling.

• Inspect the Cooler: Ensure that the hydraulic fluid cooler is functioning correctly. Clean the cooler if necessary and replace it if damaged.

• Avoid Overloading: Operate the backhoe within its recommended load limits to prevent overheating and excessive wear on the hydraulic system.


• Regular Fluid Checks: Check the hydraulic fluid levels regularly and replace the fluid as per the manufacturer’s recommended schedule.

• Hydraulic Filter Maintenance: Clean or replace hydraulic filters frequently to prevent contamination and ensure optimal fluid flow.

• Use Proper Fluid: Always use the recommended hydraulic fluid type to ensure compatibility and prevent damage to the system.

• Inspect Components: Regularly inspect hoses, seals, and other hydraulic components for wear or damage. Replace parts promptly to prevent larger issues.

• Monitor System Pressure: Use pressure gauges to regularly monitor hydraulic system pressure and identify any drop in performance early.


Why Switch to Propane?
For decades, acetylene has been the go-to fuel for oxy-fuel cutting and heating due to its high flame temperature and rapid ignition. However, rising costs, limited availability, and safety concerns have led many professionals and hobbyists to explore propane as a viable alternative. Propane offers several advantages:

• Lower cost per unit

• Easier storage and transport

• Longer shelf life

• Safer handling characteristics


• Most standard acetylene regulators can be used with propane, provided the outlet pressure does not exceed 15 psi. Propane can safely operate at higher pressures, but acetylene regulators are designed with a safety limit due to acetylene’s instability above 15 psi.

• Both acetylene and propane tanks typically use left-hand internal threads, making regulator connection straightforward.

• If using newer propane cylinders (e.g., grill-style tanks), adapters may be required to match thread types and bypass built-in safety valves.


• Propane tips have larger orifices and longer preheat cones

• Propane flames require more oxygen to maintain cutting efficiency

• The hottest part of a propane flame is farther from the tip, requiring adjusted technique


• Grade R: Suitable for acetylene only; not recommended for propane due to degradation risk

• Grade T: Compatible with all fuel gases, including propane; more durable but less flexible


• More frequent oxygen tank refills

• Higher operating costs if oxygen is not sourced economically

• Need for efficient cutting technique to minimize waste


• Use a regulator rated for propane or confirm your acetylene regulator’s pressure range

• Install propane-specific torch tips for cutting and heating

• Upgrade to Grade T hoses for long-term durability

• Avoid makeshift adapters; use certified fittings and connectors

• Monitor oxygen usage and adjust cutting technique to improve efficiency

• Store propane cylinders upright and away from heat sources


• A longer preheat time before initiating the cut

• Positioning the flame slightly farther from the metal surface

• Maintaining a steady travel speed to avoid slag buildup


Compact track loaders (CTLs) are essential tools in various industries, including construction, landscaping, and agriculture. They offer exceptional versatility, mobility, and lifting power, making them a go-to choice for many applications. Among the top machines in this category are the TAK TL8 and Bobcat T450/T590, both of which are known for their performance and reliability. In this article, we will dive deep into a comparison of these two popular models, examining their specifications, strengths, and ideal use cases.
Overview of TAK TL8 Compact Track Loader
TAK, a well-established manufacturer in the heavy equipment industry, is known for producing reliable machines with advanced features. The TAK TL8 compact track loader stands out in the market with its combination of power, comfort, and versatility. Whether you're working on tight job sites or tackling tough terrain, the TL8 offers a robust solution for demanding tasks.
Key Specifications of TAK TL8:

• Engine Power: 74.3 horsepower (55.5 kW)

• Operating Weight: 8,680 lbs (3,940 kg)

• Rated Operating Capacity: 2,400 lbs (1,090 kg)

• Lift Height: 10.5 feet (3.2 meters)

• Width: 72 inches (183 cm)

• Track Type: Rubber tracks

• Bucket Capacity: 0.75 cubic yards (0.57 m³)


• Engine Power: 74.3 horsepower (55.5 kW)

• Operating Weight: 7,808 lbs (3,540 kg)

• Rated Operating Capacity: 1,400 lbs (635 kg)

• Lift Height: 10.5 feet (3.2 meters)

• Width: 72.1 inches (183 cm)

• Track Type: Rubber tracks

• Bucket Capacity: 0.7 cubic yards (0.53 m³)


• Engine Power: 74.3 horsepower (55.5 kW)

• Operating Weight: 8,298 lbs (3,770 kg)

• Rated Operating Capacity: 2,200 lbs (998 kg)

• Lift Height: 11.5 feet (3.5 meters)

• Width: 74.3 inches (188 cm)

• Track Type: Rubber tracks

• Bucket Capacity: 0.8 cubic yards (0.61 m³)


• TAK TL8: The TL8 uses a Kubota engine known for its fuel efficiency and long-lasting durability. The machine’s hydraulic system is designed to maximize power output while reducing fuel consumption, making it a cost-effective option for operators who work long hours.

• Bobcat T450/T590: Bobcat machines are also equipped with Kubota engines, offering reliable and fuel-efficient performance. The T450 and T590, in particular, feature an advanced hydraulic system that ensures smooth operation even in demanding conditions. The T590’s higher weight and larger size may slightly affect fuel consumption, but it provides more stability and lifting power for larger jobs.


• TAK TL8: With a rated capacity of 2,400 lbs (1,090 kg), the TL8 is well-suited for medium to heavy lifting tasks. It’s ideal for applications like construction, landscaping, and material handling where weight-bearing is crucial but space is limited.

• Bobcat T450: The T450 has a smaller rated capacity of 1,400 lbs (635 kg), which limits its use to lighter tasks such as lawn care, material handling, or light demolition.

• Bobcat T590: Offering a rated operating capacity of 2,200 lbs (998 kg), the T590 is better equipped for more demanding tasks compared to the T450. It strikes a balance between the T450’s light-duty capability and the TL8’s heavy-lifting ability.


• TAK TL8: The TL8 offers a lift height of 10.5 feet (3.2 meters), which is sufficient for most standard tasks. While not the highest in its class, the TL8 is designed for compact spaces and is highly maneuverable.

• Bobcat T450: With a lift height of 10.5 feet (3.2 meters), the T450 is similar to the TL8 in this regard. However, its lower rated operating capacity means it’s best suited for lighter loads that don’t require as much vertical reach.

• Bobcat T590: The T590 offers a slightly higher lift height of 11.5 feet (3.5 meters), making it the best choice for applications where higher reach is needed, such as lifting heavy materials onto scaffolding or reaching elevated platforms.


• TAK TL8: The TL8’s compact size and efficient track system make it highly maneuverable, especially in confined spaces. Its width of 72 inches (183 cm) allows it to navigate tight job sites with ease.

• Bobcat T450: With a similar width to the TL8 (72.1 inches), the T450 is equally maneuverable in tight spaces. However, its lighter weight makes it more suitable for jobs where less ground pressure is desired.

• Bobcat T590: The T590 is slightly wider at 74.3 inches (188 cm), which may limit its maneuverability in extremely tight areas. However, its increased weight and larger frame provide greater stability, especially when handling larger or heavier loads.


• TAK TL8: Ideal for medium to heavy-duty tasks that require a balance between lifting power and maneuverability. It’s best suited for tasks like material handling, grading, and landscaping in tight spaces.

• Bobcat T450: Perfect for light-duty applications like lawn care, light landscaping, or jobs where ground pressure is a concern. Its compact design allows it to navigate tight spaces easily but with limitations in lifting capacity.

• Bobcat T590: The most versatile machine of the three, suitable for heavy-duty tasks like moving heavy materials, demolition, and construction. Its higher lifting capacity and reach make it a great choice for tougher job sites requiring more robust performance.




Introduction

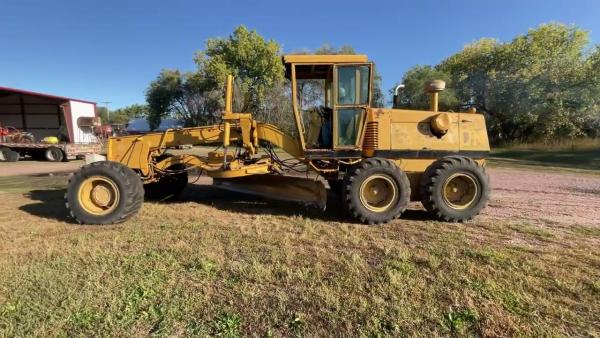

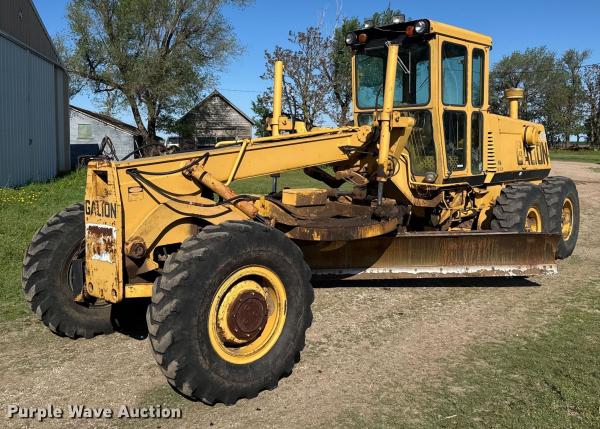

The Galion A606 motor grader, introduced in the late 1970s, stands as a testament to Galion Iron Works' commitment to engineering excellence. This model, part of the A-series articulated graders, was designed to meet the growing demands of road construction and maintenance. Known for its robust build and advanced features for its time, the A606 continues to be a reliable choice for various grading applications.
Historical Context and Evolution
Galion Iron Works, founded in 1907 in Galion, Ohio, was a pioneer in the development of motor graders. By the 1920s, they had introduced one of the first self-propelled motor graders, setting a standard in the industry. The A-series, introduced in 1979, marked a significant evolution with its articulated design, offering improved maneuverability and operator comfort. The A606 model was a direct response to the industry's need for more powerful and versatile grading machines.
Specifications and Features

• Engine: The A606 is equipped with a Detroit Diesel 6V71N engine, delivering approximately 160 horsepower.

• Transmission: It features a powershift transmission, allowing for smooth and efficient gear changes.

• Moldboard: The grader comes with a 14-foot moldboard, capable of tilting, angling, and shifting laterally, providing precise control over material distribution.

• Articulation: The articulated frame enhances maneuverability, making it suitable for both straight-line and curved grading operations.

• Hydraulic System: Advanced hydraulics enable efficient operation of the moldboard and other attachments.
