Introduction
Experiencing hard starting and white smoke emissions in diesel engines can be indicative of underlying issues that, if left unaddressed, may lead to significant engine damage. Understanding the root causes and implementing timely solutions is crucial for maintaining engine performance and longevity.
Understanding the Symptoms

• Hard Starting: Difficulty initiating engine operation, often requiring multiple attempts.

• White Smoke: Presence of white exhaust smoke, especially noticeable during cold starts.


1. Faulty Fuel Injection Pump: The fuel injection pump is responsible for delivering fuel into the engine's cylinders at precise timings and pressures. A malfunctioning pump can lead to improper fuel delivery, causing incomplete combustion, which manifests as white smoke and hard starting.

2. Injector Issues: Defective or clogged fuel injectors can disrupt the atomization of fuel, leading to poor combustion and the emission of white smoke.

3. Glow Plug Malfunction: Glow plugs are essential for pre-heating the combustion chamber in diesel engines. If they fail, especially in cold conditions, the engine may struggle to start, and white smoke may be emitted due to incomplete combustion.

4. Air in Fuel System: Air entering the fuel system can cause erratic fuel delivery, leading to misfires and white smoke.

5. Incorrect Fuel Timing: Improper fuel injection timing can result in delayed combustion, causing white smoke and hard starting.


1. Visual Inspection: Check for visible signs of fuel leaks, especially around the fuel injection pump and injectors.

2. Fuel Quality Assessment: Ensure that the fuel used is of good quality and free from contaminants.

3. Glow Plug Testing: Test the glow plugs for proper operation, especially if starting difficulties occur in cold conditions.

4. Injector Functionality Check: Inspect injectors for clogs or wear that could affect fuel atomization.

5. Timing Verification: Use appropriate tools to check and adjust the fuel injection timing as per manufacturer specifications.


• Case Study 1: A 2005 Ford Super Duty 6.0L diesel engine exhibited hard starting and white smoke during cold starts. Upon inspection, it was found that the fuel injection pump had worn components, leading to insufficient fuel delivery. Replacing the pump resolved the issues.

• Case Study 2: A 2010 Chevrolet Silverado 6.6L Duramax engine experienced similar symptoms. The issue was traced to a faulty high-pressure fuel pump that was incompatible with the diesel fuel in certain regions, causing catastrophic failures. A class-action lawsuit was filed, and affected owners received compensation and extended warranties.


• Regular Maintenance: Adhere to the manufacturer's recommended maintenance schedule, including timely replacement of fuel filters and inspection of the fuel system.

• Quality Fuel Usage: Always use high-quality, clean diesel fuel to prevent contaminants from entering the fuel system.

• Component Monitoring: Regularly monitor the condition of glow plugs, injectors, and the fuel injection pump to detect early signs of wear or malfunction.


Heavy equipment specifications form the backbone of purchasing, operating, and maintaining construction and industrial machinery. These specifications detail the performance, design, dimensions, and operational limits of equipment, serving as an essential blueprint for owners, operators, technicians, and buyers. This guide breaks down important specification terminology, clarifies key concepts, and offers helpful context to better understand and utilize equipment specs effectively.
What Are Equipment Specifications?
Specifications are detailed descriptions of a machine or system’s characteristics. They provide quantitative and qualitative data to convey how equipment should perform, be constructed, and operated. Specifications can range from engine power and hydraulic pressure to physical dimensions and safety features.

• Specifications act like a roadmap or contract ensuring all stakeholders understand the parameters within which equipment must function.

• They assist in comparing models, planning jobsite logistics, defining maintenance regimes, and ensuring compliance with legal or safety standards.


• Engine and Powertrain: Includes engine type, horsepower/kilowatts, torque, fuel consumption, fuel system, emissions standards, and transmission type.

• Hydraulic System: Details pump flow rates, operating pressures, hydraulic oil capacities, hydraulic circuit configurations.

• Dimensions and Weight: Covers overall length, width, height, wheelbase, ground clearance, operating weight, and transport weight.

• Performance Parameters: Includes digging depth, breakout force, lift capacity, travel speed, turning radius, and cycle times.

• Electrical System: Battery voltage, alternator capacity, control modules, and lighting specifications.

• Operator Comfort and Safety: Cab design, seat types, ROPS/FOPS protection, climate control features, noise levels.

• Undercarriage and Tracks/Wheels: Type and dimensions of tires or tracks, suspension types, track tension systems.

• Attachments and Compatibility: Types of buckets, forks, hydraulic attachments supported, quick coupler compatibility.


• Performance Specification: Defines what a piece of equipment must achieve, such as a minimum digging depth or load capacity, without dictating how to accomplish it.

• Prescriptive Specification: Provides detailed instructions on the exact materials, methods, and components to be used.

• Operating Weight: The total weight of the machine ready for operation, including all fluids and standard equipment.

• Breakout Force: The maximum force the equipment’s attachment (like a bucket or backhoe arm) can exert when breaking into material.

• Hydraulic Flow Rate: The volume of hydraulic fluid the pump can move per minute, influencing speed and power of hydraulic functions.

• Tolerances: Acceptable deviations from exact dimensions or performance standards, recognizing that perfect precision is often impossible but must be controlled.

• Calibration and Accuracy: Ensure measurement devices or controls produce reliable and consistent results aligned with expected standards.

• MasterFormat System: An organizational structure developed by the Construction Specifications Institute to standardize specification writing across divisions and sections for construction projects.


• Manufacturer configurations or optional packages can change baseline specifications.

• Jobsite conditions like terrain, climate, or material type affect usable performance relative to stated specs.

• Regulatory requirements (such as emissions) may vary across regions, impacting standard engine or system configurations.

• Aging and maintenance condition alter real-world equipment capacities from “as-new” specs.


• Always review the full specification sheet for your machine model and variant, as there can be notable differences.

• Cross-check specifications with your operational requirements and environmental conditions.

• Consult technical support or engineering teams when ambiguity arises, especially regarding performance or compatibility claims.

• Maintain detailed records of equipment specifications linked to individual machines for precise maintenance and repair operations.

• Understand terms like tolerances and calibration to handle quality assurance and repairs effectively.


• Engine type and power ratings (hp, kW, torque)

• Hydraulic pump flow rates and pressures

• Machine overall dimensions and operating weight

• Performance metrics: digging depth, breakout force, lift capacity

• Electrical system voltages and capacities

• Operator safety features and cab ergonomics

• Undercarriage type, track or tire specifications

• Attachment compatibility and hydraulic circuits

• Compliance with emission and safety standards

• Tolerances, calibration requirements, and accuracy controls


The hydraulic thumb on a Kobelco SK210 excavator is a valuable attachment that enhances the machine’s versatility, enabling operators to grip, lift, and manipulate objects securely. When this thumb stops working, it severely limits operational capability and requires careful troubleshooting and repair. This detailed guide explains common causes, technical terminology, troubleshooting methods, and practical solutions to get the hydraulic thumb back in working order efficiently.
Understanding the Hydraulic Thumb and Its Components
The hydraulic thumb is usually a mechanical clamp operated by a hydraulic cylinder and controlled through the excavator’s hydraulic circuit. It works together with the bucket to hold materials firmly.
Key components include:

• Hydraulic Cylinder: Powers the opening and closing of the thumb.

• Relays (Open and Close): Electrically operated switches controlling hydraulic valve actuation.

• Ground Connection: Essential for completing electrical circuits powering relays.

• Control Valves: Distribute hydraulic fluid to the thumb cylinder.

• Hydraulic Lines and Hoses: Carry fluid under pressure between pump, valves, and cylinder.


• Electrical Issues: The relays controlling the thumb’s open and close functions may not be receiving proper ground, preventing activation.

• Faulty Relays or Wiring: Damaged wiring or malfunctioning relays can break the control circuit.

• Hydraulic Problems: Low fluid level, air in the system, or blocked valves can impair fluid delivery.

• Mechanical Obstructions: Physical damage or misalignment may prevent thumb movement.

• Improper Pressure Settings: Relief valves or throttle settings not tuned can limit hydraulic flow to the thumb.


1. Inspect Electrical Grounds and Wiring
   • Verify if the open and close relays for the hydraulic thumb have a proper ground connection.

   • Use a multimeter to check continuity between relay ground terminals and the machine chassis.

   • Repair or replace any corroded, broken, or loose ground wires to restore circuit integrity.

2. Test and Replace Relays if Necessary
   • Listen for relay clicking sounds during thumb operation attempts.

   • Swap relays with known good units to isolate faulty relays.

   • Replace relays showing no operation or intermittent performance.

3. Check Hydraulic Fluid Levels and Condition
   • Confirm hydraulic reservoir has sufficient clean fluid.

   • Bleed any air from the lines to avoid spongy or non-responsive thumb motion.

4. Inspect Hydraulic Lines and Fittings
   • Look for leaks, kinks, or blockages in hoses supplying the thumb cylinder.

   • Replace damaged hoses or fittings promptly.

5. Verify Control Valve Operation and Settings
   • Examine the valve controlling the thumb cylinder for proper response.

   • Adjust pressure relief valves or flow controls as per manufacturer specifications to ensure adequate fluid supply.

6. Test Thumb Cylinder Functionality
   • Manually actuate the thumb cylinder if possible to ensure it moves freely without binding.

   • Repair or rebuild the cylinder if internal leaks or mechanical damage are suspected.

7. Perform Functional Test
   • Activate the thumb controls and observe cylinder movement.

   • Listen for unusual noises or observe sluggish or incomplete movement that may indicate underlying issues.


• Relay: An electromechanical or solid-state switch used to control a higher-power circuit with a low-power signal.

• Ground (Electrical): A reference point in an electrical circuit from which voltages are measured, ensuring circuit completion.

• Relief Valve: A valve that limits pressure by diverting hydraulic fluid when maximum pressure is reached.

• Bleeding: The process of removing trapped air from hydraulic circuits to restore proper function.

• Hydraulic Cylinder: A mechanical actuator that converts hydraulic fluid pressure into linear motion.


• Ensure the thumb control is enabled and that no system lockouts or operator safety switches are preventing operation.

• Regularly clean electrical connectors and keep wiring protected from abrasion and moisture ingress.

• When replacing relays or hydraulic valves, choose OEM or high-quality aftermarket parts to guarantee compatibility and reliability.

• Consider performing scheduled maintenance on the hydraulic system, including fluid changes and filter replacements, to prevent thumb failures caused by contamination.

• In complex electrical or hydraulic faults, consult machine-specific diagnostic tools or service manuals for detailed procedures.


• Check and restore proper ground wiring for thumb open/close relays

• Test relay operation and replace faulty relays

• Confirm hydraulic fluid level and bleed air from the system

• Inspect and repair hydraulic hoses and fittings to the thumb cylinder

• Verify control valve operation and pressure settings

• Test thumb cylinder movement and repair as needed

• Conduct functional test and monitor performance


Introduction
Torque hubs, also known as planetary final drives, are integral components in heavy machinery, providing the necessary torque to drive tracks or wheels. These units combine a hydraulic motor with a planetary gear system to deliver high torque output in a compact form. Understanding their design, applications, and maintenance is crucial for ensuring the longevity and efficiency of equipment such as compact track loaders, road rollers, and agricultural machinery.
What Is a Torque Hub?
A torque hub is a compact, self-contained unit that integrates a hydraulic motor with a planetary gear reduction system. This combination allows for high torque output at low speeds, which is ideal for heavy-duty applications. The planetary gear system consists of a sun gear, planet gears, and a ring gear, providing multiple points of contact and distributing the load evenly, which enhances durability and efficiency.
Key Components

• Hydraulic Motor: Provides the rotational force necessary to drive the system.

• Planetary Gear Set: Reduces the speed of the motor while increasing torque output.

• Brake Mechanism: Holds the equipment stationary when not in operation.

• Seals and Bearings: Ensure the integrity of the system and reduce wear.


• Compact Track Loaders: Provide the necessary torque for movement and operation.

• Road Rollers: Deliver high torque for compaction tasks.

• Agricultural Equipment: Used in implements requiring high torque at low speeds.

• Material Handling Equipment: Facilitate movement in warehouses and construction sites.


• Fairfield (Dana): Offers a range of torque hubs suitable for various machinery.

• Spicer Torque-Hub™ RCT Series: Designed for off-highway tracked applications, offering flexible packaging and gear ratios.

• Spicer Torque-Hub™ CTL Series: Specifically designed for high-performance compact track loaders, with integrated hydraulic motors and a 2-speed design.


• Fluid Checks: Regularly inspect hydraulic fluid levels and quality.

• Seal Inspections: Check for leaks and replace seals as necessary.

• Bearing Maintenance: Ensure bearings are properly lubricated and free from debris.

• Brake Functionality: Test the brake mechanism for proper engagement and release.


• Overheating: Ensure adequate cooling and proper fluid levels.

• Excessive Noise: Check for worn bearings or insufficient lubrication.

• Loss of Power: Inspect for hydraulic leaks or damaged components.


The Bobcat T300 skid steer loader is renowned for its versatile performance and durability in construction and landscaping tasks. One key system ensuring operator comfort is the heating, ventilation, and air conditioning (HVAC) blower controlled by a blower switch wiring system. Understanding the wiring setup and common issues related to the blower switch and its wiring is essential for effective troubleshooting and repair. This article provides a detailed, original explanation of the Bobcat T300 blower switch wiring, relevant technical terminology, diagnostic advice, and practical recommendations, enriched with additional insights from common electrical repair practices.
Understanding the Bobcat T300 Blower System and Wiring
The blower switch controls the fan speed of the HVAC system, allowing the operator to adjust airflow inside the cab. In the Bobcat T300, the wiring harness includes multiple wires usually differentiated by color (common colors include orange and white), with different gauges indicating power supply, ground, and control signals.

• Blower Switch: Device that controls the on/off state and sometimes the speed of the blower motor by regulating power flow.

• Wiring Harness: A bundle of electrical wires that supply power and control signals within the machine.

• Power Wire: Conducts 12 volts from the battery or ignition switch to the blower motor or switch.

• Ground Wire: Completes the electrical circuit back to the battery negative terminal.

• Fuse: Protects the circuit from overloads or shorts.

• Relay (if applicable): An electrically operated switch that manages high current loads with a low current control signal.


• Wire Damage or Shorts: Wires can become crushed, frayed, or broken due to machine vibration, movement, or accidental damage, causing the blower to stop working or work intermittently.

• Faulty Switch or Diode: The switch or diode in the circuit may fail, leading to loss of blower control or inability to adjust fan speeds.

• Corrosion or Loose Connections: Moisture ingress or vibration can cause connectors to loosen or corrode, interrupting the circuit.

• Burned Components: Overloads or short circuits may burn the switch or wiring, requiring replacement.


• Visual Inspection: Carefully examine all wires in the blower switch harness for signs of damage, wear, or corrosion, particularly the orange and white wires as commonly identified in Bobcat T300 systems.

• Test Voltage: Use a multimeter to check for 12V at the power wire terminals with the ignition on, confirming power supply presence.

• Check Continuity: Test continuity of wires from the switch to the blower motor to find any breaks or shorts.

• Inspect Switch Operation: Verify that the blower switch clicks or changes position appropriately and test voltage output changes with switch positions.

• Replace Damaged Wires: Cut out severely damaged wire sections and splice new wires of matching gauge and rating, ensuring secure, insulated connections.

• Use Proper Connectors and Heat Shrink: Avoid twisting wires without insulation; solder and apply heat shrink tubing for durable repairs.

• Check and Replace Diodes or Relays: If present in the circuit, test diodes for electrical continuity and replace malfunctioning components.


• Keep a wiring diagram or parts manual handy to correctly identify wire functions and color codes.

• Ensure all repairs maintain the original wire gauge to prevent overheating or voltage drop.

• When replacing the blower switch, use OEM or high-quality aftermarket parts to ensure proper fitment and functionality.

• Protect wiring harnesses with conduit or loom to reduce wear from abrasion and movement.

• Regularly inspect wiring during routine maintenance to catch early signs of damage.


• Blower Motor: Electric motor driving the fan inside the HVAC system.

• Diode: Electrical component allowing current to flow in only one direction, often protecting circuits.

• Fuse: Safety device that breaks the circuit under excessive current.

• Ground: The reference point in an electrical circuit from which voltages are measured.

• Heat Shrink Tubing: Protective tubing that shrinks when heated to insulate wire connections.


• Multiple wires (e.g., orange and white) serve different functions: power, ground, and control.

• Damage to wires is a common cause of blower failure; careful visual and electrical inspection is key.

• Proper diagnostic tools like multimeters aid in detecting power presence and continuity issues.

• Repairs should use matching wire gauge, quality connectors, solder, and heat shrink for durability.

• OEM parts and protective harnessing improve reliability and ease future maintenance.




Introduction

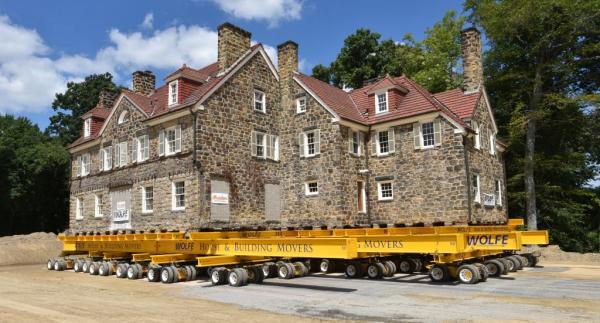

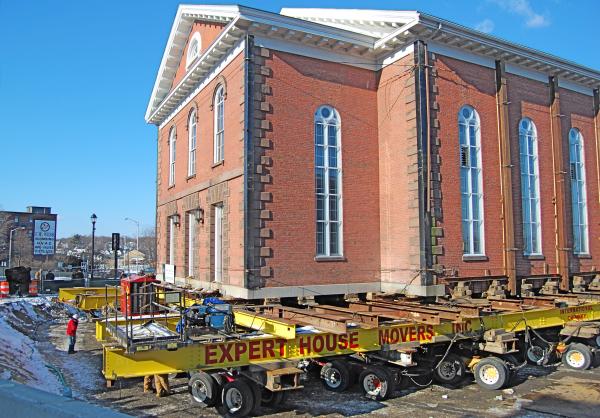

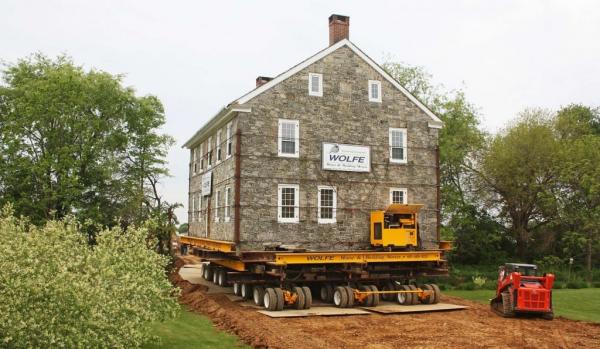

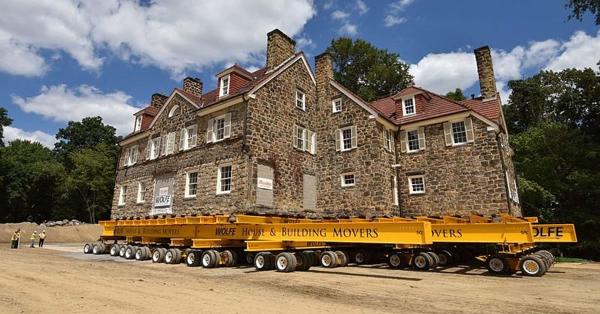

Relocating a building—be it a historic home, a commercial structure, or a lighthouse—is a remarkable feat of engineering. This process, known as structural moving, involves carefully lifting and transporting entire buildings to new locations. While it may seem like a task for demolition, structural moving is often pursued for preservation, safety, or development purposes.
Why Move a Building?
Buildings are relocated for various reasons:

• Preservation: To save historically significant structures from demolition.

• Safety: To protect buildings from environmental hazards like flooding or erosion.

• Development: To make way for new construction while retaining valuable structures.

• Repurposing: To adapt buildings for new uses in different locations.


• Structural Assessment: Engineers evaluate the building's integrity to ensure it can withstand the move.

• Route Survey: The path is mapped out, considering obstacles like power lines and bridges.

• Permits and Regulations: Necessary approvals are obtained from local authorities.

• Foundation Preparation: The new site is prepared with a suitable foundation.


1. Lifting: Hydraulic jacks are used to elevate the building.

2. Skidding: Heavy-duty dollies or skates are placed beneath the structure.

3. Transportation: The building is carefully moved along the predetermined route.

4. Placement: The building is lowered onto its new foundation.


• Hydraulic Jacks: Used for lifting the building.

• Dollies/Skates: Heavy-duty wheels that support and move the structure.

• Unified Jacking Systems: Integrated systems that coordinate lifting and movement.

• Push-Pull Rams: Devices used to assist in moving the building horizontally.


• Cape Hatteras Lighthouse, USA: Moved in 1999 to protect it from beach erosion.

• Hamilton Grange, New York: Alexander Hamilton's home was relocated in 2008 to preserve it.

• Isa bey Hajinski House, Azerbaijan: The heaviest building ever moved, weighing 18,000 tonnes.


• Structural Integrity: Ensuring the building can withstand the move without damage.

• Logistical Coordination: Managing the complex coordination of equipment and personnel.

• Environmental Factors: Considering weather conditions and ground stability.


The John Deere 290GLC excavator is a robust and versatile machine widely used in construction, landscaping, and excavation operations. Despite its reputation for durability, operators can encounter a variety of technical challenges that impact performance, efficiency, and machine longevity. This comprehensive guide details common problems associated with the 290GLC model, provides explanations of key components and terminology, and offers practical recommendations for troubleshooting and maintenance, enriched with illustrative stories and technical insights to empower operators and technicians.
Understanding the John Deere 290GLC and Its Systems
The 290GLC is a mid-sized hydraulic excavator equipped with advanced control systems, integrated monitoring, and powerful hydraulic and engine components. It features an LCD monitor that tracks scheduled maintenance and diagnostic codes to help identify issues early.
Key systems include:

• Hydraulic System: Powers boom, arm, bucket, and swing functions. Includes pumps, valves, cylinders, lines, and filters.

• Engine and Fuel System: Provides torque and power with diesel operation, requiring proper air intake and fuel delivery.

• Electrical and Sensor Network: Controls monitoring systems, engine management, and safety functions.

• Cooling System: Maintains optimal temperatures for engine and hydraulic oil.

• Operator Interface: LCD display used for diagnostics, alerts, and system controls.


• Sensor Failures and Electrical Faults:
  Intake temperature sensor failures can cause loss of power supply to sensor systems impacting engine performance. Faulty sensors may trigger warning lights and reduce machine efficiency or stall operation. Electrical wiring issues, loose connectors, or battery problems can also disrupt sensor and control functionality.

• Hydraulic System Challenges:
  Operators may experience slow or erratic movements, unexpected cylinder behavior, leaks, or overheating in the hydraulic circuits. Common causes include low hydraulic oil levels, aging seals, contaminated fluid, or defective main control valves such as PC (Pressure Control) and LS (Load Sensing) valves requiring adjustment or replacement.

• Cooling System Complications:
  Overheating of the engine or hydraulic oil can result from blocked radiators, coolant leaks, or malfunctioning fans. This not only reduces efficiency but can lead to severe engine or hydraulic damage if unaddressed.

• Engine Performance Problems:
  Common engine-related issues include difficulty starting, power loss, or unusual exhaust smoke. These may be linked to fuel delivery inconsistencies, clogged filters, injector malfunctions, or air intake restrictions.

• Track and Undercarriage Wear:
  Choosing the right tracks and maintaining them is vital for optimizing traction and distributing machine weight properly. Incorrect or worn tracks can lead to uneven wear, reduced mobility, and increased strain on components.


• PC Valve (Pressure Control Valve): Regulates hydraulic pressure to maintain system safety and efficiency.

• LS Valve (Load Sensing Valve): Adjusts hydraulic flow based on load demand, improving fuel efficiency.

• Intake Temperature Sensor: Measures incoming air temperature to optimize engine combustion.

• Hydraulic Overheating: Excess heat generation in hydraulic fluid potentially due to contamination or insufficient cooling.

• LCD Monitor Diagnostics: A display screen providing fault codes, system status, and scheduled maintenance reminders to the operator.


• Regularly check and maintain hydraulic oil levels; replace oil and filters at manufacturer-recommended intervals to prevent fluid degradation and contamination.

• Inspect and clean radiator fins and cooling fans to ensure efficient heat dissipation; promptly repair coolant leaks or damaged hoses.

• When sensor faults occur, inspect wiring harnesses and connectors for corrosion or damage; replace faulty sensors or modules with OEM parts for reliability.

• Adjust or service main hydraulic valves if slow or erratic component movements are observed; professional valve recalibration can restore precise control.

• Maintain proper track tension and inspect undercarriage bearings, rollers, and sprockets for wear; rotate or replace tracks as necessary for optimal traction and machine balance.

• Utilize the LCD monitor's diagnostic features daily to proactively address alerts and conduct scheduled maintenance.

• Employ high-quality replacement components and adhere to maintenance schedules documented in John Deere manuals.


• Inspect and replace faulty intake and other sensors promptly

• Monitor hydraulic oil condition; change oil and filters as per schedule

• Clean radiator and cooling system components for optimal heat management

• Service main hydraulic valves, including PC and LS valves, to ensure smooth control

• Check electrical wiring and connectors for corrosion or damage regularly

• Maintain correct track selection and undercarriage condition for stability

• Use LCD monitor diagnostics to identify and address issues early

• Follow John Deere OEM maintenance intervals and use genuine parts


The Komatsu 830E is a heavy-duty electric drive mining truck widely recognized for its robust design and high payload capacity. An essential aspect of maintaining operational efficiency and safety for the 830E involves understanding and managing the strut heights — crucial suspension components that support the vehicle's massive load and ensure stability during operation. This detailed guide covers the specifications of Komatsu 830E struts, their functional importance, maintenance advice, diagnostic tips, and practical solutions, supplemented by terminology explanations and real-world application insights.
What Are Struts and Their Role on the Komatsu 830E?
Struts are structural components in the truck’s front suspension system that combine shock-absorbing and load-bearing functions. They help to control the vertical movement of the wheels, maintain alignment, and absorb impacts from uneven terrain. Correct strut height is critical for optimal suspension performance, ride comfort, and proper vehicle geometry, influencing tire wear and handling under heavy loads.

• Strut Height: Distance from the lower mounting point (axle assembly or chassis connection) to the top mount of the strut assembly.

• Load Support: Struts bear a portion of the vehicle’s weight, especially front axle loads.

• Shock Absorption: Contain hydraulic or gas elements that dissipate energy from bumps or load shifts.

• Alignment Affect: Proper strut height maintains wheel alignment angles for stable steering and traction.


• Length and Height Dimensions:
  • Strut Height: Approximately 90 inches (2286 mm) for standard Komatsu 830E front struts.

  • Width Dimension: Around 66 inches (1677 mm).

  • Weight: Typically about 1,739 pounds (789 kg) per strut assembly.

• Model Variations:
  • Komatsu 830E-5 struts may feature slight height differences around 92 inches (2337 mm) with weights close to 1,925 pounds (873 kg).

• Strut Construction:
  • Heavy-duty steel or aluminum alloy bodies engineered to withstand mining loads.

  • Designed to maintain structural integrity under continuous severe duty in rough mining environments.


• Regular Inspection: Check for any visible wear or damage to the strut body, mounting points, and seals.

• Height Measurement: Use precise measuring tools to verify the strut height on each side, comparing against OEM specifications to detect sagging or deformation.

• Hydraulic and Gas Check: For struts with shock-absorbing elements, monitor oil or gas levels and replace or recharge as needed to maintain damping performance.

• Mounting Hardware: Inspect bolts, nuts, bushings, and brackets for looseness or corrosion, tightening or replacing as required.

• Adjustment Procedure: If adjustable struts are fitted, use proper tools to set or restore correct height, ensuring even ride height and suspension geometry.

• Replacement Considerations: Replace struts showing excessive sagging, fluid leakage, or structural defects to ensure safety and ride quality.


• Uneven Tires Wear: Caused by improper suspension geometry due to incorrect strut height.

• Reduced Vehicle Stability: Affects handling, increasing risk during heavy load transport or rough terrain negotiation.

• Increased Component Stress: Misalignment leads to premature wear on suspension parts, bearings, and tires.

• Poor Ride Comfort: Excessive bounce or harshness from damaged or sagging struts.

• Potential Safety Hazards: Compromised braking and steering performance.


• Use high-quality OEM or proven aftermarket struts certified to Komatsu standards for durability and performance.

• Implement routine suspension system inspections aligned with operational hours and mining cycles.

• Train maintenance staff on strut measurement techniques and replacement procedures.

• Maintain detailed records of suspension component servicing to identify recurring issues early.

• Incorporate strut height checks within pre-shift vehicle inspections to catch developing problems promptly.

• Consider advanced suspension upgrades or retrofits for improved ride and load management on older Komatsu 830E models.


• Typical strut height: ~90 inches (2286 mm) on standard 830E, ~92 inches (2337 mm) on 830E-5

• Typical strut width: ~66 inches (1677 mm)

• Approximate weight per strut: 1,739 - 1,925 pounds (789 - 873 kg)

• Material: Heavy-duty steel or aluminum alloy

• Functions: Load support, shock absorption, suspension geometry maintenance

• Maintenance tasks: Visual inspection, height measurement, hydraulic/gas level check, mounting hardware tightening, replacement when necessary

• Common issues from incorrect height: Tire wear, stability loss, component stress, ride discomfort, safety risks

• Recommended practices: Use OEM parts, routine inspections, staff training, maintenance record keeping, pre-shift checks


• Strut: Suspension component combining shock absorption and structural support.

• Strut Height: Measured length determining suspension geometry and ride height.

• Sagging: Reduction in strut height due to internal fluid loss or wear.

• Damping: Ability of a strut to absorb shocks to smooth the vehicle’s ride.

• OEM: Original Equipment Manufacturer — parts made by the truck’s manufacturer for quality assurance.

• Suspension Geometry: The spatial configuration of suspension components influencing vehicle handling and tire wear.


Introduction
The Kubota M59 Tractor-Loader-Backhoe (TLB) stands out as a versatile and robust machine, ideal for various tasks ranging from landscaping to construction. With a 59 horsepower engine and a host of features, it offers a balance between power and maneuverability. However, like any equipment, it's essential to understand its specifications, advantages, and potential drawbacks to determine if it's the right fit for your needs.
Key Specifications

• Engine: 4-cylinder diesel engine delivering 59 horsepower.

• Transmission: Hydrostatic transmission with a maximum speed of 16 mph.

• Drive Type: 4WD with differential lock for enhanced traction.

• Loader: Bucket breakout force of 5,961 lbs and lift capacity of 3,968 lbs.

• Backhoe: Dig depth of 11.99 ft and bucket dig force of 7,602 lbs.

• Hydraulics: Total pump flow of 26.7 gpm, supporting various attachments.

• Dimensions: Transport width of 6.25 ft and height of 10.33 ft.


1. Versatility: The M59's design allows for quick transitions between loader, backhoe, and 3-point hitch operations, making it adaptable to various tasks.

2. Hydraulic Power: With a total hydraulic flow of 26.7 gpm, the M59 can efficiently operate multiple attachments, enhancing productivity.

3. Compact Size: Its dimensions make it suitable for confined spaces, offering maneuverability without compromising on power.

4. Operator Comfort: The machine's design focuses on operator comfort, with features aimed at reducing fatigue during extended use.


1. Cab Design: Some users have noted that the cab could be more spacious, especially for operators who frequently rotate the seat.

2. Tire Size: The front tires, measuring 10–16.5, might seem small given the machine's capabilities, potentially affecting flotation and stability in certain conditions.

3. Price Point: While the M59 offers numerous features, its price might be a consideration for those on a budget.


• One user highlighted the M59's excellent turning radius and smooth steering, even under heavy loads, making it ideal for tight spaces.

• Another operator appreciated the machine's versatility, noting its ability to handle various tasks efficiently.


Rubber tracks are essential components for many types of heavy equipment like mini excavators, skid steers, compact track loaders, and agricultural machinery. Selecting the right rubber tracks not only affects your machine’s performance and efficiency but also impacts operating costs, equipment lifespan, and jobsite safety. This comprehensive guide offers detailed insights into choosing, maintaining, and purchasing rubber tracks, enriched with expert terminology, practical advice, real-world examples, and solutions to common challenges.
Understanding Rubber Tracks and Their Applications
Rubber tracks are made of durable reinforced rubber compounds combined with internal steel cords, textile layers, and metal elements to provide traction, flexibility, and durability. Unlike steel tracks, rubber tracks reduce ground damage, provide better flotation on soft surfaces, and offer a smoother ride for operators.
Common machines using rubber tracks include:

• Mini excavators for tight space excavation and landscaping

• Compact track loaders for earthmoving and material handling

• Agricultural machinery like multi-terrain loaders and skid steers

• Utility vehicles working on sensitive surfaces such as asphalt, lawns, and pavements


• Track Carcass: The internal reinforced frame providing structural integrity. Heavy-duty carcasses resist punctures and wear.

• Steel Cord: Embedded cords within the rubber that provide tension resistance and rigidity.

• Tread Pattern: The design on the rubber surface that affects traction and soil interaction. Patterns include block tread, multi-bar, straight bar, c-lug, and padded tracks.

• Flotation: The ability of tracks to distribute machine weight over a large area, reducing ground pressure and soil compaction.

• Detracking: When the track falls off the undercarriage, often caused by improper tension or worn components.

• Undercarriage: The assembly of components supporting the tracks, including rollers, sprockets, idlers, and tensioners.


• Machine Compatibility: Select tracks designed for your machine’s make, model, and weight to fit appropriately and ensure longevity.

• Terrain and Jobsite Conditions: Soft ground, muddy, rocky, or paved surfaces require different tread patterns and track compounds for effective traction and wear resistance.

• Track Size and Width: Wider tracks distribute weight better on soft ground, reducing damage. Narrower tracks improve maneuverability in tight spaces. Measure existing tracks precisely for size matching.

• Tread Design: Choose a tread pattern that matches operational needs—for example, straight bar for mud, block tread for asphalt, and padded for vibration reduction.

• Durability and Quality: Premium rubber compounds and reinforced carcasses extend track life and resist punctures or cracking. Consider warranties and brand reputation when purchasing.

• Price and Budget: Balance initial cost with expected lifespan and maintenance to achieve the best value.

• OEM vs Aftermarket: OEM tracks ensure exact fit and original quality, but quality aftermarket options can be cost-effective if sourced carefully.

• Warranty and Support: Reliable warranty coverage and customer support improve peace of mind and help with potential replacements.


• Poor Durability: Caused by low-quality materials or harsh operating environments. Buy heavy-duty carcasses and perform regular maintenance to prevent issues.

• Traction Issues: Incorrect tread choice can cause slipping or reduced effectiveness. Match tread to soil and terrain type.

• Detracking: Often due to improper track tension or damaged undercarriage parts. Regularly check and adjust tension, inspect rollers and sprockets.

• Ride Comfort: Tracks with low-quality rubber or improper tread can cause vibrations and operator fatigue. Consider padded or specialized treads.

• Wear and Tear: Monitor regularly for cracks, cuts, or exposed cords; replace before complete failure.


• Regularly clean tracks to remove debris that can cause wear or punctures.

• Check track tension frequently and adjust according to manufacturer specifications.

• Inspect the undercarriage components and replace worn rollers, sprockets, or idlers.

• Rotate or flip tracks if possible to extend life.

• Store equipment off hard surfaces when idle to prevent rubber degradation.


• Always measure your existing tracks carefully (length, width, pitch) before ordering to avoid fitment problems.

• Purchase tracks in pairs to maintain balanced machine performance and wear.

• Use reputable suppliers who can provide technical guidance and warranty support.

• Ask for samples or tread visuals to confirm suitability for your conditions.

• Consider local climate and seasonal factors that might affect rubber hardness and flexibility.


• Verify machine make, model, and weight compatibility

• Assess jobsite terrain and select suitable tread patterns

• Choose appropriate track width for flotation vs. maneuverability

• Prefer premium rubber compound and reinforced carcass

• Check length, pitch, and width specifications carefully

• Buy tracks in matched pairs for balanced wear

• Consider OEM vs aftermarket and warranty conditions

• Maintain regular cleaning, tensioning, and inspection

• Use expert advice and reliable suppliers for purchases

• Monitor track condition periodically to prevent major failures
