The Bell B40C and Its Mercedes Powerplant
The Bell B40C is a South African-built articulated dump truck designed for mid-size earthmoving and quarry operations. Powered by the Mercedes-Benz OM442LA V8 diesel engine, the B40C combines torque-rich performance with mechanical simplicity. The OM442LA is a turbocharged, liquid-cooled engine with a reputation for durability, but like many older diesel platforms, it demands precise cooling system management—especially after a rebuild.
In one case, a freshly rebuilt OM442LA began exhibiting elevated coolant temperatures during loaded return hauls, sparking concern over whether the truck was genuinely overheating or simply reading high.
Typical Operating Profile and Temperature Behavior
The truck’s duty cycle involved:
• Idling and light maneuvering with no temperature issues
• Loaded descent to fill site with minimal temperature rise
• Return to loading tool under load, where coolant temperature climbed to 90–95°C
• Continued rise while waiting in line, peaking at 100–105°C before slowly dropping
This pattern raised questions, as most haul trucks in similar conditions stabilize below 90°C. The temperature spike during low-load downhill travel was especially puzzling, given that engine RPM was high but drivetrain load was minimal.

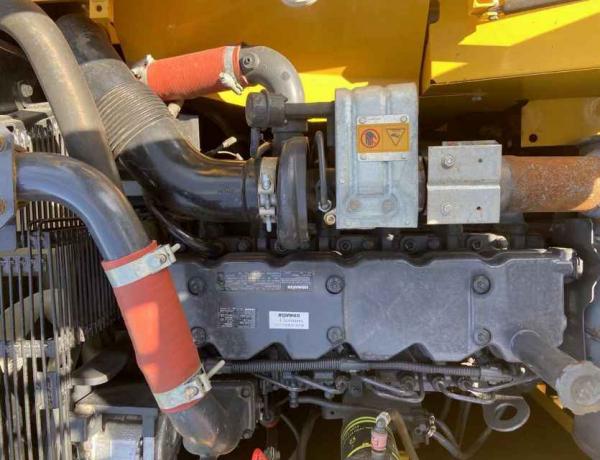

Cooling System Components and Initial Checks
The following components were inspected or replaced:
• New water pump installed during engine rebuild
• Thermostats replaced and confirmed operational via gauge fluctuation
• Radiator removed, rodded, and chemically cleaned
• Viscous fan clutch inspected and found to have resistance, indicating oil retention
Despite these efforts, the temperature rise persisted. Infrared thermometer readings showed a 10–15°C discrepancy between the dash gauge and actual engine surface temperatures, prompting a sensor and gauge replacement. After the swap, readings aligned more closely with IR data.
Fan Clutch and Belt Routing Concerns
Several technicians suspected the viscous fan clutch as the root cause. If the clutch fails to engage fully, airflow across the radiator drops, especially under load. One mechanic recalled a case where a serpentine belt was misrouted, causing the fan to spin backward—though in the B40C’s V-belt configuration, this was ruled out.
To eliminate doubt, some suggested directly coupling the fan to the engine, bypassing the clutch entirely. This would ensure full-time airflow but increase noise and fuel consumption. As a diagnostic step, it’s a valid approach to confirm whether the clutch is underperforming.
Radiator Delta and Flow Analysis
Using an IR thermometer, the radiator inlet and outlet temperatures were measured:
• Inlet (hot side): 98°C
• Outlet (cold side): 50°C
A 48°C drop is far beyond the expected 10°C differential for a healthy system. Such a dramatic delta suggests poor coolant flow—either from a partially blocked radiator core or a weak water pump. Although the pump was new, its impeller and flow characteristics were rechecked. No visible damage was found, but replacement was still considered due to persistent symptoms.
Airlocks and Head Gasket Speculation
Another possibility was an airlock in the cooling system, especially after a rebuild. Air trapped in the cylinder heads or radiator can disrupt flow and cause localized overheating. Bleeding procedures were reviewed, and the layout of the cooling system was examined to identify high points where air might accumulate.
There was also speculation about an incorrectly installed head gasket blocking a coolant return port. While rare, such an error could cause uneven head temperatures. Infrared scanning of each head showed no major discrepancies, but the idea remained on the table.
Final Observations and Resolution Path
After replacing the temperature gauge and sensor, the truck was retested under load. The temperature peaked at 105°C but dropped quickly, suggesting improved behavior. The radiator had already been cleaned, and the fan clutch remained under suspicion. The next steps included:
• Locking the fan clutch to test airflow impact
• Monitoring radiator inlet/outlet delta after fan modification
• Possibly replacing the water pump again
• Confirming no airlocks via bleed procedure and visual inspection
Parts availability was a challenge, as many components for the OM442LA must be sourced from South Africa or specialty suppliers in Texas.
Conclusion
Overheating in the Bell B40C after an engine rebuild can stem from multiple sources—sensor error, fan clutch failure, coolant flow restriction, or even assembly mistakes. A methodical approach using infrared diagnostics, component testing, and airflow verification is essential. In older machines like the B40C, mechanical systems offer transparency—but they also demand vigilance. With careful troubleshooting, even a stubborn heating issue can be resolved, restoring the truck to reliable service in the dirt and dust where it belongs.

Introduction
Central Tire Inflation Systems (CTIS) are integral to modern military and heavy-duty vehicles, offering enhanced mobility and tire longevity by allowing operators to adjust tire pressures on the move. These systems are particularly beneficial in off-road environments, such as construction sites, agricultural fields, and military operations, where varying terrain demands adaptable tire pressure. However, maintaining these systems requires access to specialized parts, which can sometimes be challenging to source.
Understanding CTIS Components
A typical CTIS comprises several key components:

• Control Box: The central unit that allows the operator to monitor and adjust tire pressures.

• Wheel Valves: Installed on each wheel, these valves control the air pressure within the tires.

• Air Lines and Hoses: Connect the control box to the wheel valves, facilitating the transfer of air.

• Quick Release Valves: Enable rapid deflation of tires when necessary.

• Air Dryer Filter Kits: Remove moisture from the air supply to prevent system corrosion and freezing.


• Oshkosh Equipment: Specializes in military vehicle parts, including CTIS components for models like the M35A3 and M939A2 series. They offer items such as control boxes, wheel valves, and air dryer filter kits.

• Spicer Parts: Provides CTIS components designed for commercial off-highway vehicles. Their offerings include wheel valves, air lines, and quick release valves, emphasizing durability and performance.

• Eastern Surplus: Offers a variety of CTIS parts, including air hoses and wheel valve assemblies, catering to both military and commercial applications.

• RubberDuck4x4: Focuses on parts for military vehicles like the Hummer, providing CTIS kits and individual components tailored to specific models.


• Compatibility: Ensure that the parts are compatible with your vehicle's specific CTIS model.

• Quality: Opt for OEM (Original Equipment Manufacturer) parts or reputable aftermarket options to ensure reliability.

• Availability: Some parts may have limited availability, especially for older or specialized vehicles.

• Cost: Prices can vary significantly; it's advisable to compare suppliers to find the best value.


The Rise of Pattern Changers in Modern Excavators
As excavator fleets grow more diverse, the need for control pattern flexibility has become essential. Operators trained on different systems—typically SAE (CAT) or ISO (Deere)—often switch between machines with varying joystick layouts. To reduce retraining time and improve safety, many contractors install pattern changers, allowing operators to toggle between control schemes.
John Deere’s 250G LC, a mid-size excavator introduced in the early 2010s, is a popular choice for general excavation, utility trenching, and site prep. While some units come factory-equipped with pattern changers, others require aftermarket solutions. Installing one isn’t overly complex, but it demands a clear understanding of the pilot hydraulic system and valve block layout.
Understanding Pilot Lines and Valve Block Lettering
The pilot system in the 250G uses low-pressure hydraulic signals to control the main valve spools. These pilot lines are routed from the joysticks to the valve block, where they activate swing, boom, stick, and bucket functions. Each line is labeled—typically with letters like A, B, C, D—but these markings don’t always correspond to standardized diagrams.
When installing an aftermarket pattern changer, the goal is to reroute these pilot signals through a selector valve. This valve reverses the joystick inputs, effectively swapping the control pattern. However, without a schematic that defines what each lettered line controls, installation becomes guesswork.
Recommendations for identifying pilot lines:

• Consult the official John Deere service manual for the 250G LC, which includes hydraulic schematics and pilot line definitions

• Use colored zip ties or tags to mark each line before disconnecting

• Trace each line from the joystick to the valve block to confirm function

• If no schematic is available, manually test each line by actuating the joystick and observing movement at the valve spool


• A rotary selector knob or lever

• Inlet and outlet ports for each pilot line

• Mounting brackets and hardware

• Labels for SAE and ISO positions


• Shut down the machine and relieve hydraulic pressure

• Disconnect pilot lines from the valve block

• Mount the pattern changer in a location accessible to the operator

• Connect pilot lines to the changer according to the desired routing

• Test each function in both control modes before returning to service


• Standardize control patterns across your fleet when possible

• Train operators on both SAE and ISO layouts to improve adaptability

• Label pattern changer positions clearly and include a reference chart in the cab

• Document pilot line routing and keep a copy in the service binder

• Inspect pattern changers during regular maintenance for leaks or wear


Introduction
The Case 130 tractor, a vintage model from the 1960s, is renowned for its durability and simplicity. However, like all machinery, it can encounter issues over time. One common problem is the tractor failing to start, often described as "dead" when attempting to turn the key. This article delves into potential causes and solutions for this issue.
Understanding the Electrical System
The Case 130 operates on a 12-volt electrical system, which includes:

• Battery: Supplies power to the starter motor and other electrical components.

• Ignition Switch: Activates the electrical system when turned on.

• Starter Solenoid: Engages the starter motor to turn over the engine.

• Starter Motor: Cranks the engine to initiate combustion.

• Alternator: Charges the battery while the engine runs.

• Fuses and Relays: Protect and control the electrical circuits.


1. Battery Issues


1. Corroded or Loose Battery Terminals


1. Faulty Ignition Switch


1. Defective Starter Solenoid


1. Worn Starter Motor


1. Blown Fuses or Faulty Relays


1. Safety Switches


Introduction
The CAT 226 Skid Steer Loader, a compact and versatile machine, has been a staple in construction and landscaping for years. However, operators occasionally encounter a peculiar issue: the machine becomes "stuck in rabbit mode," leading to unexpectedly high speeds. Understanding the causes and solutions to this problem is crucial for maintaining operational efficiency and safety.
Understanding 'Rabbit Mode'
In the context of skid steer loaders, "rabbit mode" refers to the high-speed setting, allowing the machine to operate at its maximum speed. This mode is typically engaged through the operator's controls. However, when the machine remains in this mode unintentionally, it can lead to challenges in maneuverability and control.
Possible Causes of the Issue

1. Control Lever Malfunction: The control lever, responsible for speed regulation, may become stuck or fail to return to its neutral position, causing the machine to remain in rabbit mode.

2. Hydraulic System Issues: Problems within the hydraulic system, such as pressure imbalances or leaks, can affect the functionality of the control mechanisms, leading to unintended speed settings.

3. Electrical Sensor Failures: Modern skid steer loaders are equipped with electronic sensors that monitor and adjust speed settings. A malfunction in these sensors can result in the machine staying in rabbit mode.


1. Inspect the Control Lever: Ensure that the control lever moves freely and returns to its neutral position when released. Lubricate or replace the lever if necessary.

2. Check the Hydraulic System: Examine the hydraulic lines for leaks or damage. Verify that the hydraulic fluid levels are adequate and that the system is functioning correctly.

3. Test Electrical Sensors: Use diagnostic tools to check the functionality of the electronic sensors. Replace any faulty sensors to restore proper speed control.


• Regular Maintenance: Adhere to the manufacturer's recommended maintenance schedule to ensure all components are in optimal condition.

• Operator Training: Ensure that all operators are trained in the proper use of the machine and are aware of the potential issues related to speed settings.

• Prompt Repairs: Address any signs of malfunction immediately to prevent further complications.


The JD 410 and Its Engine Architecture
The John Deere 410 backhoe-loader, introduced in the mid-1970s, was powered by the 219 cubic inch naturally aspirated diesel engine—commonly referred to as the 4219D. Built for durability and field serviceability, this four-cylinder engine featured a gear-driven camshaft, mechanical fuel pump, and wet-sleeve cylinder liners. While the engine was known for its longevity, decades of use and neglect can lead to internal wear, especially in the lower end.
One common failure point is the rod bearings. When neglected, they can spin and damage the crankshaft journals, sending metal flakes into the oil and compromising the entire lubrication system.
Initial Diagnosis and Teardown Strategy
In one rebuild case, the engine began knocking and was found to have a failed rod bearing. Metal debris in the oil pan confirmed widespread contamination. The crankshaft was removed for inspection and found to be beyond repair—requiring replacement. While some dealers quoted over $3,000 for a new crank, aftermarket sources offered replacements for around $500, making the rebuild feasible.
Before removing the crankshaft, the camshaft and timing gear plate must be extracted. This process is complicated by the pressed-on cam gear and the presence of lifters that interfere with camshaft removal.
Camshaft Removal and Common Pitfalls
The camshaft in the 4219D engine is retained by a thrust plate bolted to the block. The gear is pressed onto the cam and should not be removed separately. Instead, the camshaft and gear are pulled as a unit. To do this:

• Remove the cylinder head to access the lifters

• Extract all lifters from the top of the block (some engines require the block to be inverted if lifters are mushroom-style)

• Rotate the camshaft to align bolt holes in the gear with the thrust plate bolts

• Remove the thrust plate bolts and gently slide the camshaft out


• Using a bearing mandrel with a scribed line along its length

• Aligning the bearing’s oil hole with the scribe mark

• Shining a light down the oil galley to confirm alignment during installation

• Pulling the bearing into place using a threaded rod and washers for control


• Magnaflux rods for cracks

• Measure big-end bore and compare to spec

• Replace bushings and hone to fit

• Use plastigage during reassembly to confirm oil clearance


• Replace all bearings, seals, and gaskets

• Clean oil passages thoroughly

• Use assembly lube on all moving parts

• Torque bolts to spec and follow sequence

• Prime the oil system before first start

• Monitor oil pressure and temperature during break-in


Introduction
The Caterpillar D4H, a robust and reliable track-type tractor, has been a staple in construction and agricultural operations since its introduction. Ensuring the longevity and optimal performance of its powertrain requires meticulous attention to its transmission oil system. This guide delves into the intricacies of the D4H's transmission oil maintenance, addressing common concerns and providing step-by-step procedures for effective servicing.
Transmission Oil System Overview
The D4H is equipped with a planetary power shift transmission, offering three forward and three reverse gears. This design provides seamless gear transitions and efficient power delivery. The transmission oil system encompasses the transmission housing, torque converter, and associated lines, with a total oil capacity of approximately 120 liters (31.7 gallons).
Common Maintenance Challenges

1. Incomplete Oil Drainage: Operators often report that only a portion of the expected oil volume is drained during maintenance. This discrepancy arises because the specified oil capacity includes the entire powertrain system, not just the transmission housing. Consequently, only a fraction of the oil is recoverable during a standard oil change.

2. Torque Converter Oil Drainage: Accessing the torque converter's drain plug can be challenging. While some models feature a dedicated access panel, others may require removal of the belly pan to reach the drain plug. It's advisable to inspect the torque converter during oil changes to assess its condition and cleanliness.

3. Transmission Oil Pickup Screen: The transmission oil pickup screen filters debris before oil enters the pump. Over time, this screen can become clogged, leading to reduced oil flow and potential transmission issues. Regular inspection and cleaning are recommended to maintain optimal performance.


1. Preparation:
   • Park the D4H on level ground and engage the parking brake.

   • Allow the engine to cool before commencing work.

   • Gather necessary tools and safety equipment.

2. Draining the Oil:
   • Locate and remove the transmission oil drain plug.

   • Allow the oil to drain completely into a suitable container.

   • If accessible, remove the torque converter drain plug to facilitate complete drainage.

3. Cleaning the Pickup Screen:
   • Access the transmission oil pickup screen, typically located beneath the floor panel.

   • Remove any debris or contaminants from the screen using a non-abrasive tool.

   • Reinstall the screen securely.

4. Replacing the Oil Filter:
   • Remove the old transmission oil filter.

   • Install a new, compatible filter, ensuring a proper seal to prevent leaks.

5. Refilling the Oil:
   • Using the appropriate oil type and quantity, refill the transmission system.

   • Monitor the oil level during the filling process to avoid overfilling.

6. Post-Maintenance Checks:
   • Start the engine and allow it to reach operating temperature.

   • Check for any signs of leaks or unusual noises.

   • Test the transmission's functionality by engaging all gears and observing performance.


• Low Oil Pressure: If experiencing low oil pressure, check for clogged filters, low oil levels, or malfunctioning pressure relief valves.

• Erratic Shifting: Erratic or harsh shifting can result from contaminated oil, worn clutch plates, or issues with the transmission control valve.

• Overheating: Excessive transmission temperatures may indicate low oil levels, a malfunctioning oil cooler, or overloading of the machine.


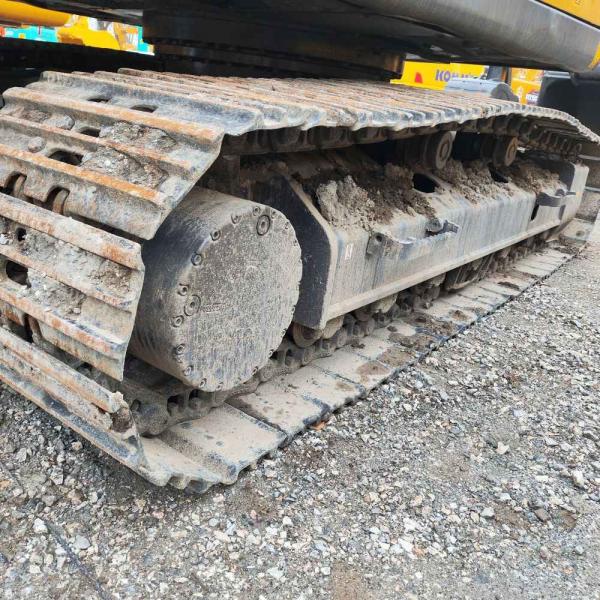

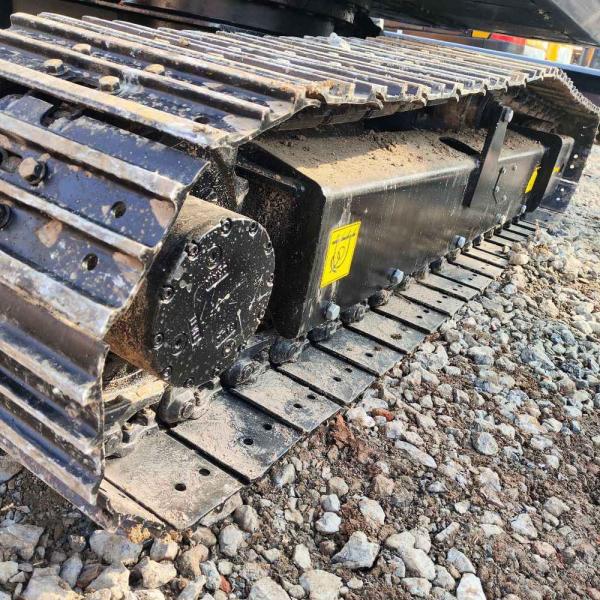

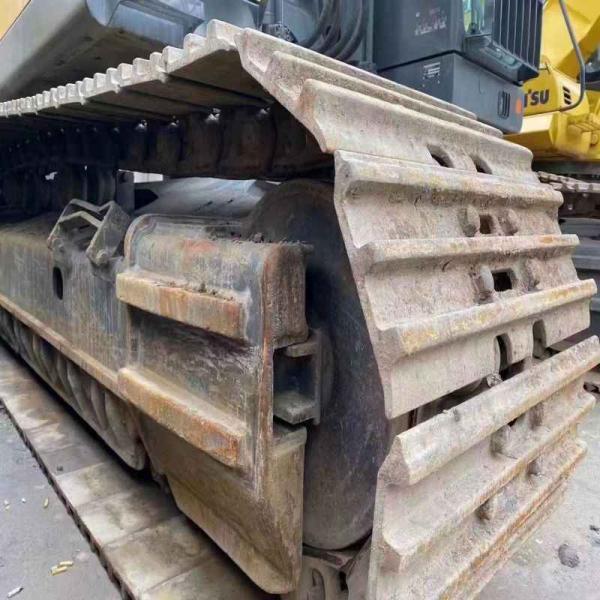

The Undercarriage Dilemma in Aging Fleets
As excavators rack up hours—especially those in the 7,000+ range like the Cat 315CL—the undercarriage becomes one of the most expensive wear zones to maintain. Track chains, sprockets, rollers, and idlers all wear in tandem, and replacing them can easily exceed $10,000 if using OEM parts. For contractors running seasonal workloads (400–500 hours annually) in moderate soils like sand and clay, the question arises: can aftermarket track components deliver acceptable performance without compromising reliability?
OEM vs Aftermarket Pricing and Pressure
Original equipment manufacturers (OEMs) like Caterpillar offer premium-grade undercarriage parts, often priced at $3,000 or more per track chain. In contrast, aftermarket suppliers such as NYHT list chains for $1,700, with other vendors offering options around $2,300. The savings are tempting—especially for small operators trying to stretch budgets across multiple machines.
But price alone doesn’t tell the full story. Aftermarket parts vary widely in metallurgy, heat treatment, and dimensional tolerances. Some chains are built to near-OEM spec, while others may suffer from premature bushing wear or inconsistent pitch spacing, leading to accelerated sprocket and roller damage.
Compatibility Risks and Revision Conflicts
One overlooked issue is component revision mismatch. Manufacturers often update roller and chain designs over time, altering spool height, hub engagement angles, or bearing types. Installing a newer roller on an older chain can result in rapid wear or mechanical interference.
A real-world example involved a Deere excavator where a revision 3 roller chewed up a revision 0 chain within weeks. The updated roller had a taller spool and a different engagement angle, causing misalignment. The solution was to source a used revision 0 roller from a salvage yard, restoring harmony between components.
This highlights the importance of checking part compatibility—not just by model number, but by revision history. Parts manuals may list newer versions as replacements, but they rarely warn about backward compatibility issues.
Evaluating Aftermarket Brands and Build Quality
Not all aftermarket suppliers are equal. Some brands invest in OEM-grade forging and induction hardening, while others cut corners with surface treatments or inconsistent welds. When evaluating aftermarket chains and sprockets, consider:

• Material grade: Look for 4140 or equivalent alloy steel

• Heat treatment: Induction-hardened bushings and links last longer

• Pitch accuracy: Consistent spacing prevents binding and uneven wear

• Bushing seal design: Greased and sealed bushings reduce internal friction

• Warranty terms: Reputable suppliers offer 12–24 month coverage


• Inspect rollers and idlers for wear—replacing chains without addressing these can accelerate failure

• Measure chain pitch and bushing diameter to confirm wear level

• Check sprocket tooth profile for hooking or thinning

• Verify compatibility between chain revision and roller design

• Consider replacing both chains and sprockets together to ensure proper meshing

• Use anti-seize or corrosion inhibitors during installation in wet climates


Introduction
The Caterpillar 432 Backhoe Loader stands as a testament to Caterpillar's commitment to innovation and reliability in the construction equipment industry. Since its inception in 1985, the 432 series has undergone numerous enhancements, solidifying its position as a preferred choice for operators worldwide. This article delves into the history, specifications, and evolution of the CAT 432 Backhoe Loader, highlighting its significance in the heavy machinery sector.
Historical Background
The journey of the CAT 432 began in 1985 when Caterpillar introduced its first backhoe loader model. Developed collaboratively by design teams in Illinois, USA, and Desford, UK, the initial model aimed to meet the growing demands of the construction industry. Over the years, Caterpillar has continuously refined the 432 series, incorporating advanced technologies and design improvements to enhance performance and operator comfort.
Key Specifications
The CAT 432 Backhoe Loader boasts a range of specifications that cater to diverse construction needs:

• Engine Power: The 432 is equipped with a 92 hp (68 kW) engine, providing ample power for various tasks.

• Operating Weight: With a nominal weight of 18,671 lb (8,469 kg) and a maximum weight of 24,251 lb (11,000 kg), the 432 offers stability and durability.

• Loader Bucket Capacity: The standard loader bucket has a capacity of 1.03 m³, suitable for a wide range of materials.

• Backhoe Reach: The backhoe's reach from the swivel is approximately 18.34 ft (5.59 m), allowing for extended digging capabilities.

• Dig Depth: The standard dig depth is around 16 ft (4.88 m), with an extended reach of up to 19 ft (5.79 m).


• 432D: Introduced in the early 2000s, the 432D featured improved hydraulics and operator comfort enhancements.

• 432E: This model offered increased engine power and advanced hydraulic systems, enhancing overall performance.

• 432F2: The F2 series emphasized fuel efficiency and reduced emissions, aligning with global environmental standards.

• 432G: The G series introduced electronic controls and advanced diagnostics, improving maintenance and operational efficiency.


• Cab Design: The 432 features a spacious cab with ergonomic controls, providing operators with a comfortable working environment.

• Visibility: Large windows and strategically placed mirrors ensure excellent visibility, enhancing safety and precision.

• Climate Control: Modern 432 models are equipped with air conditioning and heating systems, ensuring operator comfort in various climates.


• Construction: Ideal for tasks such as trenching, lifting, and material handling.

• Agriculture: Used for land clearing, digging irrigation ditches, and other farming tasks.

• Municipal Work: Employed in road maintenance, utility installation, and landscaping projects.


Introduction
The Caterpillar 299D2 XHP is a high-performance compact track loader renowned for its power and versatility. However, like many modern diesel engines equipped with Selective Catalytic Reduction (SCR) systems, it can experience issues related to Diesel Exhaust Fluid (DEF). Understanding these problems and their solutions is crucial for maintaining optimal machine performance.
What Is DEF and Its Role in Emissions Control?
DEF is a non-toxic, colorless liquid composed of 32.5% high-purity urea and 67.5% deionized water. It is injected into the exhaust stream of diesel engines to reduce nitrogen oxide (NOx) emissions through a chemical reaction in the SCR system. Maintaining the quality and quantity of DEF is essential for the proper functioning of this system.
Common DEF-Related Issues in the 299D2 XHP

1. DEF Quality Degradation: DEF has a shelf life of approximately six months. Exposure to high temperatures, sunlight, or contamination can degrade its quality, leading to crystallization and clogging of the DEF dosing system.

2. Clogged DEF Filter: The DEF filter traps impurities to prevent them from entering the SCR system. Over time, this filter can become clogged, causing reduced DEF flow and triggering warning codes.

3. Faulty DEF Dosing Valve: The dosing valve regulates the amount of DEF injected into the exhaust. If it malfunctions or becomes clogged, it can lead to improper dosing, affecting emissions control and engine performance.

4. Sensor Failures: Sensors monitoring DEF quality, level, and flow can fail or provide inaccurate readings, leading to incorrect system behavior and potential engine derate.


• Warning codes such as "3516-11" or "SCR Level 1" displayed on the operator's screen.

• Reduced engine power or the machine entering "limp mode."

• Frequent regeneration cycles or failure to complete regeneration.

• Decreased performance during operation.


1. Inspect DEF Quality: Check the DEF for clarity and absence of contaminants. If the DEF appears cloudy or has particles, it should be replaced.

2. Flush the DEF System: If contamination is suspected, flushing the DEF system can help clear blockages. This procedure involves purging the system with distilled water to remove crystallized DEF deposits.

3. Replace DEF Filter: If clogging is evident, replacing the DEF filter is necessary to restore proper flow.

4. Check Dosing Valve and Sensors: Inspect the DEF dosing valve for proper operation and cleanliness. Test sensors for accurate readings and replace if faulty.

5. Perform Manual Regeneration: Initiate a manual regeneration cycle to clear accumulated soot in the Diesel Particulate Filter (DPF) and ensure optimal engine performance.


• Store DEF in a cool, dry place away from direct sunlight and temperature extremes.

• Use high-quality DEF from reputable suppliers.

• Regularly inspect and maintain the DEF system components.

• Follow the manufacturer's recommended maintenance schedule.
