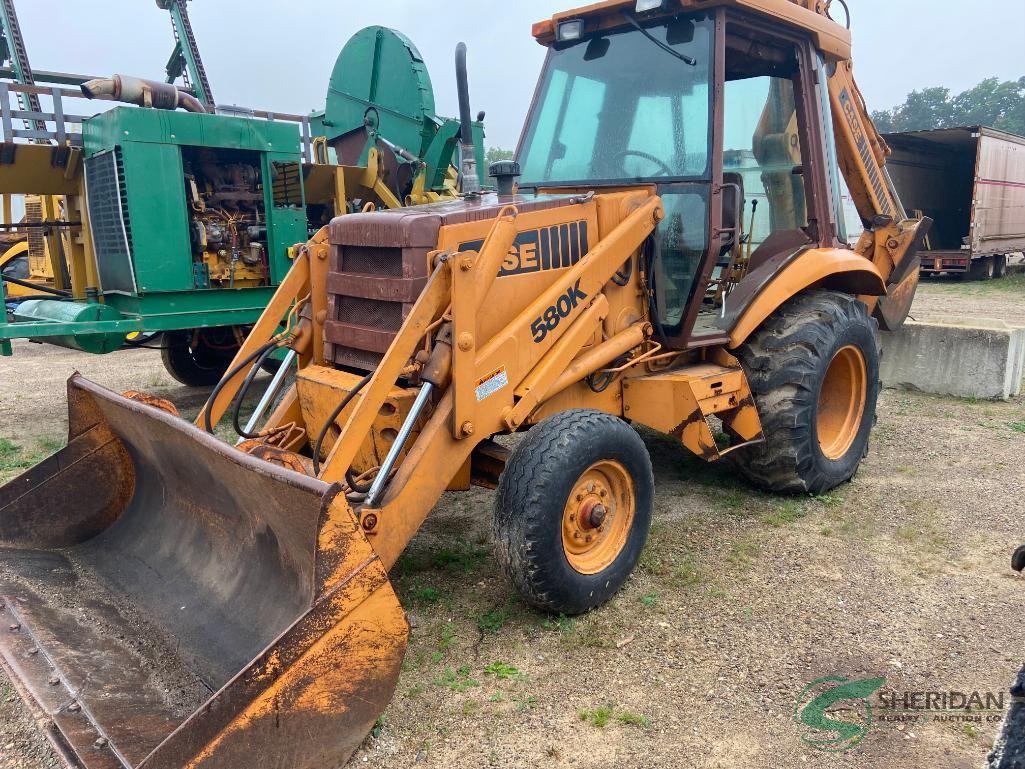

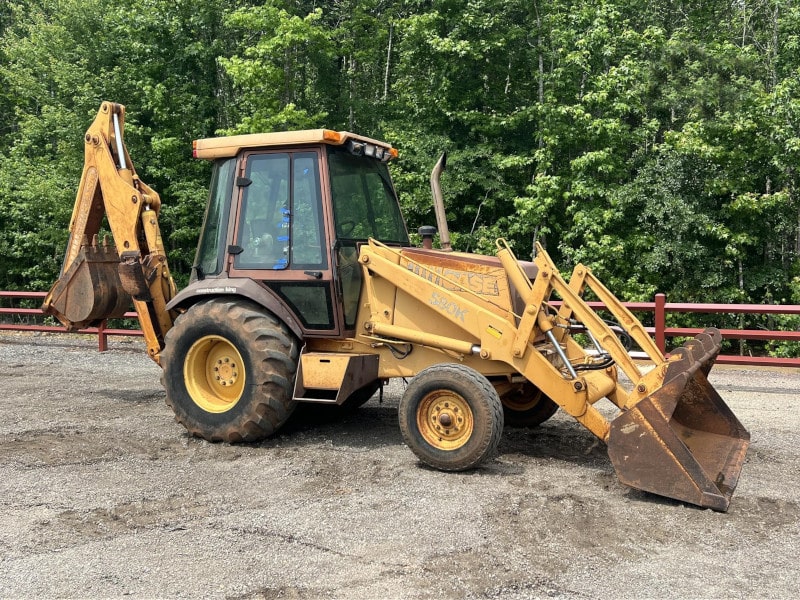

The Case 580K backhoe loader, a staple in the construction and agricultural sectors, is renowned for its durability and versatility. However, like all machinery, it can encounter starting issues over time. If your 580K refuses to turn over, several common culprits could be at play. This guide delves into potential causes and solutions to get your machine back in operation.
Understanding the Starting System
The starting system of the Case 580K comprises several key components:

• Battery: Supplies the necessary power to start the engine.

• Ignition Switch: Engages the starting circuit when turned to the "start" position.

• Starter Solenoid: Acts as a relay, transmitting power from the battery to the starter motor.

• Starter Motor: Cranks the engine to initiate combustion.

• Neutral Safety Switch: Prevents the engine from starting unless the transmission is in neutral.


1. Faulty Ignition Switch
   A malfunctioning ignition switch may not send the necessary signal to the starter solenoid. Testing the voltage at the solenoid's small terminal when the key is in the "start" position can help diagnose this issue. If there's no voltage, the ignition switch or its wiring may be defective. In such cases, replacing the ignition switch is recommended.

2. Defective Starter Solenoid
   Even if the solenoid clicks when attempting to start, it might not be transmitting sufficient current to the starter motor. Bypassing the solenoid with a remote starter switch can help determine if it's the source of the problem. If the engine turns over during this test, replacing the solenoid is advisable.

3. Weak or Discharged Battery
   A battery with low voltage may not provide enough power to engage the starter motor. Checking the battery voltage with a multimeter can confirm its condition. If the voltage is below 12.4 volts, charging or replacing the battery is necessary.

4. Corroded or Loose Battery Connections
   Poor connections can impede the flow of electricity. Inspecting and cleaning the battery terminals and cable ends can resolve this issue. Ensure all connections are tight and free from corrosion.

5. Neutral Safety Switch Issues
   If the neutral safety switch is faulty or misaligned, it may prevent the engine from starting. Checking the switch's operation and adjusting or replacing it as needed can rectify this problem.

6. Worn or Faulty Starter Motor
   A starter motor that doesn't engage or turns slowly may be worn out. Testing the motor's operation and replacing it if necessary can restore starting functionality.


• Regularly Inspect Battery and Connections: Ensure the battery is fully charged and connections are clean and tight.

• Test the Ignition Switch: Periodically check the ignition switch's functionality to prevent unexpected failures.

• Monitor Starter Performance: Listen for unusual noises or sluggish cranking, which may indicate starter issues.

• Check Neutral Safety Switch: Ensure the switch is properly adjusted and functioning to prevent starting issues.


The JD 5100E and Its Role in Modern Agriculture
The John Deere 5100E is part of the 5E Series utility tractors, designed for mid-range agricultural and municipal operations. Introduced in the late 2000s and refined over the following decade, the 5100E combines mechanical simplicity with electronic sophistication. It features a 100-horsepower 4045 PowerTech engine, a Tier 4 Final emissions system, and electronic control modules that manage fuel delivery, exhaust aftertreatment, and diagnostics.
John Deere, founded in 1837, has long been a leader in agricultural machinery. The 5E Series has sold tens of thousands of units globally, with strong adoption in North America, Latin America, and Southeast Asia. The 5100E is especially popular among school districts, small farms, and utility departments for its balance of power, maneuverability, and emissions compliance.
Understanding the Fault Codes and Their Implications
In one 2017 model with approximately 2,000 operating hours, four fault codes were reported:

• 3216.09: Inlet NOx sensor communication loss

• 3226.09: Outlet NOx sensor communication loss

• 3516.09: DEF tank heater communication loss

• 5128.06: Unknown fault, possibly related to CAN bus or ECU


• ECU (Engine Control Unit): Central processor for engine and emissions logic

• NOx Sensors: Located upstream and downstream of the SCR catalyst

• DEF Tank Heater Module: Regulates fluid temperature

• SCR Controller: Manages DEF injection and catalyst performance

• Wiring Harnesses and Terminating Resistors: Ensure signal integrity


• Check Power and Ground: Verify voltage at each sensor and module

• Inspect CAN Bus Termination: Ensure resistors are intact and resistance is ~60 ohms across the bus

• Scan for Active and Stored Codes: Use a compatible diagnostic tool to read ECU data

• Perform Pin-Out Tests: Trace wiring from ECU to each sensor

• Check for Moisture Intrusion: Look for corrosion in connectors, especially near the DEF tank


The Kubota SVL75-2 is a robust compact track loader renowned for its performance and versatility. To maintain optimal functionality and longevity, it's crucial to use the correct hydraulic oil. This guide provides detailed information on the hydraulic oil requirements for the SVL75-2, including specifications, capacities, and recommended practices.
Hydraulic Oil Specifications

• Type: ISO 46 anti-wear hydraulic fluid.

• Viscosity Grade: AW46 (Anti-Wear 46).

• Additive Package: Zinc-free, high-performance formulation designed to meet the rigorous demands of modern high-pressure, high-temperature hydraulic systems.

• OEM Recommendation: Kubota Premium Anti-Wear Hydraulic Oil 46HD.


• Hydraulic Tank Capacity: Approximately 35 liters (9.25 US gallons).

• Total Hydraulic System Capacity: Approximately 60 liters (15.85 US gallons).


• Regular Oil Checks: Periodically check the hydraulic oil level and condition. Low or contaminated oil can lead to reduced performance and potential damage.

• Filter Replacement: Replace hydraulic filters at the intervals specified in the operator's manual to maintain system cleanliness and efficiency.

• Oil Changes: Follow the manufacturer's recommendations for oil change intervals, especially if the machine operates under heavy or demanding conditions.


Purpose and Design
Caterpillar’s plowing equipment is purpose-built for efficient snow and material removal, designed to attach seamlessly to various loader and track machines such as skid steer loaders (SSL), compact track loaders (CTL), multi-terrain loaders (MTL), compact wheel loaders (CWL), backhoe loaders (BHL), and small wheel loaders (SWL). These plows are engineered to follow ground contours precisely, ensuring effective snow clearance without damaging underlying surfaces.
Key Features

• Profiled Moldboard Design: The moldboard is shaped to roll and fold snow efficiently, increasing the amount of material moved per pass while minimizing snow adherence to the plow surface, resulting in improved productivity.

• Hydraulic Angle and Float: Plows can hydraulically angle to windrow snow to one side and have lateral float capability (up to 5 degrees), which allows the blade to pivot and adjust to surface irregularities, reducing blade wear and surface gouging.

• Cross-Over Relief Valves: Integrated valves provide pressure surge protection in the hydraulic system, improving tool longevity by dampening hydraulic spikes that could cause seal failures.

• Quick Coupler Compatibility: Available with various quick coupler options (SSL, IT, Fusion™), allowing operators rapid attachment changes and secure holding of the tool.

• Bolt-On Skid Shoes and Skid Plates: These protect the moldboard’s cutting edge and reduce the risk of surface damage during plowing operations.

• Durable Hoses and Connections: Equipped with Cat XT-3 ES hoses, couplings, and O-ring face seals, often wrapped in nylon Cordura sleeves to enhance durability and operator safety.


• Snow removal from roads, parking lots, and runways.

• Material pushing for landscaping and earthmoving projects.

• Clearing agricultural fields and pathways during winter.


• Regular inspection of hydraulic hoses, fittings, and relief valves to ensure leak-free, smooth operation.

• Replacement of cutting edges and skid shoes as they wear to maintain performance and protect surfaces.

• Seasonal storage and cleaning to prevent corrosion and hydraulic system wear.


• Moldboard: The curved plate on a plow that rolls and directs material.

• Hydraulic Float: Movement allowing the plow blade to pivot laterally to accommodate ground contours.

• Quick Coupler: Hydraulic connection system for rapid attachment changes.

• Cross-Over Relief Valve: A valve protecting hydraulic circuits from pressure surges.

• Skid Shoes: Protective plates that help maintain cutting edge height and reduce surface contact.


The Galion 125 and Its Mechanical Legacy
The Galion 125 crane, manufactured in the early 1960s, represents a transitional era in mobile crane engineering. Galion Iron Works, founded in 1907 in Ohio, was known for its road graders and later expanded into crane manufacturing. By the 1960s, Galion had become a respected name in mid-sized mobile cranes, particularly in municipal and utility sectors. The 125 model was powered by an International UB264 gasoline engine, a robust inline-six used in various industrial and agricultural applications.
The UB264 engine was part of International Harvester’s truck and tractor engine family, known for its simplicity and durability. It featured a mechanical ignition system with a Delco-Remy distributor, part number 1112437, which controlled spark timing via breaker points and centrifugal advance weights. These distributors were common across IH trucks, tractors, and stationary engines of the era.
Why Distributors Fail and What to Watch For
Mechanical distributors are prone to wear over time due to several factors:

• Worn bushings causing shaft wobble

• Loose breaker plate mounts affecting point gap

• Corroded or broken advance springs

• Pitted or misaligned points

• Weak condenser leading to spark misfire


• Disassemble and clean all internal components

• Replace worn bushings with precision-fit bronze or nylon inserts

• Install new advance springs matched to engine RPM curve

• Replace breaker points and condenser with OEM-spec parts

• Lubricate cam lobes and reassemble with correct dwell angle


• More consistent spark timing

• Reduced maintenance

• Improved cold starting

• Longer component life


• IH trucks with the 264 engine

• Farmall 460 and 560 tractors

• Industrial power units


• Search by engine model and distributor part number

• Look for units with tach drive if needed

• Confirm shaft diameter and gear compatibility

• Inspect for rebuild potential before purchase


Common Causes of Bent Loader Buckets
Loader buckets are subject to intensive forces during operation, such as heavy lifting, digging, and material handling, which can lead to bending or deformation over time. Typical causes include:

• Impact with hard objects: Striking rocks, concrete, or other immovable items at speed can deform bucket edges or arms.

• Uneven loads: Lifting heavy materials unevenly or off-center creates excessive stress on one side, bending the bucket or arms.

• User error: Operating with quick-attach connections partially engaged or lifting with one side only can twist and warp components.

• Wear and fatigue: Repeated heavy use without timely maintenance leads to metal fatigue and eventual bending.

• Improper loading or lifting techniques: Using chains or hooks inappropriately or overloading beyond bucket capacity contributes to deformation.


• Visible gaps or uneven spacing between bucket edge and ground.

• Misaligned mounting brackets showing wider or narrower clearances compared to the opposite side.

• Difficulty engaging attachments smoothly or lock misalignment.

• Uneven cutting or scooping performance.

• Excessive pin and bushing wear on bucket linkage or arm joints.


• Measuring gaps and alignments to confirm bending and its extent.

• Using heavy-duty ratchet straps or hydraulic presses to carefully straighten loader arms or bucket frames.

• Replacing worn pins, bushings, or brackets contributing to misalignment.

• Adjusting subframe or quick-attach mounts to buy incremental alignment improvement.

• Consulting dealerships or specialists for frame straightening if damage is severe.

• In some cases, welding and reinforcing bent areas may restore structural integrity.


• Always fully engage quick-attach locks before lifting or moving loads.

• Avoid lifting materials that exceed machine specifications or lifting from awkward angles.

• Inspect loader and bucket components regularly for early signs of fatigue or bending.

• Practice even loading and controlled lifting to distribute stresses consistently.


• Loader Arm: The mechanical arms connecting the loader to the bucket.

• Quick-Attach: A mechanism for rapid attachment changes on loaders.

• Pin Bearing: Components connecting moving parts, susceptible to wear.

• Subframe: The supporting frame element that holds loader attachments.

• Bucket Curl: The rotational movement curling the bucket for scooping or dumping.


Identifying the manufacturing year of a John Deere 650H crawler dozer is crucial for maintenance, parts replacement, and resale purposes. Unlike some equipment where the serial number directly indicates the production year, John Deere employs a different system. This article provides a comprehensive guide to determining the year of your 650H dozer using its serial number and other methods.
Understanding the Serial Number System
John Deere's 650H crawler dozers typically have a 13-character Product Identification Number (PIN), also known as the serial number. For example, a serial number might read:
T0650HX904570
In this format:

• T: Indicates the model series.

• 0650: Model number.

• H: Designates the machine type (e.g., high track).

• X: Represents the engine configuration.

• 904570: Sequential production number.


• Left Front Frame: Just below the operator's station.

• Left Side of the Engine Frame: Near the engine compartment.

• Above the Track: On the right side of the machine, above the track.


• Exact build date.

• Factory-installed options.

• Service history (if available).


• 1998: 847675 – 880884

• 1999: 880885 – 893108

• 2000: 893109 – 902269

• 2001: 902270 – 910830

• 2002: 910831 – 916292

• 2003: 916293 – 925852

• 2004: 925853 and later


• Engine Serial Number: If the product identification number is unreadable, you can locate the engine serial number on the right-hand side of the engine block or on the left side of the bellhousing. This number can also provide information about the engine's manufacturing date.

• Consult a Dealer: If you're unable to determine the year using the above methods, contact a John Deere dealer with your serial number. They can access proprietary databases to provide detailed information about your dozer.

• Service Records: Reviewing the machine's service records can offer insights into its age and maintenance history, which can be useful when determining its year.


Overview of the Problem
The 1996 Case 9030B excavator exhibits a notable loss of power once the machine reaches operating temperature. While cold starts show normal control and track function, as the hydraulic system warms up, the tracks lose traction power, requiring the operator to use the bucket to assist during turning. Additionally, sluggish bucket movement and diminished hydraulic digging force are apparent. This performance drop typically signals underlying hydraulic issues that worsen with heat.
Potential Causes and Filter Considerations
Hydraulic filters are critical to maintaining fluid cleanliness and protecting internal components from damage. Even though most filters were recently changed, missing two filters could contribute substantially to hydraulic degradation:

• Blocked or clogged filters restrict fluid flow, increasing resistance and reducing hydraulic pressure and power.

• Dirty filters cause the hydraulic pump to work harder, leading to overheating and loss of pump efficiency.

• Replacing all hydraulic filters, including previously missed ones, is a prudent first step to restoring system vigor.


• Weak or worn hydraulic pump: Heat thins hydraulic fluid reducing lubrication and pump efficiency. A fatigued pump cannot maintain necessary pressure when warm.

• Internal valve leaks or spools sticking: Increased clearances or debris inside the valve body can cause pressure drop at elevated temperatures.

• Hydraulic fluid degradation: Fluid may lose viscosity or additives due to overheating, impairing lubrication and power transmission.

• Hydraulic hose or line restrictions: Heat can cause expansion and contraction of hoses leading to pinching or partial blockage.

• Overheating cooling system: Insufficient cooling causes hydraulic oil temperature to rise beyond optimal range (100°F to 140°F), reducing system performance drastically.


• After replacing all filters, check hydraulic fluid condition and temperature during operation.

• Measure hydraulic pressure at key points to verify pump performance and valve function.

• Inspect hoses for damage or kinks that may restrict flow.

• Ensure radiators, coolers, and hydraulic oil coolers are clean and operating correctly.

• Review hydraulic fluid specifications; use fluids designed for operating temperature ranges expected on site.


• Hydraulic Pump: Device supplying fluid power necessary to operate actuators.

• Hydraulic Valve: Component controlling fluid flow direction and pressure.

• Viscosity: Resistance of fluid to deformation or flow; critical for lubrication.

• Hydraulic Cooling System: Assemblies to cool fluid and maintain optimal operating temperatures.

• Pressure Drop: Loss of fluid pressure caused by leaks, restrictions, or component failures.


The Rise of the GTH-844 Telehandler
The Genie GTH-844 is a widely used rough-terrain telehandler developed by Genie Industries, a company founded in 1966 and later acquired by Terex Corporation in 2002. Genie built its reputation on aerial work platforms and material handling equipment, and the GTH-844 became one of its flagship telehandlers for construction, framing, and industrial logistics.
With a maximum lift capacity of 8,000 lbs and a lift height of 44 feet, the GTH-844 was designed to operate in rugged environments where stability and maneuverability are critical. Its four-wheel drive, oscillating rear axle, and frame-leveling capabilities allow it to traverse uneven ground while maintaining load control. Thousands of units have been sold across North America, Europe, and Australia, particularly in framing, masonry, and utility sectors.
Does the GTH-844 Self-Level While Driving
The GTH-844 does not feature automatic self-leveling in the sense of active terrain compensation while driving. Instead, it relies on a combination of mechanical oscillation and manual frame-leveling controls.
Key components include:

• Rear Axle Oscillation Cylinder: Allows the rear axle to pivot and adapt to terrain changes when unlocked.

• Frame-Leveling Switch: Manually adjusts the front axle tilt to maintain load stability.

• Boom Angle Sensor: Locks the rear axle oscillation when the boom exceeds a certain angle, typically 60 degrees.


• Lower the boom to horizontal.

• Drive the front wheel onto a 6x6 block.

• Observe the rear axle lock cylinder behind the cab. It should move, indicating oscillation.

• Raise the boom above 60 degrees and repeat. The cylinder should remain locked.

• Lower the boom again and confirm that the cylinder unlocks.


• Oscillation: Passive movement of the rear axle to adapt to terrain.

• Chassis Sway: Active frame tilt controlled by the operator.

• Boom Angle Lockout: Safety feature that disables oscillation when the boom is raised.


• Inspect oscillation cylinder seals and pivot points monthly.

• Test boom angle sensor calibration every 500 hours.

• Check sway cylinder fluid levels and hydraulic lines for leaks.

• Clean electrical connectors and verify solenoid response.


Introduction
When evaluating compact track loaders, the Kubota SVL97-2 and John Deere 331P stand out as formidable contenders in the 90-horsepower class. Both machines are engineered to tackle demanding tasks in construction, landscaping, and agriculture. This article delves into a detailed comparison of these two models, examining their specifications, performance, and unique features to assist operators in making an informed decision.
Engine Power and Performance

• Kubota SVL97-2: Equipped with a 96.4 hp turbocharged diesel engine, the SVL97-2 delivers robust performance. Its vertical lift design enhances lifting capabilities, making it suitable for heavy-duty applications. The machine boasts a tipping load of 9,143 lbs and a rated operating capacity of 4,572 lbs at 50% tipping load.

• John Deere 331P: Powered by a 98 hp engine, the 331P offers slightly higher horsepower. It has a rated operating capacity of 3,150 lbs and a bucket breakout force of 11,000 lbs, indicating strong lifting and digging capabilities.


• Kubota SVL97-2: Features a high-flow auxiliary hydraulic system with a flow rate of 41.0 gpm, accommodating a wide range of attachments. The hydraulic quick coupler enhances versatility, allowing for quick attachment changes.

• John Deere 331P: Also offers a high-flow auxiliary hydraulic system, though specific flow rates may vary. The machine's hydraulic system is designed to support various attachments, enhancing its adaptability on the job site.


• Kubota SVL97-2: Designed with operator comfort in mind, the SVL97-2 features a spacious cab with excellent visibility. Standard equipment includes a rear-view camera and telematics, providing real-time data on machine performance and location.

• John Deere 331P: The 331P boasts a high-back seat and an ergonomically designed cab, ensuring operator comfort during extended work periods. Its vertical-lift boom design offers enhanced visibility, aiding in precise material placement.


• Kubota SVL97-2: With a ground pressure of 4.5 psi, the SVL97-2 offers excellent flotation on soft surfaces, reducing ground disturbance. Its compact dimensions and powerful traction force of 12,178 lbs contribute to superior maneuverability and stability.

• John Deere 331P: The 331P's operating weight of 11,914 lbs provides a stable platform for heavy lifting tasks. Its design ensures balanced weight distribution, enhancing stability during operation.


• Kubota SVL97-2: Kubota's reputation for durability is evident in the SVL97-2. The machine's design facilitates easy access to maintenance points, reducing downtime. Regular maintenance is essential to keep the machine operating at peak performance.

• John Deere 331P: John Deere equipment is known for its reliability and longevity. The 331P's design emphasizes ease of maintenance, with accessible service points to streamline upkeep.


• Kubota SVL97-2: The SVL97-2 is competitively priced, offering a balance of performance and affordability. Its robust features and capabilities make it a valuable investment for operators seeking a reliable machine.

• John Deere 331P: While the 331P may come at a higher price point, its enhanced features and performance justify the investment for operators requiring top-tier performance.
