Introduction
The "Power Wagon," also known as the "MC Mobile," is a unique vehicle that has long been a symbol of rugged versatility and military engineering. Originally designed during the World War II era, the Power Wagon became a workhorse for various military applications before transitioning into civilian markets. Its history is tied to the development of robust, all-terrain vehicles capable of handling extreme conditions and heavy loads. Over the decades, the Power Wagon has evolved into a beloved piece of heavy machinery, renowned for its strength, durability, and multi-functional uses across both military and civilian sectors.
In this article, we explore the history, design features, and the enduring legacy of the Power Wagon, while also delving into how it continues to influence modern off-road vehicles.
The Birth of the Power Wagon
The Power Wagon was originally produced by the Dodge Division of Chrysler during the early 1940s. It was primarily designed as a military vehicle for the U.S. Army, tailored for use in rugged environments. The vehicle was engineered to be a durable and reliable workhorse, able to transport materials, soldiers, and heavy equipment across difficult terrain. What set the Power Wagon apart was its 4x4 drivetrain, a feature that was not as commonly found in civilian vehicles at the time.

• Purpose: Military applications for troop transport, cargo hauling, and towing heavy artillery.

• Capacity: It could carry over 1,500 pounds of payload or tow up to 5 tons of weight.

• Engine: The original models were equipped with a 3.8-liter inline six-cylinder engine, providing around 94 horsepower, enough for the tasks it was designed to perform.


• Four-Wheel Drive (4WD): This was the Power Wagon’s most critical feature, giving it the ability to traverse rough terrain, mud, snow, and uneven ground that would halt most other vehicles.

• Durability and Strength: The chassis and frame were designed for heavy-duty work, and the bodywork was robust enough to handle both the rigors of military combat and the demands of civilian hauling.

• Towing and Payload Capacity: The vehicle was built to tow large trailers, heavy machinery, and even other vehicles. Its capacity to handle heavy loads set it apart from other vehicles in the same class.

• Suspension and Tires: The Power Wagon used heavy-duty suspension systems that allowed it to carry substantial payloads without compromising comfort or stability. The large, rugged tires provided ample traction in tough environments.


• Construction and Heavy Equipment Transport: Many construction companies used the Power Wagon for transporting materials and heavy equipment across job sites, especially in areas with poor infrastructure.

• Farming: Farmers found the Power Wagon invaluable for hauling equipment, supplies, and even livestock. Its ability to traverse fields and dirt roads made it an essential vehicle for rural operations.

• Forestry and Logging: The durability of the Power Wagon made it the perfect tool for forestry operations, where hauling logs and heavy tools across rough trails was a common task.


• Medical Transport: Some versions were fitted as mobile medical units, offering basic healthcare and support in combat zones.

• Command and Control Vehicles: Other Power Wagons were used as mobile command centers, equipped with communication and coordination tools for military operations.

• Tactical and Utility Vehicles: The rugged build and 4WD system made it a natural choice for tactical missions, as well as for hauling artillery or other heavy military equipment.


• Advanced Four-Wheel Drive Systems: Modern Power Wagons come equipped with advanced 4WD technology, making them ideal for off-road enthusiasts and professionals who need a vehicle that can perform under tough conditions.

• Heavy Duty Towing and Payload: The current model boasts an impressive towing capacity, designed to handle trailers, construction equipment, and large loads with ease.

• Innovative Suspension Systems: Modern suspension systems allow the vehicle to handle extreme off-road conditions while ensuring comfort for the driver and passengers.

• Durable Construction: The rugged build of the Ram Power Wagon ensures that it can withstand years of tough use, much like its predecessors in the military and civilian sectors.


Overview of the CAT D6N
The Caterpillar D6N is a mid-size track-type tractor introduced in the early 2000s as part of Caterpillar’s next-generation dozer lineup. Built for versatility, the D6N was designed to bridge the gap between finish grading and heavy pushing. It features a 6.6L CAT C6.6 ACERT engine producing around 150–165 net horsepower depending on configuration, paired with a hydrostatic transmission and advanced load-sensing hydraulics. Caterpillar, founded in 1925, has sold tens of thousands of D6-series dozers globally, with the D6N becoming a staple in roadbuilding, land clearing, and site prep. The model ALY01509 referenced here is a 2005 unit, part of the early production run before Tier 4 emissions upgrades.
Symptoms of Strange Starting Behavior
Operators have reported that after prolonged storage—typically over a month—the D6N exhibits hard starting. The engine cranks for 20–30 seconds, emits heavy fuel smoke, and stumbles before finally firing. Once running, the machine performs normally with no visible smoke or power loss. In one case, the oil level was found to be significantly overfilled, raising concerns about fuel dilution or water ingress.
Terminology Clarification

• HEUI Injector (Hydraulically Actuated Electronically Controlled Unit Injector): A fuel injector system that uses engine oil pressure to actuate injection, controlled by solenoids and ECM signals.

• Hydro-lock: A condition where liquid (fuel or coolant) enters the combustion chamber, preventing piston movement and potentially causing engine damage.

• Transfer Pump: A low-pressure pump that supplies fuel to the HEUI system; internal seal failure can allow fuel to leak into the oil system.

• Crank Time: Duration the starter motor must turn the engine before ignition occurs.


• Injector Drip: If a HEUI injector fails to seat properly, fuel may leak into the cylinder during shutdown. This can cause a rich mixture and delayed ignition on startup.

• Transfer Pump Seal Leak: Though rare, a failed seal can allow fuel to migrate into the engine oil, diluting viscosity and affecting injector performance.

• Battery Drain or Low Voltage: Extended storage with the battery disconnect switch left on can lead to low cranking voltage, slowing starter speed and affecting ECM timing.

• Water Ingress via Exhaust: The D6N’s under-hood exhaust stack design can allow rainwater to enter the engine if left uncovered, especially during long idle periods.


• Always cover the exhaust stack during extended storage, especially in wet climates.

• Use a battery disconnect switch and verify voltage before startup.

• Monitor oil levels before and after long idle periods; investigate any unexplained increases.

• Periodically sample engine oil for fuel or water contamination.

• Inspect HEUI injectors for proper seating and replace any showing signs of leakage.

• Consider installing a rain cap or exhaust flap to prevent water ingress.


Introduction
The Caterpillar E120B is a reliable and durable hydraulic excavator designed for medium-scale digging, lifting, and material handling tasks. Known for its high operational efficiency, the E120B is equipped with powerful hydraulic systems that allow it to perform a wide range of tasks in construction and excavation projects. However, like many complex machines, issues can arise within the hydraulic system, one of the most common being hydraulic bleed-off. Hydraulic bleed-off can lead to significant performance problems, including loss of power, slower response times, and even system failure if not addressed promptly. Understanding the causes and solutions for hydraulic bleed-off issues is crucial for maintaining the machine's efficiency and preventing costly repairs.
Understanding Hydraulic Bleed-Off in the CAT E120B
Hydraulic bleed-off refers to the loss of hydraulic fluid pressure in the system, often due to internal leaks in the hydraulic components. This issue can cause the hydraulic system to fail to operate at full capacity, leading to reduced performance. In the case of the CAT E120B, the hydraulic system is a critical part of its operation, powering the boom, bucket, and other attachments. Therefore, hydraulic bleed-off must be addressed immediately to prevent further damage to the equipment.
Hydraulic systems work by transferring fluid through various components under high pressure. When pressure is lost due to a leak or improper sealing, the system struggles to maintain the required force for efficient operation, which can cause issues such as sluggish movements, loss of control, and unexpected shutdowns.
Common Causes of Hydraulic Bleed-Off in the E120B

1. Internal Leaks in Hydraulic Cylinders
   One of the most frequent causes of hydraulic bleed-off in the E120B is internal leakage within the hydraulic cylinders. Hydraulic cylinders are crucial for providing the mechanical force needed to move the boom and other components. If the seals inside the cylinders wear out or become damaged, hydraulic fluid can leak internally, leading to a loss of pressure.
   • Signs: Slow or uneven movement of the boom or bucket, inconsistent lifting capacity.

   • Solution: Inspect the hydraulic cylinders for visible signs of damage, such as oil leaks. If any internal leaks are detected, the seals should be replaced, or the entire cylinder may need to be rebuilt.

2. Damaged Hydraulic Hoses or Fittings
   Hydraulic hoses and fittings are prone to wear and tear, especially in environments with constant movement or exposure to harsh conditions. Damaged hoses can result in fluid leakage, which contributes to hydraulic bleed-off. Even small cracks or abrasions in hoses can lead to a gradual loss of pressure.
   • Signs: Fluid leaks around hoses or fittings, visible damage to the hoses.

   • Solution: Perform a thorough inspection of the hydraulic hoses and fittings. Replace any damaged or worn hoses and ensure that all connections are tight and free of leaks. Always use high-quality hoses designed for the specific pressure and temperature requirements of the CAT E120B.

3. Faulty Hydraulic Pump
   The hydraulic pump is responsible for generating the pressure needed to operate the hydraulic system. If the pump begins to fail, it may not be able to maintain the required pressure, leading to hydraulic bleed-off. This issue can also be caused by improper fluid levels or contamination within the hydraulic fluid.
   • Signs: Unusual noises coming from the pump, slow or erratic movement of the excavator components.

   • Solution: Check the hydraulic fluid levels and quality. If the fluid is contaminated or too low, replace it with the correct type and quantity. If the pump itself is faulty, it may need to be replaced or repaired. Ensure that the pump is properly aligned and calibrated.

4. Valve Malfunctions
   The control valves in the hydraulic system regulate the flow of hydraulic fluid to different components. If a valve becomes faulty, it can cause the hydraulic fluid to leak, resulting in a drop in pressure and reduced system performance.
   • Signs: Inconsistent operation of the controls, fluid leakage around the valves.

   • Solution: Inspect the hydraulic control valves for leaks or blockages. Clean or replace the valves as needed, and ensure that they are properly calibrated to ensure smooth operation. It may also be beneficial to check the valve seals for wear and tear.

5. Worn Hydraulic Seals
   Hydraulic seals are used to prevent leakage of fluid at various points throughout the hydraulic system. Over time, seals can wear out, causing fluid to leak and leading to hydraulic bleed-off. Worn seals are a common cause of pressure loss in hydraulic systems.
   • Signs: Visible fluid leakage at seal points, decrease in system pressure.

   • Solution: Replace any worn or damaged seals in the system. Ensure that the correct type of seals is used for the application to prevent premature wear.


1. Regular Hydraulic Fluid Checks
   Keeping the hydraulic fluid at the correct level is essential for the proper functioning of the CAT E120B. Low fluid levels can cause the pump to lose pressure, while dirty or contaminated fluid can lead to wear and tear on the system components. Regularly check the fluid levels and replace the fluid if necessary to ensure optimal performance.

2. Routine Inspection of Hoses and Fittings
   Conduct regular inspections of the hydraulic hoses, fittings, and connections to ensure there are no leaks or damage. Hoses should be checked for signs of wear, such as cracks, abrasions, or bulging. Replacing damaged hoses immediately can help prevent hydraulic bleed-off and system failure.

3. Hydraulic Cylinder Maintenance
   The hydraulic cylinders should be regularly checked for leaks or signs of wear. Clean and lubricate the seals to prolong their lifespan and prevent internal leaks. If any cylinder is showing signs of internal leakage, have it rebuilt or replaced as needed.

4. Pump and Valve Inspections
   Inspect the hydraulic pump and control valves periodically for signs of wear, damage, or misalignment. If you hear unusual noises coming from the pump or notice erratic control movements, it could indicate a problem. Promptly addressing any issues with the pump or valves can help prevent more severe problems down the line.


Background of the 310SG
The John Deere 310SG backhoe loader was part of Deere’s G-series lineup introduced in the early 2000s, designed to improve upon the popular 310E and 310SE models. Manufactured in Dubuque, Iowa, the 310SG featured a turbocharged 4.5L PowerTech diesel engine producing around 92 horsepower, a powershift transmission, and optional pilot controls for the backhoe. With an operating weight of approximately 14,000 lbs and a breakout force exceeding 11,000 lbs, it was widely adopted in municipal, agricultural, and construction sectors. Deere’s backhoe loaders have consistently ranked among the top-selling models in North America, with the 310 series alone exceeding 100,000 units sold across its generations.
Understanding the Electric Parking Brake System
The 310SG introduced an electric parking brake system that replaced the traditional mechanical lever. This system relies on hydraulic pressure to release the brake and an electronic solenoid to engage it. When functioning properly, the brake automatically engages when the machine is turned off and releases upon startup, provided transmission fluid pressure is adequate.
However, operators have reported intermittent issues where the parking brake engages unexpectedly during operation or fails to release after startup. These symptoms often correlate with low transmission fluid levels or pressure fluctuations.
Terminology Clarification

• Electric Parking Brake: A brake system activated by an electronic switch and released via hydraulic pressure.

• Solenoid Valve: An electromechanical device that controls fluid flow in response to electrical signals.

• Transmission Breather Vent: A pressure relief component that allows thermal expansion gases to escape from the transmission housing.

• Dipstick Tube Blowout: A condition where fluid is forced out of the dipstick tube due to internal pressure buildup.


• Low Transmission Fluid: The brake release mechanism depends on hydraulic pressure generated by the transmission fluid. If fluid is low, the brake may engage during operation.

• Blocked Breather Vent: Dirt and debris can clog the vent, causing pressure buildup that forces fluid out of the dipstick tube and disrupts brake function.

• Thermal Expansion: Extended operation in 4WD or under heavy load increases transmission temperature, expanding fluid volume and triggering pressure anomalies.

• Internal Leaks: Brake pistons, differential lock seals, or service brake components may leak fluid into the rear axle, reducing transmission fluid volume.


• Check transmission fluid level regularly, especially after extended operation or fluid loss.

• Clean the breather vent using a 7/16" or 11mm wrench; ensure it’s free of debris and allows pressure release.

• Inspect for fluid migration into the rear axle; drain excess and monitor for recurring leaks.

• Replace worn seals and O-rings in the driveshaft and brake piston assemblies.

• Verify solenoid function and electrical connections; intermittent faults may mimic hydraulic issues.

• Avoid excessive use of brakes in reverse if symptoms worsen during backward motion.


Overview
The JLG T500J is a versatile and widely-used self-propelled aerial work platform, offering excellent lifting capabilities and providing access to high places for construction, maintenance, and installation tasks. With a maximum working height of over 50 feet and a horizontal outreach of 30 feet, it is a powerful machine designed for both indoor and outdoor operations. However, like any complex machine, the T500J can face issues that impact its functionality, such as platform leveling problems. Ensuring the proper operation of the leveling system is crucial for maintaining safety and efficiency on job sites.
Understanding the Platform Leveling System
The platform leveling system in the JLG T500J is designed to keep the work platform stable and level when in use, especially on uneven surfaces. This system uses hydraulic cylinders that adjust the tilt of the platform to ensure that the operator has a secure, balanced working surface, even when the machine is positioned on slopes or rough terrain.
The leveling system is controlled by the operator using a set of hydraulic controls that activate the tilt function. This allows the platform to be raised or lowered while maintaining a stable, horizontal orientation. A malfunctioning leveling system can pose serious safety risks, such as the platform being tilted at an unsafe angle, making it difficult for workers to perform tasks or increasing the risk of accidents.
Common Platform Leveling Issues

1. Platform Not Leveling Properly
   One of the most common issues with the T500J’s platform leveling system is when the platform fails to level correctly. This issue can be caused by several factors, such as low hydraulic fluid, air in the hydraulic system, or malfunctioning sensors.
   • Signs: The platform tilts unevenly or does not level at all when attempting to adjust its position.

   • Solution: Check the hydraulic fluid levels and refill as necessary. Inspect the hydraulic lines for leaks, which could allow air into the system. If the issue persists, inspect the platform's leveling sensors or check for faulty wiring that could be sending incorrect signals to the system. Replacing malfunctioning sensors may be necessary if they are not responding correctly.

2. Slow Leveling Response
   Another issue operators may encounter is the slow response of the leveling system. This can make it difficult to adjust the platform quickly when working in dynamic conditions, such as moving from one elevation to another.
   • Signs: The platform takes too long to level or is sluggish when adjustments are made.

   • Solution: Slow leveling can be a result of dirty or contaminated hydraulic fluid, worn-out hydraulic components, or low battery voltage affecting the hydraulic system. Begin by replacing the hydraulic fluid if it is dirty or contaminated. Additionally, inspect the hydraulic pump, valves, and cylinders for wear and tear. Ensuring that the battery is fully charged can also help restore the speed of the system.

3. Faulty Tilt Switches or Sensors
   Tilt switches and sensors play an important role in ensuring that the platform remains level. If these components are faulty, the platform may fail to adjust properly, leading to imbalances.
   • Signs: The platform does not respond to commands to level or the tilt indicators on the control panel do not show the correct angle.

   • Solution: Perform a diagnostic test to check for faulty sensors or switches. If the sensors are defective or providing incorrect feedback, they should be replaced. Regular calibration of the tilt sensors is also recommended to ensure accurate readings and reliable operation.

4. Hydraulic System Leaks
   Hydraulic leaks are a common issue in many aerial lift systems, and the T500J is no exception. A leaking hydraulic system can lead to a loss of pressure, causing the platform leveling mechanism to malfunction.
   • Signs: The platform may not level as expected, or the hydraulic system may be noisy or underperforming.

   • Solution: Inspect the entire hydraulic system for leaks, paying special attention to hoses, seals, and connectors. Tighten any loose fittings and replace any damaged or worn seals. If a significant leak is found, the affected component should be replaced or repaired.

5. Faulty Control Valve
   The control valve manages the flow of hydraulic fluid to various parts of the T500J, including the platform leveling system. If this valve becomes stuck or malfunctions, it can affect the performance of the leveling mechanism.
   • Signs: The platform does not respond to control inputs, or the response is erratic and unpredictable.

   • Solution: Check the control valve for debris or blockages that could restrict fluid flow. Cleaning or replacing the valve may be necessary if it is not functioning correctly. Ensure that the valve is properly calibrated and operating according to the manufacturer's specifications.


1. Regular Fluid Checks
   One of the most critical maintenance tasks for the T500J is keeping the hydraulic fluid at the correct levels. Regularly check the fluid levels and top them up as necessary. Additionally, change the hydraulic fluid according to the manufacturer’s recommended schedule to avoid contamination and ensure smooth operation.

2. Inspect the Hydraulic System
   Periodically inspect the hydraulic system for leaks, cracks, or wear, particularly around the platform leveling mechanism. Any signs of leakage should be addressed immediately to avoid further damage to the system.

3. Calibrate Sensors and Controls
   Over time, sensors and controls can drift out of calibration, leading to inaccuracies in the leveling system. Regularly check and calibrate the tilt sensors and control valves to ensure they are working correctly.

4. Battery Maintenance
   A weak or poorly maintained battery can affect the performance of the hydraulic system. Ensure that the battery is charged and in good condition to prevent issues with the platform leveling response.


CAT 345BL Excavator Overview
The Caterpillar 345BL hydraulic excavator was introduced in the late 1990s as part of Caterpillar’s B-series lineup, designed for heavy-duty earthmoving and demolition. With an operating weight of approximately 90,000 lbs and powered by a CAT 3176C diesel engine producing around 345 horsepower, the 345BL was built for high production environments. Caterpillar, founded in 1925, has long been a leader in construction equipment, and the 345BL contributed to its dominance in the large excavator segment. Thousands of units were sold globally, particularly in North America, Asia, and the Middle East, where infrastructure expansion demanded robust machines.
Understanding Mobil Delvac 1300
Mobil Delvac 1300 Super 15W-40 is a heavy-duty diesel engine oil formulated for high-performance commercial engines. It meets or exceeds API CH-4, CI-4, and CJ-4 specifications, making it suitable for engines with EGR systems and older mechanical injection systems. The oil is marketed as a synthetic blend, though it primarily uses Group II or Group III base stocks, depending on formulation. Its popularity stems from its affordability, wide availability, and proven performance in fleet operations.
Terminology Clarification

• API CH-4/CJ-4: American Petroleum Institute classifications for diesel engine oils, indicating compatibility with emissions systems and wear protection.

• SAE 15W-40: Viscosity grade suitable for moderate to high ambient temperatures, offering balanced cold start and high-temp protection.

• Synthetic Blend: A mix of conventional and synthetic base oils, offering improved oxidation resistance and thermal stability over conventional oils.

• Group III Base Stock: Highly refined mineral oil with performance characteristics close to full synthetics.


• DENISON HF-0

• DIN 51524-2:2017-06

• ISO L-HM (ISO 11158:2009)


• Engine Oil Options
  • Mobil Delvac 1300 Super 15W-40

  • Shell Rimula R4X 15W-40

  • Chevron Delo 400 SDE 15W-40

  • Conoco Power D 15W-40

• Hydraulic Oil Options
  • Mobil Nuto H32

  • Shell Tellus S2M 32

  • CAT HYDO Advanced 10

  • Conoco Hydraulic AW ISO 32

• Cleaning Filter Housings


• Use brake cleaner or starting fluid

• Wipe with lint-free cloth

• Inspect for rubber debris or seal degradation


Introduction
The New Holland U80 skip loader is a versatile piece of equipment designed for a wide range of tasks in construction, agriculture, and landscaping. Known for its robust build, efficient hydraulics, and compact design, the U80 is a popular choice for operations that require the ability to both load and transport materials in tight spaces. However, like any complex machine, the U80 can face operational challenges that may cause downtime and reduce overall productivity. Understanding these issues and knowing how to address them is essential for maintaining optimal performance.
Key Features of the New Holland U80 Skip Loader
Before diving into common issues and solutions, it's important to understand what makes the U80 skip loader a valuable asset in many industries. The New Holland U80 is equipped with a powerful engine, advanced hydraulic systems, and user-friendly controls, making it ideal for tasks like trenching, material handling, and light excavation. With a lifting capacity of approximately 1,500 to 2,000 kg, it can handle a variety of materials such as soil, gravel, sand, and debris.
Key specifications:

• Engine Power: 75-80 horsepower, which ensures sufficient power for tough tasks.

• Hydraulic System: Offers high lifting and digging capacities, making it versatile for construction and agricultural projects.

• Transmission: Equipped with a smooth-shifting transmission for efficient operation.

• Compact Design: Enables easy maneuverability in tight spaces, perfect for urban construction or confined areas.


1. Hydraulic System Failures
   One of the most common issues faced by the U80 skip loader is related to its hydraulic system. Problems such as slow movement of the boom, inconsistent bucket operation, or complete hydraulic failure can be attributed to several factors, including low hydraulic fluid levels, air in the system, or worn-out seals.
   • Signs: Slow or jerky movement of the bucket, boom, or loader arms; loss of lifting capacity.

   • Solution: Start by checking the hydraulic fluid levels. If low, top them up with the recommended fluid. Additionally, inspect the system for leaks and replace any worn seals or hoses. Bleeding the hydraulic lines to remove any air trapped in the system is also necessary.

2. Engine Starting Issues
   The U80 is equipped with a reliable engine, but there can be occasional starting issues, particularly in colder weather. This could be due to a weak battery, faulty starter motor, or issues with the fuel system.
   • Signs: Difficulty starting the engine, or the engine cranks but doesn't turn over.

   • Solution: Begin by inspecting the battery for proper charge and connections. If the battery is weak, consider replacing it. Also, check the fuel system for blockages or contamination, and replace the fuel filter if necessary. In cold climates, consider using a block heater to aid with starting.

3. Transmission Problems
   The U80's transmission system is typically very reliable, but problems can arise if the machine is subjected to heavy loads or extreme operating conditions. Slipping gears, jerky movements, or failure to change gears are common symptoms of transmission problems.
   • Signs: Unusual noise when changing gears, difficulty shifting, or no movement when the gear is engaged.

   • Solution: Check the transmission fluid levels, and ensure there are no leaks in the system. If the fluid appears dirty or contaminated, replace it. Regular maintenance of the transmission, including checking the gear linkage and clutch mechanism, can help prevent these issues.

4. Overheating Engine
   Like many heavy machines, the U80 can experience overheating if the cooling system is not functioning properly. Overheating can lead to engine damage and decreased performance.
   • Signs: High temperature gauge readings, steam coming from the engine compartment, or a noticeable decrease in engine power.

   • Solution: Check the coolant levels and make sure the radiator is clean and free of debris. Clean or replace any clogged air filters and ensure the cooling fan is operating correctly. In some cases, a faulty thermostat or water pump may need to be replaced.

5. Electrical Failures
   Electrical issues in the U80 can range from simple fuse problems to more complex wiring or alternator failures. Symptoms such as the battery light turning on, or the machine failing to start, are common indicators of electrical system problems.
   • Signs: Dim lights, failure to start, or warning lights on the dashboard.

   • Solution: Begin by inspecting the battery and alternator to ensure they are functioning correctly. Check all wiring for signs of wear, corrosion, or loose connections. If the alternator is not charging properly, it may need to be replaced.

6. Front Loader Bucket Wear and Tear
   Over time, the bucket on the U80 can suffer from wear due to the repeated lifting and dumping of heavy loads. This can lead to reduced effectiveness in material handling and potentially cause failure of the bucket attachment.
   • Signs: Visible cracks or dents in the bucket, reduced lifting power.

   • Solution: Inspect the bucket for signs of damage, and replace any worn-out parts. Regular maintenance, such as sharpening the bucket edge, can help extend its life. If the bucket is severely damaged, it may need to be replaced entirely.


1. Regular Fluid Changes
   To prevent engine or hydraulic issues, change the engine oil and hydraulic fluid at regular intervals, as specified in the operator's manual. Dirty or low-quality fluids can cause internal damage to the engine and hydraulic components.

2. Check the Battery and Electrical System
   Periodically inspect the battery terminals for corrosion and ensure the alternator is charging properly. This simple check can save you from unexpected electrical failures.

3. Keep the Cooling System Clean
   A well-maintained cooling system ensures that the engine operates at the correct temperature, preventing overheating and extending its lifespan. Regularly clean the radiator and check the coolant levels.

4. Inspect the Hydraulic System
   The hydraulic system is integral to the machine’s performance, so regular inspections and maintenance are crucial. Keep an eye on fluid levels, and inspect hoses and seals for wear.


John Deere 650H Overview
The John Deere 650H crawler dozer, introduced in the early 2000s, was part of Deere’s H-series hydrostatic dozers designed for precision grading, maneuverability, and operator comfort. Manufactured in Dubuque, Iowa, the 650H featured a dual-path hydrostatic transmission, electronic controls, and a Tier II-compliant diesel engine. With an operating weight around 18,000 lbs and a net horsepower of approximately 90 hp, it was widely adopted in construction, forestry, and municipal projects. Deere’s H-series dozers were known for their smooth control and tight turning radius, making them popular for finish grading and confined workspaces. By 2006, the 650H had sold thousands of units globally, contributing to Deere’s reputation for reliable mid-size earthmoving equipment.
Tracking Symptoms and Initial Observations
Operators of the 650H have occasionally reported erratic tracking behavior, especially when shifting between gears or transitioning from forward to reverse. Common symptoms include:

• Machine veering left during acceleration

• Inability to maintain straight travel at higher speeds (e.g., gear 3.0)

• Sudden directional shifts when changing travel direction

• Hesitation or near-stalling when upshifting


• Hydrostatic Transmission: A system using hydraulic pumps and motors to transmit power, allowing infinite speed control and smooth directional changes.

• Displacement Control Valve (DCV): Regulates the hydraulic motor’s displacement, affecting speed and torque.

• Speed Sensor: Monitors track motor RPM, feeding data to the ECM for calibration and control.

• ECM (Electronic Control Module): The onboard computer managing transmission behavior, sensor input, and calibration routines.

• Charge Pressure: Hydraulic pressure required to release brakes and maintain system function; low charge pressure can cause brake drag or sluggish movement.


• Sensor Misalignment or Failure: Speed sensors on the track motors must be correctly positioned and calibrated. If reversed or misaligned, the ECM receives incorrect RPM data, leading to uneven current distribution.

• Valve Malfunction: A faulty displacement control valve can cause one track to receive more or less hydraulic flow, resulting in directional bias.

• Electrical Connection Issues: Pressure washing or vibration may loosen sensor plugs or introduce moisture, disrupting signal integrity.

• Calibration Drift: Over time, solenoid resistance and spring rates in valves change. Without recalibration, the ECM may apply incorrect current values, causing mistracking.

• Charge Pressure Drop: If the charge pressure gauge shows fluctuations during operation, brakes may drag or release unevenly, affecting tracking.


• F393: Indicates loss of anti-stall function related to the front hydrostatic pump speed sensor. This sensor helps the ECM manage engine load during acceleration.

• F353: Refers to a decelerator sensor out of calibration range. The decelerator affects engine RPM during gear changes and must be synchronized with throttle settings.


• The ECM gradually increases current to each solenoid while monitoring track speed sensors.

• It builds a reference curve of milliamps vs. RPM for each solenoid.

• These values are stored and used to match track speeds during future operation.


• Left track may require 200 mA to the pump solenoid and 50 mA to the motor solenoid

• Right track may need 225 mA and 90 mA respectively


• Regularly inspect and clean sensor connectors, especially after pressure washing

• Monitor charge pressure during operation; install a gauge if not present

• Replace valves or sensors in matched pairs when possible

• Perform calibration after any component change or electrical disturbance

• Avoid using mismatched or aftermarket solenoids without verifying resistance


The Volvo EC25 compact excavator is a versatile and efficient machine, widely used in construction, landscaping, and utility projects. Known for its compact size, excellent maneuverability, and strong hydraulic system, the EC25 is ideal for working in confined spaces where larger machinery cannot operate. However, like all machinery, it can face issues that affect its performance. One such issue is the machine stopping unexpectedly during operation, which can disrupt work and lead to unnecessary downtime. Understanding the potential causes and solutions for this problem is essential to keep the EC25 running smoothly.
Common Causes of Stopping in Volvo EC25

1. Fuel Supply Problems
   One of the most common reasons an excavator might suddenly stop is a disruption in fuel supply. This could be caused by clogged fuel filters, a failing fuel pump, or air trapped in the fuel system. When the fuel supply is interrupted, the engine may starve and shut down.
   • Signs: The engine stutters before stopping, or the machine loses power gradually before coming to a halt.

   • Solution: Inspect the fuel filters for clogs and replace them if necessary. Check the fuel pump to ensure it's functioning properly and verify that there is no air in the fuel lines. Regular maintenance of the fuel system is essential to prevent these issues.

2. Electrical System Failures
   The electrical system controls critical functions in the EC25, including starting and stopping the engine. If the battery is weak, the alternator isn't charging properly, or there is a faulty connection, the machine can lose power and stop unexpectedly.
   • Signs: The machine might have trouble starting, and the dashboard might show warning lights related to the electrical system.

   • Solution: Inspect the battery and alternator for proper voltage. Clean any corrosion from battery terminals and ensure all electrical connections are secure. If the alternator is failing, it should be replaced.

3. Hydraulic System Issues
   The EC25 relies heavily on its hydraulic system to operate smoothly. Hydraulic issues such as low fluid levels, contaminated oil, or a malfunctioning pump can cause the excavator to stop working.
   • Signs: If the hydraulic system is underperforming, the arm movements may become sluggish, and the machine may stall under load.

   • Solution: Check the hydraulic fluid levels regularly and ensure they are within the manufacturer's recommended range. Replace the hydraulic oil if it's contaminated. Also, inspect the hydraulic pump and valves for signs of wear or failure.

4. Engine Overheating
   Overheating is a common issue in compact machinery, and the EC25 is no exception. If the engine or cooling system is compromised, the engine may overheat and automatically shut down to prevent further damage.
   • Signs: The temperature gauge may show an unusually high reading, and the machine may stop after running for a certain period.

   • Solution: Check the coolant levels and ensure the radiator is free from blockages. Inspect the coolant system for leaks, and verify that the cooling fan is working properly. If the engine is consistently overheating, the thermostat or water pump may need to be replaced.

5. Faulty Sensors or Control Module
   Modern excavators like the EC25 are equipped with numerous sensors and control modules that monitor and regulate various systems. A malfunctioning sensor or control module can cause the machine to stop unexpectedly, as it may trigger safety shutoffs to protect the engine or hydraulic system.
   • Signs: The machine might stop without warning, and diagnostic trouble codes (DTC) may be logged in the system.

   • Solution: Perform a diagnostic scan using an OBD scanner to read any stored trouble codes. Replace any faulty sensors or control modules as indicated by the diagnostics. It is essential to maintain these components to prevent sudden failures.

6. Clogged Air Filter
   A clogged air filter can significantly affect engine performance, as it restricts airflow to the engine. If the engine does not receive enough air, it may struggle to run and could stop entirely.
   • Signs: The machine may have difficulty starting, and the engine may run erratically or stall when under load.

   • Solution: Regularly check the air filter and replace it if it's dirty or clogged. This is a simple and inexpensive maintenance task that can prevent larger engine issues.


1. Regular Fluid Checks
   Keeping the fluids at the proper levels is crucial to maintaining the EC25’s performance. Ensure that the engine oil, hydraulic fluid, and coolant are checked regularly and replaced according to the manufacturer’s guidelines.

2. Scheduled Filter Changes
   Change the fuel, oil, and air filters on a regular basis. Clogged filters can lead to decreased engine efficiency and, eventually, cause the machine to stop unexpectedly.

3. Battery and Electrical System Care
   Regularly check the battery's condition and ensure the alternator is charging properly. Inspect wiring for any signs of wear or corrosion. This will prevent electrical issues that could cause the machine to stop working.

4. Monitor the Hydraulic System
   Keep an eye on hydraulic fluid levels and check for leaks or any signs of contamination. A well-maintained hydraulic system ensures smooth operation of the machine and prevents sudden shutdowns.

5. Cooling System Maintenance
   Overheating is a common cause of unexpected shutdowns, so ensure the cooling system is well-maintained. Check coolant levels and inspect the radiator and hoses for leaks or blockages.




Introduction

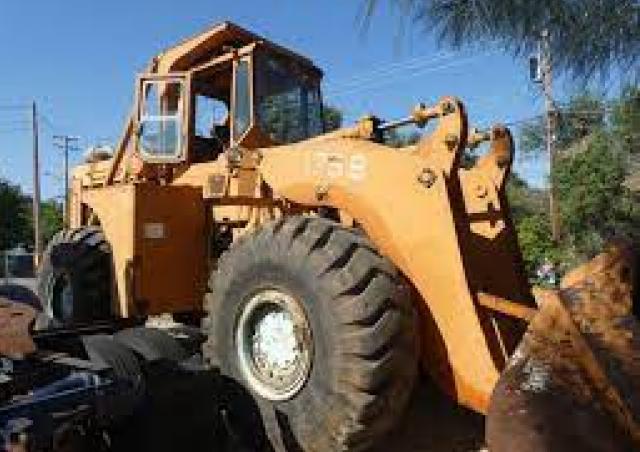

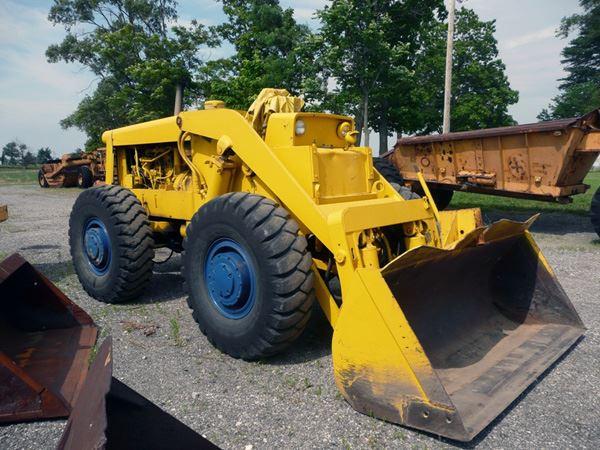

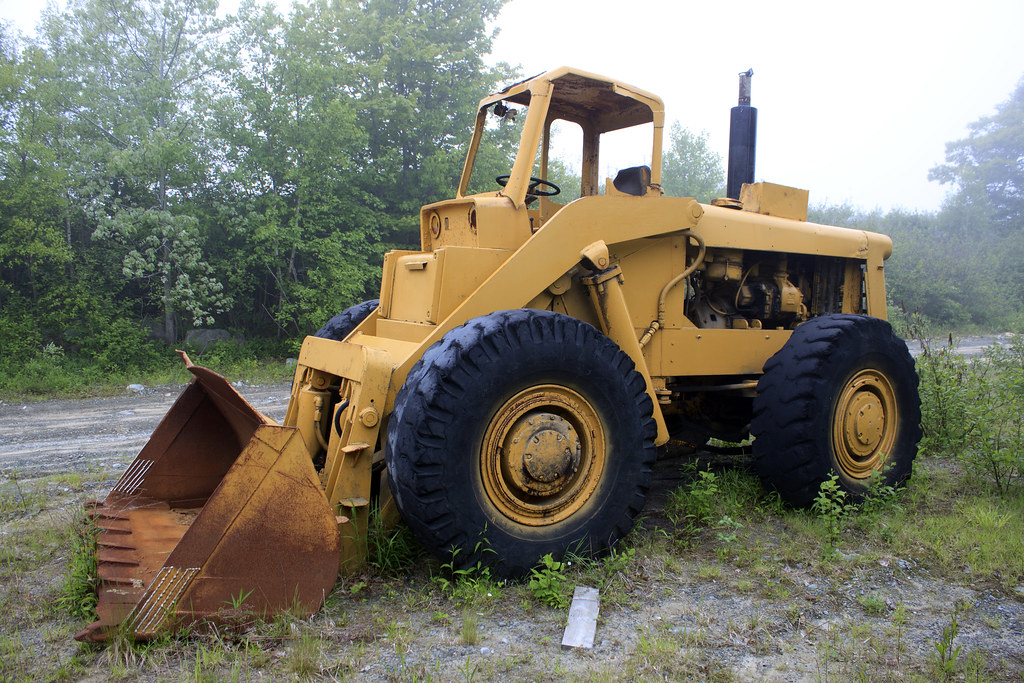

The Clark Michigan 175A wheel loader, produced from 1962 to 1985, stands as a testament to the durability and engineering prowess of its time. Manufactured by Clark Equipment Company, this machine was designed to tackle the demanding tasks of construction, mining, and material handling. Despite its age, the 175A remains a valuable asset for those who appreciate its robust construction and the legacy it represents.
Historical Background
Clark Equipment Company, founded in 1916 by Eugene Clark, initially gained prominence for its development of lift trucks. By the 1950s, the company had expanded into the wheel loader market under the Michigan brand name. The introduction of the 175A model in the early 1960s marked a significant advancement in wheel loader design, featuring improved lifting capacities and enhanced operator comfort. The 175A was part of a series that included models like the 75A and 125A, all of which were well-received in the marketplace .
Specifications
The Clark Michigan 175A is equipped with a General Motors 6V-71 diesel engine, delivering approximately 160 kW (215 hp) of power. This engine provides the necessary strength for demanding tasks. The loader has a weight of 16.76 tons and can achieve a transport speed of up to 40.4 km/h. Its transport width is 2.74 meters, and the turning radius is 7.73 meters, making it suitable for various job site conditions .
Common Issues and Maintenance
Owners of vintage machinery like the 175A often encounter specific challenges. One common issue is the wear of steer stops, which can lead to oversteering and increased stress on universal joints. Proper maintenance of these components is crucial to prevent premature wear and ensure smooth operation. Additionally, the front differential is not limited slip unless modified, which can affect traction in certain conditions .
Another area of concern is the transmission. Some models, particularly the 175AD, have been reported to experience reduced pushing power and transmission slippage under load. This can be attributed to issues such as slipping torque converters, worn hydraulic pumps, or clogged filters. Regular maintenance, including timely oil changes and filter replacements, is essential to address these issues .
Restoration and Preservation
Restoring a Clark Michigan 175A requires a commitment to preserving its original design while upgrading components for modern performance standards. Access to parts manuals and operator guides is invaluable during this process. For instance, the Historical Construction Equipment Association provides resources for vintage machinery enthusiasts .
Conclusion
The Clark Michigan 175A wheel loader embodies the strength and resilience of mid-20th-century engineering. Its continued operation and restoration serve as a tribute to the craftsmanship of its era. For those dedicated to maintaining and restoring vintage machinery, the 175A offers both challenges and rewards, ensuring that its legacy endures for future generations.
