Introduction
The Fecon FTX90L is a robust tracked mulching machine designed for forestry and land clearing tasks. Despite its capabilities, some users have reported engine-related issues that can impact performance. Understanding these problems and their solutions is crucial for maintaining the efficiency of the FTX90L.
Common Engine Problems

1. Overheating
   Overheating is a prevalent issue among FTX90L users. This problem often arises due to:
   • Clogged Radiators: Debris accumulation can obstruct airflow, leading to increased engine temperatures.

   • Faulty Thermostats: A malfunctioning thermostat may prevent the engine from reaching optimal operating temperatures.

   • Low Coolant Levels: Insufficient coolant can result in inadequate heat dissipation.

   Solution: Regularly clean the radiators, check and replace thermostats as needed, and ensure coolant levels are maintained.

2. Fuel System Issues
   Fuel-related problems can cause the engine to run erratically or fail to start. Common causes include:
   • Contaminated Fuel: Dirt or water in the fuel can clog injectors and filters.

   • Clogged Fuel Filters: Over time, filters can become obstructed, restricting fuel flow.

   • Faulty Fuel Injectors: Worn or damaged injectors can lead to poor combustion.

   Solution: Use clean, high-quality fuel, replace fuel filters at recommended intervals, and inspect injectors for wear.

3. Electrical Failures
   Electrical issues can prevent the engine from starting or cause intermittent operation. These may be due to:
   • Loose Connections: Corroded or loose battery terminals can interrupt power supply.

   • Blown Fuses: A blown fuse can disrupt the engine's electrical circuits.

   • Faulty Sensors: Malfunctioning sensors can send incorrect signals to the engine control module.

   Solution: Regularly inspect electrical connections, replace fuses as needed, and test sensors for proper function.


• Regular Inspections: Conduct routine checks of the engine, fuel system, and electrical components.

• Timely Replacements: Replace filters, belts, and other consumables at manufacturer-recommended intervals.

• Proper Storage: Store the FTX90L in a clean, dry environment to prevent moisture-related issues.


The Case 580K and Its Mechanical Legacy
The Case 580K backhoe loader, introduced in the late 1980s and refined through the early 1990s, became a staple in construction, agriculture, and utility work. The Phase 3 variant, released around 1994, featured improvements in hydraulic flow, operator ergonomics, and transmission control. With thousands of units sold globally, the 580K earned a reputation for reliability and ease of service. Its torque converter transmission system allowed smooth directional changes, making it ideal for trenching, loading, and grading tasks.
However, like many machines of its era, the 580K is vulnerable to issues stemming from long-term neglect—especially when parked outdoors and exposed to moisture. One such case involved a unit that had sat idle for over a year, resulting in a complete loss of forward and reverse movement despite engine functionality.
Initial Symptoms and Fluid Inspection
Upon acquisition, the machine exhibited no drive engagement in either direction. The transmission filter was found completely dry, and the fluid lines between the torque converter pump and the transaxle valve were disconnected. Additionally, electrical wires to the solenoid and neutral safety switch were cut, suggesting prior troubleshooting or tampering.
When the transaxle was drained, approximately two gallons of water were found mixed with the fluid—an immediate red flag. Water ingress can cause rusting, seal degradation, and clutch pack swelling, all of which compromise hydraulic pressure and gear engagement.
Terminology Clarification
- Torque Converter Pump: A hydraulic pump that transfers engine power to the transmission via fluid coupling
- Transaxle: A combined transmission and axle assembly used in compact equipment
- Solenoid: An electrically actuated valve that controls fluid flow or gear selection
- Neutral Safety Switch: A device that prevents engine start or gear engagement unless in neutral
- Shuttle Valve: A small internal valve that directs hydraulic flow between forward and reverse circuits
Partial Engagement at High RPMs
After replacing the transmission filter and reconnecting fluid lines, the machine showed limited movement in third gear at high engine speeds. This behavior suggests marginal hydraulic pressure—enough to engage clutches weakly but not sustain full torque transfer. The fact that movement occurred only at high RPMs points to a failing torque converter pump or internal leakage within the control valve.
A technician noted that the shuttle valve inside the forward/reverse spool may have become dislodged or stuck. This small component plays a critical role in directing fluid to the correct clutch pack. If misaligned, it can prevent gear engagement entirely.
Water Contamination and Component Seizure
The presence of water in the transaxle fluid indicates prolonged exposure to rain or condensation. Over time, this can cause:

• Rust on clutch plates and gear teeth

• Swelling of friction materials

• Seizure of spool valves and plungers

• Breakdown of hydraulic seals


• Drain and flush the entire transmission and transaxle system

• Replace the filter and inspect for metal flakes or debris

• Check torque converter pump slots for wear or rounding

• Inspect and clean the forward/reverse spool and shuttle valve

• Reconnect or replace solenoid and neutral safety switch wiring

• Test hydraulic pressure at the control valve using a 500 psi gauge

• If pressure remains low, remove and bench test the torque converter pump




Introduction

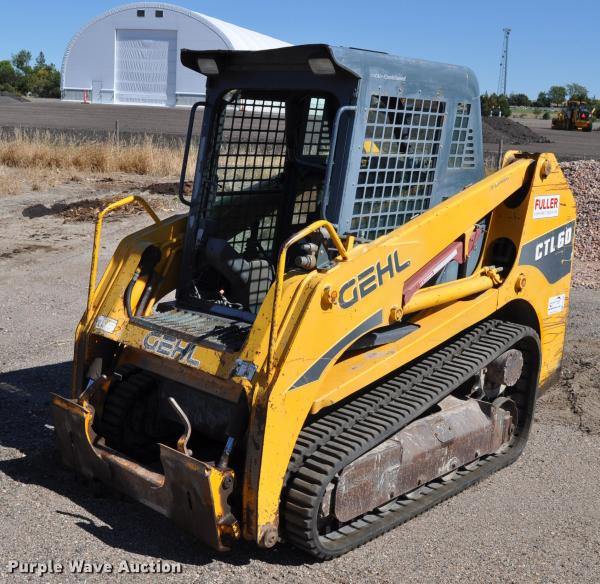

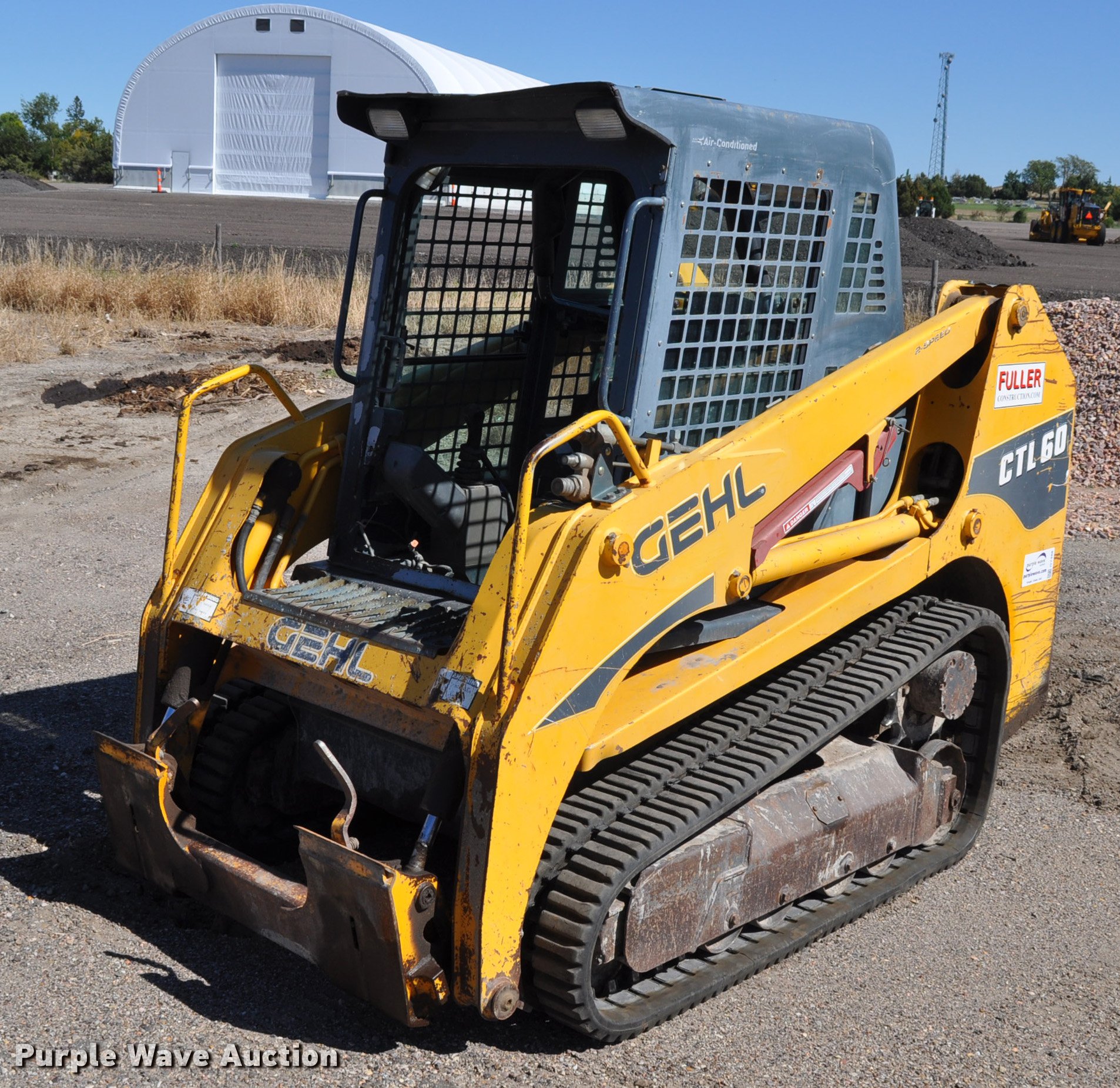

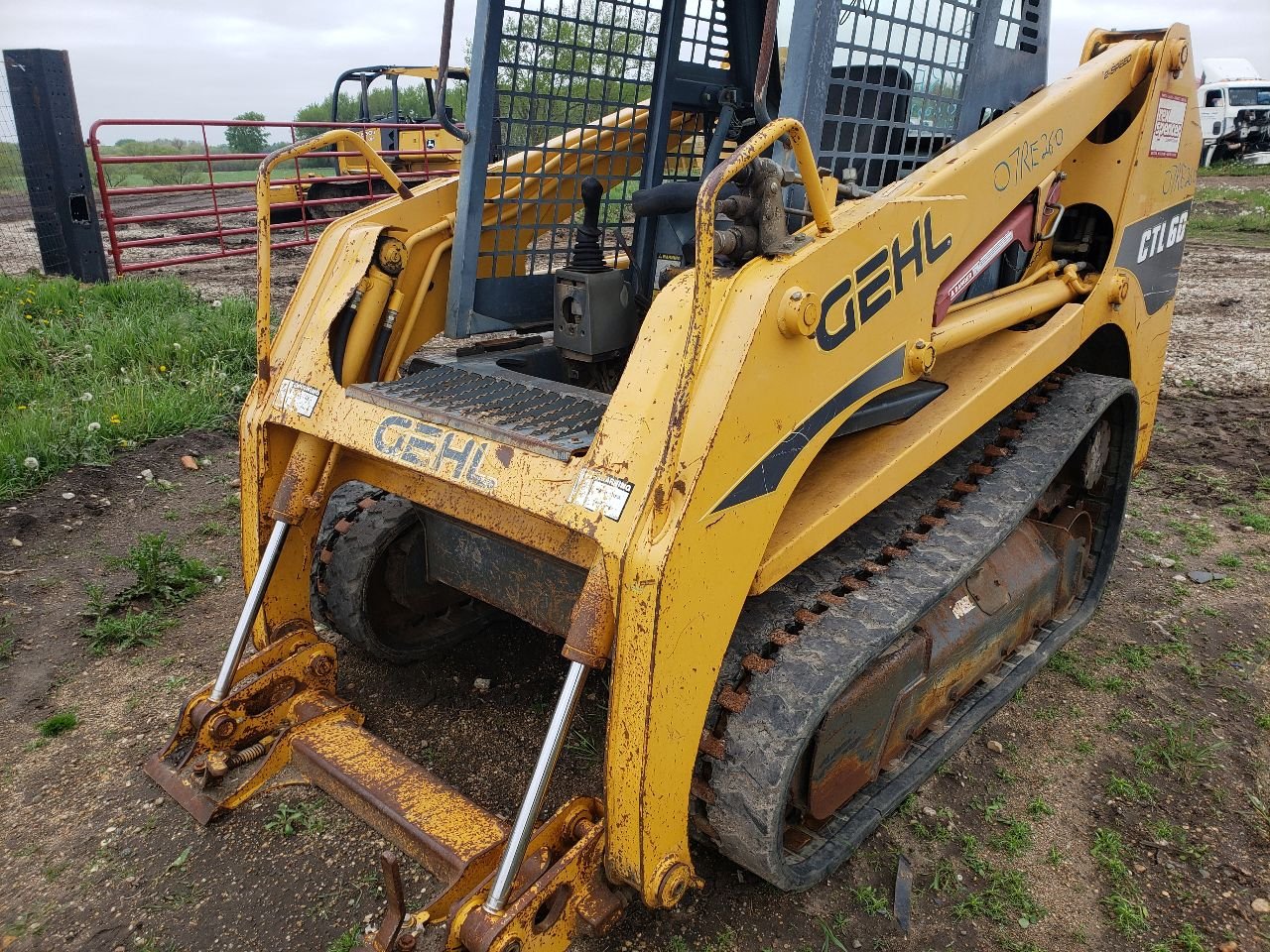

The Gehl CTL 60 compact track loader, equipped with a Yanmar 4TNV98-YTBL engine, is a versatile machine commonly used in construction and agricultural applications. However, some operators have reported an issue where the engine starts but shuts off after approximately 10 seconds. This article delves into potential causes and troubleshooting steps for this problem.
Understanding the Shutdown Mechanism
The CTL 60 features an integrated safety system designed to protect the engine from damage. If the system detects abnormal conditions such as low oil pressure or coolant levels, it triggers a warning light and may shut down the engine automatically to prevent further damage. This protective measure is crucial for maintaining the longevity and reliability of the machine.
Common Causes of Engine Shutdown

1. Oil Pressure Sensor Issues
   A malfunctioning oil pressure sensor can falsely indicate low oil pressure, prompting the engine to shut down. For instance, one operator reported that the oil pressure sensor on the left side of the engine was faulty, causing the engine to shut off prematurely.

2. Coolant Level Sensor Problems
   The CTL 60 is equipped with a coolant level sensor located in the upper radiator hose. If this sensor is defective or the coolant level is low, it can trigger the warning light and cause the engine to shut down.

3. Faulty Fuel Shutoff Solenoid
   The fuel shutoff solenoid controls the fuel supply to the engine. If it becomes faulty or overheats, it may cut off the fuel supply, leading to engine shutdown.

4. Electrical Connector Issues
   Loose or damaged electrical connectors, especially those related to safety interlocks, can disrupt communication between components, causing the engine to shut off. An operator experienced this issue after inadvertently damaging a connector while servicing the machine.


1. Verify Fluid Levels
   • Engine Oil: Ensure the oil level is within the recommended range.

   • Coolant: Check the coolant level and top it off if necessary.

2. Inspect Sensors
   • Oil Pressure Sensor: Test the sensor for proper operation.

   • Coolant Level Sensor: Inspect the sensor for functionality and cleanliness.

3. Examine the Fuel Shutoff Solenoid
   • Visual Inspection: Look for signs of damage or overheating.

   • Operational Test: Listen for the solenoid's activation sound when the ignition is turned on.

4. Check Electrical Connections
   • Connector Integrity: Ensure all connectors are secure and free from corrosion.

   • Wiring Inspection: Look for any frayed or damaged wires.

5. Consult Diagnostic Codes
   • Diagnostic Port: Locate the diagnostic connector to retrieve any stored fault codes.

   • Interpret Codes: Use the machine's service manual to interpret the codes and identify potential issues.


• Regular Fluid Checks: Establish a routine to monitor oil and coolant levels.

• Scheduled Sensor Inspections: Periodically test sensors for accuracy and functionality.

• Electrical System Maintenance: Clean and secure all electrical connections to prevent faults.

• Service Manual Reference: Keep the machine's service manual accessible for troubleshooting and maintenance procedures.


The Evolution of Loader Control Systems
Wheel loaders have undergone dramatic changes since their early mechanical origins in the 1950s. Initially operated with manual levers and basic hydraulic systems, modern loaders now feature electronic sensors, programmable logic, and semi-autonomous functions. Among these advancements, auto-leveling has become a key feature—though its definition varies depending on manufacturer, operator experience, and regional terminology.
Caterpillar, Komatsu, Volvo, and John Deere have all contributed to the development of loader automation, with auto-leveling systems appearing in mid-range and premium models since the early 2000s. By 2020, over 60% of new wheel loaders sold in North America included some form of auto-leveling or return-to-dig functionality.
Two Interpretations of Auto-Leveling
Auto-leveling can refer to two distinct but related functions:

• Bucket Angle Maintenance During Lift
  In this mode, the system automatically adjusts the tilt of the bucket as the lift arms rise, keeping the bucket level relative to the ground. This is especially useful when handling pallet forks, containers, or fragile loads that must remain horizontal. The system uses sensors and hydraulic feedback to counteract the natural tipping caused by arm geometry.

• Return-to-Dig Positioning
  This function resets the bucket to a predefined angle—typically flat or slightly curled—after dumping. It allows the operator to quickly return to the digging position without manually adjusting the tilt. Some systems activate this with a button press, while others engage automatically when the arms are lowered past a certain point.


• Prevents material spillage, especially with loose aggregates or liquids

• Reduces damage to palletized goods and containers

• Improves visibility and control for the operator

• Minimizes cycle time by reducing manual tilt corrections

• Enhances safety when working near personnel or structures


• Sensor misalignment due to wear or impact

• Hydraulic lag from contaminated fluid or worn valves

• Incorrect preset angles after maintenance or software updates

• Operator override or manual input disrupting the auto-leveling cycle


• Verify whether your loader supports both auto-leveling and return-to-dig

• Calibrate the system for each attachment type (bucket, forks, grapple)

• Train operators to understand the difference between the two functions

• Monitor hydraulic response and sensor accuracy during routine maintenance

• Use manufacturer-specific terminology when communicating with service teams




Introduction
Purchasing a backhoe is a significant investment, whether for personal projects, agricultural needs, or professional construction tasks. Understanding the nuances of backhoe specifications, maintenance, and operational requirements is crucial to making an informed decision. This guide delves into the essential aspects to consider when buying a backhoe, offering insights into various models, features, and practical tips.

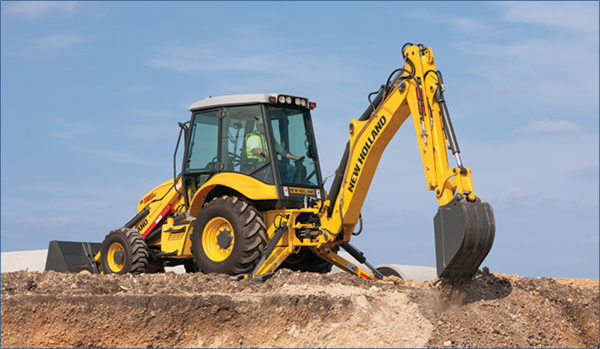

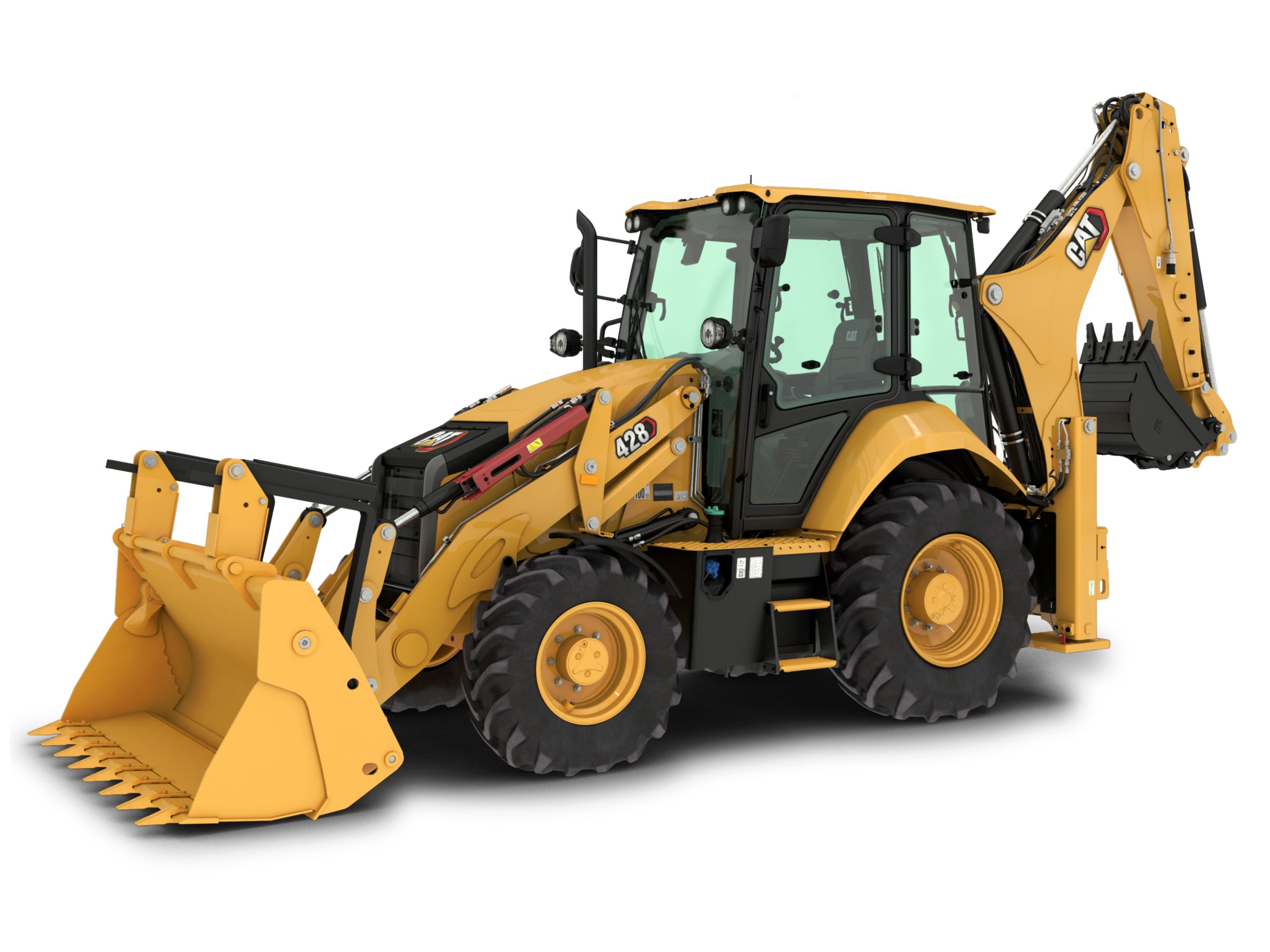

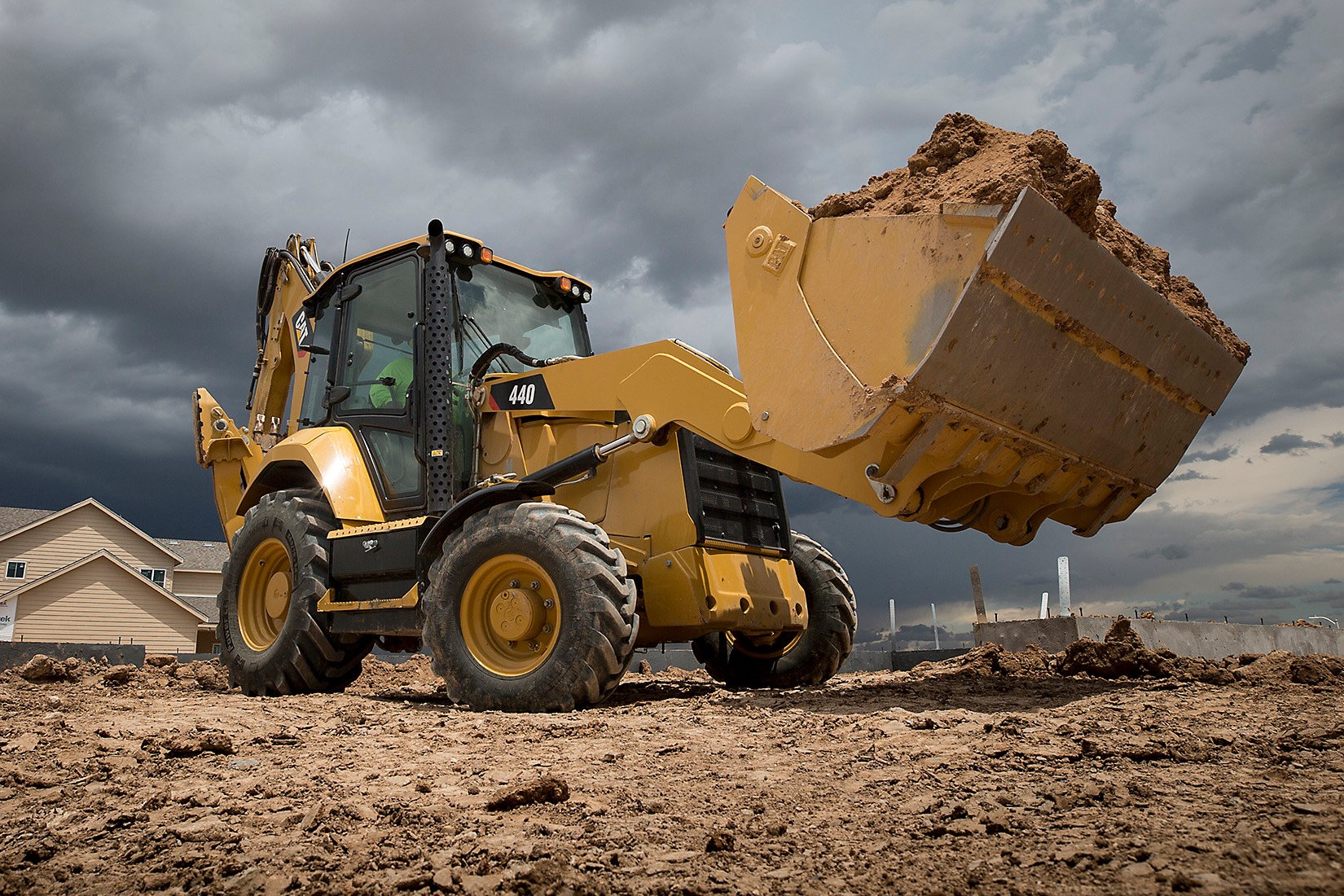

Understanding Backhoe Loaders
A backhoe loader is a versatile piece of heavy equipment that combines the capabilities of a tractor, a loader, and an excavator. Typically, it features a front-mounted bucket for lifting and loading materials and a rear-mounted backhoe for digging and trenching. This dual functionality makes it ideal for tasks such as digging foundations, lifting heavy loads, and transporting materials across a job site. The compact size of backhoe loaders allows them to operate efficiently in confined spaces, a common requirement in urban construction projects.
Key Specifications to Consider
When evaluating backhoes, several specifications are critical to match the machine's capabilities with your specific needs:

• Horsepower (HP): Determines the engine's power output, influencing the machine's performance in various tasks.

• Digging Depth: Indicates how deep the backhoe can dig, essential for tasks like trenching and foundation work.

• Loader Lift Capacity: The maximum weight the front loader can lift, affecting its suitability for material handling.

• Operating Weight: Impacts the machine's stability and maneuverability on different terrains.

• Tire Size and Type: Affects traction and suitability for specific ground conditions.


• Caterpillar (CAT): Known for robust construction and advanced technology integration.

• John Deere: Offers models with user-friendly controls and efficient fuel consumption.

• JCB: Features innovative designs and high-performance capabilities.

• CASE Construction Equipment: Provides models with enhanced lifting capabilities and durability.

• Kubota: Ideal for compact tasks with models offering excellent maneuverability.


• Hydraulic System: Check for leaks, damaged hoses, and the condition of cylinders.

• Engine Condition: Inspect for oil leaks, check the air filter, and assess overall engine performance.

• Structural Integrity: Look for signs of cracks or welds on the frame and boom.

• Tire and Undercarriage: Examine tire wear and undercarriage components for damage.

• Maintenance Records: Review service history to understand past issues and repairs.


• Regular Fluid Checks: Monitor engine oil, hydraulic fluid, and coolant levels.

• Routine Filter Changes: Replace air, fuel, and hydraulic filters as per the manufacturer's recommendations.

• Tire Maintenance: Maintain proper tire pressure and inspect for wear regularly.

• Cleaning: Keep the machine clean to prevent debris buildup, especially in the cooling system.

• Operator Training: Ensure operators are trained to use the backhoe efficiently and safely.


The Challenge of Organizing Gravel Parking Areas
Gravel parking lots are common in rural churches, community centers, and temporary event spaces. While they offer cost-effective installation and good drainage, they pose a unique challenge: the absence of permanent striping. Without visual guides, drivers tend to park haphazardly, wasting space and creating traffic bottlenecks. Unlike asphalt or concrete, gravel doesn’t hold paint well, and seasonal maintenance like snow plowing can erase markings quickly.
In one Vermont church lot, the lack of defined spaces led to inefficient use of the area, prompting a search for practical, low-cost solutions that wouldn’t interfere with winter operations or require frequent repainting.
Why Paint Alone Doesn’t Work
Standard striping paint, even when applied with inverted cans or line stripers, fades quickly on gravel. The loose aggregate and porous surface prevent proper adhesion. On compacted gravel, painted lines may last two to three months at best, especially in high-traffic zones. Rain, tire abrasion, and plowing can erase them in weeks.
Some operators use chalk or field marking powder, but these are even more temporary. Others have tried trenching shallow grooves and filling them with paint or lime, but this method is labor-intensive and vulnerable to erosion.
Alternative Marking Methods That Last Longer
Several creative solutions have emerged for marking gravel lots:

• Wood Templates and Spray Paint
  Using a simple jig made from two 1x4 boards spaced three inches apart, operators can lay down consistent lines with upside-down marking paint. This method is quick and repeatable, though it still requires reapplication every few months.

• Buried Visual Markers
  Painted bricks, pavers, or even colored glass bottles (bottoms up) can be embedded flush with the gravel to indicate space boundaries. These offer semi-permanent visibility but must be removed before winter plowing to avoid damage.

• Parking Curbs and Poles
  Repurposed telephone poles or concrete bumpers can be laid out to define rows. Painting lines directly on the poles helps guide drivers. This method is durable and plow-friendly, though it requires heavy lifting and precise placement.

• Steel T-Posts and Rope
  A grid of steel posts with yellow rope strung between them creates a visual guide without obstructing plowing. While not perfect, it improves alignment and space usage. This technique was used successfully on a utility job site with frequent snow clearing.

• Conveyor Belt Strips
  Old rubber conveyor belts cut into strips and painted white can be spiked into the gravel. These are highly visible but may pose tripping hazards for pedestrians, especially elderly visitors.

• Red Heads and Nylon Markers
  In road construction, red plastic caps nailed into gravel are used to mark grade. These can be adapted for parking layout, offering durability and visibility without interfering with plowing.


• Use visual guides spaced at consistent intervals (8–9 feet per space)

• Combine paint with physical markers for longer-lasting visibility

• Avoid raised elements that interfere with plowing unless removable

• Consider permeable pavers or modular grid systems for semi-permanent solutions

• Use signage to reinforce parking rules and directional flow


Introduction
The Caterpillar 3046 engine, a naturally aspirated diesel engine, is renowned for its durability and performance in various applications, including construction and agricultural machinery. However, like all mechanical systems, it is susceptible to wear and damage over time. One such issue is the spinning of camshaft bearings, which can lead to significant engine problems if not addressed promptly.
Understanding Camshaft Bearings
Camshaft bearings are critical components that support the camshaft, allowing it to rotate smoothly within the engine block. They are designed to withstand high pressures and temperatures. In the 3046 engine, these bearings are precision-machined to ensure optimal performance. A spun bearing occurs when the bearing rotates within its housing, often due to inadequate lubrication or excessive heat, leading to scoring and potential engine failure.
Identifying a Spun Camshaft Bearing
Symptoms of a spun camshaft bearing in the 3046 engine may include:

• Unusual Engine Noises: Knocking or tapping sounds emanating from the engine block.

• Poor Engine Performance: Loss of power or irregular engine operation.

• Metal Shavings in Oil: Presence of metallic particles in the engine oil.

• Increased Oil Consumption: Higher than normal oil usage.


1. Preparation and Safety Measures
   • Disconnect the Battery: Ensure all electrical connections are safe.

   • Drain Engine Oil: Remove the oil to prevent contamination during the repair.

   • Remove Necessary Components: Detach parts obstructing access to the camshaft, such as the valve cover, timing gear, and oil pan.

2. Inspection of the Engine Block
   • Visual Inspection: Examine the camshaft bearing area for signs of scoring or damage.

   • Check Bearing Alignment: Ensure that the bearing alignment marks on the block and bearing line up correctly.

3. Removal of the Damaged Bearing
   • Mark the Position: Use a paint marker to note the position of the bearing in relation to the oil passage.

   • Use Appropriate Tools: Employ a specially machined slug or driver tool to press out the damaged bearing.

4. Preparation for New Bearing Installation
   • Clean the Housing: Thoroughly clean the bearing housing to remove any debris or contaminants.

   • Inspect for Damage: Check the housing for any signs of wear or damage that could affect the new bearing's fit.

5. Installation of New Bearing
   • Lubricate the Bearing: Apply a thin layer of engine oil to the new bearing to facilitate installation.

   • Align the Bearing: Ensure the bearing's oil hole aligns with the engine's oil passage.

   • Press in the Bearing: Using the appropriate tool, press the new bearing into the housing until it is seated correctly.

6. Reassembly and Testing
   • Reinstall Components: Reattach all components removed during the disassembly process.

   • Refill Engine Oil: Add the recommended type and amount of engine oil.

   • Reconnect the Battery: Ensure all electrical connections are secure.

   • Test the Engine: Start the engine and monitor for any unusual noises or performance issues.


• Regular Maintenance: Adhere to the manufacturer's recommended maintenance schedule.

• Quality Lubrication: Use high-quality engine oil and replace it at the recommended intervals.

• Monitor Engine Performance: Regularly check for signs of engine trouble and address them promptly.


Introduction
The box blade is a fundamental implement for tractors, offering versatility in tasks such as grading, leveling, and material spreading. Its design and functionality have evolved over time, making it an indispensable tool for landowners, farmers, and landscapers. Understanding its components, uses, and variations can help operators maximize its potential.
Design and Components
A typical box blade consists of a three-sided metal frame with a cutting edge at the rear. The front of the blade often features scarifiers—angled teeth that break up compacted soil. These scarifiers can be adjusted or removed depending on the task. The rear cutting edge is sometimes reversible, allowing for extended use before sharpening is needed. Some models include a tailgate that can be adjusted to control the flow of material being spread.
Historical Development
The concept of the box blade dates back to the early 20th century when it was introduced as a horse-drawn implement for leveling and grading fields. With the advent of tractors, the box blade was adapted for mechanized use, becoming a standard attachment for modern tractors. Its design has been refined over the years to improve durability and functionality, incorporating features like adjustable scarifiers and reversible cutting edges.
Common Uses
Box blades are employed in various applications:

• Grading and Leveling: Achieving a smooth, even surface for driveways, lawns, or construction sites.

• Material Spreading: Distributing soil, gravel, or mulch evenly across an area.

• Backfilling: Filling trenches or holes with soil or other materials.

• Soil Preparation: Breaking up compacted soil to prepare for planting or seeding.


• Inspecting Scarifiers: Check for wear or damage and replace as necessary.

• Sharpening Cutting Edges: Keep the rear cutting edge sharp for effective material movement.

• Lubricating Moving Parts: Apply grease to pivot points and adjusters to prevent rust and ensure smooth operation.

• Cleaning After Use: Remove soil and debris to prevent buildup and corrosion.


• Hydraulic Controls: Allow for easy adjustment of scarifier depth and blade angle from the tractor's seat.

• Laser or GPS Guidance: Provides precision grading capabilities, especially useful in large-scale operations.

• Adjustable Tailgates: Control the amount of material dispensed, aiding in fine grading tasks.




Introduction
Ring drive center unloaders have become a pivotal advancement in the mechanization of silage harvesting, particularly for stave silos. These systems offer a more efficient and uniform method of unloading silage compared to traditional surface drive unloaders. Understanding the advantages and potential drawbacks of ring drive unloaders is essential for farmers and agricultural professionals aiming to optimize their silo operations.
Mechanism and Functionality

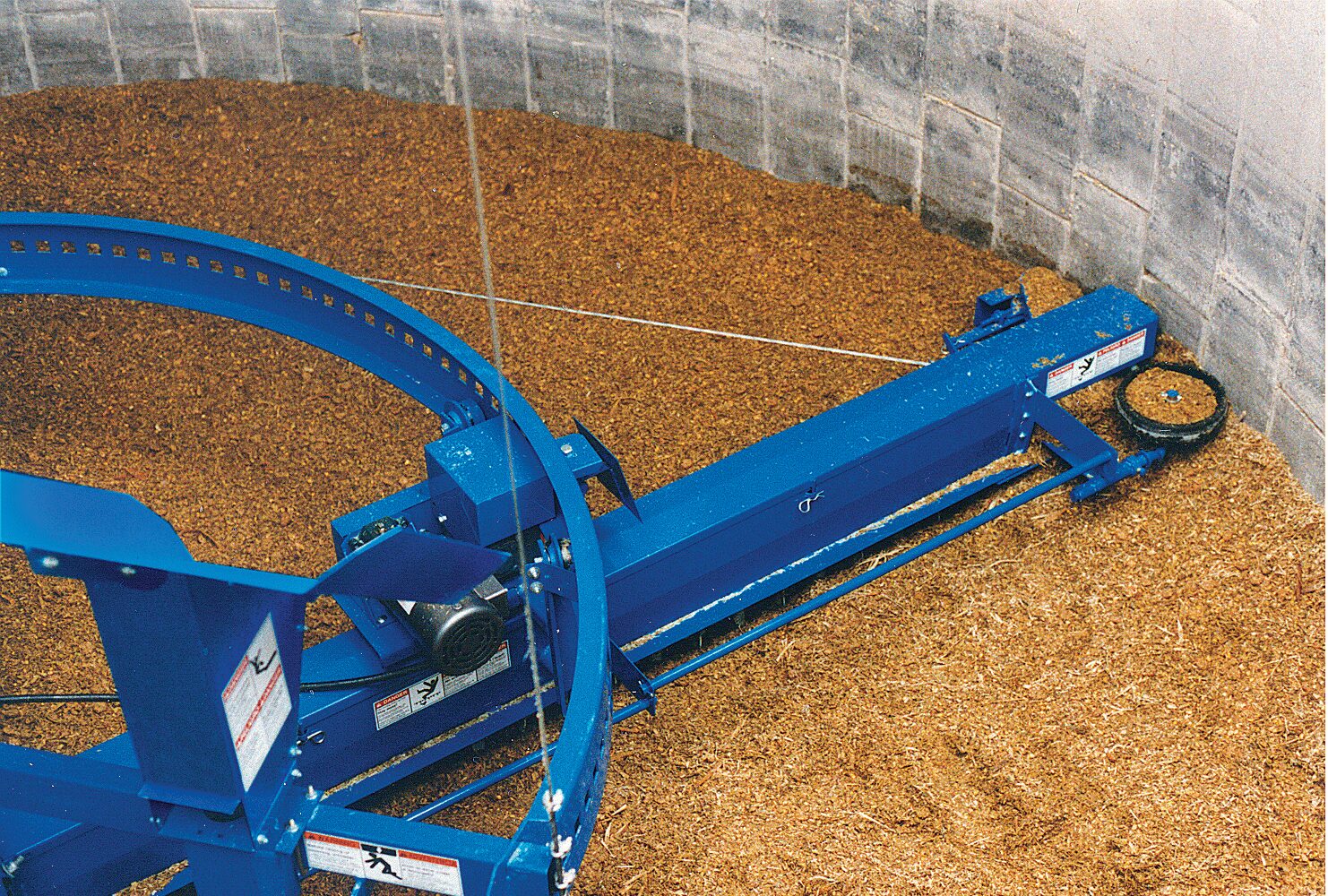

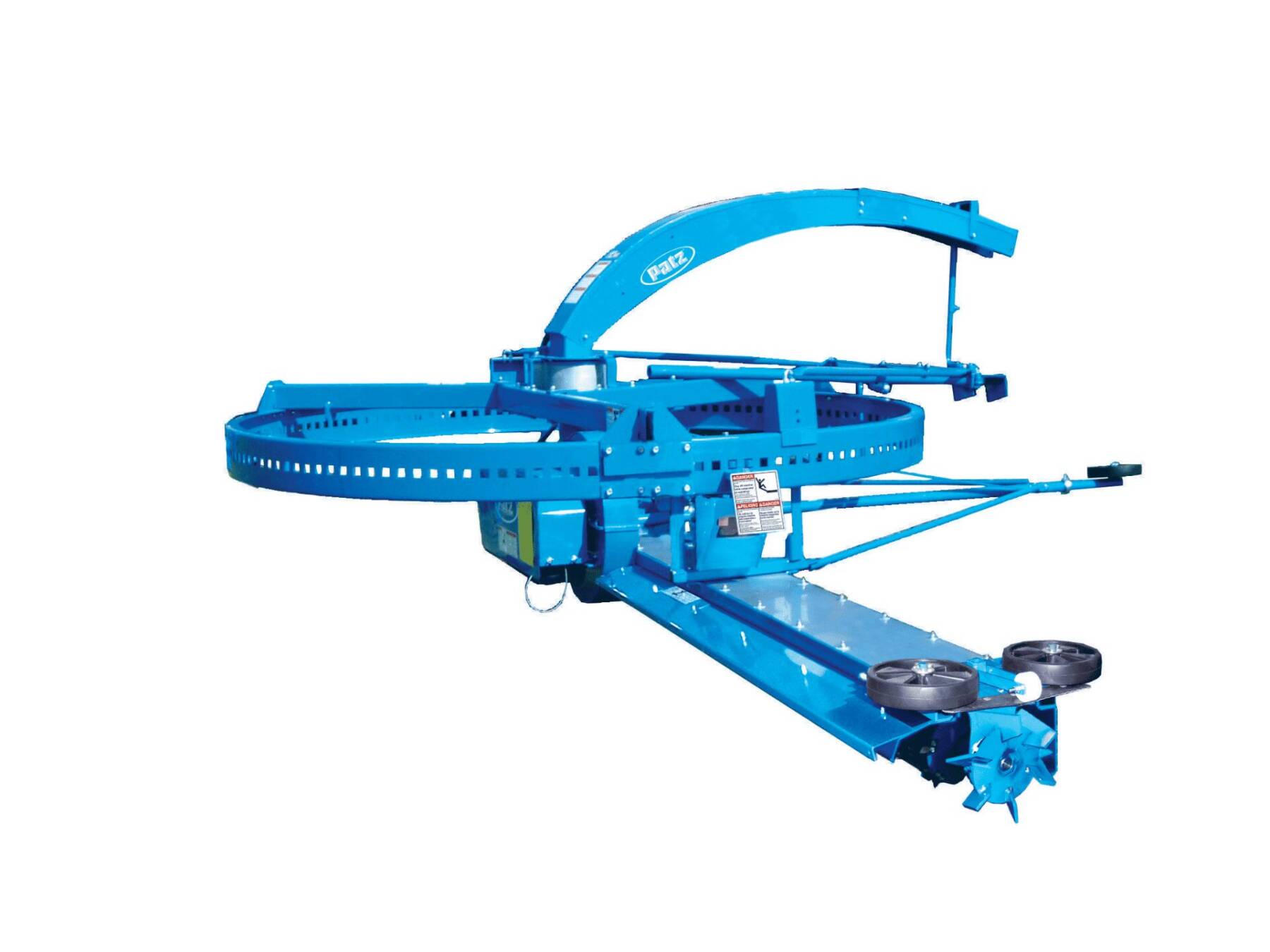

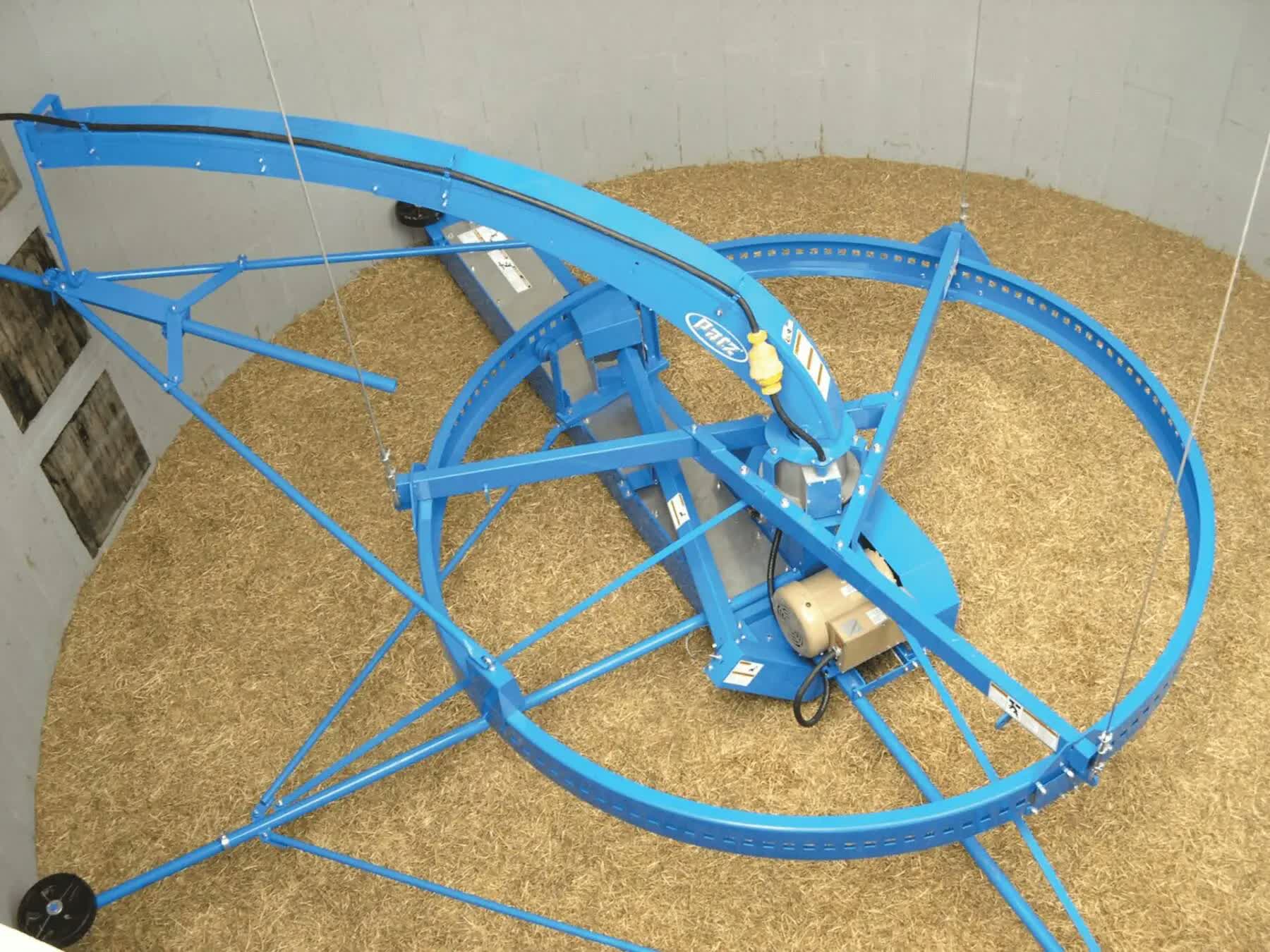

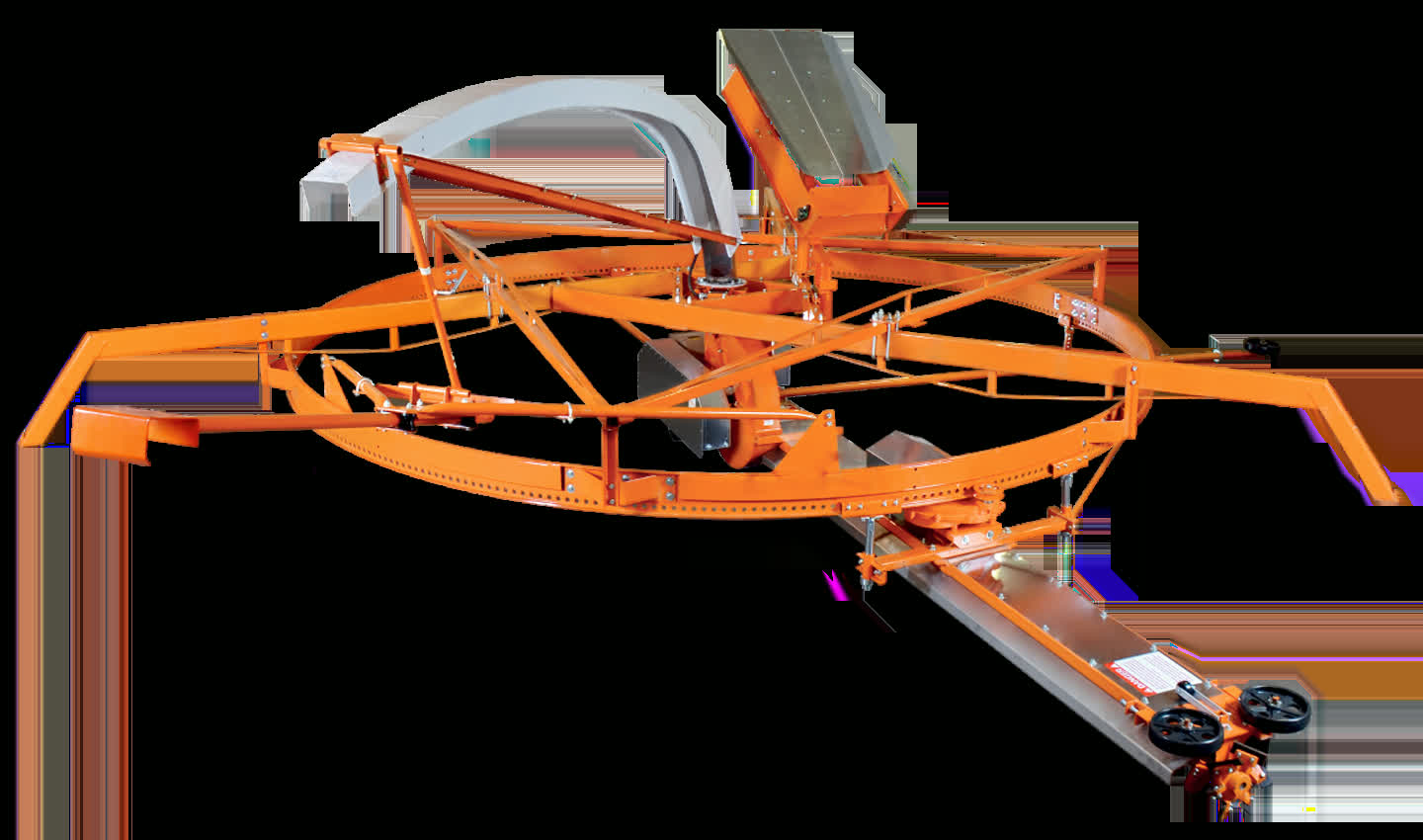

Ring drive center unloaders operate by utilizing a large drive ring that rotates around the perimeter of the silo. This rotation powers an auger or gathering chain system that moves silage from the silo's base to the discharge point. The central location of the drive mechanism allows for a more balanced and efficient distribution of force, reducing strain on the equipment and ensuring a more uniform unloading process.
Advantages of Ring Drive Center Unloaders

1. Enhanced Efficiency: The centralized drive system ensures consistent power delivery, leading to more efficient silage removal.

2. Uniform Feed Distribution: The design promotes even distribution of silage, which can improve feed quality and animal health.

3. Reduced Maintenance: With fewer moving parts exposed to the silage, there is less wear and tear, potentially leading to lower maintenance costs.

4. Improved Safety: The centralized operation reduces the need for manual intervention inside the silo, lowering the risk of accidents.


1. Initial Cost: The installation of a ring drive system can be more expensive than traditional methods.

2. Complex Installation: Retrofitting an existing silo with a ring drive system may require significant modifications.

3. Dependency on Power Supply: The system's reliance on electrical power means that any power outages can halt the unloading process.


• Silo Compatibility: Ensure that the existing silo structure can accommodate the installation of a ring drive system.

• Power Availability: Verify that a stable and sufficient power supply is available to operate the system.

• Budget: Consider both the initial investment and potential long-term savings when evaluating the cost-effectiveness of the system.


Introduction to NCCCO Certification
The National Commission for the Certification of Crane Operators (NCCCO) is a recognized body that certifies crane operators in the United States. Their certification process ensures that operators possess the necessary knowledge and skills to operate cranes safely and efficiently. The certification is divided into two main components: a written exam and a practical exam.
Structure of the Written Exam
The written exam is comprehensive, testing the candidate's knowledge in various areas:

1. Core Exam: This section covers general crane operation principles, safety protocols, and regulations.

2. Specialty Exams: Candidates choose a specialty based on the type of crane they operate, such as:
   • Telescopic Boom Cranes – Fixed Cab (TSS)

   • Telescopic Boom Cranes – Swing Cab (TLL)

   • Lattice Boom Truck Cranes (LBT)

   • Lattice Boom Crawler Cranes (LBC)

3. Load Chart Exam: This section tests the candidate's ability to read and interpret load charts, which are crucial for determining the crane's lifting capacity under various conditions.


• Study Guides: Comprehensive guides that cover all topics included in the exams.

• Practice Tests: Sample questions that mimic the format and content of the actual exams.

• Flashcards: Quick reference cards for on-the-go study.

• Training Courses: Formal classes that provide in-depth instruction and hands-on experience.


1. What action does a signal person intend the operator to perform if he extends his arm at shoulder height, makes a fist with his hand, and sticks his thumb up?
   • a. Boom down

   • b. Swing

   • c. Boom up

   • d. Telescope out

2. Within what percentage of level does a telescopic boom crane have to be for the gross ratings in the load chart to remain valid?
   • a. 1%

   • b. 2%

   • c. 5%

   • d. It doesn’t matter so long as the outriggers are fully extended and set


• Understand the Questions: Ensure you fully comprehend each question before answering.

• Use Practice Tests: Regularly take practice exams to familiarize yourself with the question format and identify areas needing improvement.

• Study Load Charts: Spend ample time practicing with load charts, as they are a critical component of the exams.

• Seek Training: Enroll in training programs that offer both theoretical and practical instruction.
