The CAT 349E is a high-performance hydraulic excavator used in a variety of construction, mining, and earth-moving applications. One of the key components of this machine is its track tensioner, which plays a crucial role in maintaining optimal track performance and extending the lifespan of the undercarriage. This article provides an in-depth look at the track tensioner of the CAT 349E, covering its function, common issues, and solutions for maintenance and troubleshooting.
Understanding the Role of the Track Tensioner
The track tensioner on the CAT 349E excavator is part of the undercarriage system that ensures the tracks are properly tensioned. Track tension is critical for ensuring the longevity of the track components and improving the machine’s overall performance. If the tension is too loose, it can cause excessive wear on the track shoes and rollers. On the other hand, if the tension is too tight, it can lead to increased friction, premature wear of the sprockets, and potential damage to the undercarriage components.
The track tensioner is typically controlled by a hydraulic system, which adjusts the tension based on the operating conditions. This adjustment helps to accommodate for track elongation as the machine works, ensuring that the tracks maintain proper tension throughout the machine's use.
Key Features of the CAT 349E Track Tensioner

1. Hydraulic Adjustment: The track tensioner on the CAT 349E uses hydraulic pressure to adjust the track's tension. This system allows for real-time adjustments based on the operating conditions and load requirements.

2. Track Lengthening: Over time, as the machine operates, the tracks will naturally elongate. The track tensioner compensates for this elongation by maintaining the proper tension in the track system.

3. Improved Durability: The track tensioner is designed to minimize wear and tear on the track system, ensuring that the undercarriage remains functional and efficient for a longer period.

4. Convenient Access for Maintenance: The track tensioner is easily accessible for maintenance and inspection, which allows for timely adjustments to be made to keep the tracks in good condition.


1. Hydraulic Leaks in the Tensioner System
   • Issue: Hydraulic leaks are a common problem in track tensioning systems. These leaks can occur in the tensioner’s seals or hydraulic lines, leading to a loss of hydraulic pressure and improper track tension.

   • Solution: Inspect the hydraulic system regularly for leaks, especially around the tensioner’s seals and fittings. Replacing worn or damaged seals and tightening any loose hydraulic lines will help restore proper pressure. In some cases, the entire hydraulic cylinder may need to be replaced if it is beyond repair.

2. Track Slippage
   • Issue: If the track tension is too loose, it can cause the tracks to slip, especially in high-torque situations such as digging or lifting. This can lead to rapid wear of the track components and decrease the efficiency of the machine.

   • Solution: Ensure that the track tension is adjusted to the manufacturer’s recommended specifications. The track tension should be checked regularly, especially after extended periods of use, and adjusted to maintain the correct balance.

3. Over-tightened Tracks
   • Issue: If the track tension is too tight, it can create excessive friction, which can cause premature wear on the track rollers, sprockets, and other undercarriage components.

   • Solution: Check the track tension to ensure it is within the correct range. Over-tightening can cause significant strain on the undercarriage, so it is crucial to follow the recommended tension specifications provided by Caterpillar.

4. Track Elongation
   • Issue: As with all tracked machines, the tracks on the CAT 349E will naturally elongate over time. If the track tensioner is not functioning correctly, this can result in an uneven distribution of tension, leading to uneven wear on the tracks and rollers.

   • Solution: Regularly inspect the tracks for elongation and adjust the tensioner to accommodate for this wear. If the tracks are excessively elongated, it may be necessary to replace the track chains or consider a more extensive undercarriage overhaul.

5. Contaminated Hydraulic Fluid
   • Issue: Contaminated hydraulic fluid can cause the track tensioning system to malfunction. Debris, dirt, and moisture in the hydraulic fluid can lead to blockages or damage to the internal components of the tensioner.

   • Solution: Ensure that the hydraulic fluid is regularly changed and properly filtered. Check the condition of the hydraulic fluid and replace it if it appears contaminated or degraded. Use the recommended fluid type as specified by the manufacturer.


1. Regular Inspections: Perform regular inspections of the track tensioner and undercarriage components. Look for any signs of wear, hydraulic leaks, or damage to seals and hydraulic lines. Ensure that the track tension is properly set and that the system is functioning as expected.

2. Monitor Track Wear: Keep an eye on track wear patterns, as uneven wear can indicate problems with the track tensioner or undercarriage. If the tracks are showing signs of excessive wear on one side, this could be an indication of improper tension or alignment issues.

3. Replace Worn Seals and Components: Over time, seals and other components in the track tensioner will wear out. Replacing these parts at the first sign of wear can prevent more severe issues down the line and keep the system working efficiently.

4. Maintain Proper Track Alignment: Ensure that the tracks are aligned properly and that the track tensioner is working to keep the tracks evenly tensioned. Misalignment can lead to track slippage or increased wear on specific parts of the undercarriage.

5. Use OEM Parts: When replacing components in the track tensioning system, always use OEM (original equipment manufacturer) parts. These parts are designed to fit and function properly with the CAT 349E, ensuring the best performance and durability.


Komatsu PC120-5 Background and Throttle Control System
The Komatsu PC120-5 excavator was part of Komatsu’s fifth-generation hydraulic excavator series, launched in the late 1980s and widely used through the 1990s. With an operating weight around 12 metric tons and powered by a Komatsu S4D102E diesel engine, the PC120-5 combined mechanical reliability with early electronic control systems. One of its key innovations was the use of an electronic throttle motor, a stepper-type actuator that adjusted engine RPM based on operator input and load demand.
Terminology Note

• Stepper Motor: A motor that moves in discrete steps, used for precise control of throttle position.

• Governor Controller: The electronic module that interprets throttle signals and drives the stepper motor.

• Phase Coil: Internal winding in the motor; typically labeled Phase A and Phase B.

• Diagnostic Lamp Array: A set of LEDs on the controller used to display fault codes and system status.


• Phase A: Black and Green

• Phase B: Red and Yellow


• Use an ohmmeter to measure resistance between wires.

• Coil pairs will show continuity (typically 10–50 ohms), while unrelated wires will show open circuit.

• Label wires accordingly and connect to the controller based on known pinout diagrams.


• Pin 1: Black

• Pin 2: Green

• Pin 3: Red

• Pin 4: White or Yellow


• Center green light: Power and system OK

• Outer red lights: Fault indicators


• Rebuild the wiring using shielded cable and waterproof connectors.

• Confirm coil pairs with an ohmmeter before connecting.

• Use dielectric grease on all terminals to prevent corrosion.

• Secure wires with loom and clamps to prevent vibration damage.

• Test throttle response through full RPM range before closing panels.


The 2008 Kenworth T300 is a versatile and reliable medium-duty truck that has earned a reputation for its durability and efficiency. Designed for a wide range of industries, including construction, delivery, and municipal services, the T300 is equipped with powerful engines and robust features, making it suitable for a variety of demanding applications. This article will explore the key specifications, performance, common issues, and maintenance tips for the 2008 Kenworth T300, offering valuable insights for potential buyers, operators, and fleet managers.
History of the Kenworth T300 Series
Kenworth, a division of PACCAR Inc., is renowned for producing high-quality heavy-duty trucks, with the T300 series being part of their medium-duty line. Introduced in the early 2000s, the T300 was designed to meet the growing demand for trucks that could handle both light and heavy-duty tasks. With its rugged frame, advanced safety features, and comfortable cab, the T300 became a popular choice for those needing a workhorse for both short-haul and long-haul operations.
By 2008, the T300 had undergone several updates to improve its performance, efficiency, and comfort. Kenworth focused on integrating more fuel-efficient engines, enhancing driver ergonomics, and updating safety systems, all while maintaining the model’s reputation for reliability.
Key Specifications of the 2008 Kenworth T300
The 2008 Kenworth T300 is built with a strong focus on power, comfort, and versatility. Below are some of the key specifications and features of this truck:

1. Engine Options:
   • The 2008 T300 typically comes equipped with either a Cummins ISB 6.7L or a Caterpillar C7 engine.

   • Cummins ISB 6.7L: This engine produces between 200 and 300 horsepower, providing a good balance of power and fuel efficiency. It is known for its reliability and longevity.

   • Caterpillar C7: With horsepower ratings ranging from 220 to 330 hp, the C7 offers more power for heavier loads and tougher terrain.

2. Transmission:
   • The T300 is often paired with either an Eaton Fuller manual transmission or an Allison automatic transmission.

   • The manual transmission provides greater control and is preferred by many fleet operators for its ability to handle heavy-duty loads.

   • The Allison automatic transmission offers smoother shifting and is ideal for operations where ease of use and convenience are priorities.

3. Chassis and Payload Capacity:
   • The T300 features a strong, durable chassis designed to handle demanding tasks. It typically has a Gross Vehicle Weight Rating (GVWR) ranging from 25,000 lbs to 33,000 lbs.

   • The truck’s payload capacity varies depending on configuration but is capable of carrying large loads, making it suitable for hauling equipment, construction materials, or large deliveries.

4. Dimensions:
   • Overall Length: Approximately 25-35 feet, depending on the configuration.

   • Cab Width: Around 96 inches.

   • Wheelbase: Varies from 140 to 236 inches.

5. Fuel Economy:
   • The fuel efficiency of the 2008 Kenworth T300 varies depending on the engine and load but typically ranges from 8 to 12 miles per gallon. This makes it a relatively fuel-efficient option for medium-duty trucks.

6. Safety Features:
   • The T300 comes equipped with standard safety features such as anti-lock brakes (ABS), air brakes, and airbags.

   • The truck's design also ensures better visibility and driver safety, especially when navigating tight spaces or busy urban areas.


1. Transmission Problems:
   • Some owners have reported issues with the Eaton Fuller manual transmission, particularly with the clutch and shifting mechanism. These issues often arise due to improper clutch adjustment or worn-out components.

   • Solution: Regularly inspect the clutch and transmission system. Keep the fluid levels within recommended limits and address any issues promptly.

2. Fuel System Concerns:
   • The fuel system, including the fuel injectors and fuel pump, may experience wear over time, especially if the truck is used for long-haul operations.

   • Solution: Regular fuel system checks, including replacing fuel filters and cleaning the injectors, can help prevent performance issues related to fuel delivery.

3. Electrical Issues:
   • Some owners report electrical issues, particularly with the truck’s wiring and sensor systems. These issues can lead to problems with the truck’s electronic control unit (ECU) or malfunctioning lights.

   • Solution: Regular inspections of the wiring system and the ECU can help identify and resolve electrical problems early on.

4. Suspension Wear:
   • As with many trucks used for heavy hauling, the suspension system can experience wear, especially if the vehicle regularly carries heavy loads.

   • Solution: Monitor the suspension for signs of damage or uneven wear. Replace worn-out bushings, springs, and shocks to maintain ride quality and stability.

5. Brake System Maintenance:
   • Like all heavy-duty vehicles, the brakes on the Kenworth T300 require regular maintenance. Over time, the brake pads and drums may wear out, leading to reduced braking efficiency.

   • Solution: Ensure timely brake inspections, especially if you notice any issues with braking distance or noise.


1. Regular Oil Changes: Change the engine oil and replace the oil filter every 10,000 to 15,000 miles, depending on your usage. Keeping the engine well-lubricated helps reduce wear and extends its lifespan.

2. Inspect the Cooling System: Regularly check the radiator, coolant levels, and hoses to ensure the engine stays cool during operation. Overheating can lead to severe engine damage.

3. Check the Tires: Inspect the tires for proper inflation and tread wear. Uneven tire wear could indicate issues with alignment, suspension, or load distribution.

4. Inspect Brake Pads and Rotors: Regular brake inspections and pad replacements will help ensure optimal braking performance, especially under heavy load conditions.

5. Transmission Fluid: Ensure the transmission fluid is at the proper level and condition. Dirty or low transmission fluid can cause shifting problems and premature wear on the transmission.


Case W20B Loader and Transmission Background
The Case W20B wheel loader was introduced in the late 1970s and remained in production through the 1980s, serving as a mid-size, versatile machine for construction, agriculture, and municipal work. Powered by the Case 401BD diesel engine, the W20B featured a robust frame, articulated steering, and a torque converter transmission. Many units were equipped with Allison transmissions—specifically the TT2221-1—known for their durability and smooth shifting under load.
Allison Transmission, founded in 1915 and headquartered in Indianapolis, has long been a leader in automatic transmissions for commercial and off-highway applications. The TT series was designed for industrial loaders, graders, and other heavy equipment, offering hydraulic torque multiplication and planetary gearsets.
Terminology Note

• Torque Converter: A fluid coupling that multiplies engine torque and allows smooth engagement without a clutch.

• Output Shaft: The shaft that delivers torque from the transmission to the differential.

• Parking Brake Assembly: A mechanical brake mounted on the transmission output shaft to hold the machine stationary.

• Turbine: The rotating component inside the torque converter that receives fluid energy from the impeller.


• TT2420-1 has a larger turbine, which may affect stall speed and torque multiplication.

• The TT2420-1 lacks a parking brake assembly, though it has bolt holes for mounting one.

• Gear ratios and internal clutch packs may differ, potentially altering shift behavior and travel speed.


• Verify bellhousing alignment and bolt pattern before installation.

• Transfer the parking brake assembly from the TT2221-1 to the TT2420-1 using existing bolt holes.

• Inspect the output shaft spline count and diameter to ensure compatibility with the driveshaft.

• Flush the transmission cooler and lines to prevent contamination.

• Use factory torque specs and transmission fluid recommended by Allison for TT-series units.


• Change transmission fluid every 500 hours or annually.

• Inspect torque converter seals and input shaft bearings during installation.

• Use genuine Allison filters and fluid to maintain clutch pack integrity.

• Keep a log of transmission serial numbers and part numbers for future reference.


The term "hoe pack" refers to a specific technique used in construction and excavation operations, particularly for compacting soil and other materials. It involves utilizing an excavator's bucket or a specialized attachment, often referred to as a "hoe pack," to achieve optimal soil compaction. This method is essential for creating stable foundations for various structures and is widely used in both residential and commercial construction.
In this article, we will explore the concept of hoe packing, its benefits, and its practical applications. We will also delve into the equipment used, maintenance tips, and troubleshooting common issues that operators may encounter.
What is a Hoe Pack?
A hoe pack is a method of compaction that typically involves the use of an excavator with a specially designed bucket or attachment. The primary purpose of this technique is to compact loose soil or other materials, ensuring that the ground is stable enough to support structures like buildings, roads, or other infrastructure projects.
This technique relies on the bucket’s weight and the force generated by the excavator’s hydraulic system. By moving the bucket up and down in a rhythmic motion, the operator effectively packs the material into place, removing air pockets and creating a dense, solid surface.
While it’s most commonly associated with excavators, other heavy equipment like backhoes and even skid steers can be equipped with a hoe pack attachment for similar tasks.
Equipment Used for Hoe Packing
The main piece of equipment involved in hoe packing is the excavator, particularly models with strong hydraulic systems and sturdy, well-maintained buckets. While most excavators can be used for hoe packing, the effectiveness of the technique is greatly enhanced when using specialized attachments designed for this purpose.

1. Excavators: These machines are typically used for hoe packing because of their versatility, lifting power, and hydraulic capabilities. They come in a range of sizes, from compact models for smaller jobs to larger machines for heavy-duty applications.

2. Hoe Pack Attachments: These are specialized buckets or pads designed to increase compaction efficiency. They often feature a flat or slightly concave shape that allows for more effective compaction. Some attachments have additional features, like extra weight or design modifications to improve soil compaction.

3. Backhoes and Skid Steers: For smaller projects or confined spaces, backhoes or skid steers equipped with appropriate attachments can also perform hoe packing. These machines are more maneuverable and ideal for urban construction sites.


1. Soil Stabilization: Loose, soft, or unstable soil can lead to significant problems in construction. Hoe packing densifies the soil, providing a solid base for structures and minimizing settlement over time.

2. Cost and Time Efficiency: Traditional methods of soil compaction, such as using roller compactors, can be time-consuming and require more labor. Hoe packing with an excavator is often faster and requires less equipment, making it a more cost-effective solution.

3. Versatility: Hoe packing can be used for a variety of materials, including gravel, sand, clay, and other fill materials. This versatility makes it suitable for a wide range of construction projects.

4. Improved Surface Quality: By using the hoe pack method, the surface of the soil is more uniform, making it easier to lay down foundations or asphalt, and ensuring the long-term stability of the structure being built.


1. Foundation Preparation: Before laying a foundation, whether it’s for a house, a building, or any other structure, it’s essential to ensure that the soil is compacted. Hoe packing is an efficient method to achieve this, particularly when large areas need to be worked on.

2. Road Construction: In road building, the stability of the subgrade is critical. By using hoe packing, construction crews can ensure that the subgrade is compacted and ready to support the layers of asphalt and concrete that will be placed on top.

3. Landfills and Waste Management: When creating landfill sites or managing waste piles, compacting the soil or waste material is necessary to prevent it from spreading or becoming unstable over time. Hoe packing is often used in these applications to compress the material into place.

4. Trenching and Utilities Installation: Hoe packing can also be used after trenches are dug for utility installations. The soil must be compacted back into the trench to ensure that no settlement occurs once the utilities are in place.


1. Uneven Compaction
   • Cause: Uneven compaction can occur if the bucket is not consistently pressed down during the packing process or if the excavator is not level.

   • Solution: Ensure that the excavator is on level ground and that the operator applies uniform pressure across the area. It may also help to slow down the movement for more consistent results.

2. Over-Compaction
   • Cause: Over-compaction occurs when the operator applies too much pressure or packs the material too tightly, which can make it difficult to add additional layers later.

   • Solution: Adjust the force applied by the excavator and monitor the material’s response to the compaction. Regularly check the compacted material for proper density and avoid excessive force.

3. Excessive Wear on Equipment
   • Cause: If the excavator or hoe pack attachment is not properly maintained, excessive wear can occur on the bucket or tracks, leading to reduced efficiency and potential breakdowns.

   • Solution: Regularly inspect and maintain the excavator and attachments. Check for wear on the bucket and replace any worn components. Lubricate moving parts and ensure the tracks are in good condition.


Galion’s Legacy in Compaction Equipment
Galion Iron Works, founded in the early 1900s in Ohio, was a pioneer in road-building machinery. Known for its graders and rollers, Galion became synonymous with rugged, mechanical simplicity. The 9PC-LW-12D, a nine-wheel pneumatic compactor, was designed for large-scale soil stabilization, landfill work, and embankment construction. Though production ceased decades ago, these machines remain in service across North America, often in municipal yards or private contractor fleets.
Terminology Note

• Pneumatic Compactor: A roller using air-filled tires to apply pressure and kneading action to soil or asphalt.

• Ballast: Additional weight added to the machine to increase compaction force, often using sand, water, or steel.

• Shipping Weight: The unballasted weight of the machine, used for transport calculations.

• Static Load Pressure: The force exerted by the machine’s tires on the ground, critical for compaction depth.


• Tire count: 9

• Tire pressure range: 60–120 psi

• Ballast capacity: Up to 12,000 lbs

• Engine: Typically a naturally aspirated diesel, often sourced from Detroit Diesel or Cummins

• Transmission: Manual or powershift, depending on year and model variant


• Drain ballast tanks completely

• Secure all tire chocks and articulation points

• Use a trailer rated for at least 25,000 lbs

• Verify tire pressure before loading and after unloading


• Inspect tire pressure weekly and adjust based on soil type

• Flush ballast tanks annually to prevent corrosion

• Grease all pivot points and axle bearings every 100 hours

• Replace hydraulic fluid every 500 hours or annually

• Keep a log of ballast configurations and compaction results for future reference


The Hitachi EX60 is a compact, versatile excavator widely used in construction, demolition, and excavation projects. Known for its durability and performance, the EX60 is often favored for tight spaces and smaller-scale operations. However, like all machinery, the EX60 can experience operational issues, one of which includes laboring or struggling during travel. This problem can cause delays, increase fuel consumption, and potentially damage the hydraulic system or transmission if not addressed promptly.
In this article, we will explore the potential causes of this issue, the underlying mechanical factors, and how to troubleshoot and resolve it. We'll also discuss preventative measures to maintain the overall health of the machine and ensure its efficient operation over the long term.
Understanding the Problem: What Does "Laboring During Travel" Mean?
When an excavator like the Hitachi EX60 is described as "laboring" during travel, it typically refers to the machine struggling to move smoothly or efficiently. This could manifest in several ways, such as:

1. Slow Movement: The machine may have difficulty maintaining a consistent speed while traveling.

2. Unusual Sounds: The engine or hydraulic system may produce abnormal noises during travel.

3. Unresponsive Controls: The controls for traveling forward or backward may feel sluggish or less responsive than usual.

4. Excessive Vibrations: The machine may shake or vibrate more than normal during movement.


1. Hydraulic System Problems
   • Low Hydraulic Fluid: Insufficient hydraulic fluid levels can cause the pump to work harder, leading to a reduction in power and slower movement. Low fluid levels may result from leaks or evaporation over time.

   • Hydraulic Pump Malfunction: If the hydraulic pump is damaged or malfunctioning, it may fail to deliver sufficient power to the drive motors, resulting in sluggish movement.

   • Contaminated Hydraulic Fluid: Contaminants in the hydraulic fluid, such as dirt or water, can clog the system and cause excessive resistance in the hydraulic components, including the travel motors.

2. Transmission Issues
   • Faulty Transmission: If the transmission is not functioning properly, the excavator may have trouble transferring power from the engine to the tracks, causing the machine to struggle during travel. Issues such as slipping gears or low fluid levels in the transmission can exacerbate the problem.

   • Drive Motor Problems: A malfunctioning travel motor could be a significant factor in laboring during travel. Wear and tear on these components can reduce their efficiency, leading to slow or jerky movement.

3. Engine Power Loss
   • Fuel or Air Flow Problems: If the engine is not receiving the proper amount of fuel or air, it may fail to generate sufficient power for the excavator to travel smoothly. Clogged fuel filters, air filters, or fuel injectors could be the culprits.

   • Turbocharger Malfunction: A failing turbocharger can lead to a loss of power, which in turn can affect the machine’s travel performance.

4. Track and Undercarriage Issues
   • Track Tension: Incorrect track tension can place additional strain on the travel system, causing the machine to labor. Tracks that are too tight or too loose can impact the efficiency of the movement.

   • Undercarriage Wear: Worn rollers, sprockets, or idlers can affect the smooth operation of the tracks, leading to jerky movement and resistance.


1. Check Hydraulic Fluid Levels
   • Begin by checking the hydraulic fluid levels. If the fluid is low, top it off with the manufacturer-recommended fluid. Inspect for leaks in hoses, seals, and fittings.

   • If the fluid looks dirty or contaminated, drain the system and replace it with fresh, clean hydraulic fluid.

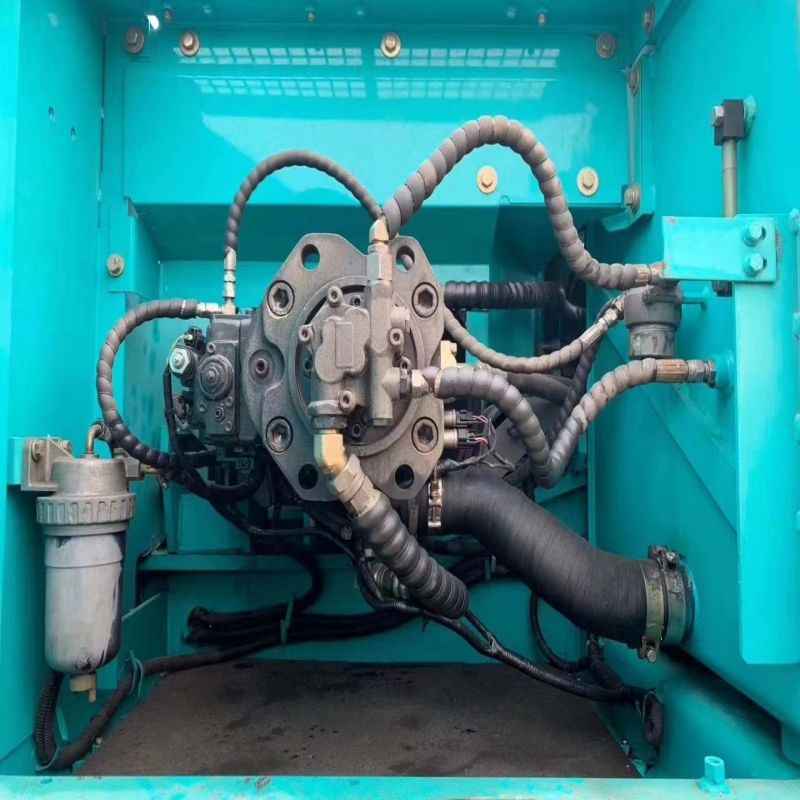

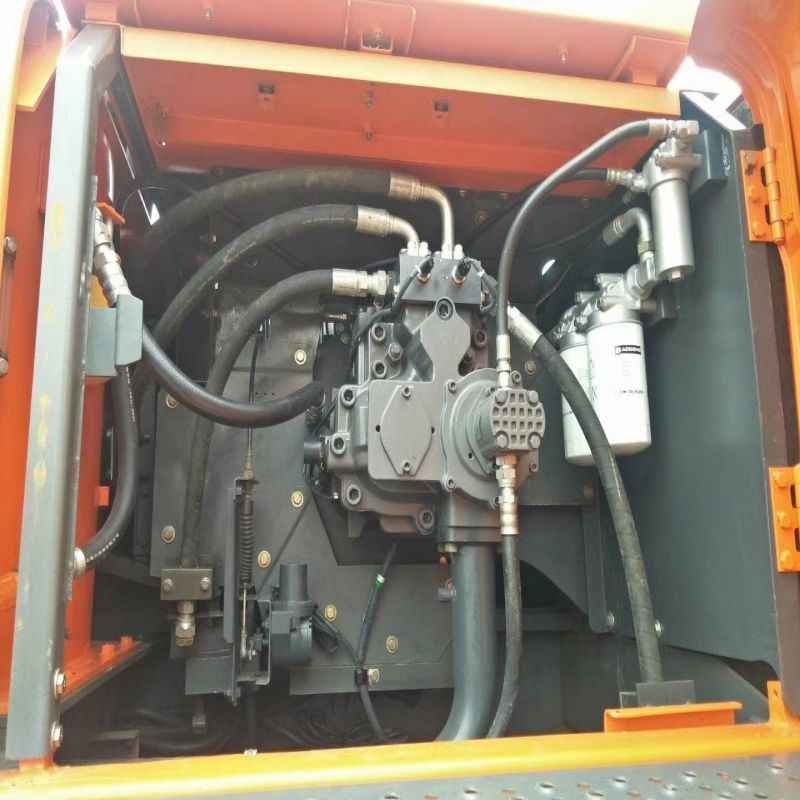

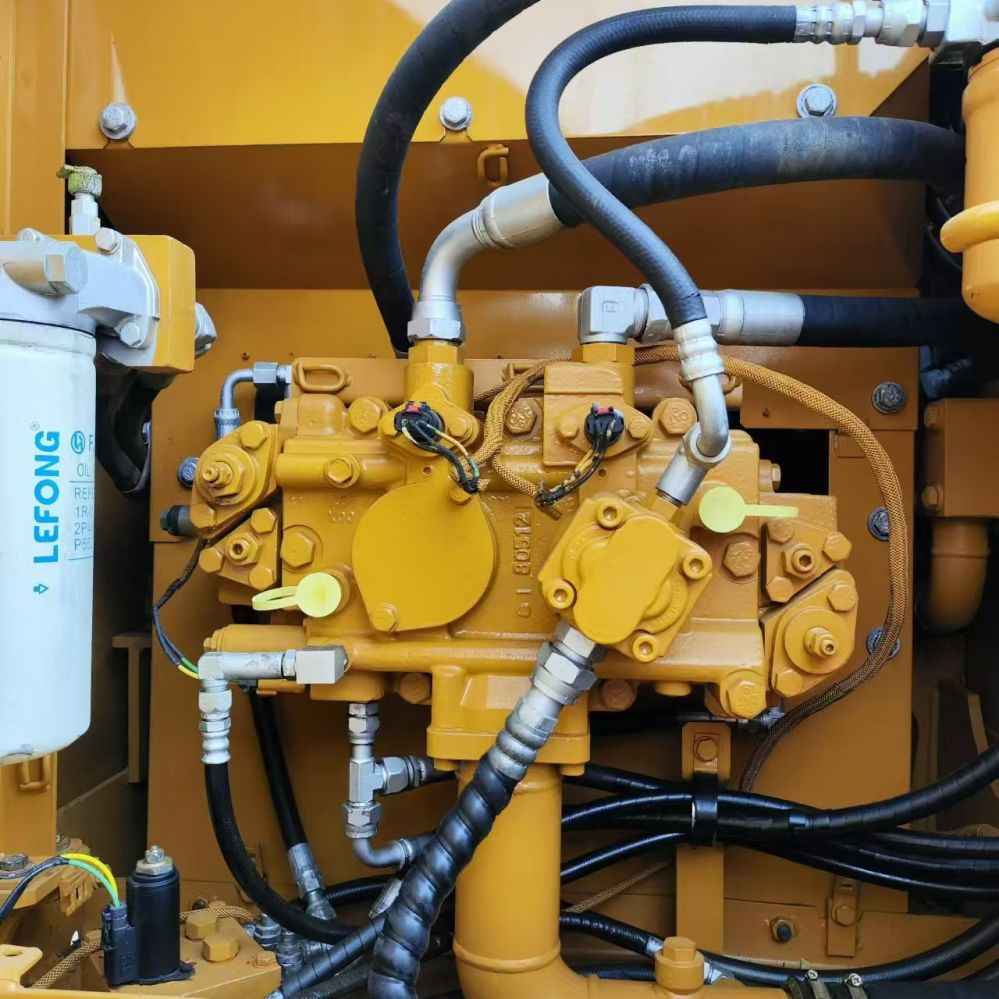

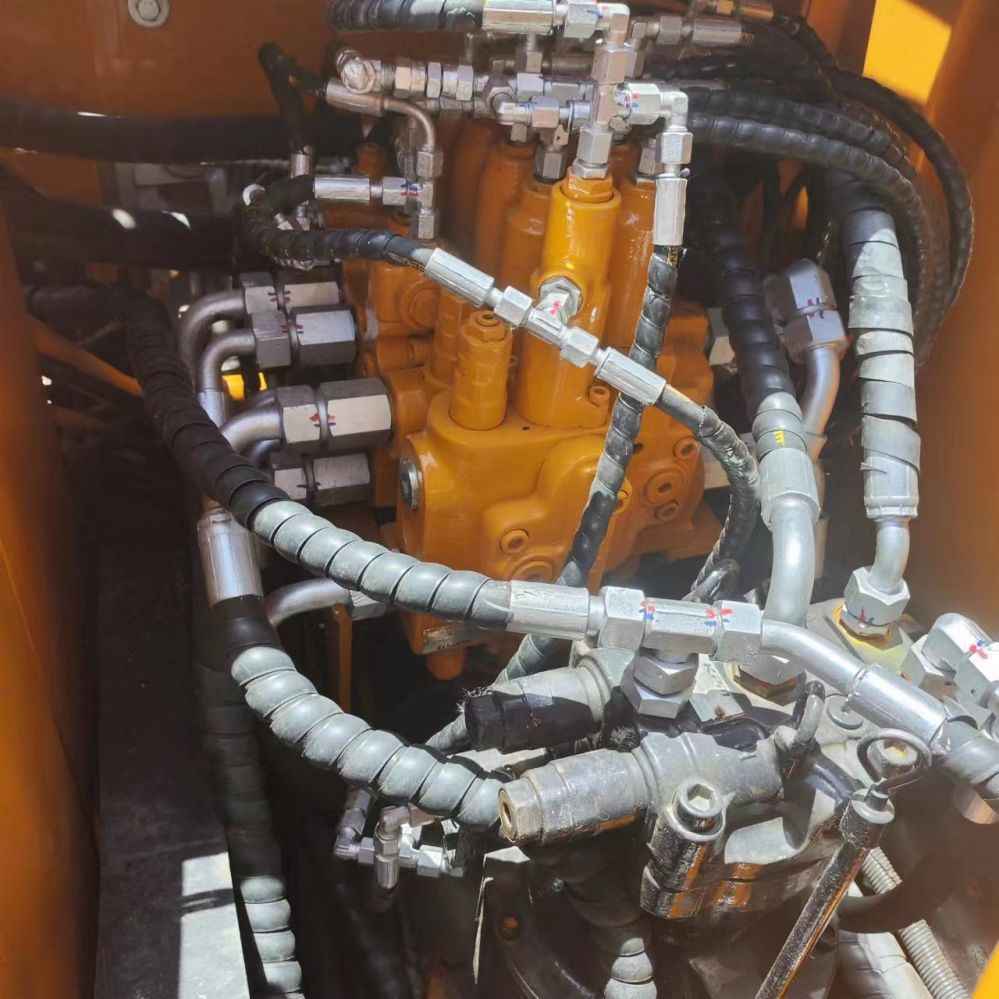

2. Inspect the Hydraulic Pump and Motors
   • If the fluid level is normal but the problem persists, check the hydraulic pump and motors for any signs of malfunction. A pressure test may be needed to determine if the pump is operating within specifications.

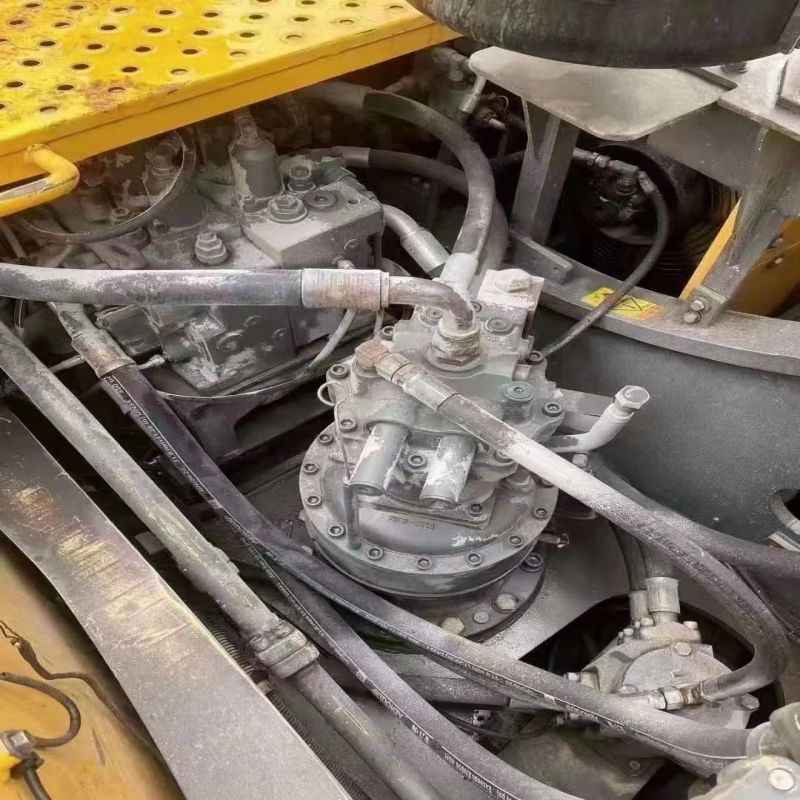

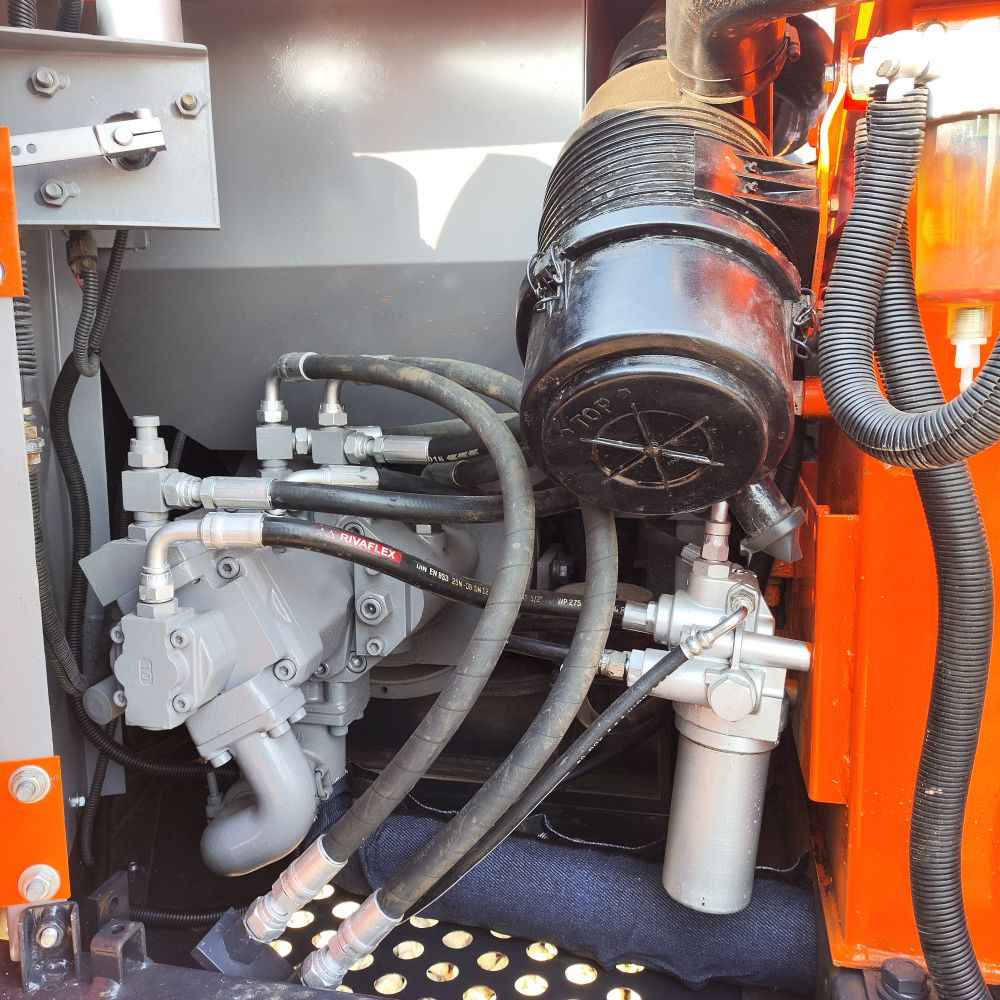

   • Look for any leaks around the pump or motor, as these can reduce system pressure and cause poor performance.

3. Examine the Transmission
   • Inspect the transmission fluid level and condition. Low or dirty transmission fluid can lead to performance issues. Replace the fluid if it appears dark or burnt.

   • If the transmission is slipping, it could indicate a more serious problem that may require professional repair.

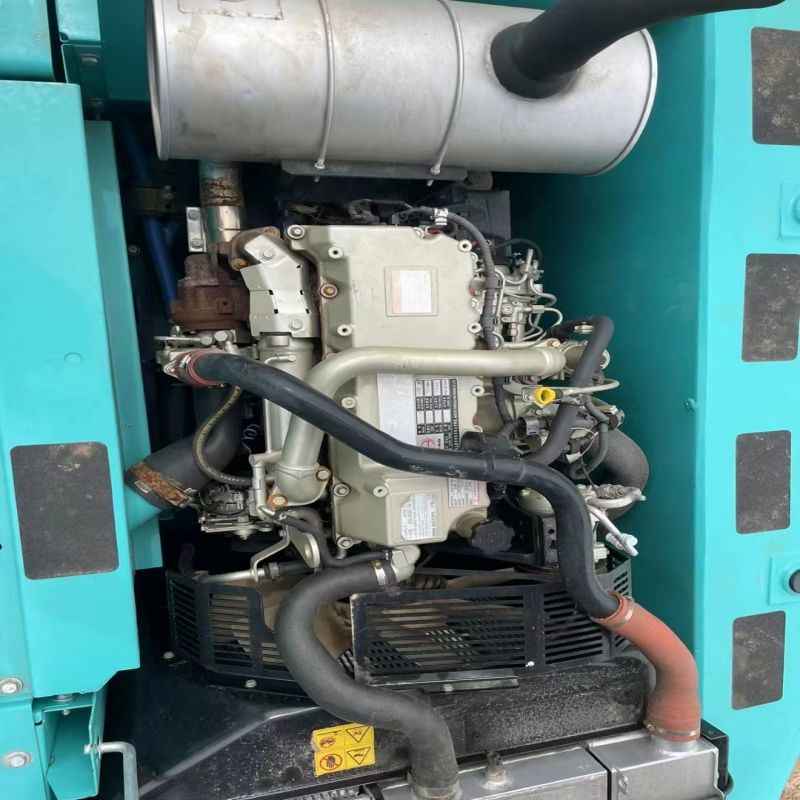

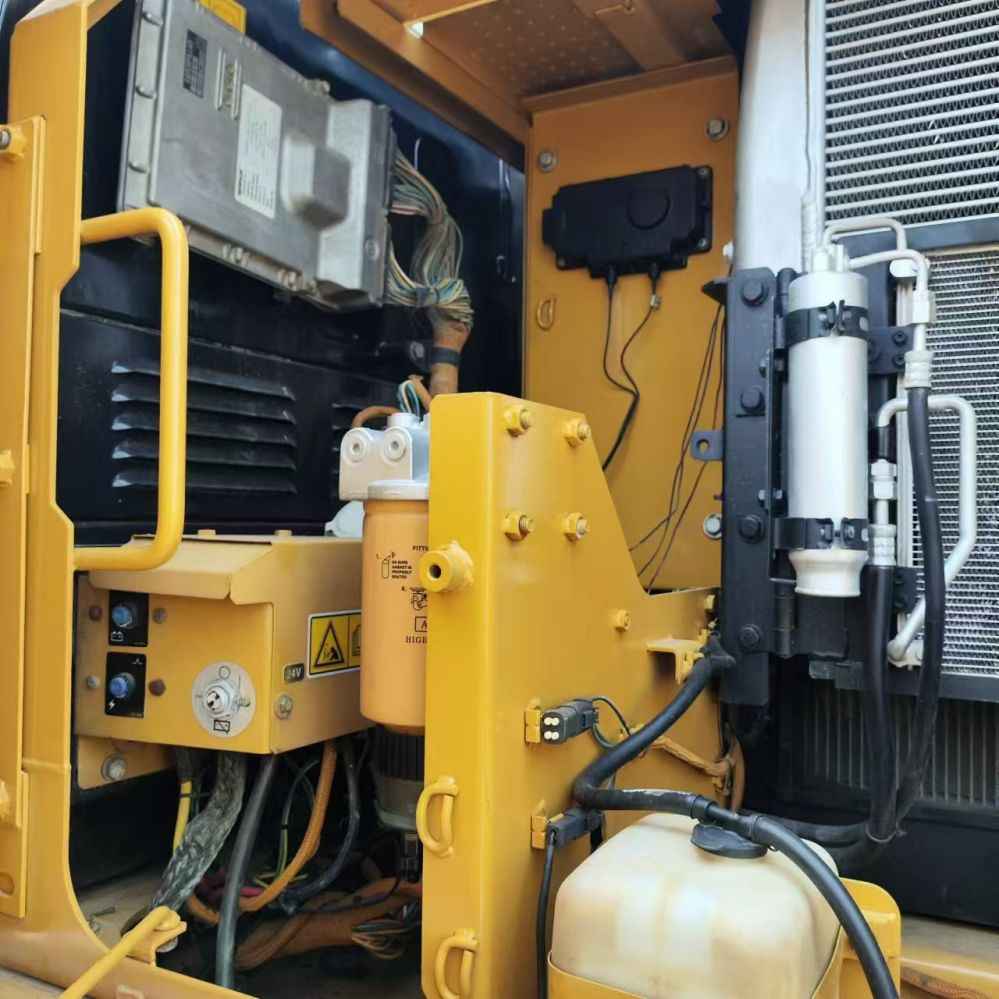

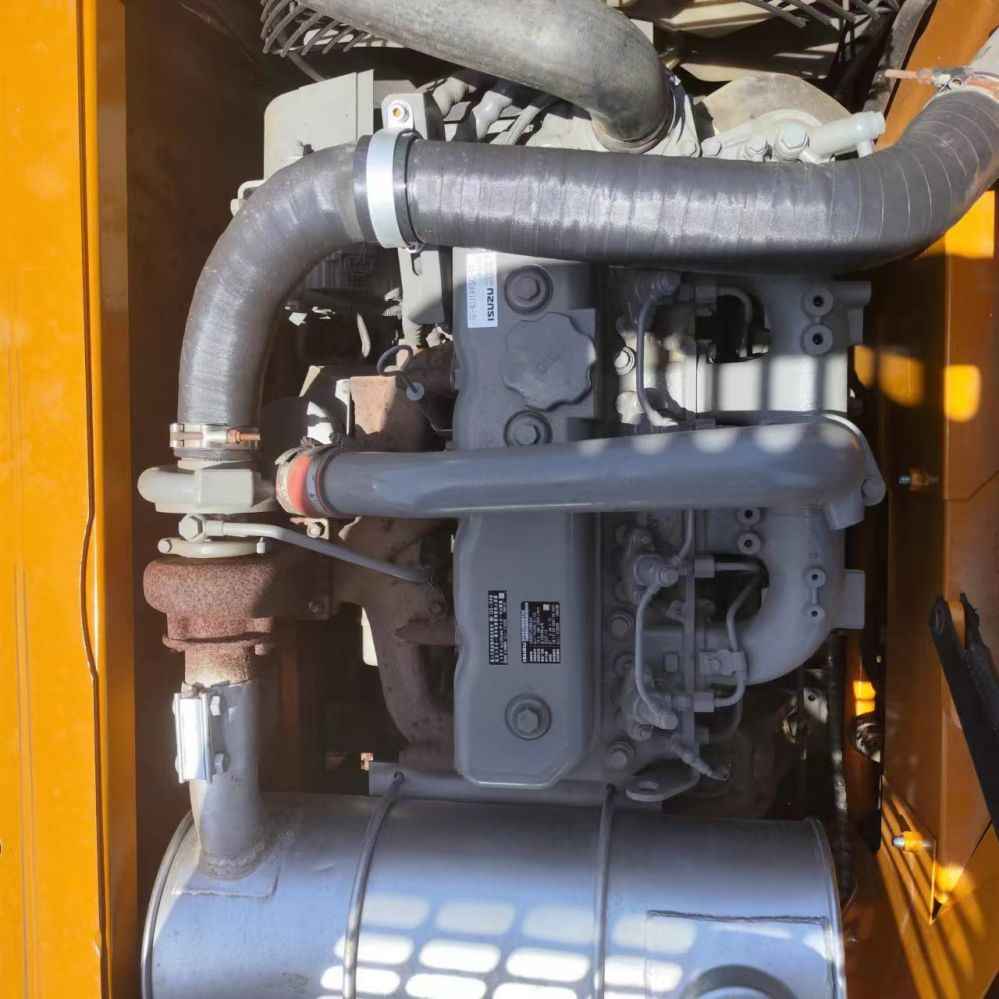

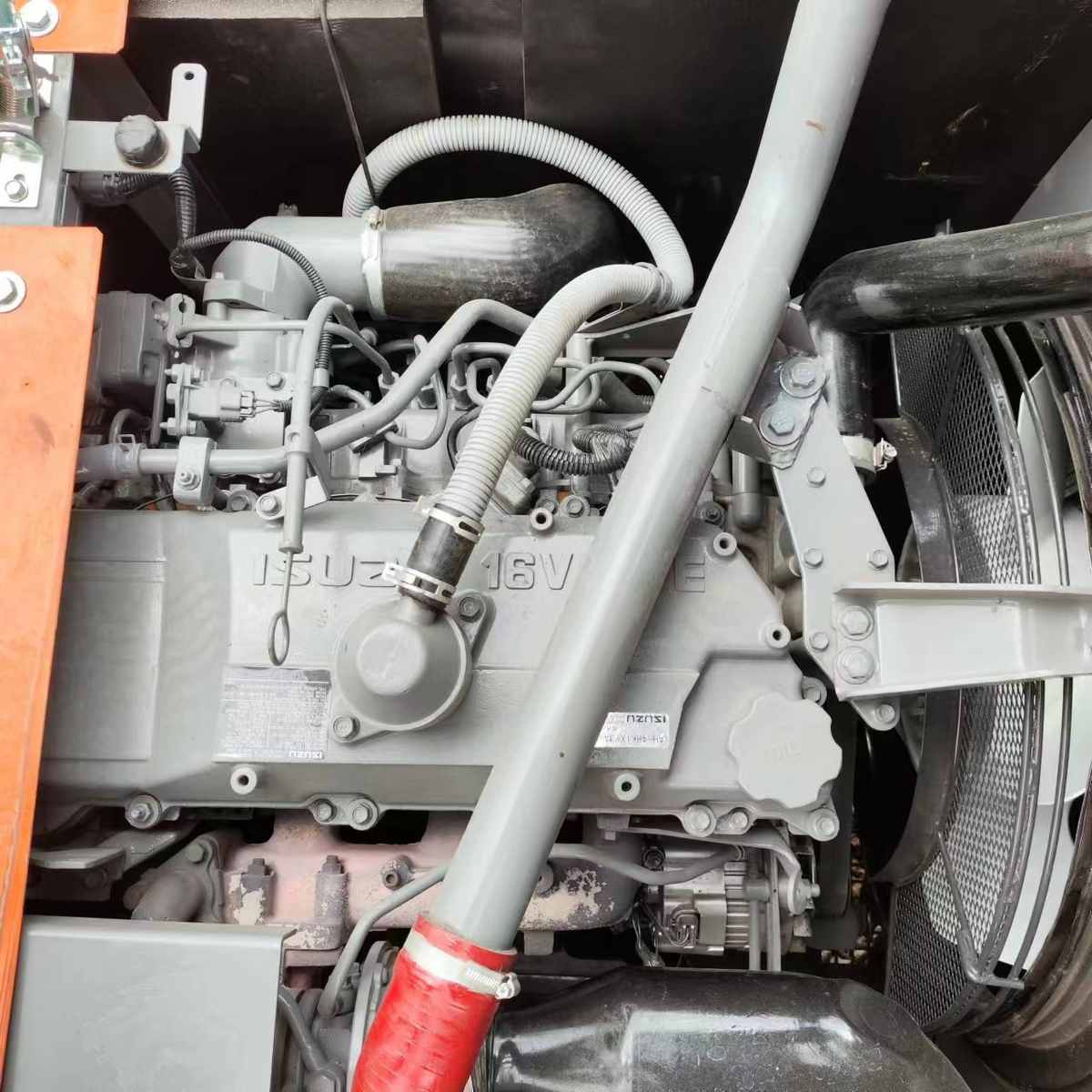

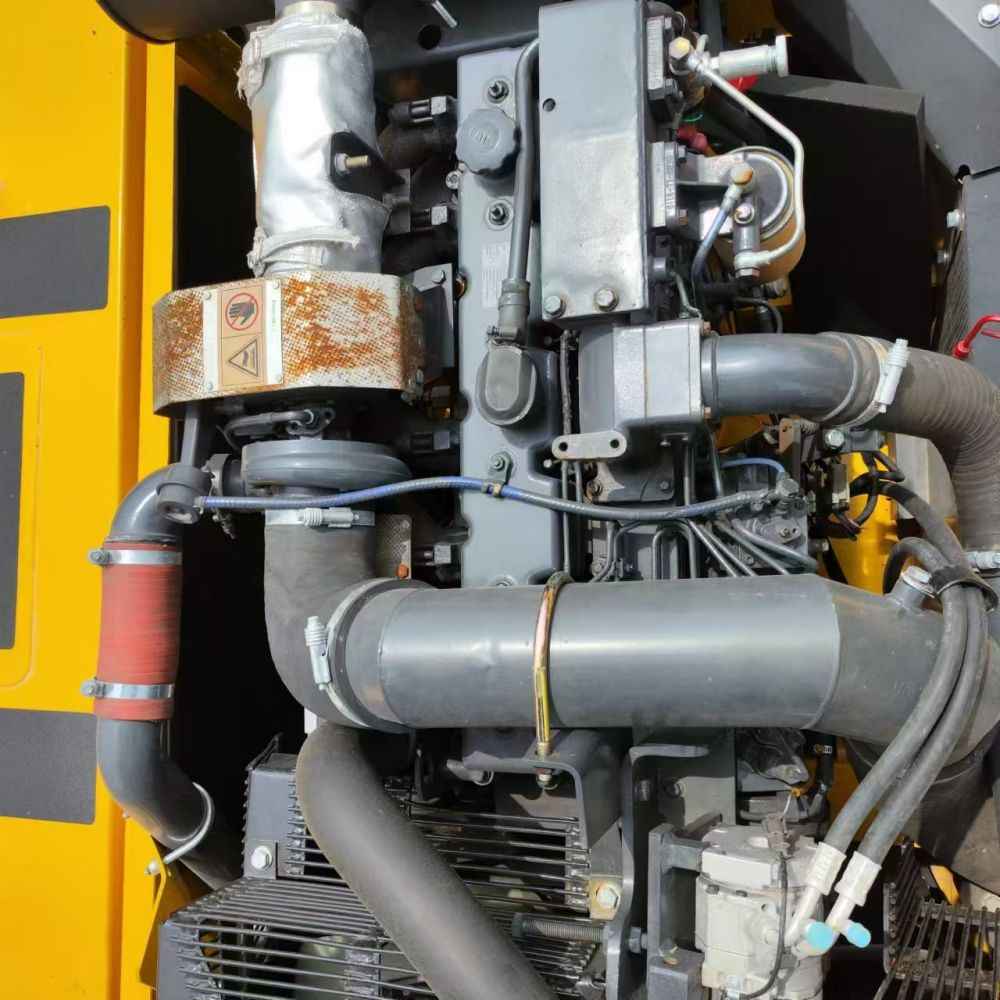

4. Assess the Engine

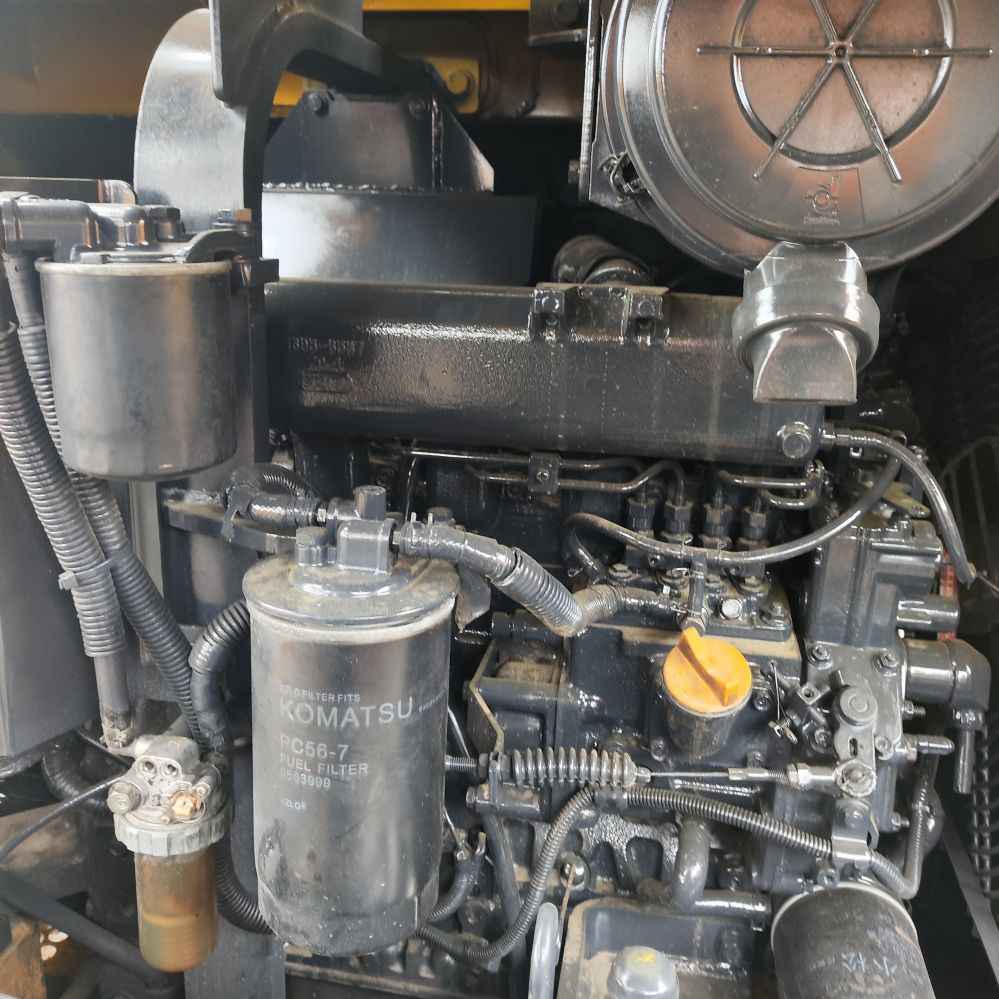

   • Check the air and fuel filters to ensure they are not clogged. A dirty air filter can restrict airflow to the engine, leading to reduced power.

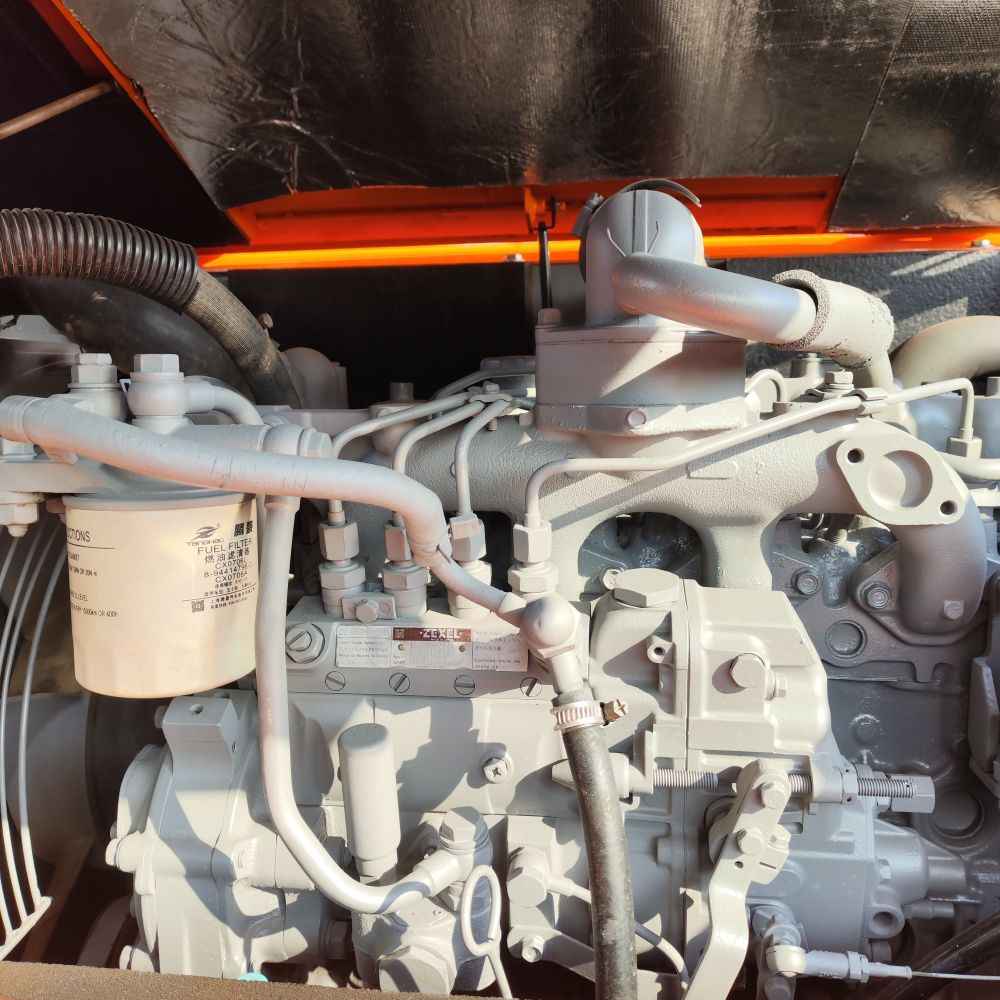

   • Inspect the fuel system for any issues with fuel injectors or fuel lines that may be affecting engine performance.

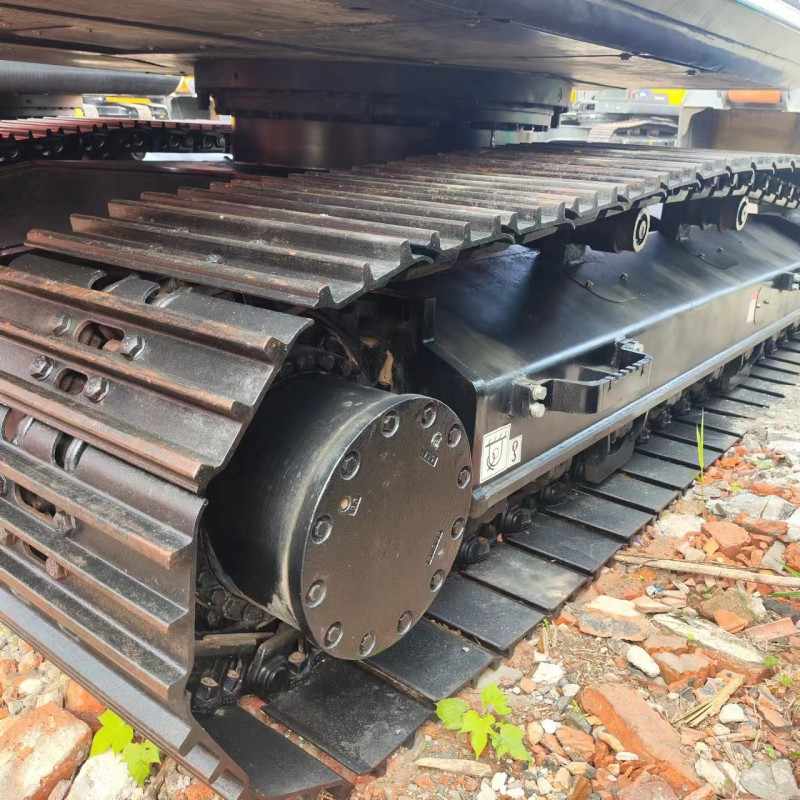

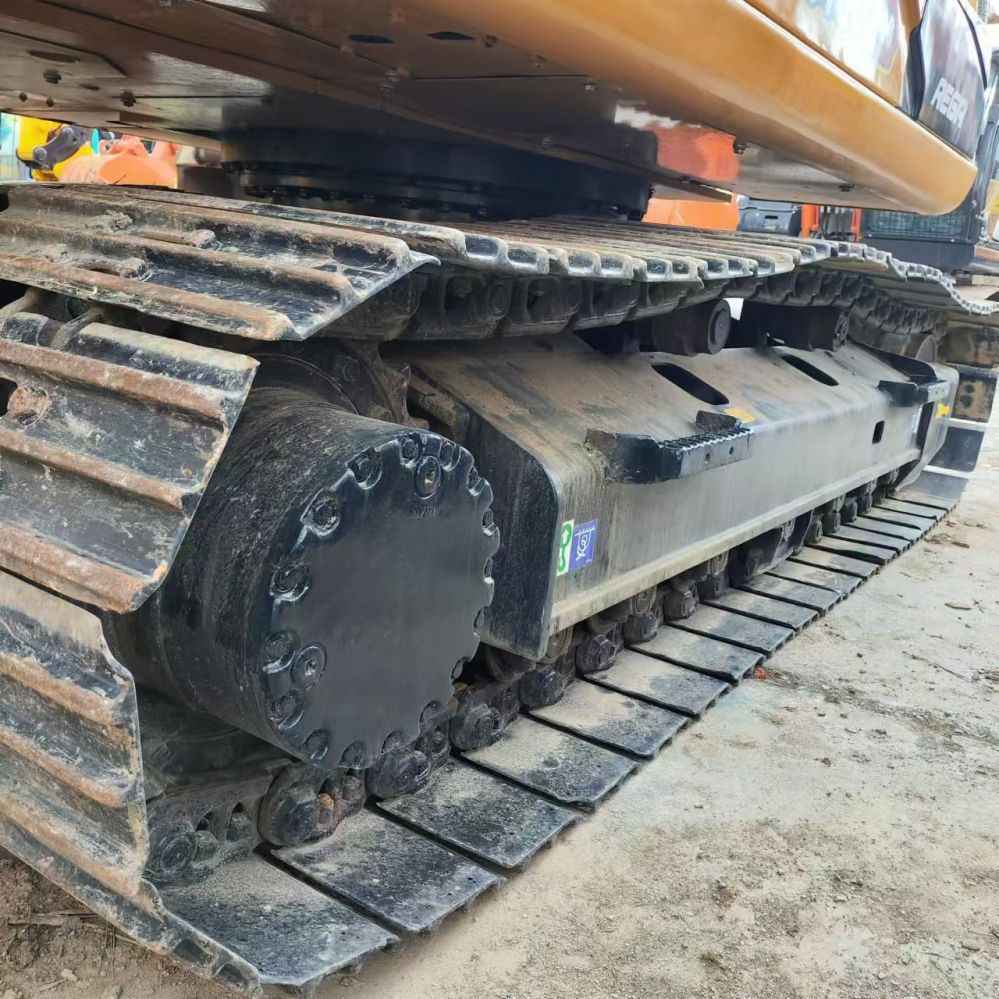

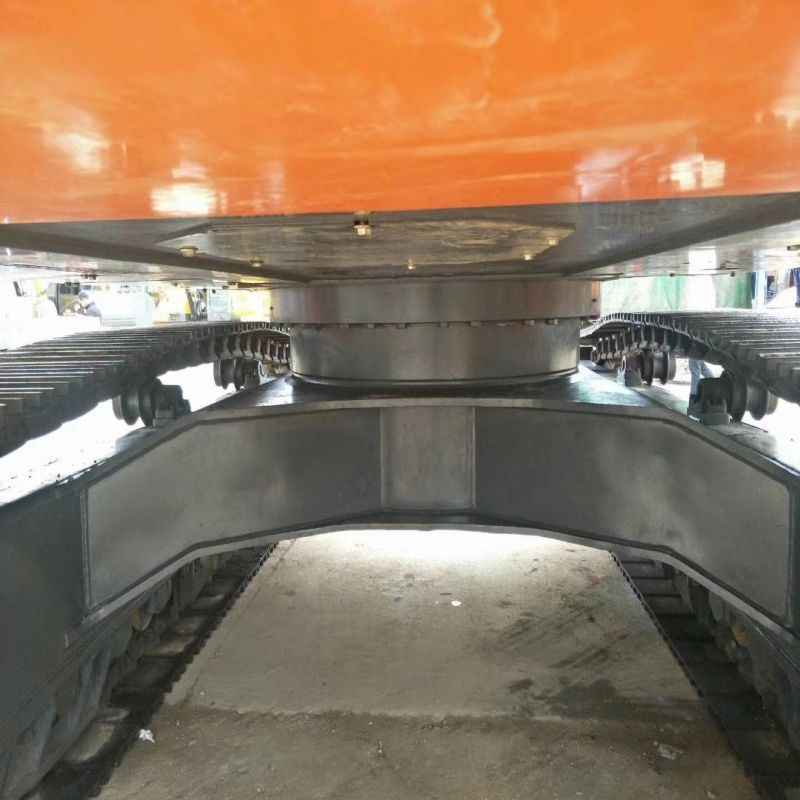

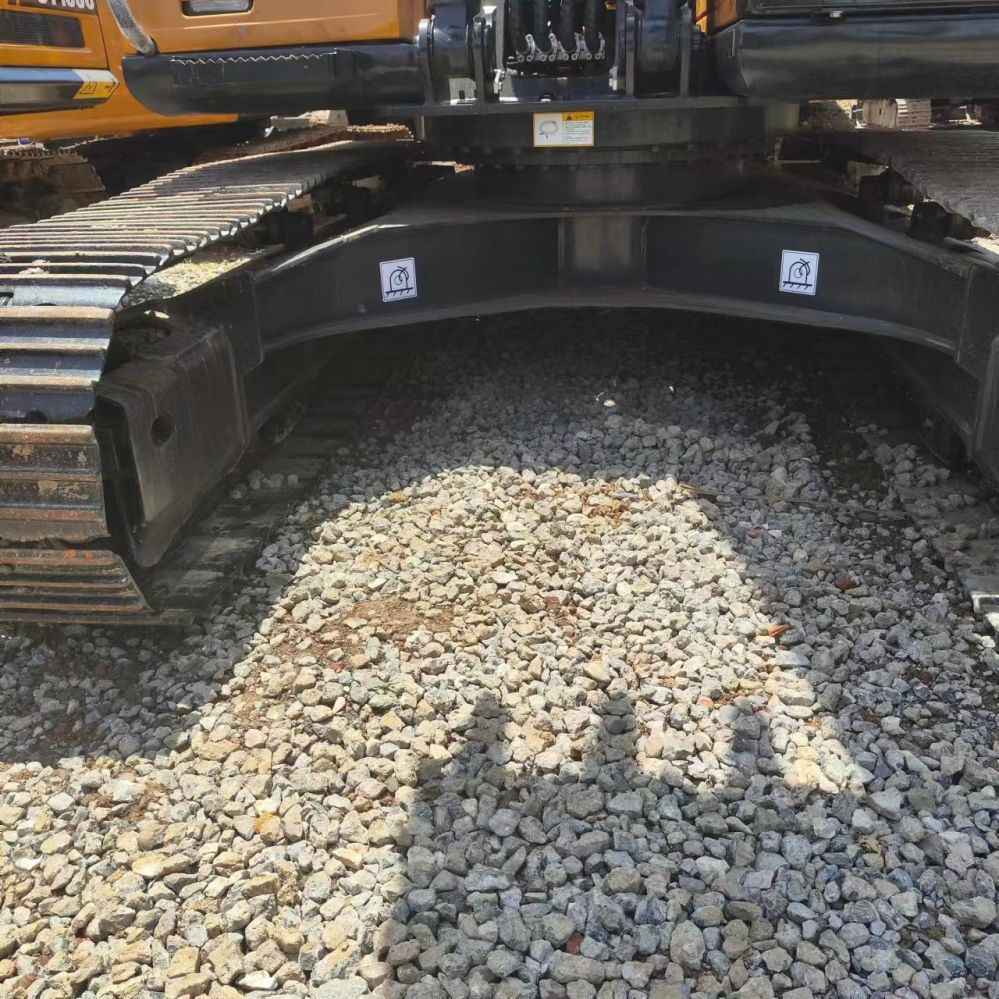

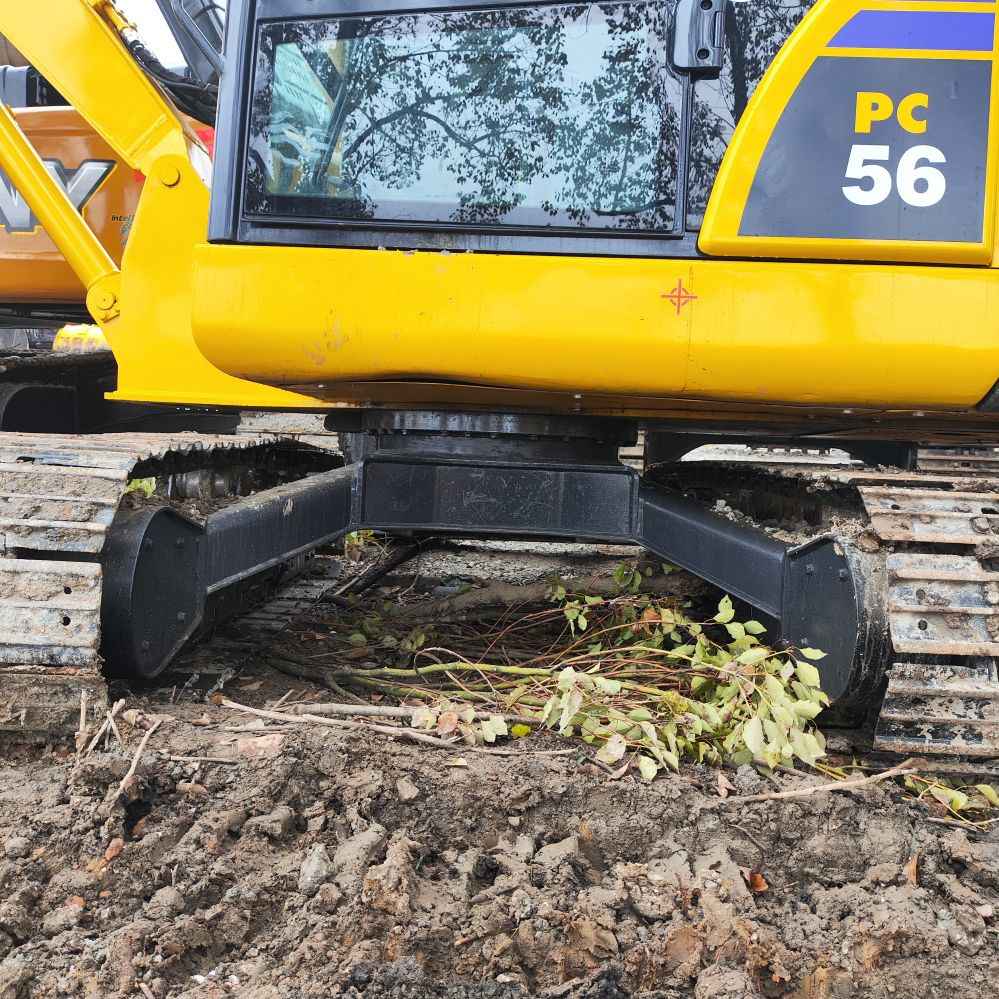

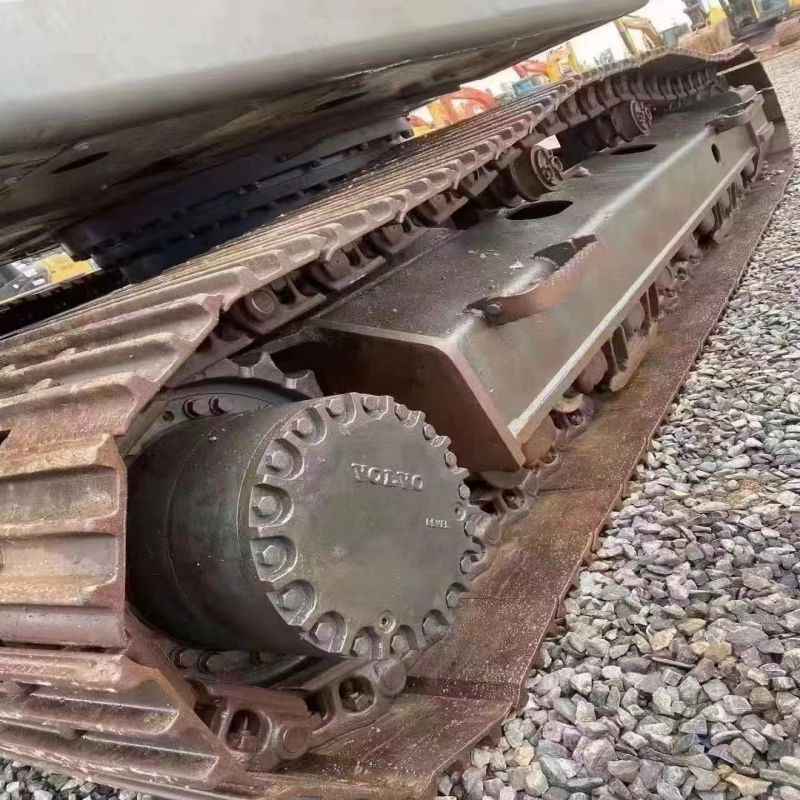

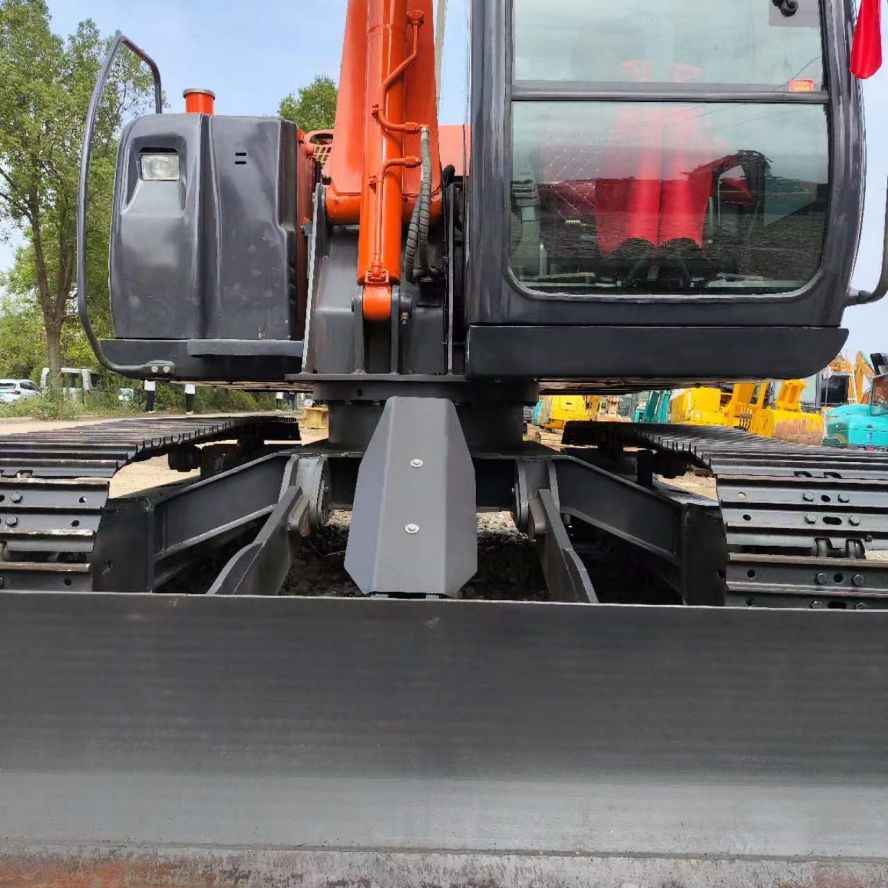

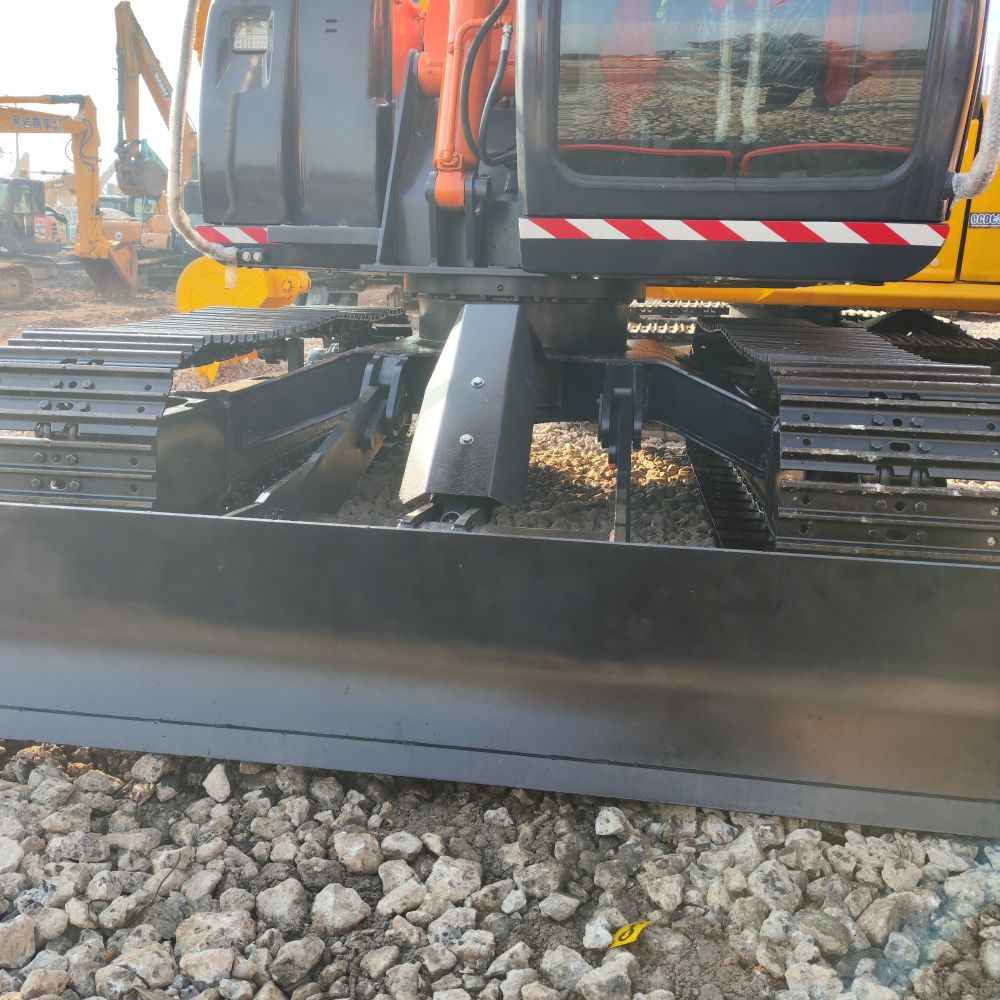

5. Inspect the Tracks and Undercarriage

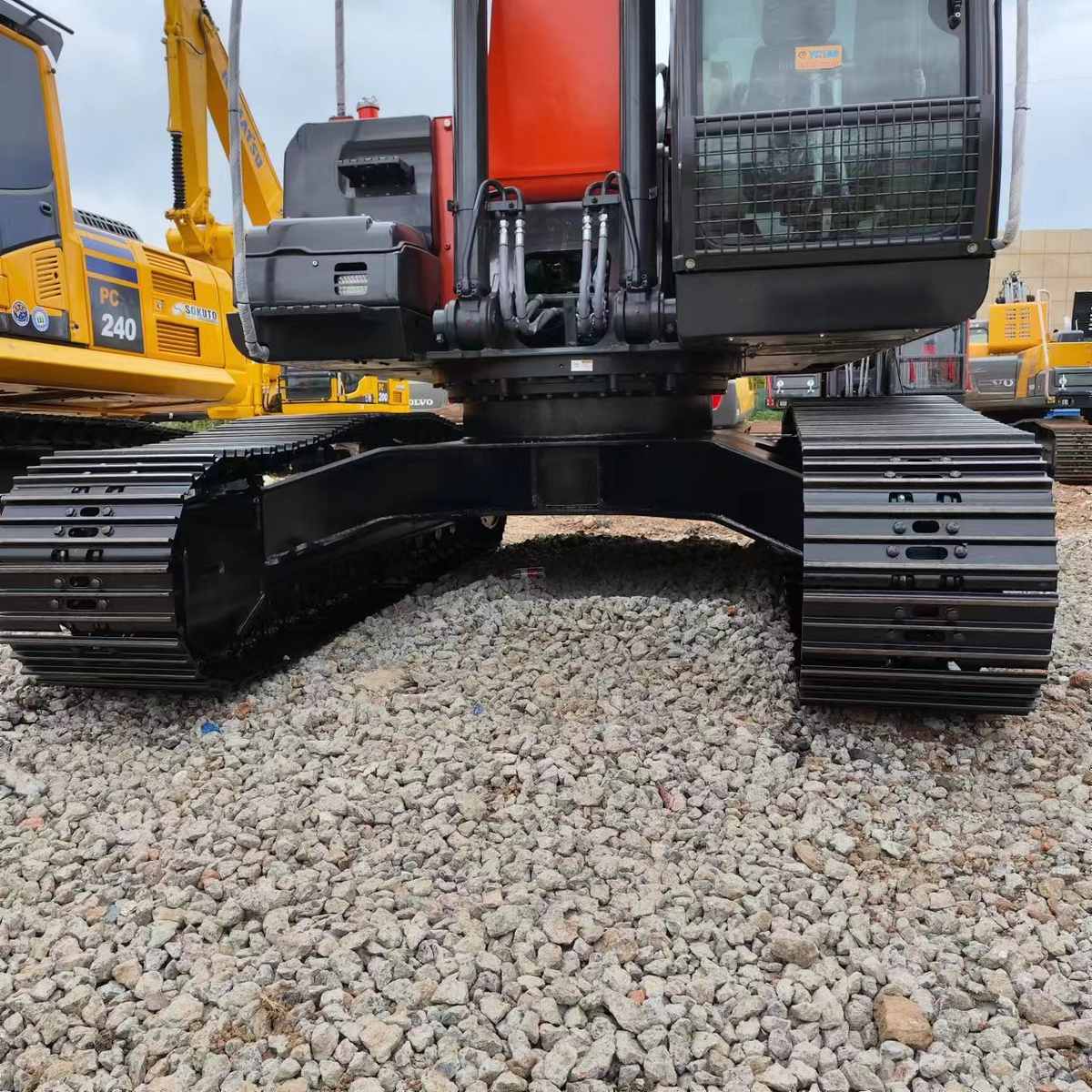

   • Check the track tension and adjust it if necessary. Tracks that are too tight or too loose can place unnecessary strain on the travel system.

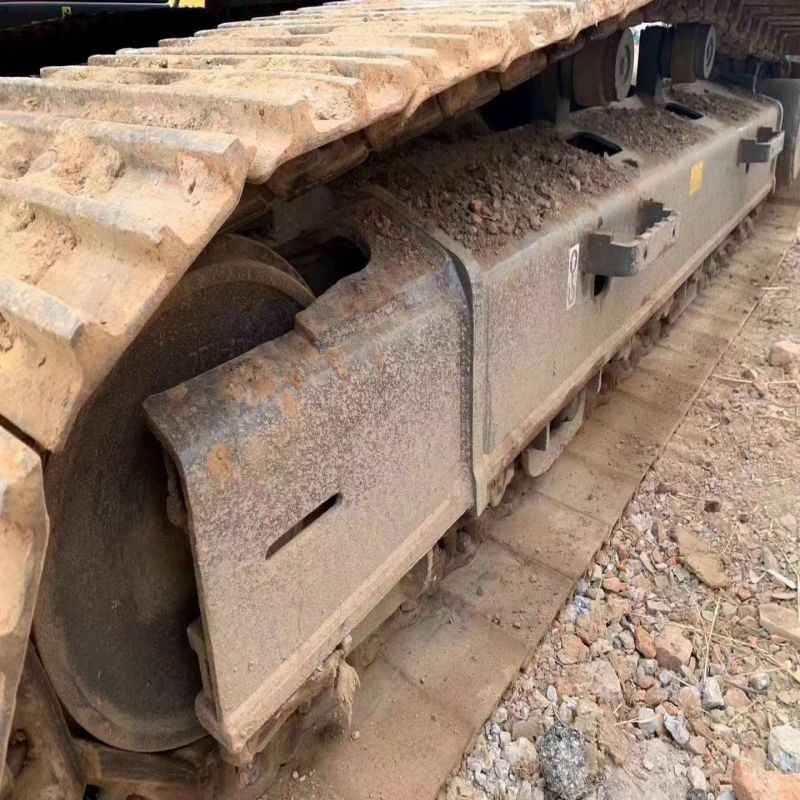

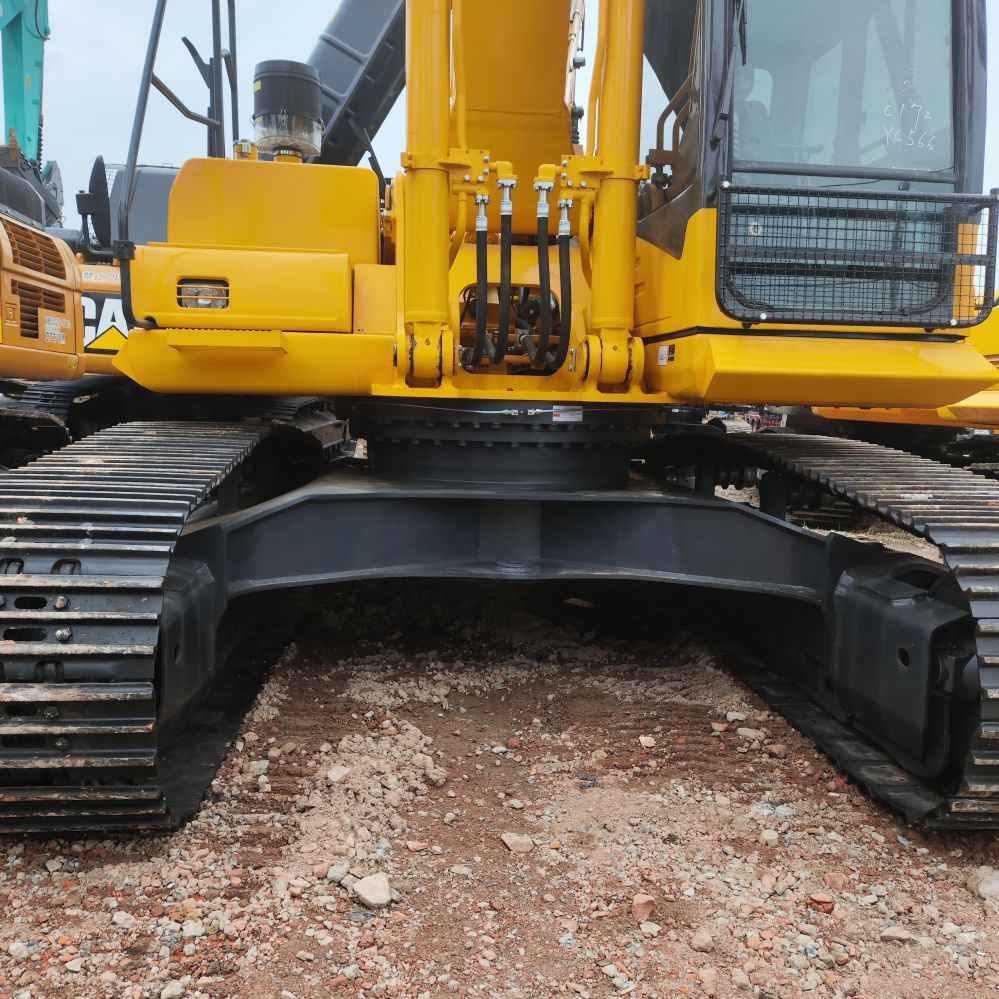

   • Inspect the undercarriage for any signs of wear, such as worn sprockets or damaged rollers. Replace any worn components to ensure smooth travel.


1. Regular Fluid Checks: Check the hydraulic and transmission fluids regularly to ensure they are at the correct levels and in good condition. Change fluids as per the manufacturer's recommended schedule.

2. Clean Filters: Clean or replace air and fuel filters at regular intervals to prevent clogging and ensure the engine receives adequate airflow and fuel.

3. Inspect the Tracks: Regularly inspect the tracks and undercarriage for signs of wear. Tighten or replace tracks when necessary, and monitor the overall condition of the travel system.

4. Monitor Engine Performance: Keep an eye on the engine’s performance, and address any issues such as unusual sounds or loss of power immediately.


John Deere 850C Development and Transmission Design
The John Deere 850C crawler dozer was introduced in the late 1990s as part of Deere’s C-series lineup, designed for grading, land clearing, and heavy construction. Built in Dubuque, Iowa, the 850C featured a hydrostatic transmission, electronically controlled clutch packs, and a modular dashboard interface. With an operating weight of approximately 42,000 lbs and a 6-cylinder turbocharged diesel engine producing around 185 hp, the 850C became a popular choice for contractors seeking power and precision in a mid-size dozer.
Terminology Note

• TCU (Transmission Control Unit): The electronic module that manages gear selection, clutch engagement, and diagnostic communication.

• Speed Sensor: A magnetic or Hall-effect sensor that monitors track speed and feeds data to the TCU.

• F695 Code: A fault code indicating a communication error between the dash and transmission controller.

• Hydrau Fluid: Deere’s proprietary hydraulic transmission fluid designed for optimal clutch modulation and cooling.


• Power and Ground Verification: Use back-probing techniques to monitor voltage at the TCU during operation. A drop in 12V power or unexpected voltage on the ground wire may indicate a failing harness or poor connection.

• Speed Sensor Replacement: The front-mounted sensor under the cab is a known failure point. Replacing it may restore speed readings and resolve communication faults.

• Dash-to-TCU Communication: Pin out the wiring harness between the dash and controller. Look for continuity, shorts, or corrosion.

• Stored Fault Codes: Access the service monitor using the Operation and Test manual (TM1588). Clear existing codes and attempt a transmission calibration to trigger new diagnostic data.


• Replace transmission fluid with Deere Hydrau and flush the system.

• Inspect and clean all electrical connectors, especially at the TCU and dash.

• Perform a full transmission calibration using the service manual.

• Monitor voltage from the alternator during startup and operation.

• Log fault codes and behavior patterns to assist future diagnostics.


Belarus tractors, produced by the Minsk Tractor Works (MTZ), are renowned for their durability, versatility, and cost-effectiveness in both agricultural and industrial sectors. These machines have found their way into various markets around the world and have earned a reputation for delivering reliable performance under tough working conditions. In this article, we’ll dive deep into the history of Belarus tractors, their features, common maintenance issues, and their role in modern farming and construction.
History of Belarus Tractors
The Minsk Tractor Works (MTZ), the manufacturer of Belarus tractors, was founded in 1946 in Minsk, Belarus, which was then part of the Soviet Union. The company was established to meet the growing demand for mechanized farming equipment in post-war Eastern Europe. Over the decades, MTZ developed a range of tractor models that catered to the needs of both small family farms and large industrial agricultural operations.
The first Belarus tractor model, the MTZ-1, was introduced in 1950. This was a small, wheeled tractor designed for basic farming tasks such as plowing, cultivating, and harvesting. Over time, MTZ continued to innovate, introducing more powerful tractors capable of handling heavier tasks such as industrial work, logging, and road construction.
By the 1970s, Belarus tractors had become an important part of the Soviet agricultural machinery fleet, and MTZ became one of the largest manufacturers of tractors in the world. Today, Belarus tractors are sold in over 100 countries, with a strong presence in regions like Eastern Europe, Africa, and Asia.
Key Features of Belarus Tractors
Belarus tractors are known for their rugged construction and high performance in demanding environments. Here are some of the key features that set them apart:

1. Engine Power and Efficiency: Belarus tractors are equipped with a range of diesel engines, typically with power ratings ranging from 30 to 350 horsepower, depending on the model. These engines are designed for fuel efficiency and durability, which is crucial in the agricultural sector where long hours of operation are common.

2. Heavy-Duty Build: One of the hallmarks of Belarus tractors is their heavy-duty construction. Built to handle tough terrains and challenging work environments, these tractors feature robust frames, reinforced axles, and heavy-duty transmissions that allow them to tackle a variety of tasks without breaking down under pressure.

3. Versatility: Belarus tractors come with a variety of attachments and configurations, making them suitable for a wide range of applications. From tilling soil in the fields to hauling materials on construction sites, these tractors can be equipped with plows, mowers, loaders, and other implements, offering exceptional versatility.

4. Comfort and Ergonomics: Over the years, MTZ has improved the operator comfort of Belarus tractors. Many models now come equipped with air-conditioned cabins, adjustable seats, and user-friendly controls to ensure operators can work for extended periods without strain.

5. Affordability: Compared to other global tractor brands, Belarus tractors are known for their affordability. They offer competitive pricing for buyers looking for a durable, reliable machine without the high upfront cost associated with some other brands. This makes them especially attractive to small-scale farmers and operators in emerging markets.


1. MTZ-80: One of the most popular models from MTZ, the MTZ-80 is a versatile tractor widely used for general agricultural tasks. It boasts a 75-horsepower engine and is capable of handling a range of implements, making it a workhorse for small and medium-sized farms.

2. MTZ-1221: The MTZ-1221 is a larger tractor equipped with a 120-horsepower engine. This model is used in more demanding applications such as heavy-duty plowing, hauling, and loader work. It’s commonly used in both agricultural and industrial sectors.

3. MTZ-3022: For larger, more industrial tasks, the MTZ-3022 offers up to 300 horsepower, making it suitable for construction, forestry, and large-scale agricultural projects. This model is known for its impressive towing capabilities and robust design.

4. MTZ-1523: A smaller yet powerful model, the MTZ-1523 is ideal for precision tasks on smaller farms, such as mowing and light plowing. It has a 150-horsepower engine and is known for its maneuverability and ease of use.


1. Engine Overheating: Due to the heavy-duty nature of these tractors, engine overheating can occur, especially when operating for extended hours. Regular checks of the cooling system, including radiators and coolant levels, can prevent overheating and damage to the engine.

2. Transmission Wear: The transmission system of Belarus tractors is built to handle heavy loads, but excessive wear can lead to shifting problems or even transmission failure. Regular servicing, including checking fluid levels and cleaning filters, will help maintain optimal performance.

3. Hydraulic System Issues: The hydraulic system of Belarus tractors is used for lifting and operating various attachments. Common issues include fluid leaks or poor performance. Checking hoses for wear, keeping fluid levels at the proper level, and ensuring that the system is free of contaminants can prevent these problems.

4. Electrical System Failures: As with many older tractor models, electrical issues such as dead batteries, faulty alternators, or broken wiring can occur. Regular inspections of the battery, wiring, and alternator will help avoid unexpected breakdowns.

5. Tire and Suspension Maintenance: Given the rough terrains Belarus tractors are often used on, tire wear and suspension issues are common. Ensuring that tires are properly inflated and checking the suspension for signs of wear or damage can extend the life of the tractor.


CAT D5K2 Dozer Background
The Caterpillar D5K2 is a mid-size crawler dozer introduced in the 2010s as part of CAT’s K-series. Designed for grading, site prep, and forestry work, it features a hydrostatic transmission, electronically controlled steering, and a Tier 4 Final engine producing around 104 hp. With an operating weight of approximately 20,000 lbs and a reputation for precision and fuel efficiency, the D5K2 is widely used in municipal and contractor fleets. Its dual-path hydrostatic drive allows independent control of each track, enabling smooth turns and fine grading.
Terminology Note

• Hydrostatic Transmission: A drive system using hydraulic pumps and motors to deliver variable torque without gear shifts.

• Final Drive: The gear reduction assembly at each track, converting hydraulic motor output into track movement.

• Brake Release Solenoid: An electrically actuated valve that disengages the parking brake when energized.

• Travel Lever Sensor: A position sensor that communicates operator input to the ECM for track movement.


• Brake Release Failure: The parking brake on the affected track may not fully disengage due to a faulty solenoid or blocked hydraulic passage.

• Travel Lever Sensor Malfunction: If the sensor fails to register movement, the ECM may not command track motion.

• Hydraulic Contamination: Debris or water in the fluid can block pilot passages or damage spool valves.

• Final Drive Mechanical Jam: Internal gear damage or bearing failure can cause physical lockup.

• ECM Logic Error: Software glitches may prevent proper signal routing to the drive motor.


• Step 1: Check hydraulic fluid condition and level. Look for milky appearance or metal particles.

• Step 2: Inspect brake release solenoids. Listen for activation clicks and test voltage at the connector.

• Step 3: Swap travel lever sensors between sides to isolate the fault.

• Step 4: Remove and clean pilot control valves. Flush lines if contamination is found.

• Step 5: Use CAT diagnostic software to scan for hidden fault codes and monitor sensor inputs.


• Drain and replace hydraulic fluid annually, especially in humid or wet environments.

• Inspect brake solenoids and connectors during every 500-hour service.

• Keep travel lever sensors clean and secure.

• Log track behavior and operating conditions to identify patterns.

• Update ECM firmware during scheduled service intervals.
