CAT 304.5 Development and Undercarriage Design
The Caterpillar 304.5 mini excavator was introduced in the early 2000s as part of CAT’s compact equipment lineup. Designed for urban excavation, landscaping, and utility trenching, the 304.5 featured a zero-tail swing design, a 40 hp diesel engine, and an operating weight of approximately 10,000 lbs. Its undercarriage includes rubber or steel tracks supported by front idlers, carrier rollers, and sprockets. The track idlers play a critical role in maintaining tension and guiding the track during movement.
Terminology Note

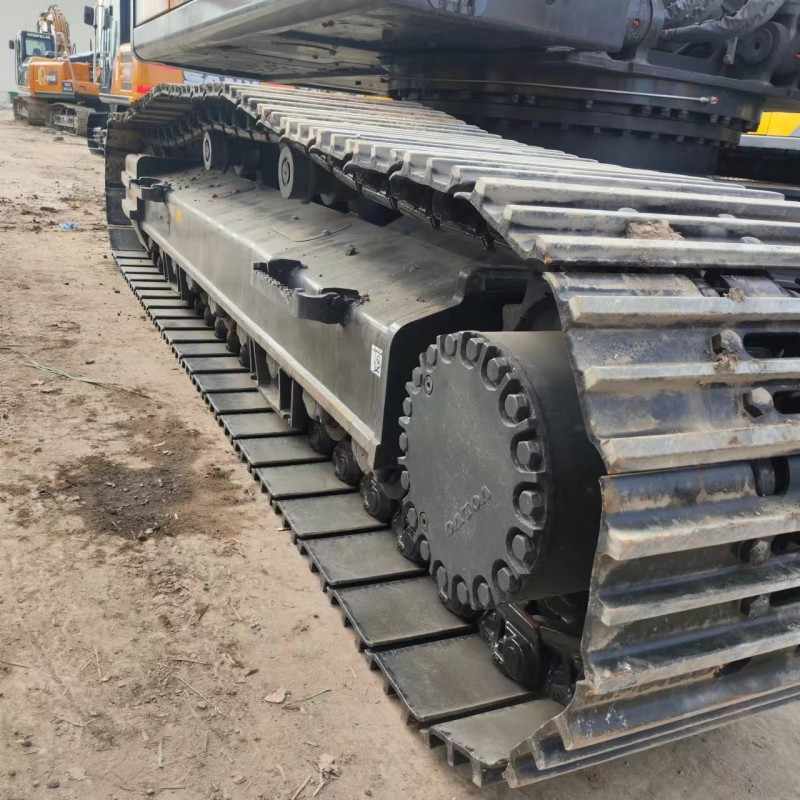

• Track Idler: A wheel located at the front of the track frame that maintains track alignment and tension.

• Bearing Assembly: Internal rolling elements that allow the idler to rotate smoothly under load.

• Idler Housing: The metal casing that supports the bearing and connects to the track frame.

• Aftermarket Replacement: A non-OEM part manufactured by third-party suppliers, often at reduced cost.


• Replace the entire idler assembly: This is the most straightforward option but can be costly. OEM parts from Caterpillar may exceed $600 per side.

• Replace only the bearings: If the idler housing is intact, bearings can be sourced separately and pressed into place, reducing cost significantly.


• OEM Dealers: Caterpillar dealers offer complete idler assemblies but rarely sell internal bearings separately.

• Aftermarket Suppliers: Companies like ITM and Berco manufacture compatible idlers and may offer bearing kits.

• Online Platforms: Sites like Alibaba list bearing kits and idler assemblies from global vendors. Shipping may take 3–4 weeks but prices are often 40–60% lower than domestic resellers.

• Local Bearing Shops: If the bearing number is visible, local suppliers can match it using industrial catalogs.


• Remove the idler and inspect the housing for cracks or wear.

• If the housing is sound, measure the bearing dimensions and source replacements.

• Use a hydraulic press to remove the old bearings and install new ones.

• Apply anti-seize compound and torque bolts to spec during reinstallation.

• Adjust track tension after reassembly to prevent premature wear.


• Inspect idlers every 250 hours for play or noise.

• Grease fittings regularly if equipped.

• Avoid over-tensioning tracks, which accelerates bearing wear.

• Keep a log of part numbers and suppliers for future reference.


The ZX160LC is a popular model in the Hitachi ZX series of hydraulic excavators, known for its robust design and high performance in construction, demolition, and mining applications. One of the common issues that operators may encounter with this machine is spool valve sticking, which can lead to operational inefficiencies and even mechanical failure if not addressed promptly. In this article, we will explore the causes of spool valve sticking, signs to look for, and the best practices for diagnosing and resolving this issue.
Understanding the Spool Valve in Hydraulic Systems
Spool valves are an integral part of a hydraulic system, serving as the control mechanism for directing hydraulic fluid to different parts of the machine, such as the boom, arm, or bucket. In the case of the ZX160LC, the spool valve controls the movement of the arm and other hydraulic functions by shifting the flow of oil through the hydraulic circuit. When the spool valve becomes stuck or malfunctions, it can lead to issues with responsiveness and control, which can affect the machine’s performance.
Causes of Spool Valve Sticking
Several factors can cause a spool valve to stick in a hydraulic system. Understanding these causes can help you identify the problem early and take corrective action before it worsens. Some common causes include:

• Contamination in the Hydraulic Fluid: Dirt, debris, and moisture can enter the hydraulic fluid, leading to clogs and sticky valves. Contaminants can cause the valve’s internal components to bind, preventing the smooth movement of the spool.

• Worn or Damaged Seals: Over time, seals inside the valve can wear out, allowing fluid to bypass and causing irregular valve movement. This can result in sluggish or erratic behavior of the hydraulic system.

• Aging Hydraulic Fluid: Hydraulic fluid that has degraded due to heat, age, or contamination can lose its viscosity, making it less effective at lubricating the spool valve and other moving parts. This lack of lubrication can contribute to sticking or sluggish valve operation.

• Incorrect Pressure Settings: If the hydraulic system’s pressure is set too high or too low, it can cause improper valve operation. A valve that is subjected to excessive pressure may become jammed or fail to respond properly.

• Excessive Wear on the Spool Valve: Over time, the spool valve itself may wear down due to continuous use. This can cause misalignment or internal damage that prevents the valve from moving smoothly.


• Unresponsive Controls: If the joystick or control levers are not responding as expected, it could indicate that the spool valve is not properly directing hydraulic fluid to the appropriate components.

• Jerky or Erratic Movement: When the valve is sticking, the movement of the arm, bucket, or other attachments may become jerky or uneven. This can make the excavator harder to control and reduce precision during operation.

• Delayed Response Time: If there is a noticeable delay between input from the operator and the machine's response, this could indicate that the valve is sticking or that there is an issue with hydraulic fluid flow.

• Excessive Noise: A sticking spool valve can create abnormal noise within the hydraulic system, as fluid struggles to flow through the restricted path. This noise may sound like a whistling or whining, indicating that there is pressure building up in the system.


1. Inspect Hydraulic Fluid Quality: Start by checking the hydraulic fluid for contaminants, discoloration, or an unpleasant odor, which can indicate that the fluid has broken down. If the fluid appears contaminated, it may be necessary to replace it and clean the system.

2. Check for Leaks or External Damage: Inspect the valve assembly for visible signs of leaks, damage, or wear. Pay particular attention to seals and gaskets, as they are common culprits for fluid bypass and sticking valves.

3. Test the Pressure Settings: Verify that the hydraulic system's pressure is within the manufacturer’s recommended range. Excessive pressure can cause valve damage, while low pressure can affect performance.

4. Manually Operate the Valve: If possible, try manually moving the spool valve to see if it shifts smoothly. This can help you determine if the valve is physically sticking or if the issue lies with the hydraulic fluid or system components.

5. Perform a Flow Test: Conduct a flow test to ensure that the hydraulic fluid is flowing properly through the system. Low flow rates can indicate blockages or restrictions in the valve or hydraulic lines.


• Clean or Replace Hydraulic Fluid: If the hydraulic fluid is contaminated or degraded, replace it with fresh fluid that meets the manufacturer’s specifications. Be sure to flush the system to remove any debris or contaminants.

• Replace Worn Seals or Gaskets: If worn seals or gaskets are found during inspection, replace them to ensure that the valve operates smoothly and that fluid doesn’t bypass or leak.

• Adjust Pressure Settings: Ensure that the hydraulic system's pressure is properly calibrated. Consult the ZX160LC’s service manual for the correct pressure settings and adjust them as necessary.

• Clean or Replace the Spool Valve: If the valve itself is worn or damaged, it may need to be cleaned or replaced. Disassemble the valve carefully, inspect it for signs of wear, and replace any damaged parts.

• Use Lubricants or Valve Cleaners: If contamination is suspected, use specialized hydraulic valve cleaners or lubricants to clean the internal components of the valve. This can help remove any deposits that may be causing the sticking.


• Regular Fluid Changes: Change the hydraulic fluid at regular intervals, as specified by the manufacturer. This helps to ensure that the fluid remains clean and effective at lubricating the system.

• Monitor Fluid Quality: Regularly inspect the hydraulic fluid for contaminants and signs of degradation. If you notice any issues, replace the fluid immediately to prevent damage to the hydraulic system.

• Inspect and Replace Seals: Over time, seals can wear out and cause leaks or fluid bypass. Regularly inspect the seals on the spool valve and replace them if they show signs of wear.

• Check Hydraulic Pressure: Regularly check the hydraulic system's pressure settings to ensure they are within the proper range. This helps to prevent excessive stress on the valve and other components.


Submersion Risks in Hydraulic Excavators
Excavators are engineered for rugged environments, but water immersion—especially full submersion—poses serious risks. When a machine like a Doosan 140 slides into a pond and remains underwater for a day, the damage can extend far beyond surface corrosion. Electrical systems, hydraulic circuits, and engine internals are all vulnerable. Even if the machine is recovered and serviced, the long-term reliability depends on the thoroughness of the rehabilitation and the quality of the components replaced.
Terminology Note

• ECM (Electronic Control Module): The brain of the excavator’s engine and hydraulic systems, responsible for interpreting sensor data and managing performance.

• Harness Corrosion: Oxidation of copper wires and terminals, often invisible until failure.

• Hydraulic Plate Compactor: An attachment used for soil compaction, often included in resale deals.

• Loss/Damage Waiver: A rental contract clause that covers accidental damage; absence of this clause can leave renters liable for full repair costs.


• Electrical longevity: Even after repairs, submerged wiring may degrade over time.

• Resale value: Machines with a submersion history often fetch lower prices, regardless of performance.

• Component fatigue: Water intrusion can accelerate wear in bearings, seals, and connectors.

• Market conditions: In high-demand regions, such as Dallas during a construction boom, prices may justify the risk.


• Request full service documentation, including parts replaced and technician notes.

• Inspect all electrical connectors for signs of corrosion or aftermarket splicing.

• Test hydraulic functions under load to detect latent valve or pump issues.

• Use a diagnostic tool to scan for hidden fault codes in the ECM.

• Negotiate price based on hours, brand reputation, and submersion history.


• If the machine has low hours, complete repair records, and has been operated consistently since the incident, it may be a viable purchase.

• If the price is significantly below market, and the buyer has mechanical expertise, the risk can be mitigated.

• If the machine is from a less sought-after brand, like Doosan, resale value may already be low, making operational use the primary goal.


The Case 188D engine is known for its durability and reliability in various heavy equipment applications, such as skid steers and compact track loaders. However, like any engine, its components can wear out over time, particularly the crank bearings, which play a crucial role in supporting the engine's rotating parts. Replacing these bearings can be a complex task, but with proper tools and knowledge, it can be done efficiently. In this guide, we will explore the steps involved in replacing the crank bearings on a Case 188D engine, along with common issues, tips, and recommendations to ensure a successful repair.
Understanding the Case 188D Engine
The Case 188D engine is a four-cylinder, naturally aspirated engine that has been a workhorse in the construction and agriculture industries for decades. Known for its simple yet effective design, the 188D is used in a variety of equipment, from skid steers to compact tractors. Over the years, Case has maintained a strong presence in the heavy equipment market, with a history of producing reliable machinery and engines.
The 188D engine is part of Case’s 180-series, which was developed in the late 1970s as a cost-effective solution for smaller equipment. The engine has proven its longevity and ease of maintenance, making it a favorite among operators and mechanics alike.
Signs of Crank Bearing Wear
Crank bearings are integral to the smooth operation of an engine, supporting the crankshaft as it rotates. Over time, these bearings can wear down due to heat, friction, and inadequate lubrication. Common signs of crank bearing failure include:

• Excessive Engine Noise: A knocking or tapping sound coming from the engine can be a sign of worn or damaged bearings.

• Loss of Power: If the bearings are worn, the engine may struggle to produce power efficiently, resulting in decreased performance.

• Oil Contamination: Shavings or metal particles in the engine oil can indicate bearing wear or failure.


• Wrenches and sockets: A full set of wrenches and sockets, including deep sockets, will be needed to remove the engine components.

• Torque wrench: To ensure that bolts are tightened to the manufacturer’s specifications.

• Engine hoist or crane: For removing and reinstalling the engine if necessary.

• Sealant and gaskets: To replace seals and gaskets during reassembly.

• Engine degreaser: To clean the engine parts thoroughly before reassembling.


1. Disconnect the Battery: Before starting any work, disconnect the battery to prevent accidental electrical shorts or shocks.

2. Drain the Engine Oil: Remove the drain plug and allow the engine oil to fully drain into a catch pan. This will prevent any oil spillage during disassembly.

3. Remove the Engine Components: Start by removing the necessary engine components to access the crankshaft. This may include the air filter housing, intake manifold, and valve covers. Use your service manual to identify all the parts that need to be removed.

4. Remove the Crankshaft Pulley and Timing Gear: To access the crank bearings, you will need to remove the crankshaft pulley and timing gear. This requires using a puller tool to safely remove these parts without damaging the threads or other components.

5. Remove the Oil Pan: Next, remove the oil pan to access the bottom of the crankshaft. You may need to remove additional bolts or brackets to fully detach the pan.

6. Inspect the Crankshaft and Bearings: Once the oil pan is removed, you can inspect the crankshaft and bearings. If the bearings show signs of scoring, discoloration, or physical damage, it’s time to replace them. It’s important to check the crankshaft for any wear or damage, as this could indicate the need for further repairs.

7. Install the New Bearings: Carefully install the new crank bearings. Make sure they are seated properly in their housings and that there is no debris or contaminants on the bearing surfaces. Use a bearing press if necessary to ensure the bearings are installed evenly.

8. Reassemble the Engine: Once the new bearings are in place, reassemble the engine by reversing the disassembly process. Make sure all bolts are torqued to the manufacturer’s specifications, and replace any seals or gaskets that were removed during the process.

9. Add Fresh Oil and Start the Engine: Once the engine is reassembled, add fresh engine oil and reconnect the battery. Start the engine and check for any unusual noises or issues. Monitor the oil pressure and temperature to ensure the engine is running smoothly.


• Check the Crankshaft: Always inspect the crankshaft for damage before installing new bearings. If the crankshaft is worn or damaged, it may need to be replaced or reconditioned.

• Use OEM Parts: Whenever possible, use OEM (Original Equipment Manufacturer) parts to ensure the best fit and performance.

• Cleanliness is Key: Ensure that all engine parts are thoroughly cleaned before reassembling. Dirt and debris can cause premature bearing wear and engine damage.

• Torque Specifications: Always adhere to the manufacturer’s torque specifications when tightening bolts. This is critical for the proper operation and longevity of the engine.


• Stubborn Bolts: Over time, bolts can become rusted or corroded, making them difficult to remove. Use penetrating oil or heat to loosen stubborn bolts.

• Inadequate Tools: If you don’t have the right tools, such as a bearing press or torque wrench, you may struggle with the installation. Always use the proper tools to ensure a successful repair.

• Incorrect Installation: If the bearings are not installed correctly, they can lead to engine failure. Take your time and double-check all installations before reassembling the engine.


CAT Dozer Legacy and Vulnerability to Water Damage
Caterpillar dozers, especially mid-size models like the D6 and D7 series, are known for their durability in harsh environments. With operating weights ranging from 20,000 to 50,000 lbs and torque-rich diesel engines, they dominate in grading, clearing, and earthmoving. However, even these machines are not immune to flooding. When submerged in water—whether due to river overflow, jobsite runoff, or accidental ditching—the recovery process becomes a race against corrosion, contamination, and electrical failure.
Terminology Note

• Hydrostatic Drive: A transmission system using hydraulic fluid to transfer power from engine to tracks.

• ECM (Electronic Control Module): The onboard computer managing engine and transmission functions.

• Water Ingress: The intrusion of water into mechanical or electrical systems.

• Desiccant Breather: A filter that removes moisture from air entering hydraulic reservoirs.


• Drain all fluids: Engine oil, transmission fluid, hydraulic oil, and fuel must be drained immediately.

• Replace filters: Fuel, oil, and hydraulic filters should be discarded and replaced with new units.

• Inspect air intake and exhaust: Remove the air filter and check for water in the intake manifold. If water is present, remove injectors and turn the engine manually to expel fluid.

• Disconnect batteries: Prevent electrical shorts by isolating the power system.

• Flush cooling system: Radiators and coolant passages may contain silt or contaminated water.


• Use contact cleaner and compressed air to clean connectors.

• Open sealed modules only if necessary and dry with low heat.

• Replace any corroded terminals or damaged harness sections.

• Use dielectric grease on reassembled connectors to prevent future moisture intrusion.


• Drain and flush all hydraulic reservoirs.

• Replace fluid with OEM-spec hydraulic oil.

• Install desiccant breathers to prevent future moisture ingress.

• Cycle all hydraulic functions slowly to purge residual water.


• Park equipment on elevated ground or install temporary berms.

• Use waterproof covers for ECM and fuse boxes.

• Install remote battery disconnects for emergency isolation.

• Keep desiccant breathers on hydraulic tanks year-round.

• Train crews in water recovery protocols and maintain emergency kits.


A cuttings hauler is a specialized piece of equipment used primarily in the oil and gas industry, particularly in drilling operations. It is designed to transport drilling cuttings, mud, and other waste products from drilling rigs to disposal or treatment areas. These vehicles play a crucial role in maintaining the cleanliness and efficiency of drilling operations, ensuring that waste products are managed in compliance with environmental regulations.
In this article, we will explore the function of cuttings haulers, the key design elements that make them suitable for their purpose, common maintenance challenges, and the role they play in the drilling process.
What is a Cuttings Hauler?
A cuttings hauler is a heavy-duty truck or trailer specifically built to transport the waste products that result from drilling for oil or gas. Drilling cuttings are the rock and soil fragments that are broken up by the drill bit and removed from the wellbore during drilling operations. These cuttings are mixed with drilling mud, which helps cool the drill bit, lubricate the drill string, and carry the cuttings to the surface.
Cuttings haulers are designed to efficiently collect, store, and transport these waste materials from the drilling site to a designated disposal or treatment facility. They are equipped with specialized containers or tanks to handle the potentially hazardous nature of the cuttings and drilling mud.
Key Components of a Cuttings Hauler

1. Heavy-Duty Chassis:
   The chassis of a cuttings hauler is designed to withstand heavy loads and rough terrain typically found in oilfield environments. They are made of durable steel and feature a reinforced frame that ensures the hauler can operate in demanding conditions, including off-road areas.

2. Large Storage Compartment:
   The storage compartment or tank is where the cuttings and mud are stored during transport. Depending on the model, these compartments can be either open or enclosed. Some haulers may have a sealed compartment to prevent spillage and minimize environmental risks. These storage tanks are designed to handle large quantities of waste and are often equipped with features to prevent the mixture from leaking or contaminating the environment.

3. Pumping System:
   To facilitate the transfer of drilling waste, cuttings haulers are often equipped with powerful pumping systems. These pumps allow the hauler to collect waste from drilling rigs and transport it without the need for manual labor. The pumps are crucial for efficiently handling the often thick and viscous mixture of mud and cuttings.

4. Hydraulic Lifting Mechanism:
   Many cuttings haulers are equipped with hydraulic lifting systems to load and unload waste materials. The lifting mechanism can raise the storage compartment or tank, allowing for easy dumping of contents into disposal sites. This feature is particularly important when handling large volumes of waste, as it speeds up the loading and unloading process.

5. Safety Features:
   Given the hazardous nature of the materials being transported, cuttings haulers are equipped with various safety features. These include spill containment systems, fire suppression equipment, and specialized loading/unloading protocols to ensure the safety of personnel and the environment.


1. Load Capacity:
   The hauler must be able to carry substantial loads of drilling cuttings and mud. These waste products can be heavy, and the hauler must be designed to carry them without compromising the stability or safety of the vehicle. Manufacturers often provide specific load ratings, which dictate the maximum weight that a hauler can carry safely.

2. Durability:
   The equipment must be built to endure the harsh conditions of an oilfield environment. This includes exposure to extreme temperatures, corrosive drilling fluids, and rugged terrain. Heavy-duty materials such as high-strength steel and corrosion-resistant coatings are often used to ensure that the hauler can operate reliably over time.

3. Environmental Impact:
   As oil and gas drilling operations are often located in environmentally sensitive areas, minimizing the impact of the waste products is crucial. Cuttings haulers are designed to minimize spillage, prevent contamination of the surrounding environment, and comply with regulatory requirements for waste disposal.

4. Efficiency:
   Speed and efficiency are vital when it comes to transporting drilling waste. Cuttings haulers are designed to load and unload quickly, minimizing downtime on the rig and ensuring that the drilling operation can continue without delays. The use of automatic or hydraulic systems to load waste materials reduces the need for manual labor and speeds up the process.

5. Versatility:
   Cuttings haulers are versatile machines that can be used in different types of oil and gas operations, whether onshore or offshore. Their design should allow for easy adaptation to different terrains and the ability to handle various types of waste material, from solid rock cuttings to more viscous mud mixtures.


1. Pump Maintenance:
   The pumps used to transfer waste materials from the drilling rig to the hauler’s storage compartment can experience wear and tear. They can become clogged with solid cuttings or face mechanical issues that reduce their efficiency. Regular inspection and maintenance of the pumping system are essential for ensuring reliable performance.

2. Hydraulic System Repairs:
   The hydraulic lifting systems, while essential for loading and unloading, are susceptible to leaks and failures. Routine checks for hydraulic fluid levels, leaks, and the condition of hoses and seals are necessary to keep the system operating smoothly.

3. Storage Tank Inspection:
   The storage tanks on cuttings haulers can corrode or accumulate sludge, which affects the performance of the vehicle. Regular cleaning and inspection of the tank can help prevent blockages and leaks. Ensuring that the tank is free from contamination is crucial to maintaining the hauler’s efficiency.

4. Suspension and Tire Issues:
   Given the rough terrain on oilfield locations, the suspension system and tires on a cuttings hauler take a lot of wear. Regular inspection and replacement of tires are necessary to ensure the hauler can traverse the harsh landscape safely.

5. Electrical System Checks:
   The electrical system on a cuttings hauler controls various essential functions, including the pumping system, lighting, and warning systems. Routine electrical system checks can prevent malfunctions and ensure that all components are functioning properly.


Sheave bushings are critical components used in various machinery, particularly in cranes, hoists, and lifting equipment. These bushings play a vital role in ensuring smooth rotation of sheaves, which are the wheels that carry ropes or cables. When they wear out or fail, they can significantly affect the performance and safety of the machinery. In this article, we will delve into the purpose of sheave bushings, common issues they face, and how to maintain them effectively.
What is a Sheave Bushing?
A sheave bushing is a bearing component designed to allow a sheave to rotate smoothly around its axis. The sheave itself is a grooved wheel used in systems that rely on ropes or cables for movement. These systems are often found in cranes, lifts, conveyors, and other heavy machinery that involve lifting or moving large loads.
The bushing sits between the shaft and the sheave, reducing friction and wear between the rotating parts. It acts as a protective layer that helps to distribute the weight and forces exerted on the sheave, ensuring it operates efficiently. Sheave bushings are typically made from durable materials such as bronze, steel, or composite materials, depending on the application and the environment in which the equipment operates.
Types of Sheave Bushings

1. Plain Bushings: These are the most basic form of sheave bushings. They are typically solid and rely on a smooth inner surface to reduce friction against the shaft. They are easy to replace but may wear out quicker under heavy loads.

2. Lubricated Bushings: These bushings contain lubrication grooves or channels, which allow them to be periodically lubricated. The added lubrication reduces friction and heat buildup, improving the lifespan of the bushing and the sheave system.

3. Self-Lubricating Bushings: These bushings are designed with materials that have built-in lubrication properties, such as graphite or PTFE (Polytetrafluoroethylene). They are ideal for environments where regular lubrication is difficult or impossible to apply.

4. Ball or Roller Bearing Bushings: These bushings incorporate rolling elements like balls or rollers to reduce friction. They provide smoother movement and are more efficient in high-speed applications or when dealing with heavier loads.


1. Wear and Tear
   • Over time, the constant friction between the sheave and the bushing can cause the bushing to wear down. This wear reduces the bushing's effectiveness, leading to increased friction, heat, and eventually failure. The signs of wear may include rough operation, unusual noises, or the inability of the sheave to rotate freely.

2. Misalignment
   • Misalignment occurs when the sheave or the shaft is not properly aligned. This can cause uneven wear on the bushing and lead to premature failure. Misalignment can be caused by improper installation, excessive load, or damage to other parts of the machinery.

3. Contamination
   • Dirt, dust, and debris can contaminate the bushing, especially if the equipment operates in a harsh or outdoor environment. Contamination can cause the bushing to wear unevenly or seize up, impairing the sheave's function and potentially damaging the system further.

4. Lack of Lubrication
   • For bushings that require lubrication, failing to regularly apply grease or oil can lead to insufficient lubrication, which causes excessive friction. This increases the risk of overheating and wear. In severe cases, it may lead to the complete failure of the bushing.

5. Overloading
   • Exceeding the rated capacity of the equipment can put excessive pressure on the sheave bushing. This can lead to deformation or premature wear. Overloading is a common cause of premature failure, especially in lifting or crane applications.


1. Regular Inspection
   • Routine inspection is essential to identify early signs of wear, misalignment, or damage. Operators should check the sheave and bushing for any visible damage, abnormal noise, or excessive friction. Any issues should be addressed immediately to prevent further damage to the equipment.

2. Lubrication
   • Regular lubrication is vital for sheave bushings that rely on lubrication to reduce friction. Depending on the type of bushing, lubrication intervals may vary. Ensure that the right type of lubricant is used and that it is applied in the recommended amounts. For self-lubricating bushings, ensure that they are operating correctly and are not losing their lubrication properties.

3. Cleanliness
   • Keep the sheave and bushing clean from dirt, dust, and other contaminants. Contaminants can accelerate wear and lead to bushing failure. If the machinery operates in a particularly dirty environment, consider installing protective covers or seals to keep debris out of the system.

4. Proper Installation
   • When installing a new bushing, it is important to ensure that it is aligned correctly with the shaft and the sheave. Misalignment can cause uneven wear and lead to premature failure. Using the correct tools and following the manufacturer's guidelines during installation can prevent alignment issues.

5. Load Management
   • Avoid overloading the machinery beyond its rated capacity. Overloading places unnecessary strain on the sheave and bushing, causing them to wear out faster. Always operate within the recommended limits to ensure the longevity of the equipment.


Kobelco ED190 Bladerunner Background
The Kobelco ED190 Bladerunner is a hybrid machine combining the functionality of a crawler excavator with a dozer blade, designed for versatility in grading, trenching, and site preparation. Introduced in the early 2000s, the ED190 featured a Tier 2-compliant diesel engine, pilot-operated hydraulics, and an electronically controlled throttle system. One of its key components is the stepper motor, which adjusts engine RPM based on operator input and load demand.
Terminology Note

• Stepper Motor: A precision actuator that moves in discrete steps, used to control throttle position electronically.

• CPU (Central Processing Unit): The onboard controller that interprets throttle signals and drives the stepper motor.

• Throttle Percentage: A digital value representing desired engine RPM, displayed on the service monitor.

• A Adjustment: A calibration procedure used to synchronize throttle input with motor response.


• Step 1: Verify power supply to the stepper motor. Use a multimeter to check for voltage at the motor connector during throttle input.

• Step 2: Inspect the motor harness for damage, corrosion, or loose pins.

• Step 3: Access the service monitor and confirm that throttle percentage changes with dial movement.

• Step 4: If values change but the motor does not respond, suspect either a failed motor or a CPU output fault.


• Entering service mode on the monitor

• Setting throttle to minimum and maximum positions

• Recording voltage and percentage values

• Saving calibration data to the CPU


• Always perform A adjustment after replacing or disconnecting the stepper motor.

• Use OEM service documentation to access calibration mode.

• Replace the stepper motor only after confirming voltage and signal integrity.

• If the CPU is suspected, test with a known-good unit before replacement.

• Keep a log of throttle voltage and percentage values for future reference.


The Case TV620B is a versatile and powerful track loader, offering high performance in a variety of applications including construction, forestry, and material handling. One of the key attachments that enhance its utility is the grapple. Grapples are essential tools for efficiently handling and moving large, bulky materials, such as logs, rocks, and scrap metal. In this article, we will explore the importance of selecting the right grapple for the Case TV620B, recommend suitable models, and provide tips on optimizing grapple performance for various tasks.
Understanding Grapples and Their Role
A grapple is an attachment designed for use with heavy equipment like skid steers, track loaders, and excavators. It typically consists of two or more jaws or arms that can open and close, allowing the operator to grip and manipulate materials. Grapples come in different configurations based on the type of material being handled, the size of the equipment, and the type of work environment.
In the case of the Case TV620B, the right grapple can significantly enhance productivity, especially in tasks such as land clearing, demolition, and transporting bulky materials. A well-suited grapple can improve the loader’s efficiency, reduce labor costs, and minimize machine wear by optimizing its capability to handle heavy and irregular loads.
Choosing the Right Grapple for Case TV620B
Selecting a grapple for the Case TV620B requires careful consideration of several factors, including the type of work, the material to be handled, and the machine’s specifications. The TV620B is known for its strong lifting capacity, high breakout force, and stability, making it compatible with a wide range of grapples. Here are some factors to consider:

1. Grapple Type
   • Log Grapples: Ideal for handling logs and large pieces of wood, log grapples typically have long, narrow jaws designed to grip round or irregularly shaped objects. They are commonly used in forestry and land-clearing operations.

   • Construction Grapples: Designed to handle a variety of construction materials such as concrete, rebar, and debris, construction grapples feature robust arms and teeth to secure tough materials.

   • Fork Grapples: A good choice for transporting pallets, lumber, or other long objects. Fork grapples combine the functionality of a fork and a grapple, making them versatile for various tasks.

   • Rock Grapples: These grapples are built to handle dense, heavy materials like rocks, rubble, and other hard materials commonly encountered in demolition and excavation projects.

2. Hydraulic Compatibility
   The Case TV620B operates with a high-flow hydraulic system, which is an essential consideration when choosing a grapple. Grapples with hydraulic motors will perform best when matched with the loader's hydraulic capabilities. Ensure that the grapple you select can handle the flow rate and pressure of the TV620B’s system to avoid underperformance or damage.

3. Grapple Size and Capacity
   The Case TV620B has a rated operating capacity of up to 2,900 lbs (1,315 kg). When selecting a grapple, make sure the attachment is designed to match this capacity. Overloading the grapple can strain the loader’s hydraulics and lead to premature wear and potential safety hazards. Look for grapples that offer a similar or slightly higher lifting capacity to ensure optimal performance.

4. Durability and Construction Material
   The material of the grapple itself plays a crucial role in its longevity. Look for grapples made from high-strength, wear-resistant steel, especially if you plan to use them for heavy-duty tasks like demolition or rock handling. High-carbon steel or hardened alloy can improve the grapple’s resistance to impact and abrasion.

5. Ease of Operation
   Consider grapples that offer simple, intuitive controls, especially if multiple operators will be using the machine. Hydraulic attachments with precision controls reduce operator fatigue and improve productivity. Additionally, some grapples feature quick-connect couplings for fast attachment changes, saving time and enhancing workflow efficiency.


1. Virnig V50 HD Rock Grapple
   • Description: The Virnig V50 HD Rock Grapple is designed for handling tough materials like rocks and demolition debris. It features a durable design with reinforced arms, making it ideal for heavy-duty tasks.

   • Features: Heavy-duty construction, high-strength steel, hydraulic clamping power, and compact design.

   • Why It’s Recommended: The V50 HD is a good match for the TV620B’s hydraulic capabilities, and its rock grapple configuration allows for effective material handling in harsh environments.

2. Bobcat 66” Heavy Duty Grapple
   • Description: This heavy-duty grapple attachment is designed to handle large, bulky materials such as logs, rocks, and debris. Its high-flow hydraulic system is compatible with the Case TV620B for maximum performance.

   • Features: Reinforced teeth, solid construction, and reliable hydraulic cylinders.

   • Why It’s Recommended: The Bobcat HD Grapple has the strength and durability needed to match the Case TV620B’s operating capacity, making it versatile for construction and land clearing.

3. Warren CAT Grapple Bucket
   • Description: Warren CAT’s Grapple Bucket is designed for a variety of materials, including demolition debris and soil. The grapple bucket allows for superior grip and easy material handling.

   • Features: Large opening for various materials, durable teeth, and excellent hydraulic efficiency.

   • Why It’s Recommended: This grapple bucket is perfect for operators working in both construction and agricultural settings where handling loose materials like soil and debris is essential.

4. Kodiak Heavy Duty Grapple
   • Description: Known for its rugged build and exceptional durability, the Kodiak Heavy Duty Grapple is a great option for tough jobs, such as forestry or handling construction waste.

   • Features: High-tensile steel construction, precise hydraulic control, and quick-connect attachment system.

   • Why It’s Recommended: The Kodiak Grapple is ideal for operators who need a reliable and heavy-duty attachment for demanding tasks, and its durability pairs well with the Case TV620B’s performance capabilities.


1. Regularly Check Hydraulic Connections: Inspect hydraulic hoses and connections for leaks or damage. Regular maintenance of the hydraulic system will ensure smooth operation and prevent costly repairs.

2. Clean the Grapple After Use: Always clean the grapple after each use to prevent debris build-up, which can lead to rust or corrosion. Cleaning also ensures that moving parts such as cylinders and jaws remain free of blockages.

3. Lubricate Moving Parts: Apply lubrication to all moving parts of the grapple to prevent friction, wear, and tear. Proper lubrication extends the lifespan of the grapple and maintains its efficiency.

4. Inspect for Wear and Tear: Regularly inspect the grapple for any signs of damage or excessive wear, particularly on the teeth, hydraulic cylinders, and attachment points. Early detection of wear can prevent further damage and reduce downtime.


Rotational Control in Crane Operations
Rotating a suspended load in mid-air is a common requirement in tight job sites, especially when placing long or bulky items like trailers, beams, or tanks. Most modern cranes—whether truck-mounted, boom trucks, or lattice boom crawler cranes—are equipped with swivel hooks that allow the load to rotate freely under gravity. However, precise control over rotation often requires more than passive swiveling, especially when the load must be turned deliberately before placement.
Terminology Note

• Swivel Hook: A rotating hook that allows the suspended load to spin freely, reducing torsional stress on the rigging.

• Tag Line: A rope or cable attached to the load, used by ground personnel to guide or rotate it.

• Rotator Head: A powered device mounted between the hook and the load, allowing controlled rotation.

• Boom Truck: A crane mounted on a truck chassis, often used for utility work and light construction.


• Manual Tag Lines: The most common method. Ground crew members pull on ropes attached to the load to rotate it as needed. This works well for small adjustments and low elevations.

• Crossed Rigging: By crossing chains or slings during attachment, the load can be made to rotate naturally as it lifts. This is often used for cylindrical or ring-shaped objects.

• Rotator Heads: Some cranes are equipped with powered rotators that allow the operator to spin the load using controls in the cab. These are especially useful for high-precision placements or when tag lines are impractical.

• Boom Rotation Compensation: On excavators or mini cranes, rotating the house or boom while offsetting the arm can achieve final orientation without touching the load.


• Always use tag lines when rotating loads near structures or personnel.

• Avoid rotating loads at high elevation unless necessary—wind and pendulum effects increase risk.

• Inspect swivel hooks regularly for wear and binding.

• Use rotator heads only with compatible rigging and load types.

• Communicate clearly between operator and ground crew before initiating rotation.
