In the world of heavy equipment maintenance and operation, small mistakes can lead to costly and sometimes dangerous outcomes. One such issue is the risk of cross-contamination when fuel buckets are mistakenly used for hydraulic fluid. While it might seem like a simple mistake, this issue can have serious consequences for both the machinery and the environment. This article delves into the potential risks associated with cross-contamination, its causes, and the steps to prevent such occurrences in the future.
Understanding Cross-Contamination in Equipment Maintenance
Cross-contamination refers to the unintentional mixing of incompatible substances. In the context of heavy equipment, it typically occurs when two fluids—such as hydraulic fluid and fuel—are mixed or used interchangeably in systems designed for a specific fluid type. This is especially problematic when equipment designed to use hydraulic oil receives fuel instead, or when fuel storage containers are used for storing hydraulic fluid. Each type of fluid is formulated for different purposes, and mixing them can compromise the equipment’s functionality and safety.
In particular, hydraulic fluid and fuel serve distinctly different roles. Hydraulic fluid is a specially designed lubricant that helps operate the hydraulics of a machine. Fuel, on the other hand, is used to power the engine. Each fluid has specific chemical properties that are optimized for its function.
Risks of Using Fuel Buckets for Hydraulic Fluid
Using fuel buckets for hydraulic fluid can lead to several significant problems. Here’s a look at the most common issues:

1. Contamination of Hydraulic Fluid:
   Fuel is not designed to interact with the components in hydraulic systems. When hydraulic fluid is transferred using a bucket that has previously contained fuel, the bucket may still retain traces of fuel. Even the smallest amount of fuel mixed into hydraulic fluid can severely compromise the performance of the hydraulic system, leading to overheating, reduced efficiency, and potential failure of hydraulic components.

2. Damage to Hydraulic Components:
   Hydraulic systems rely on the correct viscosity and chemical composition of the fluid to ensure smooth operation. Fuel, especially diesel or gasoline, has a different viscosity and chemical makeup compared to hydraulic fluid. If fuel is introduced into the hydraulic system, it can lead to poor lubrication, increased wear on seals and valves, and potential damage to critical components such as pumps, cylinders, and motors.

3. Operational Failures:
   The presence of fuel in hydraulic fluid can result in erratic operation, including sluggish movements, leaks, and the failure of the hydraulic system to function properly. In some cases, the machine may cease to operate entirely, requiring extensive repairs and possibly causing costly downtime for operators.

4. Increased Environmental Impact:
   Cross-contamination can also lead to environmental hazards. If the contaminated hydraulic fluid leaks out of the machine, it may cause soil or water contamination, especially if the contaminated fluid is not properly contained. Fuel, in particular, can have significant environmental impacts if spilled or mishandled, leading to fines and cleanup costs.

5. Safety Hazards:
   Using improper fluids or contaminated buckets can also pose safety risks. For example, when the wrong fluid is used, or contamination occurs, it can lead to equipment malfunction or failure during operation, potentially causing injuries to the operator or other workers on-site. Additionally, the risk of fire increases when fuel is mistakenly added to systems not designed to handle it.


1. Designated Containers:
   Always use separate, clearly labeled containers for fuel and hydraulic fluid. Each container should be marked explicitly to avoid confusion and should only be used for its intended fluid. Using containers exclusively for fuel or hydraulic fluid will minimize the risk of accidental cross-contamination.

2. Regular Cleaning and Inspection:
   Fuel buckets or containers should be cleaned thoroughly before they are used to store or transport hydraulic fluid. Cleaning can help remove any residual fuel and prevent it from mixing with the hydraulic oil. Routine inspections of containers and storage tanks are also essential to ensure that no contamination has occurred.

3. Operator Training:
   Proper training for operators and maintenance personnel is key. Workers should be educated on the risks of fluid cross-contamination, as well as the correct procedures for fluid storage and handling. They should understand the importance of using the correct fluids and know how to identify potential contamination before it becomes a bigger problem.

4. Use of Fluid Management Systems:
   Implementing a fluid management system, such as automated fluid monitoring and storage systems, can reduce human error. These systems ensure that the correct fluid is being used and that contaminants are not introduced during the refueling or fluid replacement process.

5. Marking and Color-Coding:
   Color coding or other clear visual indicators on buckets, containers, and hoses can be an effective strategy for preventing confusion. For example, fuel containers can be marked with bright yellow or red, while hydraulic fluid containers can be color-coded with blue or green. This simple measure can help workers easily identify the correct fluids to use.

6. Routine Fluid Checks:
   Regularly check the hydraulic fluid for signs of contamination. This can be done through visual inspection, as fuel-contaminated hydraulic fluid may appear thinner or have an unusual odor. Additional testing can also be performed, such as checking for abnormal chemical properties or contaminants using laboratory analysis.

7. Labeling Systems for Equipment:
   Equipment should have clear labels indicating the type of fluid required. This includes hydraulic fluid and fuel types, as well as recommended grades and viscosities. Labeling helps ensure that the right fluid is always used, even when servicing equipment or refueling.


A machine built for versatility
The Hyundai Robex 130LC-3 is a 13-ton class hydraulic excavator produced in the late 1990s and early 2000s. Designed to compete with models like the Caterpillar 312 and Komatsu PC130, it was widely adopted for utility trenching, forestry clearing, and small-to-medium construction projects. With an operating weight of around 13,000 kilograms and an engine output of approximately 90 horsepower, it offered a balance of digging power and transportability. Hyundai Heavy Industries, which entered the construction equipment market in the 1980s, had by this time become a global player, exporting thousands of excavators annually to North America, Europe, and Asia.
Terminology clarification

• Safety Solenoid: An electrically controlled valve that prevents hydraulic functions from engaging unless the operator safety lever is down.

• Lockout Condition: A state where the hydraulic system is disabled, even though the engine continues to run normally.

• Main Feed Relay: An electrical relay that supplies power to critical machine functions, including solenoids.

• Travel Speed Solenoid: A valve that controls the shift between low and high travel speeds, often located near the safety solenoid.


• Electrical feed failure: A blown fuse, faulty relay, or corroded wiring can interrupt power to the safety solenoid.

• Defective safety solenoid: If the solenoid coil burns out or the connector is damaged, the hydraulic lockout remains engaged.

• Bypassed or faulty safety switch: Even if the switch is bypassed, wiring faults can still prevent the solenoid from energizing.

• Connector damage: On some machines, debris or sticks can physically damage connectors near the hydraulic pump compartment.


• Begin by checking the main feed fuses and relays for continuity.

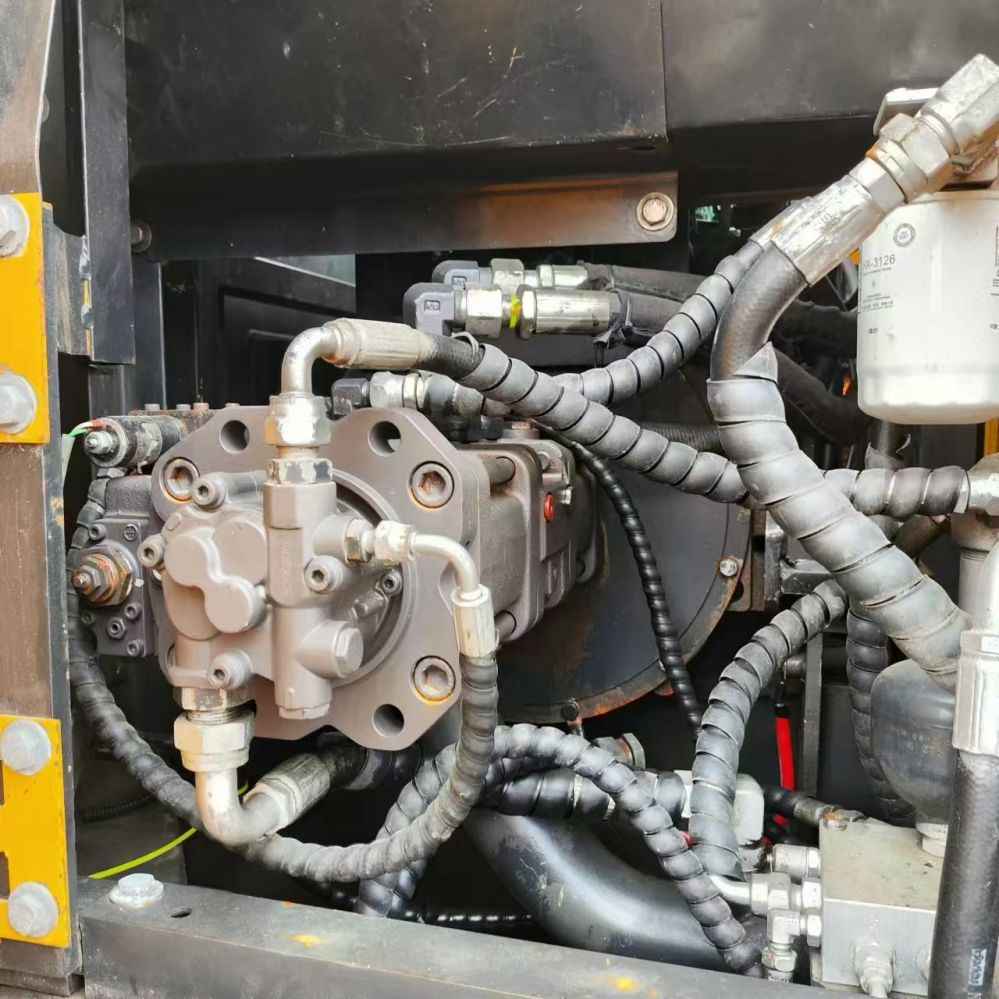

• Inspect wiring harnesses around the hydraulic pump for abrasion or broken connectors.

• Locate the safety solenoid, typically mounted near the travel speed solenoid on the pump side, and test for voltage when the safety lever is engaged.

• If voltage is present but the solenoid does not actuate, replace the solenoid coil.

• If no voltage is present, trace wiring back to the fuse panel and relays.


• Keep electrical connectors sealed and protected from moisture and debris.

• Replace worn wiring harnesses before they cause intermittent faults.

• Train operators to recognize early signs of electrical lockout, such as flickering gauges or intermittent hydraulic response.

• Maintain a stock of critical electrical components, including relays and solenoids, to minimize downtime.


The Volvo L120F is a well-regarded model in Volvo's L-series wheel loaders, known for its durability and strong performance in construction, material handling, and other heavy-duty applications. However, like any machine that undergoes significant use, issues can arise in its mechanical systems. One common problem that operators of the Volvo L120F may encounter involves the 3rd and 4th gears not engaging or functioning correctly. This article explores the possible causes behind these gear-related issues and offers solutions for troubleshooting and repairs.
Overview of the Volvo L120F Wheel Loader
The Volvo L120F, part of Volvo’s L-series of wheel loaders, is designed for efficiency, reliability, and comfort in various industries. This loader is equipped with a powerful engine, a robust hydraulic system, and a comfortable operator cabin, making it ideal for handling heavy materials, loading and unloading trucks, and working in various construction or quarry settings.
Volvo’s L-series is well-known for incorporating advanced technology, such as their Load Assist system and the CareTrack telematics system, which helps operators improve efficiency and reduce operating costs. These wheel loaders are built with a focus on fuel efficiency, low emissions, and ease of maintenance, making them a preferred choice for many businesses.
Gearbox Issues in the Volvo L120F: Focus on 3rd and 4th Gears
One of the issues that can arise in the Volvo L120F is difficulty engaging or operating in the 3rd and 4th gears. This problem can manifest in a variety of ways, such as slipping gears, delayed shifting, or complete failure to engage. Given the loader’s reliance on its transmission system to handle heavy loads and perform efficiently, addressing gear-related issues is critical.
Possible Causes of 3rd and 4th Gear Problems:

1. Low or Contaminated Transmission Fluid:
   Transmission fluid plays a critical role in lubricating the components of the gearbox and ensuring smooth shifting between gears. Low fluid levels or contaminated fluid can lead to sluggish or failed shifting, especially in higher gears like 3rd and 4th. Over time, transmission fluid can degrade, pick up contaminants, or leak out, resulting in poor performance.
   Solution: Check the transmission fluid levels and ensure they meet the manufacturer’s specifications. If the fluid is low, refill with the correct type of transmission fluid. If the fluid appears dirty or contaminated, it may be necessary to replace it and clean the system.

2. Faulty Transmission Control Valve:
   The transmission control valve regulates fluid flow in the transmission and ensures the proper engagement of gears. If this valve is malfunctioning, it may prevent the 3rd and 4th gears from engaging properly, causing issues such as slipping or delayed shifting.
   Solution: Inspect the transmission control valve for signs of damage or wear. If necessary, replace the valve to restore proper fluid flow and gear engagement.

3. Worn or Damaged Gear Components:
   The internal components of the transmission, including the gears themselves, can experience wear and tear after extensive use. Worn teeth on the gears or damaged bearings may prevent proper engagement of higher gears, leading to slipping or failure to shift into 3rd or 4th gear.
   Solution: Inspect the transmission’s internal components for signs of wear or damage. If gears or other parts are damaged, they may need to be replaced.

4. Clutch Problems:
   The clutch system is responsible for disengaging the engine from the transmission to allow for smooth shifting between gears. If the clutch is malfunctioning or out of adjustment, it may prevent the 3rd and 4th gears from engaging properly, particularly under heavy loads or when shifting at higher speeds.
   Solution: Check the clutch system for proper operation. Ensure the clutch is not worn and is correctly adjusted. If needed, replace worn components or adjust the clutch according to manufacturer specifications.

5. Electrical or Sensor Issues:
   Modern Volvo wheel loaders are equipped with various sensors and electrical components that help control the transmission’s shifting patterns. If there’s an issue with the transmission control module (TCM) or other electrical sensors, it can cause the transmission to behave erratically, particularly with regard to 3rd and 4th gear engagement.
   Solution: Conduct a diagnostic check on the loader’s electrical system using specialized tools to identify any faulty sensors or issues with the transmission control module. Replacing the faulty sensors or module can often resolve shifting problems.

6. Software Calibration Issues:
   In some cases, the problem with the gears could be related to the software calibration that controls the transmission system. Incorrect calibration or an outdated software version can result in improper gear shifting, including issues with the 3rd and 4th gears.
   Solution: Check the software version and calibration settings. If necessary, update the software or recalibrate the transmission control system according to Volvo’s guidelines.


1. Perform a Visual Inspection:
   Start by inspecting the transmission system for obvious signs of leaks, damage, or wear. Look for any signs of fluid contamination or low levels. Check for any external damage to the gearbox housing, clutch components, or associated hydraulic lines.

2. Check Transmission Fluid:
   Inspect the transmission fluid levels and condition. Low or contaminated fluid can significantly affect gear shifting. If the fluid is dirty or the levels are low, replace or refill it as necessary.

3. Conduct a Diagnostic Test:
   Use Volvo’s diagnostic tools to scan the machine’s control systems for fault codes. This can help identify electrical or software-related issues, such as problems with sensors or the transmission control module.

4. Inspect the Transmission Control Valve:
   The transmission control valve should be inspected for damage or wear. If necessary, it should be replaced to ensure the smooth operation of the transmission and proper fluid flow.

5. Test the Clutch System:
   Check the clutch system for proper function, ensuring that it is not slipping or out of adjustment. A malfunctioning clutch can prevent proper gear engagement, particularly in higher gears.

6. Inspect Gear Components:
   If all other checks fail to resolve the issue, the problem may lie within the internal gear components of the transmission. A detailed inspection of the transmission’s internal parts, including gears, bearings, and shafts, should be conducted. Worn or damaged components will need to be replaced.


Introduction to the 14E Motor Grader
The Caterpillar 14E motor grader, produced during the 1970s, was part of Caterpillar’s long tradition of heavy-duty road construction machinery. With an operating weight of over 30,000 pounds and powered by the Caterpillar D333T turbocharged diesel engine rated at approximately 150 horsepower, the 14E was designed for large-scale grading, road building, and mining support. Thousands of these machines were sold worldwide, and many remain in service decades later, particularly in developing regions where durability and mechanical simplicity are valued over electronics.
Terminology clarification

• D333T Engine: A turbocharged six-cylinder Caterpillar diesel engine, considered a predecessor to the later 3306 engine.

• Turbocharger: A forced induction device that increases engine efficiency and power by compressing intake air.

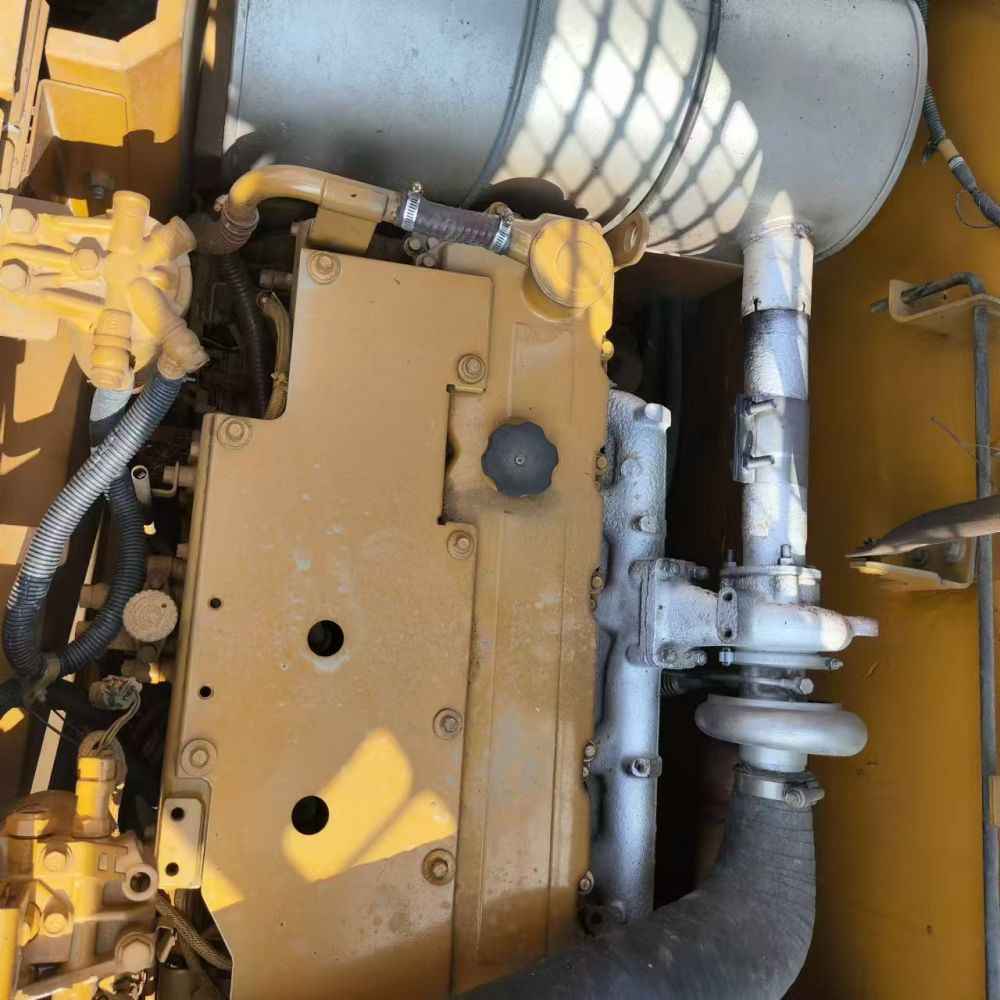

• Exhaust Manifold: A cast-iron component that collects exhaust gases from the cylinders and directs them to the turbocharger.

• Turbo Elbow: A connecting piece that routes exhaust gases from the manifold into the turbocharger housing.


• Cross-reference with 3306 components: Many aftermarket suppliers list compatible parts under the 3306 designation.

• Use casting numbers: Identifying numbers stamped on manifolds and turbo housings can help match replacements.

• Consult specialized rebuilders: Independent shops often fabricate or refurbish obsolete parts for older Caterpillar engines.

• Maintain spares inventory: For machines still in active service, stocking critical components reduces downtime.


• Inspect turbocharger bearings regularly for oil leakage or shaft play.

• Replace exhaust manifold gaskets during turbo service to prevent leaks.

• Keep air filters clean to reduce turbo wear from dust ingestion.

• Monitor engine oil quality, as contaminated oil accelerates turbocharger failure.


The CAT 289D is a versatile and powerful skid steer loader widely used in construction and agricultural industries for its ability to perform a variety of tasks. However, like any complex machinery, it can sometimes present error codes, such as the 2685-8 error code, which can cause concern for operators. This article provides a detailed explanation of error code 2685-8, its causes, and possible solutions.
Understanding the CAT 289D Skid Steer Loader
The CAT 289D is part of Caterpillar's D-series of compact track loaders, designed for efficiency and performance in demanding environments. Its features include a high horsepower engine, advanced hydraulic systems, and durable undercarriage, which make it ideal for tasks like grading, lifting, digging, and material handling. The 289D is designed for both ease of operation and operator comfort, boasting excellent visibility, an ergonomic operator's cabin, and various safety features.
One of the key advantages of the CAT 289D is its versatility. It can be equipped with a variety of attachments, including buckets, forks, and augers, making it suitable for a wide range of construction and agricultural jobs. The loader is particularly known for its robust performance in tough terrains, such as mud, snow, and rocky landscapes.
What is Error Code 2685-8?
Error code 2685-8 on the CAT 289D refers to an issue with the Auxiliary Hydraulic Pressure Switch. This switch is responsible for regulating and monitoring the pressure of the hydraulic system, which is vital for the functioning of various attachments. If this error code appears, it typically indicates a problem with the hydraulic system that could affect the performance of attachments, such as augers or hydraulic breakers.
The code itself might not tell you exactly what the problem is, but it gives you a clue that there is something wrong with the hydraulic system that needs attention. It’s important to diagnose the root cause as soon as possible, as issues with the hydraulic system can lead to further damage if left unresolved.
Possible Causes of Error Code 2685-8
Several factors can trigger error code 2685-8 on the CAT 289D, and they often relate to the hydraulic system's components or the auxiliary hydraulic circuit. Some of the common causes include:

1. Faulty Auxiliary Hydraulic Pressure Switch:
   The most straightforward cause of error code 2685-8 is a malfunctioning auxiliary hydraulic pressure switch. This switch is responsible for monitoring the pressure levels within the auxiliary hydraulic circuit. If it fails, it will trigger the error code to alert the operator to the issue.

2. Hydraulic Fluid Leaks:
   Leaks in the hydraulic system can lead to a drop in pressure, which can affect the system's performance and trigger error codes. These leaks can be caused by worn hoses, damaged fittings, or other issues in the hydraulic lines.

3. Clogged Hydraulic Filters:
   A clogged hydraulic filter can restrict fluid flow, leading to pressure problems in the system. This can trigger an error code related to the hydraulic pressure switch and other hydraulic components.

4. Faulty Hydraulic Pump or Valves:
   A malfunctioning hydraulic pump or faulty valves can cause erratic pressure changes or low pressure, leading to hydraulic system issues. If the pump or valve fails to maintain the correct pressure, it can trigger the error code.

5. Electrical Wiring or Sensor Issues:
   The hydraulic pressure switch is connected to the electrical system, and issues with wiring or faulty connections can cause the switch to malfunction. Wiring problems or damaged sensors may result in the system incorrectly reading pressure levels, triggering error code 2685-8.


1. Inspect the Auxiliary Hydraulic Pressure Switch:
   • Check the auxiliary hydraulic pressure switch for signs of wear, corrosion, or damage. If the switch appears faulty, it should be replaced with a new one.

   • Test the switch using a multimeter to ensure it’s functioning correctly. If it shows irregular readings or no continuity, a replacement is necessary.

2. Check for Hydraulic Leaks:
   • Inspect all hydraulic hoses, fittings, and connections for signs of leaks. A leak, even a small one, can cause pressure drops and trigger the error code.

   • Pay particular attention to areas where hoses connect to the hydraulic components, such as the pump and valves. Tighten any loose fittings or replace any worn-out hoses.

3. Examine Hydraulic Fluid Levels and Quality:
   • Ensure that the hydraulic fluid is at the correct level. Low fluid levels can lead to pressure fluctuations, which may cause error codes.

   • If the fluid is dirty or contaminated, replace it with fresh, clean hydraulic fluid. Be sure to use the type recommended in the operator’s manual.

4. Clean or Replace Hydraulic Filters:
   • Check the hydraulic filters for clogs or contamination. A clogged filter can significantly reduce hydraulic performance and trigger the error code.

   • If the filters are dirty or damaged, replace them according to the manufacturer’s recommendations.

5. Inspect the Hydraulic Pump and Valves:
   • If the problem persists after checking the pressure switch and hydraulic lines, the issue may be with the hydraulic pump or valves. These components should be tested for proper function.

   • A pressure test can be performed to determine if the hydraulic system is operating within the specified pressure range. If the pump or valves are found to be faulty, they may need to be repaired or replaced.

6. Check Electrical Wiring and Connections:
   • Inspect the wiring and connections related to the hydraulic pressure switch. Look for any damaged or frayed wires, loose connections, or corrosion that may be affecting the signal.

   • Repair or replace any faulty wiring, and ensure that all electrical connections are secure.


The role of snow buckets in equipment design
Snow buckets are oversized, lightweight loader buckets designed to move large volumes of low-density material such as snow, mulch, or wood chips. They are typically wider and taller than standard dirt buckets, with reinforced cutting edges but thinner sidewalls to reduce weight. On skid steers, snow buckets are extremely popular because these machines are compact, highly maneuverable, and often used in urban snow removal where speed and volume matter more than breakout force.
Why skid steers dominate snow bucket use
Skid steers are ideal for snow removal due to several factors:

• Quick couplers: Most modern skid steers come standard with universal quick-attach systems, allowing operators to swap between dirt buckets, snow buckets, and plows within minutes.

• High maneuverability: Their ability to turn within their own footprint makes them efficient in parking lots, sidewalks, and tight spaces.

• Seasonal versatility: Contractors often use skid steers for landscaping or construction in warmer months and snow removal in winter, making snow buckets a logical investment.


• Attachment limitations: Many older backhoes lack quick couplers, making bucket changes time-consuming.

• Weight and balance: A large snow bucket on a backhoe loader can exceed safe lifting limits, especially when extended.

• Primary function: Backhoes are designed for digging and trenching, not high-volume snow pushing. Their geometry and hydraulic setup favor excavation rather than light material handling.

• Market demand: Municipalities and contractors typically assign snow removal to skid steers, wheel loaders, or dedicated plow trucks, leaving backhoes to other tasks.


• Install a hydraulic quick coupler to make bucket swaps faster.

• Use a multipurpose 4-in-1 bucket, which can handle light snow while still serving as a general-purpose tool.

• Fit a snow pusher or plow blade to the loader arms, which is often more efficient than a bucket for clearing large areas.

• Dedicate the backhoe to loading trucks while skid steers or loaders handle the pushing and piling.


The P&H 312 is a well-regarded hydraulic shovel used in various heavy-duty applications, including mining and construction. Manufactured by P&H Mining Equipment, a brand with a longstanding reputation in the production of high-quality mining machinery, the 312 is known for its durability, power, and efficiency. This article will provide a detailed overview of the P&H 312, its features, maintenance practices, and troubleshooting tips to help ensure optimal performance.
Background on P&H Mining Equipment
P&H Mining Equipment, part of Komatsu Limited, has been a leading manufacturer of mining equipment for over 130 years. The company’s expertise lies in the design and manufacture of hydraulic shovels, draglines, electric rope shovels, and other mining machinery. Known for producing robust machines capable of handling heavy workloads, P&H Mining Equipment has become synonymous with reliability in the mining industry.
The P&H 312 hydraulic shovel is one of the smaller models in the P&H line but packs significant power and performance. It is often used in smaller to mid-scale operations where flexibility and operational efficiency are crucial.
Key Features of the P&H 312

1. Hydraulic System:
   The P&H 312 utilizes an advanced hydraulic system that provides exceptional power while maintaining efficient fuel consumption. The hydraulic system is designed to maximize digging power and speed while minimizing energy loss. This makes the 312 suitable for a variety of digging and loading tasks, from extracting soil and ore to handling large, heavy materials.

2. Bucket and Boom:
   Equipped with a robust boom and large bucket, the P&H 312 is capable of moving a significant amount of material with each scoop. Its design allows for smooth, controlled operation even under heavy load conditions. The bucket's size and shape can be customized to meet the specific needs of different applications, whether for digging, lifting, or dumping materials.

3. Engine and Powertrain:
   The P&H 312 is powered by a high-performance diesel engine, which provides ample power for the hydraulic system and lifting capabilities. The engine is designed for fuel efficiency, which is important for large-scale operations where operational costs are a concern. The powertrain is coupled with a sophisticated drivetrain that ensures smooth operation under tough conditions.

4. Operator Comfort and Safety:
   Operator comfort is a key focus in the design of the P&H 312. The cabin is equipped with ergonomic seating, easy-to-use controls, and good visibility, which helps reduce fatigue during long shifts. Safety features such as roll-over protection, a fire suppression system, and emergency shutdown procedures are standard to ensure the well-being of operators.

5. Durability and Longevity:
   The P&H 312 is built for long-lasting performance. It is designed to withstand harsh conditions, from extreme weather to challenging terrain. Regular maintenance and proper operation are key to maximizing the life of the machine, ensuring that it continues to perform effectively over time.


• Mining Operations:
  The 312 is widely used in open-pit mining for tasks such as digging and loading materials like ore, coal, and other minerals. Its powerful hydraulic system allows it to work efficiently in digging through tough earth.

• Construction Projects:
  In construction, the P&H 312 is used for earthmoving tasks, such as excavation, trenching, and material handling. Its versatility makes it useful for both small-scale and large-scale construction projects.

• Material Handling:
  The 312 is capable of efficiently handling a variety of materials, making it ideal for operations that require loading, unloading, or transferring heavy materials from one place to another.


1. Hydraulic Fluid Check:
   Regularly check the hydraulic fluid levels and replace the fluid as per the manufacturer’s recommendation. Low or dirty hydraulic fluid can lead to a reduction in performance and potential damage to the hydraulic system.

2. Engine Maintenance:
   Keep the engine in optimal condition by changing the oil and replacing filters as recommended in the owner’s manual. A well-maintained engine ensures that the powertrain remains efficient and that the machine can operate without undue stress.

3. Bucket and Boom Inspection:
   Regularly inspect the bucket and boom for any signs of wear or damage. These parts are under heavy stress during operation, and any cracks or damages can affect the shovel’s ability to dig and lift. If any issues are found, prompt repairs or part replacements are necessary.

4. Track and Undercarriage Maintenance:
   Check the undercarriage, including the tracks, rollers, and sprockets, for signs of excessive wear. These parts should be lubricated regularly to prevent premature wear and ensure smooth operation.


1. Hydraulic Problems:
   If you notice a decrease in hydraulic performance, it could be due to a variety of factors such as a blocked filter, low hydraulic fluid, or an issue with the hydraulic pump. Troubleshoot by checking the fluid levels and inspecting the filter and pump for any damage or blockages.

2. Engine Performance Issues:
   If the engine is running rough or has trouble starting, it could be caused by clogged fuel filters, air filters, or issues with the fuel injectors. Regular cleaning and replacement of filters can prevent many engine-related problems. If the issue persists, the fuel injectors or the fuel pump may need to be inspected.

3. Electrical Failures:
   Electrical problems, such as malfunctioning lights or control systems, are common in machines with sophisticated electrical setups. Inspect fuses, wiring, and battery connections. If there are signs of corrosion or loose connections, these should be addressed immediately.

4. Tracking Problems:
   If the P&H 312 is experiencing tracking issues, such as the tracks slipping or uneven wear, inspect the drive sprockets, track tension, and rollers. These parts need to be maintained regularly to ensure proper tracking and minimize wear.


A new generation of compact equipment
In 2009, John Deere introduced its D Series skid steers and compact track loaders (CTLs), marking a significant step forward in the evolution of compact construction machinery. Deere had already established itself as a leader in agricultural and construction equipment, but the D Series represented a direct response to customer feedback, incorporating features that operators had long requested. With nine new models, including the 318D, 320D, 326D, 328D, and 332D skid steers, as well as the 319D, 323D, 329D, and 333D CTLs, Deere expanded its lineup to cover a wide range of applications from landscaping to heavy-duty construction.
Terminology clarification

• CTL (Compact Track Loader): A tracked version of a skid steer, offering better flotation and traction on soft or uneven ground.

• ROC (Rated Operating Capacity): The maximum load a skid steer or CTL can safely lift and carry, typically 35–50% of tipping load.

• EH Controls (Electro-Hydraulic Controls): Electronic joystick systems that allow customizable control patterns and sensitivity.

• V-Plenum Cooling System: An advanced cooling design with side-by-side coolers and a rear-mounted fan for improved airflow and reduced debris buildup.


• Auto Idle: Automatically reduces engine speed when controls are inactive, saving fuel and lowering noise.

• Reversing Hydraulic Fan: A variable-speed fan that adjusts to cooling demand and can reverse to clear debris from radiators.

• V-Plenum Cooling: Larger aluminum coolers arranged side by side, reducing pressure drop and improving cleaning access.


• Switchable control patterns (ISO or H-pattern).

• Creeper mode, enabling wheel or track speed adjustment in 10% increments independent of engine RPM.

• Adjustable boom and bucket metering with three speed settings: precision, utility, and production.


The John Deere 50D is a compact yet powerful mini-excavator, well-suited for a variety of construction and landscaping tasks. As with most hydraulic machines, its versatility can be significantly enhanced with the right attachments and modifications. One common upgrade for excavators like the 50D is the addition of a diverter valve, which allows for the redirection of hydraulic flow to operate multiple attachments that require different hydraulic functions.
What is a Diverter Valve?
A diverter valve is a hydraulic component that redirects the flow of fluid from one circuit to another, enabling the operator to use one set of hydraulic lines for multiple purposes. In the case of the John Deere 50D, a diverter valve can be used to switch between functions such as running an auger, a grapple, or a tilt bucket without needing to install dedicated hydraulic lines for each attachment. This modification can save time, reduce costs, and improve machine efficiency, especially on jobs requiring frequent changes in attachments.
The Benefits of Adding a Diverter Valve

1. Enhanced Attachment Versatility:
   The most immediate benefit of adding a diverter valve to the John Deere 50D is the ability to use multiple attachments that require different hydraulic functions. For example, the diverter allows you to operate a standard bucket, a tilt bucket, or even an attachment like an auger or grapple, without needing to switch hydraulic lines.

2. Cost Efficiency:
   Installing a diverter valve eliminates the need for additional hydraulic lines and valves for each separate attachment. It reduces the complexity of the hydraulic system, making it easier to maintain and troubleshoot. The cost of a diverter valve system is often less than installing a complete set of dedicated lines for each attachment.

3. Space and Weight Savings:
   By reducing the need for multiple sets of hydraulic lines, a diverter valve saves both space and weight on the machine. This is especially important in compact excavators like the 50D, where minimizing weight and maintaining a compact profile is crucial for operating in tight spaces.

4. Increased Efficiency:
   The diverter valve simplifies the operation of attachments, allowing the operator to switch between functions seamlessly. This can increase the speed and efficiency of the work being performed, reducing downtime and the time it takes to swap out hydraulic lines or make adjustments.


1. Assess Hydraulic System Compatibility:
   Before adding a diverter valve, check the hydraulic system specifications of the John Deere 50D to ensure compatibility. You will need to know the pressure and flow rates of the existing hydraulic system to select the correct diverter valve. The operator's manual or a hydraulic system diagram will provide these details.

2. Choose the Right Diverter Valve:
   Select a diverter valve that matches the flow and pressure requirements of the hydraulic system. Typically, the diverter valve will have input and output ports, and it can redirect hydraulic fluid to a different circuit. For a mini-excavator like the 50D, a 2-way or 3-way diverter valve is usually appropriate, but the exact specifications depend on the attachments being used.

3. Install the Valve:
   The diverter valve needs to be installed between the excavator’s main hydraulic circuit and the auxiliary hydraulic lines. The installation involves connecting the valve’s inlet and outlet ports to the hydraulic system. This step requires careful attention to avoid leaks or over-pressurization. Proper sealing and tight connections are crucial for maintaining the integrity of the hydraulic system.

4. Routing Hydraulic Lines:
   Once the diverter valve is installed, hydraulic lines must be routed to the desired attachment. The diverter valve allows the operator to control which circuit receives hydraulic flow, so these lines must be routed appropriately to avoid interference between multiple functions.

5. Testing and Calibration:
   After installation, the system needs to be tested to ensure the diverter valve is working correctly. Check for leaks, proper hydraulic flow, and any pressure drops. It may also be necessary to calibrate the diverter valve to ensure that the flow to each attachment is consistent with its requirements.

6. Operator Training:
   Once the diverter valve is installed and tested, the operator should be trained on how to switch between functions using the diverter valve. This typically involves activating a control lever or button to redirect the hydraulic flow to the desired circuit.


1. Inadequate Flow to Attachments:
   If the diverter valve is not supplying enough hydraulic fluid to the attachment, it could be due to improper valve calibration, blockages in the hydraulic lines, or an issue with the hydraulic pump itself. Ensure that the system pressure is within the specifications recommended by John Deere for the 50D.

2. Leaking Connections:
   Leaks can occur if the hydraulic fittings are not properly tightened or sealed. Regularly inspect the diverter valve and hydraulic lines for leaks and tighten or replace any loose or damaged fittings.

3. Improper Switching Between Functions:
   If the diverter valve fails to properly switch between hydraulic functions, it could be due to a malfunctioning control mechanism or a problem with the valve itself. Ensure that the valve is functioning smoothly and that the control lever or switch is working properly.

4. Hydraulic Overload:
   An overload of the hydraulic system can cause excessive wear or even failure of the diverter valve. This may happen if the pump pressure exceeds the valve’s rated capacity. Make sure the pump is working within the specified pressure limits for the system.


The Case 1845C in historical context
The Case 1845C skid steer loader, introduced in the mid-1980s, became one of the most successful and widely sold skid steers in North America. With a 57-horsepower diesel engine and an operating capacity of around 1,750 pounds, it was designed for versatility in farming, construction, and landscaping. By the 1990s, Case had sold tens of thousands of these machines, and many remain in service today due to their rugged design and relatively simple mechanical systems. However, like all chain-driven skid steers, the 1845C is prone to wear in its drive chains, sprockets, and bearings if not maintained with precision.
Terminology clarification

• Drive Chain: A heavy-duty roller chain that transfers power from the hydrostatic drive motor to the wheels.

• Sprocket Cluster: A set of sprockets mounted on a shaft that guides and drives the chains.

• Needle Bearings: Cylindrical roller bearings used to support shafts under high load with minimal friction.

• Chain Tension: The adjustment of slack in the drive chains to ensure smooth operation without excessive stress.


• Improper chain tension: If the front chains are set too tight while the rear chains are loose, the sprocket cluster is pulled unevenly, placing extreme side loads on the bearings.

• Worn housings: Once the bearing bores are elongated, new bearings cannot seat properly, leading to rapid destruction.

• Contamination: Dirt, manure, or debris inside the chain case accelerates wear and damages bearings.

• Misalignment: Incorrect installation of shafts or sprockets can cause uneven loading.


• Always adjust chain tension evenly front and rear, leaving the recommended slack specified in the service manual.

• Inspect bearing housings for oval wear; if damaged, consider line boring and installing hardened sleeves.

• Replace sprockets and chains as a set to ensure proper engagement.

• Flush the chain case thoroughly to remove debris before installing new parts.

• Use high-quality bearings and shafts, as cheaper replacements may not withstand heavy loads.
