Removing pins from heavy machinery is a critical task that requires both skill and the right tools. Whether you're dealing with a track pin, a bucket pin, or a linkage pin, the process can be challenging due to corrosion, wear, and tight tolerances. This article delves into the common methods, tools, and best practices for removing pins in heavy equipment, providing solutions to some of the most persistent problems.

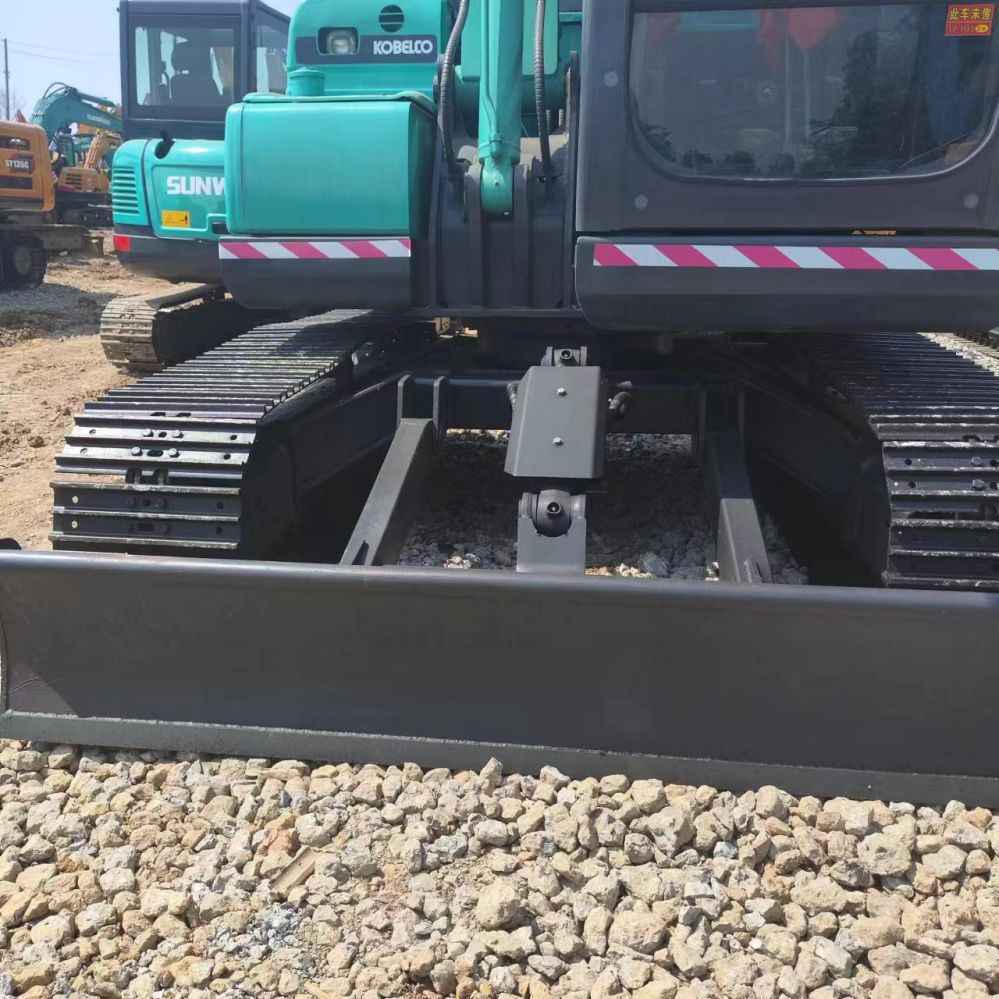

Understanding the Role of Pins in Heavy Equipment
Pins play an essential role in the construction and operation of heavy machinery. They are used to secure components like buckets, arms, or tracks to the main structure of the machine. Their purpose is to provide a stable connection that allows for controlled movement, enabling the equipment to perform various tasks. Over time, pins are subjected to immense stresses from continuous operation, which can lead to wear, rust, or complete seizing.
The typical pins found in equipment include:

• Track Pins: These pins are used in tracked vehicles like excavators and bulldozers to connect the track chain to the undercarriage.

• Bucket Pins: These are used to attach buckets to the arm of an excavator or loader.

• Linkage Pins: These secure the moving parts of hydraulic systems, such as the boom, arm, and bucket, on many machines.


1. Corrosion: Exposure to water, mud, and chemicals can cause pins to rust. Rusted pins can become nearly impossible to remove, and forceful attempts to remove them can damage surrounding components.

2. Wear and Tear: Pins that have been in place for a long time can become worn down, making it harder to grasp and remove them.

3. Tight Tolerances: Pins are often installed with very tight tolerances, which makes it difficult to extract them without damaging the surrounding area.

4. Seizing: In some cases, the pin can seize due to high temperatures, dirt, or lack of lubrication, which further complicates the removal process.


1. Using Penetrating Oil
   One of the first steps when attempting to remove a stuck pin is applying penetrating oil or lubricant to the pin. These oils are designed to break down rust and corrosion, making it easier to loosen the pin. Popular options include PB Blaster, WD-40, or Liquid Wrench. After applying the oil, allow it to sit for several hours or even overnight for maximum effect.

2. Heat and Cooling Cycles
   If a pin is severely stuck, using heat can expand the metal and break the bond of corrosion. A propane torch or an oxy-acetylene torch can be used to heat the surrounding area of the pin. After heating, rapidly cool the pin with water or compressed air. The rapid temperature change can cause the pin to contract, breaking up rust or debris inside the hole.

3. Hydraulic Pullers
   For larger pins, a hydraulic puller can be an effective tool. Hydraulic pullers work by exerting high amounts of force to pull the pin from its housing. These devices can handle the high stress that comes with removing heavy-duty pins without damaging the surrounding parts. It is crucial to ensure the puller is applied evenly to prevent misalignment.

4. Hammering and Tapping
   In many cases, tapping the pin with a heavy-duty hammer or a sledgehammer may help break loose any rust or dirt that’s holding it in place. Using a drift pin or a punch tool can help direct the force applied to the pin without damaging the surrounding components. Care should be taken not to hit too hard, as this could cause the pin to deform or damage the housing.

5. Pin Pullers and Extractors
   Pin pullers or extractors are specifically designed tools that help remove stubborn pins. These devices often have adjustable arms that fit around the pin, with a central bolt that applies pressure to pull the pin out. This method works best when the pin is simply stuck and not too rusted or corroded.

6. Welding
   In cases where the pin is completely seized and other methods have failed, welding can be used as a last resort. A bolt can be welded to the center of the pin to create a new surface for gripping. Once the bolt is securely welded, a wrench can be used to turn the pin and remove it. However, this method requires caution, as improper welding can cause further damage to the surrounding components.


1. Lubrication
   Regular lubrication of the pins and surrounding components is crucial in preventing corrosion and wear. Many machines have grease fittings for pins, which should be regularly greased according to the manufacturer’s maintenance schedule. Keeping pins well-lubricated also ensures smooth operation and prevents binding.

2. Regular Inspections
   Conducting routine inspections can help catch issues before they become major problems. Look for signs of rust, wear, or unusual movement around the pins, which can indicate that the pin needs maintenance or replacement.

3. Using Anti-Corrosion Treatments
   Applying anti-corrosion treatments to pins can protect them from the elements and prevent rust from forming. There are various spray-on products designed to shield metal parts from moisture and debris.

4. Cleaning the Area Around the Pins
   Dirt and debris can contribute to the seizing of pins, so keeping the area around the pin clean is essential. Regularly clean the pin and surrounding area, especially after working in dusty or muddy environments. This will prevent particles from getting into the pin housing and causing issues.


The Legacy of the Hitachi EX120 Series
The Hitachi EX120-3 excavator belongs to a lineage of compact hydraulic excavators that gained popularity in the 1990s and early 2000s. Hitachi Construction Machinery, founded in 1970 as a division of Hitachi Ltd., quickly became a global leader in earthmoving equipment. The EX120 series was designed for mid-range excavation tasks, offering a balance between power, maneuverability, and fuel efficiency. By the time the EX120-3 was released, Hitachi had already sold tens of thousands of units worldwide, particularly in North America and Southeast Asia, where infrastructure development was booming.
The EX120-3 features a 4-cylinder Isuzu diesel engine, typically the BB-4BG1T model, producing around 90 horsepower. With an operating weight of approximately 27,000 pounds and a digging depth of nearly 20 feet, it’s well-suited for trenching, site prep, and utility work. Its hydraulic system is known for reliability, and many units remain in service decades after their release.
Key Inspection Points Before Purchase
When evaluating a used EX120-3, several components require close attention:

• Pins and Bushings These are wear points in the boom, stick, and bucket linkage. Excessive play indicates long-term wear and may require replacement or line boring.

• Hydraulic System Look for leaks, smooth operation, and consistent pressure. The thumb attachment, if present, should operate without hesitation or jerky movements.

• Swing Motor and Bearing Check for unusual noises or resistance when rotating the upper structure. A failing swing bearing can be costly to replace.

• Undercarriage Inspect track tension, roller wear, and sprocket condition. These components often reflect the machine’s overall usage history.

• Control Pattern Configuration The EX120-3 may be set up with excavator-style controls (ISO) or backhoe-style (SAE). Without a pattern changer, switching requires rerouting pilot lines—typically four hoses. While not technically difficult, it demands familiarity with hydraulic schematics and careful labeling.


• Hammer Return Line Requirements A hydraulic hammer must return oil directly to the tank, bypassing the control valve to prevent backpressure. This can be achieved by installing a T-fitting on the return line and using gate valves to switch between thumb and hammer modes.

• Installation Kit Many operators use a hard and soft line kit bolted to the boom, which includes fittings, valves, and a dedicated return hose. This setup allows quick switching between attachments without compromising hydraulic integrity.


• Pilot Lines: Small-diameter hydraulic hoses that control the main valves via low-pressure signals.

• Gate Valve: A valve that opens or closes flow in a hydraulic line, often used to redirect oil between attachments.

• Control Pattern: The configuration of joystick movements that control boom, stick, bucket, and swing functions.


• Budget for Transport Moving a 27,000-pound machine across states can cost between $2,000 and $5,000 depending on distance and permits.

• Check for Missing Decals While cosmetic, missing decals may indicate repainting or prior damage.

• Test All Functions Before purchase, operate the boom, stick, bucket, swing, and travel functions. Listen for hydraulic whine or hesitation.

• Document Modifications If the machine has been retrofitted with a thumb or hammer circuit, ensure documentation exists for future maintenance.


The CAT 308E is a highly versatile and reliable compact excavator manufactured by Caterpillar, designed to handle a variety of tasks in construction, landscaping, and other heavy-duty industries. One of the most critical components of the CAT 308E is its turbocharged engine, which is responsible for delivering the power necessary for efficient operation. However, like any mechanical system, issues can arise. A common concern for operators of the CAT 308E is related to the turbocharger. This article explores potential turbo problems, symptoms, and solutions, as well as offering general advice on troubleshooting and maintaining the turbocharger system.
Understanding the Role of the Turbocharger in the CAT 308E
The turbocharger in the CAT 308E excavator is a forced induction system designed to improve engine efficiency and increase power output. By compressing the air entering the engine, the turbocharger allows the engine to burn more fuel, thereby increasing power without requiring a larger engine size. This is especially important for compact machinery like the CAT 308E, where space and weight constraints are key considerations.
The turbo operates by harnessing the energy from the exhaust gases produced by the engine. These gases spin a turbine, which in turn drives a compressor that forces more air into the engine’s cylinders. The increased air volume leads to a more efficient combustion process, giving the engine extra power when needed.
In modern machinery like the CAT 308E, turbochargers play a vital role in meeting power demands while maintaining fuel efficiency. However, turbochargers are complex components and can be subject to wear and failure if not properly maintained.
Common Turbo Issues in the CAT 308E

1. Loss of Power or Reduced Engine Performance
   One of the most obvious signs of turbocharger failure or malfunction in the CAT 308E is a noticeable loss of engine power or reduced performance. Operators may notice that the excavator struggles to move heavy loads or has difficulty climbing slopes that it previously could handle with ease. This issue often arises when the turbo is not producing enough boost, which can be caused by a variety of factors, including a malfunctioning wastegate, turbocharger bearing failure, or a clogged air intake system.

2. Excessive Smoke from the Exhaust
   Excessive black or blue smoke from the exhaust can indicate problems with the turbocharger. Black smoke typically means the engine is burning too much fuel due to insufficient air intake, often caused by a failing turbocharger. Blue smoke, on the other hand, is a sign of oil burning in the combustion chamber, which can be due to a leaking turbocharger seal or worn-out components within the turbo unit. Both of these issues are red flags that require immediate attention.

3. Whining or Grinding Noises
   Turbochargers are designed to operate smoothly and quietly, but when components like bearings or seals begin to fail, unusual noises can occur. A high-pitched whining or grinding sound while the engine is running could be an indication that the bearings in the turbocharger are worn out or that there is foreign debris in the system. This can lead to further damage if not addressed quickly.

4. Oil Leaks Around the Turbocharger
   Oil leaks around the turbocharger or from the exhaust side of the unit can be a sign of a failing turbocharger seal or damaged bearings. Since turbochargers operate under high pressure and temperature, any oil leakage can cause significant damage to the engine and exhaust system. Oil leaks should be addressed promptly to avoid further complications.


1. Poor Maintenance Practices
   Regular maintenance is crucial to the longevity of the turbocharger. Lack of proper servicing, such as failure to change the engine oil and air filters at regular intervals, can lead to turbocharger problems. Oil is essential for lubricating the turbo’s bearings, and a dirty or contaminated air filter can restrict airflow to the turbo, both of which can lead to premature failure.

2. Contaminants in the System
   Debris or contaminants entering the turbocharger can cause significant damage. Dust, dirt, and other foreign materials can damage the delicate components inside the turbo, such as the turbine and compressor blades. This is particularly common in construction environments where dust and dirt are pervasive. A good maintenance habit is to ensure that air filters are cleaned or replaced regularly to prevent contaminants from reaching the turbocharger.

3. Overheating
   Excessive heat can cause the turbocharger to fail prematurely. The high temperatures generated by the engine and exhaust gases can cause the bearings and seals inside the turbo to degrade over time. This is often the result of excessive idling, overworking the engine, or insufficient cooling due to a malfunctioning coolant system. Overheating can also be exacerbated by low oil levels or poor-quality oil.

4. Improper Installation
   If the turbocharger is improperly installed, it may not function correctly, leading to issues such as oil leaks, excessive exhaust smoke, or a lack of power. Proper installation is crucial to ensure that the turbocharger operates within the correct parameters.


1. Check for Oil Leaks and Oil Quality
   If you notice oil leaks around the turbocharger, inspect the oil lines, seals, and the turbo itself for any signs of wear or damage. If the oil is contaminated with metal shavings or appears dirty, replace the oil and filter. Ensure that the turbocharger’s oil supply is clean and at the proper level, as inadequate lubrication can lead to turbo failure.

2. Inspect the Air Intake and Filter System
   A clogged or dirty air filter can restrict airflow to the turbocharger, leading to a lack of power. Check the air filters regularly and replace them if they are dirty or clogged. Clean or replace the intake system if necessary, and ensure that no debris is present in the air intake or turbo system.

3. Monitor Exhaust Smoke
   Excessive smoke is a clear sign that something is wrong with the turbocharger. If black smoke is emitted, it may indicate that the turbocharger is not providing enough air for proper combustion. If blue smoke is present, it could point to oil leaking into the exhaust system. In either case, a thorough inspection of the turbo is required to determine the exact cause.

4. Listen for Unusual Sounds
   If you hear whining or grinding noises from the turbo, stop the engine immediately to prevent further damage. Inspect the turbocharger for worn bearings or signs of physical damage. If necessary, replace the damaged components or the entire turbo unit.

5. Proper Engine Cooling
   Ensure that the engine’s cooling system is functioning properly. Overheating can accelerate wear on the turbocharger and other engine components. Check the radiator, coolant levels, and hoses for leaks or blockages, and ensure that the cooling system is working efficiently.


1. Regular Oil and Filter Changes
   Change the engine oil and air filters at the recommended intervals. Clean oil is essential for lubricating the turbo’s moving parts, and a clean air filter ensures that only clean air reaches the engine. Regular oil changes also help to remove contaminants that could damage the turbo.

2. Use High-Quality Fuel and Oil
   Using high-quality fuel and oil is essential to keep the turbo running smoothly. Low-quality fuel can cause carbon build-up, which can clog the turbo and reduce performance. Similarly, using the wrong type of oil can lead to inadequate lubrication, which is detrimental to the turbo’s health.

3. Proper Warm-Up and Cool-Down Procedures
   To prolong the life of the turbocharger, always allow the engine to warm up before full operation, especially in colder weather. Similarly, after heavy operation, allow the engine to cool down before shutting it off. This helps prevent thermal shock to the turbo and ensures that the oil circulates properly.


Understanding the Loader Bucket’s Role
The front loader bucket is a critical component of any loader/backhoe machine, designed to scoop, lift, and transport materials ranging from soil and gravel to demolition debris. Its leading edge—often fitted with a cutting edge—is the primary contact point with the ground and materials. Over time, this edge can deform due to repeated stress, uneven loading, or lack of reinforcement. A bowed or warped leading edge compromises the bucket’s efficiency, causing uneven wear and reducing the precision of grading or leveling tasks.
The Case of the 655D Loader/Backhoe
The 655D loader/backhoe, developed by Ford and later under New Holland branding, is a mid-sized machine popular in the 1980s and 1990s for its versatility in construction and agricultural applications. With thousands sold across North America, it became a staple for small contractors and municipal fleets. Its bucket design, while robust, was susceptible to deformation if operated without a cutting edge or under heavy, uneven loads.
In one instance, a newly acquired 655D exhibited a bowed leading edge—lower in the center and higher at the ends. This deformation posed a challenge for installing a new cutting edge, which requires a flat surface for proper alignment and bolting.
Techniques for Straightening the Leading Edge
Straightening a loader bucket’s leading edge is a delicate balance of force, heat, and structural understanding. Several methods have proven effective depending on the severity of the bow and the bucket’s construction:

• Thermal Shrinking Using a rosebud torch, heat is applied to the convex (outer) side of the bow. This process causes the metal to expand temporarily. As it cools—either naturally or with a water mist—it contracts, pulling the bowed section inward. This method may require multiple cycles and is most effective on single-layer steel sections.

• Mechanical Jacking For buckets with reinforced double-layer steel, especially those with gussets or wear strips, thermal methods may be insufficient. Anchoring the bucket ends to a solid slab and jacking the center upward can gradually restore alignment. This technique demands caution to avoid overcorrection or structural damage.

• Cut and Weld Reinforcement In extreme cases, such as with larger machines like the 644 wheel loader, the bottom plate may be too stiff to bend. A more invasive solution involves cutting the bottom plate free from the sides, pulling it into position, and welding in pie-shaped filler plates to bridge the resulting gaps. This method requires skilled welding and precise measurement to maintain bucket integrity.


• Cutting Edge: A hardened steel strip bolted or welded to the bucket’s leading edge to enhance wear resistance and improve digging performance.

• Rosebud Torch: A type of oxy-acetylene torch with a wide flame pattern used for heating metal surfaces.

• Thermal Shrinking: A metalworking technique where heat-induced expansion followed by cooling causes contraction, used to reshape metal.

• Gusset: A reinforcing plate added to strengthen joints or corners in metal structures.


• Install a Cutting Edge Early Operating without a cutting edge accelerates wear and increases the risk of bowing. A properly fitted edge distributes force evenly and protects the base metal.

• Regular Inspection Monthly checks for warping, cracks, or loose bolts can catch issues before they escalate.

• Load Evenly Avoid side-loading or digging at sharp angles, which can twist the bucket and stress the leading edge.

• Reinforce with Wear Strips Adding wear strips or gussets to high-stress areas can reduce flexing and prolong structural integrity.


The Volvo A35E dump truck is a popular choice for heavy-duty operations, known for its reliable performance in hauling large loads over rough terrain. However, like any complex machinery, it can encounter various issues that need addressing to maintain its efficiency and safety. One common problem reported by operators and maintenance professionals is related to the parking brake system, which, if malfunctioning, can cause serious operational risks.
Understanding the Volvo A35E Parking Brake System
The parking brake on a Volvo A35E is a critical component of the vehicle's safety system. It is responsible for keeping the truck stationary when not in operation. The truck features an air-operated disc brake system, which is activated when the parking brake is engaged. The brake system is designed to hold the truck in place, particularly on inclines, preventing it from rolling.
The system works by applying a braking force to the wheels when the parking brake is applied. This is typically controlled by a lever or button in the cabin, which sends a signal to engage the brake pads onto the disc rotors. The issue arises when the parking brake fails to release or apply properly, which can be caused by several factors such as air pressure problems, hydraulic fluid contamination, or mechanical wear.
Common Causes of Parking Brake Malfunctions

1. Air Pressure Problems
   Since the Volvo A35E uses an air-operated system, air pressure is crucial for its functionality. If there is a drop in air pressure, the brake may not engage or disengage properly. This can occur due to leaks in the air system or issues with the compressor that generates the required pressure. In such cases, operators may notice that the parking brake does not hold the truck stationary as effectively as it should, or it may take longer than usual to release the brake.

2. Brake Pad Wear
   Another common cause of parking brake failure is excessive wear on the brake pads. The brake pads on the Volvo A35E, like any other vehicle, wear down over time, especially with regular use in harsh conditions. When the brake pads are worn out, they may not make proper contact with the brake discs, leading to reduced braking efficiency or a complete failure of the parking brake.

3. Hydraulic Issues
   Some versions of the A35E use hydraulic systems to control certain aspects of the parking brake. Over time, the hydraulic fluid can become contaminated with debris or moisture, which can lead to reduced performance or even failure of the parking brake. Regular maintenance of the hydraulic system, including fluid changes and checks for leaks, is essential to ensure the parking brake functions correctly.

4. Faulty Brake Actuator
   The actuator is the part of the parking brake system responsible for applying the brake force when the system is engaged. If the actuator becomes faulty, it may fail to apply the brake correctly, leading to issues such as the truck rolling even when the parking brake is engaged. A malfunctioning actuator can often be attributed to wear, corrosion, or lack of proper maintenance.


1. Regular Air System Maintenance
   To prevent air pressure issues, operators should ensure that the air system is regularly inspected. This includes checking for leaks in the air lines, testing the air compressor, and ensuring the air tanks are properly pressurized. It’s also essential to replace air filters periodically to ensure clean, dry air flows into the system.

2. Brake Pad Inspections and Replacements
   Regular inspections of the brake pads are crucial for preventing wear-related problems. If the pads are found to be too thin, they should be replaced immediately to prevent further damage to the braking system. Operators should also check the disc rotors for signs of scoring or uneven wear, which could indicate other issues with the braking system.

3. Hydraulic Fluid Checks and Replacements
   For systems that use hydraulic fluid, it’s important to check the fluid regularly for contamination. Any signs of dirt, moisture, or discoloration in the fluid should be addressed promptly by flushing the system and replacing the fluid. Leaks in hydraulic lines should also be repaired immediately to prevent fluid loss.

4. Actuator Inspection and Repair
   The actuator should be inspected periodically for signs of wear or damage. If the actuator is malfunctioning, it may need to be replaced or repaired. Operators can perform a simple test by engaging and disengaging the parking brake while observing the actuator’s movement to ensure it’s functioning as intended.


1. Avoid Overuse of the Parking Brake
   While it’s important to use the parking brake when necessary, overuse can accelerate wear on the brake pads and air system. Operators should engage the parking brake only when the truck is parked on an incline or when it’s necessary to secure the vehicle.

2. Ensure Proper Parking Procedures
   To prevent unnecessary stress on the parking brake system, operators should follow proper parking procedures. This includes ensuring that the truck is fully stopped before engaging the parking brake and that the truck is on level ground whenever possible.

3. Stay Up-to-Date with Maintenance
   Regular maintenance is key to keeping the parking brake system in good working order. Operators should follow the manufacturer’s maintenance schedule, perform daily checks on the brake system, and address any issues immediately to prevent costly repairs down the line.


Origins and Purpose of the Caterpillar Deuce
The Caterpillar Deuce was developed in the late 1990s as a specialized military earthmoving machine designed for rapid deployment and versatile terrain operations. Built by Caterpillar Inc., a company founded in 1925 and globally recognized for its heavy equipment innovations, the Deuce was tailored for the U.S. Army’s combat engineer units. Its primary mission was to support battlefield mobility—clearing debris, repairing roads, constructing revetments, and preparing airstrips in hostile or remote environments.
Unlike civilian dozers, the Deuce was engineered for air transportability. It could “kneel” hydraulically to fit inside a C-130 Hercules cargo plane, allowing rapid deployment to forward operating bases. This feature made it invaluable during operations in Iraq and Afghanistan, where terrain preparation often preceded troop movement.
Design Features and Tactical Enhancements
The Deuce shares visual similarities with Caterpillar’s Challenger agricultural tractors but incorporates military-grade modifications:

• High-clearance undercarriage for rough terrain

• Flip-down ripper teeth that engage during reverse movement and slide forward when pushing

• Hydraulic kneeling system for transport loading

• Armored cab options for protection in combat zones

• Multi-purpose blade capable of grading, dozing, and limited excavation


• Blade support clearance

• Track wear during reverse load

• Visibility of cutting edge under wet conditions


The Bobcat 2410 Skid Steer Loader is a part of Bobcat's line of versatile, compact loaders that have become synonymous with reliability and performance in the construction and agricultural industries. Though not as widely recognized today as some of Bobcat’s newer models, the 2410 played an essential role in the evolution of skid steer technology and continues to be used in various applications. This article will explore the key features of the Bobcat 2410, discuss its performance capabilities, and provide insights into maintenance and troubleshooting.
History and Development of the Bobcat 2410
Bobcat Company, originally known as Melroe Manufacturing, introduced its first skid steer loader in 1960. Over the years, Bobcat became one of the leading manufacturers of compact construction equipment, and the 2410 model was one of the many innovations designed to offer powerful lifting and maneuverability in a small, agile package.
The 2410 was part of Bobcat's 2000 series of skid steers, which were produced during the late 1980s and early 1990s. These machines were specifically designed for construction, landscaping, and agricultural work, offering a balance between power and compactness. While the Bobcat 2410 has since been phased out in favor of more modern models, its design laid the foundation for the subsequent generation of Bobcat machines.
Key Features of the Bobcat 2410
The Bobcat 2410 Skid Steer Loader, like other machines in its class, was engineered for tight spaces and demanding environments. Some of the standout features include:

1. Compact Size and Maneuverability:
   • The 2410 was known for its compact frame, allowing it to operate in confined spaces where larger equipment couldn’t fit. This made it ideal for urban construction sites, landscaping, and small farms.

2. Hydraulic Lift System:
   • A key feature of the 2410 was its hydraulic lift system, which provided efficient lifting and digging capabilities. This system allowed the loader to handle a variety of attachments and attachments, which expanded its range of use.

3. Engine Power and Performance:
   • The 2410 was equipped with a diesel engine that delivered sufficient power for most tasks. With a lift capacity of about 800-1,000 lbs and a maximum travel speed of around 6-8 mph, it was well-suited for work in both construction and agricultural settings.

4. Simple Controls and Operator Comfort:
   • Like most Bobcat skid steers, the 2410 featured easy-to-use joystick controls for simple operation. This allowed operators to work with precision while maintaining comfort and control throughout long hours of use.

5. Attachment Versatility:
   • The 2410 was compatible with a wide range of attachments, from buckets and forks to specialized tools like augers and snow blowers. This made it a versatile machine capable of handling a broad spectrum of tasks.


1. Hydraulic System Maintenance:
   • The hydraulic system is central to the performance of the Bobcat 2410. Over time, hydraulic lines can develop leaks, or hydraulic fluid can become contaminated. Regular fluid checks and timely replacement of hoses and seals are crucial to maintaining optimal hydraulic function.

2. Engine and Fuel System:
   • The diesel engine in the 2410 should be serviced regularly to ensure it runs smoothly. Routine tasks include changing the oil, replacing filters, and checking the fuel injectors. Poor fuel quality or clogged filters can lead to reduced performance and possible engine failure.

3. Wheel and Tire Care:
   • The wheels and tires on a skid steer bear a significant amount of weight and are subject to wear and tear. Ensuring that tires are properly inflated and checking for signs of damage can help prevent operational downtime.

4. Electrical System:
   • Older machines like the 2410 might experience electrical issues, especially with the battery and wiring. It's important to check the battery voltage regularly and inspect for any signs of corrosion or wear on the electrical components.

5. Track System (for tracked models):
   • Some versions of the 2410 came with tracks instead of wheels, which offer superior traction in muddy or loose soil conditions. Like any tracked machine, the undercarriage and track system require regular inspection and maintenance to prevent excessive wear or failure.


1. Engine Won’t Start:
   • This issue can be caused by a dead battery, faulty starter motor, or clogged fuel filter. Begin by checking the battery charge and cleaning any corroded connections. If the battery is functional, inspect the starter motor and replace if necessary.

2. Hydraulic System Failure:
   • If the hydraulics are not functioning properly, it could be due to low fluid levels, air in the system, or worn hydraulic pumps. Check the fluid levels first and top them off with the recommended hydraulic oil. If the problem persists, inspect the pump and valves for wear or damage.

3. Uneven or Rough Operation:
   • A rough ride or jerky movement during operation can sometimes be a sign of worn wheel bearings or transmission issues. Inspect the drivetrain for any damage, and if necessary, replace the bearings or gears.


The Mustang 330 and Its Onan Powerplant
The Mustang Model 330 skid steer loader was introduced in the mid-1970s as part of Mustang Manufacturing’s compact equipment lineup. Mustang, founded in 1865 and later acquired by Manitou Group, built a reputation for durable, no-frills machines suited for residential grading, farm work, and light construction. The 330 was powered by an 18-horsepower Onan MHC MS/2699B engine—a horizontally opposed, air-cooled twin-cylinder design known for its simplicity and torque delivery.
Onan engines were widely used in generators, RVs, and compact equipment during the 1970s and 1980s. While reliable, they were sensitive to fuel delivery and crankcase ventilation issues, especially as they aged past 3,000 hours.
Symptoms of Oil Consumption and Hydraulic Load Shutdown
After years of light-duty use and long idle periods, one Mustang 330 began burning oil through both cylinders and bogging down under hydraulic load. The engine ran better at idle and full throttle when hydraulics were disengaged, but emitted blue smoke consistently. These symptoms suggest a combination of oil control failure and fuel delivery irregularities.
Key observations included:

• Blue exhaust smoke under load

• Engine shutdown when hydraulics engaged

• Clean air filter and crankcase breather

• Electric fuel pump installed in place of original vacuum pump


• Worn piston rings: Especially in cylinder #2, which had prior wear history. Oil bypasses the rings and enters the combustion chamber.

• Faulty fuel pump switch: An intermittent short in the electric pump switch caused erratic fuel delivery, leading to lean conditions and increased crankcase vacuum.

• Crankcase vacuum imbalance: Plugging the original vacuum line without proper venting may have disrupted pressure regulation, pulling oil past worn rings.

• Governor misadjustment: If the governor linkage is out of spec, throttle response under load may lag, compounding shutdown behavior.


• Perform a compression test on both cylinders. Readings below 90 psi indicate ring or valve wear.

• Inspect and clean the crankcase vent tube, ensuring it’s not blocked by debris or insects.

• Replace the fuel pump switch or revert to a vacuum pump with proper line routing.

• Check governor spring tension and linkage travel, adjusting to factory specs if available.

• Use high-detergent SAE 30 oil to reduce carbon buildup and improve ring sealing.


• Tier 4-compliant engines with electronic fuel injection

• Improved operator ergonomics and safety features

• Easier access to parts and dealer support


Classic equipment auctions have long been a popular method for buying and selling used heavy machinery. These auctions offer an opportunity for individuals and companies to acquire high-quality equipment at competitive prices, often at a fraction of the cost of brand-new machines. For sellers, it provides a platform to reach a broader audience of potential buyers, making it an efficient way to offload surplus or older equipment.
This article delves into the process of classic equipment auctions, what to expect, and how to navigate them for both buyers and sellers. We will also touch on the unique appeal of classic or vintage machinery auctions, which are often a niche market within the larger equipment auction industry.
The Growth of Classic Equipment Auctions
The equipment auction industry has expanded significantly over the past few decades. Historically, auctions were a niche market for rare or specialty items, but today they have become an essential part of the heavy equipment marketplace. This shift is due in part to the increasing demand for used machinery, which offers both cost savings and faster availability compared to new units.
Classic equipment auctions, specifically, cater to buyers and sellers who are interested in machines with a bit of age but still possess a significant amount of life left in them. These machines are often highly valued for their durability and historical importance, especially if they are well-maintained or part of a limited production run.
Why Buy Equipment at Auction?
There are several advantages to purchasing equipment at an auction, especially in the context of classic or vintage models:

1. Cost Savings:
   • Equipment purchased at an auction is typically priced lower than the new market value. For buyers, this offers an opportunity to acquire machines at a significant discount.

2. Variety of Equipment:
   • Auctions feature a wide range of equipment, including rare or discontinued models that are difficult to find through traditional dealerships. For collectors or those seeking a specific type of machinery, auctions can provide access to equipment that isn't available elsewhere.

3. Immediate Availability:
   • One of the main benefits of purchasing at auction is that the equipment is typically available for immediate purchase. There’s no waiting for lead times or new stock, which can be critical for businesses that need equipment urgently.

4. Transparent Pricing:
   • Auctions are competitive environments, and pricing is transparent. Buyers can see exactly what others are bidding and decide if the final price meets their expectations.

5. Condition and Maintenance History:
   • Many classic equipment auctions will provide details about the condition of the machinery, including maintenance records, which can help buyers assess the reliability and remaining lifespan of the equipment.


1. Auction Catalog:
   • Before the auction, buyers can typically review a catalog or online listing of the equipment being sold. This includes detailed specifications, photos, and maintenance records for each piece of machinery. Buyers should thoroughly review this information to understand the value and condition of the equipment they are interested in.

2. Auction Format:
   • Classic equipment auctions can take place in person or online. Live auctions offer the thrill of bidding in real-time, while online auctions allow participants to place bids remotely over a set period. Online auctions are particularly appealing for buyers who cannot attend in person or prefer to participate at their own pace.

3. Bidding Process:
   • Bidding at an auction involves a competitive process where buyers raise their bids until only one bidder remains. The highest bid at the end of the auction wins the item. Buyers need to be prepared to act quickly and be strategic with their bids to secure a good deal.

4. Payment and Fees:
   • Winning bidders are required to make immediate payment, often within a few days, after the auction concludes. Payment methods typically include wire transfers, credit cards, or certified checks. Auctions may also charge buyer’s premiums, which are additional fees (usually a percentage of the sale price) added to the final bid amount.

5. Inspection:
   • Before placing a bid, buyers should inspect the equipment in person if possible. Many auctions allow pre-auction inspections, giving potential buyers the chance to assess the condition of the equipment firsthand. It's crucial to look for signs of wear and tear, rust, or other potential issues that might affect the machine's performance.


1. Set a Budget:
   • Before participating in an auction, determine your budget and stick to it. It's easy to get caught up in the excitement of bidding, but going over budget can lead to unnecessary financial strain.

2. Know the Equipment:
   • Research the equipment you're interested in before the auction. Understand the specific features, performance capabilities, and potential maintenance costs. This will help you make informed decisions during the bidding process.

3. Don't Be Afraid to Walk Away:
   • Auctions can become competitive, but it’s important to remain calm. If the bidding goes higher than you're willing to pay, don’t hesitate to walk away. There will always be other opportunities.

4. Inspect the Equipment Thoroughly:
   • As mentioned earlier, always inspect the equipment before bidding. Look for any signs of wear that might not be mentioned in the auction listing. If you are unsure about the condition of the machinery, consider hiring a mechanic or technician to help assess it.


1. Access to a Broad Audience:
   • Auctions attract buyers from across the region or even the country. Sellers can reach a larger market than they might through traditional sales methods.

2. Faster Transactions:
   • Auctions are time-sensitive, which means the sale of equipment can happen quickly. This is particularly useful for businesses that need to sell machinery to free up space or liquidate assets.

3. Competitive Bidding:
   • With multiple bidders vying for the same piece of equipment, sellers can often achieve a higher sale price than expected. The competitive nature of auctions drives up the final sale price.


The Takeuchi TB135 and Its Hydraulic System
The Takeuchi TB135 is a compact excavator introduced in the early 2000s by Takeuchi Manufacturing, a Japanese company founded in 1963 and known for pioneering the compact track loader. The TB135 features a zero-tail swing design, a 3.3-ton operating weight, and a dual-pump hydraulic system that powers travel, boom, arm, bucket, and auxiliary functions. With over 20,000 units sold globally, it remains a popular choice for contractors and rental fleets due to its reliability and maneuverability.
The hydraulic system in the TB135 uses two variable-displacement piston pumps, each supplying different circuits. Pump 1 typically powers travel and swing functions, while Pump 2 handles boom, arm, and bucket operations. The system includes a pilot circuit, control valves, and a return filter to maintain fluid cleanliness and pressure balance.
Symptoms of Hydraulic Failure
In one case, a 2007 TB135 with 2,000 hours began exhibiting erratic behavior:

• The machine curved during high-speed travel but tracked straight in low speed

• Bucket curl lost power, while boom lift remained strong

• Swapping pump hoses caused the boom to lose lifting ability


• Swash plate wear: Reduces displacement and flow

• Valve plate scoring: Causes internal leakage and pressure loss

• Piston ring damage: Leads to cavitation and erratic flow

• Bearing failure: Generates metal debris and contaminates fluid


• Drain all hydraulic fluid and inspect for metal particles or discoloration

• Replace return filters and pilot filters with OEM-grade elements

• Flush lines using clean hydraulic fluid under low pressure

• Inspect valve blocks and cylinders for signs of contamination

• Clean the tank and suction strainer thoroughly


• Change hydraulic fluid every 1,000 hours or annually

• Replace filters every 500 hours

• Warm up the machine before operating in cold weather

• Inspect hoses and fittings quarterly for leaks or abrasion

• Use only manufacturer-approved fluids and components
