Two 21-Ton Excavators In The Same Class
The Kobelco SK210-10 and the Case CX210C sit in the same 21-ton excavator class, targeting contractors who need a primary digging machine for general earthworks, trenching, and site development. Both are designed to run as the main production excavator on a small to mid-sized fleet, pairing well with 15–16 ton machines that handle tighter spaces.
The SK210-10 belongs to Kobelco’s -10 generation, developed as a fuel-efficient, low-emission successor to the earlier SK210-8. Kobelco, whose excavator history stretches back to the 1930s in Japan, has become particularly strong in the “green” and low-fuel consumption segment; globally, the company has sold hundreds of thousands of excavators across different weight classes, with the 20–22 ton range consistently among its best sellers.
The Case CX210C is part of Case Construction’s C-series excavators, combining Isuzu-based power with refined hydraulics. Case’s roots go all the way back to the 19th century in the United States, and its excavators have a long presence in North America and Europe. The CX210C occupies a core position in Case’s excavator lineup and is widely used in infrastructure projects, agriculture and general contracting.
Basic Specifications And Machine Character
While exact numbers can vary with boom, arm and undercarriage options, both models share broadly similar specs:

• Operating weight
  • Kobelco SK210-10 around 21–22 t depending on configuration

  • Case CX210C around 21–22 t as well

• Engine power
  • SK210-10 roughly 158–160 hp class

  • CX210C around 157 hp

• Typical applications
  • Bulk excavation and trenching

  • Utility work and pipe laying

  • Road building, retaining walls, and general site work


• A wider undercarriage
  • Increases lateral stability when digging over the side

  • Makes the machine feel more planted on slopes or uneven ground

  • Reduces the “tippy” feeling when handling heavy loads at long reach

• A narrower undercarriage
  • Easier to move on tight roads and through narrow gates

  • May simplify transport permits in some regions

  • Can feel more “lively” or less stable when working over the side with full buckets


• Hydraulic thumb
  A hinged claw mounted on the stick, driven by a hydraulic cylinder, used to grip logs, rocks, and debris against the bucket.

• Quick coupler
  A mechanism that allows rapid exchange of buckets and attachments without driving out the bucket pins manually.


• A factory or dealer-installed thumb is extremely useful for:
  • Land clearing and tree work

  • Demolition and site cleanup

  • Handling rock and irregular debris

• But there are trade-offs
  • The thumb can limit bucket size, because an oversized bucket may not nest properly with the thumb

  • Machines that have spent their previous life with thumbs are sometimes worked harder in rough handling and demolition, so there is a concern that they may have led a tougher life


• Average fuel burn in moderate digging:
  • Approximately 10–14 liters per hour for light to medium trenching in economy modes

  • Closer to 15–20 liters per hour in heavy digging at full power

• Differences between brands in the same class
  • Often within a few liters per hour when machines are tuned correctly and operators use the right power modes

  • Over 1,500–2,000 hours per year, a difference of 2–3 liters per hour adds up to 3,000–6,000 liters annually, which is a meaningful cost difference


• Kobelco Construction Machinery
  • Japanese origins, with decades of specialization in hydraulic excavators

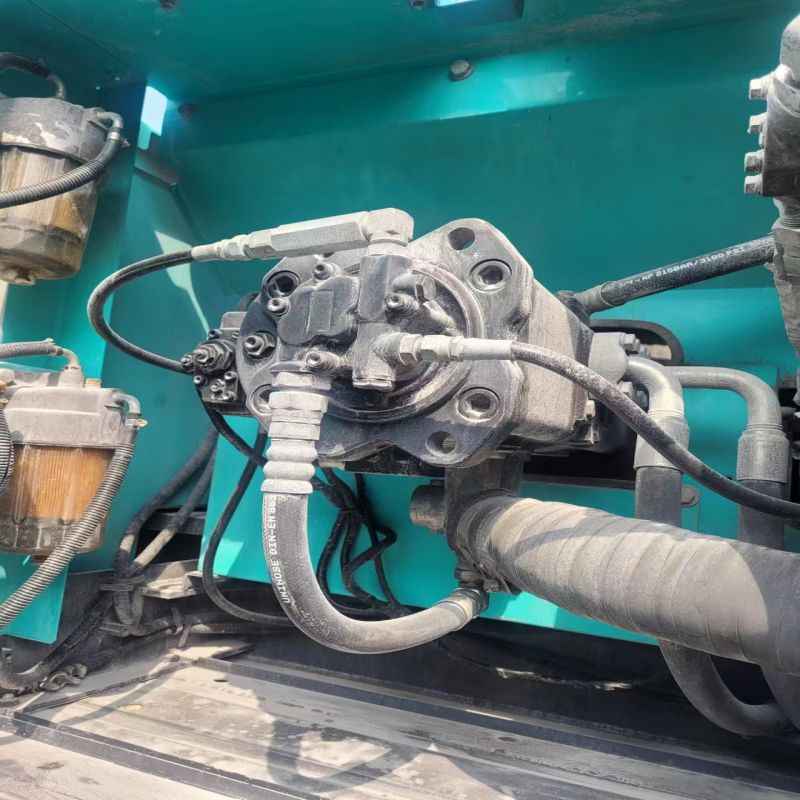

  • Known for smooth hydraulics and fuel efficiency

  • Global presence, particularly strong in Asia and increasingly visible in North America and Europe

• Case Construction Equipment
  • Roots in Racine, Wisconsin, going back to agricultural machinery in the 19th century

  • Long history in loaders, backhoes and excavators

  • Strong dealer networks in parts of North America, Europe and Latin America


• Felt more stable, especially over the side

• Provided a comfortable cab and pleasant control “feel”

• Delivered strong digging performance without feeling sluggish


• The fleet already had a Case CX160B with good fuel economy and proven reliability

• The used CX210C came well equipped with a thumb and extra bucket

• Familiarity with Case controls and dealer relationship already existed


• The Kobelco
  • Brand new

  • One bucket

  • No thumb

  • Slightly lower purchase price

• The Case CX210C
  • Used machine but well equipped

  • Comes with hydraulic thumb and an extra bucket

  • Slightly higher purchase price


• New machine advantages
  • Full warranty and dealer backing

  • Known history from zero hours

  • Latest refinements in hydraulics and electronics

• Used machine advantages
  • Lower capital outlay if equivalently equipped

  • Extra attachments included, reducing immediate setup cost

  • Possibly shorter lead time if stock is available on the lot


• True maintenance history of the used machine

• How heavily the thumb-equipped unit may have been worked in its previous life

• Potential future resale value of each brand in the local market


• If the machine will perform a lot of clearing and demolition
  • A thumb is almost essential from day one

  • A heavier, wider undercarriage helps stability when pulling trees and large stumps

• If it will focus on trenching, grading and pipe work
  • A range of bucket sizes and possibly a hydraulic tilt bucket may bring more value than a thumb

  • Precise, smooth hydraulics and good fuel economy are daily benefits


• Parts take weeks to arrive

• Field service technicians are scarce

• Warranty disputes are difficult to resolve


• Which dealer is closer to your primary work area?

• How many field service trucks does each dealer operate?

• What are typical parts lead times for items like pumps, motors, sensors and panels?

• Do they offer preventive maintenance packages, extended warranties, or uptime guarantees?


• The operator takes both machines to a deep trench and a stockpile, swapping the same 36-inch bucket between them.

• The Kobelco feels steadier when swinging a full bucket over the side into trucks, with less rocking.

• The fuel log at the end of a week suggests similar or slightly lower fuel usage on the Kobelco, even with some heavier work mixed in.

• The crew notes that the new cab layout is comfortable, with thoughtful storage and visibility.


• Choose the Kobelco SK210-10 if
  • You value maximum stability and fuel efficiency

  • You prefer a brand-new machine with full warranty

  • Your local Kobelco dealer has strong support and good parts availability

  • You are willing to add a thumb and extra buckets after purchase to get exactly what you want

• Choose the Case CX210C if
  • You already run Case machines and are happy with support and uptime

  • You find a used CX210C in excellent condition with the right attachments included

  • You want lower initial capital cost and immediate readiness for clearing and demolition thanks to a thumb and extra buckets

  • Dealer proximity and long relationships favor Case in your region


• Undercarriage width and resulting stability

• Fuel economy in your type of work

• Attachment package and machine history

• Dealer strength and long-term support


The TL1055 and Its Electronic Control System
The Caterpillar TL1055 is a telehandler designed for heavy lifting and material handling in construction, agriculture, and industrial applications. It features a maximum lift capacity of over 10,000 pounds and a reach exceeding 40 feet. The TL1055 is powered by a CAT C4.4 diesel engine and integrates an electronic control module (ECM) that manages engine performance, emissions, and diagnostics.
To interface with the ECM, Caterpillar provides a proprietary diagnostic tool called CAT Electronic Technician (CAT ET). This software, when connected via a communication adapter, allows technicians to read fault codes, monitor live data, and perform calibrations. However, connecting CAT ET to certain machines like the TL1055 can sometimes present unexpected challenges.
Common Connection Failure Symptoms
When attempting to connect CAT ET to a TL1055, technicians may observe the following:

• The communication adapter powers on, indicating electrical continuity

• CAT ET launches successfully but displays an error stating it cannot establish communication with the ECM

• The issue persists across multiple TL1055 units, including newer variants like the TL1055C

• The same adapter and software connect without issue to other Caterpillar machines


• Incorrect communication protocol: The TL1055 may use a different CAN bus configuration or require a specific protocol setting in CAT ET.

• Non-engine ECM prioritization: Some telehandlers use multiple ECMs (e.g., for transmission, hydraulics, or chassis). If the engine ECM is not the primary controller on the CAN network, CAT ET may fail to detect it automatically.

• Wiring or connector issues: Damaged or corroded diagnostic ports, broken CAN lines, or misrouted wiring can block communication.

• Software version mismatch: Older versions of CAT ET may not support newer ECM firmware found in TL1055C models.


• Verify adapter compatibility: Ensure the communication adapter is a genuine CAT model (e.g., Comm Adapter III) and supports the TL1055’s communication protocol.

• Update CAT ET software: Install the latest version of CAT ET and confirm that the ECM firmware is supported.

• Manually select ECM: In CAT ET, bypass automatic detection and manually select the ECM type and communication path.

• Inspect diagnostic port: Check the 9-pin or 14-pin Deutsch connector for bent pins, corrosion, or loose terminals.

• Test CAN voltage: Use a multimeter to confirm that CAN high and CAN low lines are within the expected voltage range (typically 2.5V ±0.5V).

• Try alternate connection points: Some TL1055 models have secondary diagnostic ports near the engine bay or under the cab.


What Annual Safety Inspections Really Mean
In many regions, the term “annual safety inspection” refers to a legally required, documented check of commercial trucks and certain trailers at least once every twelve months. The idea is simple: a qualified person verifies that critical systems like brakes, steering, lighting and tires meet minimum safety standards, and the owner keeps written proof of the inspection on file for regulators or law enforcement.
For operators running dump trucks, lowboys, service trucks and other heavy equipment haulers, these inspections are not optional policy suggestions – they are mandatory in most North American jurisdictions once a vehicle crosses specific thresholds of weight, use, or commercial registration. In the United States and Canada, this framework ties into federal rules and state or provincial statutes that aim to reduce accidents involving heavy vehicles.
Even when local rules differ, the core elements are similar:

• Regular periodic checks at least yearly

• A defined list of components and systems to inspect

• A requirement that records be retained for a fixed number of years

• Penalties for operating without a valid inspection or falsifying documents


• Catch worn parts before they fail on the road

• Reduce roadside breakdowns and tow bills

• Lower the risk of fines during random road checks

• Protect insurance rates and company reputation


• Gross vehicle weight rating (GVWR) above a certain limit, often around 10,000–10,500 kg or its pound equivalent

• Use in commerce, such as hauling for hire, construction service work, or business deliveries

• Combination vehicles (truck plus trailer) exceeding specified weight limits


• A light pickup used purely privately may not need an annual commercial inspection

• The same pickup, when used with a heavy equipment trailer for a business and registered accordingly, may fall under inspection rules

• Vehicles under certain weights but towing heavy trailers can cross the line and require inspections, while larger RVs or personal travel trailers may be exempt under separate rules


• Braking system
  • Service brakes, parking brake and emergency features

  • Air system leaks, compressor performance and low-air warning where applicable

  • Drum or rotor condition, lining thickness, slack adjuster stroke

• Steering
  • Steering box mounting, pitman arms and linkages

  • Power steering hoses and pumps for leaks

  • Free play measured at the steering wheel rim

• Suspension and frame
  • Springs, hangers, airbags, torque rods and bushings

  • Cracks, severe rust, or previous repairs on frame rails and crossmembers

• Wheels and tires
  • Tire tread depth against minimum standards

  • Sidewall damage or exposed cords

  • Wheels for cracks, distorted bolt holes, and missing fasteners

• Lighting and electrical
  • Headlights, signal lamps, brake and marker lamps

  • Wiring integrity in exposed areas, including trailer plugs

• Coupling devices
  • Fifth wheel, kingpin and lock jaws on tractors

  • Pintle hooks, drawbars and safety chains on smaller tow rigs

• Cab safety and documentation
  • Mirrors, windshield wipers and glass condition

  • Horn, seat belts, fire extinguisher if required

  • Presence of registration, insurance and inspection records


• Keeping inspection reports for at least one or two years, sometimes longer

• Having proof of inspection available for review during audits or roadside checks

• Ensuring the inspector’s qualifications and the facility’s credentials meet local regulations


• The most recent annual inspection record

• Maintenance logs for the specific defect (for example, recent brake work)


• The law allows qualified mechanics employed by the fleet to perform annual inspections

• Those mechanics must meet specific criteria, such as relevant training, experience, and sometimes a formal certification

• Some regions require inspections to be done at licensed inspection stations that are periodically audited by the state or province


• Pay an outside shop to handle the inspection annually

• Invest in training and documentation so an internal mechanic can legally sign off


• “If it passes the emissions test, I am covered”
  Emissions and safety inspections are often separate programs. Emissions tests focus on pollutants; safety inspections focus on mechanical fitness such as brakes, suspension and steering.

• “I only haul my own machines, so it doesn’t count as commercial”
  Many regulations define “commercial” to include vehicles used in furtherance of a business, even when not hauling for hire. Hauling your own excavator to a job for your paying client can still place you under commercial rules.

• “My pickup is under the weight threshold, so the trailer doesn’t matter”
  In many places, combined weight of truck and trailer determines the requirement. A relatively light truck can still end up over the threshold when pulling a loaded equipment trailer.

• “Annual means once whenever I get around to it”
  The interval is usually defined by month and year, and law enforcement may treat an expired inspection as a violation even if only a few days overdue.


• Notices the out-of-date inspection decal

• Measures loaded weight, confirming it is well above the commercial threshold

• Performs a quick visual inspection and finds one tire with exposed cords and a cracked spring hanger


• The vehicle is placed out of service until defects are corrected

• The owner receives fines for both mechanical defects and lack of a current annual inspection

• The job is delayed, costing not only repair money but also lost revenue and customer frustration


• Fleets that adopt rigorous preventive maintenance and annual inspections often report 20–30% fewer roadside breakdowns compared with fleets that only react to failures

• In some internal company studies, comprehensive annual inspections combined with driver pre-trip checks have cut out-of-service violations during roadside inspections by more than half over a 2–3 year period

• Insurance carriers sometimes offer better rates to fleets that can show strong maintenance and inspection records during underwriting reviews


• Excavators, loaders and dozers transported by the inspected trucks should undergo regular documented inspections of their own critical systems, such as swing brakes, hydraulic leaks, ROPS structures and travel motors

• Tie-down points on machines should be inspected, since damaged or missing lugs can make legal securement impossible


• Detailed inspection using standardized forms

• Updates to maintenance records

• Planning for upcoming component replacements before the busy season


• Time out of service while the truck is in the shop

• Repairs discovered during the inspection


• Scheduling inspections just before slow periods, such as late fall after peak construction season

• Bundling inspections with other planned maintenance, like oil changes and brake jobs, to minimize downtime

• Using inspection findings to build a repair schedule prioritized by safety and regulatory impact


• Training drivers and operators to perform proper daily walk-arounds

• Encouraging reporting of defects without fear of punishment

• Rewarding teams that maintain low defect and violation rates

• Using inspection data in toolbox talks and safety meetings to show trends


• Understand when the law requires annual inspections based on weight, use and registration

• Use thorough checklists that address brakes, steering, suspension, tires, lighting, coupling devices and documentation

• Keep clear, accessible inspection records and tie them into maintenance planning

• Treat inspections as an integral part of business operations, not an afterthought


The John Deere 410 and Its Hydraulic Outrigger Design
The John Deere 410 backhoe loader, introduced in the late 1970s and refined through the 1980s, became a staple in municipal and utility fleets across North America. Known for its mechanical simplicity and rugged build, the 410 featured hydraulic outriggers designed to stabilize the machine during digging operations. Each outrigger is powered by a hydraulic cylinder, and the piston within that cylinder is secured by a high-torque bolt—often tightened to over 1,000 ft-lbs and sealed with thread-locking compound.
When an outrigger piston is damaged or leaking, replacing it requires removing this bolt, which can be one of the most stubborn components in the entire machine.
Common Challenges in Piston Bolt Removal
Operators attempting to remove the piston bolt often encounter extreme resistance. Even with a 1-inch impact gun powered by 200 psi air, the bolt may not budge. Breaker bars, cheater pipes, and brute force frequently fail. The reasons include:

• High torque settings: Factory torque can exceed 1,200 ft-lbs

• Thread-lock compound: Loctite or similar adhesives require heat to release

• Corrosion and thread galling: Moisture intrusion over time can seize threads

• Limited access: The bolt is often recessed within the outrigger pedestal


• Shock loading with a sledgehammer: Striking the bolt head sharply with a heavy hammer can break the bond of thread-lock and corrosion. This technique relies on mechanical shock to disrupt adhesion.

• Heat application: Heating the bolt to 250–300°F softens thread-lock compounds without damaging nearby seals. A propane torch or induction heater can be used cautiously.

• Extended leverage: Using a 10–12 foot breaker bar with a high-strength ratchet allows gradual torque application. Avoid using a standard breaker bar alone, as it may snap under load.

• Hydraulic repair shop assistance: Shops equipped with bench-mounted torque stations and specialty sockets can remove stubborn bolts safely.


• Avoid open flame near rubber or plastic parts

• Use controlled heat sources and monitor temperature with an infrared thermometer

• Disassemble surrounding components to isolate the bolt before heating

• Store removed seals in clean, oil-free containers to prevent contamination


• Clean all threads thoroughly and apply fresh thread-lock compound

• Torque the bolt to manufacturer specifications, typically 1,000–1,200 ft-lbs

• Use anti-seize on non-threaded surfaces to ease future disassembly

• Inspect gland nut and wear bands for scoring or distortion


Background Of The Volvo VNL 670 Platform
The Volvo VNL 670 is a long-haul highway tractor that became a common sight on North American roads in the mid-2000s. Equipped in this case with a D12 engine, it uses a networked electronic architecture in which multiple control modules communicate over data buses rather than relying on simple point-to-point wiring.
By the late 2000s, Volvo Trucks had delivered well over 100,000 VNL-series tractors worldwide, and the 670 sleeper variant was one of the more popular models among owner-operators and fleet buyers because of its balance between aerodynamics, comfort and operating cost.
On these trucks, the electrical system is not just a collection of wires and fuses. It is an integrated system built around:

• An engine electronic control unit (EECU or MID 128)

• A vehicle electronic control unit (VECU)

• A body or instrument cluster module

• A J1939 data bus tying them together


• With the engine running

• Also with the engine off but key on


• Road speed data erratic

• Idle validation switch signal

• Engine oil pressure reporting issues

• Ambient air temperature communication error

• Electrical fault

• SAE J1939 data link data erratic


• Intermittent power or ground to one or more control modules

• Data bus integrity issues

• Corroded or loose connections at critical junctions


• MID (Module Identifier)
  Identifies which control module is reporting the fault. For example, MID 128 generally refers to the engine control module.

• PID/SID (Parameter/Suspect Identifier)
  Identifies the specific parameter or circuit, such as oil pressure, road speed, or idle validation switch.

• FMI (Failure Mode Identifier)
  Describes the type of fault, such as “high,” “low,” “erratic,” or “loss of communication.”


• J1939 bus intermittently failing

• Shared power supply or ground feeding several modules cutting in and out


• Step 1 connections

• Step 2 connections

• Step 3 connections

• Step 4 wiring

• Step 5 everything else


• Battery terminals for looseness, corrosion, and damaged eyelets

• Main ground connections between batteries, frame, and engine block

• Power and ground feed studs on firewall pass-through panels

• High-current fuses or fusible links supplying the control systems


• J1939 data pair
  Two wires commonly labeled CAN-H and CAN-L, twisted together to reduce noise.

• Terminating resistors
  Typically two 120-ohm resistors at each end of the bus. In a healthy system, the total resistance measured between CAN-H and CAN-L is about 60 ohms.


• Measure resistance between the J1939 data wires at the diagnostic connector with the system powered down
  • Expected reading near 60 ohms

  • A significantly higher or lower reading indicates missing or extra resistors, shorted segments, or module problems

• With power on, measure voltage from each data wire to a good ground
  • Both wires should sit near 2.5 volts

  • One line will be slightly higher than 2.5 V and the other slightly lower during communication

  • A reading pinned at 0 V or near battery voltage on one wire can indicate a short


• Studs for positive and negative power distribution

• Several ground wires stacked on mounting bolts

• Harness connectors passing signals into the cab


• Corrosion on ground lugs, increasing resistance and causing voltage drops

• Loose or cracked studs that create intermittent power feeds

• Moisture intrusion leading to green or white corrosion products around connectors


• Remove the panel covers on both engine side and cab side

• Clean and tighten all ground lugs, ensuring bare metal contact

• Inspect the positive and negative studs for looseness or signs of heat (discoloration, melted plastic)

• Verify torque on fasteners and replace any damaged hardware


• Trace the main feed wire from the firewall panel back to the battery
  • Look for an in-line fuse or fusible link connected to the positive post

  • Inspect the fuse holder for melting, discoloration, or loose terminals

• Inspect the ground return wire from the same circuit back to the negative battery post
  • Pay close attention to the crimped eyelet at the battery terminal, as strands may break internally and create intermittent contact

• With the truck off and key on, and all accessories like radio switched off to keep the cab quiet, gently wiggle the harness, connectors and fuse holders while listening for:
  • Relays clicking

  • Engine fan solenoid engaging and disengaging

  • Other control components audibly cycling


• Electronic control units are less common failure points than wiring and connectors

• Swapping modules without first verifying power supply and bus integrity can lead to unnecessary cost and frustration


• Confirm stable battery voltage at all module power and ground pins

• Confirm data bus resistance and voltage are within spec

• Only then, if symptoms persist with known-good wiring and confirmed signals, consider module substitution or repair


• Some aftermarket telematics boxes are wired directly into ignition feeds and J1939 or J1708 data lines

• If removed carelessly, cutting wires rather than properly disconnecting at a plug can leave open circuits or shorts on the bus

• In rare cases, a failing telematics box can disturb the data link, causing erratic communication


• Identify whether the telematics unit uses OEM-style connectors that can simply be unplugged

• If spliced into the harness, label wires and either restore the original circuit using soldered and sealed joints or use OEM repair harnesses

• After removal, recheck data bus resistance and voltage to ensure the bus is still healthy


• Battery connections are cleaned and tightened

• Ground straps from frame to engine are removed, wire-brushed, and reinstalled

• The firewall pass-through panel is opened and reveals a cracked positive stud with visible heat damage


• Trucks operating in high-corrosion regions (road salt, coastal air) show more connector and ground-related faults

• Preventive programs that include scheduled inspection and cleaning of key grounds and pass-through panels reduce electrical breakdowns significantly


• Up to 30% reduction in unscheduled electrical repairs after implementing annual power-distribution inspections

• Lower incidence of phantom communication codes when J1939 harnesses and connectors are periodically inspected and protected with appropriate dielectric and anti-corrosion treatments


• Battery posts and main cables

• Frame-to-engine grounds

• Firewall pass-through studs and ground stacks

• Main fuse blocks and in-line fuses


• Verify battery health
  • Load-test batteries and confirm voltage stability under load

• Inspect and service all main power and ground connections
  • Battery terminals, ground straps, engine block connection

  • Clean, tighten, and if needed replace corroded eyelets

• Open and inspect the firewall pass-through panel
  • Clean and tighten grounds

  • Inspect power studs for cracks, heat, or looseness

• Check the main engine management power feed circuit
  • Locate in-line fuse or fusible link from the battery to the pass-through

  • Inspect for melting, burning, or intermittent contact

• Perform J1939 bus checks
  • Resistance near 60 ohms with key off

  • Roughly 2.5 volts on each line with key on, and no shorted lines

• Conduct wiggle tests with key on
  • Listen for relays or solenoids reacting when harnesses or connectors are moved

• Only after all of the above, consider module failure
  • If power, grounds, and data bus are verified good and the problem persists, test with a known-good VECU or EECU as appropriate


• Careful inspection and cleaning of power and ground paths

• Verification of J1939 bus health with simple multimeter checks

• Logical progression from basic wiring toward more complex module diagnosis


Hyundai Dash-3 Series and Its Control System
The Hyundai Dash-3 series, including models like the 130LC-3 and Robex 210LC-3, was introduced around the late 1990s to early 2000s as part of Hyundai’s push into electronically managed excavators. These machines featured a digital control system that allowed operators to select work modes—typically S (Standard), L (Low), and F (Fine)—to optimize hydraulic response and engine RPM for different tasks. While the concept was forward-thinking, the execution introduced a layer of complexity that has challenged operators and mechanics alike.
The control system relies on an onboard computer (ECM) that interprets joystick inputs, mode selections, and sensor feedback to regulate engine speed and hydraulic flow. When functioning properly, switching between modes adjusts the machine’s behavior to suit trenching, lifting, or precision grading. However, intermittent failures in this system can cause erratic mode switching and RPM drops, severely impacting productivity.
Symptoms and Field Observations
Operators have reported that while working in S or L mode, the machine may suddenly switch to F mode without input, causing the engine RPM to drop to around 1500. Attempts to reselect the desired mode often fail, or the machine reverts to F mode immediately after releasing the selector. In some cases, the machine will accept the mode change but limit RPM to 1950, requiring a full power-down and restart to reset the system.
These symptoms suggest a fault in the ECM, wiring harness, or mode selector interface. The intermittent nature of the issue—sometimes allowing an hour of trouble-free operation, other times failing within seconds—points to electrical instability rather than mechanical failure.
Probable Causes and Technical Breakdown
Several root causes have been identified:

• Loose or corroded ground connections: A poor ground can disrupt signal integrity, causing the ECM to misinterpret mode selection or sensor data.

• Faulty ECM or EEPROM chip: The EEPROM (Electrically Erasable Programmable Read-Only Memory) stores configuration data. A failing chip may cause erratic behavior. Replacing the EEPROM is a low-cost fix (~$25) and can resolve persistent issues.

• Wiring harness degradation: Vibration, heat, and age can cause insulation breakdown or connector fatigue, leading to intermittent shorts or open circuits.

• Mechanical relay hang-ups: Some ECMs use semi-mechanical relays that can stick due to lack of use or contamination. Tapping the ECM housing has been known to temporarily restore function, suggesting physical relay issues.


• Disconnect and inspect battery terminals and ground straps

• Use a multimeter to test continuity and voltage at the mode selector and ECM inputs

• Remove and inspect the ECM for signs of moisture, corrosion, or physical damage

• Replace the EEPROM chip if available and compatible

• Clean and reseat all connectors in the control harness

• If tapping the ECM restores function, consider replacing the unit or reflowing solder joints on the circuit board


Overview Of The Komatsu WA350
The Komatsu WA350 is a mid-size wheel loader that became popular in the 1980s for quarry work, snow removal, aggregate handling, and general construction. As part of Komatsu’s WA-series, it helped the company strengthen its position against long-established competitors in North America and Europe. By the late 1980s, Komatsu’s global wheel loader production was already in the tens of thousands of units, and the WA300–WA380 range made up a significant portion of that market.
Typical specs for a WA350-1 include:

• Operating weight roughly in the 18–20 ton range

• Engine in the 180–200 hp class, depending on exact variant

• Power-shift transmission with multiple forward and reverse speeds

• Hydraulic wet disc brakes and a parking brake with a transmission neutralizer


• The loader was working normally (for example, plowing snow)

• While traveling, the engine suddenly revs up but the loader stops moving

• Transmission oil level appears correct, and the filter might be relatively new

• Forward and reverse can be selected, and the machine “nudges” or rocks maybe an inch, but then refuses to travel

• The same behavior occurs in all gears, both directions

• The parking brake is confirmed “off” at the lever


• Cut power to the transmission when the brake pedal is depressed (clutch cut-out or neutralizer)

• Apply or release the parking brake using solenoids


• Neutralizer solenoid
  An electrically controlled valve that vents or blocks hydraulic pressure feeding the transmission clutch packs. If stuck or powered at the wrong time, it can keep the machine effectively in neutral even when a gear is selected.

• Parking brake solenoid
  A solenoid valve that applies or releases the parking brake mechanism, often spring-applied and hydraulically released.


• Torque converter between engine and transmission input

• Multiple clutch packs for forward, reverse, and individual gears

• Hydraulic control valves and solenoids to direct oil to each clutch pack

• A hydraulic pump drawing oil through strainers and filters from the transmission sump


• The pump produces sufficient pressure and flow

• The control valves send that pressure to the correct clutch pack

• The friction discs and steel plates in the clutch packs have enough friction material and flatness to grip without slipping


• Clutch pack friction material failed (burned discs, twisted plates)

• A key hydraulic feed path lost pressure (blocked strainer, bad pump, stuck valve, failed solenoid)

• A neutralizer circuit is unintentionally dumping pressure


• Check for basic external causes
  • Confirm the parking brake is definitively released, both at the cab control and at the axle brake mechanism

  • Visually inspect the brake caliper or disc pads if accessible

  • Verify that axle disconnects (if fitted) and drive shafts are intact

• Inspect transmission oil
  • Correct level at operating temperature

  • Oil should be reasonably clear and not smell badly burnt

  • “Coffee-colored” oil suggests contamination with water or severe oxidation

  • Metallic “silver paste” in the bottom of the case indicates clutch and steel plate wear, often a sign that the clutch packs are in trouble

• Evaluate filter and suction strainer
  • Even if a filter has fewer than 100 hours, it could be contaminated by a sudden clutch failure

  • Many Komatsu transmissions have a fine-mesh suction strainer at the pump inlet; partial blockage can drastically reduce flow and pressure

• Measure clutch and main transmission pressures
  • Using the test ports recommended in the shop manual, measure main pressure and individual clutch pack pressures at idle and at rated RPM

  • Typical clutch pressures on similar Komatsu transmissions might be on the order of 8–12 bar (roughly 120–175 psi), while a failing system can show much lower numbers like 30–40 psi, dropping as the oil warms

  • If pressure starts reasonable cold and then falls off as the oil warms, that points strongly at internal leakage, often from worn pump components or clutch pack seals

• Check the neutralizer and solenoid block
  • Confirm that wires to the neutralizer solenoid are intact and that the solenoid only energizes when the brake or cut-out control demands it

  • If the solenoid is stuck open internally, it can vent clutch pressure continuously, making the loader unable to move even though the lever selects gears

• Mechanical isolation tests
  • As some owners do, disconnecting the front drive shaft or rear axle disconnect to see if a specific axle is locking up can show whether the problem lies in the axles or within the transmission itself.

  • If disconnecting axles still results in the machine trying to engage and then “locking” internally with a clunk, the fault is very likely inside the transmission.


• Normal oil level

• No brake drag

• No locked axles or failed drive shafts

• No obvious solenoid or wiring fault


• Severely worn friction discs
  • Friction material worn away or burned off

  • Discs turning blue or black from heat

• Twisted or warped steel plates
  • Plates no longer flat, causing uneven clutch engagement

  • Excessive clearance leading to slow or no engagement

• Damaged pistons and sealing rings in clutch packs
  • Broken or worn piston rings unable to hold pressure

  • Internal leakage so severe that effective clamping pressure cannot be reached

• Transmission oil pump wear or damage
  • Low pressure even at high RPM

  • Pressure that drops as oil warms and thins


• Increased operator comfort with improved cabs and visibility

• More efficient hydraulic systems for faster cycle times

• Robust power-shift transmissions designed to handle high-duty cycles in mining and quarry environments


• Parking brake lever confirmed off

• Oil checked OK

• Clutch cut-out switch bypassed in case the switch has failed


• Purchase price versus replacement cost
  • A running WA350 in usable condition can still be worth a significant sum, especially with good tires and a tight front linkage.

  • A remanufactured transmission can cost several thousand dollars, but a properly executed rebuild may be achieved for a lower parts cost if local labor is available.

• Remaining life of the rest of the machine
  • If pins, bushings, axles, and engine compression are still within reasonable limits, investing in the transmission can add thousands of productive hours.

  • If the machine is already severely worn in several systems, a used or reman transmission might outlive the rest of the loader, reducing the economic sense of the repair.

• Downtime
  • Removing and rebuilding a transmission can take days or weeks depending on shop load, while swapping in a reman unit can be faster if one is available in stock.


• Strict adherence to oil and filter change intervals
  • Many fleets aim for transmission oil and filter changes in the 1,000–2,000 hour range, adjusting based on duty severity and oil analysis results.

• Regular strainer inspection
  • Removing and cleaning the suction strainer during major services ensures that flow capacity stays high and prevents cavitation in the pump.

• Routine pressure checks
  • Logging clutch pressure at each annual service builds a trend line; a slow decline over time provides early warning of wear long before the loader quits moving.

• Monitoring operator complaints
  • Hesitation when shifting direction, delayed engagement, or slipping under load are often the earliest hints of internal leakage or clutch wear.

  • Addressing these symptoms early can prevent the sudden, total loss of drive that strands the machine mid-job.


• Verify brakes, electrical neutralizer, and obvious external issues

• Inspect oil condition, filters, and strainers

• Test main and clutch pressures under cold and warm conditions

• Decide between targeted overhaul and full replacement based on the pressure results, contamination level, and overall condition of the machine


JLG and the 45HA Boom Lift Design
JLG Industries, founded in 1969, has long been a leader in aerial work platforms and telehandlers. The 45HA articulating boom lift is part of JLG’s hybrid series, combining electric and hydraulic systems for versatile performance in both indoor and outdoor environments. With a working height of 51 feet and a horizontal outreach of over 24 feet, the 45HA is designed for maneuverability and precision in tight spaces.
Its tower lift cylinder, located within the articulating boom structure, plays a critical role in raising and lowering the upper boom sections. Hydraulic hoses connected to this cylinder must withstand high pressure and frequent articulation, making their placement and serviceability crucial.
Challenges in Hose Access and Tool Clearance
One of the most common service frustrations with the 45HA is the limited clearance around the hydraulic hose fittings on the tower lift cylinder. These fittings are often recessed within the boom structure, surrounded by metal brackets and pivot blocks that restrict tool access. Standard wrenches are too bulky to reach the fittings, and even compact adjustable wrenches may not provide the necessary torque or angle.
This issue is not unique to JLG. Many manufacturers prioritize compact design and structural integrity, sometimes at the expense of service accessibility. Mechanics often resort to specialized tools or partial disassembly to reach critical hydraulic connections.
Recommended Tools and Techniques
To address tight clearance around hydraulic fittings, technicians have developed several strategies:

• Crowfoot wrenches: These open-end wrench heads attach to ratchet extensions, allowing access in confined spaces.

• Angle wrenches: Brands like Snap-on offer angle wrenches with unique offsets that can reach around obstructions.

• Service wrenches: Thin-profile wrenches designed for hydraulic service can be alternated with angle wrenches for incremental turns.

• Pin removal and pivot block rotation: In some cases, knocking out a pivot pin allows the block to swing away, exposing the fittings. This method requires caution and proper support to avoid damaging the boom or cylinder.


• Removable access panels near critical hydraulic junctions

• Repositioned fittings with swivel adapters for easier reach

• Modular hose routing with quick-disconnect couplings


• Inspect hose routing and fitting torque during scheduled maintenance

• Apply anti-seize compound on threads to ease future removal

• Replace hoses with high-flex rated lines to reduce fatigue

• Document hose part numbers and fitting types for quick reordering

• Keep a set of specialty wrenches and crowfoot adapters in the service kit


Overview Of The 1970s JCB Backhoe
In the 1970s, JCB’s 3C and 3D backhoes became common workhorses on farms, construction sites, and small contractors’ yards across Europe and North America. These machines combined a front loader with a rear excavator, using relatively simple mechanical and hydraulic systems compared with modern equipment.
Many of these units are still running today, especially in rural areas, where an older backhoe can still dig foundations, clean ditches, and move materials at a fraction of the cost of newer machinery.
The JCB 3C series was introduced in the 1960s and steadily improved through the 1970s. Tens of thousands of JCB backhoe-loaders from that era were produced and exported worldwide, helping JCB grow from a small British workshop founded in 1945 into one of the major global manufacturers of construction machinery. By the late 1970s, JCB’s cumulative backhoe loader production numbers were already in the hundreds of thousands, and the 3C-type machines formed a big part of that success.
Because of this long production run and the many minor variations, identifying the exact model year and subtype of a “1970 something JCB backhoe” can be tricky. However, the basic layout of fluid systems stayed fairly consistent, which makes it possible to choose sensible fluids even when the original manual is missing.
Why Fluid Choice Matters On Old Machines
Fluids in a backhoe do more than just lubricate. They also:

• Transfer power in the hydraulic system

• Provide cooling in transmissions and torque converters

• Protect metal surfaces from wear and corrosion

• Carry away contaminants and microscopic metal particles


• Cause sluggish operation

• Accelerate wear on gears and pumps

• Swell or harden old seals

• Lead to overheating and early failure of major components


• Transmission or gearbox reservoir
  • Often located near or under the operator’s platform

  • May share fluid with a torque converter or shuttle transmission on some variants

• Hydraulic reservoir
  • Supplies the loader arms, backhoe boom, dipper, and bucket cylinders

  • May be built into the chassis, frame, or a separate tank

• Engine crankcase
  • Standard engine oil, filled at the engine itself

• Rear axle and final drives
  • Sometimes combined with a differential housing

  • May have separate plugs for each reduction hub


1. Transmission / shuttle or gearbox oil

2. Hydraulic system oil


• Hydraulic tank caps sometimes have a breather and may be located near hydraulic return lines.

• The transmission or gearbox filler is usually closer to the bell housing, gearbox, or shuttle unit and may be associated with an inspection cover or dipstick.


• Engine oil
  • Period-correct recommendation: often a straight 30-weight or 15W-40 diesel-rated oil

  • For modern use: a good quality 15W-40 diesel engine oil that meets current heavy-duty specs is typically acceptable for older diesels

• Transmission / shuttle / gearbox
  • Some early machines used simple gear oil (e.g., SAE 80W–90 GL-4) in purely mechanical gearboxes

  • Shuttle transmissions or torque converters were often designed for an oil closer to a universal tractor transmission oil (UTTO) or a lighter industrial gear oil, rather than very thick gear oil

  • Using an oil that is too thick can make shifting stiff, cause drag, and stress synchronizers or clutches, especially in cold weather

• Hydraulic system
  • Typically uses a dedicated hydraulic oil (like an ISO 32 or ISO 46 anti-wear hydraulic fluid) or a tractor hydraulic/transmission fluid, depending on the design

  • Too thick an oil slows cycle times and increases pump wear; too thin an oil may reduce lubrication and raise operating temperature

• Axles and differentials
  • Normally 80W–90 or similar gear oil

  • For heavily worn machines, some mechanics choose 85W–140 to quiet noisy gears, but this should be done with care, as thicker oil can increase drag and temperature


• For the hydraulic reservoir
  • Use a quality anti-wear hydraulic oil, commonly ISO 46 for temperate climates

  • In colder regions, ISO 32 may give better cold-start performance

  • Look for an oil that meets common industrial hydraulic specs (with anti-wear additives and anti-foam agents)

• For the transmission / shuttle unit
  • If it appears to be a power shuttle or torque converter style drive, a universal tractor transmission oil (UTTO) or a power-shift/transmission fluid with wet-clutch compatibility is often a safer choice than extremely thick gear oil

  • If it is clearly a purely mechanical, non-shuttle gearbox that uses splash lubrication, many owners successfully use 80W–90 GL-4 gear oil

• For axles and final drives
  • Use 80W–90 GL-4 or GL-5 gear oil, unless an axle has a wet brake or special requirement, in which case a suitable wet-brake oil may be needed


• Exact model and year

• Original engine type

• Factory-recommended fluid types and viscosities

• Torque converter or shuttle transmission specifications


• They “inherit” or buy a cheap older JCB with unknown maintenance history.

• The machine technically runs, but hydraulics are slow and noisy, and transmission engagement is harsh.

• Fluids in the machine are a mix of whatever several previous owners had on hand, sometimes including automatic transmission fluid, gear oil, and hydraulic oil all combined in one system.


• Hydraulic cycle times can improve by 10–25% simply by replacing contaminated or wrong-viscosity oil with clean hydraulic fluid of the right grade.

• Pump whine is reduced, and cylinders run smoother, which reduces shock loads on pins and bushings.

• A correctly filled transmission or shuttle with the proper oil engages more predictably, helping prolong clutch and gear life.


• 1953–1960s
  • Early backhoe-loader concepts developed, forming the basis of later 3-series machines

• 1960s–1970s
  • Introduction and refinement of JCB 3, 3C and related models, including upgraded hydraulics and improved operator comfort

  • Export growth to Europe, North America, and other continents

• 1970s
  • JCB consolidated its reputation for rugged machines and strong dealer support

  • Many 3C and similar units from that era were sold into agriculture, municipal work, and small contractors

  • JCB’s overall backhoe loader production numbers were rising steadily, positioning the company as a major global competitor


1. Identify each component
   • Locate: engine, transmission/shuttle, hydraulic tank, rear axle/final drives, steering system (if separate), and any additional gearboxes.

   • Look for drain plugs, level plugs, and filler caps.

2. Inspect existing fluids
   • Check color, smell, and presence of metal particles or sludge.

   • Milky fluids indicate water contamination; black or burnt smells suggest overheating.

3. Drain and flush where necessary
   • For heavily contaminated systems, a controlled flush with compatible fluid or a specific flushing procedure is advisable.

   • Avoid aggressive solvents that can damage seals or loosen debris too quickly.

4. Refill with appropriate modern equivalents
   • Engine: heavy-duty diesel 15W-40

   • Hydraulic: ISO 32 or ISO 46 anti-wear hydraulic oil, depending on climate

   • Transmission/shuttle: UTTO or suitable transmission fluid recommended for older power-shuttle systems, or 80W–90 gear oil if it is clearly a basic mechanical gearbox per documentation

   • Axles/finals: 80W–90 gear oil, unless documentation indicates a different spec

5. Bleed air and check operation
   • Run the engine at low throttle, gently cycle all hydraulic functions

   • Check for foaming in hydraulic oil, abnormal noises, and leaks

6. Re-check levels
   • After the first few hours of operation, re-check all oil levels, as trapped air is purged and systems stabilize


• Mixing different oil types in one system
  • Combining engine oil, automatic transmission fluid, and hydraulic oil can destabilize additive packages and cause varnish or sludge

• Using oil that is far too thick
  • Pouring 140-weight gear oil into a transmission or hydraulics that expects a lighter oil can cause poor lubrication at startup and strain pumps and gears

• Ignoring breather caps and filters
  • A blocked breather can lead to pressure buildup and push oil past seals

  • Old, clogged filters reduce flow and can starve pumps even if the oil itself is fresh

• Filling “by feel” instead of to proper level
  • Overfilling can cause foaming and overheating

  • Underfilling leads to air in the system, erratic behavior, and accelerated wear


• Reduced breakdowns mean fewer emergency repair bills and less lost time.

• A machine kept in good running order can retain resale value or at least avoid becoming scrap prematurely.

• In community or municipal use, a reliable old backhoe can keep roads, ditches, and facilities maintained without large capital expenditure.


• Careful identification of reservoirs and components

• Conservative modern fluid choices that match the original design intent

• Verification through dealer or archival information using the machine’s serial number


The Loader Operator’s Perspective
Loader preferences vary widely among operators, shaped by job type, terrain, machine age, and brand loyalty. While some favor the brute force of older track loaders, others lean toward the finesse and speed of modern wheel loaders. The choice often reflects a balance between raw power, comfort, visibility, and hydraulic responsiveness.
Track Loaders and Their Legacy
Track loaders like the Caterpillar 977L and 963B/C are praised for their ability to push into piles, climb uneven terrain, and perform demolition with authority. The 977L, in particular, is remembered fondly for its size and strength. With an operating weight over 50,000 pounds and a powerful bucket breakout force, it was a staple in demolition yards and land-clearing operations. Operators often describe it as “fun to run” and “unstoppable in a pile.”
The 963 series, introduced in the late 1980s, brought hydrostatic drive and improved cab ergonomics. The 963C, for example, offered joystick controls and better visibility, making it a favorite for grading and material handling. Despite their declining presence on job sites, track loaders remain relevant in niche applications where traction and pushing power are paramount.
Wheel Loaders and Versatility
Wheel loaders dominate modern construction due to their speed, maneuverability, and ease of transport. Machines like the Caterpillar 938F and 980H are frequently cited as favorites. The 938F, though not flashy, is considered a reliable all-rounder, ideal for loading trucks, moving fill, and general site cleanup. The 980H, with its larger frame and high horsepower, excels in quarry work and bulk material handling.
John Deere’s 544G and 744H also receive high marks. The 744H, equipped with a 4-yard bucket, is noted for its comfort and productivity. Operators appreciate its smooth ride and responsive hydraulics, especially in long shifts. The 544G, while smaller, is favored for its agility and tool carrier versatility.
Brand Preferences and Operator Loyalty
Brand loyalty plays a significant role. Some operators swear by John Deere’s quiet cabs and intuitive controls, while others prefer the ruggedness of Komatsu or the speed of Kawasaki loaders. The Komatsu WA1200 and Kawasaki Z115V are mentioned for their breakout force and speed, though reliability issues with hydraulics and planetary drives have led some companies to switch to Caterpillar’s 988G and 994F.
The 994F, one of the largest wheel loaders in production, is admired for its sheer power and presence. With over 1,400 horsepower and a bucket capacity exceeding 25 cubic yards, it’s a favorite in mining operations. Operators describe it as “having muscle” and “a beast that moves mountains.”
Loader Selection by Task
Loader choice often depends on the task:

• For demolition: Caterpillar 977L or 963C

• For snow removal: Komatsu WA series or John Deere 344

• For gravel pits: John Deere 844 or Caterpillar 980H

• For land clearing: JD 450C with 4-in-1 bucket

• For general site work: Cat 938F or Deere 544G
