Machine Profile

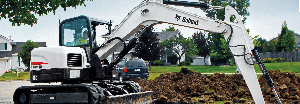

The Bobcat E80 is a mid-size compact excavator popular for its blend of power, efficiency, and operator comfort. It is essentially a rebranded Doosan DX80, combining reliable engineering with the strong dealer support typical of Bobcat. Designed for demanding construction, utility, and landscaping applications, the E80 offers excellent digging performance with a compact footprint suitable for confined job sites.
Key Specifications
- Operating Weight: Approximately 18,689 lbs (8,477 kg).
- Engine: 57 HP diesel, typically a 4-cylinder Yanmar with 3.3-liter displacement.
- Fuel Tank Capacity: Around 29.1 gallons (110 liters).
- Maximum Digging Depth: 184 inches (4,675 mm) with a standard long-arm configuration.
- Bucket Breakout Force: About 12,280 lbf (54,623 N).
- Arm Breakout Force: Approximately 7,659 lbf (34,068 N).
- Swing Speed: 9.8 rpm.
- Travel Speed: Dual-range travel with 1.8 mph low and 2.9 mph high.
- Hydraulic System: Engine-driven tandem axial piston pump and gear pump delivering a combined flow capacity of about 144 L/min.
- Hydraulic Auxiliary Flow: 120 L/min with relief pressure up to 280 bar.
- Spacious cab featuring a fully adjustable Super Deluxe suspension seat and automotive-style climate control for long-shift comfort.
- Fingertip hydraulic controls with two joysticks managing boom, arm, bucket, and slew.
- Two-speed travel controlled with hand levers or foot pedals.
- Enhanced visibility with large windows, optional rearview cameras, and strategically placed mirrors.
- Auto-idle and engine/hydraulic monitoring improve operational efficiency and machine health tracking.
- Easily accessible service points including rear and side engine hoods.
- Central grease points for slew bearing and cylinders improve lubrication efficiency.
- Cleaning access for cooling systems with separable cores.
- Greasing intervals set at 250 hours enhance uptime.
- Boom load-holding valve and boom swing with left/right swing angles of 70° and 55° respectively.
- Retractable seat belt for operator safety.
- Noise levels compliant with EU directives at approximately 77 dB(A) inside the cab.
- Optional features include auxiliary hydraulics with quick couplers, beacon lights, secondary auxiliary circuits, and sun visors.
- Breakout Force: The maximum force exerted by the bucket or arm to break through material resistance.
- Tandem Axial Piston Pump: A hydraulic pump design offering high efficiency and flow control.
- Swing Speed: The rotational speed of the excavator's house.
- Auto-Idle: An engine management feature reducing fuel consumption during idle periods.
- Load Holding Valve: Hydraulic valve preventing unintended movement of boom or arms in case of pressure loss.
The Bobcat E80 compact excavator delivers strong performance, operator-centered design, and efficient hydraulics, positioning it competitively among mid-sized compact machines. Its rebranding from Doosan benefits from Bobcat’s regional service network and trusted dealer relationships, providing peace of mind with accessible support. Ideal for medium range digging, loading, and utility tasks, the E80 balances power and maneuverability with features that enhance operator productivity and machine durability on diverse worksites.
