Quick-Connect Lighting with Deutsch Plugs

[MikePhua]



Reliable Electrical Connections
Deutsch connectors—aptly named from the German word for “German”—have earned a reputation for their toughness and reliability across industries. They function as environmentally sealed quick connectors built with thermoplastic housings, silicone gaskets, and rugged locking latches, enabling them to withstand extreme temperatures, dust, vibrations, and even water immersion up to IP68 standards . This combination makes them a go-to in heavy equipment, off-road vehicles, marine vessels, aerospace, and military systems .
Why They're Ideal for Lights on Heavy Equipment
When connecting work lights or light bars on construction machines, robustness is key. Deutsch connectors:

• Provide waterproof, vibration-resistant bonds essential for outdoor use.

• Allow easy disconnection and reuse of components without cutting wires—perfect for maintenance and retrofits .

• Designed for field conditions—built to endure hydraulic fluid exposure, dust, and temperature swings.

• Come in various sizes to suit different power demands and harness complexities .


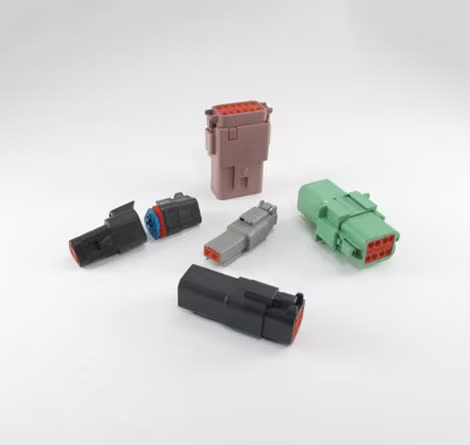

Connector Types and their Uses
Here's a breakdown of common Deutsch series used in lighting and equipment:

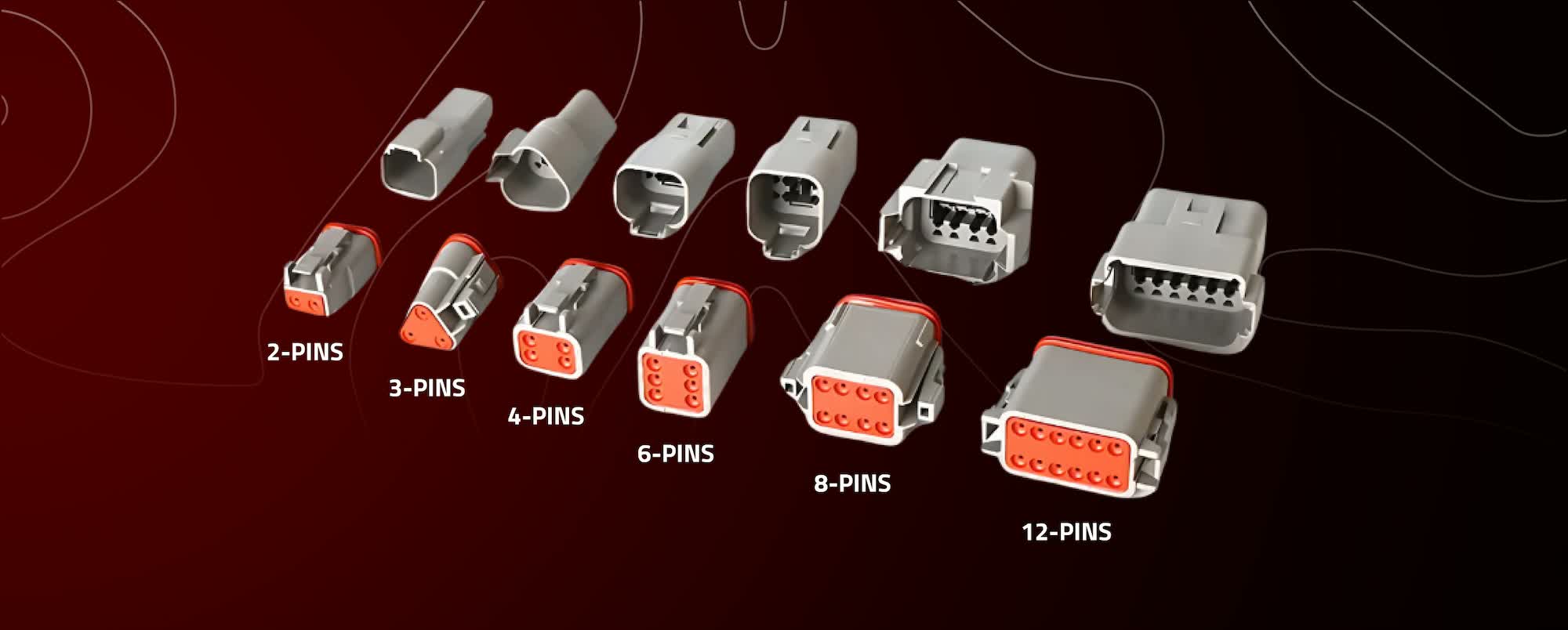

• DT Series: The most prevalent; handles 16–20 AWG wires, rated for ~13 A. Available with 2 to 12 cavities .

• DTM Series: Smaller footprint, using 14–22 AWG wires with a 7.5 A limit; often found in sensor systems .

• DTP Series: Larger contacts for 10–14 AWG wires, rated 25 A—ideal for powerful lighting or heating loads .

• Quick Connect Series: Compact option for lighter uses; supports 16–26 AWG, in 2-, 7-, or 12-contact configurations .

• HD Series (HD10, HDP20, HD30): Ultra-rugged connectors with bayonet or lever-lock mechanisms, suited to heavy-duty applications like mining or marine wiring .


OEM Adoption and Field Insights
Equipment manufacturers and harness builders favor Deutsch connectors due to:

• Their uniform tooling and contact systems, simplifying assembly and training .

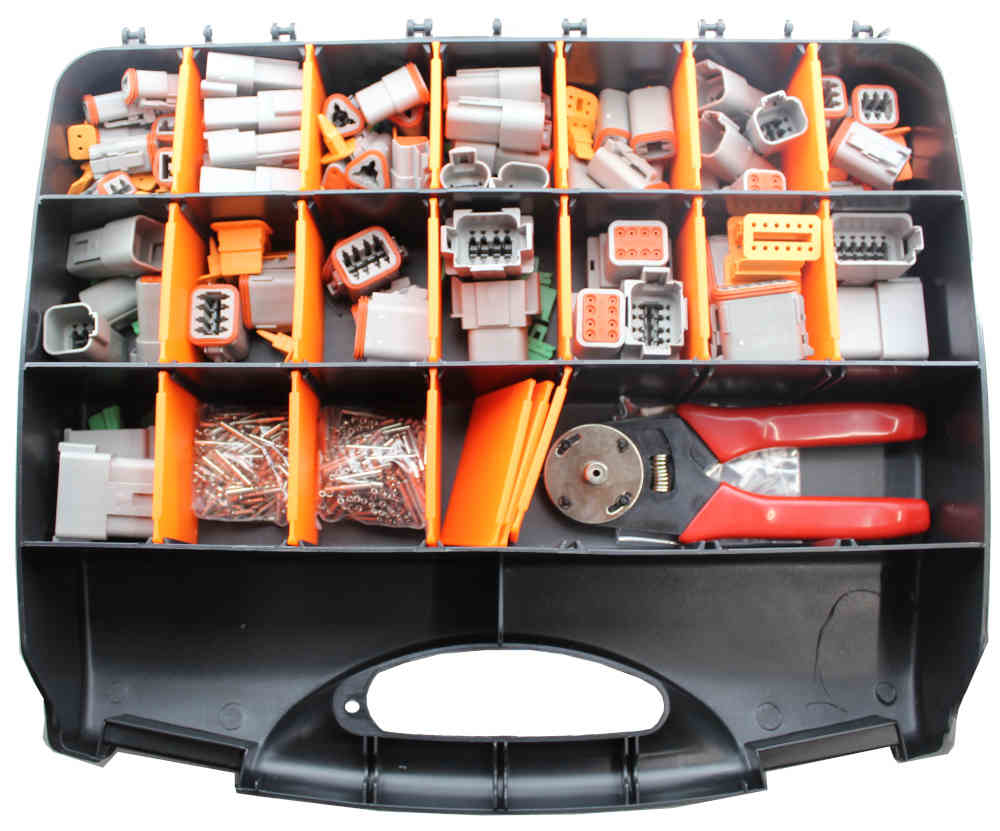

• Widespread availability—dealers often stock the connectors and contacts, though crimp tools may require aftermarket versions .


Users have shared practical advice:

“I’d stick with Deutsch connectors. They are waterproof and you can dismantle and reuse the components if you like.”

One forum contributor detailed local sourcing:

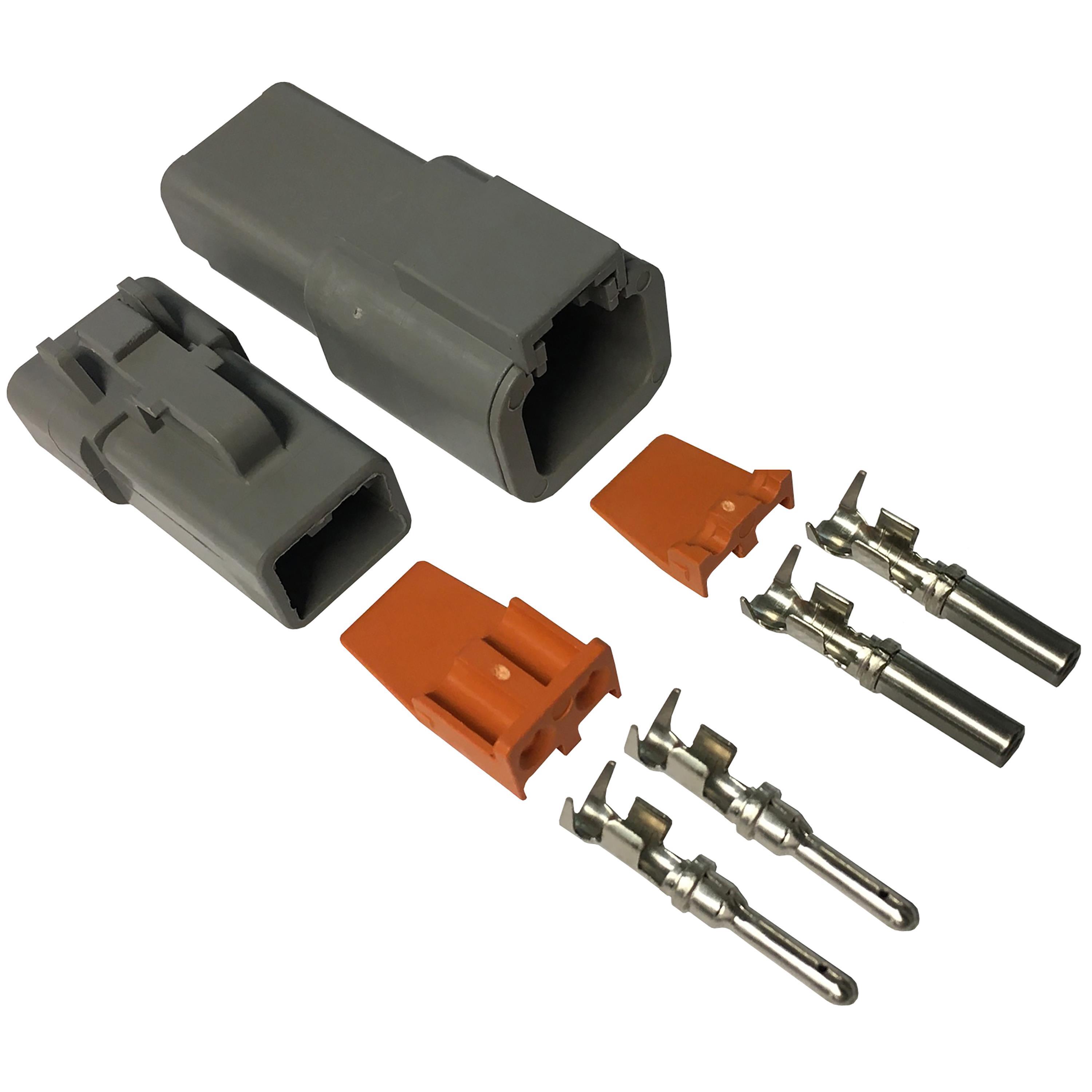

• 2-pin plug: housing + terminal

• 2-pin socket: housing + terminal

• Noting that genuine crimp tools are costly, but aftermarket pliers can suffice .


Summary List of Common Deutsch Connector Series

• DT Series
  • Wire Gauge: 16–20 AWG

  • Amp Rating: ~13 A

  • Applications: General lighting, sensors, medium-duty harnesses

• DTM Series
  • Wire Gauge: 14–22 AWG

  • Amp Rating: ~7.5 A

  • Applications: Compact sensors, low-current circuits

• DTP Series
  • Wire Gauge: 10–14 AWG

  • Amp Rating: ~25 A

  • Applications: High-power lights, fans, heaters

• Quick Connect Series
  • Wire Gauge: 16–26 AWG

  • Amp Rating: N/A (light-duty circuits)

  • Applications: Compact wiring tasks, lightweight electrical loads

• HD Series (HD10, HDP20, HD30)
  • Wire Gauge: 6–22 AWG (varies by model)

  • Amp Rating: varies with contact size

  • Applications: Heavy-duty industrial wiring, mining, marine, and construction equipment


Final Thoughts
Deutsch quick-connect plugs offer unmatched durability and maintenance convenience for lighting systems on heavy machinery. Built to endure dust, mud, vibration, and extreme temperatures, they simplify wiring needs without compromising reliability. Whether you're working on a backhoe, crane, or off-road vehicle, choosing Deutsch connectors ensures your lights stay powered through the toughest conditions.
