Introduction
The 1971 Case 580CK is a versatile and robust machine, widely used in construction and agricultural applications. However, like any heavy equipment, it is susceptible to mechanical issues over time. One common problem faced by operators is a steering wheel that spins freely without engaging the wheels. This issue can be attributed to various components within the steering system, including the steering pump, orbital valve, and steering cylinders. Understanding the underlying causes and implementing effective solutions is crucial for restoring the machine's functionality.
Understanding the Steering System
The steering system of the 1971 Case 580CK is hydraulically operated, relying on a combination of components to facilitate smooth and responsive steering:
- Steering Pump: Driven by the engine, it generates hydraulic pressure to assist in steering.
- Orbital Valve: Located beneath the steering wheel, it directs hydraulic fluid to the steering cylinders based on the operator's input.

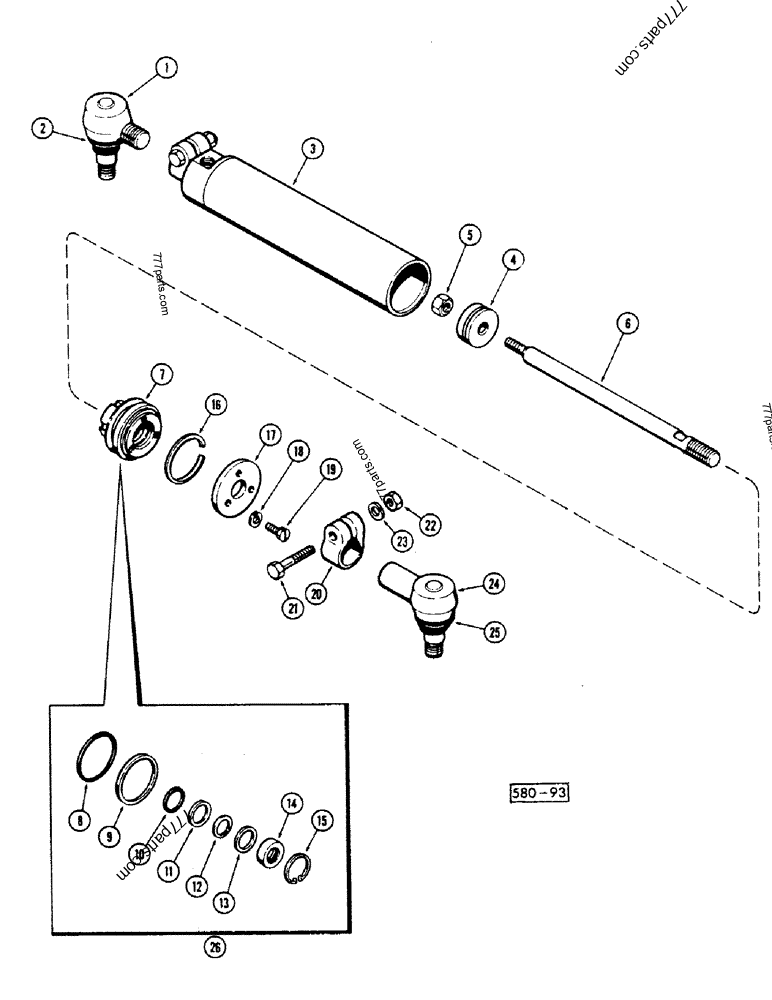

- Steering Cylinders: Actuate the movement of the wheels in response to hydraulic pressure.
Common Causes of Steering Failure
Several factors can contribute to the steering wheel spinning freely:
- Low Hydraulic Fluid Levels: Insufficient fluid can prevent the steering pump from generating adequate pressure.
- Air in the Hydraulic System: Air pockets can disrupt fluid flow, leading to erratic steering behavior.
- Faulty Steering Pump: A malfunctioning pump may fail to produce the necessary hydraulic pressure.
- Damaged Orbital Valve: Internal damage or blockage can impede the valve's ability to direct fluid properly.
- Worn or Leaking Steering Cylinders: Internal bypassing or external leaks can reduce steering effectiveness.
- Disconnected or Slipped Linkages: Mechanical linkages between the steering wheel and the steering mechanism may become loose or detached.
To address the steering issue, follow these steps:
- Check Hydraulic Fluid Levels: Ensure the hydraulic reservoir is filled to the recommended level with the appropriate fluid.
- Inspect for Air in the System: Bleed the hydraulic system to remove any trapped air. This can be done by loosening fittings at high points while operating the machine to allow air to escape.
- Test the Steering Pump: With the engine running, check for proper fluid flow from the pump. Low or no flow may indicate a pump failure.
- Examine the Orbital Valve: Listen for unusual noises or check for leaks around the valve. A malfunctioning valve may need to be replaced.
- Inspect Steering Cylinders: Look for signs of leaks or damage. If cylinders are bypassing internally, they may require rebuilding or replacement.
- Verify Linkage Connections: Ensure all mechanical linkages are securely connected and free from wear.
To prolong the life of the steering system:
- Regularly Check Hydraulic Fluid Levels: Maintain proper fluid levels to ensure consistent steering performance.
- Use the Recommended Hydraulic Fluid: Always use the manufacturer's specified fluid to prevent system damage.
- Inspect for Leaks: Regularly check hoses and connections for signs of leakage.
- Lubricate Moving Parts: Apply lubricant to moving components to reduce wear.
- Service the Steering System Periodically: Follow the manufacturer's maintenance schedule for the steering system.
A steering wheel that spins freely on a 1971 Case 580CK is a sign of underlying issues within the hydraulic steering system. By systematically diagnosing and addressing potential causes—such as low fluid levels, air in the system, or component failures—operators can restore proper steering functionality. Regular maintenance and prompt attention to steering system issues are essential for ensuring the machine's reliability and longevity.
