Introduction

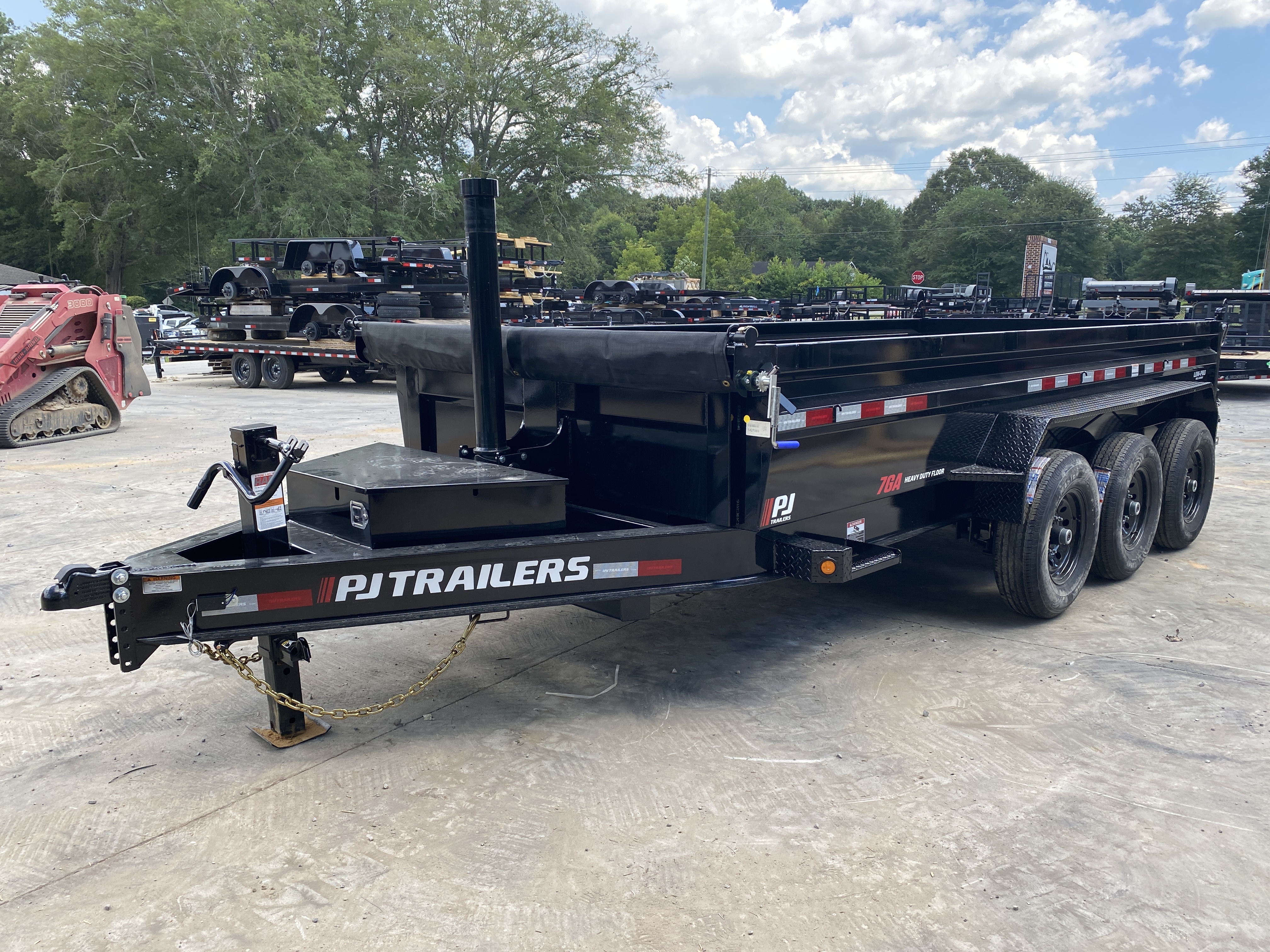

PJ Trailers, a renowned manufacturer in the trailer industry, has established a reputation for producing durable and versatile trailers. Among their extensive lineup, the triple axle lowboy dump trailers stand out for their robust construction and capacity to handle heavy-duty hauling tasks. These trailers are particularly favored in industries such as construction, landscaping, and agriculture, where transporting substantial loads is a daily requirement.
Design and Construction
The triple axle lowboy dump trailers by PJ Trailers are engineered to provide stability and strength. The design incorporates several key features:
- Frame Construction: The trailers are built with a 10" x 19 lb. I-beam main frame, ensuring structural integrity and resistance to torsional stresses.
- Axle Configuration: Equipped with three 7,000 lb. EZ Lube brake axles, these trailers offer a Gross Axle Weight Rating (GAWR) of 21,000 lbs, allowing for the transportation of heavy loads.
- Suspension System: The use of torsion suspension provides a smoother ride, reducing wear and tear on both the trailer and the towing vehicle.
- Deck Height: An ultra-low deck height ranging from 24" to 28" enhances stability and ease of loading and unloading.
- Side Walls: The trailers feature 24" high sides constructed from 10-gauge steel, offering durability and resistance to impacts.

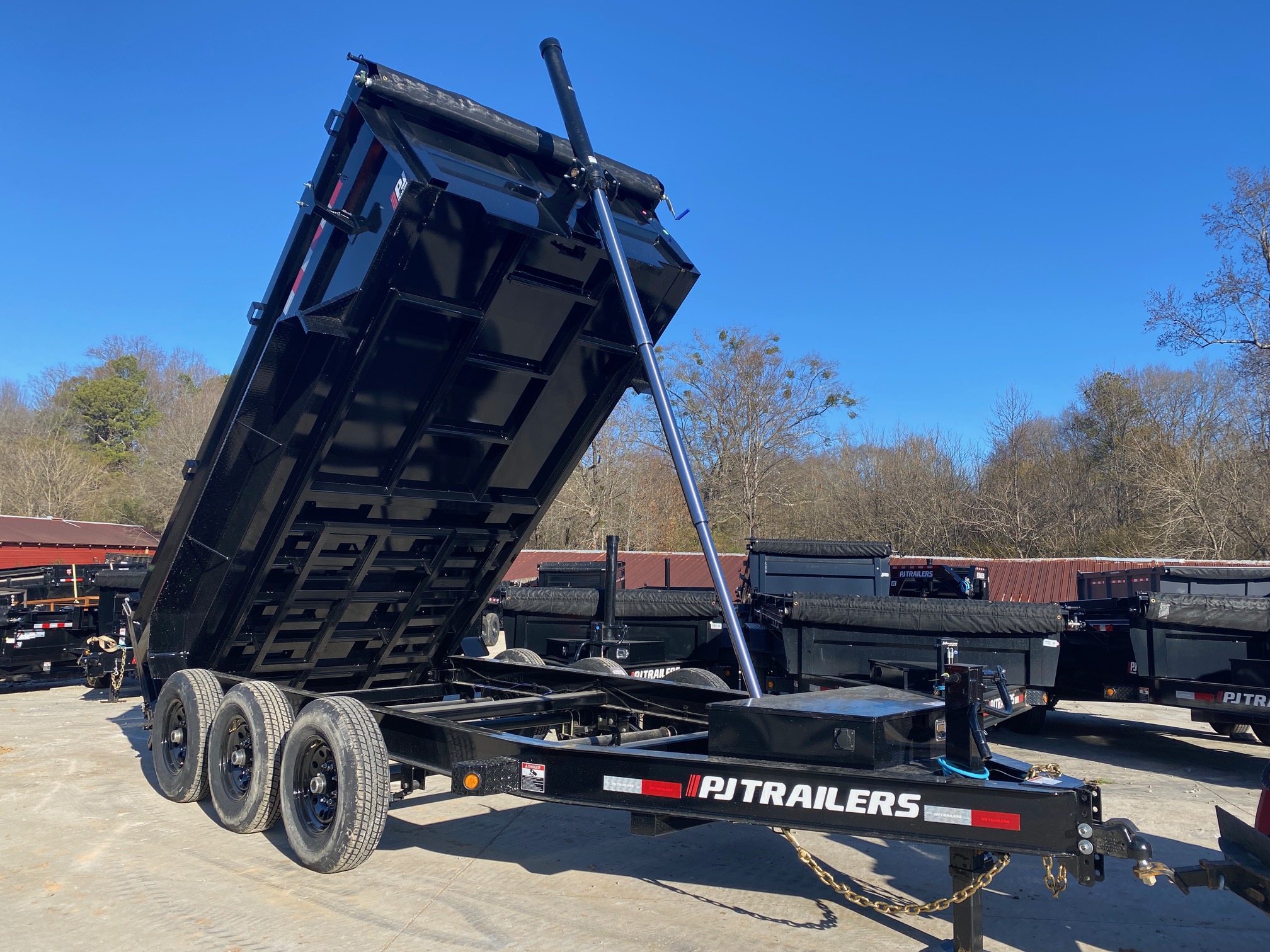

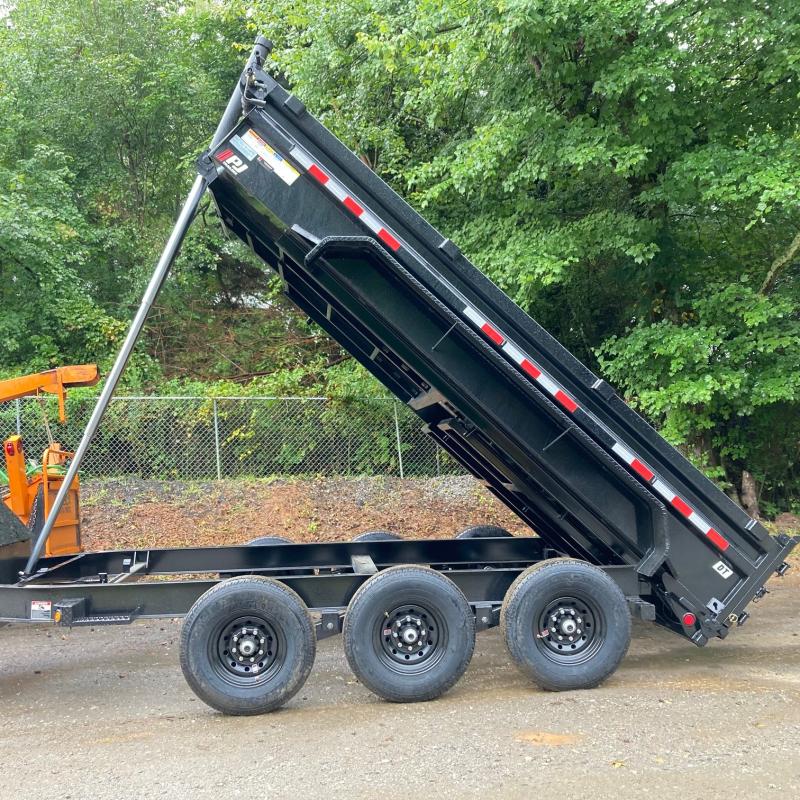

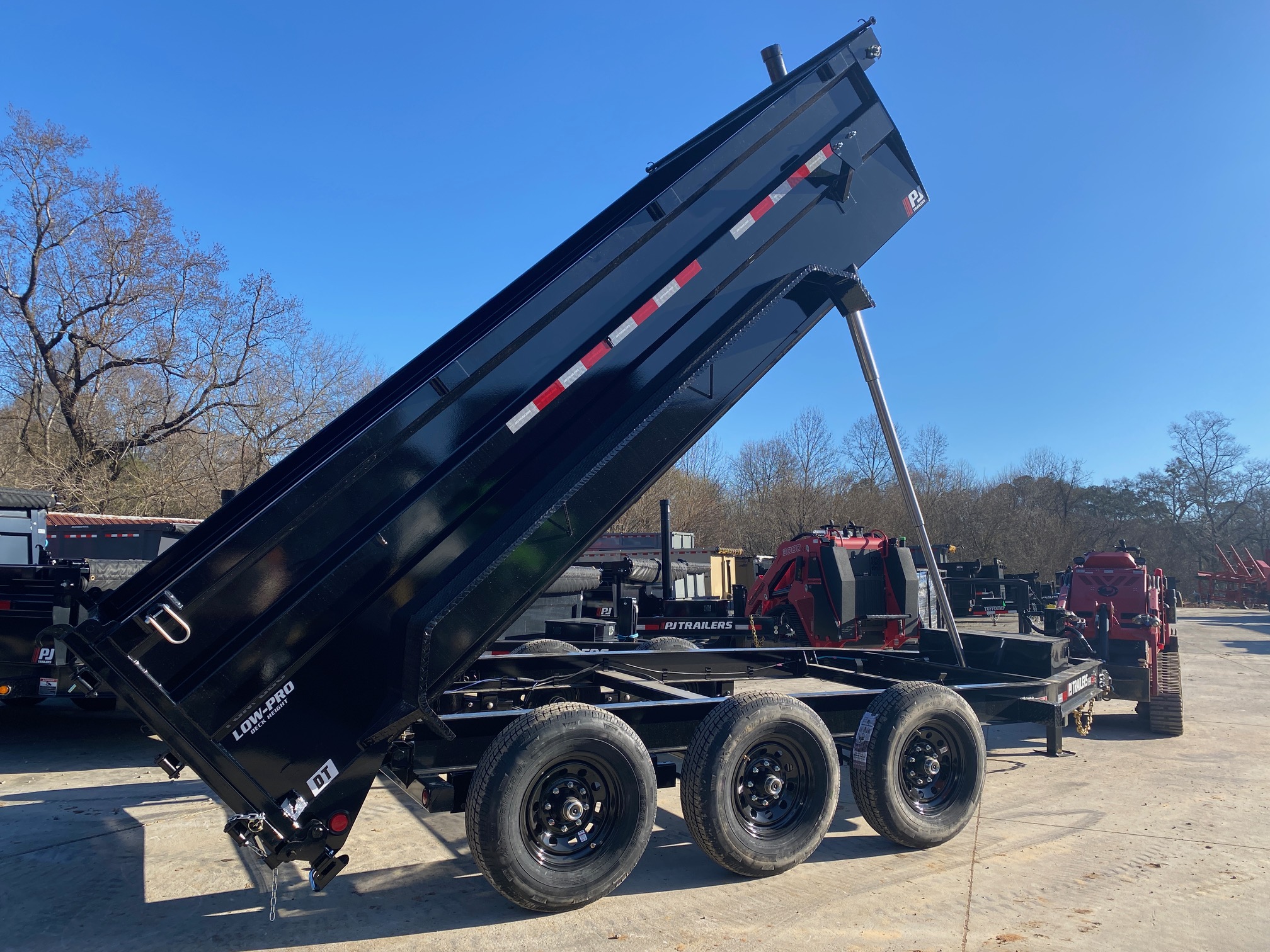

One of the standout features of these trailers is their hydraulic dumping system. Equipped with a 12V DC hydraulic pump and a three-stage telescopic hoist, the trailers can achieve a steep 40-degree dump angle. This design facilitates the efficient unloading of materials such as gravel, sand, and debris. The hydraulic system is powered by a 12V battery housed in a lockable toolbox, ensuring reliability and security.
Loading and Unloading Features
To accommodate various loading and unloading scenarios, PJ Trailers incorporates several features:
- Ramps: The trailers come with 6' 6" slide-in channel ramps, allowing for easy loading of equipment.
- Gate Options: A two-way gate system provides versatility, functioning as both barn doors and a spreader gate, facilitating different unloading methods.
- Tie-Down Points: Four D-rings are welded inside the box, offering secure points for tying down equipment or materials.
PJ Trailers offers a range of customization options to suit specific needs:
- Frame Upgrades: Optional upgrades include 12" on-center crossmembers for enhanced support.
- Jack Options: Choices between single or dual hydraulic jacks provide flexibility in handling.
- Color Choices: The trailers are available in various colors, including black, desert tan, grey, red, tractor orange, and white, allowing for personalization.
Regular maintenance is crucial to ensure the longevity and optimal performance of the trailer:
- Hydraulic System: Regularly check hydraulic fluid levels and inspect hoses for any signs of wear or leaks.
- Tires and Axles: Inspect tires for proper inflation and tread wear. Ensure that axles are greased and functioning correctly.
- Frame and Deck: Periodically inspect the frame and deck for any signs of damage or corrosion.
The PJ Trailers triple axle lowboy dump trailers are a testament to the company's commitment to quality and innovation. With their robust construction, advanced hydraulic systems, and customizable features, these trailers are well-suited for heavy-duty hauling tasks. Whether it's transporting construction materials or heavy equipment, these trailers provide the reliability and performance needed to get the job done efficiently.
