Introduction
The 2006 Peterbilt 378 is a heavy-duty truck renowned for its durability and performance. Equipped with advanced electrical systems, understanding its wiring and schematics is crucial for effective maintenance and troubleshooting. This guide delves into the electrical architecture of the Peterbilt 378, offering insights into its components, common issues, and practical solutions.
Electrical System Overview
The electrical system of the 2006 Peterbilt 378 is designed to manage various functions, including lighting, engine control, HVAC systems, and trailer connections. Key components include:

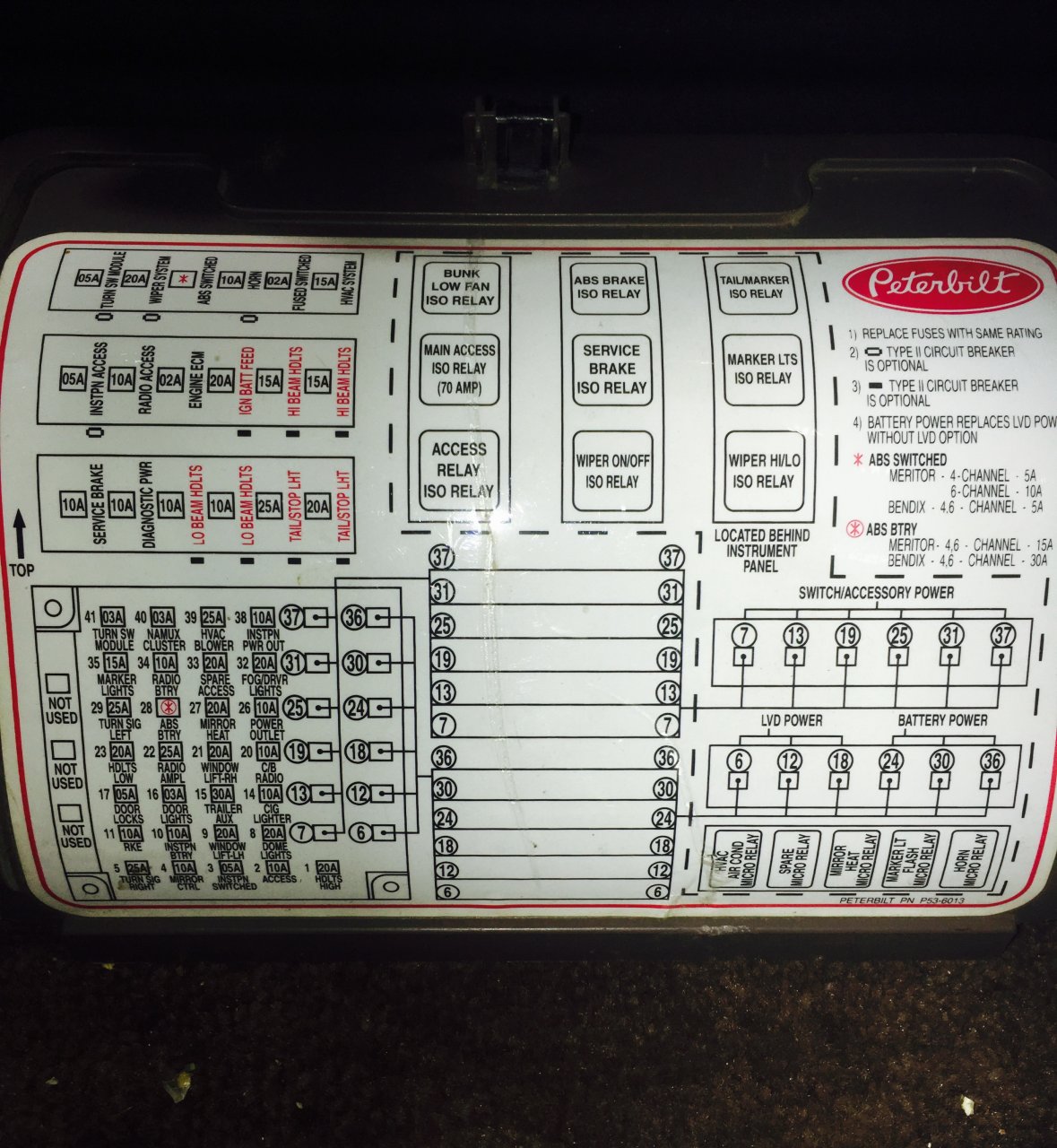

- Main Fuse Panel: Distributes power to various circuits and protects against overloads.
- Relays and Circuit Breakers: Control high-current devices and provide overload protection.
- Wiring Harnesses: Transmit electrical signals and power throughout the vehicle.
- Grounding Points: Ensure proper return paths for electrical currents.
- Trailer Connector: Facilitates electrical communication between the truck and attached trailer.
- Headlight and Running Light Malfunctions
Symptoms: Headlights staying on, running lights remaining illuminated.
Possible Causes:- Faulty headlight switch or relay.
- Worn or corroded wiring connections.
- Malfunctioning body control module.
- Inspect and replace the headlight switch if necessary.
- Clean and secure all wiring connections.
- Test the body control module and replace if faulty.
- Faulty headlight switch or relay.
- AC Compressor Power Loss
Symptoms: No power reaching the AC compressor, resulting in non-functional air conditioning.
Possible Causes:- Blown fuse or tripped relay.
- Faulty pressure switch.
- Damaged wiring or connectors.
- Check and replace any blown fuses or tripped relays.
- Test the pressure switch for proper operation.
- Inspect wiring and connectors for damage and repair as needed.
- Blown fuse or tripped relay.
- Electrical Shorts and Grounding Issues
Symptoms: Blown fuses, erratic electrical behavior, or complete power loss.
Possible Causes:- Damaged wiring harnesses.
- Loose or corroded ground connections.
- Improperly routed wires causing abrasion.
- Perform a thorough inspection of wiring harnesses for damage.
- Clean and tighten all ground connections.
- Re-route wires to prevent contact with sharp edges or moving parts.
- Damaged wiring harnesses.

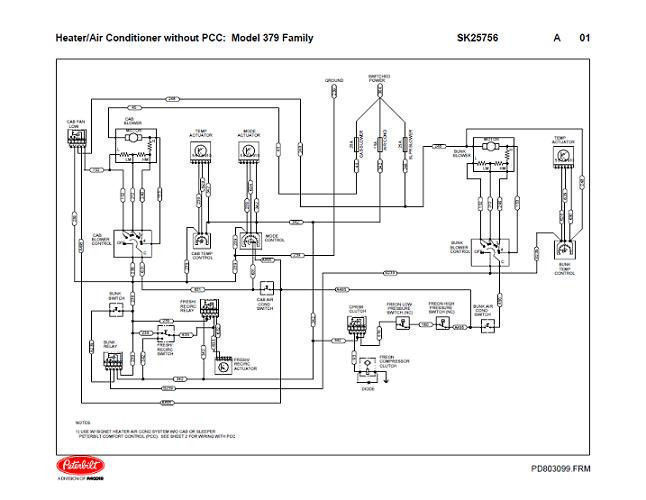

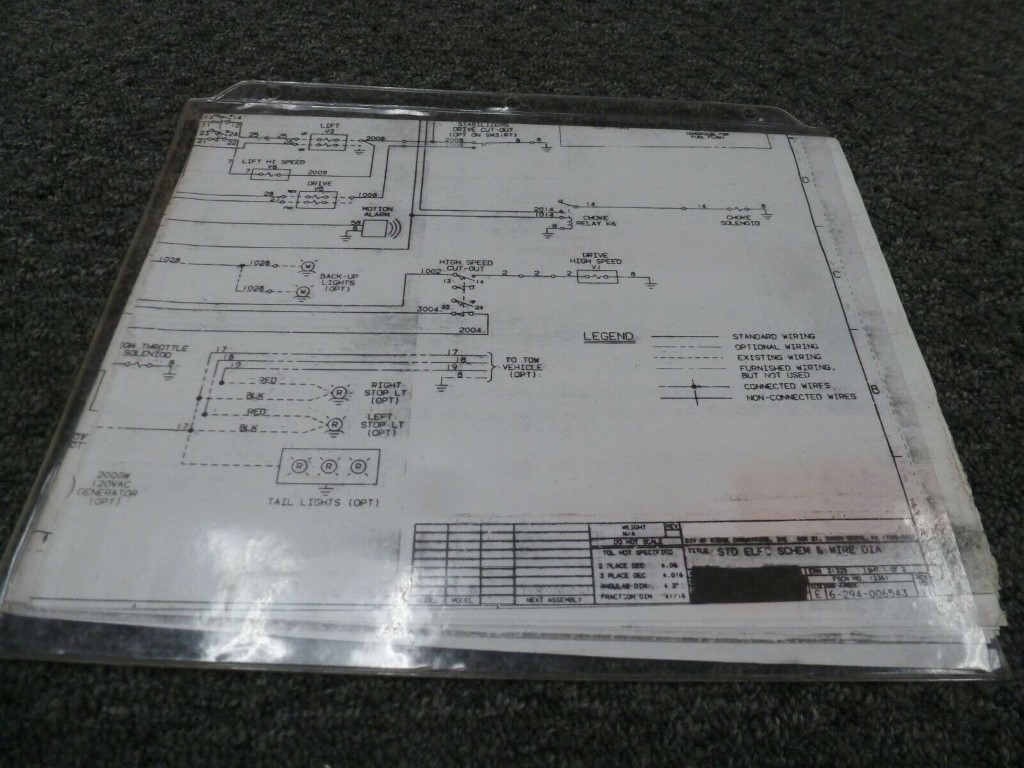

For detailed wiring diagrams and schematics, the following resources are recommended:
- Supermiller P94-6016: Covers the electrical system for the 379 model family, including main cab, engine, trailer, and chassis harnesses.
- Supermiller P94-6023: Includes schematics for charge/start circuits, power distribution, turn signals, lights, cab door locks, and modules like fuse blocks and GPS antennas.
- DIY Repair Manuals: Offers the 2006 Peterbilt 378 Electrical Wiring Diagram Manual for $283.73, providing original factory diagrams targeted towards troubleshooting the vehicle's electrical system.
A common issue reported by Peterbilt 378 owners is headlight malfunctions, where headlights remain on even when the switch is off. In one instance, an operator experienced this problem and sought assistance online. Upon reviewing the wiring schematic, it was determined that a faulty headlight switch was causing the issue. After replacing the switch, the problem was resolved, restoring normal headlight operation.
Conclusion
Understanding the electrical system of the 2006 Peterbilt 378 is essential for effective maintenance and troubleshooting. By familiarizing oneself with the components, common issues, and available resources, operators can ensure the longevity and reliability of their vehicles. Regular inspections and prompt attention to electrical problems can prevent costly repairs and downtime.
