Unlocking the Blueprint: Hydraulic & Electrical Diagrams for Grove AMZ-50
#1


Why Schematics Matter
Understanding hydraulic and electrical schematics is like reading the DNA of a machine—these diagrams reveal how systems interconnect, how power and signals flow, and where key components sit. For the Grove AMZ-50, which combines hydraulically powered boom movements and electrical controls, accurate schematics guide safe troubleshooting, precise maintenance, and critical upgrades.
A Case Study in Restoration
Consider an operator who acquired an AMZ-50 in rough condition. The engine was seized from water ingress—after salvaging some oil, installing new filters, spark plugs, carburetor, and fuel lines, it roared back to life. But without schematics, he was navigating blind. His breakthrough came when he obtained the factory electrical and hydraulic diagrams—suddenly, he could trace circuits to restore emergency stop switches and isolate hydraulic flow paths to diagnose jerky boom behavior.

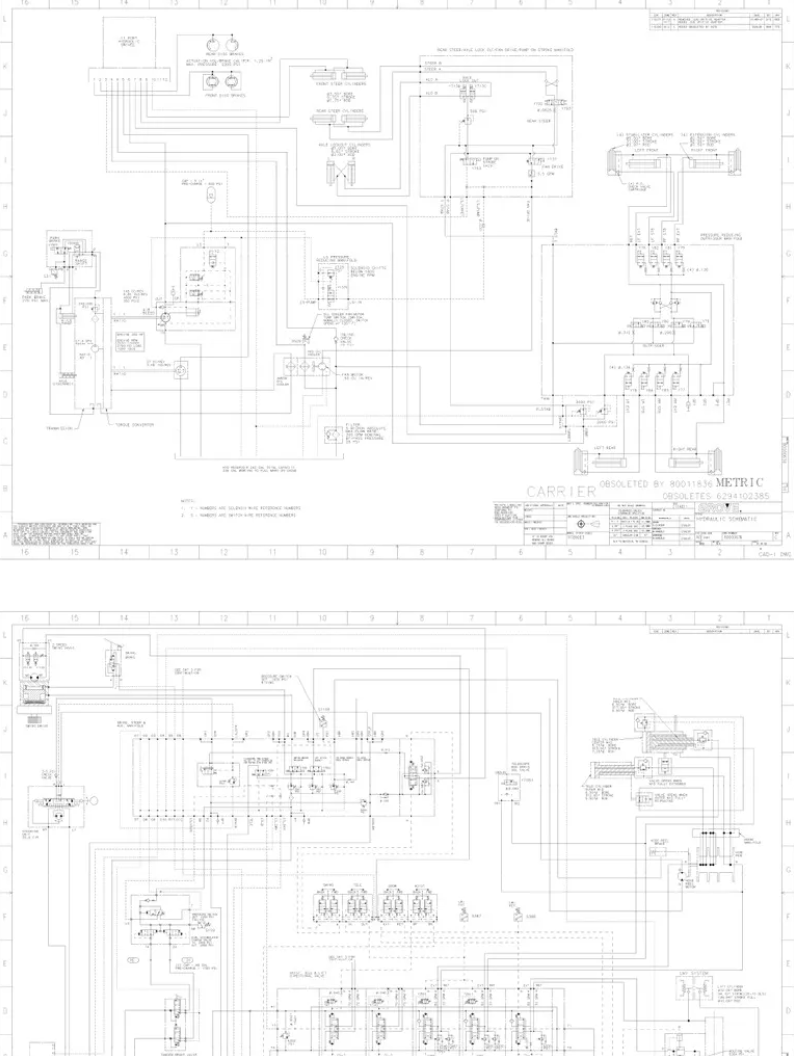

Understanding the Hydraulic System
Key elements in the schematic include:
  • Reservoir capacity (often around 36 gallons or ~136 L)
  • Piston-type hydraulic pump powering the system
  • Flow circuits for boom lift, telescope extension, and rotation
  • Valves and filters—pressure relief, directional control, plus crucial filtration
  • Auxiliary hydraulics where fitted
Having clarity on these lets technicians maintain fluid cleanliness, diagnose sluggish motion, and calibrate boom speed precisely. Schematic insight helps spot air or water contamination or clogged screens—common culprits in inconsistent riser or lift movement.

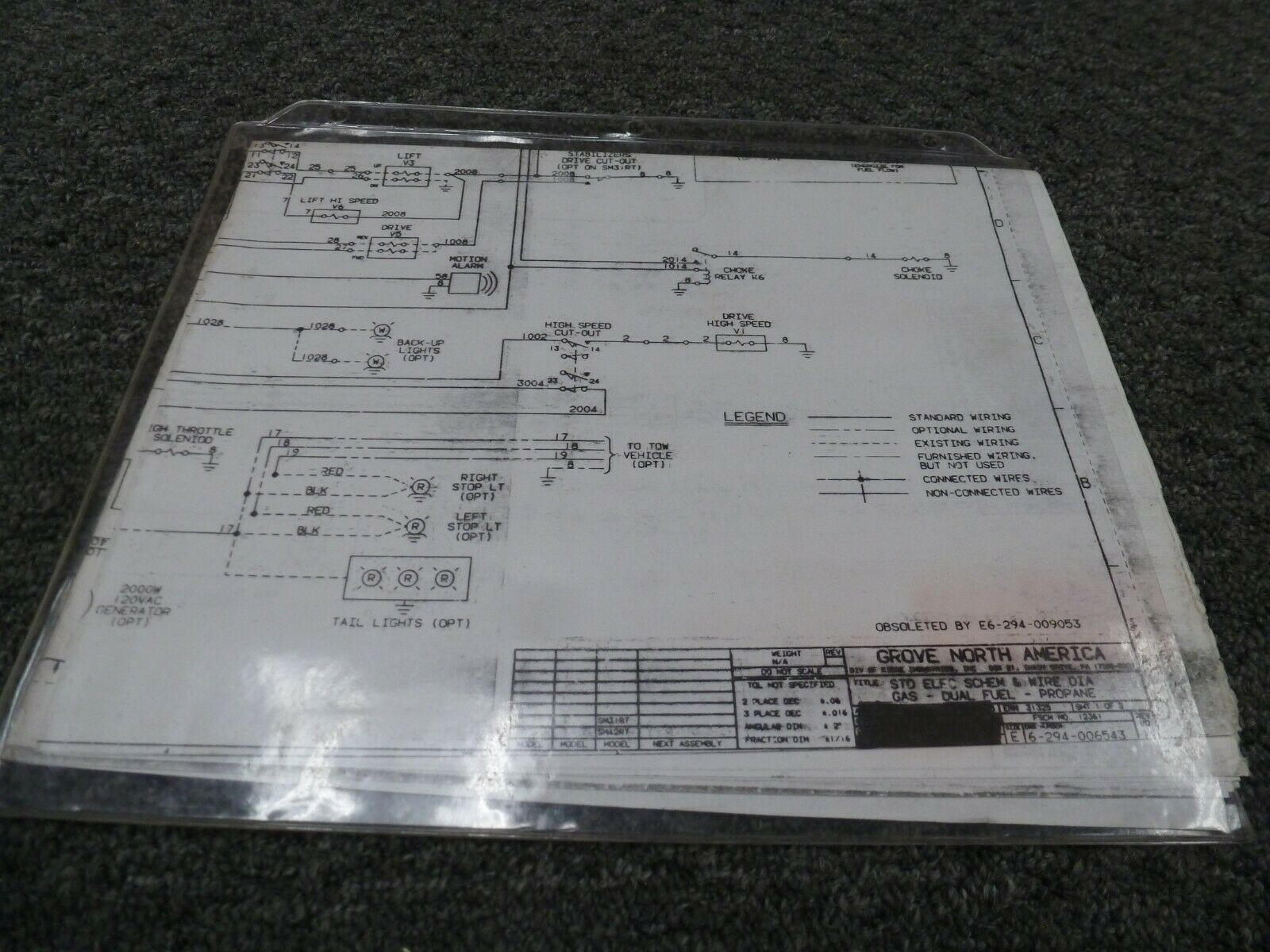

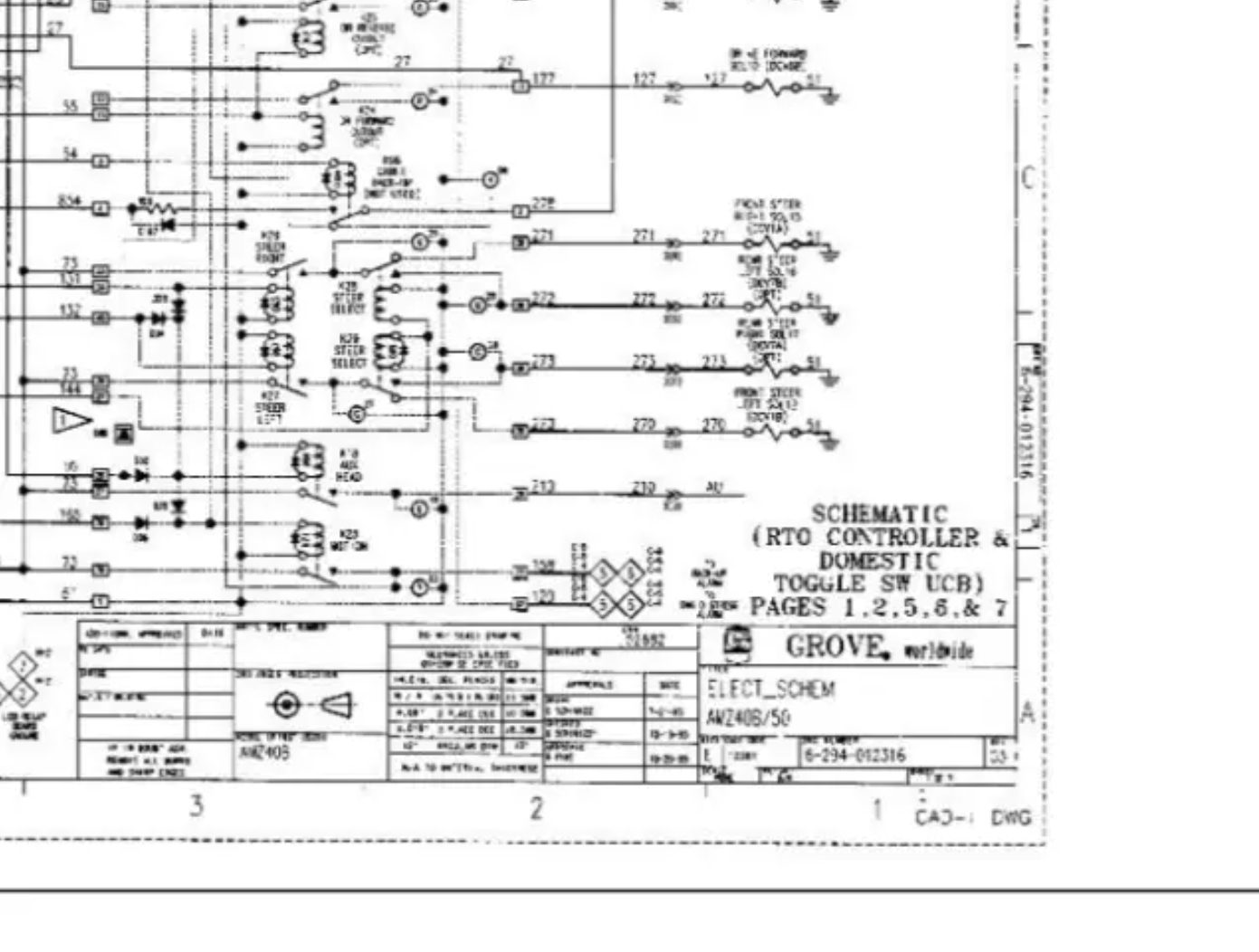

Decoding the Electrical Layout
The electrical diagram charts:
  • Power inputs (batteries/generator output, e.g., 12 VDC)
  • Control switches (including emergency stops, limit switches)
  • Solenoids and relays that drive hydraulic valves
  • Wiring paths and harnesses, indicating fuse protection and grounding schemes
With this knowledge, simple switches, relays, and sensor faults can be located and replaced swiftly—saving hours of trial-and-error.
Terminology Corner
  • Hydraulic reservoir: Stores fluid to feed the pump, stabilizing pressure.
  • Directional control valve: Directs hydraulic flow to required actuators.
  • Solenoid valve: Electromagnetic valve activated by electrical signals.
  • Emergency stop switch: Critical safety device to instantly disable hydraulics or engine power.
  • Limit switch: Stops movement when a component reaches a preset position (e.g., rotation limit).
Local Story: Milwaukee’s Retrofit Work
A rental company in Milwaukee retrofitted an older AMZ-50 following schematic guidance. By identifying the correct solenoid coil and replacing it, not only did they restore smooth boom operation—they also added a wireless remote override, upgrading safety and control—thanks to understanding the existing electrical pathways.
Specifications Snapshot
Key dimensions and performance parameters for the AMZ-50 include:
  • Operating length: 17 ft 2 in (5.23 m)
  • Width: 5 ft 11 in (1.80 m)
  • Height: 6 ft 7 in (2.01 m)
  • Weight: approx. 14,600 lbs (6,624 kg)
  • Working height: ~15.4 m
  • Max horizontal reach: ~8.2 m
  • Load capacity: 227 kg; capacity for two persons

These figures help in planning transportation, ensuring stability, and compliance with job-site requirements.
Practical Advice & Solutions
  • Secure schematics early—from OEM manuals, reputable parts stores, or digital archives. Knowledge prevents unnecessary part swaps.
  • Inspect for contamination—jerky hydraulics often trace back to air or dirt in the system; replace filters and bleed lines methodically.
  • Test emergency and limit switches—ensure they cut power reliably, restoring operator safety.
  • Label wires when dismantling—even a basic diagram helps during reassembly.
  • Use OEM part numbers found in the schematic to order precise cylinders, seals, or solenoids; aftermarket parts may not fit.
  • Document modifications—if installing new sensors or control upgrades, record changes directly on schematic copies for future troubleshooting.
Preventive Care Recommendations
  • Regular flushing of hydraulic fluid every 1,000 hours (or per manual); original filters may not suffice after heavy use.
  • Routine testing of all safety-related switches and wiring integrity.
  • Backup schematics digitally and keep printed copies onboard for mobile use.
  • Train technicians to interpret schematics—not just follow instructions—to empower proactive maintenance.
