Troubleshooting Soft Service Brakes on the Case 580 Super M

[MikePhua]

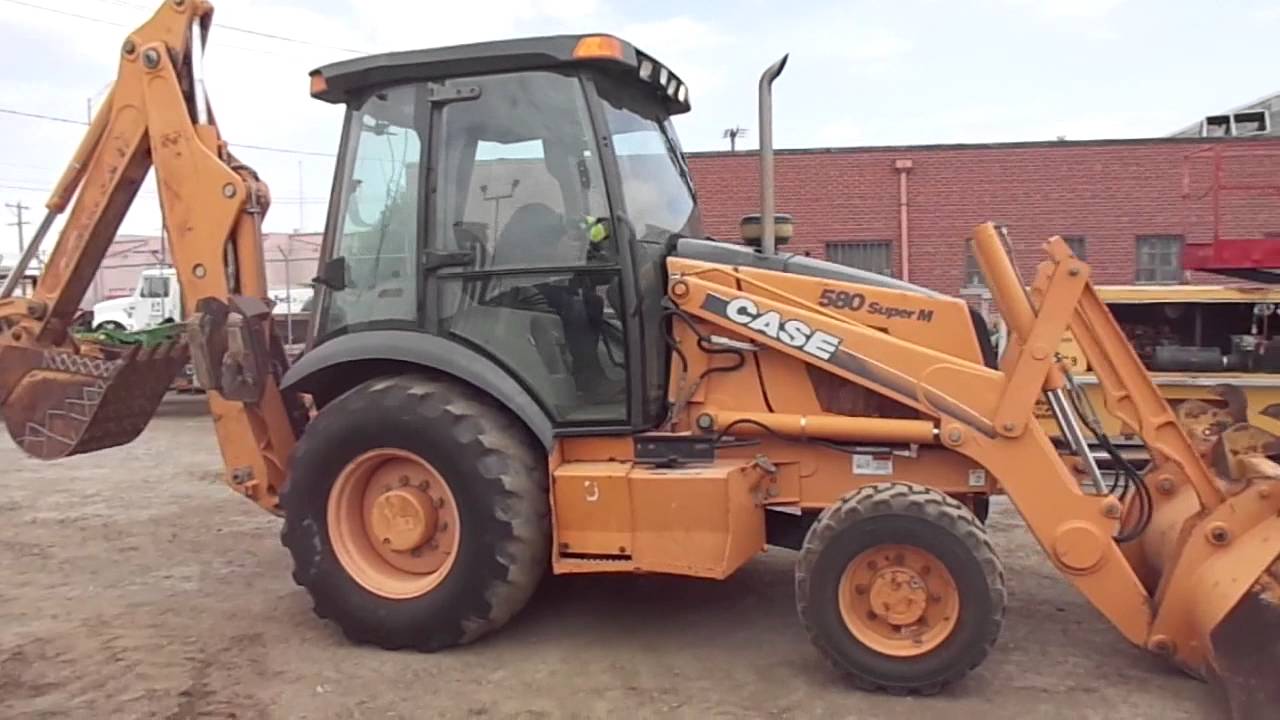

The Case 580 Super M backhoe loader is renowned for its durability and versatility in construction and agricultural applications. However, like any heavy machinery, it can experience brake-related issues over time. One common problem reported by operators is soft or sinking brake pedals, which can compromise safety and operational efficiency. Understanding the underlying causes and implementing effective solutions is crucial for maintaining optimal performance.

Understanding the Brake System
The Case 580 Super M is equipped with a hydraulic brake system, utilizing master cylinders, brake pistons, and hydraulic lines to actuate the brakes. The system operates by converting hydraulic pressure into mechanical force to engage the brake assemblies. A soft brake pedal typically indicates a loss of hydraulic pressure or fluid, leading to insufficient braking force.

Common Causes of Soft Brake Pedals

1. Internal Leaks in Master Cylinders: Over time, the seals within the master cylinders can degrade, allowing hydraulic fluid to bypass without pressurizing the brake system effectively. This results in a soft or sinking brake pedal.

2. Brake Piston Seal Failures: The brake pistons within the rear axle housing are susceptible to seal wear. Damaged seals can lead to hydraulic fluid leakage into the axle housing, reducing brake effectiveness.

3. Air Entrapment in the Hydraulic Lines: Air pockets within the hydraulic lines can compress under pressure, leading to inconsistent brake pedal feel and reduced braking efficiency.

4. Contaminated or Low Brake Fluid: Contaminants or moisture in the brake fluid can cause corrosion and degradation of internal components, leading to brake performance issues.


Diagnostic Procedures

1. Visual Inspection for External Leaks: Examine all hydraulic lines, fittings, and connections for signs of leakage. Even minor external leaks can lead to significant loss of hydraulic pressure.

2. Check Brake Fluid Levels and Quality: Ensure that the brake fluid is at the recommended level and appears clean. Discolored or milky fluid may indicate contamination.

3. Bleed the Brake System: Using the appropriate procedure, bleed the brake system to remove any air trapped within the hydraulic lines. This can help restore pedal firmness.

4. Pressure Testing Brake Components: Utilize a hydraulic pressure gauge to test the integrity of the master cylinders and brake pistons. A drop in pressure can indicate internal leaks.


Maintenance and Repair Solutions

1. Replace Faulty Master Cylinders: If internal leakage is detected within the master cylinders, replacement is necessary. Ensure that the new cylinders are compatible with the Case 580 Super M specifications.

2. Repair or Replace Brake Pistons: For seal failures in the brake pistons, disassemble the rear axle housing to access the pistons. Inspect for wear or damage and replace seals or pistons as needed.

3. Flush and Replace Brake Fluid: Drain the existing brake fluid and replace it with fresh, manufacturer-recommended fluid. This helps remove contaminants and moisture that can affect brake performance.

4. Regular Brake System Inspections: Implement a routine maintenance schedule to inspect and service the brake system components, ensuring early detection of potential issues.


Preventative Measures

• Use High-Quality Brake Fluid: Always use the brake fluid specified by Case for the 580 Super M to ensure optimal performance and longevity of the brake system.

• Regularly Check for Leaks: Periodically inspect all hydraulic lines and connections for signs of wear or leakage.

• Avoid Overloading the Machine: Excessive loads can strain the brake system, leading to premature wear and potential failures.

• Store the Machine Properly: When not in use, store the backhoe in a dry environment to prevent moisture ingress into the brake system.


Conclusion
A soft brake pedal on the Case 580 Super M is a serious issue that requires prompt attention. By understanding the common causes, performing thorough diagnostics, and implementing effective maintenance and repair solutions, operators can restore and maintain the braking efficiency of their machines. Regular maintenance and proactive measures are key to ensuring the safety and reliability of the Case 580 Super M backhoe loader.
