Introduction
The Case 580CK backhoe loader, a cornerstone of mid-20th-century construction equipment, continues to serve in various industries due to its durability and versatility. However, as these machines age, engine replacements become a common necessity. This guide delves into the intricacies of replacing the engine in a Case 580CK, offering detailed insights, step-by-step procedures, and practical tips to ensure a successful engine swap.
Understanding the Case 580CK Engine Configuration

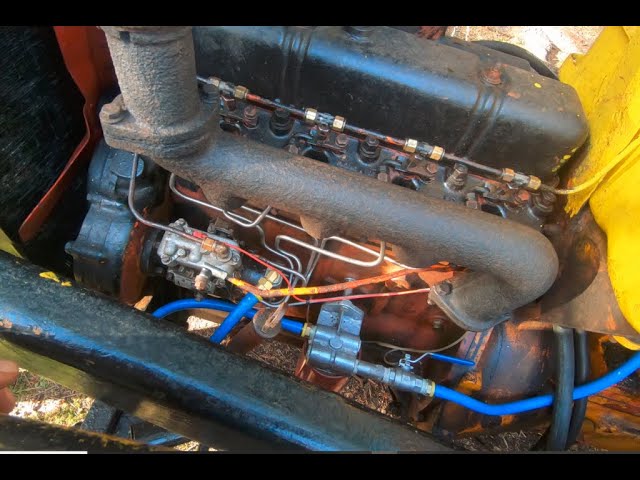

The Case 580CK is typically equipped with the Case 188D diesel engine, a four-cylinder powerplant known for its reliability. This engine is coupled with a torque converter and a power shuttle transmission, distinguishing it from models that utilize a direct clutch system. Understanding this configuration is crucial, as it influences the engine removal and installation procedures.
Preparation Phase
Before embarking on the engine replacement, thorough preparation is essential:
- Workspace Setup: Ensure a clean, level, and spacious area to facilitate the engine swap. While a concrete pad is ideal, a well-prepared gravel surface can suffice with proper precautions.
- Tools and Equipment: Gather necessary tools, including a hydraulic jack, engine hoist, torque wrench, and an assortment of hand tools. Specialized tools like a flywheel puller may also be required.
- Documentation: Obtain the service manual for the Case 580CK, which provides torque specifications, wiring diagrams, and other critical information.
- Disconnecting Power Sources: Begin by disconnecting the battery to prevent electrical accidents.
- Draining Fluids: Safely drain all engine fluids, including oil and coolant, to prevent spills and facilitate easier handling.
- Disconnecting Components: Detach all components connected to the engine, such as:
- Fuel lines and injectors
- Throttle linkage
- Hydraulic pump connections
- Steering rams
- Radiator hoses
- Fuel lines and injectors

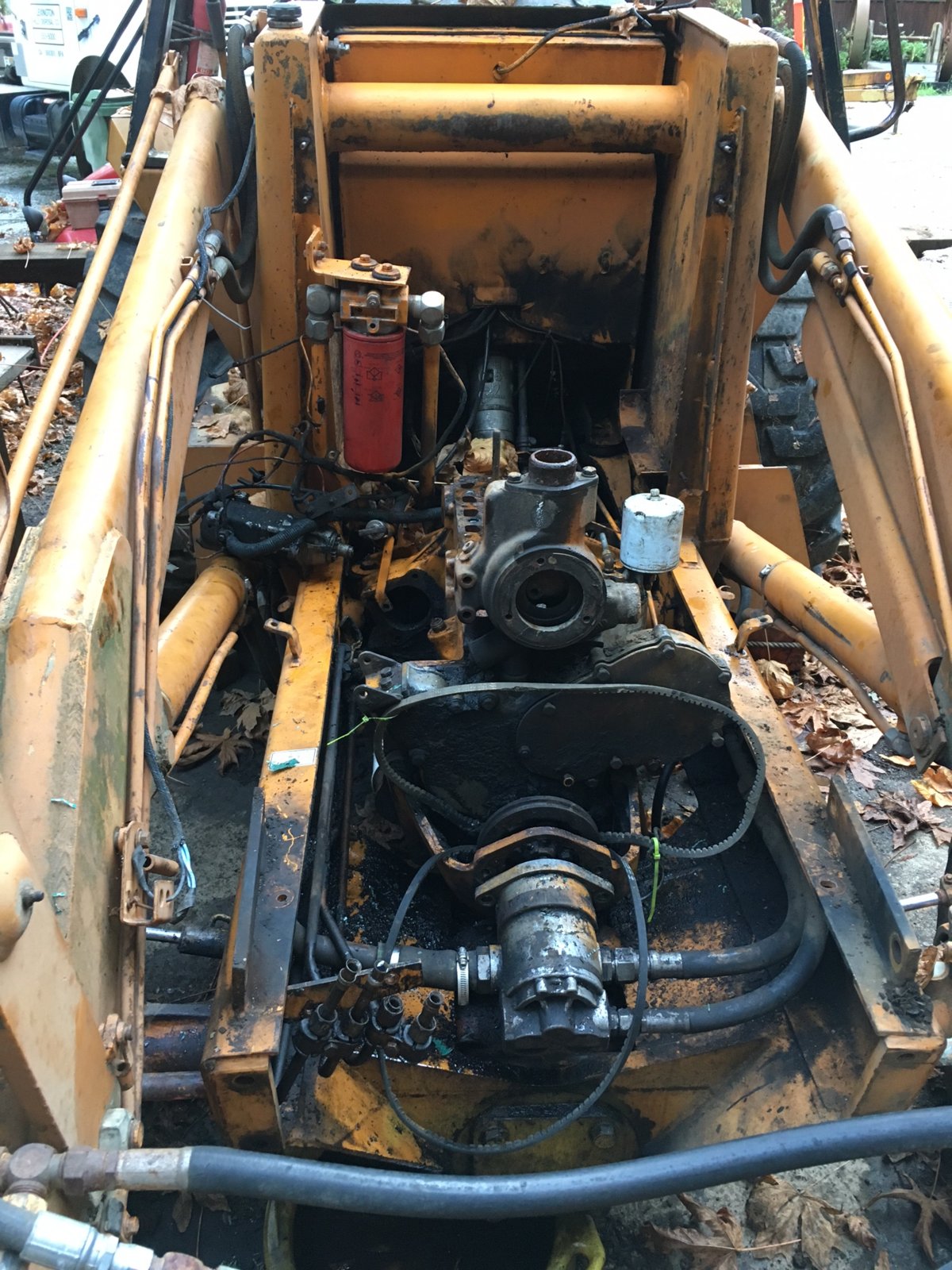

- Splitting the Tractor: The Case 580CK's design allows for engine removal without fully splitting the tractor. By raising the loader frame and supporting the machine, the engine and front axle assembly can be removed as a unit. This approach minimizes the complexity of the procedure .
- Engine Extraction: Using an engine hoist, carefully lift the engine from its compartment. Ensure all connections are detached before lifting to avoid damage.
- Preparing the New Engine: Before installation, inspect the replacement engine for compatibility. Ensure it matches the specifications of the original engine, including mounting points and flywheel configuration.
- Transferring Components: If the replacement engine has a clutch and flywheel assembly, and the original engine utilizes a torque converter, these components will need to be swapped. This process involves removing the flywheel and clutch assembly from the old engine and installing them onto the new engine.
- Installing the Engine: Position the new engine into the compartment, aligning it with the mounting points. Secure the engine using appropriate fasteners, ensuring all connections are tight and properly torqued.
- Reconnecting Components: Reattach all previously disconnected components, including fuel lines, throttle linkage, hydraulic pump, steering rams, and radiator hoses.
- Refilling Fluids: Refill the engine with the appropriate oil and coolant, ensuring levels are within recommended ranges.
- Testing: Before full operation, conduct a thorough test to check for leaks, unusual noises, or other issues. Monitor the engine's performance and address any anomalies promptly.
- Flywheel and Clutch Compatibility: When replacing the engine, ensure that the flywheel and clutch assembly are compatible with the new engine. Mismatched components can lead to operational issues.
- Hydraulic Pump Alignment: After engine installation, verify that the hydraulic pump is correctly aligned with the engine. Misalignment can cause pump failure or reduced hydraulic performance.
- Electrical Connections: Double-check all electrical connections, including sensors and wiring harnesses, to ensure proper operation.
After successfully replacing the engine, implement a preventive maintenance schedule to prolong the engine's lifespan:
- Regular Fluid Checks: Monitor oil and coolant levels, topping up as necessary.
- Filter Replacements: Change fuel and air filters at recommended intervals to ensure clean fuel and air supply.
- System Inspections: Periodically inspect the hydraulic system for leaks or wear, addressing issues promptly.
Replacing the engine in a Case 580CK backhoe loader is a complex but manageable task with proper preparation and attention to detail. By following the outlined procedures and addressing potential challenges proactively, operators can ensure the continued reliability and performance of their equipment. Regular maintenance and vigilant monitoring post-installation will further enhance the engine's longevity, keeping the Case 580CK operational for years to come.
