Design Context and Purpose

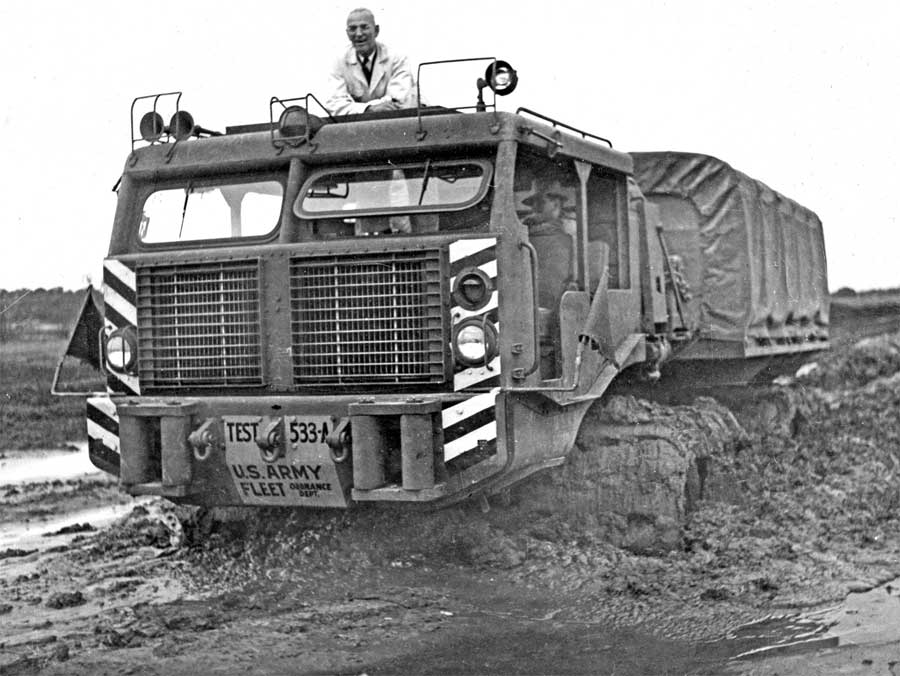

Conceived in the closing stages of World War II, the Sterling T26 was envisioned as the successor to the M26 “Dragon Wagon,” designed to transport the next generation of US super-heavy tanks like the 70‑ton T29 and the massive 95‑ton turretless T28. It was a product of necessity and ambition.
Innovative Engineering Solutions
Faced with wartime material shortages, particularly high-grade steel, Lieutenant Steve Hodges crafted a unique drivetrain: each wheel was individually powered through sprocket-and-chain final drives, effectively reverting to chain drive technology to ensure durability under heavy loads.
Steering was achieved by rotating the entire front bogie assembly, giving the massive vehicle a surprisingly tight turning radius—essential for navigating narrow lanes such as those in Normandy.
Powertrain and Transmission
Initial units were equipped with an American LaFrance 300E V12 engine—a 12.35 L powerplant delivering 280 bhp at 1800 rpm and 518 lb-ft of torque. Subsequent designs proposed alternatives: the Ford GAA V8, and finally the projected Ford GAC V12, though the war concluded before these could be fully implemented.
A trio of manual gearboxes provided a staggering 20 forward and three reverse gears, enabling the vehicle to adjust precisely to the immense weight it carried.
Legacy and Influence
Despite never being produced in significant numbers—none entered frontline service—the T26’s design principles influenced later heavy-duty military vehicles such as the Lockheed Twister, Lockheed Dragon Wagon, and even carried forward mechanically into the Oshkosh LVS series, deployed effectively during Operation Desert Storm.
Preservation Through Documentation
Industrial designer Tony Gibbs revitalized interest in the T26 by compiling archival materials from Lieutenant Hodges’ estate. His book, “Sterling T26 Discovered,” includes scanned blueprints, photographs, and technical notes, as well as a digital reconstruction of the vehicle—ensuring this once-forgotten masterpiece remains historically visible.
Glossary of Key Terms
- 8×8 Drivetrain: All eight wheels are powered, providing maximum traction—especially crucial for heavy equipment and off-road military use.
- Chain Final Drive: A robust sprocket-driven system used instead of conventional gears to handle substantial torque under material constraints.
- Front Bogie Steering: An entire axle assembly that pivots for directional control, enhancing maneuverability for large vehicles.
- Ford GAA / GAC Engines: High-performance tank-derived engines; GAA is a V8 engine used in armored vehicles, and GAC was a planned V12 variant.
- Team Legacy: Though not mass-produced, the T26’s innovations informed future military heavy-hauler designs.
Military enthusiasts are captivated by its scale and rarity—described as a “mud-bogging beast” by hobbyists. Model-builders dream about kitbashing components from existing M26 “Dragon Wagon” models to reconstruct a T26, while collectors cherish Gibbs’ book as a rare window into unbuilt military ambition.
Conclusion
The Sterling T26 8×8 12‑ton heavy truck stands as a testament to innovation under constraint—a hybrid of advanced engineering and necessity-driven retrofits. Designed for an era’s most formidable armor, it never saw deployment, yet its bold design concepts helped shape future heavy transporters. Thanks to archival efforts, its story and plans continue to inspire historians, modelers, and designers alike.
