Compact Performance with Purpose

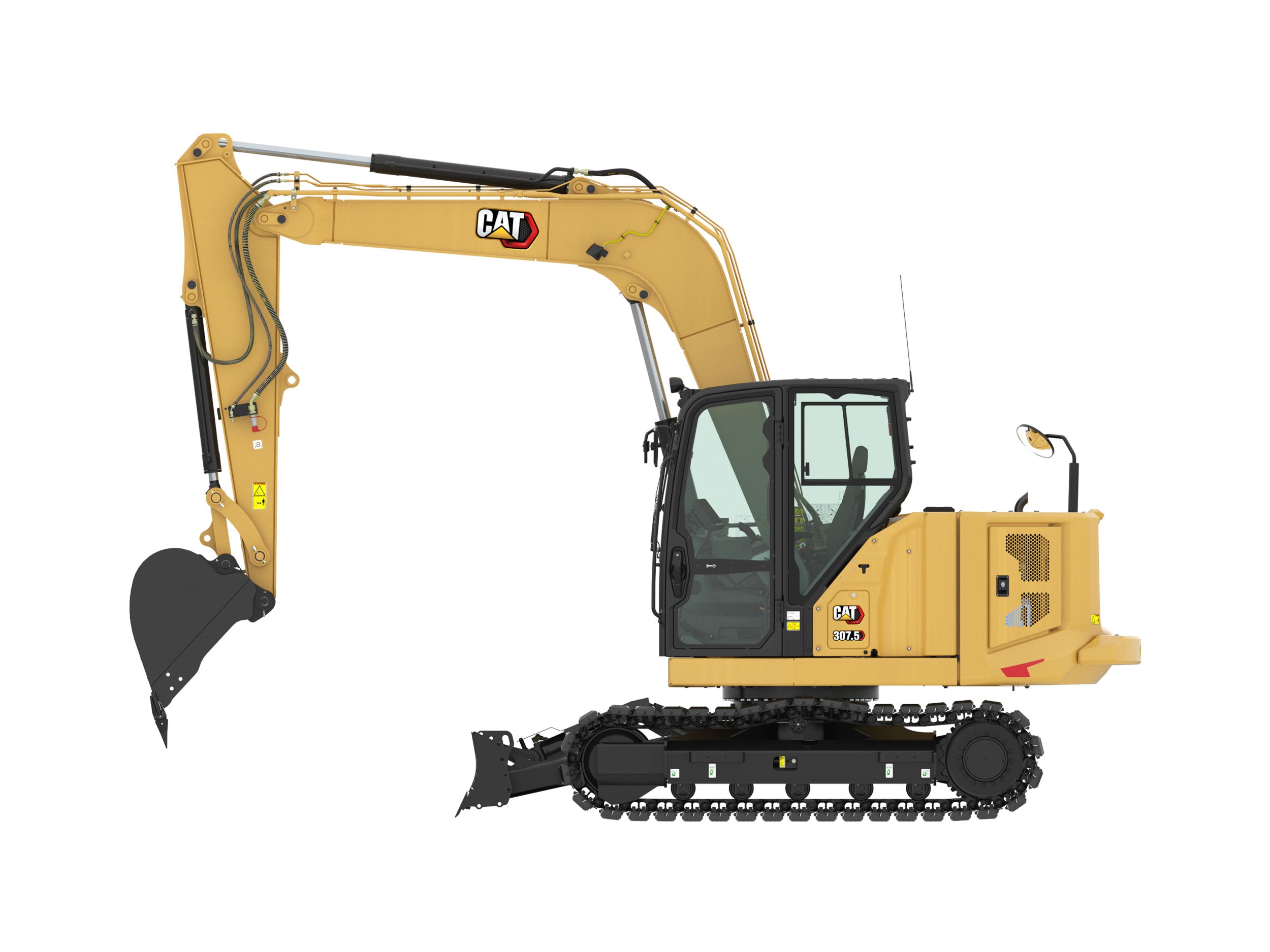

The Cat 307 mini hydraulic excavator is valued for its sturdy design and efficient performance. It features a standard tail swing and a fixed side boom, delivering high productivity at low operational cost. Comfort is a focus too, with a sealed cab, suspension seat, radio, and improved air conditioning system to keep operators working comfortably all day.
Specs That Stand Out
This model brings together compact dimensions and surprising capability:
- Engine: Cat C2.4 turbo, around 50 hp net power
- Operating weight: roughly 7,200 kg (about 15,900 lb)
- Digging reach: up to 22 ft (6–7 m), digging depth up to 15 ft (4–5 m), loading height approximately 18 ft (5–6 m)
- Hydraulic flow: around 64 L/min (17 gal/min), with a robust load‑sensing hydraulic system
- Stability and lift capacity thanks to its counterweight and tail swing design
- Operator‑friendly controls complete with 100 % pilot controls, auto‑idle function, nice cabin ergonomics, and a monitor console
- Versatility and durability, with options like hydraulic lines, blade, and GPS available to match a variety of job needs
While generally reliable, the Cat 307 can face typical service issues over time:
- Hydraulic system problems: leaks from worn seals or hoses may cause slow attachment function or malperformance. Regular inspections are key.
- Engine and cooling concerns: overheating, low oil pressure, or stalling can occur if radiator, oil pressure, fuel delivery, or head gasket integrity are compromised.
- Unexpected shutdowns: electrical failures such as faulty solenoid wiring have been reported.
- Fuel starvation after running: initial runs may be smooth, but fuel filters or hidden screens can clog and restrict flow.
- Gray‑market variants: some Cat 307 models are imported and differ slightly. Always verify part compatibility via local dealers.
Quote:“They lift very well and are very stable… engine proven to be good… track gear and final drives would be the things to look at.”Another owner shared:
Such praise points to the Cat 307’s capabilities and reliability alongside advice to monitor high‑load components.
Quote:“At 7 tons it will do the bigger work I need… still fairly transportable… runs great.”A Story from the Yard
Affirming the balance of size and portability that makes the 307 accessible for varied workloads.
On a chilly morning, a landscape contractor struggled to find enough reach to load mulch over a retaining wall. His compact machine couldn’t quite reach—until he swapped in a “long stick” configuration from the 307 series. Suddenly, he cleared the edge easily, saved a few swaps, and resolved the task in record time. This adaptability with boom options demonstrates the machine’s customizable reach and field utility.
Maintenance Checklist
- Inspect hydraulic hoses, seals, and fluid levels.
- Monitor cooling system components, fuel delivery lines, and oil pressure regularly.
- Check electrical solenoids and wiring for intermittent shutdowns.
- Use genuine Cat parts to preserve performance and prevent premature wear.
- Verify compatibility on gray‑market machines or parts.
This blend of design strengths, technical clarity, operator insights, and real‑world context captures what the Caterpillar 307 brings to job sites—and how to keep it working at its best.
