Caterpillar’s Mid-Size Loader Evolution
The Caterpillar 936 wheel loader was introduced in the mid-1980s as part of Caterpillar’s push to modernize its mid-size loader lineup. Positioned between the smaller 910/920 series and the heavier 950/966 models, the 936 offered a balance of maneuverability, lifting capacity, and durability. With an operating weight of approximately 24,000 lbs and a bucket capacity of 2.5 to 3.0 cubic yards, the 936 was widely adopted by municipalities, quarries, and contractors for general-purpose loading, stockpiling, and light excavation.
Caterpillar, founded in 1925, had by the 1980s become the global leader in earthmoving equipment. The 936 was part of a broader strategy to offer more refined operator environments and improved hydraulic control while maintaining the mechanical reliability that defined earlier models.
Engine and Drivetrain Characteristics
The 1987 CAT 936 was powered by the Caterpillar 3204 diesel engine, a naturally aspirated four-cylinder unit producing around 125 horsepower. Known for its simplicity and torque-rich performance, the 3204 was widely used across Caterpillar’s product lines, including graders and smaller dozers.
The transmission was a powershift type, offering four forward and three reverse speeds. This setup allowed smooth gear changes under load and was paired with a torque converter for better low-speed control. The drivetrain was robust, but over time, wear in clutch packs and valve bodies could lead to sluggish shifting or gear hesitation.
Hydraulic System and Loader Performance
The 936 featured a closed-center hydraulic system with a gear pump delivering approximately 40 gallons per minute. The system powered the lift arms, bucket tilt, and auxiliary functions. While not as refined as later load-sensing systems, it provided reliable performance and was easy to service.
Operators appreciated the loader’s breakout force and stability, especially when working with dense materials like crushed rock or wet clay. The Z-bar linkage offered strong digging power and fast dump cycles, though visibility over the bucket was slightly limited compared to parallel lift designs.
Cab Design and Operator Experience
The cab on the 1987 model was functional but basic by modern standards. It included analog gauges, mechanical levers, and minimal insulation. Noise levels were higher than today’s machines, and air conditioning was often optional. However, visibility was good, and the layout was intuitive for experienced operators.
One operator in Oregon recalled using a 936 for snow removal and gravel yard work in the early 1990s. Despite the lack of creature comforts, he praised the machine’s responsiveness and ease of maintenance. He noted that the loader could run all day without overheating, even in summer conditions.
Common Issues and Maintenance Tips
As with any aging machine, the 936 has known wear points:

• Transmission clutch packs: May slip or delay engagement; regular fluid changes and filter replacements help extend life.

• Hydraulic hoses and seals: Prone to cracking after decades; replace with modern synthetic lines for durability.

• Articulation joint bushings: Can develop play, affecting steering precision.

• Electrical connectors: Subject to corrosion; dielectric grease and periodic inspection recommended.


• Inspect the transmission under load

• Test hydraulic response at full cycle

• Check for frame cracks near the articulation joint

• Review maintenance records, especially engine rebuild history


Mixing wood mulch with sand might seem unusual, but it has practical applications in various landscaping and construction tasks. The process, when done correctly, can improve soil conditions, enhance drainage, and even be used in specific construction or aesthetic projects. In this article, we will explore the reasons behind mixing wood mulch with sand, how to do it effectively, and the benefits and challenges involved.
Understanding the Components: Wood Mulch and Sand
Before delving into the benefits and techniques of mixing these materials, it's essential to understand the properties of wood mulch and sand, as well as how they interact.
Wood Mulch:
Wood mulch is a byproduct of chipping and shredding wood, typically from tree branches, bark, and other plant materials. It is commonly used in landscaping for its ability to retain moisture in soil, suppress weed growth, and improve the aesthetic value of gardens and flower beds. Depending on the type of wood used, mulch can also add nutrients to the soil as it decomposes.
Sand:
Sand is a granular material composed of finely divided rock and mineral particles. It is known for its excellent drainage properties and is often used in soil improvement to reduce compaction, enhance aeration, and increase water movement. Sand is particularly useful in areas where soil drainage is poor, such as clay-heavy soils.
Why Mix Wood Mulch with Sand?
There are several reasons why mixing wood mulch with sand might be beneficial, particularly in landscaping, soil conditioning, and construction applications.

1. Improving Soil Structure and Drainage
   Mixing wood mulch with sand can help improve the soil's structure, especially in areas with dense, compacted, or clay-rich soil. Sand’s natural drainage properties can offset the moisture retention of wood mulch, preventing soil from becoming overly wet. This mix can create a balance that allows water to flow through the soil without accumulating excessively, thereby reducing the risk of root rot in plants.

2. Enhancing Aeration
   One of the key advantages of adding sand to mulch is improving soil aeration. The coarse texture of sand helps break up dense soils, allowing roots to access oxygen and facilitating the movement of water and nutrients. Mulch, on the other hand, serves as a barrier that keeps the soil temperature stable, prevents erosion, and adds organic matter. Together, they can create an optimal environment for plant growth.

3. Reducing Mulch Degradation Speed
   Wood mulch can break down quickly when exposed to moisture and organic microbial activity. Mixing in sand can slow this process by reducing moisture retention and decreasing the decomposition rate. This can extend the life of the mulch, ensuring it remains effective for a longer period.

4. Increased Aesthetic Appeal
   In landscaping projects, the mixture of wood mulch and sand can be used for decorative purposes. For example, it can create a more natural, earthy texture for pathways, flower beds, and garden borders. The lighter color of sand can complement the darker hues of wood mulch, creating a more visually pleasing effect.

5. Improved Erosion Control
   For areas that are prone to erosion, such as sloped terrain or places with heavy rainfall, the combination of sand and mulch can be beneficial. The sand helps stabilize the ground, while the mulch retains moisture and protects the soil from the direct impact of rain, reducing erosion and promoting healthier vegetation growth.


1. Choose the Right Sand
   Not all types of sand are created equal. For gardening and landscaping, sharp, coarse sand is the best option. This type of sand will enhance drainage and aeration without compacting too much over time. Avoid fine or silica sand, as it can compact quickly and may not provide the same benefits.

2. Select the Appropriate Mulch
   Wood mulch can come in various forms, such as shredded bark, wood chips, or sawdust. The choice of mulch will depend on the specific aesthetic or functional needs. For example, larger wood chips may provide better long-term mulch retention, while finer, shredded mulch decomposes faster but adds organic matter to the soil.

3. Mixing Proportions
   A good starting point is to mix approximately 60-70% wood mulch with 30-40% sand. However, this ratio can be adjusted based on specific needs:
   • For areas requiring improved drainage and aeration, increase the sand proportion.

   • For areas where you want to slow mulch decomposition and retain moisture, increase the mulch ratio.

   • For erosion control, a 50/50 mix of mulch and sand can be effective.

4. Application
   Once the mixture is prepared, it can be spread across the desired area. When applying it to flower beds or around trees, aim for a 2-3 inch layer of the mulch-sand mixture. For paths or decorative areas, a thicker layer of around 4-6 inches may be appropriate, depending on the level of foot traffic and the look you're aiming for.

5. Watering and Maintenance
   After application, water the mixture thoroughly to help it settle into the soil. Over time, monitor the area for any signs of soil compaction, excess moisture retention, or inadequate drainage. Adjust the mixture ratio if necessary, adding more sand to improve drainage or more mulch to enhance moisture retention.


• Improved Soil Health: The combination of organic material from mulch and the physical properties of sand can significantly improve soil structure, making it more conducive to plant growth.

• Longer Mulch Lifespan: The mix reduces the degradation of wood mulch, meaning it will last longer and require less frequent replenishing.

• Enhanced Drainage and Aeration: Sand improves drainage, while mulch helps retain moisture, making the soil conditions more balanced and optimal for plant roots.

• Erosion Prevention: The mix helps stabilize loose soils and prevents erosion, especially in areas with sloping ground or heavy rainfall.


• Correct Proportions: Too much sand can create an overly dry environment, while too much mulch can lead to waterlogging and reduced air circulation. It's essential to find the right balance based on soil type and the specific goals of the project.

• Mulch Decomposition: While mixing sand can slow the breakdown of wood mulch, it won't stop it entirely. Over time, you will still need to add fresh mulch to replenish nutrients and maintain soil health.

• Soil Compatibility: Before applying the mixture, test the soil's current texture and drainage properties. In some cases, adding too much sand to very sandy soils may worsen drainage issues.


• Construction Sites: Sand mixed with mulch can be used for temporary ground cover at construction sites to prevent soil erosion.

• Animal Bedding: In agricultural settings, this mixture can be used as bedding for animals, as it provides a soft, absorbent surface while preventing odors and maintaining a cleaner environment.

• Playground Surfaces: Wood mulch mixed with sand can be an effective solution for creating soft, stable playground surfaces that absorb impacts, providing safety for children.


CAT 416B Backhoe Loader Overview
The Caterpillar 416B is a mid-1990s backhoe loader designed for construction, utility, and agricultural work. Powered by a naturally aspirated or turbocharged four-cylinder diesel engine, typically the CAT 3054, it delivers around 75–85 horsepower depending on configuration. With an operating weight of approximately 14,000 lbs, the 416B became a popular choice for municipalities and contractors due to its mechanical simplicity and reliability. Caterpillar, founded in 1925, sold tens of thousands of 416-series machines globally, and many remain in service today.
Cranking Without Starting Symptoms
A common issue with older diesel machines like the 416B is that the engine cranks normally but fails to start. In this case, the machine shows:

• White smoke from the exhaust, indicating unburned fuel.

• Strong initial crank, followed by weakening.

• No fuel bursts at injectors, only drops.

• Voltage present at injection pump solenoid, but no engine response.


• Fuel tank

• Water separator

• Lift pump

• Fuel filter

• Injection pump

• Injectors


• Filling fuel filters manually to avoid excessive hand pumping.

• Cracking injector lines at the injectors while cranking to release trapped air.

• Removing the return fitting on top of the injection pump to allow air to escape.

• Ensuring fuel bursts, not drips, at injector lines during cranking.


• Voltage drop across battery cables

• Corroded terminals

• Weak starter motor


1. Fill fuel filters manually

2. Prime with hand pump until resistance is felt

3. Crack injector lines and crank until fuel bursts appear

4. Check voltage at injection pump solenoid

5. Remove and clean return fitting on pump

6. Inspect hydraulic levers and confirm neutral position

7. Test starter voltage drop and cable integrity


The Caterpillar 236B3 is a compact track loader well-known for its robust design and impressive performance in a variety of construction and landscaping tasks. However, as with all heavy machinery, problems can sometimes arise, leading to concerns like engine misfires, unusual rattles, and excessive smoke. These issues can disrupt operations and indicate underlying mechanical or operational problems that need to be addressed promptly.
This article delves into the potential causes behind engine misfires, rattling sounds, and excessive smoke in the Cat 236B3, providing insights on how to troubleshoot and resolve these issues. We’ll explore common causes, diagnosis methods, and maintenance solutions to ensure the equipment operates efficiently and reliably.
Understanding the Cat 236B3
The Cat 236B3 is part of Caterpillar’s B-series skid steer loaders, a popular range due to its excellent lifting capacity, maneuverability, and user-friendly features. It’s powered by a reliable diesel engine, typically the Cat 3044C DIT, a four-cylinder turbocharged engine, designed for tough environments where reliability and power are essential.
The machine is equipped with hydraulic systems that operate the lift arms, bucket, and other attachments, making it suitable for digging, lifting, grading, and other heavy lifting tasks. As with any complex machinery, issues like a misfire, rattling sounds, and smoke can indicate problems with the engine, fuel system, or exhaust system, which need to be diagnosed and fixed promptly.
Engine Misfire in the Cat 236B3
An engine misfire in a Cat 236B3, or any diesel engine, is often a symptom of a larger mechanical issue. When the engine misfires, it means one or more cylinders are not firing as they should. This leads to poor performance, loss of power, and increased fuel consumption, which can severely affect the machine's operation.
Possible Causes of Engine Misfire:

1. Faulty Fuel Injectors
   One of the most common causes of engine misfires in the Cat 236B3 is a problem with the fuel injectors. If an injector is clogged or malfunctioning, it can lead to poor fuel atomization, causing incomplete combustion in one or more cylinders. This results in misfires, rough idling, and poor engine performance.

2. Fuel Quality Issues
   Poor-quality diesel fuel or fuel contaminated with water or debris can cause the engine to misfire. Water in the fuel system can lead to corrosion and poor combustion, while debris can clog fuel filters or injectors, impeding fuel flow.

3. Air Intake or Compression Problems
   An air intake obstruction, such as a clogged air filter, can restrict airflow to the engine, disrupting the combustion process. Similarly, issues with engine compression, such as worn piston rings or valves, can prevent the engine from firing properly.

4. Ignition System Problems
   Though diesel engines do not rely on spark plugs, the ignition system’s components, such as the glow plugs, are vital for proper engine starting. Faulty glow plugs can prevent the engine from starting correctly and cause misfires, especially during cold starts.


• Start by inspecting the fuel injectors for signs of clogging or wear. Cleaning or replacing faulty injectors can restore smooth operation.

• Check the fuel filter and replace it if necessary. Ensure that the fuel is free of water or contaminants.

• Inspect the air filter and replace it if clogged. This simple step can significantly improve engine performance.

• Conduct a compression test to check for engine wear. Low compression in a cylinder may require repairs to the piston rings or valves.


1. Loose or Worn Components
   Loose bolts or worn-out parts in the engine, hydraulic system, or chassis can cause rattling noises. This may include loose engine mounts, components in the hydraulic system, or even the loader arms or attachment connections.

2. Exhaust System Problems
   A rattling noise could also originate from the exhaust system, particularly if the exhaust components are damaged or loose. Exhaust brackets, mufflers, or pipes may vibrate, causing an unusual sound.

3. Hydraulic Issues
   Rattling noises from the hydraulic system often signal low hydraulic fluid levels, air in the hydraulic lines, or a malfunctioning hydraulic pump. A thorough inspection of the hydraulic fluid and system components is necessary to pinpoint the issue.

4. Engine Parts Wear
   Internal engine components, such as bearings, valves, or timing chains, can wear over time, leading to rattling noises during operation. If these parts are not lubricated properly or are worn beyond their service limits, they can cause excessive noise.


• Perform a visual inspection of the engine, exhaust, and hydraulic system for any loose parts or connections. Tighten bolts or replace any damaged components.

• Check the hydraulic fluid levels and ensure there are no air bubbles in the lines. If necessary, bleed the hydraulic system to eliminate trapped air.

• Inspect the exhaust system for signs of damage or looseness. Tightening the exhaust brackets and replacing any worn-out components should resolve the issue.

• For engine-related rattling, a more in-depth inspection of the internal components may be required. This could involve checking the bearings, timing chains, and valve clearances.


1. Black Smoke:
   Black smoke typically indicates that the engine is burning too much fuel. This can occur if the fuel injectors are malfunctioning, if the air intake is restricted, or if the fuel/air mixture is too rich. Black smoke is often accompanied by a loss of power and poor fuel efficiency.

2. White Smoke:
   White smoke can occur when unburned fuel is present in the exhaust. This may happen due to poor compression in the engine or faulty injectors. If the engine is misfiring, the fuel may not burn fully, leading to white smoke.

3. Blue Smoke:
   Blue smoke usually points to an oil-burning issue. This could be caused by worn piston rings, valve seals, or turbocharger problems. When oil enters the combustion chamber, it burns and produces blue smoke.


• If black smoke is observed, check the fuel injectors for clogging or malfunctioning. Also, inspect the air filter for clogs and the fuel/air mixture for balance.

• White smoke could indicate low compression or faulty injectors. A compression test can help diagnose the issue, while injectors may need to be cleaned or replaced.

• Blue smoke often requires checking the piston rings, valve seals, and turbocharger. If oil is leaking into the combustion chamber, replacing the affected components is necessary.


• Regular Fluid Changes: Regularly change engine oil, hydraulic fluid, and fuel filters to maintain engine health and hydraulic performance.

• Check and Replace Filters: Air and fuel filters should be inspected and replaced regularly to ensure optimal engine performance and reduce the risk of contamination.

• Monitor Fuel Quality: Use high-quality, clean diesel fuel and store fuel properly to prevent contamination with water or debris.

• Inspect Hydraulic System: Regularly check the hydraulic fluid levels, hoses, and fittings to prevent issues with the hydraulic system.

• Perform Routine Engine Diagnostics: Use diagnostic tools to monitor engine performance, detect faults, and address issues before they become more serious.


Komatsu D31P-18 Overview and Design Legacy
The Komatsu D31P-18 is a low-ground-pressure crawler dozer designed for soft terrain and fine grading. Introduced in the late 1980s as part of Komatsu’s D31 series, the -18 variant featured hydrostatic steering, sealed track rollers, and a wide track footprint for swampy or unstable ground. With an operating weight of approximately 16,000 lbs and powered by a Komatsu 4D95S diesel engine producing around 75 horsepower, the D31P-18 became a popular choice for forestry, land clearing, and agricultural work.
Komatsu, founded in 1921 in Japan, had by the 1980s become a global competitor to Caterpillar, offering durable machines with simplified maintenance and strong parts support. The D31 series sold thousands of units worldwide, with many still in service today.
Brake System Configuration and Inching Pedal Function
The D31P-18 uses a dry disc brake system integrated with the steering clutches. Each side of the machine has its own brake assembly, which is actuated mechanically through linkages connected to the inching pedal and steering levers. The inching pedal allows the operator to modulate forward motion without fully disengaging the transmission—useful for precise blade control during grading.
When new brake linings are installed, they often feel overly aggressive, especially when the inching pedal is depressed. This is because the fresh friction material has not yet been saturated with oil or worn to match the drum surface. Unlike wet brakes, dry brakes rely on direct contact and mechanical adjustment, making initial setup critical.
Common Symptoms and Misinterpretations
Operators may notice that after installing new brakes:

• The machine stops abruptly when the inching pedal is pressed.

• There is no coasting or gradual deceleration.

• The brakes feel “tight” even after adjustment.

• No dragging noise is present during travel.


• Follow factory adjustment specs, but allow for slight over-clearance initially.

• Test under load, not just at idle—brake behavior changes with torque.

• Avoid full engagement of the inching pedal until linings have worn in.

• Monitor for heat buildup—excessive friction can cause glazing or premature wear.


• Keep brake housings clean and sealed.

• Avoid oil contamination—even a small leak can ruin dry linings.

• Inspect linkage bushings and return springs to ensure smooth pedal response.


The John Deere 300D rock truck is a heavy-duty, articulated dump truck designed for hauling large quantities of materials on rough terrain. These trucks are often used in mining, construction, and heavy earthmoving operations where performance and reliability are critical. One of the essential features of these machines is the steering system, which ensures precise maneuvering even in challenging environments.
However, as with all heavy machinery, systems can fail, and that’s where understanding the emergency steering system becomes crucial. This article explores the emergency steering system in the John Deere 300D, focusing on its components, how it functions, and common issues that may arise. We will also discuss troubleshooting tips and maintenance practices to ensure the truck’s steering system remains operational when you need it most.
The Steering System in the John Deere 300D
The John Deere 300D is equipped with a hydrostatic steering system that allows for smooth and responsive control over the vehicle, even at low speeds. The hydrostatic steering uses hydraulic fluid to operate steering cylinders, providing a high level of control, especially when navigating uneven or soft ground. This system is known for its precision and durability under heavy use.
In normal operation, the hydraulic pump is powered by the engine, providing the necessary force for steering. The steering mechanism typically consists of a steering wheel or joystick, steering cylinders, and hydraulic lines connecting the components. When the steering system functions correctly, it allows the driver to easily maneuver the vehicle with minimal effort.
Emergency Steering Functionality
In case of a failure in the primary hydraulic system—such as a pump malfunction, loss of hydraulic fluid, or other issues—the John Deere 300D is designed with an emergency steering function. This emergency steering system ensures that the vehicle can still be steered to safety or to a repair area, even when the primary system is not operational.
The emergency steering system typically relies on a mechanical backup or a small, auxiliary hydraulic pump that can be engaged in the event of a failure. In some models, the emergency steering is powered by the vehicle’s battery, while others may use the same hydraulic reservoir but with a reduced pressure or flow.
Common Issues with Emergency Steering
While the emergency steering system is an essential backup, it is not without its own set of potential issues. Common problems that may arise in the emergency steering system of the John Deere 300D rock truck include:

1. Hydraulic Pump Failure
   If the primary hydraulic pump fails, the emergency system may not engage properly. A worn or malfunctioning pump is often the cause of this issue. This may occur due to overheating, contamination, or general wear and tear.

2. Low Hydraulic Fluid
   The emergency steering system relies on hydraulic fluid to function. If the hydraulic fluid is too low, either due to leakage or improper maintenance, the emergency system may not provide adequate steering power.

3. Blocked Hydraulic Lines
   Blockages in the hydraulic lines leading to the emergency steering system can prevent the flow of fluid, rendering the system ineffective. This could be caused by dirt, debris, or internal corrosion.

4. Faulty Steering Valve
   The steering valve directs hydraulic fluid to the steering cylinders, and if it malfunctions, it can prevent the vehicle from being steered, even with the emergency system engaged. Issues with the valve are often related to wear or contamination.

5. Battery Issues
   If the emergency steering system relies on the truck's battery to power a small auxiliary pump, a weak or dead battery can cause the emergency system to fail. Ensuring that the battery is fully charged and in good condition is essential for the proper operation of this backup feature.


1. Check Hydraulic Fluid Levels
   One of the first things to check is the hydraulic fluid level. Ensure that the reservoir is full and that there are no signs of leaks. If you find a leak, it should be repaired immediately to prevent further loss of fluid. Be sure to use the correct type of hydraulic fluid as specified by John Deere.

2. Inspect the Hydraulic Pump
   If the primary steering system is unresponsive, inspect the hydraulic pump for any signs of damage or wear. A faulty pump may need to be replaced or repaired by a qualified technician. Additionally, check the condition of the hydraulic filter, as a clogged filter can also affect the pump’s performance.

3. Look for Blockages in the Lines
   Inspect the hydraulic lines for any signs of blockages or damage. Clean out any debris or replace any lines that are cracked or worn. Ensure that all connections are tight and leak-free.

4. Examine the Steering Valve
   If the steering valve is suspected to be the issue, it may need to be disassembled and inspected for wear or contamination. A professional mechanic may be required to rebuild or replace the valve if necessary.

5. Check the Battery
   For systems that rely on the truck’s battery for emergency steering, check the battery’s charge and condition. If the battery is weak or dead, it can be replaced or recharged. A fully functional battery is crucial for reliable operation of the emergency steering system.

6. Test the System
   Once you've addressed the potential issues, test the emergency steering system to ensure that it functions correctly. Make sure that the vehicle can be steered without much difficulty. If the system is still malfunctioning, it may require further investigation or professional service.


1. Regular Fluid Checks
   Consistently monitor hydraulic fluid levels and top them off as necessary. Check for any signs of contamination, such as metal shavings or dirt, and replace the fluid if needed.

2. Scheduled Hydraulic System Inspections
   Periodically inspect the hydraulic pump, steering valve, and other components for wear or damage. Replace parts as necessary to avoid unexpected failures.

3. Battery Maintenance
   Keep the truck’s battery in good condition by performing regular checks, cleaning terminals, and recharging when necessary. A well-maintained battery ensures that the emergency steering system is available when needed.

4. Use Proper Hydraulic Fluids
   Always use the recommended hydraulic fluids to ensure optimal performance of the steering system. Using improper fluids can lead to increased wear, overheating, and reduced hydraulic efficiency.

5. Keep the System Free of Contaminants
   Protect the hydraulic system from dirt and debris by regularly cleaning filters, seals, and connections. Properly storing the vehicle when not in use can also prevent contaminants from entering the system.


Overview of the JD 655C Series II Crawler Loader
The John Deere 655C Series II is a mid-sized crawler loader introduced in the early 2000s, designed for earthmoving, demolition, and utility work. With an operating weight of approximately 38,000 lbs and powered by a John Deere 6068T turbocharged diesel engine producing around 145 horsepower, the 655C combines robust traction with responsive hydrostatic drive. Its Series II upgrade included improved operator controls, enhanced diagnostics, and refined hydraulic modulation.
The machine uses a dual-path hydrostatic transmission, meaning each track is independently powered by its own hydraulic circuit. This design allows for precise steering and variable speed control but also introduces complexity in diagnosing tracking issues.
Symptoms of Intermittent Left Drift
Operators have reported that the 655C occasionally pulls to the left while traveling forward or reverse, even when not under load. The drift typically lasts a few minutes before self-correcting. There is no loss of pushing power, and the issue does not appear to be terrain-related.
This behavior suggests a temporary imbalance in hydraulic output between the left and right drive motors. Because the machine uses electronic sensors and control valves to regulate flow, even minor inconsistencies can cause directional drift.
Possible Causes and Diagnostic Path
Several factors may contribute to intermittent tracking drift:

• Sensor calibration drift: The hydrostatic system relies on position sensors and pressure transducers. If a sensor begins to misreport values due to age or electrical interference, the control module may reduce flow to one side.

• Electrical grounding issues: Poor grounding or corroded connectors can cause erratic signals to the transmission controller. This is especially common in older machines exposed to moisture or vibration.

• Valve spool sticking: Hydraulic control valves may stick intermittently due to contamination or wear, causing uneven flow distribution.

• Software calibration: The Series II models include onboard diagnostics and calibration routines. If the system has not been recalibrated after component replacement or service, drift may occur.


• Run system diagnostics using the onboard monitor or external service tool. Look for sensor faults or calibration errors.

• Inspect wiring harnesses, especially near the transmission controller and drive motors. Clean and tighten all ground points.

• Check hydraulic fluid condition. Contaminated or aerated fluid can affect valve response.

• Perform a calibration cycle. Follow the manufacturer’s procedure to reset sensor baselines and valve timing.

• Test drive motors independently. Use flow meters to compare output under load and at idle.


• Flush hydraulic system every 1,000 hours, replacing filters and inspecting for metal particles.

• Protect electrical connectors with dielectric grease and weatherproof boots.

• Update software if newer calibration profiles are available from John Deere.

• Avoid prolonged idling, which can cause uneven thermal expansion in hydraulic components.


The TD15C is a powerful crawler tractor manufactured by International Harvester (later acquired by Case IH), designed for heavy-duty tasks in construction and agriculture. Like many large machines, the TD15C is equipped with a final drive system that transfers power from the engine to the tracks. This system is crucial for ensuring the machine's movement and traction, especially in demanding environments. Proper maintenance of the final drive system, including keeping it well-lubricated, is essential for the machine's performance and longevity.
One of the most important aspects of maintaining the final drive is ensuring the proper oil capacity. The correct oil level and type not only help reduce wear and tear on the gears but also prevent overheating and other mechanical failures. This article will explore the TD15C final drive oil capacity, why it's important, how to check and maintain the oil, and potential issues that may arise if the oil level is incorrect.
The Final Drive System: An Overview
The final drive in any tracked vehicle like the TD15C is responsible for converting the high-speed, low-torque power produced by the engine into low-speed, high-torque power that turns the tracks. The final drive typically includes a combination of gears, bearings, seals, and a lubrication system to reduce friction and heat buildup.
The oil used in the final drive system lubricates the gears and bearings, allowing them to function smoothly without excessive wear. It's essential to use the right type of oil and maintain the correct oil level for optimal performance.
TD15C Final Drive Oil Capacity
The TD15C final drive oil capacity refers to the amount of oil required to properly fill the final drive assembly. This is an important specification because the final drive oil helps to reduce friction, prevent overheating, and protect internal components from excessive wear.
For the TD15C, the final drive oil capacity is approximately 10.5 gallons (about 40 liters) per side. It’s important to note that the final drive system is usually split into two halves—one for each track—and each side requires a separate oil fill.
Why Oil Capacity Matters

1. Lubrication Efficiency
   The right oil capacity ensures that the gears and bearings within the final drive receive adequate lubrication. If the oil level is too low, the internal components may experience increased friction, leading to overheating, excessive wear, and even catastrophic failure.

2. Prevention of Overheating
   The final drive system is subject to high temperatures due to the pressure and friction generated by the gears. Sufficient oil helps to dissipate heat, preventing the system from overheating, which could lead to damage or decreased efficiency.

3. Longevity of Components
   Maintaining the correct oil level extends the life of critical components in the final drive system, including gears, bearings, and seals. Low oil levels can cause the components to wear prematurely, resulting in costly repairs and potential downtime.

4. Contamination Prevention
   Using the correct oil capacity and regularly changing the oil helps prevent contaminants like dirt and metal shavings from accumulating in the system. These contaminants can damage the gears and other parts, leading to costly repairs.


1. Locate the Oil Fill Plug
   The oil fill plug is typically located on the side of the final drive housing. It’s important to ensure the machine is on a level surface before checking the oil to get an accurate reading.

2. Use the Right Type of Oil
   The TD15C typically requires gear oil, such as a high-quality EP (Extreme Pressure) gear lubricant, to ensure optimal performance of the final drive system. Always refer to the owner's manual for the exact oil type and specifications recommended by the manufacturer.

3. Check the Oil Level
   To check the oil, remove the fill plug and use a dipstick or the oil sight glass (if equipped) to measure the oil level. The oil should be at the specified level, which can often be found in the service manual or stamped on the final drive housing. If the oil level is low, top it off with the recommended oil.

4. Inspect for Leaks
   Regularly inspect the final drive housing for any signs of leaks around the seals or plugs. Leaks can cause a drop in the oil level, leading to insufficient lubrication and potential damage. If you notice a leak, replace the seal or plug and ensure it is torqued to the manufacturer’s recommended specification.

5. Change the Oil Regularly
   Changing the oil at regular intervals is essential for maintaining the health of the final drive system. The oil should be changed after a certain number of operating hours or based on the manufacturer’s recommendations. Contaminated or degraded oil should be replaced to maintain lubrication efficiency.


1. Low Oil Levels
   When the oil level is too low, the gears within the final drive system may not receive adequate lubrication. This leads to excessive wear and can cause the final drive components to overheat, reducing their lifespan. In extreme cases, insufficient lubrication can lead to complete failure of the final drive, resulting in expensive repairs or replacements.

2. Overfilled Oil
   On the other hand, overfilling the final drive can also cause problems. Excess oil can lead to excessive pressure within the system, causing seals to fail and oil to leak out. Additionally, overfilled oil can foam when exposed to heat, which reduces its ability to lubricate the gears effectively.

3. Contaminated Oil
   Oil that has been contaminated with dirt, water, or debris can reduce its lubricating properties, leading to increased wear and premature failure of the final drive components. Regularly changing the oil and replacing the seals helps keep contaminants out of the system.


1. Use High-Quality Oil
   Always use the recommended high-quality oil for the TD15C final drive. Using subpar oil or incorrect oil types can lead to accelerated wear and potentially catastrophic failures. Follow the manufacturer’s guidelines for oil specifications.

2. Monitor Oil Levels Regularly
   Checking the oil level regularly as part of routine maintenance is essential to ensure the final drive operates smoothly. Low oil levels should be corrected immediately to prevent damage to the system.

3. Replace Seals and Plugs as Needed
   If leaks are detected, replace worn-out seals and plugs promptly. Leaks can significantly reduce oil levels and cause the final drive system to run dry, leading to damage. Regular inspections are vital to catching leaks early.

4. Schedule Regular Oil Changes
   Ensure oil changes are performed on time according to the manufacturer’s recommendations. Regularly replacing the oil prevents contamination buildup and keeps the final drive lubricated for longer periods.

5. Consult a Professional for Complex Issues
   If issues persist, such as unusual noises, excessive heat, or low hydraulic power, it may be necessary to consult a professional mechanic or technician. They can perform a more thorough inspection, including checking for internal damage or failures.


Komatsu PC40MR-2 Background and Design
The Komatsu PC40MR-2 is a compact hydraulic excavator introduced in the early 2000s as part of Komatsu’s MR (Minimum Radius) series. Designed for urban construction and utility work, it features a tight tail swing radius and a robust hydraulic system. Powered by a Komatsu 3D88E-5 engine, the machine delivers approximately 40 horsepower and operates with a hydraulic flow of 100 liters per minute at pressures up to 3,000 psi. Its compact design makes it ideal for confined spaces, but it also means components like the hydraulic pump and engine accessories are tightly packed—making noise diagnosis more complex.
Identifying the Source of Ticking Sounds

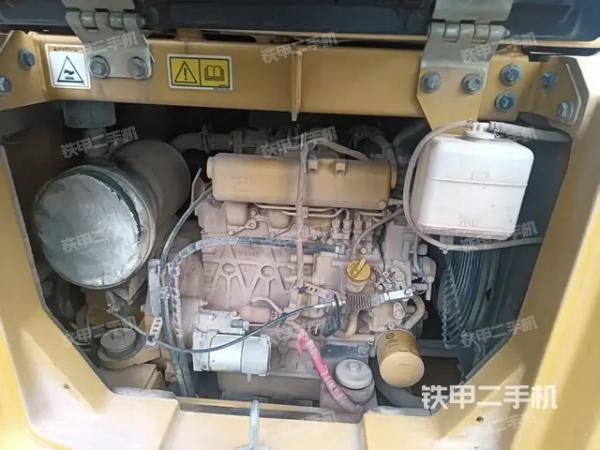

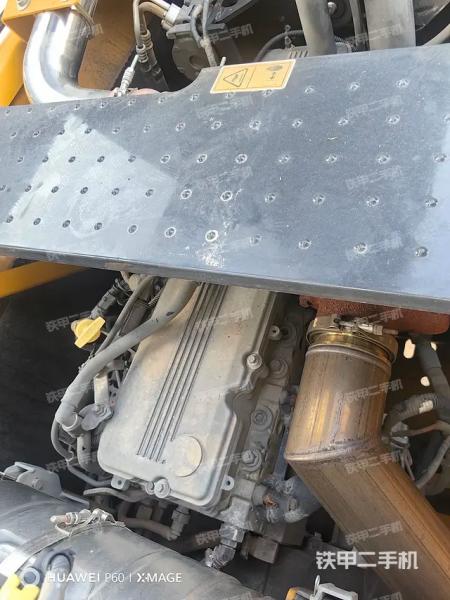

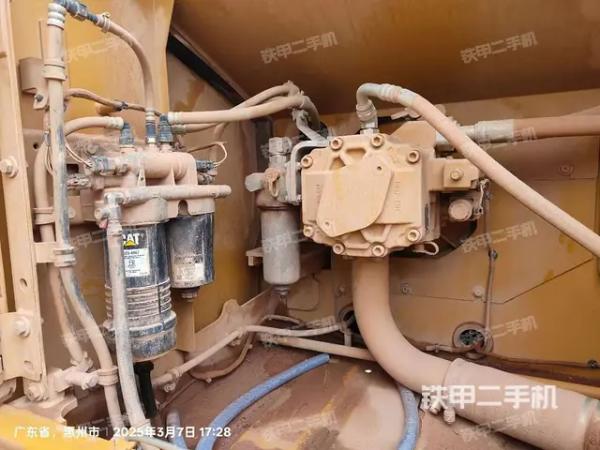

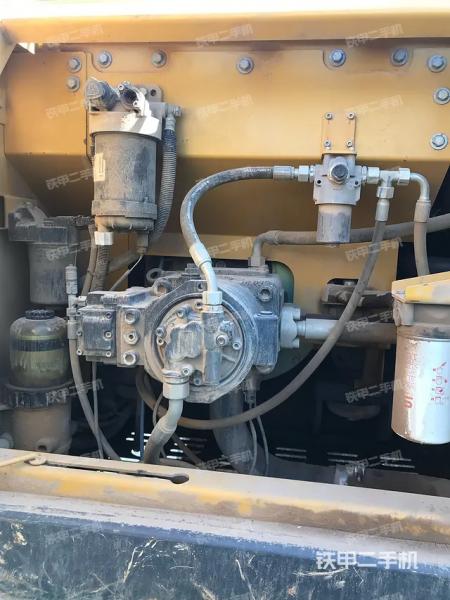

A persistent ticking noise near the rear of the engine, especially around the hydraulic pump area, can indicate several mechanical or hydraulic issues. In the case of a well-used PC40MR-2, the ticking may emerge after fluid changes or prolonged idle operation.
Potential causes include:

• Hydraulic pump cavitation: When air enters the pump due to low fluid levels or poor bleeding, it causes a ticking or rattling sound as bubbles collapse under pressure.

• Loose injector fittings: Diesel injectors that are not fully seated or have worn seals can produce rhythmic ticking, especially at low idle.

• Valve lash misadjustment: Incorrect valve clearance can lead to tapping noises, though this is typically more metallic and located higher on the engine.

• Worn pump bearings or couplings: The main hydraulic pump is gear-driven and mounted directly to the engine. Worn couplings or bearings can produce a repetitive knock or tick.


• Run the machine at low idle with all hydraulic functions cycled slowly.

• Check fluid level with the boom and arm fully retracted.

• Inspect return lines for foam or bubbles, which indicate aeration.

• Use OEM-spec fluid, as viscosity mismatches can affect pump behavior and noise.


• Drive gear or spline coupling

• Pump mounting flange

• Vibration dampening bushings


• Use a mechanic’s stethoscope to pinpoint the sound source—compare engine block, pump housing, and injector lines.

• Monitor hydraulic pressure at idle and under load—fluctuations may indicate internal leakage or pump inefficiency.

• Inspect engine mounts and pump brackets for looseness or fatigue.

• Consider infrared thermography to detect abnormal heat buildup in the pump or injector area.


The Volvo MC115C is a versatile and durable machine often used in construction and agricultural operations. As with all heavy machinery, the maintenance of key systems is essential to ensure smooth performance and to prevent costly repairs. One critical system in any machine is the oil drainage system, responsible for removing used engine oil and keeping the engine lubricated with fresh oil. However, issues can sometimes arise, particularly with the oil drain system, which can lead to performance problems and mechanical failures if not addressed properly.
This article will delve into common issues associated with the oil drain system on the Volvo MC115C, the diagnostic steps to identify the problem, and solutions to restore the system’s efficiency.
Understanding the Importance of the Oil Drain System
The oil drain system in any heavy equipment, including the Volvo MC115C, is designed to collect and remove used engine oil from the engine, typically during an oil change. The oil drain system also includes the drain plug, which is used to release the oil, as well as associated filters and gaskets that ensure that oil circulates properly within the engine. Without an effective oil drain system, the engine could suffer from poor lubrication, overheating, and excessive wear, which could lead to catastrophic failures over time.
Common Problems with the Oil Drain System

1. Leaking Oil Drain Plug
   One of the most common issues with the oil drain system on the Volvo MC115C is a leaking drain plug. Over time, the gasket on the plug may degrade, or the plug may become loose due to wear or improper installation. This can cause oil to leak during or after an oil change.

2. Clogged Oil Drain Line
   The oil drain line or tube could become clogged due to a buildup of debris, sludge, or carbon deposits from the engine oil itself. A clogged drain line can prevent the oil from draining properly, leading to overfilled oil levels, inadequate lubrication, or difficulty performing oil changes.

3. Damaged or Worn Drain Valve
   The drain valve, responsible for releasing the oil into a collection container, can become damaged or worn over time. A malfunctioning valve can lead to oil leaks or improper drainage, which can complicate the oil change process and lead to oil spillage.

4. Incorrect Oil Drain Position
   Sometimes, the oil drain system may not be correctly positioned, or the machinery may have been reassembled incorrectly after maintenance. This could lead to oil draining in an improper direction, making it difficult to collect and dispose of the used oil properly.

5. Improper Oil Change Practices
   In some cases, improper oil change procedures—such as over-tightening the drain plug or not fully draining the oil before adding new oil—can cause damage to the oil drain system. Over-tightening the plug can cause threading issues, while not properly draining the oil can lead to mixing old oil with the new, potentially causing contamination.


1. Inspect the Drain Plug
   Begin by inspecting the oil drain plug for any signs of leaks. Check for oil pooling around the plug area after running the engine. Also, ensure that the gasket is intact and not worn out. If the plug is loose, it should be tightened, and if the gasket is damaged, it should be replaced.

2. Examine the Oil Drain Line
   Check the oil drain line for any signs of clogging or damage. You can do this by visually inspecting the line and using air or a small wire to check if any debris is obstructing the flow of oil. If the line is clogged, it will need to be cleaned or replaced.

3. Test the Drain Valve
   Test the functionality of the drain valve. If the valve is sticking, leaking, or not draining the oil correctly, it may need to be repaired or replaced. Pay attention to whether the valve closes completely after oil has been drained.

4. Verify Oil Drain Position
   Ensure that the oil drain system is correctly positioned, especially if maintenance or reassembly has occurred recently. The drain plug and line should align properly with the oil pan to facilitate proper oil drainage.

5. Check for Over-tightening or Under-tightening
   Ensure that the drain plug is tightened to the manufacturer’s specifications, not excessively tightened or left loose. An over-tightened plug can damage the threads, while an under-tightened plug can result in oil leaks.


1. Replacing or Repairing the Drain Plug
   If the drain plug is leaking, the first step is to check if the plug is loose. If tightening doesn’t resolve the issue, replacing the drain plug or gasket may be necessary. Always ensure that the correct plug size and gasket are used to prevent further issues.

2. Cleaning or Replacing the Oil Drain Line
   If a blockage is detected in the oil drain line, it may need to be cleaned thoroughly. For more severe cases, the line should be replaced to ensure that oil flows freely during changes. Always use proper tools and methods when cleaning the drain line to avoid damaging the system.

3. Replacing the Drain Valve
   If the drain valve is not functioning properly, it will need to be replaced. A malfunctioning valve can often be caused by debris or wear and tear, so replacing the valve with a high-quality replacement part will restore functionality.

4. Repositioning the Oil Drain System
   If the oil drain system is not positioned properly, you may need to adjust it according to the manufacturer’s guidelines. This adjustment will ensure that the oil drains efficiently and is collected without spilling.

5. Proper Oil Change Procedures
   To avoid future issues, always follow the manufacturer’s guidelines for oil changes. Ensure that the oil is fully drained before replacing it, and avoid over-tightening the drain plug. Keeping the oil change process regular and adhering to proper procedures will keep the oil drain system in optimal condition.


1. Routine Inspections
   Regularly inspect the oil drain plug, drain line, and valve for any signs of wear, leaks, or clogs. Catching issues early can prevent major breakdowns and ensure smoother operation.

2. Use Quality Replacement Parts
   When replacing parts of the oil drain system, such as gaskets, plugs, or valves, always use high-quality OEM (original equipment manufacturer) parts. These parts are designed to match the machine's specifications and will provide better long-term performance.

3. Follow Scheduled Oil Changes
   Adhering to a regular oil change schedule is critical to maintaining the health of the engine and its components, including the oil drain system. Always ensure that the proper oil type and quantity are used for each oil change.

4. Avoid Over-tightening
   Over-tightening the oil drain plug can cause thread damage and lead to leaks. Tighten the plug only to the specified torque, and check for leaks after each oil change.
