Introduction
The New Holland 555E backhoe loader, renowned for its durability and versatility in construction and excavation, features hydraulic cylinders critical to bucket operation. The gland nut is a pivotal component sealing the hydraulic cylinder, preventing fluid leakage and ensuring smooth operation.
Gland Nut Function and Importance

• The gland nut secures the hydraulic seals and protects the cylinder rod from contaminants.

• It maintains hydraulic pressure by preventing oil leaks, vital for cylinder efficiency.

• Proper installation and revision of the gland nut and seals avoid performance degradation and costly repairs.


• Seal wear and tear causing hydraulic fluid leaks.

• Gland nut threads damaged or worn out from prolonged use.

• Improper seal seating leading to premature failure.

• External damage to the gland nut from mechanical impact.


• First, remove the hydraulic cylinder assembly from the backhoe.

• Carefully extract the gland nut using a suitable spanner wrench or impact tools.

• Inspect the gland nut and cylinder rod for wear, pitting, or damage.

• Replace old seals, buffer rings, and wiper seals with OEM or high-quality aftermarket kits.

• Clean all components thoroughly before reassembly.

• Install the gland nut with correct torque specification (typically high torque to ensure total seal).

• Ensure the springs and buffer seals are correctly oriented to prevent twisting or damage.

• Use lubricant to ease seal installation preventing damage.

• Reinstall the hydraulic cylinder and refill hydraulic fluid, testing for leaks.


• Typical gland nut torque: 150-250 Nm, depending on cylinder type.

• Seals may vary by backhoe model; for 555E commonly used kits are specified by New Holland parts:
  • Buffer Seal: Special notch orientation required.

  • O-Rings: Multiple sizes for inner and outer sealing.

  • Wiper Seal: Protects rod surface from dirt ingress.


• Regularly inspect hydraulic cylinders for leaks or contamination signs.

• Avoid over-torquing gland nuts to reduce thread damage.

• Use compatible hydraulic fluids as recommended by the manufacturer.

• Replace seals at signs of wear, discoloration, or hardening.


• Gland Nut: A threaded ring securing seals within a hydraulic cylinder.

• Buffer Seal: Prevents high-pressure oil from damaging the wiper seal.

• Wiper Seal: Prevents dirt and contaminants from entering the cylinder.

• Torque: Rotational force used to tighten components to specifications.

• Hydraulic Cylinder: Mechanical actuator driving backhoe bucket movement.


The John Deere 850J is a high-performance crawler dozer, designed for heavy-duty tasks such as grading, construction, and earth-moving. However, like any complex machine, it is susceptible to issues over time. One common problem that some operators encounter is the Transmission Control Unit (TCU) fault, which can affect the performance and efficiency of the dozer. Understanding the nature of the problem, its potential causes, and the steps to resolve it can help keep the equipment running smoothly and minimize downtime.
Background of John Deere and the 850J Crawler Dozer
John Deere, founded in 1837 by its namesake, revolutionized the agricultural and construction machinery industries. The company has grown to become one of the leading manufacturers of heavy equipment globally. From tractors and harvesters to dozers and excavators, John Deere continues to produce high-quality machines that meet the needs of industries worldwide.
The John Deere 850J crawler dozer is one of the most robust and versatile machines in the industry. It is equipped with a Tier 3 engine, offering improved fuel efficiency and reduced emissions. The 850J is renowned for its power, excellent maneuverability, and ability to handle various construction tasks, making it a top choice for contractors. However, like all heavy equipment, the dozer's transmission system can encounter issues, particularly the Transmission Control Unit (TCU).
Understanding the Transmission Control Unit (TCU)
The Transmission Control Unit (TCU) plays a critical role in the overall operation of the 850J dozer's transmission system. It is a computer-controlled module that regulates the shifting and performance of the dozer's transmission, ensuring smooth and efficient gear changes. The TCU monitors various sensors and inputs, such as speed, load, and engine RPM, and uses this data to make real-time adjustments to optimize the machine’s performance.
When a fault occurs in the TCU, the dozer may experience erratic shifting, loss of power, or failure to engage gears. The TCU fault can be triggered by a variety of issues, from electrical malfunctions to sensor failures. Identifying the root cause of the problem is crucial to fixing it efficiently and preventing future issues.
Common Causes of TCU Faults in the 850J Dozer
Several factors can contribute to a TCU fault in the 850J dozer. These include electrical issues, wiring problems, or sensor malfunctions. Let’s break down the common causes:

1. Wiring and Connection Issues: One of the most frequent causes of TCU faults is loose or damaged wiring. Corrosion, wear and tear, or improper connections can disrupt the communication between the TCU and other parts of the transmission system.

2. Faulty Sensors: The **850J dozer’s transmission system relies on several sensors to monitor parameters such as pressure, temperature, and speed. A malfunctioning sensor can send incorrect data to the TCU, causing improper shifting or failure to engage gears.

3. Software Glitches: In some cases, the fault can be caused by a software issue within the TCU itself. A corrupted or outdated software version may cause incorrect readings or failure to execute transmission commands.

4. Hydraulic Issues: The TCU also controls hydraulic components of the transmission. If there is a problem with the hydraulic pressure or fluid levels, it can trigger a fault in the TCU.

5. Electrical System Failure: Issues such as battery problems, alternator failure, or poor grounding can lead to an unstable electrical system, which can affect the TCU’s ability to function properly.


1. Check for Error Codes: Modern John Deere equipment is equipped with diagnostic systems that can read error codes generated by the TCU. Using a diagnostic scanner or John Deere's Service ADVISOR tool, operators can retrieve the error codes stored in the system. These codes can give a clear indication of the specific issue, such as a malfunctioning sensor or wiring fault.

2. Inspect Wiring and Connections: Visually inspect the wiring harnesses connected to the TCU and transmission system. Look for signs of wear, damage, or loose connections. Ensure that all connectors are clean and free of corrosion, as this can impact the signal integrity.

3. Test Sensors: Test the sensors associated with the transmission system to check for faults. If a sensor is malfunctioning, it may need to be recalibrated or replaced.

4. Check Hydraulic Fluid Levels: Low or dirty hydraulic fluid can cause improper function of the transmission system. Ensure that the fluid levels are within the recommended range and that the fluid is clean.

5. Electrical System Check: Inspect the battery, alternator, and wiring for any issues that could affect the electrical power supply to the TCU.


1. Repair or Replace Damaged Wiring: If the issue is caused by damaged wiring, repair or replace the affected wiring or connectors. In some cases, it may be necessary to replace the entire harness if the damage is extensive.

2. Replace Faulty Sensors: If a sensor is identified as the culprit, it will need to be replaced. Ensure that the new sensor is calibrated properly to match the system’s requirements.

3. Software Update or Reinstallation: If the issue is related to software, the TCU may need a software update or reinstallation. This can often be done through John Deere’s diagnostic tools or by contacting the dealer for assistance.

4. Hydraulic System Maintenance: Ensure that the hydraulic system is functioning properly. Replace any damaged hydraulic components and top up the fluid levels if necessary.

5. Electrical System Repair: If the electrical system is at fault, repairing or replacing the battery, alternator, or any faulty wiring will restore the TCU’s functionality.


1. Regular Maintenance: Conduct regular inspections of the dozer’s electrical and hydraulic systems. Check for wear and tear on wiring, connectors, and sensors.

2. Hydraulic Fluid Care: Keep the hydraulic fluid clean and at the proper levels to ensure smooth operation of the transmission system.

3. Software Updates: Ensure that the TCU’s software is up to date, as manufacturers often release updates to improve performance and fix bugs.

4. Training Operators: Train operators to recognize early signs of transmission issues and perform basic checks to prevent further damage.


Introduction to Kato NK-500EIII
The Kato NK-500EIII is a fully hydraulic truck crane with a maximum lifting capacity of 50.5 metric tons and a boom length ranging up to approximately 40 meters. Developed by Kato Works, a respected Japanese manufacturer with a history spanning over eight decades, the NK-500EIII belongs to a line of robust, reliable cranes widely sold across Asia and the Middle East. Kato cranes are known for their sequential synchronized extension and retraction system, single-lever operation, and sophisticated safety controls that support efficient and safe lifting.
Common Reasons for Boom Retraction Failure

• Hydraulic Pressure Issues
  The most frequent cause of retraction failure is a drop in hydraulic pressure. This could result from a worn or damaged hydraulic pump, contaminated oil, or leaks in hoses and fittings.

• Synchronous Extension/Retraction Control Fault
  Kato NK-500EIII features a synchronized extension and retraction control system. If sensors, actuators, or the control module fail, the boom may not respond to operator input.

• Mechanical Obstruction
  Physical obstructions inside the boom—such as bent sections, jammed rollers, or debris—can block movement.

• Valve or Cylinder Malfunction
  Retracting relies on hydraulic cylinders and valves. Internal seal damage, valve sticking due to contaminants, or solenoid coil burnout can prevent the proper flow or movement.

• Safety Interlock Activation
  The crane’s safety devices, including angle sensors and automatic stoppers, may block retraction if incorrect boom angles, overload conditions, or outriggers are improperly set.


• Inspect for hydraulic fluid leaks and check oil level

• Test the function of hydraulic pump and pressure output

• Examine the control lever and synchronize system components, including limit switches and sensors

• Visually check the boom for jams, bends, or external blocks

• Ensure safety interlocks and outriggers are correctly positioned


• Hydraulic Cylinder: Converts hydraulic pressure into boom movement

• Synchronized Control System: Ensures coordinated movement of boom sections, enhancing safety and speed

• Safety Interlock: Electronic or mechanical system preventing unsafe operations by monitoring equipment status

• Milky Hydraulic Fluid: Indicates water contamination, lowers system efficiency

• Outrigger: Hydraulic supports stabilizing crane during lifting


• Boom extension/retraction time (typical): about 2–3 minutes for full stroke under no load

• Regularly replace hydraulic fluid every 1,000–2,000 operating hours

• Perform scheduled maintenance on angle sensors and control levers

• Lubricate boom rollers and inspect telescoping system for wear quarterly

• Adopt a preventive check before heavy operations: verify fluid, safety settings, and sensor calibration


When it comes to construction and excavation, the choice of equipment and attachments can significantly influence productivity and efficiency. Among the various options available for skid steers and loaders, the JD792 and JD892 buckets from John Deere stand out as popular choices. Both are known for their performance and durability, but understanding their differences can help operators select the best option for their specific tasks. This article compares the two buckets in terms of design, performance, and application, providing insights into their suitability for various projects.
John Deere: A Leader in Equipment Manufacturing
John Deere, founded in 1837, has become synonymous with high-quality agricultural and construction machinery. Known for its innovation, reliability, and superior engineering, John Deere has long been a go-to brand for both heavy-duty construction machinery and precision attachments like buckets. With a global presence and a legacy of pioneering technology, John Deere’s products are trusted by professionals in industries ranging from agriculture to construction.
In the realm of construction, buckets are essential attachments for excavators, loaders, and skid steers. They are designed to handle a wide range of materials, from soil and gravel to demolition debris and scrap metal. When comparing different bucket models, understanding their specific features and capabilities is crucial for optimal performance.
JD792 Bucket Overview
The JD792 is a bucket primarily designed for compact track loaders and skid steer loaders. Known for its versatility, the JD792 is suitable for a range of applications such as digging, grading, and lifting materials.
Some key specifications of the JD792 bucket include:

• Capacity: 0.80 to 1.00 cubic yards

• Width: Available in various sizes, typically ranging from 72 inches to 84 inches

• Weight: Approximately 500 to 700 pounds, depending on the specific configuration

• Material: High-strength steel construction, designed for durability and resistance to wear


• Capacity: 1.25 to 1.75 cubic yards

• Width: Typically 96 inches to 108 inches

• Weight: Approximately 1,200 to 1,800 pounds, depending on configuration

• Material: High-strength steel with additional reinforcements for durability


• Capacity: The JD792 offers a smaller capacity (0.80-1.00 cubic yards), making it ideal for light to medium-duty tasks. The JD892, however, provides a higher capacity (1.25-1.75 cubic yards), suitable for heavier workloads.

• Weight: The JD792 is significantly lighter (500-700 pounds), providing better maneuverability in tight spaces. The JD892, at 1,200-1,800 pounds, is designed to handle larger loads, though it requires more robust machinery to handle the extra weight.

• Size: The JD892 is wider and can handle larger volumes of material. Its additional width makes it a better choice for larger machines and heavier operations.

• Applications: The JD792 is perfect for residential landscaping, light excavation, and tasks requiring precise material handling. The JD892, on the other hand, is better suited for large-scale construction projects, such as grading, demolition, and moving heavy materials.


• Project Size: Smaller jobs with limited space or lower material volumes are best suited for the JD792, while larger construction projects benefit from the JD892’s larger capacity.

• Equipment Compatibility: Make sure the bucket is compatible with the equipment you’re using. Larger buckets like the JD892 require more robust machines, so check your loader or excavator’s specifications.

• Durability: For highly abrasive materials or extensive use in tough conditions, the JD892’s reinforced construction and higher durability may justify the investment.

• Maneuverability: If your work requires navigating tight spaces or requires a more nimble bucket, the JD792’s lighter weight and compact design offer advantages.

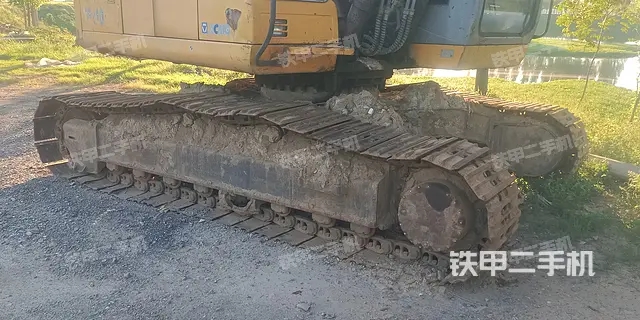

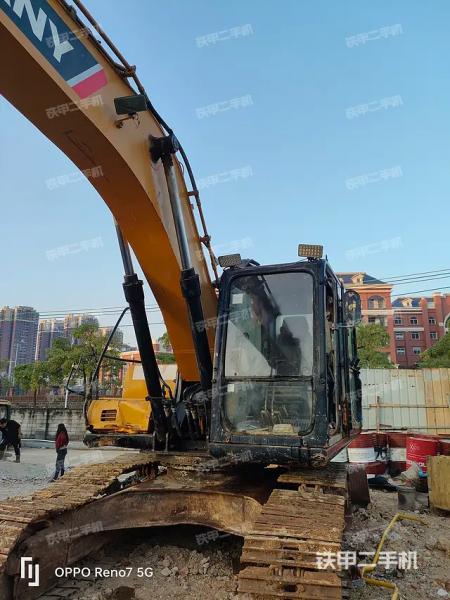

• Brand: SANY Heavy Industry

• Model: SY205C-8S

• Year of Manufacture: 2012

• Operating Hours: 9850 hours

• Location: Guangzhou, Guangdong

• Last Updated: Updated 17 minutes ago


• Operating Weight: 20,300 kg (20 tons)

• Bucket Capacity: 0.83 m³

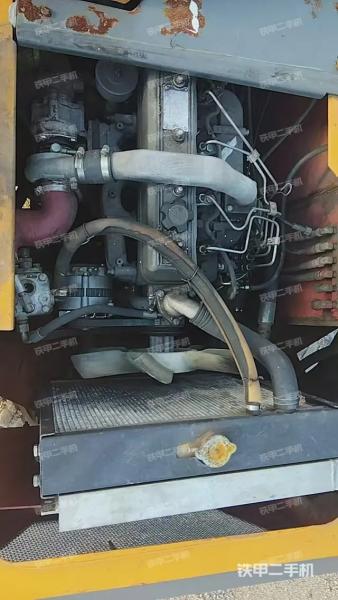

• Engine Model: Mitsubishi 6D34TL-20

• Rated Power: 114 kW at 2050 rpm

• Cooling System: Water-cooled

• Country of Origin: Kunshan, Jiangsu, China

• Bucket Type: Backhoe (反铲)

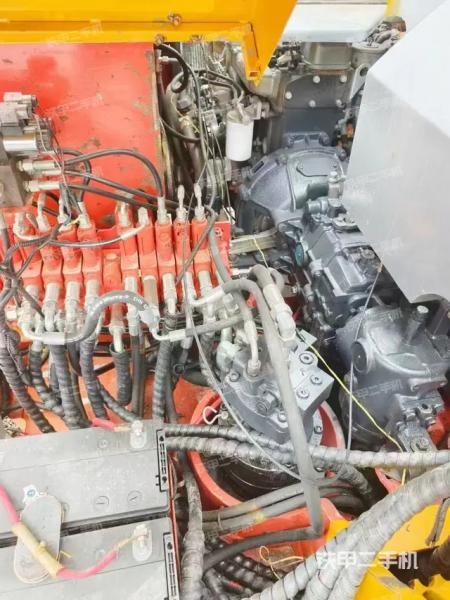

• Main Pump Max Flow Rate: 2×210 l/min

• Main Relief Pressure: 34.3 MPa

• Swing Hydraulic Circuit: 25.5 MPa

• Travel Hydraulic Circuit: 34.3 MPa

• Control Hydraulic Circuit: 3.9 MPa


• Total Length: 9395 mm

• Total Width: 2800 mm

• Height: 2955 mm

• Cab Height: 2990 mm

• Minimum Ground Clearance: 440 mm

• Track Length: 4065 mm

• Track Gauge: 2200 mm

• Track Width: 600 mm

• Track Ground Length: 3260 mm

• Swing Radius: 2750 mm

• Minimum Swing Radius: 3630 mm


• Maximum Digging Radius: 9885 mm

• Maximum Digging Depth: 6630 mm

• Maximum Digging Height: 9305 mm

• Maximum Unloading Height: 6475 mm

• Maximum Vertical Digging Depth: 5980 mm


• Urban Construction: Its compact size and powerful engine make it ideal for urban sites where space is limited but power is needed.

• Road Construction: Its digging capabilities allow it to handle roadbed excavation and material handling with ease.

• Foundation Work: With its excellent digging depth and reach, this machine is perfect for laying the foundation of large buildings or infrastructure.

• Landscaping: The precision of the SY205C-8S makes it useful for landscaping tasks, including digging ponds and shaping terrain.


• Brand: Shandong Lingong

• Model: E660FL

• Year of Manufacture: 2019

• Operating Hours: 2700 hours

• Location: Xi'an, Shaanxi

• Last Updated: Updated 17 minutes ago


• Operating Weight: 6050 kg

• Bucket Capacity: 0.21 m³

• Bucket Width: 795 mm

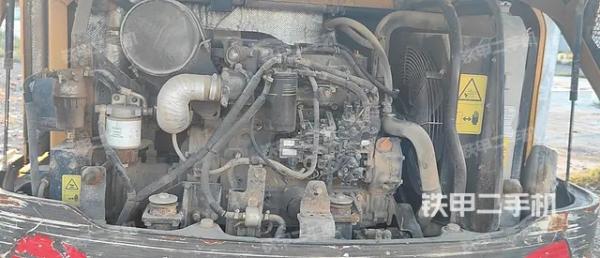

• Engine Model: Yanmar 4TNV98-EXSLGC

• Rated Power: 38.3 kW at 2200 rpm

• Torque: 191.8 N.m

• Displacement: 3.319 L

• Cooling System: Water-cooled

• Ground Pressure: 32 Kpa

• Swing Speed: 11.5 rpm

• Digging Force: 45 kN

• Travel Speed: 2.4 km/h (low) / 4.8 km/h (high)

• Main Pump Flow Rate: 138 l/min


• Fuel Tank Capacity: 135 L

• Hydraulic Oil Tank Capacity: 130 L

• Engine Oil Capacity: 11.6 L


• Total Length: 5930 mm

• Total Width: 1960 mm

• Height: 2620 mm

• Ground Clearance: 367 mm

• Minimum Ground Clearance: 740 mm

• Track Length: 2500 mm

• Track Gauge: 1520 mm

• Track Width: 380 mm


• Maximum Digging Radius: 5990 mm

• Maximum Digging Depth: 3846 mm

• Maximum Digging Height: 5743 mm

• Maximum Unloading Height: 4163 mm

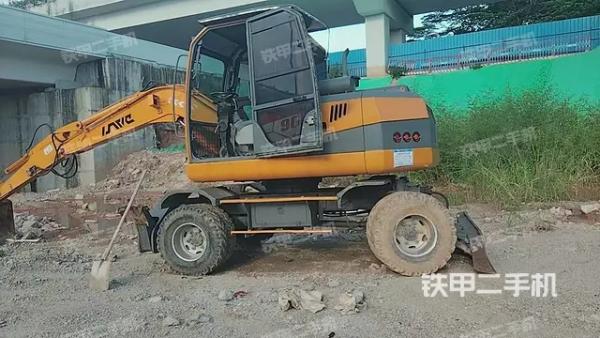

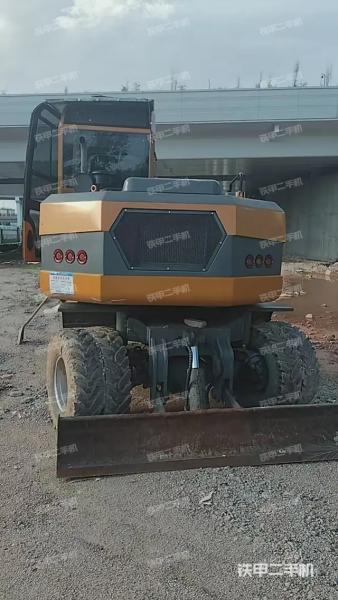

Equipment Information

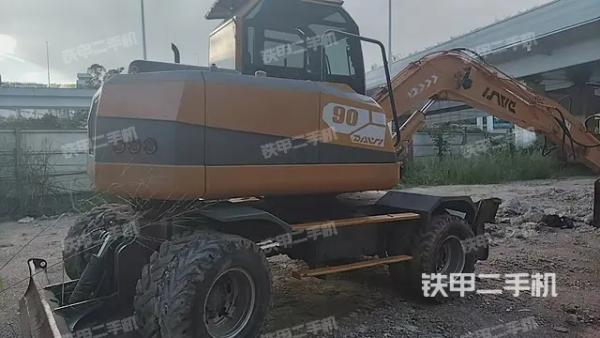

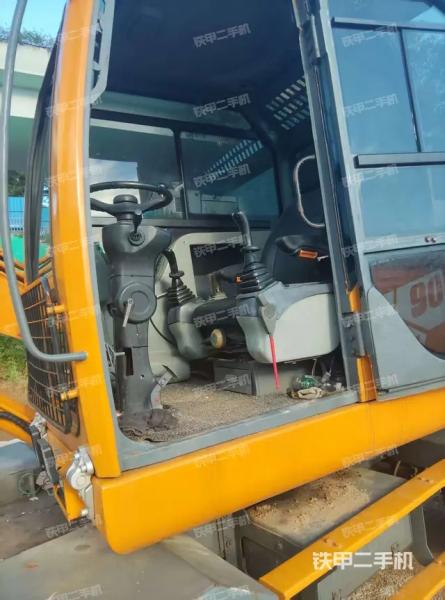

• Brand: Lei Dao Machinery

• Model: LD90B

• Year of Manufacture: 2018

• Operating Hours: 3,500 hours

• Location: Shenzhen City, Guangdong Province, China

• Last Updated: 16 minutes ago


• Operating Weight: 9 tons

• Engine Type: Traditional engine, ensuring reliability and efficiency in heavy-duty tasks

• Bucket Type: Backhoe, suitable for digging, lifting, and shifting materials

• Manufacturer: Lei Dao Machinery, a respected Chinese manufacturer specializing in high-performance heavy equipment


• Engine Power: The engine is engineered for high efficiency, providing the right amount of power for digging and lifting tasks.

• Hydraulic Systems: A key feature in modern excavators, the hydraulic system in the LD90B is designed to optimize the speed and force of the digging arm and bucket, allowing for fast and precise operations.


• Total Operating Weight: 9 tons, making it suitable for medium-scale construction projects.

• Backhoe Reach: The backhoe arm provides excellent reach, making the LD90B capable of handling a variety of digging tasks, from trenching to excavation and material handling.


• Hydraulic System Pressure: The system operates at optimal pressure for digging efficiency and fast turnaround.

• Fuel Efficiency: With modern engineering, the LD90B is built for optimal fuel consumption, allowing for longer working hours with lower operational costs.


• Maintenance Schedule: Given the machine's relatively low hour count (3,500 hours), maintenance should be relatively straightforward, and most parts remain in excellent condition.

• Service Availability: With a growing footprint across China, Lei Dao Machinery provides excellent after-sales support and replacement parts, making maintenance and repairs accessible.

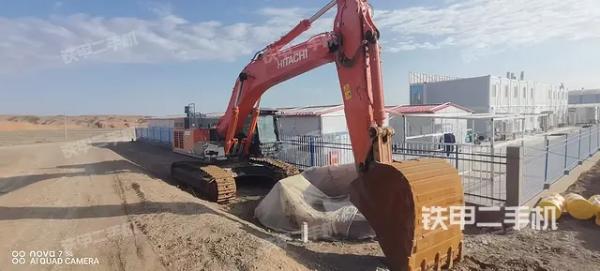

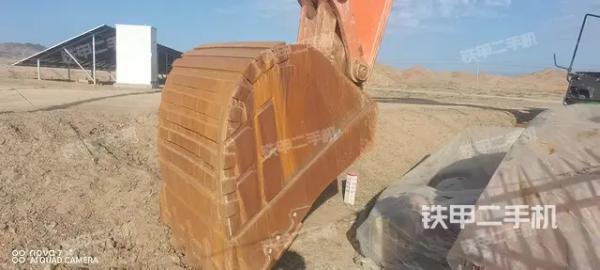

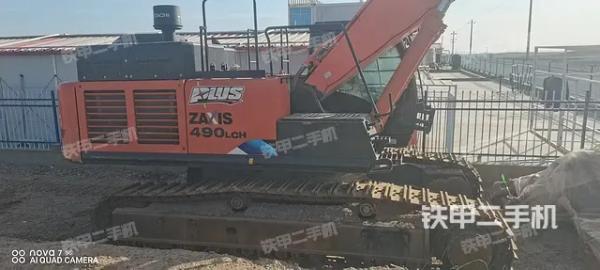

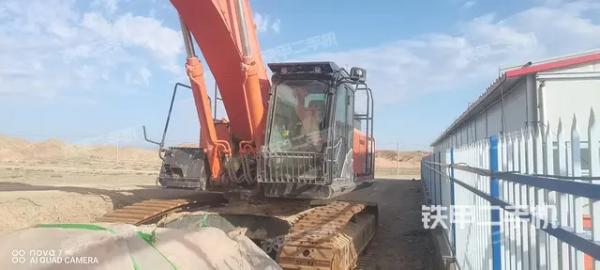

• Brand: Hitachi

• Model: ZX490LCH-5A

• Year of Manufacture: 2022

• Operating Hours: 6,500 hours

• Location: Hanzhong City, Shaanxi Province

• Last Updated: 19 minutes ago


• Brand: Hitachi

• Model: ZX490LCH-5A

• Year of Manufacture: 2022

• Operating Hours: 6,500 hours

• Location: Hanzhong City, Shaanxi Province, China

• Operating Weight: 47,200 to 47,500 kg

• Bucket Capacity: 2.1–3.0 m³

• Arm Length: 7,000 mm

• Boom Length: 3,400 mm

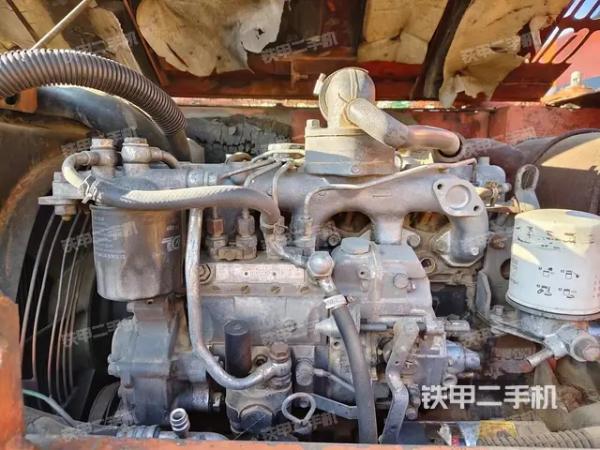

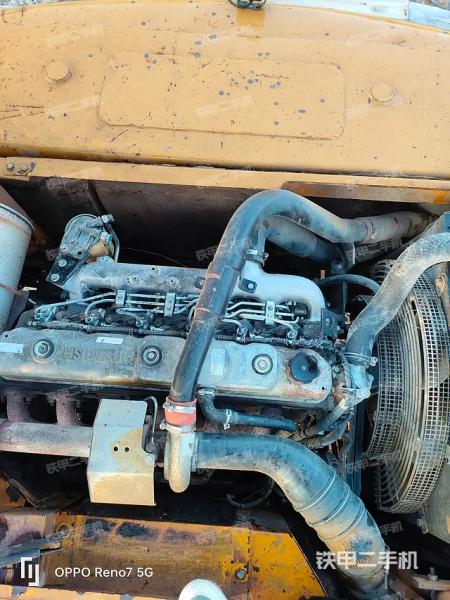

• Engine: Isuzu GH-6UZ1XKSA-01

• Power Output: 257 kW @ 2,000 rpm

• Displacement: 9.839 L

• Torque: 1,363 Nm @ 1,500 rpm


• Ground Pressure: 80 kPa

• Swing Speed: 9.5 rpm

• Climbing Ability: 70% (35°)

• Bucket Digging Force: 296 kN

• Arm Digging Force: 224 kN

• Travel Speed: 5.5 km/h (high) / 3.9 km/h (low)

• Swing Torque: 148 Nm


• Fuel Tank: 725 L

• Hydraulic Oil Tank: 310 L

• Engine Oil Capacity: 41 L

• Cooling Liquid: 58 L


• Total Length (Transport): 12,040 mm

• Total Width (Transport): 3,550 mm

• Total Height (Transport): 3,450 mm

• Cab Height: 3,320 mm

• Ground Clearance (Counterweight): 1,270 mm

• Minimum Ground Clearance: 535 mm

• Front Work Device Minimum Swing Radius: 4,840 mm

• Rear Swing Radius: 3,670 mm

• Track Length: 5,470 mm

• Track Gauge: 2,740 mm

• Track Pad Width: 600 mm

• Track Width: 3,340 mm

• Track Ground Length: 4,470 mm


• Max Digging Radius: 12,060 mm

• Max Digging Depth: 7,850 mm

• Max Digging Height: 10,980 mm

• Max Discharge Height: 7,580 mm

• Max Vertical Digging Depth: 7,170 mm

• Max Digging Radius at Standstill: 11,860 mm


• Mining: The machine’s ability to handle large excavations and deep digging makes it a great fit for mining operations, especially for extracting earth and materials in large quantities.

• Construction: With its powerful digging and lifting capabilities, the ZX490LCH-5A is suitable for general construction tasks, including trenching, foundation digging, and material handling.

• Demolition: The machine’s high lifting power and stability allow it to perform demolition tasks efficiently, especially in urban environments.

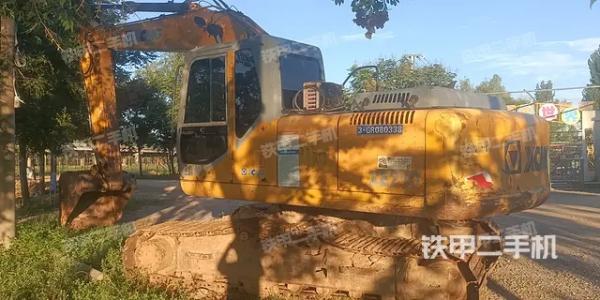

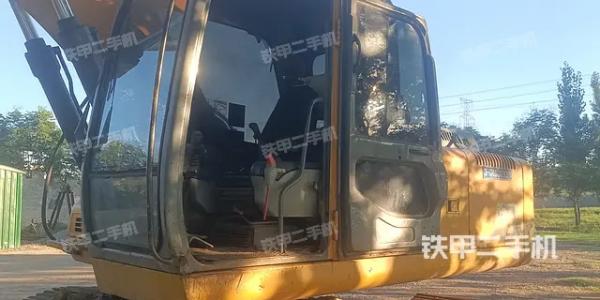

• Brand: XCMG

• Model: XE210B

• Year of Manufacture: 2011

• Operating Hours: 16,000 hours

• Location: Nanyang City, Henan Province

• Last Updated: 6 hours ago


• Operating Weight: 21 tons

• Engine Type: Traditional engine

• Manufacturer: Domestic (China)

• Bucket Type: Backhoe (Reverse bucket)


• Engine: The excavator is powered by a diesel engine, offering a balance between power and fuel economy. This ensures that the machine can operate for extended hours without the need for frequent refueling, which is essential for long-term projects.

• Rated Power: Provides sufficient horsepower for a variety of heavy-duty applications, ensuring that the XE210B can handle tasks such as digging, lifting, and material handling with ease.


• Maximum Digging Depth: 6,000 mm – This depth allows for efficient excavation in various soil types and conditions.

• Maximum Reach: 10,000 mm – Ideal for reaching materials at a distance, making it effective for trenching and other excavation tasks.

• Bucket Capacity: Designed to handle large quantities of material with each scoop, improving productivity on site.

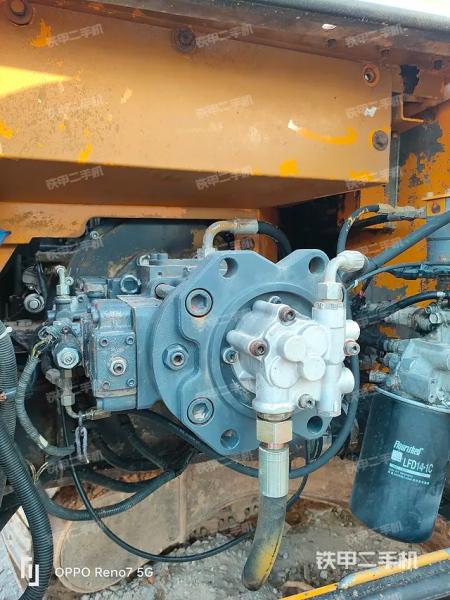

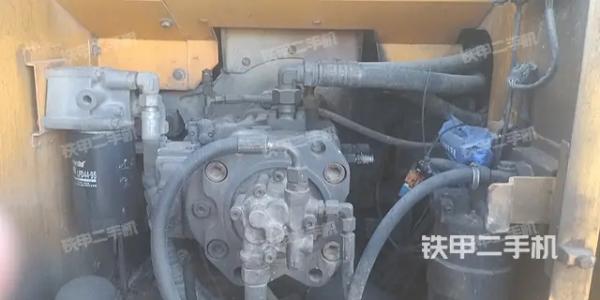

• Hydraulic Pump Type: Variable displacement piston pumps

• Flow Rate: High flow rate for quick operation and optimal performance in tough working conditions.


• Oil Capacity: The machine's oil systems are designed for extended intervals between changes, allowing operators to focus on their work without frequent service interruptions.

• Serviceability: With easily accessible parts and service areas, maintaining the XE210B is simple and cost-effective.


• Construction: Used for trenching, foundation digging, and material handling.

• Road Construction: Its versatility makes it suitable for roadwork, including digging and moving materials.

• Mining and Quarrying: Ideal for digging and removing debris in mining and quarrying operations.

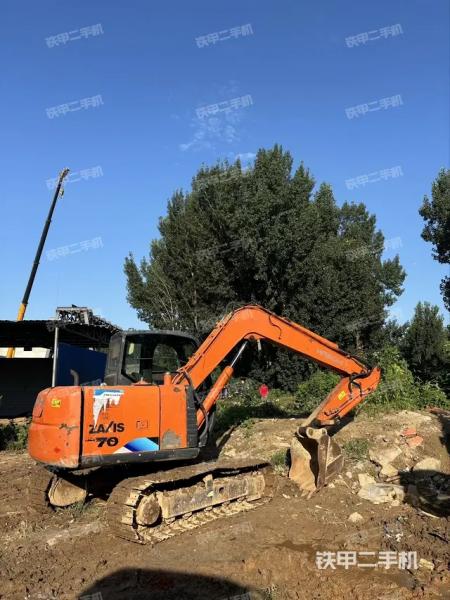

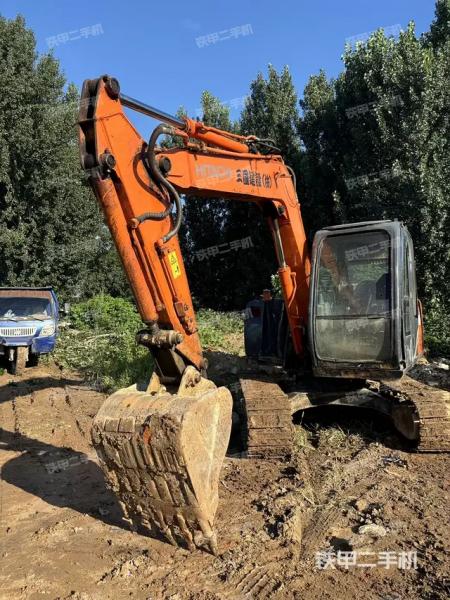

• Brand: Hitachi

• Model: ZX70

• Manufacturing Year: 2008

• Operating Hours: 14,800 hours

• Location: Baoding City, Hebei Province

• Last Updated: 6 hours ago


• Brand: Hitachi

• Model: ZX70

• Manufacturing Year: 2008

• Operating Hours: 14,800 hours

• Location: Baoding City, Hebei Province, China

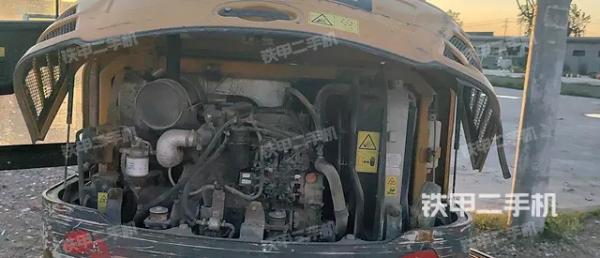

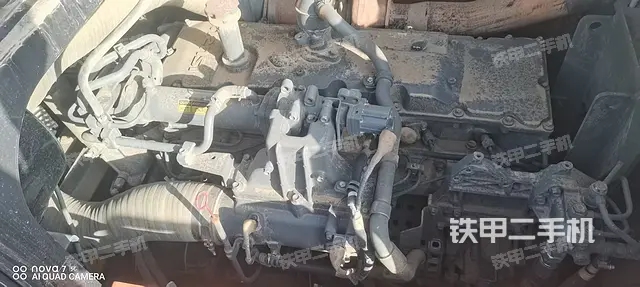

• Engine Model: Isuzu ISUZU CC-4JG1

• Rated Power: 40.5 kW at 2000 rpm

• Displacement: 3.318 L

• Cooling Method: Water-cooled

• Cylinder Count: 4

• Injection Type: Direct injection


• Main Pump Type: 3 variable piston pumps + 1 gear pump

• Hydraulic Pressure Setting: 31.4 MPa

• Rotation Hydraulic Motor Type: Variable piston pump ×1

• Travel Hydraulic Motor Type: Variable piston pump ×2


• Bucket Digging Force: 55 kN

• Arm Digging Force: 38 kN

• Ground Pressure: 30 KPa

• Travel Speed: 3.4 km/h (low) / 5.0 km/h (high)

• Rotation Speed: 11.3 rpm

• Climbing Ability: 70% (35°)


• Overall Length: 6,080 mm

• Overall Width: 2,260 mm

• Overall Height: 2,600 mm

• Track Length: 2,765 mm

• Track Gauge: 1,750 mm

• Track Shoe Width: 450 mm

• Track Width: 2,200 mm


• Maximum Digging Radius: 6,320 mm

• Maximum Digging Depth: 4,170 mm

• Maximum Digging Height: 7,150 mm

• Maximum Unloading Height: 5,060 mm

• Maximum Vertical Digging Depth: 3,730 mm


1. Versatile Design: The ZX70’s compact size and robust power make it ideal for a wide range of applications, from earth-moving to material handling.

2. Powerful Hydraulic System: With its three-variable piston pumps and high hydraulic pressure, the ZX70 can perform tough tasks with ease.

3. Low Ground Pressure: The machine's low ground pressure makes it suitable for working in sensitive areas without causing ground disturbance.

4. Impressive Digging Capabilities: With its 55 kN bucket digging force and 38 kN arm digging force, the ZX70 is highly effective at breaking through tough soils.
