ID：1825121

The Shantui SE215-9 is a highly capable, durable, and powerful mid-sized excavator manufactured by Shantui, a prominent Chinese construction machinery manufacturer. With its 20-ton weight class and advanced features, this excavator offers excellent performance for various applications in construction, mining, and earthworks. The 2020 model is particularly well-suited for heavy-duty operations with a working weight of 20,800 kg and a maximum digging depth of 6,490 mm. The SE215-9 excels in performance, reliability, and fuel efficiency, making it a valuable addition to any construction fleet.
Key Specifications and Features

• Weight and Dimensions:
  • Operating weight: 20,800 kg

  • Bucket capacity: 1.05 m³

  • Track width: 600 mm

  • Total transport width: 2,800 mm

  • Total transport length: 9,625 mm

  • Total transport height: 3,055 mm

  • Ground clearance: 470 mm

  • Track length: 4,140 mm

  • Track gauge: 2,200 mm


• Engine Model: QSB7

• Engine Power: 124 kW @ 2,050 rpm

• Displacement: 6.7L

• Cooling Method: Water-cooled

• Cylinder Configuration: Inline 6 cylinders

• Fuel System: High-pressure common rail, turbocharged


• Main Pump Maximum Flow: 2 × 213 l/min

• Main Pump Type: Axial piston variable displacement pump

• Hydraulic System Capacity: 400 L

• Hydraulic Oil Tank Capacity: 270 L


• Ground Pressure: 47.5 KPa

• Swing Speed: 10.5 rpm

• Climbing Ability: 70% (35° incline)

• Bucket Digging Force: 135/146 kN

• Arm Digging Force: 99/107 kN

• Maximum Traction Force: 214 kN

• Travel Speed: 3.15 km/h (low) / 5.15 km/h (high)


• Fuel Tank Capacity: 325 L

• Engine Oil Change Capacity: 22 L

• Coolant Capacity: 28 L


• Maximum Digging Radius: 9,860 mm

• Maximum Digging Depth: 6,490 mm

• Maximum Digging Height: 10,095 mm

• Maximum Dump Height: 7,190 mm

• Maximum Vertical Digging Depth: 5,915 mm





ID：1825116

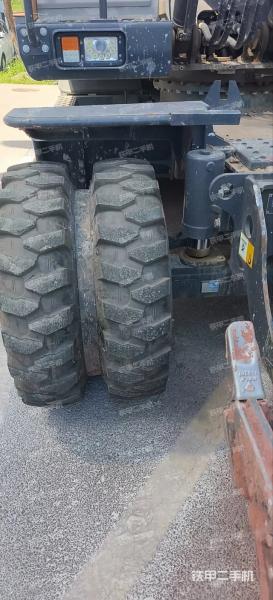

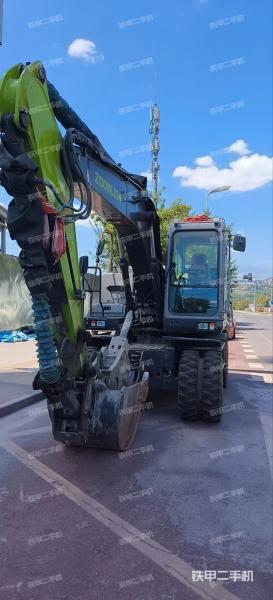

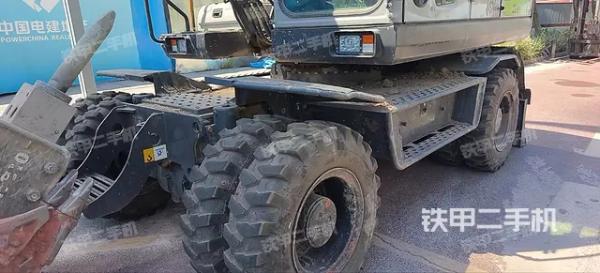

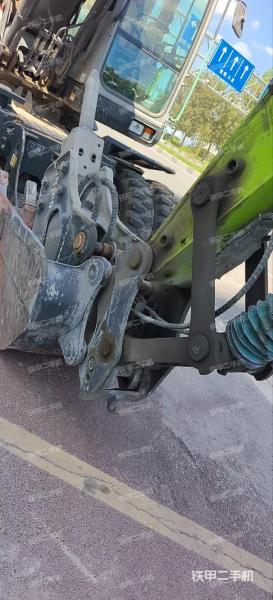

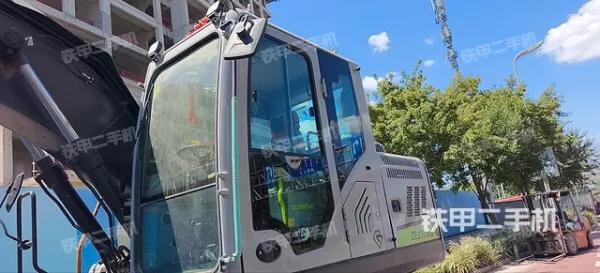

The Zoomlion ZE150WG is a remarkable excavator that represents cutting-edge technology and advanced engineering in the world of construction equipment. Released in 2023, this excavator promises to deliver robust performance in a wide range of tasks, from excavation to earth-moving, making it a popular choice for contractors in need of efficiency and reliability.
General Overview

• Brand: Zoomlion

• Model: ZE150WG

• Manufacturing Year: 2023

• Operating Hours: 8,000 hours

• Location: Chongqing, China


• Operating Weight: 14,200 kg

• Bucket Capacity: 0.6 m³

• Engine Model: Cummins QSF4.5

• Rated Power: 108 kW at 2000 rpm

• Digging Forces:
  • Bucket Digging Force: 102 kN

  • Arm Digging Force: 77 kN

• Travel Speed: 38 km/h


• Transport Length: 7,698 mm

• Transport Width: 2,524 mm

• Transport Height: 3,123 mm


• Construction Projects: From excavation and foundation digging to site preparation, this machine is designed to tackle a variety of tasks.

• Landscaping: The ZE150WG's precision and compactness make it well-suited for landscaping projects that require both efficiency and versatility.

• Infrastructure Development: With its strong hydraulic performance and powerful engine, it can handle heavy lifting and moving tasks for roadwork, bridges, and other infrastructure projects.

• Mining: This machine’s digging strength makes it ideal for use in mining operations, where tough materials and large-scale excavation are required.




ID：1825114

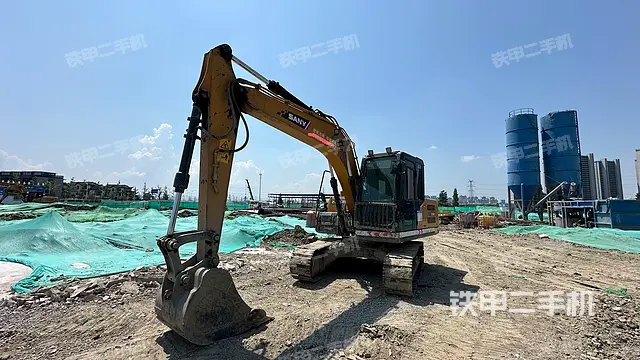

The SANY SY125C is a compact yet powerful excavator that exemplifies SANY Heavy Industry’s commitment to engineering excellence. Introduced in 2021, this excavator has proven itself in various applications, particularly in urban construction and mining sectors, thanks to its advanced technology, efficient performance, and durability.
Key Specifications

• Brand: SANY

• Model: SY125C

• Manufacture Year: 2021

• Operating Hours: 8,300 hours

• Location: Shaoxing City, Zhejiang, China


• Weight: 12 tons (12,450 kg)

• Bucket Capacity: 0.22-0.7 cubic meters (most commonly used: 0.55 m³)

• Engine Model: Isuzu 4JJ1-XDJAG-01-C3

• Rated Power: 73 kW at 2000 rpm

• Torque: 365 Nm at 1600 rpm

• Displacement: 2.999 liters


• Ground Pressure: 41.6 kPa

• Swing Speed: 13.06 rpm

• Climbing Capacity: 70% (35° slope)

• Bucket Digging Force: 90.6 kN

• Arm Digging Force: 57.2 kN

• Travel Speed: 5.5 km/h (high gear), 3.5 km/h (low gear)


• Hydraulic Oil Capacity: 150 L

• Fuel Tank Capacity: 240 L

• Engine Oil Change Capacity: 15 L


• Total Transport Length: 7,280 mm

• Total Transport Width: 2,550 mm

• Total Transport Height: 2,890 mm

• Ground Clearance: 425 mm

• Minimum Swing Radius: 2,880 mm

• Rear Swing Radius: 2,205 mm

• Track Length: 3,360 mm

• Track Gauge: 1,990 mm

• Track Shoe Width: 500 mm


• Maximum Digging Radius: 7,735 mm

• Maximum Digging Depth: 5,190 mm

• Maximum Digging Height: 7,695 mm

• Maximum Dumping Height: 5,440 mm

• Maximum Vertical Digging Depth: 4,720 mm


• Main Pump Flow: 2 × 218 L/min

• Main Pump Type: Axial piston variable displacement pump




ID：1825113

The Shantui SE210W is a 20-ton wheel excavator designed for demanding construction and earth-moving tasks. This particular model, manufactured in 2018, has clocked 6,867 operating hours and is stationed in Xinxiang City, Henan. Shantui, a well-established Chinese brand known for producing reliable heavy equipment, designed the SE210W to meet the needs of operators in challenging environments, providing both power and versatility for a wide range of applications.
General Specifications

• Brand: Shantui

• Model: SE210W

• Year of Manufacture: 2018

• Operating Hours: 6867 hours

• Location: Xinxiang City, Henan, China

• Operating Weight: 20,500 kg (20 tons)

• Bucket Capacity: 0.9 m³

• Engine: WP7, Turbocharged, Common Rail System

• Manufacturer: Shantui (Domestic Chinese Manufacturer)

• Bucket Type: Backhoe


• Engine Model: WP7

• Rated Power: 116 kW at 2000 rpm

• Cooling Type: Water-cooled

• Cylinder Number: 6

• Displacement: 7.47 L

• Engine Configuration: Turbocharged, High-Pressure Common Rail System


• Main Pump Maximum Flow: 2 x 218 L/min

• Main Pump Type: Axial Variable Displacement Pump


• Fuel Tank Capacity: 340 L

• Hydraulic Oil Tank Capacity: 250 L

• Engine Oil Change Capacity: 24 L

• Coolant Capacity: 25 L

• Hydraulic System Capacity: 420 L


• Transport Length: 9543 mm

• Transport Width: 2800 mm

• Transport Height: 2977 mm

• Track Length: 4160 mm

• Track Gauge: 2200 mm

• Track Width: 600 mm


• Max Digging Radius: 9860 mm

• Max Digging Depth: 6541 mm

• Max Digging Height: 10029 mm

• Max Unloading Height: 7132 mm

• Max Vertical Digging Depth: 5985 mm


1. Strong Engine Performance: The WP7 turbocharged engine delivers high power and efficiency, ensuring that the SE210W performs optimally even in tough conditions.

2. Versatility: The 0.9 m³ bucket is designed for a variety of tasks, from digging to loading and lifting materials.

3. Efficient Hydraulics: With dual 218 L/min flow from its main hydraulic pump, the SE210W provides efficient hydraulic power for various attachments and operations.

4. Large Operating Range: The machine’s large digging radius, depth, and unloading height make it ideal for tasks requiring substantial reach and heavy lifting.

5. Durability and Design: The robust build and reliable hydraulic systems ensure that the SE210W can operate for long hours in demanding environments.




ID：1825104

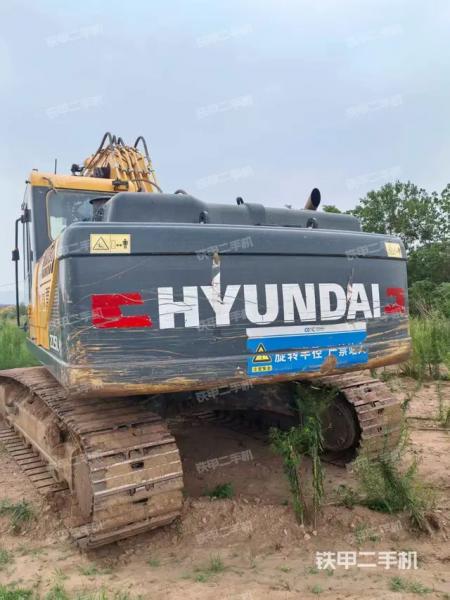

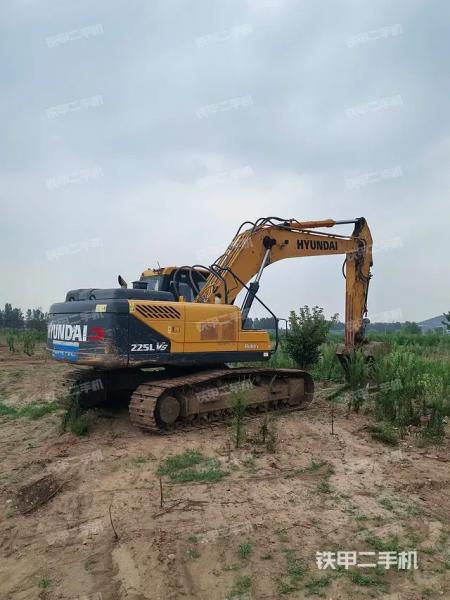

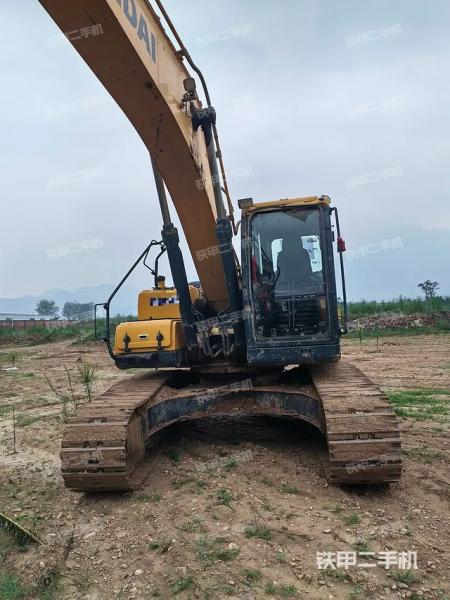

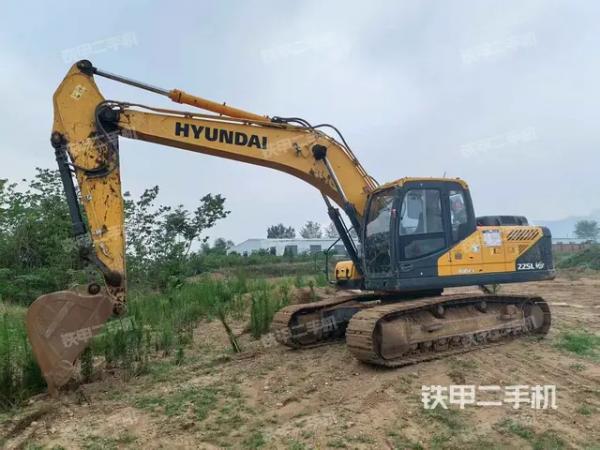

The Hyundai R225LVS, a powerful and versatile excavator from Hyundai's renowned line-up, is engineered to handle a wide range of construction and earth-moving tasks. Built for durability and efficiency, this machine is designed to meet the high demands of both heavy and light-duty projects. With the 2020 model year and 5160 operational hours, the Hyundai R225LVS offers an ideal balance of power, performance, and fuel efficiency, making it a popular choice for construction projects.
Hyundai's Legacy in Heavy Equipment
Hyundai Construction Equipment, a division of the Hyundai Heavy Industries Group, is a globally recognized manufacturer of construction machinery. With a strong presence in the industry for decades, Hyundai has established itself as a reliable provider of durable and high-performance machines. The R225LVS excavator is a part of this legacy, offering an exceptional blend of technology, comfort, and efficiency. Hyundai's focus on innovation, combined with years of engineering expertise, has enabled them to consistently produce high-quality equipment that meets the evolving demands of construction projects worldwide.
Key Specifications of the Hyundai R225LVS Excavator

1. General Information:
   • Brand: Hyundai

   • Model: R225LVS

   • Year of Manufacture: 2020

   • Operating Hours: 5160 hours

   • Location: Jiaozuo City, Henan Province, China

   • Operating Weight: 22,570 kg

   • Bucket Capacity: 1.05 m³

   • Boom Length: 5680 mm

   • Arm Length: 2920 mm

   • Bucket Type: Backhoe

2. Power System:

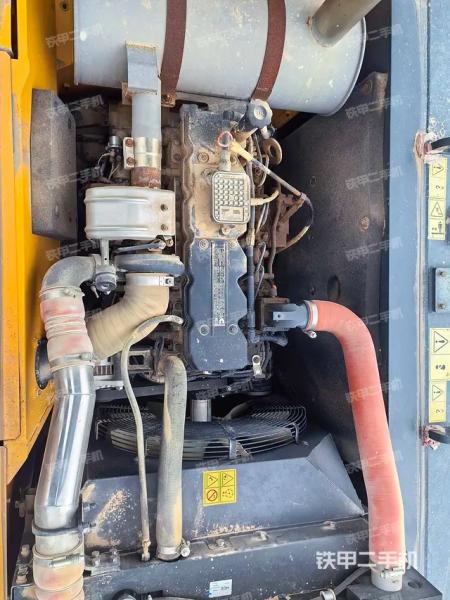

   • Engine Model: Hyundai HE6.7

   • Rated Power: 113 kW at 1900 rpm

   • Cooling Method: Water-cooled

   • Cylinder Dimensions: 107 mm x 124 mm

   • Maximum Torque: 63 Nm at 1500 rpm

   • Number of Cylinders: 6

   • Engine Displacement: 6.7 L

   • Engine Type: 6-cylinder, 4-stroke, water-cooled turbocharged engine

   The Hyundai HE6.7 engine offers a robust power output of 113 kW, ensuring that the R225LVS can handle demanding tasks efficiently. Its water-cooling and turbocharging provide better fuel efficiency and reduce engine wear, contributing to the machine's overall longevity.

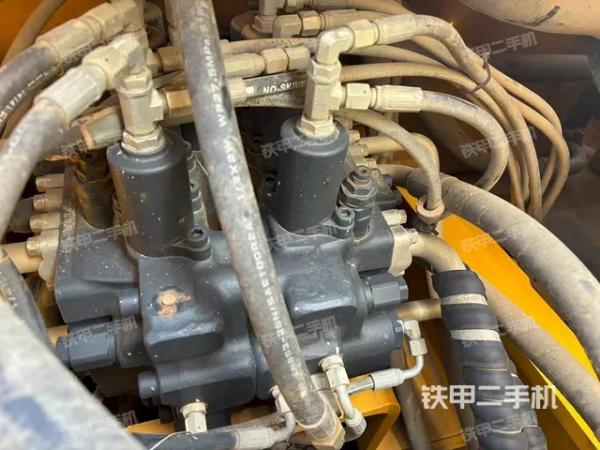

3. Hydraulic System:

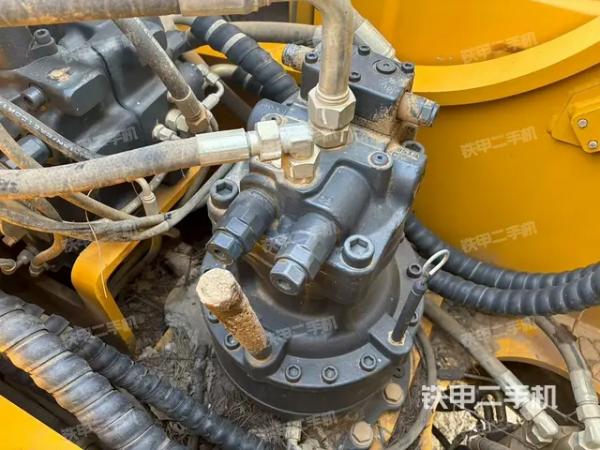

   • Swing Hydraulic Motor Type: Axial piston motor with automatic brake

   • Travel Hydraulic Motor Type: Dual-speed axial piston motor with brake valve and parking brake

   • Maximum Flow Rate of Main Pump: 2 x 222 L/min

   • Travel Hydraulic Circuit Pressure: 35 MPa

   • Swing Hydraulic Circuit Pressure: 26.5 MPa

   • Control Hydraulic Circuit Pressure: 4 MPa

   • Main Pump Type: Two variable displacement piston pumps

   • Hydraulic Oil Tank Capacity: 275 L

   • Bucket Cylinder Specifications: 1-120 mm x 85 mm x 1055 mm

   • Arm Cylinder Specifications: 1-ø140 mm x ø100 mm x 1510 mm

   • Boom Cylinder Specifications: 2-ø120 mm x ø85 mm x 1290 mm

   • Pilot Pump Type: Gear pump

   The hydraulic system in the R225LVS ensures high operational efficiency, with powerful pumps delivering impressive fluid flow to handle tough lifting and digging tasks. The dual-speed hydraulic motor provides excellent maneuverability, ensuring that the excavator performs well in various work conditions.

4. Fuel and Oil Capacities:
   • Fuel Tank Capacity: 400 L

   • Hydraulic Oil Tank Capacity: 160 L

   • Engine Oil Change Capacity: 24 L

   • Coolant Capacity: 35 L

   • Theoretical Fuel Consumption: 160 L/hour

   The R225LVS is built for efficiency, with a fuel tank capacity of 400 L and a relatively low fuel consumption rate of 160 L per hour under full load. This means less frequent refueling, reducing downtime on projects.

5. Dimensions and Mobility:
   • Transport Length: 9550 mm

   • Transport Width: 2990 mm

   • Transport Height: 3080 mm

   • Cab Height: 2920 mm

   • Minimum Ground Clearance: 1060 mm

   • Front Work Device Minimum Swing Radius: 3740 mm

   • Rear Swing Radius: 2840 mm

   • Track Length: 3650 mm

   • Track Gauge: 2000 mm

   • Track Pad Width: 500 mm

   The R225LVS’s compact dimensions make it a versatile machine that is easy to transport to different job sites. Despite its size, it offers outstanding stability and maneuverability. The 500 mm-wide tracks ensure that the machine remains stable even in uneven or soft terrain.

6. Work Range:
   • Maximum Digging Radius: 9980 mm

   • Maximum Digging Depth: 6730 mm

   • Maximum Digging Height: 9600 mm

   • Maximum Dumping Height: 6780 mm

   • Maximum Vertical Digging Depth: 6280 mm

   The impressive work range of the R225LVS, with a maximum digging depth of 6730 mm and a dumping height of 6780 mm, makes it perfect for large-scale earth-moving tasks such as digging trenches, moving materials, and heavy lifting.




ID：1825108

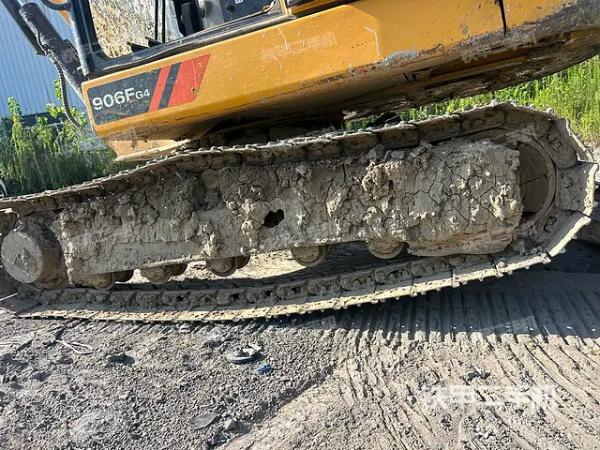

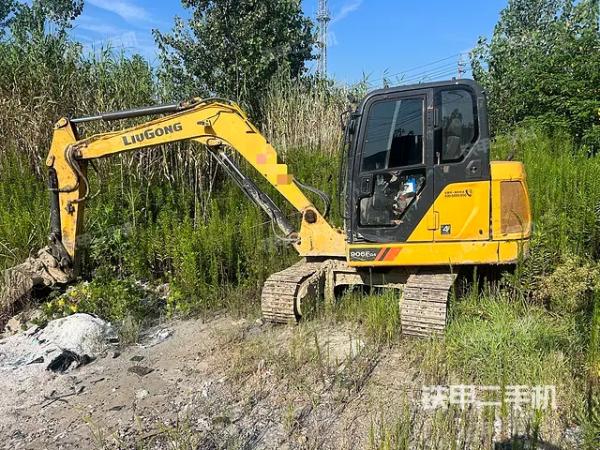

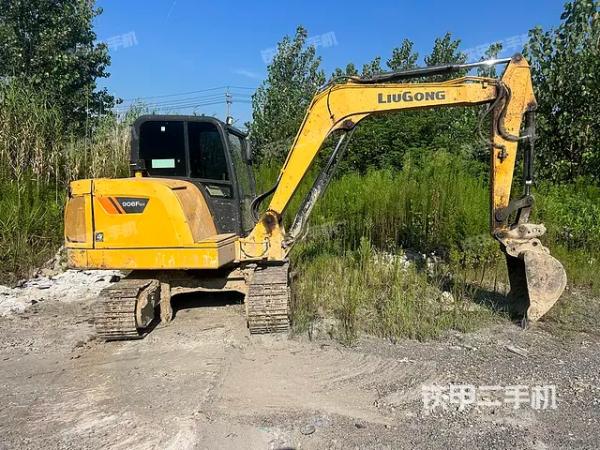

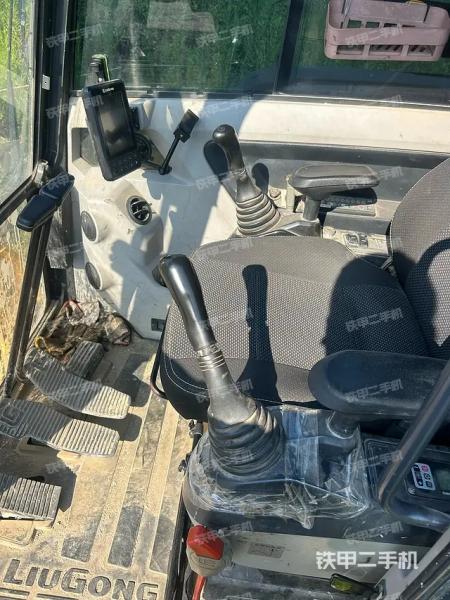

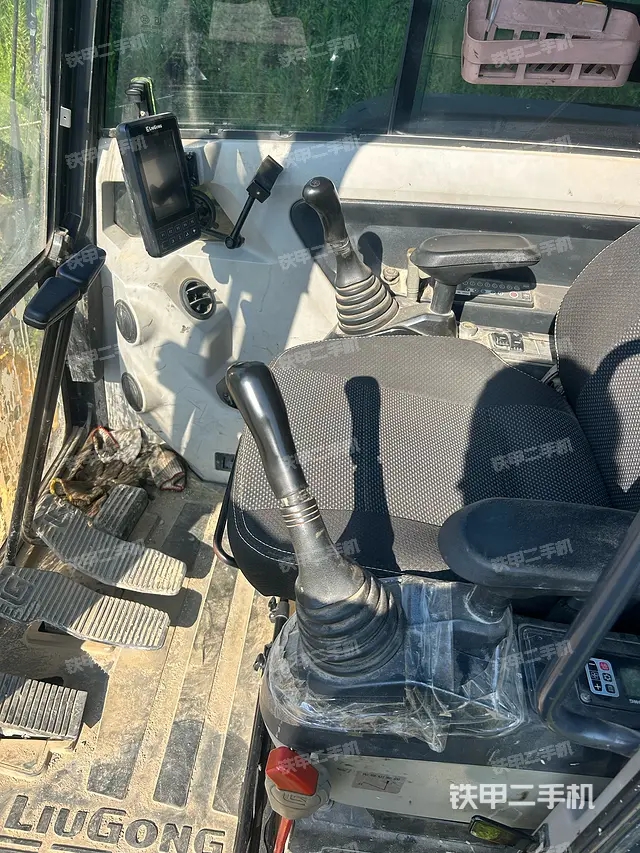

The LiuGong CLG906F excavator, manufactured in 2022, is an excellent addition to the brand's growing fleet of construction machinery. With its compact size and high performance, this model is designed for a range of construction tasks, including digging, trenching, and material handling. Based in Yangzhou, Jiangsu Province, China, this model is well-suited for both urban and rural construction sites due to its efficient and versatile design. This detailed review will explore the excavator’s specifications, performance, and suitability for various tasks, as well as its industry relevance.
LiuGong’s Legacy and Industry Position
LiuGong is one of China’s top manufacturers of heavy machinery and equipment, with a reputation for producing high-quality products used in construction, mining, and infrastructure projects worldwide. Founded in 1958, LiuGong has grown into a leader in the global construction equipment market. The CLG906F is a product of this legacy, combining modern engineering with reliability and performance.
Key Specifications and Features

1. General Information
   • Brand: LiuGong

   • Model: CLG906F

   • Year of Manufacture: 2022

   • Hours Operated: 4500 hours

   • Location: Yangzhou, Jiangsu, China

   • Operating Weight: 5900 kg

   • Bucket Capacity: 0.21 m³

   • Type of Excavator: Crawler type with a backhoe bucket

   The CLG906F features a 6-ton operating weight, making it a compact and versatile machine. This size allows it to work in narrow spaces while still offering substantial digging capacity with its 0.21 m³ bucket.

2. Engine and Powertrain
   • Engine Model: Yanmar 4TNV94L

   • Rated Power: 35.8 kW at 2000 rpm

   • Cooling System: Water-cooled

   • Max Torque: 210.6 Nm at 1260 rpm

   • Number of Cylinders: 4

   • Engine Type: Inline 4-cylinder, water-cooled, direct injection

   The Yanmar engine in the LiuGong CLG906F offers an efficient and reliable power source, delivering 35.8 kW at 2000 rpm. Yanmar engines are known for their durability and fuel efficiency, which makes them an ideal choice for excavators that require constant operation over extended periods.

3. Hydraulic and Performance Data
   • Ground Pressure: 33.6 kPa

   • Swing Speed: 9.2 rpm

   • Climbing Ability: 35°

   • Bucket Digging Force: 41 kN

   • Arm Digging Force: 31 kN

   • Travel Speed: 4.1 km/h (high) / 2.5 km/h (low)

   The CLG906F features an impressive bucket digging force of 41 kN, making it capable of handling heavy-duty tasks. The 35° climbing ability ensures that the excavator can work on slopes and uneven terrain, increasing its versatility for different construction applications. The travel speed ranges from 2.5 to 4.1 km/h, which ensures smooth and efficient movement on various job sites.

4. Dimensions and Mobility
   • Transport Length: 5900 mm

   • Transport Width: 1960 mm

   • Transport Height: 2580 mm

   • Minimum Ground Clearance: 350 mm

   • Track Gauge: 1500 mm

   • Track Width: 400 mm

   The compact dimensions of the CLG906F make it ideal for working in confined spaces. With a transport width of just 1960 mm, it can easily navigate through narrow gaps on construction sites. The track width of 400 mm gives it stability while working on soft ground or uneven terrain, ensuring safety and performance in a variety of conditions.

5. Operating Range and Work Capacity
   • Maximum Digging Radius: 6220 mm

   • Maximum Digging Depth: 3885 mm

   • Maximum Digging Height: 5675 mm

   • Maximum Dump Height: 3955 mm

   The CLG906F offers excellent digging depth and reach, making it suitable for deep trenching and other excavation tasks. The machine’s ability to dig down to 3885 mm and lift material up to 5675 mm ensures that it can perform efficiently in tasks ranging from foundation work to general earthmoving.




ID：1825103

The SANY SWE135E-3H is a modern 13-ton excavator, manufactured in 2022, that showcases the advanced technology and durability that SANY is known for in the construction and heavy machinery industry. Based in Hunan - Yiyang, China, this unit has operated for 4,809 hours, and is designed to handle a variety of tasks efficiently in both construction and mining environments. With a blend of power, precision, and modern engineering, the SWE135E-3H stands out as a reliable choice for operators.
Company History and Development of SANY
SANY Group, founded in 1989, is one of the largest manufacturers of construction machinery in China, with a global presence in over 150 countries. The company’s focus on innovation and customer satisfaction has helped it become a leader in the manufacturing of construction equipment, including excavators, cranes, and concrete machinery. The SWE135E-3H is part of the company’s mid-range excavator series and incorporates years of engineering advancements, solidifying SANY's reputation for quality.
Key Specifications and Features

1. General Specifications
   • Brand: SANY

   • Model: SWE135E-3H

   • Year of Manufacture: 2022

   • Operating Hours: 4,809 hours

   • Location: Hunan - Yiyang, China

   • Operating Weight: 13,800 kg

   • Bucket Capacity: 0.6 m³

   • Arm Length: 4,600 mm

   • Stick Length: 2,500 mm

   • Power Type: Traditional power

   • Bucket Type: Backhoe

   The SWE135E-3H weighs 13 tons, placing it in the medium-size excavator category. With a bucket capacity of 0.6 m³, it is capable of handling moderate to heavy earth-moving tasks, such as trenching, lifting, and material handling. Its compact design and high performance make it ideal for both urban construction sites and more expansive mining applications.

2. Engine and Power System

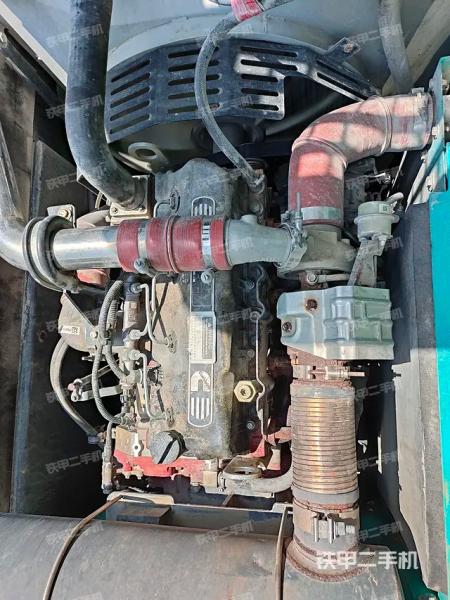

   • Engine Model: Cummins QSF3.8

   • Rated Power: 86 kW at 2,200 RPM

   • Cooling Type: Water-cooled

   • Engine Configuration: Turbocharged

   • Displacement: 3.8 L

   The SWE135E-3H is powered by the Cummins QSF3.8 engine, a renowned engine model in the construction machinery industry for its fuel efficiency and reliability. With 86 kW of rated power at 2,200 RPM, it provides a balance of strong performance and fuel efficiency. The water-cooled system ensures optimal engine performance, even in extreme conditions.

3. Performance Metrics
   • Swing Speed: 11 RPM

   • Bucket Digging Force: 100 kN

   • Arm Digging Force: 76 kN

   • Travel Speed: 6.0 km/h (high) / 3.5 km/h (low)

   The SWE135E-3H offers solid digging forces, with the bucket digging force rated at 100 kN and the arm digging force at 76 kN. These values give the excavator enough power to tackle tough soil conditions and large material loads. The swing speed of 11 RPM ensures smooth operation during tasks like digging and lifting, while the travel speed provides a reasonable pace for maneuvering on job sites.

4. Hydraulic System

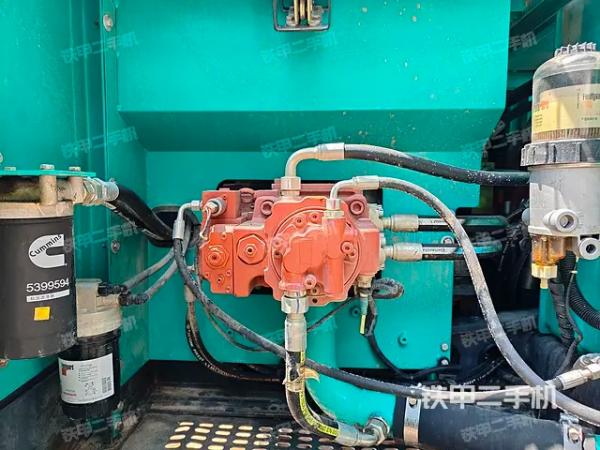

   • Main Pump Type: Variable displacement pump

   • Main Pump Flow: 2 x 200 L/min

   • Maximum Pressure: 34.3 MPa

   • Travel Motor Type: Piston motor

   The hydraulic system in the SWE135E-3H is built for high performance. The use of a variable displacement pump ensures that the excavator can adjust to different operational demands, offering both fuel efficiency and high power when needed. The hydraulic system's high pressure and flow rate ensure strong and fast work cycles, allowing for quicker completion of tasks.

5. Fuel and Oil Capacities
   • Fuel Tank Capacity: 245 L

   • Hydraulic Oil Capacity: 150 L

   The SWE135E-3H’s large fuel tank capacity (245 L) allows for extended operational hours without frequent refueling, reducing downtime during long shifts. Its hydraulic oil capacity of 150 L ensures that the hydraulic system can operate efficiently for extended periods.


• Transport Dimensions:
  • Length: 7,840 mm

  • Width: 2,500 mm

  • Height: 2,850 mm

  • Cab Height: 2,850 mm

  • Ground Clearance: 940 mm

  • Minimum Ground Clearance: 410 mm

  • Minimum Swing Radius (front): 2,530 mm

  • Swing Radius (rear): 2,355 mm

  • Track Length: 3,650 mm

  • Track Gauge: 2,000 mm

  • Track Shoe Width: 500 mm

  • Track Ground Length: 2,915 mm

  The SWE135E-3H’s compact size, with a width of just 2,500 mm, allows it to fit into tighter spaces while still maintaining a stable and safe operational footprint. Its long track length and wide track gauge contribute to its stability, even on uneven or soft ground.

• Working Range:
  • Maximum Digging Radius: 8,330 mm

  • Maximum Digging Depth: 5,525 mm

  • Maximum Digging Height: 8,640 mm

  • Maximum Unloading Height: 6,145 mm

  • Maximum Vertical Digging Depth: 4,930 mm

  • Maximum Digging Radius (at stop position): 8,185 mm

  The SWE135E-3H is equipped with an extended digging radius of up to 8,330 mm and a digging depth of 5,525 mm, allowing it to perform deep excavation and material lifting. Its vertical digging depth capability of 4,930 mm is particularly useful for tasks that require precise digging into the earth.


• Hydraulic System: Check for leaks, maintain proper oil levels, and replace filters regularly.

• Engine and Fuel System: Inspect the engine and ensure proper fuel filters are in place. Periodically check the exhaust and intake systems for blockages.

• Undercarriage and Tracks: Regularly inspect the tracks for wear, and ensure proper tension for maximum stability and efficiency.

• Electrical System: Ensure that the battery is charged and that all electrical connections are clean and functioning correctly.




ID：1825095

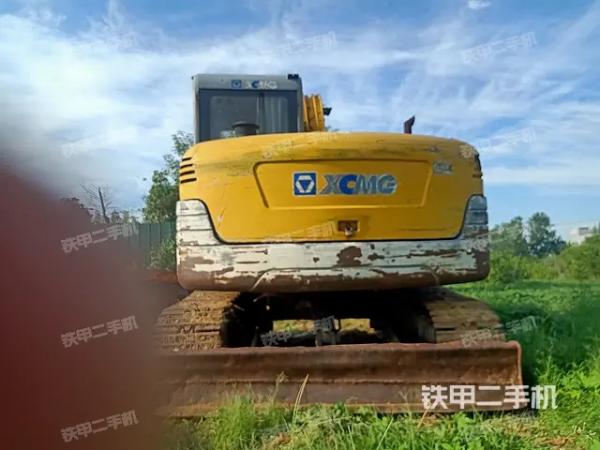

The XCMG XE80, a well-known model from XCMG, is an 8-tonne excavator designed for various applications such as construction, landscaping, and earth-moving tasks. This model, manufactured in 2013, is a reliable and efficient piece of equipment with an operating history of 9,000 hours, stationed in Henan, Nanyang. The XE80 combines traditional hydraulic and power systems, offering operators both performance and durability. Let's dive deeper into the key features, specifications, and performance of this machine.
XCMG XE80 Excavator Overview
XCMG, one of the largest construction machinery manufacturers in China, has a long history of delivering high-quality equipment. Established in 1989, the company quickly became a leading player in the global construction market. The XE80 excavator is a part of their well-regarded series of small to medium-sized machines. The 2013 model offers operators a balanced combination of power, versatility, and cost-efficiency for a variety of applications.
Key Specifications and Features

1. General Specifications
   • Brand: XCMG

   • Model: XE80

   • Year of Manufacture: 2013

   • Operating Hours: 9,000 hours

   • Location: Henan - Nanyang, China

   • Operating Weight: 7,425 kg

   • Bucket Capacity: 0.14 - 0.34 m³

   • Arm Length: 3,710 mm

   • Stick Length: 1,650 mm

   • Power System: Traditional power (combustion engine)

   This excavator's 8-tonne weight class makes it ideal for both construction projects and smaller demolition jobs. It strikes a balance between power and mobility, offering reliability on tough terrains without compromising on operational flexibility.

2. Powertrain and Engine System
   • Engine Model: Cummins B3.3

   • Engine Power: 60 kW at 2,200 RPM

   • Cooling Type: Water-cooled

   • Cylinder Count: 6 cylinders

   • Displacement: 3.3 L

   • Engine Configuration: Turbocharged / Water-cooled

   The Cummins B3.3 engine is renowned for its durability and efficiency, providing a solid 60 kW power output. The water-cooled system ensures that the engine maintains optimal operating temperatures, even under the stress of continuous use, while the turbocharged configuration helps to improve fuel efficiency and overall performance.

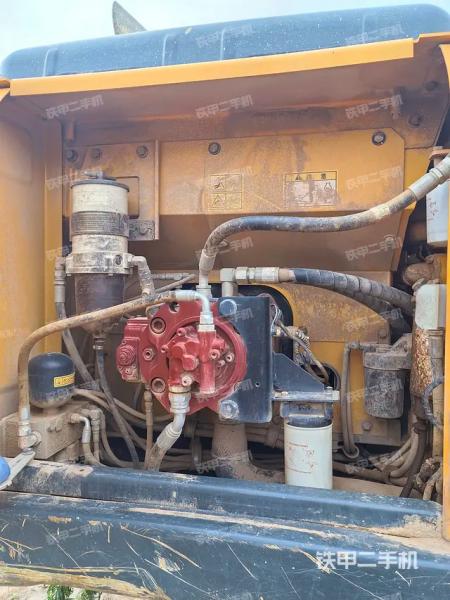

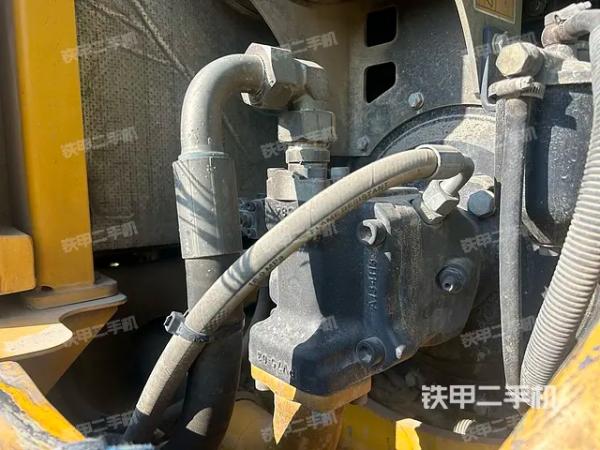

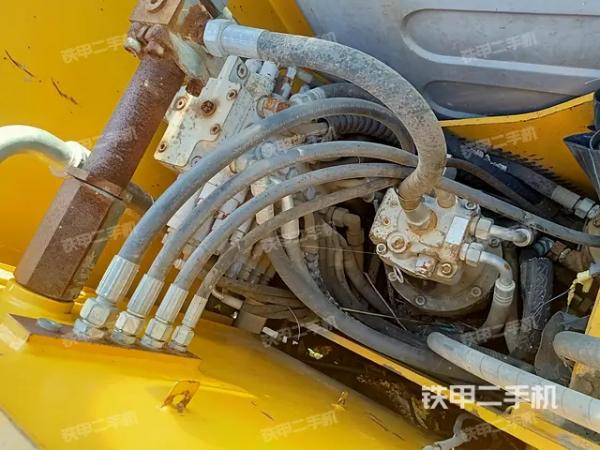

3. Hydraulic System
   • Main Relief Setting Pressure: 27.4 MPa

   • Swing Motor Type: Piston hydraulic motor

   • Travel Motor Type: Piston hydraulic motor

   • Main Pump Max Flow: 198 + 21 L/min

   • Travel Circuit Pressure: 27.4 MPa

   • Swing Circuit Pressure: 20.6 MPa

   • Pilot Circuit Pressure: 3.9 MPa

   The XE80’s hydraulic system is robust, offering high flow rates and substantial pressure, ensuring effective performance in lifting, digging, and other strenuous tasks. The piston motors for both swing and travel circuits are optimized for smooth, precise movement, reducing mechanical wear.

4. Performance Metrics
   • Ground Pressure: 34.2 kPa

   • Swing Speed: 12 RPM

   • Climbing Ability: 35°

   • Bucket Digging Force: 53.6 kN

   • Arm Digging Force: 39.2 kN

   • Travel Speed: 4.2 km/h (high) / 2.7 km/h (low)

   The XE80 demonstrates impressive climbing ability with a 35° incline tolerance. The digging forces of the bucket and arm provide solid digging capability, allowing the operator to handle demanding tasks, whether it's digging, lifting, or trenching. The travel speeds ensure efficiency in transporting materials over short distances.

5. Fuel and Oil Capacities
   • Fuel Tank Capacity: 127 L

   • Hydraulic Oil Capacity: 124 L

   • Engine Oil Capacity: 7 L

   The fuel tank capacity is large enough to ensure extended operational time without frequent refueling, which is important for large-scale projects or remote areas. The hydraulic oil capacity ensures that the hydraulic system functions effectively, maintaining smooth performance throughout the day.


• Transport Dimensions:
  • Length: 6,155 mm

  • Width: 2,220 mm

  • Height: 2,610 mm

  • Ground Clearance: 786 mm

  • Minimum Ground Clearance: 392 mm

  Its compact dimensions allow it to fit into smaller construction sites or confined spaces, where larger machines would struggle. Despite its size, the excavator still offers excellent working ranges.

• Working Range:
  • Max Digging Radius: 6,375 mm

  • Max Digging Depth: 4,140 mm

  • Max Digging Height: 7,167 mm

  • Max Unloading Height: 5,100 mm

  • Max Vertical Digging Depth: 3,218 mm

  The extended arm and bucket digging capabilities allow the XE80 to tackle a variety of tasks, from digging trenches to lifting heavy materials. The excavator’s vertical digging depth makes it especially suitable for tasks where the operator needs to dig deep into the ground.


• Engine and Hydraulic System: Regular oil and filter changes, checking for any leaks, and ensuring the hydraulic pumps and motors are functioning optimally.

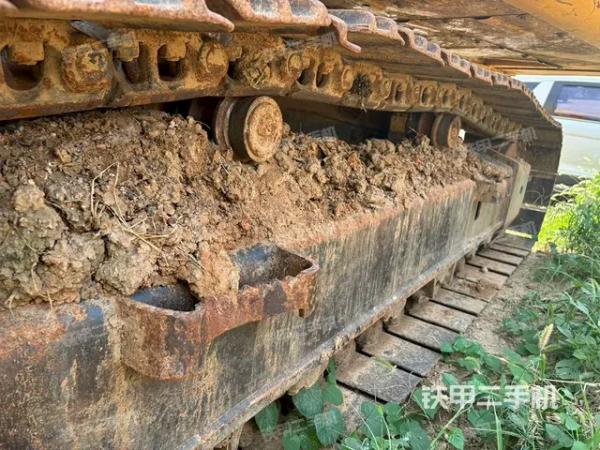

• Undercarriage and Tracks: Ensure the tracks are in good condition, with no significant wear or damage. This is crucial for stability and mobility.

• Electrical System: Inspect the battery and alternator for signs of corrosion or wear, ensuring they provide sufficient power for daily operations.


The Caterpillar D8H is a heavy-duty track-type tractor widely used in construction, mining, and forestry. Known for its power, reliability, and rugged performance, it’s an essential piece of equipment in many industries. However, operating a machine like the D8H in cold winter conditions can present unique electrical challenges. These issues often arise from the combination of cold temperatures, long idle periods, and the demands placed on the tractor's electrical system. In this article, we will explore the common electrical problems faced by operators of the D8H during winter, the causes, and solutions for these issues.
The Importance of the Electrical System in the D8H
The electrical system in the D8H is integral to its operation. It powers the engine's starter motor, the lighting system, heating and cooling units, and other crucial components like the fuel system and hydraulic system controls. When the temperature drops, the performance of the electrical system can be compromised, leading to problems such as difficulty starting the engine, weak battery performance, or even complete failure of electrical components.
The D8H is typically equipped with a 24-volt electrical system, which requires sufficient voltage to operate effectively. In cold weather, several factors can influence the performance of this system, including the battery's charge and the resistance in the wiring.
Common Winter Electrical Issues on the D8H

1. Battery Performance Issues
   Batteries are particularly susceptible to cold temperatures, which can reduce their capacity to hold a charge. In extreme cold, the battery’s ability to deliver sufficient current to the starter motor can be compromised. This can lead to slow cranking or failure to start the engine entirely.

2. Corroded Battery Terminals
   Corrosion on battery terminals is a common issue that becomes exacerbated in winter. The presence of moisture, combined with the acid from the battery, can cause corrosion around the terminals. This increases resistance, reducing the flow of electricity and making it difficult for the tractor to start.

3. Weak or Faulty Alternator
   The alternator plays a crucial role in maintaining the charge in the battery and providing power to the electrical system while the engine is running. In cold weather, a weak alternator may struggle to maintain the necessary charge in the battery, leading to electrical failures, especially during prolonged use or heavy load conditions.

4. Wiring Issues
   Cold temperatures can cause electrical wiring to contract, potentially leading to poor connections or damaged wires. This is especially problematic in older machines like the D8H, where the wiring may have already experienced wear and tear. These wiring issues can lead to short circuits, poor connection, or complete electrical failure.

5. Fuses and Relays
   Fuses and relays are also more prone to failure in cold temperatures, as brittle components can crack or break under stress. A faulty fuse or relay could result in the failure of key electrical components, such as the starter motor or hydraulic controls, preventing the tractor from starting or functioning properly.


1. Check and Maintain Battery Health
   One of the first steps in preparing a D8H for winter is ensuring that the battery is in good condition. Here are some essential tips for maintaining the battery in cold conditions:
   • Regularly charge the battery: Before the winter season starts, ensure that the battery is fully charged. A well-charged battery will be less susceptible to the effects of cold temperatures.

   • Inspect the battery terminals: Clean the battery terminals to remove any corrosion. Use a wire brush and a mixture of baking soda and water to neutralize the acid. After cleaning, apply petroleum jelly or a terminal protector to prevent future corrosion.

   • Test the battery: Use a multimeter to check the voltage of the battery. It should typically read around 12.6 volts for a fully charged battery. If the voltage is lower than 12 volts, consider replacing the battery.

   • Use battery warmers: In extreme cold weather, consider using a battery heater or warming blanket to keep the battery at an optimal temperature.

2. Test the Alternator
   A weak alternator is another major contributor to electrical issues in winter. Here’s how to ensure the alternator is working properly:
   • Check charging voltage: Use a voltmeter to check the voltage output of the alternator. The system should produce between 13.8 to 14.4 volts when the engine is running. Anything lower may indicate an issue with the alternator.

   • Inspect alternator belt: Ensure that the alternator belt is tight and in good condition. A loose or worn-out belt can reduce the alternator’s ability to charge the battery properly.

   • Consider a higher-output alternator: If your D8H is regularly used in extreme cold, upgrading to a higher-output alternator may be necessary to handle the additional load.

3. Check and Insulate Wires and Connections
   Cold temperatures can cause electrical wires to contract and break. Follow these steps to ensure the wiring system is in good condition:
   • Inspect wires: Look for any frayed, cracked, or worn wires, especially around connections. Replace any damaged wires immediately to prevent short circuits.

   • Use insulating tape: Consider using weatherproof insulating tape around wires, especially in areas that are prone to moisture accumulation. This will protect the wires from freezing temperatures and moisture.

   • Ensure proper connections: Tighten all electrical connections to ensure proper conductivity. Loose connections can result in power loss or short circuits.

4. Inspect Fuses and Relays
   Cold weather can make fuses and relays brittle, leading to failure. Here’s how to manage these components:
   • Check fuses regularly: Inspect fuses and replace any that are blown. Keep spare fuses on hand for quick replacements during winter.

   • Test relays: Use a relay tester to check the function of relays. Replace any relays that show signs of malfunction.

5. Monitor Engine and Hydraulic System
   Beyond the electrical system, cold weather also affects the engine and hydraulic systems:
   • Use the right oil: Ensure that the engine oil and hydraulic fluids are rated for cold temperatures. Thick oil can cause excessive strain on the engine and hydraulic pumps, leading to starting problems and reduced performance.

   • Warm up the machine: Always allow the engine to warm up gradually before full operation. This reduces the strain on the electrical system and other mechanical components.


• Store the D8H in a sheltered location: If possible, store the machine in a heated or insulated area to reduce exposure to extreme cold.

• Regularly inspect the electrical system: Make it a habit to check the battery, alternator, wiring, and other electrical components during regular maintenance.

• Keep the system dry: Moisture can cause corrosion and short circuits in the electrical system. Ensure that all connections are dry and clean, especially after heavy snow or rain.


Development and Background
The Caterpillar 926M is a modern small wheel loader introduced to replace earlier models like the 924K, representing the next generation in Caterpillar’s line of compact wheel loaders. With a focus on enhanced fuel efficiency, operator comfort, and versatility, the 926M is designed for diverse material handling applications including construction, agriculture, and landscaping.
Powered by the Cat C7.1 ACERT engine, this loader offers improved engine performance while meeting stringent Tier 4 Final/Stage V emission standards, reflecting Caterpillar’s commitment to environmental responsibility alongside operational effectiveness. The 926M benefits from Intelligent Power Management that optimizes power delivery, ensuring efficient operation across various work modes.
Technical Specifications

• Engine: Cat C7.1 ACERT diesel engine, 7.01-liter displacement with four valves per cylinder and common rail fuel system.

• Maximum Gross Power: Approximately 168 hp (125 kW) at 1,800 rpm (Performance Power Mode).

• Rated Net Power: Around 156 to 166 hp (116 to 123 kW) depending on rpm and power mode.

• Maximum Net Torque: Up to 601 ft-lbf (815 Nm).

• Operating Weight: Approximately 28,770 lbs (13,050 kg).

• Bucket Capacity Range: 1.9 to 5.0 cubic meters (2.5 to 6.5 cubic yards).

• Transmission: Advanced hydrostatic transmission with multiple speed ranges, including a creeper mode adjustable from 1 km/h (0.6 mph) to 13 km/h (8 mph) for precise low-speed operation.

• Torque Management: The loader is equipped with an exclusive Intelligent Power Management system that adjusts engine and transmission output to optimize performance and fuel efficiency.

• Axles: Front differential lock can be engaged on the go at full torque, enhancing traction on challenging terrain.

• Steering: Dedicated load-sensing variable displacement pump with dual double-acting cylinders, delivering smooth and efficient steering.

• Operating Altitude: No derating required up to 3,000 meters (10,000 feet).

• Sound Levels: Compliance with ISO 6396:2008, featuring noise levels of approximately 68 db(A) in standard and deluxe cabins.

• Safety: Meets ROPS/FOPS standards (ISO 3471:2008 and ISO 3449:2005 Level II).


• Improved Fuel Efficiency: The ACERT engine technology and power management reduce fuel consumption without compromising performance.

• Versatility: Large range of bucket sizes and optional attachments allow the loader to be adapted to numerous job site requirements.

• Comfort: Spacious cabs with advanced controls, air conditioning systems, and sound insulation reduce operator fatigue.

• Maintenance: Designed with accessible service points, advanced diagnostic capabilities, and durable components to minimize downtime and operating costs.


• Regular inspection and timely replacement of hydraulic fluid and filters.

• Routine checking of engine oil, coolant levels, and fuel system integrity.

• Monitoring tire wear and ensuring correct inflation to optimize traction and durability.

• Scheduled engine and transmission service as per Caterpillar guidelines.

• Engage differential lock judiciously to prevent unnecessary wear.


• ACERT: Advanced Combustion Emission Reduction Technology developed by Caterpillar for cleaner and more efficient engines.

• Hydrostatic Transmission: A transmission that uses hydraulic fluid to deliver variable speed and torque smoothly.

• Intelligent Power Management: A system that automatically adjusts engine and transmission power for optimal performance and fuel economy.

• Torque: A measure of rotational force provided by the engine, critical for moving heavy loads.

• ROPS/FOPS: Protective structures for operator safety against rollovers (ROPS) and falling objects (FOPS).

• Creeper Mode: A low-speed setting that allows precise and controlled movements, typically for delicate or confined operations.

• Differential Lock: A feature that locks the differential to improve traction on uneven or slippery surfaces.
