Background of the John Deere 450 Dozer
The John Deere 450 crawler dozer was first introduced in the mid-1960s as part of Deere’s push into compact earthmoving equipment. Designed for versatility and reliability, the 450 series became a staple in small to mid-scale construction, forestry, and agricultural operations. Its popularity led to multiple iterations, including the 450B, 450C, and later models like the 450G and 450J. By the late 1980s, Deere had sold tens of thousands of units globally, with strong adoption in North America and parts of Asia. The original 450 featured a High-Low-Reverse (HLR) transmission system with four forward speed ranges, which was considered advanced for its time.
Understanding the HLR Transmission System
The HLR transmission in the John Deere 450 is a hydraulically actuated power-shift system that allows the operator to change direction and speed without clutching. It uses a combination of clutch packs and hydraulic pressure to engage gears. When functioning properly, it provides smooth directional changes and consistent torque delivery. However, its performance is highly sensitive to hydraulic pressure, fluid condition, and temperature.
Common Transmission Symptoms and Their Progression
Operators have reported a recurring issue where the transmission performs well for the first 30 to 45 minutes of operation, then begins to degrade as the machine heats up. Symptoms include:

• Loss of drive: The dozer fails to move when shifting gears.

• Slipping sensation: Feels like the clutch is not fully engaging.

• Intermittent engagement: Repeated gear shifts may eventually restore movement temporarily.

• Shutdown necessity: After prolonged operation, the machine must be parked and allowed to cool before it functions again.


• Increased resistance: The left clutch becomes harder to pull.

• Brake inefficacy: The left brake fails to hold, even when fully engaged.

• Partial disengagement: The clutch disengages, but the brake does not provide sufficient stopping force.


• Use a calibrated pressure gauge on the HLR test ports.

• Compare cold and hot readings.

• Inspect for pressure loss exceeding 20 psi when hot.


• Flush the system using diesel fuel (a common field method).

• Replace with high-quality hydraulic oil, such as Hitran or equivalent.

• Change all filters, including the pickup strainer and inline filters.

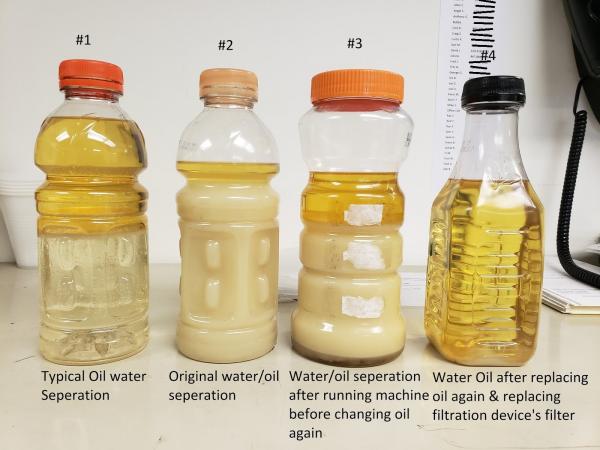

• Inspect fluid color and consistency for signs of contamination or aeration.


• Install a transmission oil cooler if operating in hot climates.

• Use synthetic hydraulic fluid with high thermal stability.

• Perform seasonal pressure checks to monitor system health.

• Train operators on early symptom recognition and shutdown protocols.


Introduction to Service Trucks
Service trucks are specialized vehicles designed to support construction, mining, and heavy equipment operations in the field. They are essential for maintenance, repair, and transportation of tools and spare parts, ensuring minimal downtime for machinery. The concept of a service truck combines mobility, storage, and functional equipment, enabling technicians to address mechanical, hydraulic, and electrical issues directly on-site. Modern service trucks have evolved from simple tool-carrying vehicles to highly customized units with advanced features like on-board compressors, welding systems, and hydraulic service cranes.
Core Components of a Service Truck

1. Truck Chassis
   The foundation of any service truck is its chassis, which determines payload capacity, durability, and off-road capability. Common choices include heavy-duty diesel-powered trucks from brands like Ford, Chevrolet, or International, typically ranging from 20,000 to 33,000 lbs GVWR. The chassis must support the added weight of service equipment without compromising stability or safety.

2. Utility Body
   The utility body is the customized storage and service area mounted on the chassis. It usually includes multiple compartments for tools, parts, and consumables. Modern utility bodies are made of aluminum or reinforced steel to reduce weight while maintaining durability. Options include lockable compartments, slide-out trays, and modular designs for flexibility.

3. Hydraulic Systems
   Many service trucks incorporate hydraulic systems to power on-board equipment such as lifts, cranes, and tool operation. Hydraulic pumps, reservoirs, and control valves are integrated into the design. Proper maintenance, including checking fluid levels and inspecting hoses, ensures reliable performance under heavy usage.

4. Compressor and Air Systems
   An on-board air compressor is critical for tire inflation, pneumatic tools, and cleaning. Compressors vary in size from 60 to 200 CFM, depending on the expected workload. They are often paired with air tanks and regulators for consistent performance.

5. Power Systems
   Service trucks may include auxiliary power options such as diesel generators, inverters, and battery banks. These systems allow operators to run electrical tools, lights, and diagnostic equipment in remote locations without relying on external power sources.

6. Cranes and Lifting Equipment
   On-board cranes increase the versatility of a service truck, enabling technicians to lift engines, heavy components, or hydraulic systems directly on-site. Cranes are rated according to lifting capacity, typically ranging from 1,000 to 5,000 lbs for mid-sized trucks. Boom reach, rotation, and hydraulic control quality are critical factors for safe operation.


1. Tool Organization
   A well-organized service truck minimizes time spent searching for tools. Options include modular racks, magnetic strips, and pull-out drawers. Specialized storage for wrenches, impact guns, and diagnostic devices improves efficiency.

2. Lighting and Safety Features
   LED work lights, beacon lights, and floodlights enhance visibility during night operations. Safety considerations include fire extinguishers, first-aid kits, non-slip surfaces, and integrated backup cameras.

3. On-board Diagnostics and Tech Integration
   Advanced service trucks can be equipped with laptop docking stations, tablet mounts, and telematics systems. These allow technicians to access equipment manuals, monitor truck systems, and log maintenance activities digitally.

4. Fuel and Lubricant Storage
   Service trucks often carry diesel, oil, hydraulic fluid, and grease to service heavy equipment on-site. Tanks are mounted with secure dispensing systems, with capacities ranging from 50 to 200 gallons depending on fleet needs. Spill containment measures are critical for environmental compliance.


• Payload and GVWR: Ensure the chassis can handle the combined weight of the utility body, equipment, and consumables without exceeding the Gross Vehicle Weight Rating.

• Equipment Placement: Place heavier equipment close to the truck’s center of gravity to maintain stability.

• Accessibility: Frequently used tools and fluids should be within easy reach to minimize work time.

• Maintenance Access: Design compartments and crane placement for easy maintenance of truck systems.


• Chassis: 33,000 lbs GVWR diesel truck

• Utility Body: 14-foot aluminum body with 12 lockable compartments

• Hydraulic System: 15 GPM pump with 50-gallon reservoir

• Compressor: 120 CFM air compressor with 60-gallon tank

• Crane: 2,500 lbs lifting capacity, 12-foot reach

• Power: 7 kW diesel generator with inverter and battery backup

• Fuel & Lubricant Storage: 150 gallons total with safe dispensing


• Test the truck fully loaded to ensure braking and suspension handle the added weight.

• Regularly inspect hydraulic hoses, fittings, and electrical connections to prevent downtime.

• Label compartments and organize tools by task to improve workflow efficiency.

• Invest in modular accessories that can be upgraded or replaced as needs change.


Introduction to Excavator Buckets
Excavator buckets are essential components for heavy machinery, designed to handle a variety of digging, scooping, and material handling tasks. Whether it's for excavation, demolition, or landscaping, the bucket plays a crucial role in the overall performance of the excavator. These buckets come in different sizes and configurations, tailored for specific types of work, from standard digging to trenching and material handling.
Buckets are not just a simple tool—they are a collection of parts that must work together to ensure that the excavator operates efficiently. This article will provide a detailed overview of the parts that make up an excavator bucket, their function, and tips for maintenance and troubleshooting.
Main Parts of an Excavator Bucket

1. Bucket Shell


1. Teeth and Adapters


1. Side Cutters


1. Cutting Edge


1. Back Blades and Shims


1. Bucket Pins and Bushings


1. General Purpose Bucket


1. Heavy Duty Bucket


1. Trenching Bucket


1. Rock Bucket


1. Skeleton Bucket


1. V-Shaped Bucket


1. Regular Inspection of Teeth and Adapters


1. Check for Cracks in the Bucket Shell


1. Lubricate Pins and Bushings


1. Monitor the Cutting Edge for Wear


1. Maintain Proper Fluid Levels


1. Bucket Not Digging Properly


1. Excessive Wear on Bucket Components


1. Loose Pins and Bushings


Yes, but only if you avoid disturbing the gear train and follow precise procedures. Rebuilding a Detroit Diesel 4-53T engine—especially in a grapple skidder application—can be done without losing timing, provided the crankshaft, camshaft, and idler gears remain untouched. The 4-53T is a turbocharged two-stroke diesel with a blower, and its timing system is gear-driven with tight tolerances. If the heads, liners, and pistons are replaced without removing the front cover or disturbing the gear mesh, timing remains intact.
Detroit Diesel 4-53T Engine Overview
The 4-53 series was introduced by Detroit Diesel in the 1950s and became a staple in forestry, military, and industrial equipment. The “4” refers to four cylinders, and “53” to the cubic inch displacement per cylinder—totaling 212 cubic inches. The turbocharged variant (4-53T) adds forced induction to the classic Roots-style blower, improving power and altitude performance. These engines were widely used in Treefarmer and Franklin skidders, often paired with Clark torque converters and multiple hydraulic pumps.
Terminology Notes

• Rack Setting: The adjustment of injector control rods to synchronize fuel delivery across cylinders.

• Timing Pin: A specialized tool used to align injectors and cam lobes during rack setup.

• Blower: A Roots-type supercharger that forces air into the cylinders in two-stroke Detroits.

• Torque Converter: A fluid coupling between engine and transmission, often with gear-driven hydraulic pump mounts.


• Remove cylinder heads and oil pan without disturbing the front gear cover.

• Keep push rods in order and reinstall them in their original positions.

• Replace liners, pistons, bearings, and gaskets using Detroit-specific tools like ring compressors and loading sleeves.

• Leave the crankshaft, camshaft, and idler gears untouched to preserve timing.

• After reassembly, reset the rack using a timing pin and feeler gauges.


• Incorrect liner selection: Detroit engines used multiple liner types; mismatches can cause coolant leaks or piston interference.

• Upside-down rings: A frequent mistake that leads to poor compression and oil blow-by.

• Improper rack setup: Can cause uneven fuel delivery, misfires, or runaway conditions.

• Hydraulic pump misalignment: Gear-driven pumps must mesh properly with the torque converter or intermediate gears.


• Use a Detroit Diesel service manual and follow torque specs precisely.

• Clean all gasket surfaces thoroughly and inspect for warping.

• Pressure test the cooling system after reassembly to check for liner seal integrity.

• Label all hydraulic lines and electrical connectors before removal.

• Keep a log of parts replaced and measurements taken for future reference.


Introduction to Hydraulic Systems in Construction Machinery
Hydraulic systems are critical to the operation of modern construction machinery, including skid steers, excavators, and tractors. These systems allow for the controlled movement of heavy loads, enabling tasks such as lifting, digging, and pushing. New Holland, a major manufacturer of agricultural and construction equipment, produces a variety of machines equipped with hydraulic systems that are fundamental to their function. Hydraulic issues in these systems can lead to significant downtime and operational inefficiencies, which can be costly for equipment owners.
This article explores common hydraulic system issues that can occur in New Holland (NH) equipment, with a focus on understanding the underlying causes, troubleshooting techniques, and preventive measures to avoid these problems in the future.
Common Hydraulic Issues in New Holland Equipment

1. Loss of Hydraulic Power


1. Hydraulic Leaks


1. Excessive Noise in Hydraulic System


1. Overheating of Hydraulic Fluid


1. Contamination of Hydraulic Fluid


1. Low Hydraulic Fluid Levels


1. Worn or Damaged Seals and O-Rings


1. Faulty Hydraulic Pump or Motor


1. Clogged or Dirty Filters


1. Incorrect Hydraulic Fluid


1. Check Hydraulic Fluid Levels


1. Inspect for Leaks


1. Test the Hydraulic Pump


1. Replace Filters


1. Inspect the System for Contamination


1. Regular Fluid Checks


1. Monitor Temperature


1. Replace Seals and O-Rings Regularly


1. Clean and Replace Filters


1. Use Proper Hydraulic Fluid


The Relief Valve Is Located on the Loader Control Valve Assembly
On the Case 580K backhoe loader, the main hydraulic relief valve is mounted directly on the loader control valve block. It is typically positioned near the lift and bucket spool sections, often on the right-hand side when facing the valve from the operator’s seat. This valve plays a critical role in protecting the hydraulic system from overpressure by diverting excess fluid back to the reservoir when system pressure exceeds a preset threshold—usually around 2,500 psi for the loader circuit.
Case 580K Development and Hydraulic System Overview
The Case 580K was introduced in the mid-1980s as a successor to the 580E, featuring improved hydraulics, a more powerful engine, and better operator ergonomics. It became one of Case’s best-selling backhoes, with tens of thousands of units sold globally. The 580K uses an open-center hydraulic system powered by a gear-type pump delivering up to 28 gpm at full throttle. The system includes multiple relief valves—one for the loader, one for the backhoe, and additional safety valves for auxiliary circuits.
Terminology Notes

• Relief Valve: A pressure-regulating valve that opens when system pressure exceeds a safe limit.

• Open-Center System: A hydraulic design where fluid flows continuously through the valve until a function is activated.

• Spool Valve: A sliding valve that directs hydraulic fluid to different actuators.

• Hydraulic Block: The cast assembly housing multiple valve spools and relief valves.


• Weak or slow hydraulic response, especially under load.

• Hydraulic functions stall or stop when multiple controls are used simultaneously.

• Excessive heat buildup in the hydraulic fluid due to constant bypassing.

• Noisy pump operation, often caused by cavitation or pressure spikes.


• Install a hydraulic pressure gauge on the test port near the loader valve.

• Activate the loader lift function against a solid object to build pressure.

• Observe the gauge—if pressure maxes out below spec (e.g., 2,000 psi), the relief valve may be stuck or misadjusted.

• To adjust, remove the cap on the relief valve and turn the internal screw clockwise to increase pressure, counterclockwise to decrease.

• Always refer to the service manual for torque specs and adjustment limits.


• Replace hydraulic filters every 250 hours and fluid every 1,000 hours.

• Use Case Hy-Tran fluid or equivalent to maintain seal compatibility and pressure stability.

• Inspect relief valve seats and springs during major service intervals.

• Keep the loader valve block clean and dry to prevent contamination and corrosion.


Introduction to the Volvo EC160C
The Volvo EC160C is a part of the C-series of excavators produced by Volvo Construction Equipment. Known for its reliability and robust performance in heavy-duty construction tasks, the EC160C is designed for a wide range of applications, including excavation, grading, and lifting. It is equipped with advanced electronics and hydraulics to provide enhanced performance and productivity. However, like any sophisticated machine, it is not without its challenges, particularly with regard to its electronic components such as the operator's display screen.
One common issue reported by operators of the Volvo EC160C is screen malfunctions or errors, which can significantly impact the usability of the machine, especially when it comes to monitoring key operating parameters like fuel levels, hydraulic pressure, and engine performance. In this article, we’ll explore the common screen issues faced by operators, potential causes, and troubleshooting tips to help maintain the reliability of the Volvo EC160C.
Common Screen Issues with Volvo EC160C

1. Blank or Flickering Screen


1. Error Messages or Glitches


1. Non-responsive Touch Screen


1. Distorted Display


1. Electrical Issues


1. Fused or Blown Fuses


1. Software or Firmware Malfunctions


1. Damaged Cables or Connectors


1. Overheating


1. Check the Fuses


1. Inspect Wiring and Connections


1. Perform a Software Reset or Update


1. Test the Power Supply


1. Replace the Screen or Internal Components


1. Routine Maintenance


1. Monitor Operating Temperature


1. Use Proper Storage Practices


Yes, but it requires ingenuity and local expertise. The Clark 12.2 MHR transmission used in the 1997 SkyTrak 10054 telehandler is no longer supported by JLG or SkyTrak for certain components, including the Spicer input/output flange. However, with careful measurement and collaboration with machinists or driveline specialists, the flange can be repaired or replaced using Spicer’s legacy catalogs and aftermarket solutions.
Clark Transmission and SkyTrak Integration
Clark transmissions were widely used in material handlers and industrial vehicles throughout the 1980s and 1990s. The 12.2 MHR model is a three-speed powershift unit designed for high torque and continuous duty. In the SkyTrak 10054, this transmission interfaces with a driveline shaft via a Spicer-style flange, which connects to a universal joint (U-joint) and transfers power from the engine to the transmission.
SkyTrak, originally an independent telehandler manufacturer, was acquired by JLG in the early 2000s. Since then, parts support for older models has gradually diminished, especially for components not manufactured directly by JLG.
Terminology Notes

• Spicer Flange: A driveline component manufactured by Dana Spicer, used to connect shafts via U-joints.

• U-joint Cap Stops: Raised edges or grooves that hold the bearing caps of the universal joint in place.

• Input Shaft Bearing: A bearing inside the transmission that supports the rotating input shaft; vulnerable to vibration and misalignment.

• High-Speed Shaft: A driveline shaft operating at engine RPM, requiring precise balance and alignment.


• Worn cap stops on the flange allow the U-joint to shift, causing vibration.

• Excessive vibration at idle can damage the input shaft bearing and lead to transmission failure.

• Discontinued OEM parts force owners to seek alternative repair paths.


• Measure the flange dimensions precisely: bolt pattern, pilot diameter, spline count, and cap stop depth.

• Consult Spicer’s industrial driveline catalogs, which list hundreds of flange types by dimension and application.

• Use a driveline shop to source or fabricate a new flange, possibly converting to a more common U-joint size.

• If replacement is impossible, weld and machine the existing flange carefully:


• Tack weld the cap stops to restore fit.

• Use water cooling to protect seals and bearings.

• Ensure concentricity and balance to avoid vibration.


• Model: Clark 12.2 MHR

• Serial: WBEA 435764

• SkyTrak part number: 8841025


• Inspect the flywheel coupling during reassembly; early SkyTrak designs had coupling failures that were later redesigned.

• Use a magnetic drain plug to monitor for metal debris after repair.

• Balance the driveline shaft if any welding or machining is performed.


Introduction to the Case 680CK
The Case 680CK, produced in 1968, is a classic model from the Case Corporation, which was well-known for its innovative and rugged construction equipment. The 680CK was part of Case's mid-range tractor-loader series and was particularly popular for its ability to perform both heavy lifting and excavation tasks efficiently. In an era when machinery was evolving rapidly, the Case 680CK stood out for its combination of reliability, power, and versatility.
Often associated with the farm and construction industries, the 680CK was a workhorse that could handle a variety of tasks, including digging, lifting, and material handling. While it has been many decades since it was first introduced, the 680CK remains a sought-after piece of equipment for collectors and those who appreciate vintage construction machinery.
Specifications of the Case 680CK
The Case 680CK is equipped with features that were quite advanced for its time. Below are some of the key specifications:

• Engine: Powered by a 4-cylinder gasoline engine, the 680CK produced around 60 horsepower. This gave it sufficient power for the tasks it was designed for, including trenching and lifting.

• Transmission: It came with a 4-speed manual transmission that allowed operators to choose the appropriate gear for the task at hand, whether it was digging in loose soil or lifting heavy materials.

• Operating Weight: The operating weight of the 680CK was about 10,000 pounds, which made it a mid-size machine capable of performing on construction sites without being too cumbersome.

• Loader Capacity: The front-end loader was capable of lifting up to 2,000 pounds of material, making it suitable for a wide range of tasks from moving dirt to hauling materials on-site.

• Backhoe Attachment: The 680CK was often sold with an optional backhoe attachment, making it a versatile piece of machinery for both excavation and material handling. The backhoe could dig to depths of approximately 14 feet, depending on the model.


1. Hydraulic System Leaks: The hydraulic system, which controls the backhoe and loader, is known to experience leaks, particularly in older models. These leaks can result in reduced performance and the need for frequent fluid top-ups.

2. Engine Wear and Tear: The 680CK’s gasoline engine, while durable, can experience issues related to prolonged use. Over time, the engine may require rebuilding or replacement of certain components like the carburetor or ignition system.

3. Transmission Problems: As with any older machine, the transmission on the Case 680CK can become worn or damaged, especially if the machine was used heavily or without proper maintenance. Replacing or repairing the transmission can be costly and time-consuming.

4. Tire Wear: Given the weight of the 680CK and the rough terrain it often worked on, tire wear was a common issue. Operators would need to regularly inspect and replace tires to ensure optimal performance.

5. Rust and Corrosion: Exposure to the elements over decades has led to rust and corrosion in many of these machines, particularly in areas like the frame, boom arms, and backhoe bucket. This could affect structural integrity and lead to costly repairs if not addressed in a timely manner.


• Regular Fluid Checks: It’s essential to monitor the hydraulic fluid and engine oil levels, especially in older machines where leaks are common.

• Greasing the Moving Parts: The loader arms, backhoe joints, and other moving parts should be greased regularly to reduce friction and prevent premature wear.

• Inspecting Tires: Given that the 680CK is a relatively heavy machine, tire wear can be significant. Regular inspection and replacement of tires are necessary to maintain safe operation.

• Cleaning the Radiator and Engine: Keeping the engine and radiator clean can prevent overheating and ensure the engine runs efficiently.

• Replacing Worn Components: Over time, parts such as the hydraulic hoses, belts, and electrical components may need replacing. Staying on top of these replacements can prevent more serious mechanical failures.


The Case 1845C and Its Attachment System
The Case 1845C skid steer loader was introduced in the early 1990s and quickly became one of the most popular models in North America. With a Cummins 4B diesel engine producing around 51 horsepower, hydrostatic drive, and a rated operating capacity of 1,700 lbs, the 1845C was built for reliability and versatility. Over 60,000 units were sold before production ended in the early 2000s, and many are still in active use today.
One of the defining features of the 1845C is its mechanical attachment coupler. Early models came with a hook-and-pin style coupler, where the top of the attachment hooks onto the loader arms and the bottom is secured with manual pins. While functional, this design lacks the speed and convenience of modern quick-attach systems.
Terminology Notes

• Coupler: The interface between the loader arms and the attachment, allowing secure connection and disconnection.

• Quick-Attach System: A standardized coupler design that allows fast tool changes without manual pinning.

• 181776A1 Coupler: A Case part number associated with a later-style coupler used on upgraded 1845C units.

• Aftermarket Coupler: A non-OEM coupler designed to retrofit older machines with modern attachment compatibility.


• Aftermarket quick-attach kits are available from suppliers specializing in legacy skid steers. These kits typically include:
  • Weld-on or bolt-on adapter plates

  • Lever-operated locking mechanisms

  • Compatibility with standard ISO 24410 attachments

• Custom fabrication is a viable option for owners with access to welding and machining tools. A fabricated coupler can be tailored to match the loader arm spacing and attachment dimensions.

• Used parts from salvage yards may offer a cost-effective solution, especially if sourced from later-model 1845C units or compatible machines like the Case 60XT.


• Measure the loader arm spacing and pin diameter before purchasing any retrofit kit.

• Ensure the new coupler maintains proper tilt and lift geometry to avoid attachment interference.

• Use grade 8 hardware and torque to spec during installation.

• Test the coupler with multiple attachments to verify locking integrity.

• Repaint and label the modified coupler to indicate retrofit status for future operators.
