The Case 580K and Its Mechanical Legacy
The Case 580K backhoe loader was introduced in the mid-1980s as part of Case Corporation’s continued refinement of its popular 580 series. Building on the success of the 580C and 580D, the 580K featured a more powerful 4-390 diesel engine, improved hydraulic flow, and enhanced operator ergonomics. Case, founded in 1842, had by then become a global leader in construction equipment, with the 580 series selling hundreds of thousands of units across North America, Europe, and Asia. The 580K became especially popular among municipalities and contractors for its reliability and ease of maintenance.
Identifying the Fuel Leak at the Throttle Linkage
A common issue with aging 580K units is fuel leakage around the throttle linkage of the injection pump. This typically presents as a steady drip or wetness near the top of the pump housing, where the throttle shaft enters. The leak is often mistaken for a loose fitting or external spill, but in most cases, it originates from worn shaft seals or bushings inside the pump body.
The throttle shaft is a rotating component that modulates fuel delivery based on operator input. Over time, the O-rings or lip seals surrounding this shaft degrade due to heat, vibration, and fuel exposure. Once compromised, diesel fuel escapes under pressure, leading to visible leakage and potential performance issues.
Consequences of Ignoring the Leak
While a minor drip may seem harmless, prolonged leakage can lead to:

• Fuel contamination of surrounding components, including electrical connectors and throttle linkages.

• Reduced fuel pressure, affecting engine responsiveness.

• Increased fire risk, especially in dusty or hot environments.

• Progressive wear of the throttle shaft, leading to erratic engine behavior.


1. Seal Replacement Without Pump Removal
   On some models, the top cover of the injection pump can be removed with the pump still mounted. This allows access to the throttle shaft seals. However, this method requires precision and cleanliness, as any debris entering the pump can cause internal scoring.

2. Full Pump Removal and Bench Rebuild
   Removing the pump allows for a thorough inspection and replacement of all wear components, including governor rings, shaft bushings, and internal seals. This method is preferred if the pump shows signs of age or if multiple leaks are present.


• CAV pumps: Use dual-lip seals and a retaining washer.

• Stanadyne pumps: Feature a single O-ring and a nylon bushing.

• Roosa Master: Often include a shaft sleeve and spring-loaded seal.


• Replace fuel filters every 250 hours to reduce particulate wear.

• Use diesel additives that condition seals and reduce varnish buildup.

• Inspect throttle linkage play during routine service—excessive movement may indicate shaft wear.

• Clean the pump exterior regularly, especially around linkage points.


Introduction to Welded Thumb Plates
A welded thumb plate is a mechanical attachment designed to be permanently affixed to the arm or boom of an excavator. Its primary function is to provide a gripping mechanism that, in conjunction with the excavator's bucket, allows for more precise handling of materials such as rocks, logs, and debris. This enhancement significantly broadens the range of tasks an excavator can perform, making it an invaluable tool for operators involved in landscaping, demolition, and material handling.
Construction and Materials
Typically, welded thumb plates are constructed from high-strength steel to withstand the rigorous demands of heavy-duty operations. Common materials include:

• A36 Steel: A mild carbon steel known for its weldability and strength, suitable for general-purpose applications.

• AR400 Steel: A high-carbon steel alloy offering superior hardness and abrasion resistance, ideal for applications involving heavy wear.

• 5/8" to 3/4" Thickness: The thickness of the steel plate varies depending on the size and weight class of the excavator, with thicker plates providing enhanced durability.


• Fixed Thumbs: These are permanently welded to the excavator's boom and do not move. They are cost-effective and straightforward to install but offer limited flexibility.

• Adjustable Thumbs: These allow for some movement, enabling the operator to adjust the thumb's position for different tasks. They provide greater versatility but may require more complex installation.

• Hydraulic Thumbs: Incorporating hydraulic cylinders, these thumbs can be operated from the excavator's cab, offering precise control over the thumb's movement. They are ideal for tasks requiring fine manipulation.


1. Preparation: Clean the area on the excavator's boom where the thumb will be attached to ensure a strong weld.

2. Positioning: Align the thumb plate with the boom, ensuring it is correctly oriented and positioned to provide optimal functionality.

3. Welding: Use appropriate welding techniques, such as 7018 stick welding, to securely attach the thumb plate. It's crucial to ensure full penetration welds to handle the stresses during operation.

4. Finishing: After welding, inspect the attachment for any defects and perform necessary finishing processes, such as grinding, to ensure smooth operation.


• Increased Versatility: Operators can handle a wider range of materials and perform more complex tasks.

• Enhanced Control: Provides better precision in material handling, reducing the risk of accidents and damage.

• Cost-Effectiveness: Compared to hydraulic thumbs, welded thumb plates are generally more affordable and easier to maintain.

• Durability: Constructed from high-strength materials, they are built to withstand the harsh conditions of construction and demolition sites.


• Weight: The added weight can affect the excavator's balance and fuel efficiency.

• Flexibility: Fixed thumbs lack the adjustability of hydraulic or mechanical thumbs, potentially limiting their use in certain applications.

• Installation: The installation process requires skilled labor and proper equipment to ensure a secure attachment.


The Legacy of the Case 580C Backhoe
The Case 580C backhoe loader, introduced in the mid-1970s, marked a significant evolution in Case’s construction equipment lineup. Built around the robust 207 cubic inch diesel engine, the 580C offered improved hydraulic performance, enhanced operator comfort, and a more durable drivetrain compared to its predecessors. Case Corporation, founded in 1842, had already established itself as a leader in agricultural and construction machinery. By the time the 580C was phased out in the early 1980s, tens of thousands had been sold across North America, making it one of the most widely used backhoes in its class.
Understanding Engine Detonation in Diesel Systems
Engine detonation, often referred to as “knocking,” occurs when fuel combusts prematurely or unevenly in the combustion chamber. In diesel engines like the Case 207, detonation is typically caused by incorrect injection timing, poor fuel atomization, or insufficient fuel delivery. Unlike gasoline engines, diesel detonation is more subtle but can lead to piston damage, cracked cylinder heads, and excessive wear on internal components.
In the case of the 580C, detonation symptoms were observed during teardown, with visible damage to the piston crown and combustion chamber. This points to a combination of timing misalignment and fuel starvation, where one or more cylinders failed to receive adequate fuel, causing uneven combustion pressure.
Injector and Pump Reconditioning
A critical step in resolving detonation is replacing or refurbishing the fuel injectors. Worn injectors can cause poor spray patterns, leading to incomplete combustion. Installing new injectors ensures proper atomization and consistent fuel delivery.
Equally important is the injection pump, which regulates fuel timing and volume. The original pump in the 580C often contains a plastic governor ring that deteriorates over time. Replacing it with a metal upgrade ring improves longevity and reliability. A full pump rebuild typically includes:

• Replacement of seals and gaskets

• Calibration of timing advance mechanisms

• Cleaning of internal passages

• Installation of upgraded components


• Pistons and rings

• Cylinder liners

• Main and rod bearings

• Camshaft bushings

• Oil pump

• Head gasket and valve seals


• Use high-quality diesel fuel with proper cetane rating

• Replace fuel filters every 250 hours

• Monitor exhaust color and engine sound for early signs of imbalance

• Perform annual timing checks and injector tests


Background on Equipment
The Caterpillar 963B track loader, introduced in the early 1980s, became a workhorse in medium to large-scale earthmoving projects. With a net operating weight of approximately 21,000 kg and a drawbar pull of 110 kN, it was widely adopted for construction, mining, and forestry. Caterpillar Inc., founded in 1925, has been a global leader in heavy equipment manufacturing, producing machines renowned for durability and long service life. The 963B featured a conventional equalizer bar suspension, enhancing track contact and improving stability over rough terrain. By the late 1980s, over 3,000 units had been sold worldwide.
Understanding Equalizer Pin Retaining Bolts
The equalizer pin is a central pivot in the track loader suspension system. Its retaining bolt secures the pin within the frame, ensuring even load distribution across the track rollers. A broken bolt can compromise suspension function, causing uneven wear and potential structural damage. Bolts like M20x2.5, often treated with anti-seize compounds during assembly, are designed for high shear stress and durability. Anti-seize helps prevent seizure, making future maintenance more manageable.
Challenges in Extraction
Broken retaining bolts present several extraction challenges. The bolt fragment may be recessed, misaligned, or sheared at an angle, complicating centering for drilling. Access can be limited due to surrounding components and tight spaces. Extraction requires precision to avoid enlarging the hole or damaging the surrounding threads.
Tools and Techniques
Professional technicians rely on high-quality extractors and left-hand cobalt drill bits to remove broken bolts. For example, Ridgid and Blue Point extractors are preferred due to their durability. The extraction process generally involves:

• Assessing the remaining bolt alignment and depth

• Drilling a pilot hole carefully centered on the broken bolt

• Using a corresponding extractor to remove the fragment

• Applying penetrating oil and heat when necessary to ease removal

• Reassembling with new bolts coated with anti-seize for future maintenance


• Always apply anti-seize on critical bolts during assembly

• Use left-hand drill bits to facilitate removal when possible

• Verify drill bit size corresponds to extractor recommendations

• Ensure proper alignment even if perfect centering is difficult in large bolts

• Maintain a clean workspace to prevent debris from entering threads


The Evolution of Backhoe Loaders
Backhoe loaders emerged in the 1950s as a hybrid between a tractor and an excavator, offering both digging and loading capabilities. Brands like Case, Ford, and John Deere became pioneers in this space. Case introduced its first factory-integrated backhoe loader in 1957, the Model 320, which revolutionized utility work. Ford’s 4500 series, launched in the late 1960s, became known for its rugged simplicity and affordability. John Deere followed with the 300 and 400 series, offering closed-center hydraulics and improved operator comfort. By the 1980s, these machines were widespread across North America, with tens of thousands sold annually.
Why Consider an Old Backhoe
For property owners tackling drainage, stump removal, or driveway grading, buying a used backhoe can be more cost-effective than renting. Rental schedules often conflict with unpredictable work hours, and owning a machine allows for gradual progress. However, older machines come with caveats: hidden mechanical issues, worn hydraulics, and the need for constant maintenance.
Popular Models and Their Strengths

• Case 580CK and 580B: Known for parts availability and straightforward hydraulics. The 580B was produced until 1976 and remains a favorite for DIY repairs.

• Ford 4500: Offers good value and simplicity. Some models use chain-driven swing mechanisms, which can be problematic if worn.

• John Deere 300/400 Series: Often more expensive and complex due to closed-center hydraulics, which require precise diagnostics and can be costly to repair.


• Ignore hour meters: They’re often inaccurate or disconnected.

• Check cold starts: Sellers may warm up machines to mask hard-start issues.

• Inspect swing mechanisms: Chain-driven systems can be costly to repair.

• Look for missing components: A missing grill or hood may indicate deeper neglect.

• Test hydraulics under load: Warm fluid can reveal failing pumps or valves.


• Hydraulic pump rebuild: $600–$900

• Cylinder repacking: $100–$300 per cylinder

• Tire replacement: $1,000–$2,000

• Electrical repairs: $200–$500

• Fuel system service: $300–$600


Introduction
The undercarriage is a critical component in tracked construction equipment, directly affecting machine performance, stability, and operational costs. Undercarriage rating refers to the evaluation of the durability and suitability of tracks, rollers, idlers, and sprockets for specific applications. Accurate assessment is essential for selecting the right machine for job site conditions and ensuring maximum service life.
Development History and Industry Context
The concept of undercarriage rating evolved alongside the growth of tracked machinery in the mid-20th century. As Caterpillar, Komatsu, and other heavy equipment manufacturers expanded their product lines, users recognized that the undercarriage often accounted for the largest maintenance expense, sometimes exceeding 30% of total operating costs. Early systems relied on simple track designs, but over time, manufacturers introduced specialized steel alloys, hardened rollers, and reinforced sprockets to improve longevity under heavy loads and abrasive conditions. Today, undercarriage ratings are commonly classified based on machine weight, application type, and expected wear rate.
Components of the Undercarriage
An undercarriage consists of multiple interconnected components, each influencing overall durability:

• Tracks: Steel or rubber, providing traction and weight distribution.

• Rollers: Bottom rollers support machine weight; top rollers guide track movement.

• Idlers: Tensioning components that maintain proper track alignment.

• Sprockets: Drive components transmitting power from the final drive to the tracks.

• Track Chains and Pins: Connect individual track shoes and provide structural integrity.


• Durability Class: Categories such as light-duty, medium-duty, or heavy-duty based on projected wear life in hours or cycles.

• Track Shoe Width: Wider shoes distribute weight and reduce ground pressure, suitable for soft terrain.

• Material Hardness: Steel hardness rating (Brinell hardness number) determines resistance to abrasion.

• Roller and Sprocket Design: Reinforced or sealed rollers extend service intervals in harsh conditions.

• Operating Environment: Ratings adjust for rocky terrain, extreme temperatures, and high-moisture areas.


• Regular Inspections: Check track tension, wear patterns, and damaged components weekly.

• Cleaning: Remove debris, mud, and rocks to prevent accelerated wear.

• Lubrication: Grease rollers and pivot points as recommended by the manufacturer.

• Track Tension: Adjust tension to specifications; over-tightening increases wear, while loose tracks can derail.

• Component Replacement: Replace worn sprockets and rollers in matched sets to maintain balanced performance.


The Rise of the Bobcat T320
The Bobcat T320 compact track loader was introduced in the early 2000s as part of Bobcat’s push into high-performance tracked machines. Designed for demanding applications like grading, demolition, and forestry, the T320 featured a powerful 92-horsepower turbocharged diesel engine and a rated operating capacity of 3,200 pounds. Its robust hydraulic system and vertical lift path made it a favorite among contractors needing reach and lifting power. Bobcat, founded in 1947 and headquartered in North Dakota, has sold millions of loaders globally, with the T-series representing a significant leap in track loader evolution.
Understanding Lift Cylinder Bleed Off
Lift cylinder bleed off refers to the gradual lowering of the loader arms or bucket when the machine is idle or under light load. In hydraulic systems, this typically results from internal leakage past the piston seals or faulty control valves. After a cylinder rebuild, the expectation is that the issue should resolve. However, persistent bleed off suggests deeper hydraulic inefficiencies.
In the case of the T320, even after both lift cylinders were rebuilt and external leaks eliminated, the bucket continued to drop slowly. This points to internal bypassing, where hydraulic fluid leaks past the piston seal inside the cylinder, or valve block leakage, where the control valve fails to hold pressure.
Bobtach System and Pedal-Dependent Closure
The Bobtach system, Bobcat’s proprietary quick-attach mechanism, allows operators to switch attachments rapidly. It’s hydraulically actuated and controlled via foot pedals. A common issue arises when the Bobtach fails to close unless the left pedal is depressed, and even then, it closes slowly. This behavior suggests low hydraulic pressure, restricted flow, or valve block malfunction.
Despite replacing the Bobtach valve block and actuator just six months prior, the issue resurfaced. This recurrence may be due to:

• Contaminated hydraulic fluid damaging seals or clogging orifices.

• Faulty solenoids in the valve block not fully energizing.

• Electrical grounding issues affecting valve response.


• Pressure test the lift circuit at the cylinder ports. Compare static holding pressure with manufacturer specs.

• Inspect the control valve block for wear, debris, or sticking spools.

• Check the hydraulic fluid for contamination, aeration, or viscosity breakdown.

• Verify pedal linkage and sensor feedback to ensure proper signal transmission.


• Flush the hydraulic system every 1,000 hours or annually, whichever comes first.

• Use OEM-grade seals and components during rebuilds to ensure compatibility.

• Install a magnetic inline filter to trap metallic debris.

• Monitor pedal response and recalibrate sensors during routine service.


Introduction
The Massey Ferguson Industrial 30 (MF 30) backhoe represents a significant development in compact utility construction equipment. Known for its durability and versatility, this backhoe was designed to bridge the gap between light-duty tractors and full-sized excavators, appealing to contractors, landscapers, and municipal operators alike. Understanding its specifications, operational features, and maintenance considerations is crucial for maximizing its productivity.
Development History and Manufacturer
Massey Ferguson, a renowned agricultural and industrial machinery manufacturer, traces its roots back to the merger of several Canadian and British companies in the mid-20th century. By the 1970s and 1980s, Massey Ferguson expanded into industrial construction equipment, introducing machines like the MF 30 backhoe. These machines combined proven tractor technology with excavator functionality, achieving global recognition for reliability. Estimates suggest that thousands of units were sold worldwide, particularly in North America and Europe, establishing the MF 30 as a staple in compact construction operations.
Specifications
The MF 30 backhoe is compact yet robust, designed for maneuverability in tight spaces while providing adequate digging power. Key specifications include:

• Operating weight: Approximately 3,500–4,000 kg

• Engine: Diesel-powered, around 50–60 HP

• Dig depth: Up to 3.5 meters with standard bucket

• Loader bucket capacity: 0.35–0.45 cubic meters

• Hydraulic system: Open-center design with dual auxiliary circuits

• Travel speed: Up to 15 km/h on flat terrain


• Swing Boom Mechanism: Allows a wide excavation range without repositioning the machine.

• Extendable Stick: Provides additional reach for deeper trenches or higher lifts.

• Auxiliary Hydraulics: Supports attachments such as hydraulic hammers, augers, and grapples.

• Operator Platform: Ergonomically designed controls improve precision and reduce operator fatigue.


• Hydraulic Fluid Checks: Inspect for contamination and maintain proper levels.

• Greasing Points: All pivot points, including boom, dipper, and bucket linkages, should be greased regularly.

• Engine Service: Regular oil changes, air filter cleaning, and cooling system checks prevent performance degradation.

• Wear Parts: Teeth, bushings, and hydraulic hoses should be inspected and replaced as needed.


• Hydraulic Leaks: Often caused by worn seals in the boom cylinders; proactive inspection and replacement prevent downtime.

• Limited Rear Visibility: Can be mitigated with mirrors or camera systems, especially on congested job sites.

• Engine Overheating: Occurs in hot climates; installing auxiliary cooling fans or cleaning radiators regularly helps maintain optimal engine temperature.


Legacy of the Hitachi EX200 Series
The Hitachi EX200 hydraulic excavator, first introduced in the late 1980s, quickly became a cornerstone of mid-sized earthmoving operations worldwide. Designed for versatility and durability, the EX200 series evolved through several generations, including the EX200-1 through EX200-5LC. By the early 2000s, Hitachi had sold over 100,000 units globally, with strong market penetration in Asia, North America, and Australia. The EX200-5LC, released in the late 1990s, featured improved hydraulic efficiency, reinforced boom structures, and a refined undercarriage system tailored for agricultural, forestry, and construction applications.
Hitachi Construction Machinery, founded in 1970 as a division of Hitachi Ltd., has long been recognized for its engineering precision and global reach. The EX200 series helped solidify its reputation in the competitive excavator market, especially in regions where reliability and ease of maintenance were paramount.
Undercarriage Anatomy and Wear Patterns
The undercarriage of the EX200 includes several key components:

• Track Chains: These link the pads and transmit motion from the drive sprockets.

• Track Pads: Provide ground contact and traction.

• Bottom Rollers: Support the weight of the machine and guide the track chain.

• Top Rollers (Carrier Rollers): Maintain track alignment and reduce sag.

• Sprockets: Drive the track chain via hydraulic motors.

• Idlers and Tensioners: Maintain proper chain tension.


• ITR (Italian Tractor Replacement): Known for affordability and wide availability. Offers decent performance for light to moderate duty.

• Berco: Historically regarded as premium, with hardened steel and longer wear life. However, recent reports suggest variability in quality, possibly due to changes in manufacturing or material sourcing.


• Cracks or fractures

• Excessive wear on bolt holes

• Loss of traction profile


• ITR chains may suffice, especially if budget constraints exist.

• Berco rollers are preferred for longevity.

• Spacer plate modifications can extend chain life.

• Regular cleaning and lubrication of the undercarriage will prevent premature wear.


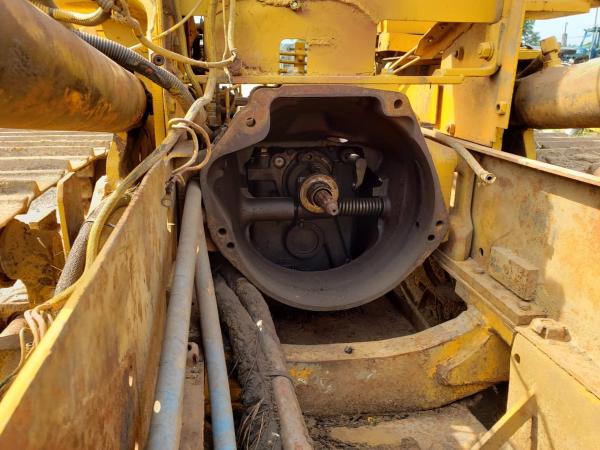

Introduction
Experiencing an engine that continues to run even after turning off the ignition can be a perplexing issue for operators of the Caterpillar D5C bulldozer. This problem can lead to unnecessary fuel consumption and potential engine wear. Understanding the underlying causes and implementing effective troubleshooting steps are essential for resolving this issue.
Common Causes

1. Faulty Fuel Shutoff Solenoid


1. Wiring Issues


1. Malfunctioning Shutdown Timer


1. Alternator Exciter Wire Issues


1. Inspect the Fuel Shutoff Solenoid


1. Check Wiring Connections


1. Test the Shutdown Timer


1. Inspect the Alternator Exciter Wire
