The CAT 289D and Its Role in Compact Track Loader Evolution
Caterpillar’s 289D compact track loader was introduced as part of the D-series lineup in the early 2010s, representing a leap forward in hydraulic performance, operator comfort, and electronic integration. With an operating weight of approximately 10,000 lbs and a rated operating capacity of 3,800 lbs (with optional counterweights), the 289D became a favorite among contractors, landscapers, and utility crews. Its C3.3B turbocharged diesel engine, paired with high-flow hydraulics and joystick controls, allowed it to power demanding attachments like mulchers and trenchers with ease.
Caterpillar, founded in 1925, has consistently led the compact equipment market in North America. By 2020, the company had sold over 250,000 compact track loaders globally, with the 289D contributing significantly to that figure. Its popularity stems not only from performance but also from serviceability—though certain components, like the thermostat housing and water pump, require precise torque values to avoid leaks or premature failure.
Terminology Clarification

• Thermostat housing: A cast or machined cover that seals the engine coolant thermostat in place and connects to coolant hoses.

• Water pump: A belt-driven or gear-driven component that circulates coolant through the engine and radiator.

• Torque spec: The manufacturer-recommended tightening force for bolts, usually measured in Newton-meters (Nm) or foot-pounds (ft-lbs).

• Fastener grade: A classification of bolt strength, typically indicated by markings on the bolt head (e.g., Grade 8.8 for metric).

• Thread pitch: The distance between threads on a bolt, affecting torque and clamping force.


• Thermostat housing bolts (M8 x 1.25):
  Torque: 24 Nm (17.7 ft-lbs)
  Use thread sealant if specified in service bulletin

• Water pump mounting bolts (M10 x 1.5):
  Torque: 48 Nm (35.4 ft-lbs)
  Torque in a crisscross pattern to ensure even gasket compression

• Water pump pulley bolts (if applicable):
  Torque: 25 Nm (18.4 ft-lbs)
  Use medium-strength threadlocker to prevent vibration loosening


• Replace coolant every 2,000 hours or two years, whichever comes first

• Use Cat ELC (Extended Life Coolant) or equivalent with corrosion inhibitors

• Inspect thermostat operation annually using infrared temperature readings

• Check water pump bearings for play or noise every 1,000 hours

• Always clean mating surfaces before installing new gaskets or housings

• Use a calibrated torque wrench and follow manufacturer patterns


Introduction to the Caterpillar D3C Dozer
The Caterpillar D3C is a compact, versatile crawler dozer renowned for its efficiency in tasks such as grading, land clearing, and construction site preparation. Equipped with the 3204 engine, this model has been a staple in the heavy equipment industry. However, like all machinery, it is susceptible to certain mechanical issues, one of the most notable being blowby.
What Is Blowby?
Blowby refers to the phenomenon where combustion gases escape past the piston rings into the crankcase. In diesel engines like the 3204, this can lead to increased crankcase pressure, oil contamination, and reduced engine performance. While some blowby is normal, excessive amounts can indicate underlying engine wear or damage.
Common Causes of Blowby in the D3C

1. Worn Piston Rings: The 3204 engine utilizes a two-ring piston design, which, over time, may wear, allowing gases to bypass the rings. This design choice can make the engine more prone to blowby as it ages.

2. Cylinder Wall Wear: Continuous operation, especially under heavy loads, can cause the cylinder walls to wear, increasing the gap between the piston rings and the cylinder, facilitating blowby.

3. Carbon Buildup: Incomplete combustion can lead to carbon deposits on the piston rings, causing them to stick and lose their sealing ability.

4. Improper Maintenance: Neglecting regular oil changes and using incorrect oil grades can accelerate engine wear, leading to increased blowby.


• White Smoke: Visible white smoke emanating from the oil fill tube or valve cover.

• Oil Film: A layer of oil around the oil fill tube, indicating oil mist escaping into the crankcase.

• Increased Oil Consumption: A noticeable drop in oil levels without visible leaks.

• Loss of Power: Reduced engine performance and responsiveness.

• Rough Idling: The engine runs unevenly at low speeds.


1. Oil Cap Test: With the engine running, remove the oil filler cap. If the cap wobbles or is blown off, it indicates high crankcase pressure due to blowby.

2. Compression Test: Performing a compression test can help determine the health of the piston rings and cylinder walls.

3. Leak-Down Test: This test involves pressurizing the cylinder and measuring the amount of air escaping, which helps assess the sealing efficiency of the piston rings.


1. Engine Rebuild: For significant blowby, a complete engine overhaul may be necessary. This involves replacing piston rings, honing cylinder walls, and addressing any other worn components.

2. Top-End Overhaul: If the blowby is moderate, focusing on the top end by replacing piston rings and addressing carbon buildup can be effective.

3. Regular Maintenance: Adhering to a strict maintenance schedule, including timely oil changes and using the correct oil grades, can prevent excessive blowby.


• Avoid Extended Idling: Allowing the engine to idle for prolonged periods can lead to incomplete combustion and increased carbon buildup.

• Use Quality Fuel: Using clean, high-quality diesel fuel reduces the chances of carbon deposits forming.

• Regular Engine Inspections: Routine checks can help identify early signs of wear and prevent major issues.


Hydraulic thumbs are essential attachments for excavators and skid steer loaders, significantly improving their ability to grasp, lift, and manipulate irregular materials. They complement the bucket, allowing operators to handle debris, rocks, logs, and construction waste efficiently.
Function and Benefits
A hydraulic thumb works in tandem with the bucket, creating a clamp-like grip that increases control over the load. Key benefits include:

• Enhanced material handling capabilities

• Reduced risk of spillage and dropped loads

• Increased efficiency in demolition, forestry, and landscaping

• Ability to handle irregular or bulky objects that standard buckets cannot secure


• Operating pressure: Typically ranges between 2,500–3,000 psi depending on the machine

• Flow rate: Usually between 6–12 gallons per minute for compact excavators and 12–25 gallons per minute for larger models

• Cylinder size: Determines the thumb’s clamping force, which should match the bucket’s strength


• Proper pin alignment with the bucket and boom

• Hose routing that prevents pinching or wear

• Compatibility with existing quick couplers or attachments

• Use of high-quality seals to prevent leaks


• Inspect hoses and fittings weekly for wear or leaks

• Lubricate pivot points to minimize friction and wear

• Check cylinder operation and replace seals when pressure drops

• Ensure the thumb does not interfere with bucket tilt or movement


• Construction: Handling rubble and demolition debris

• Forestry: Gripping logs and brush

• Landscaping: Moving large stones, stumps, and materials

• Recycling: Managing scrap and waste efficiently


The Role of Wheel Loaders in High-Volume Concrete Production
Wheel loaders are the backbone of material handling in concrete batch plants. Their ability to move aggregate efficiently, climb ramps to feed bins, and perform cleanup tasks makes them indispensable. For operations producing 200 cubic yards per hour—equivalent to roughly 320 tons of material—loader selection directly impacts throughput, fuel consumption, and operator fatigue.
In this context, three contenders often emerge: the John Deere 724K, Caterpillar 962H, and Volvo L120F. Each represents a different philosophy in loader design, dealer support, and operator experience. Understanding their strengths and limitations is essential for choosing the right machine.
John Deere 724K Development and Features
John Deere, founded in 1837, entered the construction equipment market in the mid-20th century. The 724K, part of its K-series loader lineup, was introduced in the late 2000s as a mid-size, high-performance machine. It features:

• Operating weight: ~27,000 lbs

• Net power: ~268 hp

• Bucket capacity: 3.5–4.25 yd³

• Transmission: Powershift with torque converter

• Steering: Optional joystick or traditional wheel


• Operating weight: ~39,000 lbs

• Net power: ~230 hp

• Bucket capacity: 4.25 yd³

• Transmission: Cat planetary powershift

• Hydraulics: Load-sensing with variable displacement pumps


• Operating weight: ~39,000 lbs

• Net power: ~215 hp

• Bucket capacity: 3.5–4.0 yd³

• Transmission: Volvo HTE automatic

• Cab: Pressurized with ergonomic controls


• Fuel consumption per hour

• Cycle time from pile to bin

• Ease of ramp climbing under load

• Visibility and cab ergonomics

• Dealer proximity and service response time


• John Deere 724K: Best for speed, operator familiarity, and torque-heavy applications. Ideal if the fleet already includes Deere units.

• Caterpillar 962H: Strongest into the pile, with unmatched dealer support. Best for reliability and long-term uptime.

• Volvo L120F: Most comfortable and fuel-efficient, but may require more attentive maintenance.


When outfitting a Mustang MTL25 compact track loader, selecting the appropriate heavy-duty bucket is crucial for maximizing performance, durability, and versatility. The MTL25, known for its robust design and powerful capabilities, can benefit significantly from the right bucket attachment, whether for landscaping, construction, or material handling tasks.
Mustang MTL25 Specifications
The Mustang MTL25 is equipped with a 96.6 horsepower engine, providing ample power for various applications. Its operating weight is approximately 10,692 lbs, with a tipping load of 7,057 lbs and a rated operating capacity at 50% tipping load of 3,528 lbs. The machine's hydraulic system delivers a flow rate of 23.6 gallons per minute, supporting a wide range of attachments. The standard bucket width is 74 inches, offering a capacity of 0.9 cubic yards, suitable for general-purpose tasks.
Heavy-Duty Bucket Options
For tasks requiring enhanced durability and capacity, heavy-duty buckets are essential. These buckets are designed to withstand the rigors of demanding applications, such as digging in rocky soils or handling abrasive materials. When selecting a heavy-duty bucket for the MTL25, consider the following factors:

• Material Strength: Choose buckets made from high-strength steel to ensure longevity and resistance to wear.

• Bucket Capacity: Opt for buckets that match the MTL25's operating capacity to prevent overloading and ensure efficient operation.

• Attachment Compatibility: Ensure the bucket is compatible with the MTL25's quick-attach system for seamless integration.


• Application Type: Different tasks may require specific bucket features, such as tooth configurations or side cutters.

• Material Type: The nature of the material being handled can influence the choice of bucket design and strength.

• Budget: While OEM buckets are designed specifically for the MTL25, aftermarket options may offer cost savings without compromising quality.


Introduction to the Case 580 Super L Series 2
The Case 580 Super L Series 2 is a versatile backhoe loader widely used in construction, landscaping, and municipal projects. Known for its powerful hydraulics and robust engine, it has been a staple on job sites since its introduction. However, like all machinery, it is not without its challenges. One common issue reported by operators pertains to the blower motor system, which affects both heating and air conditioning functions.
Common Blower Motor Problems
Operators have frequently encountered issues where the blower motor fails to operate at all or only functions intermittently. A prevalent cause for this malfunction is worn-out brushes within the motor. The brushes are responsible for conducting electricity to the motor's rotor; over time, they can degrade, leading to poor performance or complete failure.
Diagnosis and Troubleshooting

1. Fuse Blowing: If the fuse blows when the heater is activated, it often indicates a short circuit or a faulty heater element. Inspecting the wiring harnesses for damaged insulation or loose connections near the heater switch and relay is advisable. Testing the heater resistor and blower motor for shorts can also help identify the issue.

2. Intermittent Operation: When the blower motor operates sporadically, it may be due to worn brushes or a failing resistor. Cleaning or replacing these components can restore functionality.

3. No Operation: If the blower motor does not operate at all, checking the motor's power supply and ensuring that all connections are secure is essential. A complete failure may necessitate replacing the motor.


• Regular Inspections: Periodically check the blower motor and associated components for signs of wear or damage.

• Proper Usage: Avoid running the blower motor at maximum speed for extended periods, as this can accelerate wear.

• Electrical Care: Ensure that all electrical connections are clean and secure to prevent shorts and other electrical issues.


Transmission slippage is a critical issue in heavy equipment that can lead to decreased performance, increased fuel consumption, and potential damage to the drivetrain. This phenomenon occurs when the transmission fails to maintain a consistent connection between the engine and the wheels, causing the engine to rev without a corresponding increase in vehicle speed. Understanding the causes, symptoms, and solutions for transmission slippage is essential for operators and fleet managers to ensure the longevity and efficiency of their machinery.
Causes of Transmission Slippage

1. Low or Contaminated Transmission Fluid


1. Worn or Damaged Clutch Plates


1. Faulty Transmission Bands


1. Malfunctioning Solenoids


1. Overheating


• Delayed or Harsh Shifting: If the transmission hesitates or shifts roughly between gears, it may indicate internal issues.

• Increased Engine RPMs Without Corresponding Speed: If the engine revs higher than usual without a corresponding increase in speed, the transmission may be slipping.

• Unusual Noises: Grinding, whining, or clunking noises during gear shifts can signal transmission problems.

• Burning Smell: A burnt odor can indicate overheated transmission fluid, often due to slippage.

• Fluid Leaks: Visible transmission fluid leaks can lead to low fluid levels, exacerbating slippage issues.


1. Regular Maintenance


1. Address Fluid Leaks Promptly


1. Replace Worn Components


1. Install an External Cooler


1. Operator Training


The Rise of Mini Excavators in Compact Transport
Mini excavators in the 3–4 ton class, such as the Kobelco SK35, Hitachi ZX27, and Komatsu PC35MR-2, have become indispensable tools for contractors, landscapers, and utility crews. Their compact footprint, hydraulic versatility, and ease of transport make them ideal for urban and rural job sites alike. Since the early 2000s, global sales of mini excavators have surged, with over 300,000 units sold annually across major markets. Kobelco, founded in 1905 in Japan, has carved a niche in the compact segment with its SK series, known for smooth hydraulics and operator comfort.
As ownership of these machines grows, so does the need for flexible transport solutions. Dump trailers—originally designed for hauling aggregate and debris—are increasingly being repurposed to carry mini excavators. This shift raises questions about fit, safety, and long-term durability.
Terminology Clarification

• Tongue weight: The downward force exerted on the hitch by the trailer’s front end.

• Gooseneck trailer: A trailer with a hitch that connects over the rear axle of a pickup truck, offering better weight distribution.

• Push blade: The front dozer blade on a mini excavator, used for grading and stability.

• Boom articulation: The ability to pivot the boom sideways to reduce overall machine length during transport.

• Side rail clearance: The vertical space between the trailer’s side walls and the excavator’s upper structure or attachments.


• A 12-foot trailer requires full boom articulation and strategic bucket placement to close the rear doors.

• A 14-foot trailer offers more breathing room but still demands careful loading to avoid excessive tongue weight.

• Machines with long-stick configurations or wide tracks may exceed the trailer’s internal dimensions, especially if side rails are tall.


• Excessive tongue weight can overload the tow vehicle’s rear axle, leading to poor handling and braking.

• Uneven load distribution may cause trailer sway or jackknifing during highway travel.

• High side rails can interfere with boom and stick movement, risking hydraulic cylinder damage.


• Use a gooseneck trailer with a heavy-duty pickup (e.g., Ford F-450) for better stability.

• Weld additional D-rings inside the trailer box to secure the machine properly.

• Consider removing the bucket or placing it on a custom rack over the tongue to reduce overall length.

• Avoid toolboxes or pump boxes on the tongue if space is limited.


• 14K GVWR (Gross Vehicle Weight Rating)

• 7x14 or 7x16 dimensions

• Fold-down sides or removable rear gates

• Integrated ramps and chain storage

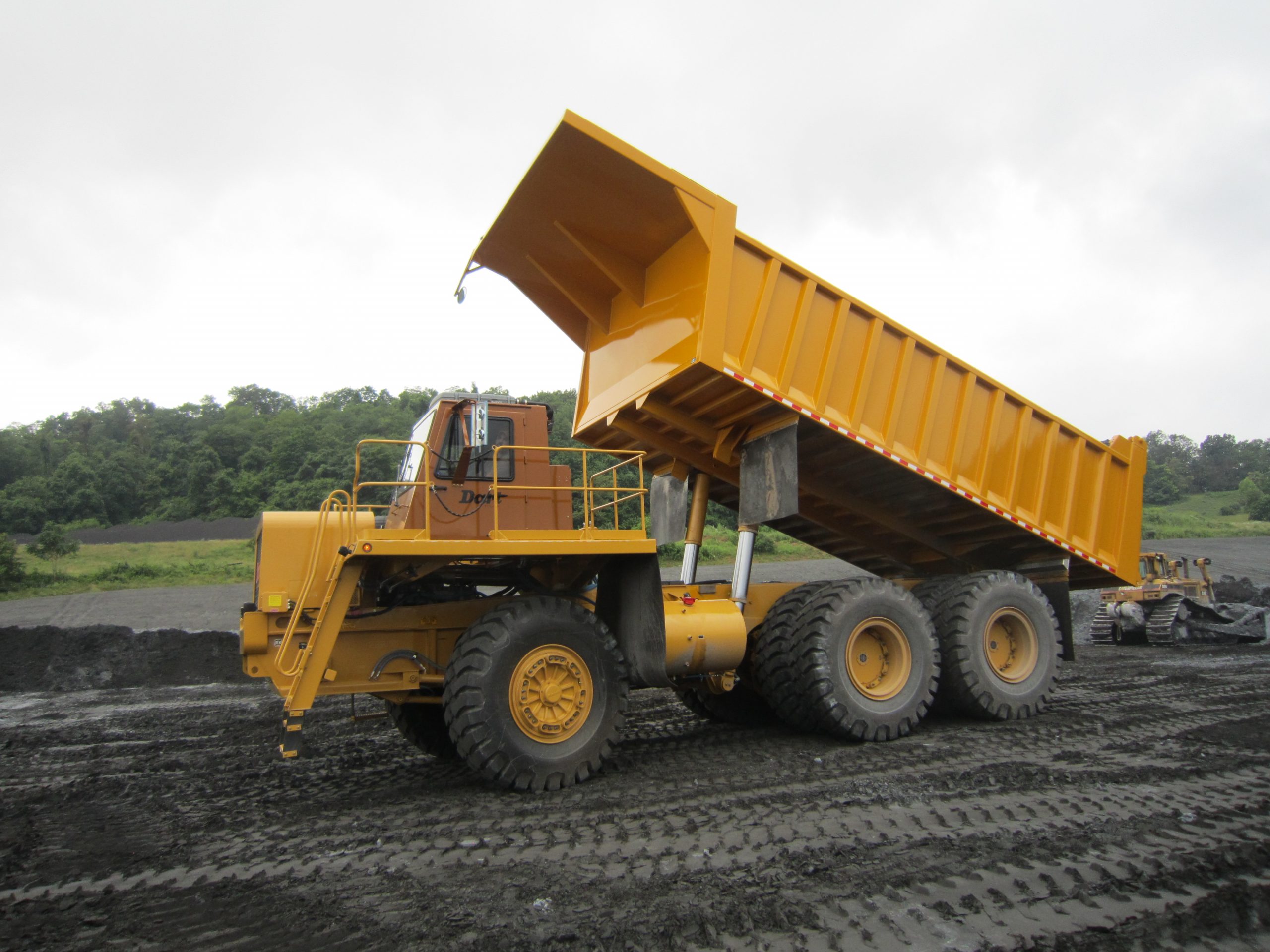

Introduction to the Dart 2085
The Dart 2085 is a robust off-highway haul truck designed for heavy-duty applications in mining and construction industries. Renowned for its impressive payload capacity and durability, the Dart 2085 has been a reliable workhorse in challenging terrains.
Key Specifications

• Payload Capacity: 85 tons (77 metric tonnes)

• Engine Options:
  • Detroit Diesel 485

  • Cummins 470

• Transmission: Allison 8000 series, known for its reliability in heavy-duty trucks

• Drive System: Tandem rear drive axles with a 9-foot track, utilizing Dart's exclusive triple reduction 500 Series axles

• Tire Configuration: 10 tires, each measuring 2.00 x 35 inches, providing enhanced flotation and reduced ground pressure

• Gradeability: Capable of hauling its rated 85-ton load up a 16.43% effective grade, outperforming single drive axle trucks in steep conditions

• Dimensions:
  • Length: Approximately 40 feet 7 inches

  • Width: 15 feet 4 inches

  • Height: 14 feet 5 inches

  • Weight: Approximately 293,000 lbs


The Caterpillar C15 engine, renowned for its durability and performance, is a staple in various heavy-duty applications, including long-haul trucking and construction. However, like any complex machine, it can experience issues that affect its operation. One such problem is when the engine stumbles and emits excessive smoke, particularly white smoke. This article delves into the potential causes of these symptoms and offers insights into diagnosis and resolution.
Understanding the Symptoms
When a C15 engine stumbles and produces white smoke, it indicates incomplete combustion. White smoke is often a sign of unburned fuel entering the exhaust system. This can result from several factors, including issues with fuel injectors, turbochargers, or the engine's air intake system.
Common Causes

1. Faulty Fuel Injectors: Injectors that are leaking or have poor spray patterns can deliver an improper amount of fuel into the combustion chamber, leading to incomplete combustion and white smoke.

2. Turbocharger Problems: A malfunctioning turbocharger can reduce the amount of air entering the engine, disrupting the air-fuel mixture and causing incomplete combustion.

3. Cylinder Head Issues: Problems such as cracks or warping in the cylinder head can lead to coolant entering the combustion chamber, resulting in white smoke.

4. EGR Valve Malfunction: A malfunctioning Exhaust Gas Recirculation (EGR) valve can cause improper exhaust gas flow, affecting combustion efficiency and leading to white smoke.

5. Air Intake Restrictions: Blockages or restrictions in the air intake system can reduce airflow, leading to a rich fuel mixture and white smoke.


• Injector Cutout Test: Performing an injector cutout test can help identify if a particular injector is faulty. By disabling each injector sequentially, you can observe changes in engine performance and pinpoint the problematic injector.

• Fuel Pressure Check: Ensure that the fuel pressure is within the manufacturer's specifications. Low fuel pressure can lead to insufficient fuel delivery, causing incomplete combustion.

• Turbocharger Inspection: Check the turbocharger for signs of wear or damage. A failing turbocharger can significantly impact engine performance and lead to white smoke.

• Cylinder Head Examination: Inspect the cylinder head for cracks or warping. A compromised cylinder head can allow coolant to enter the combustion chamber, resulting in white smoke.

• EGR Valve Testing: Test the EGR valve for proper operation. A malfunctioning EGR valve can disrupt the air-fuel mixture, leading to incomplete combustion and white smoke.


• Injector Replacement or Repair: If faulty injectors are identified, replace or repair them to restore proper fuel delivery.

• Turbocharger Repair or Replacement: Address any issues with the turbocharger to ensure adequate air supply to the engine.

• Cylinder Head Repair or Replacement: If the cylinder head is found to be damaged, it may need to be repaired or replaced to prevent coolant from entering the combustion chamber.

• EGR Valve Replacement: Replace a malfunctioning EGR valve to restore proper exhaust gas flow and combustion efficiency.

• Air Intake System Cleaning: Remove any blockages or restrictions in the air intake system to ensure optimal airflow to the engine.


• Regular Maintenance: Adhere to the manufacturer's recommended maintenance schedule, including timely replacement of filters and fluids.

• Quality Fuel: Use high-quality fuel to prevent injector clogging and ensure efficient combustion.

• Monitor Engine Performance: Regularly monitor engine performance for any signs of issues, allowing for early detection and resolution.
