Mufflers are essential components in heavy equipment, significantly reducing engine noise and managing exhaust emissions. In heavy-duty machinery such as construction vehicles, the right muffler contributes to operator comfort, regulatory compliance, and environmental responsibility.
Types of Mufflers

• Metal Mufflers: Built from robust materials like aluminized or stainless steel, these are installed directly into exhaust ports. They reduce noise by diffusing exhaust gases through drilled baffles or screens, which increase surface area and minimize turbulence. Metal mufflers are durable and handle high-pressure air volumes but tend to be larger and costlier.

• Plastic Mufflers: These use injection-molded or sintered plastics combined with fibers or metal powders as noise-reducing media. They offer good noise attenuation in enclosed spaces and help filter exhaust air to reduce oil mist contamination. Plastic mufflers are generally lighter but more susceptible to damage and suited for semi-protected environments.

• Insulated Wrap Mufflers: These feature insulation sandwiched between inner and outer shells to reduce noise and heat radiation. Insulation also lowers outer shell temperatures and addresses high-frequency noise effectively.


• Aluminized Steel: Offers corrosion resistance and long service life, widely used for medium- and heavy-duty mufflers.

• Stainless Steel: Provides superior durability, corrosion resistance, and often comes with extended warranties, ideal for rigorous environments.

• Fiberglass and Metal Mesh: Internal components serving to trap and dampen sound waves within the muffler body.


• Select mufflers based on machine type, operating conditions, and sound reduction needs.

• In dusty or harsh environments, metal mufflers with rugged construction are preferable.

• For indoor or sensitive applications, plastic or insulated mufflers may offer quieter operation with filtration benefits.

• Consider aftermarket options with proven durability for cost-effective replacements.


Introduction
The Clark Michigan 55B wheel loader stands as a testament to robust engineering and reliability in the heavy equipment industry. Manufactured during the mid-1970s, this model was designed to meet the demanding needs of construction and mining operations. Its enduring presence in various sectors underscores its lasting impact and the trust it garnered among operators.
Development and Production
Introduced by Clark Equipment Company, the Michigan 55B was part of a series of wheel loaders that combined power with maneuverability. These machines were engineered to handle heavy-duty tasks, from material handling to excavation, in diverse environments. The production of the 55B model was relatively short-lived, with only 14 units manufactured, making it a rare find among vintage heavy machinery enthusiasts .
Specifications and Features
The Clark Michigan 55B was equipped with a Detroit Diesel 453 engine, known for its reliability and torque. This engine choice provided the loader with the necessary power to perform demanding tasks efficiently. The loader featured a three-speed transmission, allowing operators to adjust to various work conditions. Its articulated steering mechanism enabled tight turning radii, enhancing maneuverability in confined spaces.
In terms of dimensions, the 55B had an operating weight of approximately 88,000 lbs, a length of 34 feet, a width of 11 feet 8 inches, and a height of 12 feet 6 inches . These specifications made it suitable for a range of applications, from road construction to material handling in mining operations.
Legacy and Impact
Despite its limited production, the Clark Michigan 55B left a lasting impression on the heavy equipment industry. Its durability and performance in challenging conditions earned it a reputation among operators and companies. Even decades after its production ceased, the 55B continues to be a subject of interest for collectors and machinery enthusiasts.
Conclusion
The Clark Michigan 55B wheel loader exemplifies the blend of power, durability, and innovation that characterized mid-20th-century heavy equipment. Its legacy endures, reminding us of the engineering feats achieved during its era and the lasting impact of well-built machinery.

The Caterpillar 416 Backhoe Loader is a versatile and reliable machine introduced in the mid-1980s as Caterpillar’s entry into the competitive backhoe loader market. Developed after intensive market and user research, the 416 combined power, durability, and advanced operating features tailored to meet customer demands in construction, agriculture, and industrial applications.
Development History
Introduced in 1985, the 416 was the result of five years of development, including over 2,000 customer interviews and thorough product evaluations. This methodical approach helped identify key needs missing in existing backhoes—strength, ease of use, and durable components. Engineers used computer-aided design and rigorous laboratory testing, including finite element analysis on high-stress parts such as booms, sticks, and loader arms, ensuring structural integrity and long service life.
Caterpillar’s development team collaborated internationally, incorporating input from engineering, manufacturing, purchasing, and quality control divisions. This cross-functional teamwork shortened development times while maximizing quality.
Specifications

• Engine Power: The 416 typically features a Cat C3.6 4-cylinder direct-injection turbocharged diesel engine rated around 70 to 96 horsepower depending on the variant and emissions standards.

• Operating Weight: Approximately 24,000 pounds depending on configuration, balanced between agility and stability.

• Hydraulic System: Equipped with load-sensing hydraulics offering variable flow up to about 28.6 gallons per minute, delivering smooth, responsive boom and loader operations at system pressures up to 2,700 psi.

• Transmission: A fully synchronized four-speed manual transmission with power shuttle for easy directional changes, including forward and reverse shifting without clutch use.

• Axles and Steering: The 416 includes heavy-duty axles rated for dynamic and static loads, combined with hydrostatic power steering for enhanced maneuverability. Axle oscillation improves traction on uneven terrain.

• Loader and Backhoe: The bucket size averages around 1 cubic yard with lifting capacities over 5,000 pounds at full height. Optional extendible sticks and quick couplers provide versatility.

• Cab and Safety: ROPS/FOPS canopy or enclosed cab options with integrated lighting, warning systems, and ergonomic operator controls for safety and comfort.

• Additional Features: Include locks for booms and swings during transport, multiple accessory power receptacles, and diagnostic display panels for maintenance monitoring.


Why Vibration Isolation Matters in Equipment Design
Vibration isolators are critical components in heavy equipment, generators, control panels, and sensitive electronics. Their primary role is to dampen mechanical oscillations, absorb shock loads, and protect components from fatigue and failure. In environments where engines, compressors, or hydraulic systems operate continuously, isolators prevent vibration from transferring into frames, circuit boards, and mounting brackets.
Rubber isolators are widely used due to their elasticity and cost-effectiveness. However, their longevity is often compromised by exposure to heat, oil, ozone, and UV radiation. In many cases, isolators degrade within a few years, leading to cracked mounts, loosened fasteners, and premature wear of the supported components.
Material Selection and Performance Tradeoffs
The durability of a vibration isolator depends heavily on its material composition. Common materials include:

• Natural Rubber: Offers excellent vibration absorption but degrades quickly in oily or high-temperature environments. Susceptible to ozone cracking and UV damage.

• Neoprene: More resistant to oil and weathering than natural rubber. Often used in automotive and marine applications.

• Urethane (Polyurethane): Highly durable and resistant to abrasion and chemicals. However, it is stiffer than rubber and transmits more vibration.

• Silicone: Soft and flexible with excellent thermal and chemical resistance. Ideal for electronics and sensitive instrumentation but less common in heavy-duty mounts due to cost.

• Wire Rope Isolators: Use coiled stainless steel cables to absorb vibration. Extremely durable and corrosion-resistant, often used in military and aerospace applications.


• Use of rubber “well nuts” inserted into oversized holes, allowing adjustable compression and vibration damping

• Stacking thick rubber washers with fender washers to isolate circuit boards

• Cutting short sections of rubber hose (without fiber braid) to serve as bushings


• Select materials based on exposure: use neoprene or silicone in oily or high-temperature zones

• Avoid over-compression: excessive preload reduces damping efficiency and accelerates wear

• Use elevated mounting positions to reduce contamination from fluids and debris

• Inspect mounts regularly for cracks, hardening, or separation from metal inserts

• Consider dual-layer systems: combine stiff isolators with soft secondary pads for hybrid damping


Hydrostatic transmissions depend on oil to transfer power and control machine movement smoothly. Air entrained in the hydraulic oil or system lines can lead to inefficient operation, including noises, reduced power, and overheating. Purging the system of trapped air restores performance and prevents damage.
What is Purging
Purging is the process of removing air from the hydraulic transmission or drive system after maintenance that involved opening the circuit or changing the hydraulic oil. Air compresses more than oil, resulting in spongy or unresponsive controls and reduced efficiency.
Steps for Purging

1. Check Oil Level: Ensure the hydrostatic transmission oil level is at manufacturer-recommended levels before starting.

2. Elevate Wheels: Place the drive wheels or axles off the ground using jack stands or a lift, ensuring the wheels can rotate freely without load.

3. Engine Operation: Start the engine and run at low idle speed.

4. Bypass Valve Operation: Open the system's bypass or tow valve to allow free wheel movement, then slowly operate the forward and reverse pedals multiple times. This helps purge air in the pump and motor.

5. Close Bypass Valve: With the engine running, close the bypass valve. Slowly cycle the forward and reverse controls several times. This forces hydraulic fluid to flow under normal load conditions, removing trapped air in the system.

6. Repeat if Necessary: The process might need repeating multiple times until the transmission responds smoothly and without unusual noise.

7. Recheck Oil Level: After purging, stop the engine and recheck the oil level, topping up if needed.

8. Lower the Vehicle: Remove jack stands and place the vehicle back on the ground.

9. Test Machine: Operate the machine under normal conditions to confirm that all air is purged and performance is restored.


• Some purge procedures require a partner to open/close the bypass valve while the operator cycles controls.

• Perform purging in a safe, clear area, as the machine's wheels may rotate freely during the process.

• Use only recommended hydraulic oil specified by the manufacturer for best results.


• Noisy operation and vibrations

• Loss of drive power or inconsistent movement

• Increased operating temperatures and oil expansion

• Lack of responsiveness in control pedals


Introduction
Transporting hazardous materials (hazmat) is a critical aspect of the logistics and transportation industry. The journey from the source to the destination involves meticulous planning, adherence to stringent regulations, and a deep understanding of the materials being transported. This process is often likened to a "highway to hazmat hell," highlighting the challenges and complexities involved.
Understanding Hazardous Materials
Hazardous materials are substances that pose a risk to health, safety, property, or the environment during transportation. These materials are classified into nine distinct classes, each representing a different type of hazard:

1. Class 1: Explosives

2. Class 2: Gases

3. Class 3: Flammable Liquids

4. Class 4: Flammable Solids

5. Class 5: Oxidizers and Organic Peroxides

6. Class 6: Toxic and Infectious Substances

7. Class 7: Radioactive Materials

8. Class 8: Corrosive Substances

9. Class 9: Miscellaneous Dangerous Goods


• Classification: Properly classifying the material based on its hazards.

• Packaging: Using appropriate containers that prevent leaks and spills.

• Labeling and Placarding: Displaying hazard symbols and identification numbers to inform handlers and emergency responders.

• Shipping Papers: Providing detailed documentation that describes the material and its hazards.

• Training: Ensuring that all personnel involved in the transportation process are trained in hazmat handling and emergency procedures.


• Route Restrictions: Certain roads and tunnels prohibit the passage of vehicles carrying specific hazardous materials. For instance, some tunnels ban trucks carrying flammable liquids due to the risk of catastrophic fires.

• Accidents and Incidents: Spills, leaks, or accidents involving hazardous materials can have devastating effects on public health and the environment. The 2024 BNSF train derailment in New Mexico, which involved liquefied petroleum gas, caused a large fire and shutdown of an interstate.

• Regulatory Compliance: Navigating the complex web of federal, state, and local regulations can be daunting. Non-compliance can result in significant fines and legal repercussions.


• Route Planning: Utilize designated hazmat routes and avoid restricted areas.

• Vehicle Maintenance: Regularly inspect and maintain vehicles to ensure they are in safe operating condition.

• Emergency Preparedness: Equip vehicles with appropriate emergency response materials and ensure drivers are trained in emergency procedures.

• Communication: Maintain clear communication with dispatchers and emergency responders.


Hitachi Genuine Hydraulic Oil is specially formulated to maximize the reliability and performance of the hydraulic systems in Hitachi construction machinery. Proper hydraulic oil is critical for maintaining system efficiency, protecting components from wear, and extending the machine's operational life.
Key Features of Hitachi Hydraulic Oil

• Optimized for Hitachi Machines: The oil is designed specifically for the hydraulic systems found in Hitachi equipment such as excavators and wheel loaders.

• Long Service Life: Hitachi Genuine Hydraulic Oil can extend oil change intervals up to 4,000 to 5,000 hours when not mixed with other brands, reducing operational costs.

• Wear Protection: It provides superior protection against wear and corrosion, maintaining pump and motor condition during high-pressure use.

• High Purity and Stability: The oil features a hydro-cracked base oil, which has fewer impurities and greater oxidation stability compared to conventional oils, minimizing sludge and deposits.

• Wide Temperature Range Suitability: It performs optimally over a wide temperature range, including excellent low-temperature viscosity for cold starts and resistance to thickening at high temperatures.

• Environmental Considerations: The formulation is environmentally friendly with better fuel efficiency compared to conventional oils.


• The oil is suitable for use in a variety of Hitachi machines equipped with high-pressure hydraulic systems.

• Specific intervals for oil change may vary depending on the type of attachments used; for example, breaker attachments require more frequent oil changes (~1,500 hours), while other attachments allow longer intervals (~2,000 hours).

• Use genuine Hitachi oils and follow manufacturer recommendations to maintain warranty coverage and machine integrity.


• Engine Oils: Hitachi offers specially formulated engine oils such as 15W-40 DH-1 series designed for their diesel engines, providing protection against sludge, wear, and environmental impact, even under high-speed continuous operations.

• Gear Oils: Genuine Gear Oil 80W-90 offers excellent lubricity and wear protection for travel reduction gears and swing gears in excavators.

• Greases: High-quality lithium-based greases with extreme pressure additives ensure effective lubrication of pins, bushes, and other moving parts.


The JCB 212S and Its Role in Compact Construction
The JCB 212S was introduced as a versatile compact backhoe loader designed for tight urban job sites, landscaping, and light utility work. Manufactured by JCB (Joseph Cyril Bamford Excavators Ltd.), a British company founded in 1945, the 212S was part of JCB’s push to offer multi-functional machines that combined loader and excavator capabilities in a smaller footprint. The 212S featured four-wheel steering, a side-shift backhoe, and a compact frame that allowed it to maneuver in confined spaces where larger machines would struggle.
While exact production numbers are not publicly disclosed, the 212S was widely adopted in North America and Europe, especially by municipalities and small contractors. Its popularity stemmed from its ability to perform loader, backhoe, and transport tasks without requiring multiple machines.
Unexpected Transmission Fluid Expulsion
One of the more alarming issues reported with the 212S involves sudden transmission fluid expulsion from the dipstick tube while operating in higher gears. In one instance, the machine was running in fourth gear on-road when transmission fluid began pouring out of the dipstick tube, appearing frothy and forceful enough to push the dipstick upward.
This symptom suggests a pressure imbalance or contamination within the transmission system. Frothy fluid typically indicates aeration—air mixed with oil—which can result from overfilling, internal leakage, or coolant intrusion. The fact that the dipstick was physically displaced points to excessive internal pressure, possibly caused by a blocked breather or a compromised transmission cooler.
Transmission Cooler and Breather System
The transmission cooler in the 212S is typically integrated into the radiator assembly, allowing transmission fluid to circulate through a heat exchanger to maintain optimal operating temperature. If the cooler fails internally, coolant can mix with transmission fluid, leading to emulsification—a milky appearance—and increased volume and pressure.
However, in this case, the fluid appeared clean, which may rule out coolant contamination. Attention then shifts to the breather system. The dipstick tube on the 212S includes a small bore pipe that functions as a breather, allowing pressure equalization during operation. If this breather becomes clogged with debris or fails to vent properly, pressure can build up inside the transmission housing, forcing fluid out through the dipstick tube.
Preventive Measures and Inspection Tips
To prevent recurrence of transmission fluid blowout, operators should:

• Check transmission fluid level only when the machine is cool and parked on level ground

• Inspect the breather pipe for blockages or damage and ensure it vents freely

• Monitor fluid condition for signs of aeration or contamination

• Confirm that the transmission cooler is functioning and not leaking internally

• Avoid overfilling the transmission, as excess fluid can expand and foam under load




Introduction
Caterpillar Inc., a global leader in heavy machinery and engines, employs a systematic approach to engine identification through serial numbers. These serial numbers provide essential information about the engine's specifications, manufacturing details, and intended applications. Understanding how to locate and interpret these numbers is crucial for maintenance, parts replacement, and resale purposes.
Locating the Engine Serial Number

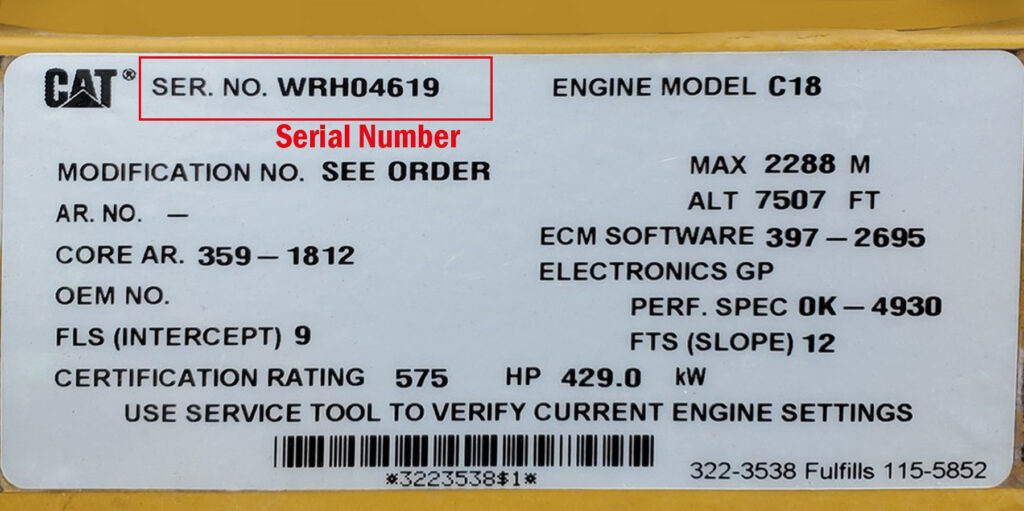

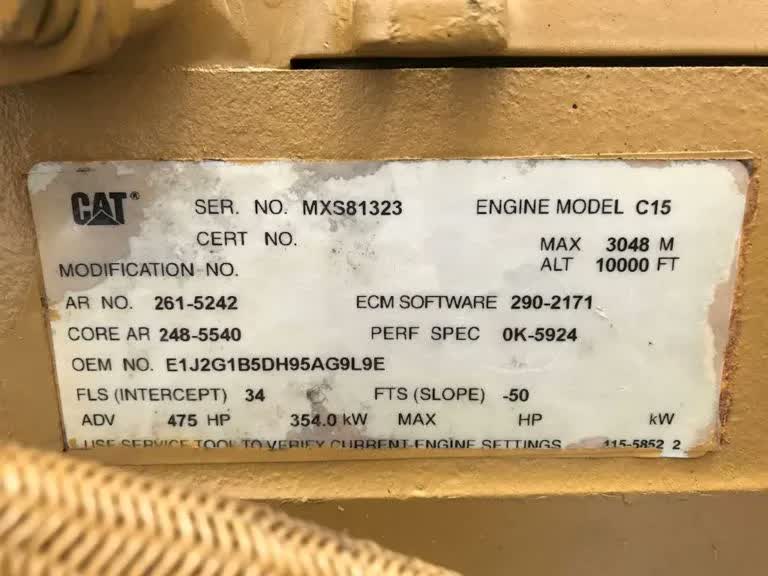

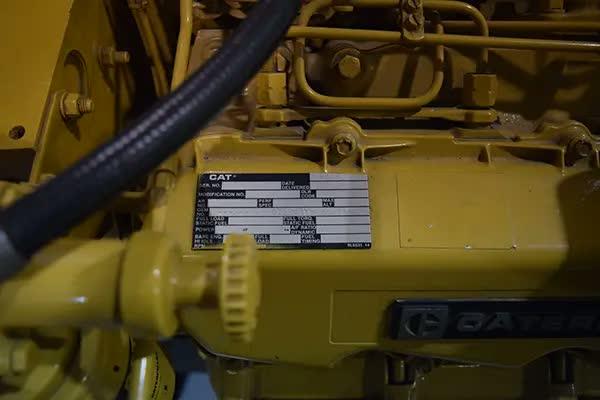

The engine serial number (ESN) is typically found on a metal data plate or directly stamped onto the engine block. Common locations include:

• Left Side of the Valve Cover: Near the injection pump or rocker arm cover.

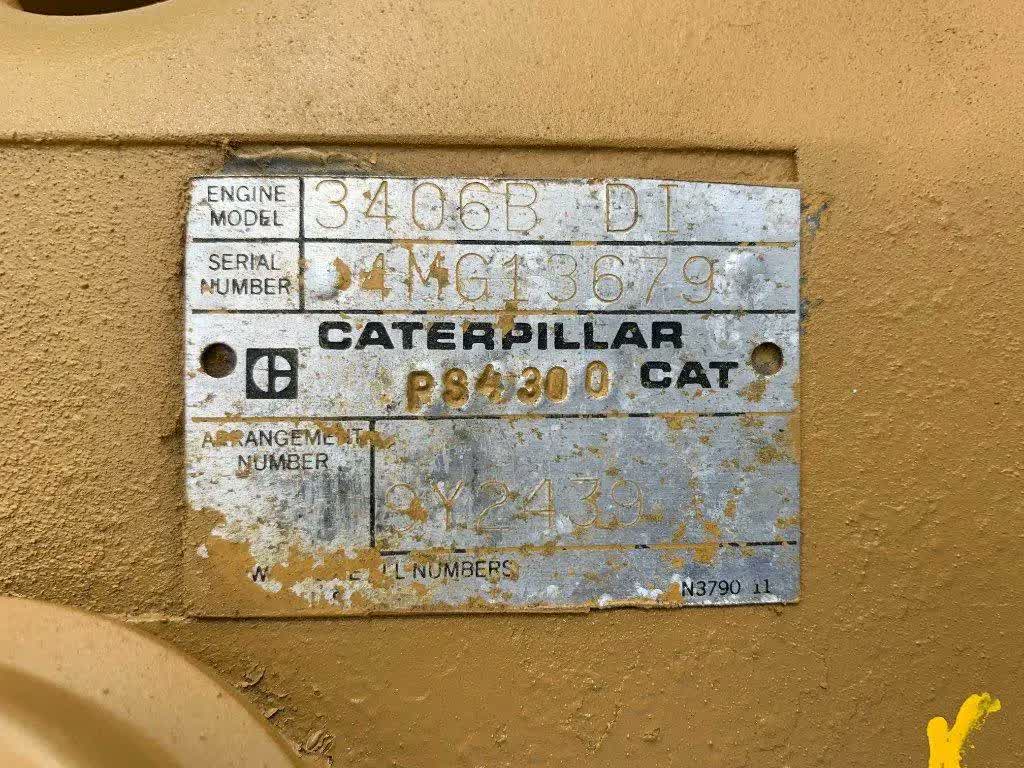

• Engine Block: Stamped directly onto the engine block, often on the driver's side.

• Intake Manifold: For specific models like the C12, the serial number can be found on the nameplate situated on the intake manifold or stamped on the lower right side of the block.


• Engine Model and Configuration: Identifying the specific model and its features.

• Manufacturing Date: Determining the production date for age and warranty considerations.

• Parts Compatibility: Ensuring that replacement parts are compatible with the engine.

• Service History: Accessing records for maintenance and repairs.


John Deere’s 544G and 624G models are popular mid-sized wheel loaders widely regarded for their power, durability, and versatility in construction, agriculture, and material handling industries. Both loaders offer strengths and some commonly reported issues, especially related to electrical shifting and hydraulic controls.
Engine and Power

• The 544G features a John Deere PowerTech PVS 6068 turbocharged diesel engine with a displacement of 6.8 liters, delivering approximately 125 SAE gross horsepower (94 kW) at 2,200 rpm.

• The 624G is equipped with a John Deere 6068T turbocharged diesel engine, larger displacement of roughly 6.785 liters, rated at 150 SAE gross horsepower (112 kW) at 2,200 rpm.


• The 544G’s hydraulic system pumps about 69.5 gallons per minute (263 L/min) at 600 psi (4137 kPa), featuring a loader relief pressure of 2,750 psi.

• The 624G steps up with a hydraulic pump flow capable of 80 gallons per minute and loader relief at 2,800 psi, boosting lifting capability.

• Transmission systems on both loaders are powershift 4-speed gearboxes fitted with torque converters optimized for smooth shifting and power delivery.


• The 544G has an operating weight near 24,092 lbs (10,926 kg), a fuel tank capacity of about 57.6 gallons (218 L), and max lift capacity at ground level around 24,264 lbs (11,006 kg) with a typical 2.25 cubic yard excavating bucket.

• The 624G weighs approximately 29,404 lbs (13,341 kg) with a fuel tank around 65.7 gallons (249 L) and a higher lift capacity near 27,000 lbs (12,247 kg) reflecting its larger bucket capacity and engine power.

• Both models have comparable dimensions designed to provide maneuverability in tight work environments with tire sizes approximately 20.5-25.


• Inspect electrical components related to transmission shift controls and hydraulic system sensors.

• Request detailed maintenance history and proof of issue resolution for used loaders.

• Consider the 544G if seeking a lighter, simpler machine with fewer electronic controls but possibly less power.

• For higher lifting capacities and power, the 624G is suitable but verify the unit’s electronic control system reliability.
