The Bobcat 825 and Its Mechanical Simplicity
The Clark Bobcat 825, introduced in the late 1970s, was a compact skid steer loader built for rugged utility work. Powered by a Perkins 4-cylinder diesel engine, it relied on mechanical systems for fuel delivery, ignition, and shutdown—long before electronic control modules became standard. These machines were designed for reliability and field serviceability, often used in municipal yards, farms, and small construction outfits.
Perkins engines of that era, particularly the 4.108 and 4.236 variants, were known for their simplicity. They featured mechanical injection pumps and manual fuel shutoff levers, making them ideal for equipment that needed to run in remote or low-tech environments.
Symptoms of a Non-Shutting Engine
In one case, a 1978 Bobcat 825 was rebuilt after its electrical system had been completely severed. Once rewired, the engine started successfully—but refused to shut off when the ignition key was turned. This raised questions about whether the engine used an electric fuel solenoid or a manual shutoff mechanism.
The team working on the machine identified a small cylindrical device mounted between the fuel tank and the injection pump. Initially suspected to be a fuel shutoff solenoid, it was later confirmed to be a Facet electric fuel pump—used to prime and deliver fuel, not to stop it.
Understanding Perkins Fuel Shutoff Systems
Most Perkins engines from the 1970s do not use electric solenoids for fuel cutoff. Instead, they rely on one of two methods:

• A manual cable connected to a lever on the injection pump

• A mechanical linkage that pulls the fuel rack to the “off” position

• In some military or industrial applications, an electric solenoid may be used to actuate the shutoff lever


• Install a manual shutoff cable connected to the injection pump lever

• Mount the cable within reach of the operator and label it clearly

• If an electric solenoid is desired, use a pull-type solenoid rated for continuous duty

• Wire the solenoid to the ignition switch or a dedicated kill switch

• Test the system by starting and stopping the engine multiple times


• Diesel fuel systems

• Electrical continuity testing

• 12V circuit design

• Mechanical diagnostics

• Collaborative problem-solving


Overview of the Grease Line Scenario
A key maintenance task on the Yanmar ViO55 excavator is ensuring reliable lubrication to the swivel or pinion bearings. An owner faced with worn or unavailable OEM grease lines wondered if there’s a lower-cost, readily available alternative. The original grease line features a plastic tube with a flared end and a standard 1/8-inch NPT threaded fitting—raising the question: what generic product could substitute effectively?
Practical Solutions Offered by Owners
Different approaches were suggested by experienced users based on durability, pressure resistance, and ease of replacement:

• Compressed Air Tubing: One user recommended using 1/4-inch push-to-connect air lines and fittings—commonly used for pneumatic grease ring assemblies. These are inexpensive and quick to swap when a line fails, though they may burst under grease pressure.

• Grease Gun Flexible Hoses: These hoses, sold wherever grease cartridges are available, are flexible, robust, and designed to withstand high pressure. They could serve as dependable, field-ready replacements.

• Nylaflow Nylon Tubing: A high-quality synthetic alternative, Nylaflow nylon line is rated for hydraulic oil and greasing applications. It’s chemically resistant and flexible, available in many diameters—ideal for a permanent solution.


• Compact Excavator Role
  The ViO55 is part of Yanmar’s ViO zero-tail swing excavator line, valued for maneuverability in tight spaces. The original ViO debuted in 1993 and by 2013 had evolved into the ViO45/55-6 generation, offering improved fuel economy, easier maintenance, and comfort upgrades.

• Holdings at a Glance
  Yanmar Holdings Co., Ltd., founded in 1912, is a Japanese manufacturer of diesel engines and compact machinery. Over the years, it has branched into construction, agriculture, marine, and remote monitoring technologies. Its ViO excavator series highlights Yanmar’s steady innovation and global presence.


• Match thread type: Ensure any replacement has a 1/8-inch NPT fitting to fit the grease nipple port securely.

• Prioritize flexibility: The grease line should bend without kinking—especially around tight pivots like slewing bearings.

• Confirm pressure rating: Grease systems can operate at several hundred psi, so choose hoses explicitly rated for that pressure.

• Have quick swaps handy: Using air line tubing lets you carry a spare and avoid prolonged downtime if a grease path plugs up.

• Consider durability for long term: If longevity is more critical, opt for a certified grease hose or Nylaflow tubing for dependable service.


Introduction
Removing the flywheel on a vintage Hyster YE-40 forklift presents a unique mechanical challenge. Behind this task lies a story of ingenuity, stubborn hardware, and a dash of frustration. Let's explore a comprehensive, original breakdown of the process—engineered in plain English, enriched with context, practical steps, and a cautionary tale from the shop floor.
Hyster History
Hyster began as the Willamette-Ersted Company, founded in Portland, Oregon, in 1929, evolving into a well-known forklift brand by the mid-20th century. The name "Hyster" comes from the logger's call "hoist ’er." In the early 1950s, Hyster introduced the Monotrol® pedal—a single-pedal control for speed and direction—that remains iconic today. The Hyster-Yale Materials Handling spun off in 2012 continues to innovate in lift truck design and fuel cell technology .
Overview of the YE-40
The YE-40 is a small industrial forklift likely from the late 1950s to 1960s, powered by a Continental F-162 engine and equipped with a Monotrol transmission featuring inching, brake, and directional control pedals .
The Challenge: Flywheel Stuck in Bell Housing
The flywheel is secured to the crankshaft, but removing it proved impossible without splitting the engine/transmission—or potentially grinding away bell housing material:

• The ring gear binds on the bell housing flange, preventing removal from the top.

• Starter removal did not free up clearance.

• Service documentation (Jensen manual) offered vague instructions and blurry images, making on-the-job decision-making difficult .


• Confirm Details
  • Engine: Continental F-162

  • Transmission: Monotrol with three pedals (inching, brake, directional) .

• Initial Disassembly
  • Remove clutch via disassembly of the output shaft—this avoids splitting the engine/transmission joint .

  • Remove starter and ancillary brackets to maximize access.

• Assess Flywheel Binding
  • Try gentle prying; if bound, look for interference from bell housing lugs or casting protrusions.

• Alternative Strategies
  • Use a die grinder to remove just enough bell housing material to create clearance for flywheel removal.

  • If not workable, consider resurfacing the flywheel without removal.

• Last-Resort
  • Engine/transmission separation may be required if clearance cannot be created otherwise.


• Older equipment often requires creative techniques not spelled out in manuals.

• Performing machining on-site is sometimes more practical than full disassembly.

• Shop ingenuity and willingness to adapt can avoid massive teardown operations.


• Flywheel Attachment – Bolted to crank via ring gear; removal is possible without full engine removal, but housing clearance is often the obstacle .

• Grinding vs. Removal – Removing bell housing material is a viable fix when the ring gear catches—but be cautious of debris and structural weakening.

• In-situ Resurfacing – A valid alternative when removal proves impossible.

• Preparation – Remove starter, assess bell housing, be ready to disassemble clutch via transmission, and have grinding tools available.


• Monotrol® – A pedal system enabling speed and direction control via a single pedal.

• Inching Pedal – Provides fine control over movement when mounting or precise positioning.

• Bell Housing – The cast housing that encases the flywheel and connects engine to transmission.

• In-situ Resurfacing – Refacing a component (like a flywheel) while still mounted, without removal.


The G970 and Volvo’s Grader Evolution
The Volvo G970 motor grader was part of Volvo Construction Equipment’s push to modernize its grader lineup in the early 2000s. Designed for precision road shaping, snow removal, and site preparation, the G970 combined robust mechanical engineering with advanced operator ergonomics. It was built during a period when Volvo was integrating its legacy Champion grader designs with newer hydraulic and electronic control systems.
Volvo acquired Champion Road Machinery in 1997, and the G970 reflects that heritage—retaining the rugged frame and blade control geometry of Champion models while adding Volvo’s signature cab design, visibility enhancements, and hydraulic refinements.
Core Specifications and Performance Profile
The G970 is powered by a Volvo D7E diesel engine, delivering approximately 235 horsepower. It features an 8-speed powershift transmission with automatic shifting logic, and a full hydraulic circle drive for blade rotation. The moldboard is 14 feet wide, with a standard curvature suited for both fine grading and heavy cutting.
Key specs:

• Operating weight: ~37,000 lbs

• Blade width: 14 ft

• Engine: Volvo D7E, Tier 3 compliant

• Transmission: Volvo HTE840 powershift

• Max travel speed: ~28 mph

• Hydraulic system: Load-sensing, variable displacement


• Grease circle bearing every 50 hours

• Inspect hydraulic lines for abrasion and leaks

• Replace wear inserts on the moldboard slide rails annually

• Check blade pitch and curvature for uniform wear


• Engine oil and filter: every 250 hours

• Hydraulic fluid and filters: every 1,000 hours

• Transmission fluid: every 1,000 hours

• Circle drive inspection: every 500 hours

• Cooling system flush: every 2,000 hours




Introduction
Bridge construction is a complex dance of precision, engineering, and heavy machinery. From laying foundations to launching spans, each phase demands specialized equipment and meticulous coordination. Let's break down the key elements of bridge work in a flowing, technical narrative, enriched by real-world stories, structured guidance, and updated context.
Necessary Heavy Machinery

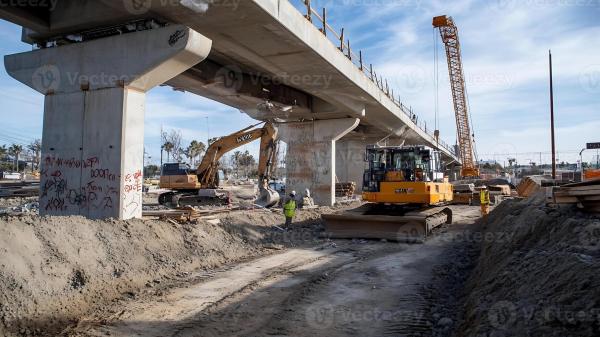

Bridge projects rely on a variety of equipment with distinct roles, including:

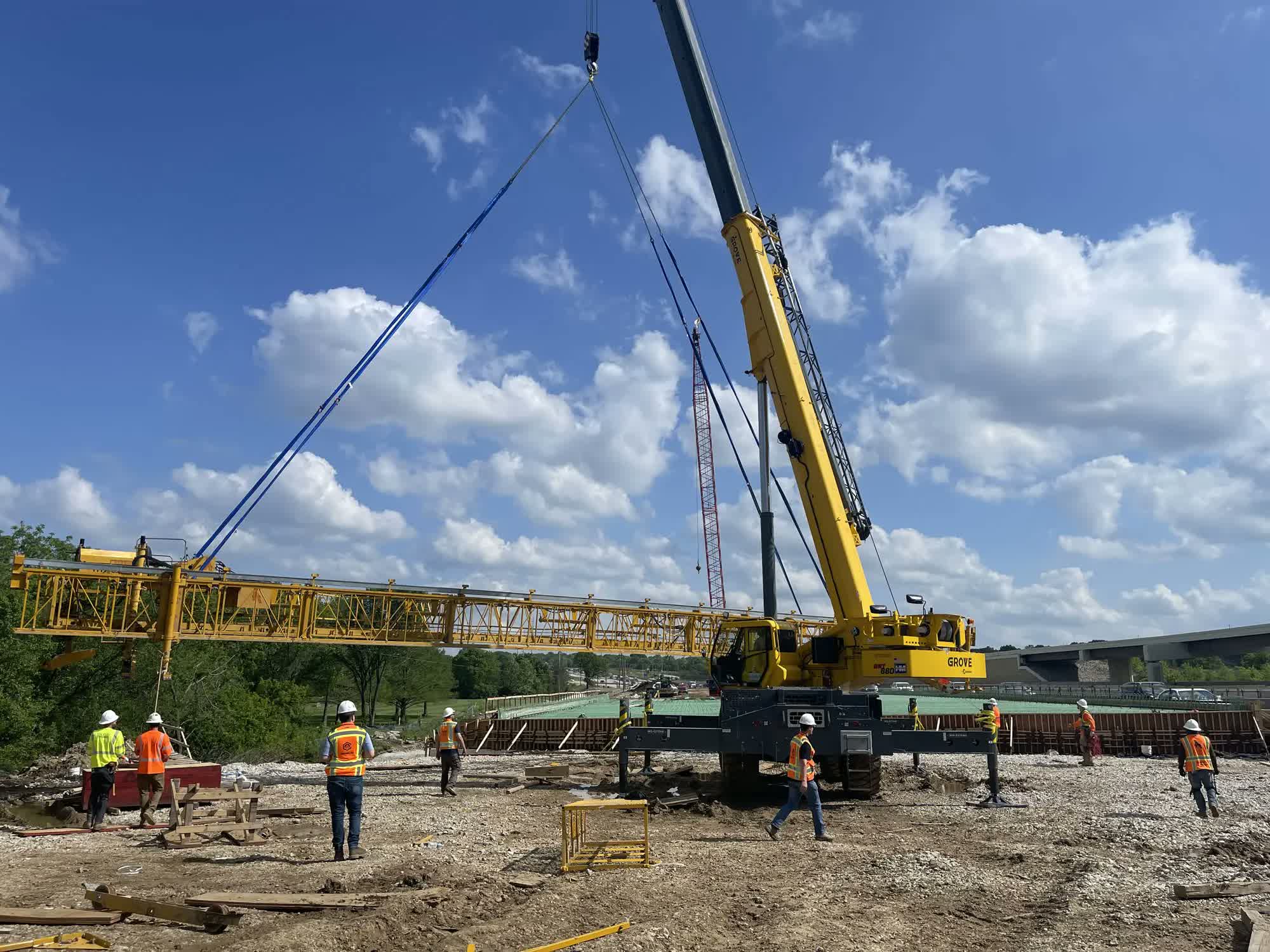

• Crawler Cranes – Tracked cranes with lattice booms, capable of lifting several hundred tons. Their stability and mobility make them ideal for placing beams and structural sections .

• Pile Drivers – Machines that hammer deep supports into ground or water foundations using heavy weights guided vertically .

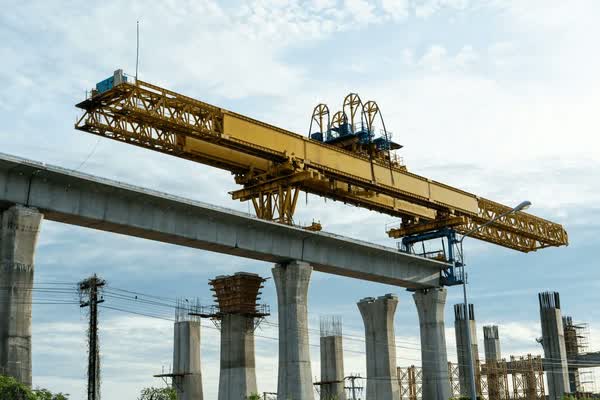

• Launching Gantries – Specialized mobile gantries that carry and place precast segments between piers, pushing themselves forward span by span .

• Self-Propelled Modular Transporters (SPMTs) – Multi-wheeled platforms used to move entire prebuilt bridge sections into position, essential in accelerated replacement projects .

• Hydraulic Equipment – Includes strand jacks for lifting spans, controlled lifting pumps for synchronized movement, high-tonnage cylinders for alignment, and electric pumps for smaller tasks like nut splitting or torque wrench operation .


• Incremental Launching Method (ILM) – Bridges are assembled on one side and pushed forward in stages; over 1,000 bridges have been built this way worldwide .

• Accelerated Bridge Construction (ABC) – Prefabricated spans are assembled offsite, swapped in quickly—sometimes over a weekend—using SPMTs to dramatically reduce traffic disruption .

• Precast Segmental Construction, Balanced Cantilever, and Movable Scaffolding Systems also shape machinery selection like formwork, gantries, and cranes .


• Bridgewater Bridge (Tasmania) recently completed its last precast segment (total 1,082); spans weigh 50–90 tons, installed with specialized gear, with completion slated for mid-2025 .

• Bailey Bridge Restoration (Michigan): A 1907 Pratt truss is being dismantled and restored in situ, costing $5.6 million and scheduled for reopening by fall 2026 .

• Baltimore’s Key Bridge collapse led to demolition using heavy machinery and a rebuild plan via cable-stayed design funded via $1.7 billion project set for 2028 .

• Fatal Collapse in China: 12 workers died when a railway bridge’s cable snapped during tensioning—highlighting safety gaps in high-stakes bridge work .


• Match Equipment to Method: ILM suits projects with limited ground access. ABC aligns with high-traffic sites needing minimal closure.

• Invest in Heavy-Lift Machinery: Crawler cranes, launching gantries, and SPMTs are costly but critical for efficiency and safety.

• Plan Prefabrication Strategy: Precast and modular construction reduce onsite labor and exposure.

• Use Hydraulic Precision: Strand jacks and controlled pumps ensure alignment and balance during span placement.

• Prioritize Safety and Redundancies: Recent disasters emphasize the importance of robust tensioning protocols and inspection systems.


• Crawler Crane – Tracked heavy-lift crane.

• Pile Driver – Tool for driving foundation piles.

• Launching Gantry – Mobile frame for placing precast bridge spans.

• SPMT – Wheeled transporter for entire bridge sections.

• Incremental Launching Method (ILM) – Pushing constructed bridge forward over piers.

• Accelerated Bridge Construction (ABC) – Rapid replacement using prefabricated components.

• Strand Jack – Hydraulic lifting system for heavy components.

• Controlled Lifting Pump – Manages synchronized hydraulic movement across multiple cylinders.


Performance with High Hours
A 2009-model Kubota KX080-3 excavator has logged approximately 9,200 hours and remains largely trouble-free. This example showcases the rugged durability and thoughtful engineering built into Kubota’s utility-class machines.
Maintenance Regimen That Works
Consistent servicing has been key:

• Engine oil and final drive oil are changed every 250 hours.

• Hydraulic oil and filters are serviced every 500 hours.


• Class and Power
  It's Kubota’s first 8-tonne excavator, featuring roughly 66–70 HP from a direct-injection DI diesel engine.

• Hydraulic System
  It uses a sophisticated 3-pump load-sensing hydraulic setup, enabling simultaneous operations like digging and dozing without losing power.

• Other Notable Features
  Equipped with auto-idling to lower engine RPMs when idle, auto-shift for torque-efficient travel, tight tail swing for confined spaces, and a stable, operator-friendly cab.


• Easy access via three service bonnets, enabling quick checks.

• Load-sensing hydraulics reduce unnecessary pressure strain.

• Auto-idle feature helps minimize wear during downtimes.

• Rugged undercarriage with well-designed rubber tracks ensures abrasion resistance and longevity.


• Stick to maintenance intervals: Oil and final drive—every 250 hours; hydraulic oil & filters—every 500 hours.

• Leverage modern features: Use auto-idle to reduce mechanical stress during pauses.

• Manage operating load: Running the machine at moderate throttle helps preserve the hydraulic pump and fuel efficiency.

• Inspect critical components: Track system, undercarriage wear, and hydraulic hoses should be regularly checked.

• Plan for eventual overhaul: At high hours, expect wear in components like booms, cylinders, and final drives. Budget accordingly.


Introduction
The Bobcat B300 backhoe-loader is a versatile mid-sized machine introduced in the early 2000s, embodying the rugged reliability and multi-functionality that the Bobcat brand is known for. With a robust Kubota diesel engine and hydrostatic drive paired with four-wheel steering, the B300 stands out in its class, offering both excavation power and compact loader utility in one package. In this article, you'll find engine specs, performance details, real-world anecdotes, and practical guidance — all reformulated into a smooth, naturally flowing narrative.
Bobcat Company Background
Established in the late 1940s, Bobcat began life as Melroe Welding before evolving into the Melroe Manufacturing Company. The iconic name "Bobcat" first appeared in 1962 and eventually became a subsidiary of Ingersoll-Rand in 1995. In 2007, it was acquired by South Korea’s Doosan, and today it remains a leader in compact equipment, generating over US$6.6 billion in revenue by 2022 .
Development of the B300
Released around 2002, the B300 emerged as Bobcat’s higher-spec backhoe-loader, replacing earlier models like the B250 and B100. Designed to offer deeper digging reach, stronger breakout force, and enhanced hydraulic control while maintaining manageable size for tight job sites, the B300 straddles the balance between power and maneuverability .
Engine and Powertrain
The heart of the B300 is a naturally aspirated Kubota V2203, a 2.2-liter, 4-cylinder diesel rated at approximately 46 horsepower (34.3 kW), delivering up to 105.6 lb-ft (143 Nm) of torque at lower rpm . The machine stores around 25 gallons (95 liters) of fuel and utilizes a hydrostatic transmission that supports infinitely variable forward and reverse speeds, topping out around 9–11 mph (14–18 km/h) .
Loader Performance
Outfitted with a bucket approximately 74 inches (187 cm) wide and sized around 0.54 cubic meters (1 cubic yard), the loader section delivers a breakout force near 8,430 lb (3,825 kg) . With lift height reaching up to 80 inches (2,038 mm) and a 69° dump angle, it’s well-suited for loading, grading, and material handling tasks .
Backhoe Capability
The B300’s backhoe achieves a maximum digging depth of about 11 feet (approximately 297 cm) and a reach of close to 14 feet (around 4 meters) from swivel point, with bucket dipper digging force of about 6,821 lb (3,094 kg) .
Dimensions and Maneuverability
Measuring roughly 19 feet long (5 m), 6 feet wide (1–2 m), and with a turning radius of around 15 feet (4.5–5 m), the B300 offers compact maneuverability. It rides on a wheelbase of approximately 72 inches (182 cm) and typically weighs between 9,000–9,260 lb (4,100–4,200 kg) in four-wheel-drive configuration .
User Experiences
Operators who have tallied up to 1,900 hours on a B300 report strong satisfaction and durability, calling it a powerful machine for its size . A user who utilized a B300 with less than 400 hours raved about its versatility — managing snow plow tasks, handling brush and stump removal, and operating add-on forks and generals — all while maintaining reliable traction and performance, even in snowy conditions .
Specifications Summary

• Engine: Kubota V2203, 46 hp / 34.3 kW, 105.6 lb-ft torque

• Fuel capacity: 25 gal / 95 L

• Transmission: Hydrostatic, infinite forward/reverse, up to ~11 mph / ~18 km/h

• Loader: 0.54 m³ bucket, 8,430 lb breakout, 80 in (2,038 mm) lift height, 69° dump angle

• Backhoe: 11 ft (297 cm) dig depth, ~14 ft (4 m) reach, 6,821 lb dig force

• Size & Weight: 19 ft long, 6 ft wide, 15 ft turning radius, 9,000–9,260 lb operating weight


• Versatility: The built-in auxiliary hydraulics support attachments like thumbs, plows, or grapples, enhancing capability on job sites.

• Operator Comfort: Optional cab configurations retain all-weather usability — one owner described using it to build their home from foundation up.

• Maintenance & Parts: Bobcat parts remain accessible through aftermarket suppliers, upholding long-term serviceability despite discontinuation of new units.

• Terrain Adaptability: While not fitted with true “posi-trac” differential locks, users suggest tire chains and the existing 4WD/all-wheel steering setup suffice for light snow — though extra traction strategies may be required in heavy conditions.


• Hydrostatic Transmission: Hydraulic system enabling infinitely variable speeds and direction without gear shifting.

• Breakout Force: The maximum pushing or lifting power the loader bucket can exert.

• Auxiliary Hydraulics: Hydraulics available for powering attachments, like grapples or plows.

• Backhoe Dig Depth / Reach: Maximum vertical trench capability and horizontal arm reach, respectively.


The 70D and Its Radial Piston Drive Motor
The John Deere 70D excavator, produced around 1989, was part of Deere’s collaboration with Hitachi, sharing many design elements with the EX60 series. While the engine differs, the hydraulic architecture and undercarriage layout are strikingly similar. One notable distinction is the use of radial piston motors in the final drives, rather than the more common axial piston motors found in larger machines.
Radial piston motors offer high torque at low speeds and are often used in applications requiring compact packaging and strong starting torque. However, they tend to be more mechanically complex and less robust under high-load conditions compared to axial designs. In the 70D, this choice may have been influenced by the machine’s blade-equipped configuration, which demands higher torque during grading and pushing.
Failure of the Final Drive Output Shaft
A common issue in aging 70D units is the failure of the final drive output shaft. In one case, the excavator could only rotate in circles due to one drive motor failing entirely. Upon disassembly, the root cause was revealed: the output shaft had been stripped by the planetary gears, which had dropped due to broken roll pins in the gear hubs.
The damage resembled lathe-like wear, where the unsupported gears chewed into the shaft splines until they were completely eroded. The sun gear remained intact, but the second planetary stage showed severe wear. The roll pins, meant to retain gear alignment, had all fractured, allowing the gears to misalign and destroy the shaft.
Disassembly and Repair Challenges
Removing the damaged shaft required full disassembly of the final drive from the opposite side to access the internal snap ring. This process is labor-intensive and demands careful handling of planetary gear components, brake mechanisms, and bearing assemblies.
Key observations during teardown:

• The hub showed wear marks from gear misalignment

• The planetary carrier had fractured roll pins and displaced gears

• The output shaft splines were completely stripped

• The sun gear remained serviceable, suggesting localized failure


• Use high-strength welding rod (e.g., 4140 or equivalent alloy)

• Preheat and post-heat the shaft to prevent cracking

• Machine splines to OEM dimensions using a gear hob or CNC mill

• Perform hardness testing to ensure durability (Rockwell C scale target: 50–55)

• Inspect concentricity and runout to avoid vibration or misalignment


• Request internal photos or teardown reports before purchase

• Verify part numbers and compatibility with Hitachi EX60 components

• Consider aftermarket suppliers specializing in hydraulic drive motors

• Cross-reference with rebuilders who offer remanufactured planetary assemblies


The Case 160C LC, a rugged excavator from CNH Industrial’s Case Construction Equipment line, is designed for heavy-duty digging and loading tasks. As with many hydraulic machines, understanding its filtration system is crucial for maintenance and performance—and one question often arises: does this model include a case drain filter?
Case Drain Filter Overview

• A case drain filter sits between a hydraulic motor (such as the final drive) and the reservoir. Its purpose is to prevent internal motor contamination—tiny metal particles or debris—from entering the hydraulic system. Sensitive areas like bearings, pistons, and gears inside hydraulic motors can produce minute wear debris that, if unfiltered, may circulate and cause system-wide damage.

• However, there’s an ongoing debate around their use. Critics warn that if a case drain filter becomes clogged, it can increase case-side pressure, damaging seals or even causing catastrophic failures like shattered bearings or cracked housing.


• Based on user experience and technical inspections, the Case 160C LC does not include a case drain filter. Experts reviewing maintenance diagrams and diagnostic prints have confirmed its omission.

• The absence implies that contamination control relies on system cleanliness practices, and case drain flow returns directly to the reservoir without an inline filter.


• Design Simplicity: By avoiding the use of a case drain filter, the 160C LC sidesteps risks associated with clogging and increased motor pressure. Fewer components also mean less complexity—an advantage for field service.

• Contamination Control Practices:
  • Follow frequent maintenance intervals for hydraulic filter changes as defined in the machine’s service schedule.

  • Maintain a clean work environment and use filtration on the return line, not just at the pump, to ensure oil cleanliness.

  • Monitor fluid contaminants via sampling and analysis to detect early signs of wear.

• Sealing and Motor Protection:
  • Inspect motor seals regularly since unfiltered case drain flow may increase internal wear.

  • Maintain proper hydraulic oil levels and avoid operating under excessive load or heat conditions, which could exacerbate seal wear.


• What’s Present: Standard return line filtration and hydraulic maintenance per the manufacturer’s plan.

• What’s Missing: A dedicated inline case drain filter—commonly seen on some other models but intentionally excluded here.


Introduction
In the world of loader-backhoes, the Case 580SL stands out as a versatile and powerful machine, equipped with a 91 hp turbocharged 4-cylinder engine, a loader hydraulic pump delivering 27.5 gpm, and a backhoe pump providing 37 gpm. A distinctive feature in certain early 580SL models is the so-called Priority Swing. This system gives swing operations hydraulic precedence, affecting performance, efficiency, and fuel use.
Purpose of Priority Swing
As the name suggests, Priority Swing ensures that when you initiate rotation, the swing mechanism—rotating the boom—receives prioritized hydraulic flow from the dual-pump setup. This leads to more robust swing power and smoother operation when utilizing multiple functions simultaneously.
In practical terms, this means the swing function remains responsive even under heavy loads or when other hydraulic circuits are active.
Technical Configuration
The Case 580SL, particularly early models, often feature a tandem hydraulic pump arrangement. One pump may be dedicated directly to the backhoe swing valve, providing immediate hydraulic flow to the swing mechanism. This setup improves swing responsiveness under load but may impact fuel efficiency.
Benefits and Drawbacks
Benefits

• Enhanced swing torque and responsiveness

• Smooth swing performance during simultaneous operations

• Improved handling when precision is required under load


• Noticeable engine labor and higher fuel consumption during swing operations

• Potential for hydraulic circuit complexity and increased maintenance needs

• Some users reported that swing motion noticeably strained the engine when engaged


• Request disable procedure from a dealer if available.

• Evaluate fuel costs versus performance benefits before deciding.

• Have a qualified technician inspect the hydraulic circuit design before modification.

• Consider tuning or recalibrating the relief valves to moderate swing priority rather than fully disabling it.


• Dual hydraulic pump design with one dedicated feed for swing

• Swing valves potentially prioritized through internal porting or spool mechanism

• Engine and pump operation that distributes flow dynamically based on swing demand


• System type: Dual hydraulic pump with swing-priority routing

• Advantage: Stronger, smoother swing under load

• Trade-off: Higher fuel usage and engine load during swing

• Disable option: Potential dealer-offered solution depending on circuit design

• Maintenance note: Requires system-specific planning before modification
