ID：1825761

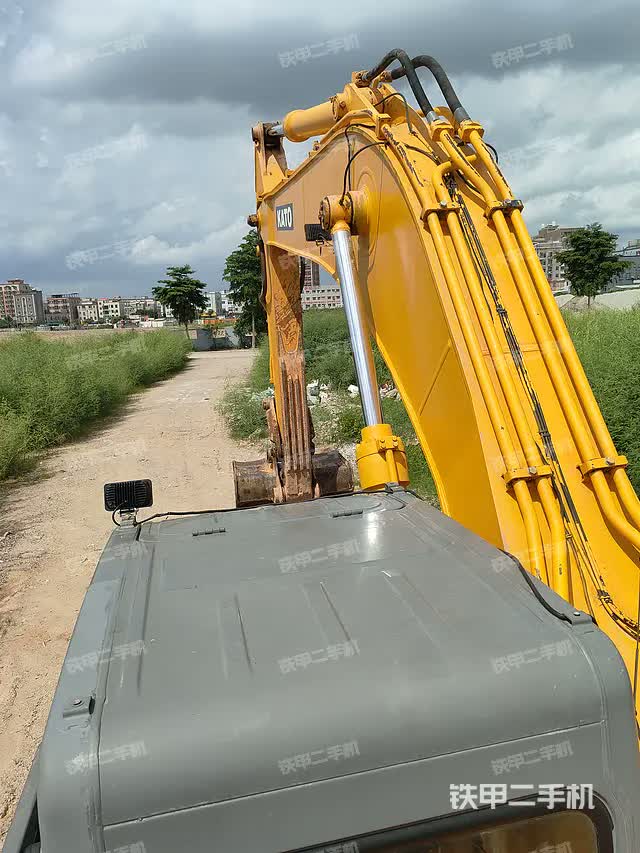

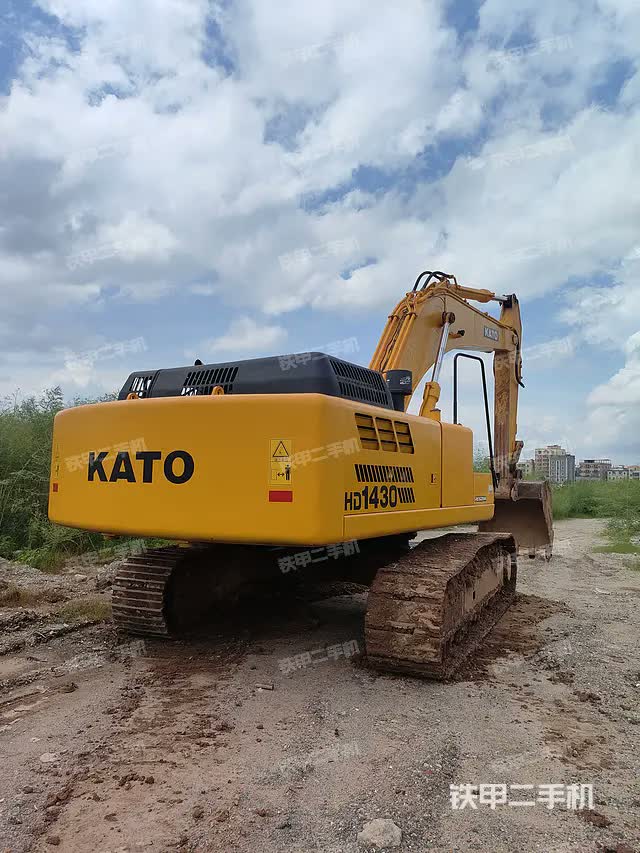

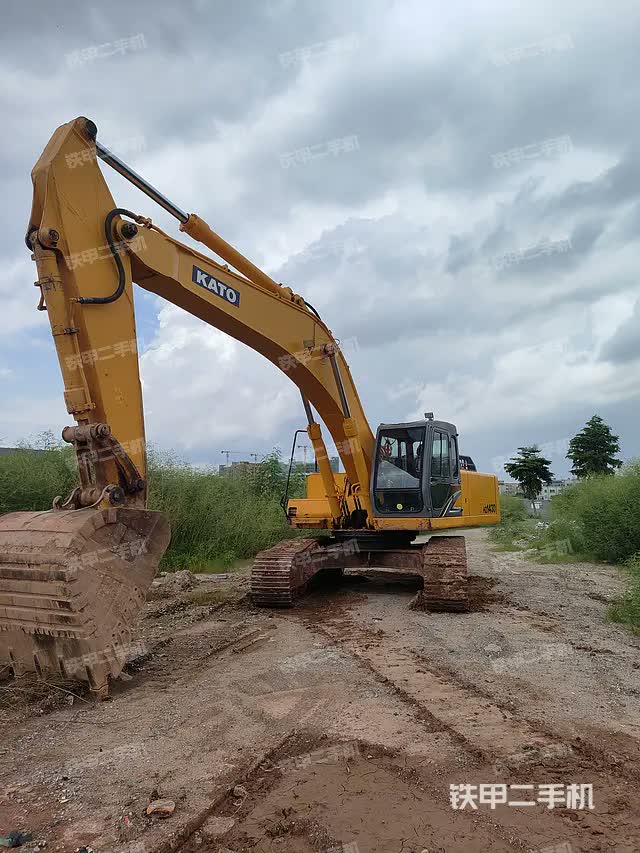

The Kato HD1430-R5, a powerful 30-ton excavator, is built for heavy-duty tasks across various industries, including construction, mining, and earthmoving. The 2017 model, with just 8,300 operating hours, offers excellent performance and reliability. With a robust design, it ensures high productivity in challenging work conditions.
Key Specifications

• Brand: Kato

• Model: HD1430-R5

• Year of Manufacture: 2017

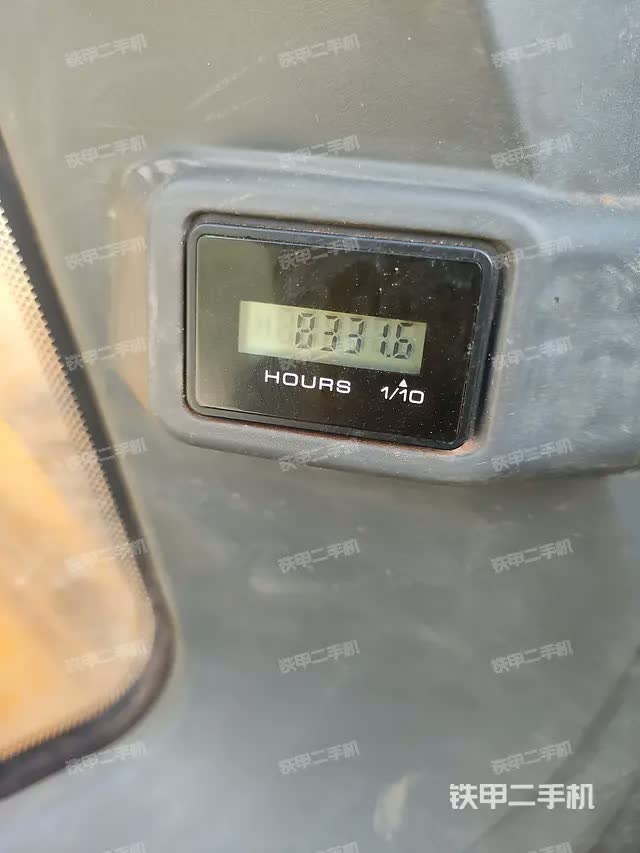

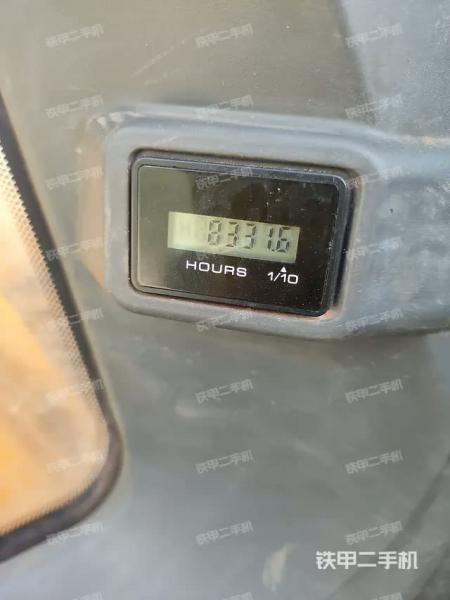

• Operating Hours: 8,300 hours

• Location: Dongguan City, Guangdong, China

• Operating Weight: 31,600 kg

• Bucket Capacity: 1.4 m³

• Bucket Width: 1,290 mm

• Engine: Mitsubishi 6M60-TL

• Engine Power: 183 kW @ 2,150 rpm

• Engine Displacement: 7.54 L

• Torque: 824 Nm @ 1,800 rpm


• Main Pump Flow: 2×307 L/min

• Pump Type: Variable capacity piston pumps (dual main pumps) and gear pump (pilot pump)

• Working Hydraulic Pressure: 31.4/32.9 MPa


• Ground Pressure: 63 kPa

• Swing Speed: 10 rpm

• Bucket Digging Force: 225 kN

• Arm Digging Force: 159 kN


• Fuel Tank Capacity: 660 L

• Hydraulic Oil Tank Capacity: 200 L

• Engine Oil Change Capacity: 33 L

• Coolant Capacity: 45 L

• Hydraulic System Capacity: 405 L


• Transport Length: 11,220 mm

• Transport Width: 3,190 mm

• Transport Height: 3,060 mm

• Minimum Ground Clearance: 500 mm

• Swing Radius: 3,460 mm

• Track Length: 4,650 mm

• Track Gauge: 2,590 mm

• Track Width: 600 mm


• Maximum Digging Radius: 11,190 mm

• Maximum Digging Depth: 7,440 mm

• Maximum Digging Height: 10,420 mm

• Maximum Dumping Height: 7,370 mm

• Maximum Vertical Digging Depth: 6,040 mm




ID：1825753

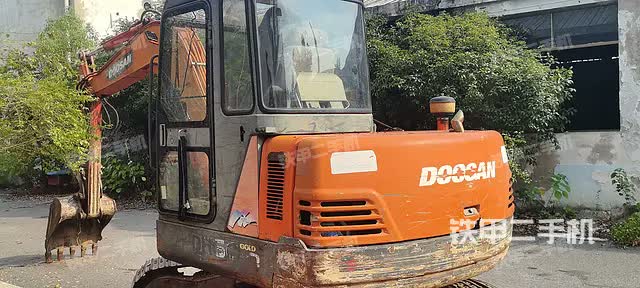

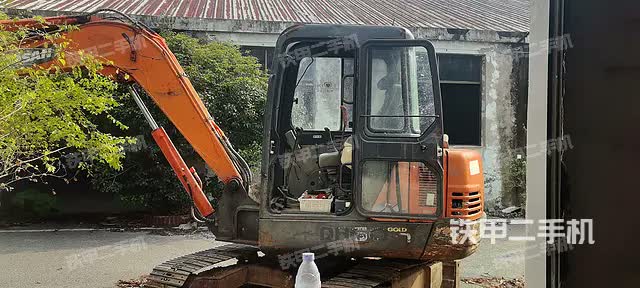

The Daewoo DH55-V is a highly regarded hydraulic excavator that provides reliability and power for various construction and digging applications. Manufactured in 2011, this model comes with a solid build and efficient design that has earned it recognition in the heavy equipment sector. With 9,752 operating hours, the machine has proven itself on multiple projects, offering both durability and consistent performance.
Key Specifications
Manufacturer: Daewoo
Model: DH55-V
Year of Manufacture: 2011
Operating Hours: 9,752
Location: Changsha, Hunan Province, China
Weight Class: 5 tons
The DH55-V is classified as a mid-sized hydraulic excavator, suitable for various tasks, from digging trenches to lifting heavy materials. Its 5-ton weight ensures a balance between lifting capacity and maneuverability, making it an excellent option for both large and small job sites.
Power System and Engine
The excavator operates with a traditional engine system, which provides robust performance for heavy-duty tasks. The engine offers good fuel efficiency, making it an ideal choice for long-term operations. While specific horsepower and engine details are not listed, typical Daewoo hydraulic excavators of this size often use engines capable of delivering sufficient power for efficient digging and lifting.
Hydraulic System
The hydraulic system of the DH55-V is designed to handle tough digging conditions. Its hydraulic components are built to support heavy workloads while maintaining precise control. This feature ensures that the machine can perform delicate tasks such as grading or fine trenching while still being capable of handling large-scale excavation tasks.
Performance Features
Bucket Type: The excavator is equipped with a backhoe bucket, making it ideal for trenching, material handling, and other earth-moving operations. This attachment provides strong digging force and is versatile enough for a variety of digging conditions.
Weight: At 5 tons, the DH55-V provides a good combination of lifting capacity and operating efficiency. This weight allows the excavator to be stable on various terrains while maintaining mobility for easy transportation between job sites.
Design and Durability
One of the key selling points of the Daewoo DH55-V is its durable construction and efficient hydraulic system. As a product of Daewoo Heavy Industries, known for producing quality machinery, the DH55-V maintains the reputation for longevity and minimal maintenance. The design also incorporates a user-friendly cabin with ergonomic controls, ensuring operator comfort and ease of use during extended shifts.
Common Applications
The Daewoo DH55-V is versatile and well-suited for a range of tasks, including:

• Construction Projects: Ideal for roadwork, foundation digging, and building demolition.

• Landscaping: Suitable for digging ditches, grading, and preparing sites for landscaping.

• Utility Installation: Efficient for trenching when installing pipelines, cables, or other underground utilities.




ID：1825740

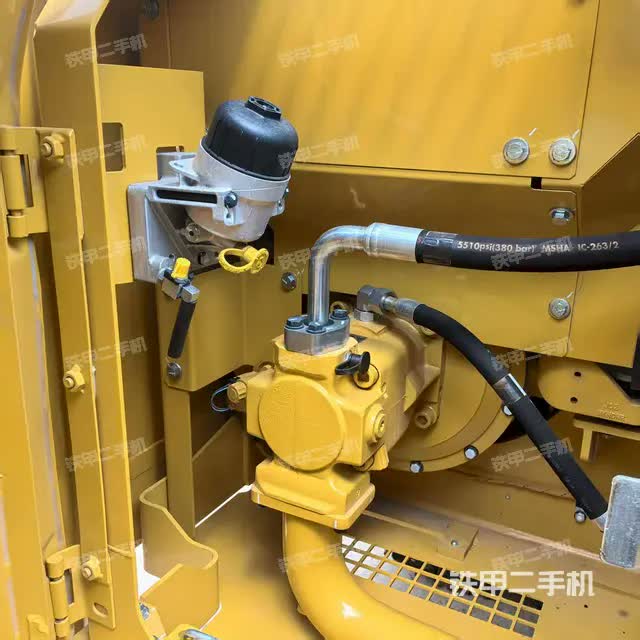

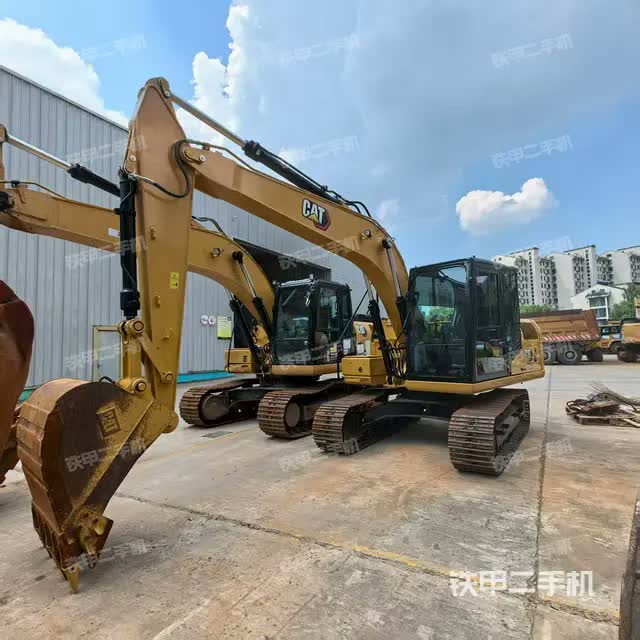

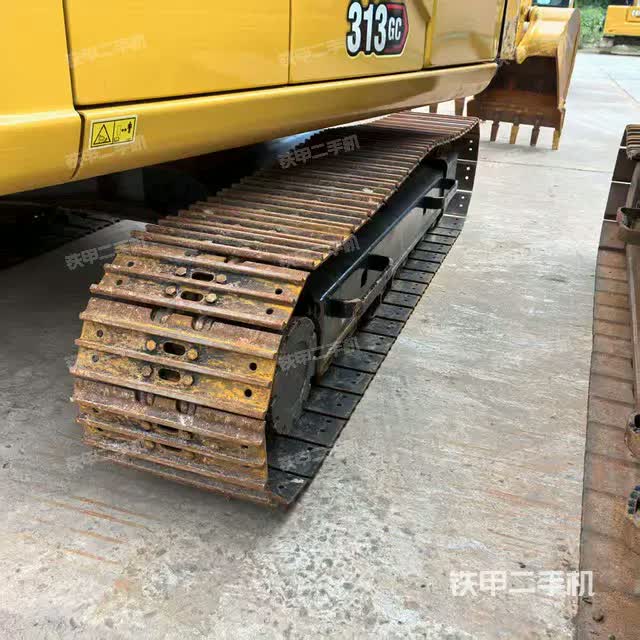

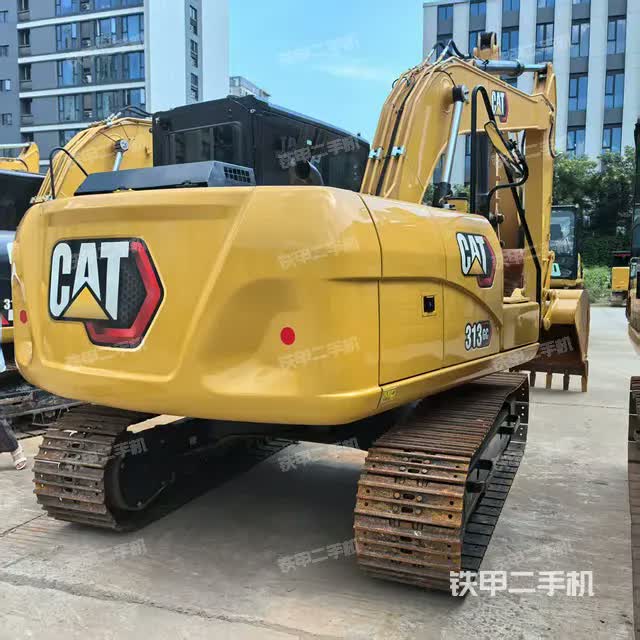

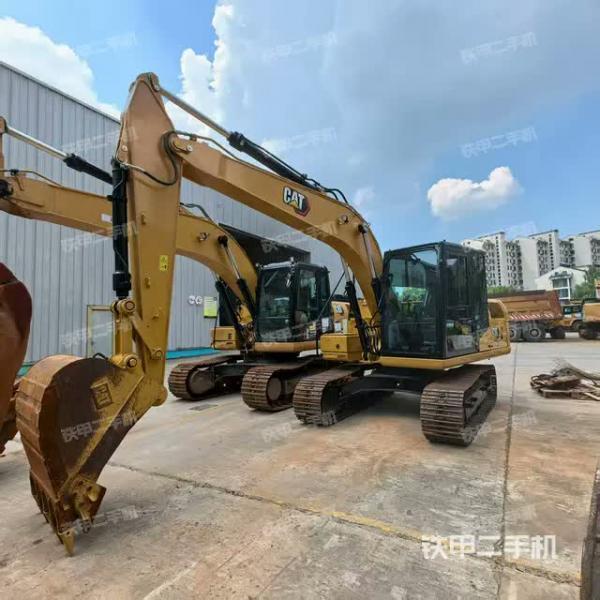

The Caterpillar CAT®313 GC is a new-generation hydraulic excavator designed to offer a blend of performance, efficiency, and reliability. Released in 2025, this model is a modern take on the traditional hydraulic excavator, meeting stringent environmental standards while delivering impressive power. Let's explore the specifications, performance, and operational details of this machine, which is ideal for a wide variety of construction and excavation applications.
Basic Information

• Brand: Caterpillar

• Model: New Generation CAT®313 GC

• Year of Manufacture: 2025

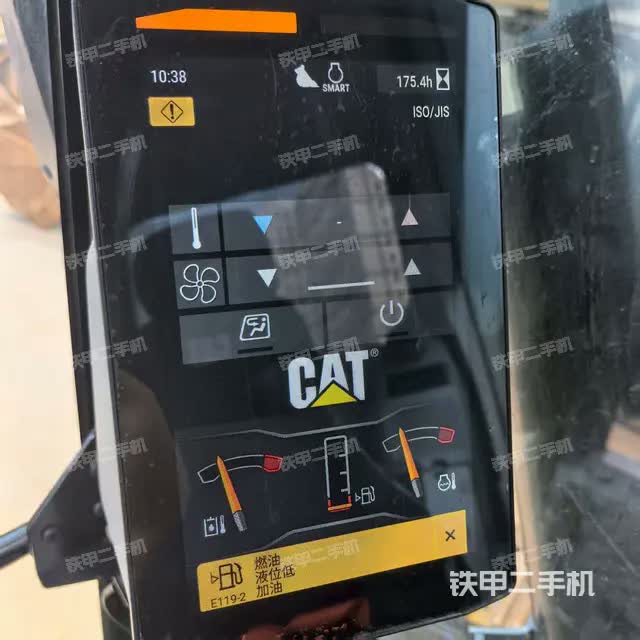

• Operating Hours: 175 hours

• Location: Anhui, Hefei, China

• Price: $48,876


• Operating Weight: 12,400 kg (13 tons)

• Bucket Capacity: 0.53 m³ (GD)

• Arm Length: 4650 mm

• Stick Length: 2500 mm

• Power Source: Diesel fuel

• Manufacturer: Joint venture/Imported

• Bucket Type: Backhoe

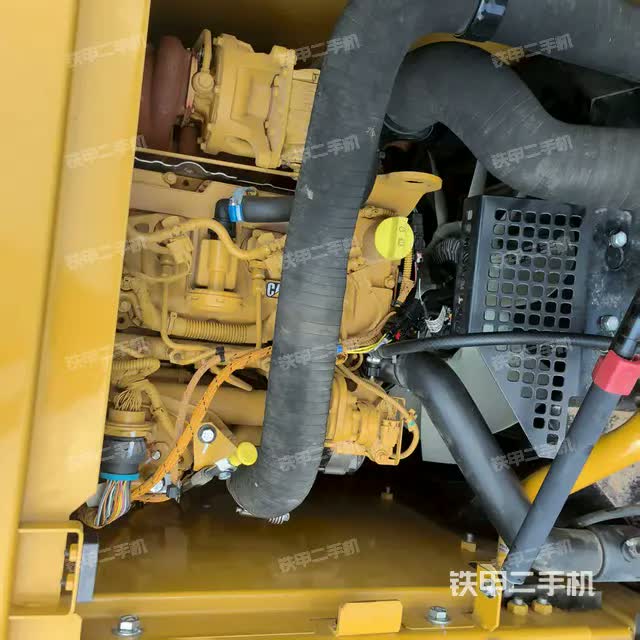

• Engine Model: Cat® C3.6

• Rated Power: 74.4 kW at 2200 rpm

• Bore x Stroke: 98 mm x 120 mm

• Displacement: 3.6 L

• Emissions Standard: China IV (Euro IV equivalent)


• Main Pump Maximum Flow: 247 l/min

• Travel Hydraulic Circuit Pressure: 35 MPa

• Swing Hydraulic Circuit Pressure: 25.9 MPa

• Working Hydraulic Circuit Pressure: 35 MPa


• Bucket Cylinder: 1 x 95 mm x 939 mm

• Stick Cylinder: 1 x 115 mm x 1197 mm

• Boom Cylinder: 2 x 105 mm x 1015 mm


• Swing Speed: 11.5 rpm

• Bucket Digging Force: 95.7 kN

• Stick Digging Force: 68.2 kN

• Swing Torque: 43 kNm

• Travel Speed: 0 - 5.7 km/h


• Fuel Tank Capacity: 237 L

• Hydraulic Tank Capacity: 77 L

• Engine Oil Change Volume: 11 L

• Coolant Capacity: 11 L

• Hydraulic System Capacity: 145 L


• Transport Length: 7700 mm

• Transport Width: 2490 mm

• Transport Height: 2780 mm

• Ground Clearance: 420 mm

• Rear Swing Radius: 2200 mm

• Track Length: 3480 mm

• Track Gauge: 1990 mm

• Track Pad Width: 500 mm


• Maximum Digging Radius: 8210 mm

• Maximum Digging Depth: 5570 mm

• Maximum Digging Height: 8530 mm

• Maximum Unloading Height: 6070 mm

• Maximum Vertical Digging Depth: 5040 mm

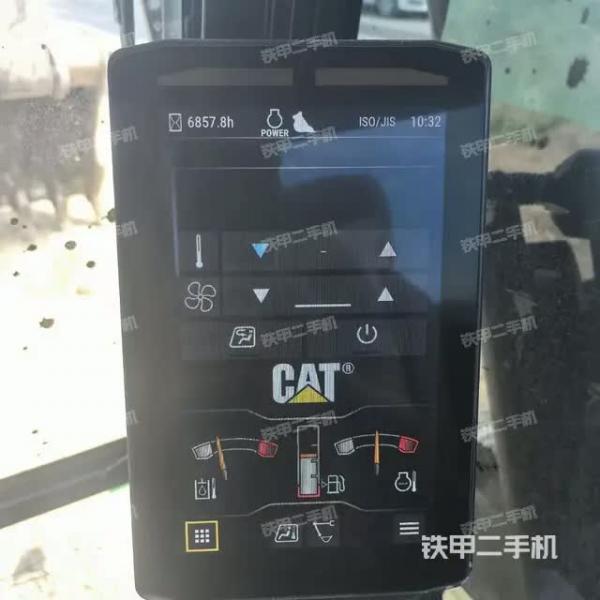

ID：1825739

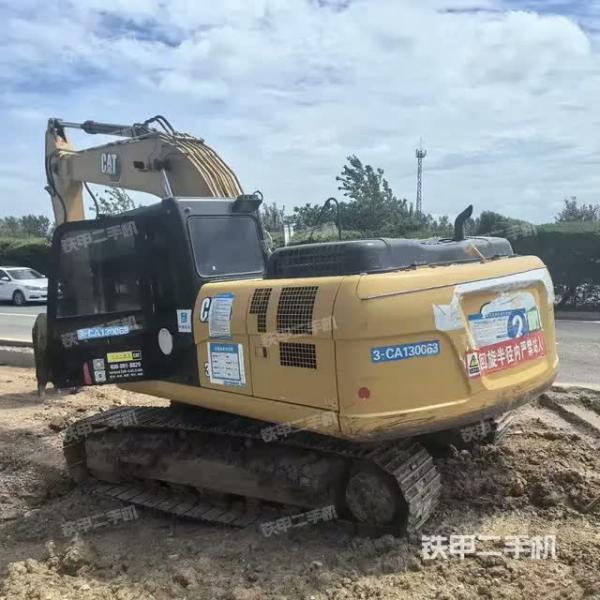

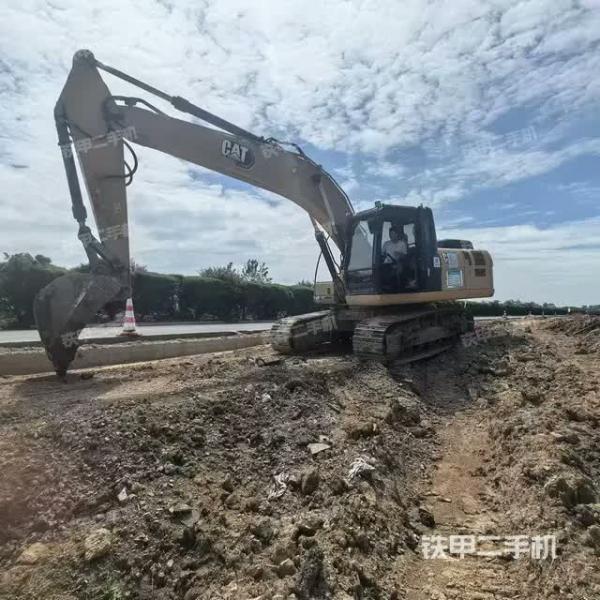

The Caterpillar CAT®320 GX is a prominent model in the hydraulic excavator series, designed to offer an optimal combination of performance, durability, and fuel efficiency. Launched in 2021, this machine continues the legacy of Caterpillar's renowned hydraulic excavators, providing a robust solution for heavy-duty operations across various industries.
Basic Specifications

• Brand: Caterpillar

• Model: CAT®320 GX

• Year of Manufacture: 2021

• Operating Hours: 6,857 hours

• Location: Anhui, Hefei City, China

• Operating Weight: 19,800 kg

• Bucket Capacity: 0.93 m³

• Engine: Cat® C4.4 with a rated power of 110 kW at 2000 rpm

• Fuel: Diesel

• Excavator Type: Backhoe


• Ground Pressure: 45.5 kPa

• Rotation Speed: 11.07 rpm

• Climbing Ability: 70% (35° slope)

• Bucket Digging Force: 136 kN

• Arm Digging Force: 106 kN

• Maximum Traction Force: 201 kN

• Walking Speed: 0 - 5.7 km/h

• Swing Torque: 74 kNm


• Main Pump Maximum Flow: 429 l/min

• Travel Hydraulic Circuit Pressure: 35 MPa

• Swing Hydraulic Circuit Pressure: 25 MPa

• Work Hydraulic Circuit Pressure: 35 MPa

• Bucket Cylinder (No. × Diameter × Stroke): 1 × 115 × 1104 mm

• Arm Cylinder (No. × Diameter × Stroke): 1 × 135 × 1504 mm

• Boom Cylinder (No. × Diameter × Stroke): 2 × 120 × 1260 mm


• Fuel Tank Capacity: 390 L

• Hydraulic Oil Tank Capacity: 115 L

• Engine Oil Change Volume: 15 L

• Coolant Capacity: 24.5 L

• Hydraulic System Oil: 218 L


• Total Transport Length: 9,570 mm

• Total Transport Width: 2,800 mm

• Total Transport Height: 2,950 mm

• Cab Height: 2,950 mm

• Minimum Ground Clearance: 460 mm

• Rear Swing Radius: 2,830 mm

• Track Length: 4,080 mm

• Track Gauge: 2,200 mm

• Track Pad Width: 600 mm

• Number of Track Rollers (per side): 2

• Number of Idlers (per side): 7

• Number of Track Pads (per side): 45

• Counterweight Ground Clearance: 1,040 mm


• Maximum Digging Radius: 9,580 mm

• Maximum Digging Depth: 6,430 mm

• Maximum Digging Height: 9,290 mm

• Maximum Dumping Height: 6,450 mm

• Maximum Vertical Digging Depth: 5,510 mm


• Excavation: Efficient in digging trenches, foundations, and deep holes.

• Demolition: Capable of breaking down buildings and other structures.

• Mining: Suitable for digging and material handling in mining operations.

• Landscaping and Roadwork: Used for grading, leveling, and preparing land.




ID：1825731

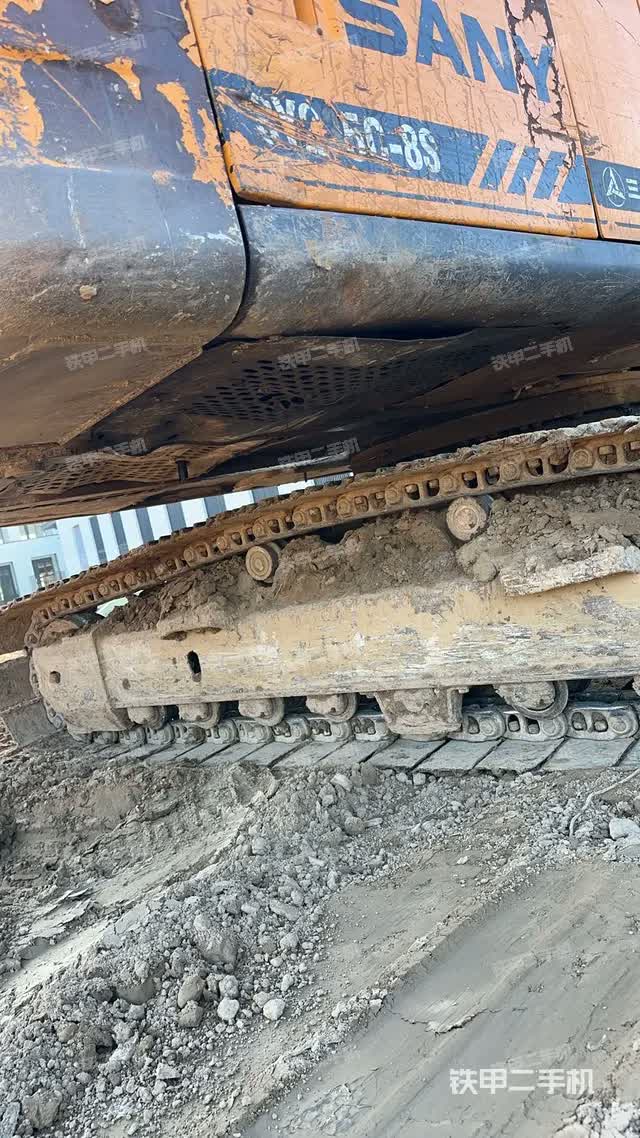

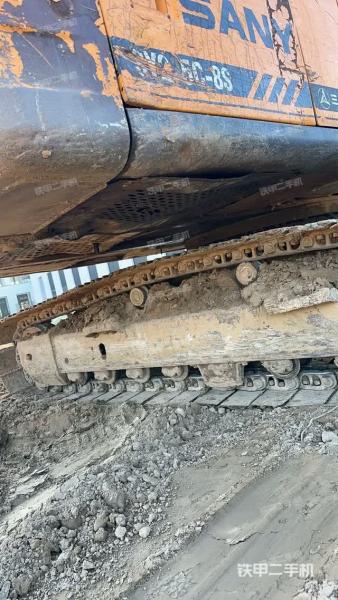

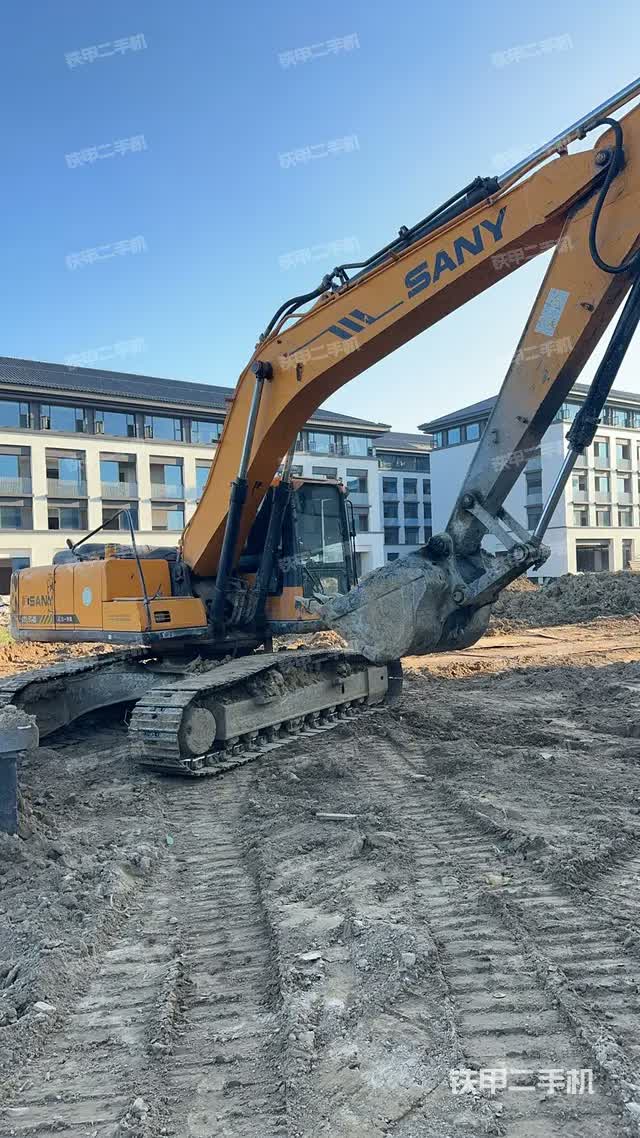

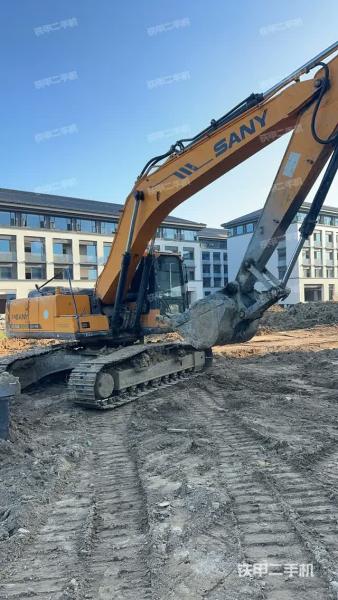

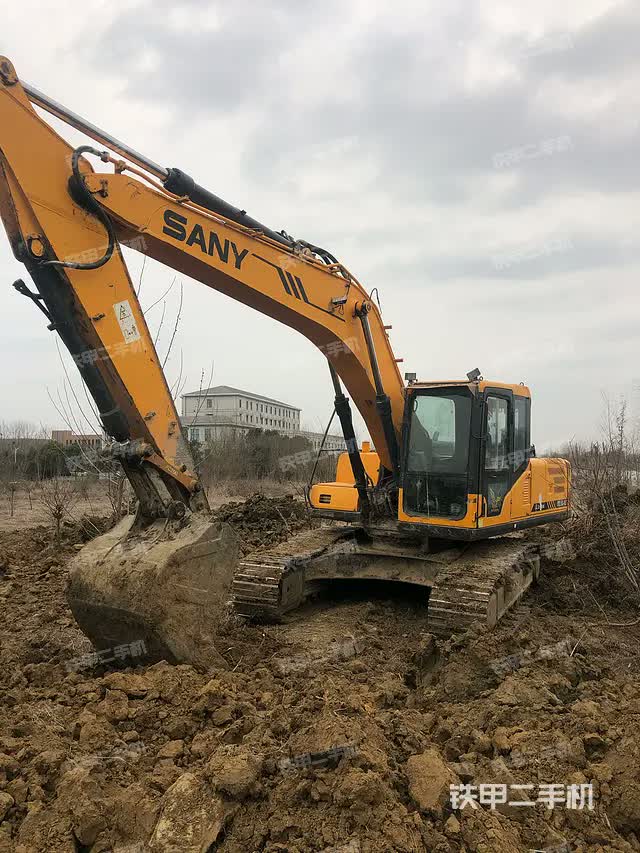

The SANY SY215C-8S is a powerful and efficient mid-sized crawler excavator that has become a popular choice for construction and mining projects. Introduced in 2012, this machine boasts robust capabilities designed to meet the demands of heavy-duty digging, lifting, and earth-moving tasks. With a powerful engine and efficient hydraulic system, the SY215C-8S is a proven performer on job sites around the world. This model, with over 16,000 operating hours, continues to be a reliable machine for operators seeking high performance and long-term durability.
Brand and Model: SANY SY215C-8S

• Brand: SANY Heavy Industry (三一重工)

• Model: SY215C-8S

• Year of Manufacture: 2012

• Operating Hours: 16,000 hours

• Location: Huai'an City, Jiangsu Province, China


• Weight: 21 tons

• Operating Weight: 20,900 kg

• Bucket Capacity: 0.93 m³

• Engine: Mitsubishi 6D34-TL, 114 kW at 2,050 rpm

• Cooling System: Water-cooled

• Engine Displacement: 5.861 L

• Power: 114 kW (154 hp)

• Bucket Digging Force: 138 kN

• Arm Digging Force: 100 kN


• Main Pump Maximum Flow: 2×210 L/min

• Main Relief Pressure: 34.3 MPa

• Hydraulic Pressure for Travel Circuit: 34.3 MPa

• Hydraulic Pressure for Swing Circuit: 25.5 MPa

• Control Pressure: 3.9 MPa


• Ground Pressure: 45 kPa

• Rotation Speed: 11 rpm

• Climbing Ability: 70% (35° incline)

• Travel Speed: 5.5 km/h (high speed), 3.2 km/h (low speed)

• Max Digging Depth: 6,630 mm

• Max Digging Radius: 9,885 mm

• Max Dump Height: 6,475 mm

• Max Vertical Digging Depth: 5,980 mm


• Total Transport Length: 9,395 mm

• Total Transport Width: 2,980 mm

• Total Transport Height: 2,955 mm

• Cab Height: 2,990 mm

• Ground Clearance: 440 mm

• Front Attachment Minimum Swing Radius: 3,630 mm

• Rear Swing Radius: 2,750 mm

• Track Length: 4,250 mm

• Track Gauge: 2,380 mm

• Track Width: 600 mm

• Total Track Width: 2,980 mm

• Track Ground Length: 3,445 mm




ID：1825728

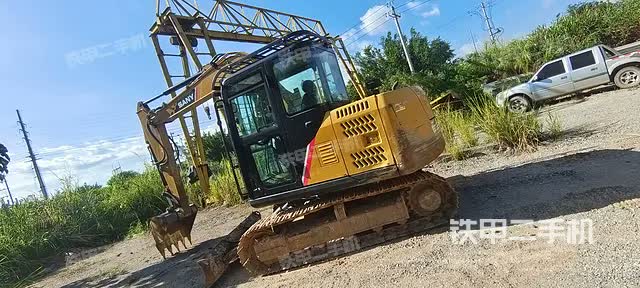

The SANY SY85C is a robust, modern excavator that exemplifies the advancement of Chinese construction equipment. With cutting-edge technology and exceptional operational capacity, the SY85C is a well-regarded machine in its category. This model, manufactured by SANY Heavy Industry, has gained popularity due to its efficient performance, fuel efficiency, and impressive features suitable for various construction and excavation applications.
Basic Information of the SANY SY85C Excavator

• Brand: SANY Heavy Industry

• Model: SY85C

• Manufacture Year: 2022

• Operating Hours: 1,384 hours

• Location: Longyan City, Fujian, China

• Price: $25,000


• Operating Weight: 8,500 kg (8.5 tons)

• Bucket Capacity: 0.34 m³

• Power Source: Traditional diesel engine

• Type of Bucket: Backhoe bucket

• Manufactured By: SANY Heavy Industry, China

• Track Length: 450 mm

• Track Width (Single Side): 41 individual plates


• Engine Model: Kubota V3800DI-T

• Rated Power: 60.7 kW at 2,200 rpm

• Max Torque: 305.4 Nm at 1,600 rpm

• Engine Displacement: 3.769 L

• Cooling System: Water-cooled engine with a turbocharger for enhanced performance.


• Ground Pressure: 36 kPa, ideal for minimizing damage to softer soils and allowing better mobility on sensitive surfaces.

• Swing Speed: 11.2 rpm, ensuring smooth rotation for precise maneuvering.

• Climbing Ability: Capable of climbing slopes up to 70% (approximately 35°), making it well-suited for challenging terrains.

• Bucket Digging Force: 63.6 kN, which provides the force needed for heavy digging operations.

• Arm Digging Force: 46.8 kN, enabling the machine to tackle tough materials with ease.

• Travel Speed: 5.0 km/h for high-speed movement and 2.9 km/h in low-speed mode for more controlled, precise tasks.


• Fuel Tank: 160 liters, offering a sufficient operational range before refueling is required.

• Hydraulic Oil Tank: 120 liters, ensuring optimal hydraulic performance.

• Engine Oil Change Volume: 12 liters, ensuring regular maintenance intervals.

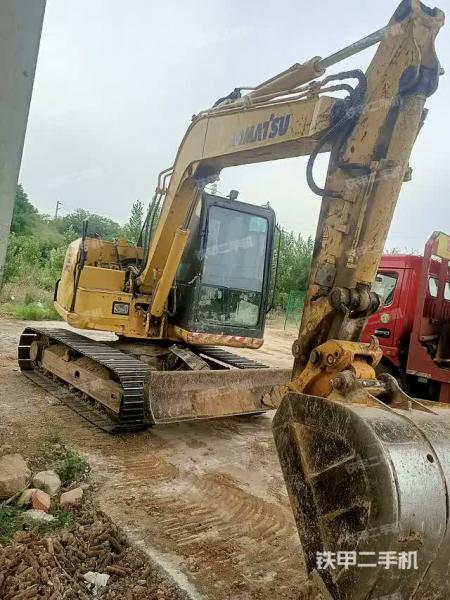

ID：1825724

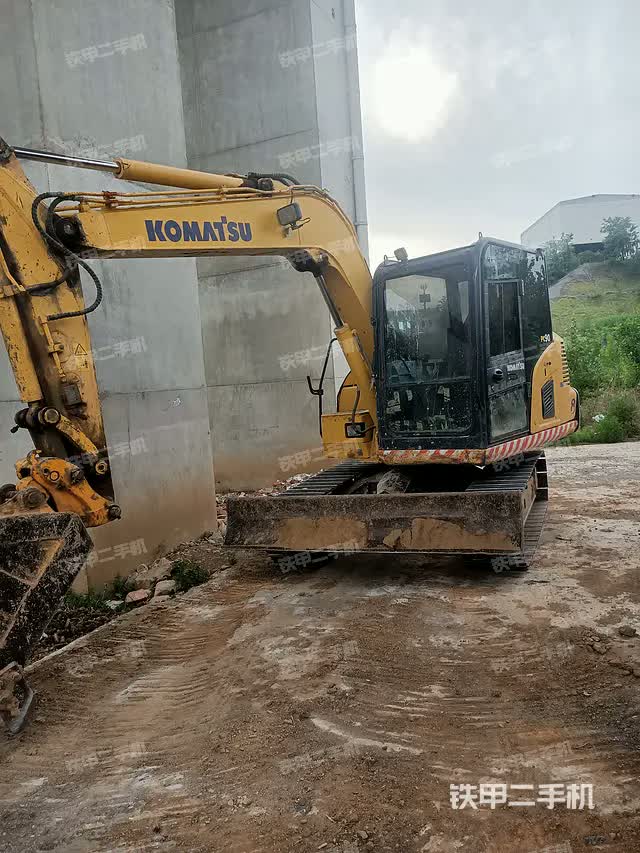

The Komatsu PC60-8B, launched in 2019, is a compact, highly versatile crawler excavator that has gained popularity for its performance, durability, and efficiency in a range of construction and excavation projects. With a gross weight of approximately 6 tons, this machine is designed for medium-duty operations such as trenching, earthmoving, and light digging. In this article, we will explore the key features, specifications, and performance metrics of the Komatsu PC60-8B, along with tips for maximizing its operational efficiency.
General Overview
The Komatsu PC60-8B is part of the renowned Komatsu lineup, known for its reliable heavy equipment. This model is particularly designed for construction environments that require a balance between mobility, power, and precision. Featuring a traditional power system, the PC60-8B combines performance with fuel efficiency and ease of maintenance, making it a favorite among operators and fleet managers.
Key Specifications

• Operating Weight: 6,180 kg

• Engine Model: Komatsu SAA4D95LE-5

• Rated Power: 40.7 kW at 1,950 rpm

• Engine Type: Water-cooled, turbocharged

• Displacement: 3.26L

• Bucket Capacity: 0.25m³

• Main Hydraulic System: No standard hydraulic breaker circuit

• Maximum Digging Radius: 6,190 mm

• Maximum Digging Depth: 3,900 mm

• Maximum Digging Height: 7,030 mm

• Maximum Dump Height: 4,925 mm

• Travel Speed: 2.8 - 4.5 km/h


• Bucket Digging Force: 54.8 kN

• Arm Digging Force: 39.8 kN


When it comes to finish grading, the equipment used plays a crucial role in achieving precision, speed, and overall quality of the work. Short-frame dozers, like the Caterpillar D3, D4, or Komatsu D31, are popular for finish work due to their agility, maneuverability, and ability to operate in confined spaces. However, the unique design of short-frame dozers comes with both advantages and challenges, especially when performing fine-grade work. This article delves into the specifics of using short-frame dozers for finish work and provides valuable insights on how to get the most out of these machines.
Advantages of Short-Frame Dozers for Finish Work
Short-frame dozers, which are characterized by their compact size and reduced track length, are well-suited for finish grading in a variety of conditions. Some of the primary benefits of using short-frame dozers in finish work include:

1. Maneuverability: The shorter track and overall smaller frame provide exceptional maneuverability. This is especially beneficial when working in tight spaces or areas with limited access, such as around buildings, curbs, or other infrastructure.

2. Precision: Due to the compact design, these dozers allow operators to achieve more precise control over the blade, making them ideal for fine grading tasks.

3. Versatility: Short-frame dozers are versatile enough to handle multiple tasks, from rough grading to detailed finish work. Their ability to work in a variety of soil types and conditions adds to their value in finish-grade operations.

4. Improved Visibility: Operators benefit from better visibility with short-frame dozers. The reduced size allows for easier viewing of the work area, which helps in creating smoother surfaces and maintaining tight tolerances.


1. Less Stability on Steep Slopes: Due to their shorter frames, these dozers can be less stable on steep or uneven slopes compared to larger, long-frame machines. Stability issues may arise when grading on inclines, making it harder to maintain consistent blade depth.

2. Reduced Traction: Short-frame dozers typically have less track contact area than their larger counterparts. While they perform well on relatively flat terrain, they may struggle with traction in loose or wet soil conditions.

3. Limited Blade Lift: In some cases, short-frame dozers may have a smaller blade lift height, limiting the amount of material that can be moved in one pass. This can slow down progress during rough grading or when moving large quantities of earth.

4. Shorter Reach: The reduced track length limits the reach of the dozer's blade, which can make it more difficult to cover large areas efficiently in certain applications.


• Make Small Adjustments: Use small, controlled adjustments to the blade to maintain a consistent grade. This is especially important in fine-grade work, where a few millimeters can make a significant difference in the final result.

• Use the Right Blade Position: Always keep the blade at the right angle to avoid overcutting or undercutting the material. Operators should maintain a slight angle to the ground for smooth, controlled cuts.

• Consider Blade Type: Using the right blade attachment, such as a straight or semi-U blade, can improve precision and allow the operator to tailor their work to the specific requirements of the project.


• Distribute Weight Properly: Ensure the machine's weight is evenly distributed to prevent excessive wear on one side and maintain balanced traction.

• Use Differential Lock: Engage the differential lock when working in challenging conditions to ensure both tracks receive power, which helps improve traction and prevent the machine from getting stuck.

• Avoid Sharp Turns on Slopes: Turning sharply on inclines can lead to traction loss and machine instability. Slow, gradual turns are recommended to maintain control.


• Soil Type: When working with loose or uneven soil, consider using a lower gear to maintain control over the machine. Conversely, on firm surfaces, a higher gear may be more effective for increased speed.

• Moisture Levels: If the ground is excessively wet, use caution, as short-frame dozers are more prone to slipping and losing traction. In dry conditions, these machines perform much better, especially when compacting soil.


• Divide the Work into Sections: Break the grading task into manageable sections to ensure precision in each pass. Focus on smaller areas where the dozer’s agility can be used to its advantage.

• Use Overlapping Passes: When performing finish grading, overlap each pass slightly to avoid leaving low spots or uneven surfaces. This helps achieve a smoother, more consistent final grade.


• Track Tension: Keeping the track tension properly adjusted will prevent excessive wear and slippage. Check track tension regularly, especially when working in soft ground.

• Hydraulic System: Ensure the hydraulic system is operating smoothly, as hydraulic fluid pressure impacts blade control and maneuverability. Regular fluid checks and filter changes are essential for maintaining operational efficiency.


The front crankshaft seal in diesel engines, such as the Isuzu 6WG1, plays a crucial role in preventing oil leaks and ensuring the proper functioning of the engine. The process of replacing or installing this seal can be challenging, as improper installation can lead to costly repairs or performance issues. One of the most important aspects of this task is using the right tools, especially when it comes to the specialized tool designed for front crank seal installation.
Understanding the Role of the Front Crankshaft Seal
The front crankshaft seal, located at the front of the engine, serves as a barrier to prevent oil from leaking out of the engine. It helps maintain proper oil pressure and lubrication by sealing the gap between the crankshaft and the engine block. This seal is subjected to high pressure, heat, and movement, making it an essential component for the longevity and performance of the engine.
Over time, the seal can wear out or become damaged, leading to oil leaks, which, if left unaddressed, could result in serious engine damage. The replacement of the front crankshaft seal is often necessary as part of routine maintenance or when a problem is detected, such as oil leakage or engine performance issues.
The Importance of a Special Tool for Installation
Installing the front crank seal requires precision and care to avoid damaging the new seal or the surrounding components. One of the most commonly used tools for this installation is a special tool that helps align and press the seal into place without causing damage.
The special tool for front crank seal installation is designed to ensure that the seal is installed squarely and evenly. The tool applies consistent pressure to the seal while keeping it aligned with the crankshaft, which prevents any distortion that could compromise the seal’s effectiveness.
Using a special tool is crucial because improper installation of the crankshaft seal can cause it to fail prematurely, leading to oil leaks. Over time, these leaks can result in low oil levels, which can cause damage to engine components due to insufficient lubrication. Additionally, without the proper installation tool, it can be difficult to achieve the necessary torque or pressure, increasing the risk of damaging the engine block or other related parts.
Steps for Installing the Front Crankshaft Seal
Here’s an overview of the general process for replacing or installing the front crankshaft seal on an Isuzu 6WG1 engine. Although the specific steps may vary slightly depending on the exact model and configuration of the engine, the overall process is similar for most diesel engines.

1. Preparation:
   • Before starting, ensure the engine is off and has cooled down. It is also important to disconnect the battery to avoid any electrical issues during the process.

   • Drain the engine oil to prevent spillage during the installation process. This step may not always be necessary, but it’s good practice to ensure the area is clean.

2. Remove Components:
   • To access the front crankshaft seal, several components may need to be removed, such as the timing cover, pulleys, belts, and possibly the harmonic balancer. This can involve using a variety of standard tools such as wrenches, socket sets, and pry bars.

3. Inspect the Crankshaft:
   • Before installing the new seal, thoroughly inspect the crankshaft where the seal will sit. Look for any damage, scoring, or excessive wear. If any issues are found, the crankshaft may need to be repaired or replaced.

   • Clean the area around the crankshaft to remove any debris, oil, or dirt.

4. Install the Special Tool:
   • The special tool designed for front crank seal installation will help guide the seal into place without damaging the edges. Carefully align the tool with the crankshaft and the new seal, making sure the seal is positioned correctly.

   • Once aligned, use the tool to apply even pressure to the seal, pressing it into its housing. This ensures that the seal sits flush and properly aligned.

5. Reassemble the Engine:
   • Once the seal is securely in place, reverse the disassembly process to reassemble the engine components, such as the timing cover, pulleys, belts, and harmonic balancer.

   • Be sure to torque all bolts to the manufacturer’s specifications to prevent any issues with engine operation.

6. Refill Engine Oil:
   • After reassembling the components, refill the engine with fresh oil. This will help ensure proper lubrication when the engine starts.

7. Test the Installation:
   • Start the engine and check for any signs of oil leakage around the crankshaft seal. If the installation was successful, there should be no leaks, and the engine should run smoothly.


1. Seal Misalignment:
   • If the seal is misaligned, it may not properly seal the crankshaft, leading to oil leakage. To avoid this, use the special tool to ensure the seal is installed evenly and securely.

2. Damaging the Crankshaft:
   • The crankshaft is a critical component, and any damage to it during installation can lead to serious issues. Always inspect the crankshaft for damage before installing the seal, and use the special tool to prevent any unnecessary force on the crankshaft.

3. Incorrect Seal Installation:
   • If the seal is not seated properly, it may not function as intended. This can lead to leaks and engine damage over time. Ensure that the seal is pressed evenly and seated fully into its housing using the special tool.


The 993K and Caterpillar’s Heavy-Duty Heritage
The Caterpillar 993K wheel loader is one of the largest production loaders ever built, designed specifically for high-volume mining and quarry operations. Introduced in the mid-2000s, the 993K was developed to fill the gap between the 992K and the massive 994K, offering a balance of bucket capacity, breakout force, and fuel efficiency for operations that demand relentless productivity.
Caterpillar, founded in 1925, has long dominated the heavy equipment sector with its emphasis on durability, dealer support, and modular design. The 993K reflects this philosophy, integrating advanced hydraulics, operator comfort, and structural strength into a machine capable of handling 100-ton trucks with ease.
Specifications and Performance Metrics
The 993K is powered by a Cat C32 ACERT diesel engine, delivering up to 950 horsepower. Its operating weight exceeds 294,000 lbs (133,000 kg), and it can carry a bucket ranging from 16 to 20 cubic yards depending on material density and configuration.
Key performance figures:

• Breakout force: Over 200,000 lbs

• Hydraulic cycle time: Approximately 10 seconds

• Fuel tank capacity: 1,000 gallons

• Payload match: Designed for 100-ton haul trucks


• Isolation-mounted structure to reduce vibration

• Climate control for extreme environments

• Joystick steering and fingertip hydraulic controls

• Integrated payload monitoring systems

• Rearview camera and radar for enhanced visibility


• Ground-level access to filters and fluid ports

• Modular radiator and cooling packages

• Centralized lubrication points

• Onboard diagnostics and fault logging
