What Makes a Good Battery Choice
Selecting a battery for dozers, excavators, loaders, skid steers, or generators starts with matching how the machine is used. Short, hot starts a few times per day favor high cold-cranking amps; long idling with high accessory loads benefits from deeper reserve capacity; severe vibration and dust push you toward rugged, sealed designs. Think of the decision as balancing four levers: starting power, endurance, durability, and serviceability.
Key Specs You Must Get Right

• Voltage and Layout
  • Most modern machines use 12 V systems; older machines and large diesels may use 24 V (two 12 V in series).

  • Match terminal orientation and hold-down style to the tray to avoid cable strain.

• Size Group
  • Use the OEM BCI group (e.g., 31, 27, 34/78). Group 31 is common in heavy equipment.

• Cold-Cranking Amps (CCA)
  • Diesel starters are hungry; typical heavy equipment needs 900–1,150 CCA per 12 V battery. Cold climates can justify 1,200 + CCA.

• Reserve Capacity (RC)
  • For machines with lights, HVAC blowers, DEF heaters, telematics, and long idle, target 180–240 minutes RC in a Group 31 footprint.

• Vibration Rating
  • Look for batteries advertised as Vibration Resistant or with cycle-life testing on SAE J930 equivalents. Track machines and skid steers are especially punishing.

• Operating Temperature
  • Heat shortens battery life; if ambient regularly exceeds 35 °C, sealed/AGM designs typically outlast flooded cells.

• Service Regime
  • Remote sites with limited maintenance benefit from sealed designs; shops with PM routines can leverage flooded batteries to save cost.


• Flooded Lead-Acid (FLA)
  • Pros: Lowest cost, easy to jump-start, tolerant of alternator ripple.

  • Cons: Needs water topping, can vent acid mist, sensitive to vibration and tilted mounting.

  • Best for: Low budget, easy access for maintenance, mild climates.

• AGM Lead-Acid (Absorbed Glass Mat)
  • Pros: Sealed, spill-proof, high CCA, excellent vibration resistance, lower self-discharge, charges faster.

  • Cons: Higher price; must be charged at correct voltage (typically 14.4–14.7 V).

  • Best for: High-vibration machines, cold starts, start-stop fleets, rental equipment.

• Gel Lead-Acid
  • Pros: Good deep-cycle ability and shock absorption.

  • Cons: Lower peak current vs. AGM; easily damaged by high charging voltage.

  • Best for: Low-current, steady loads (gensets, manlifts) rather than heavy cranking diesels.

• EFB (Enhanced Flooded Battery)
  • Pros: Middle ground—improved cycle life and vibration resistance over FLA at a modest premium.

  • Cons: Not as robust as AGM.

  • Best for: Mixed duty with frequent idling and moderate vibration.

• LiFePO₄ (Lithium Iron Phosphate)
  • Pros: Very light, deep-cycle friendly, stable chemistry, high cycle count.

  • Cons: Expensive, needs BMS, weaker cold-cranking below 0 °C, alternator compatibility and charging profile must be engineered.

  • Best for: Specialty or auxiliary house loads; rarely ideal as primary cranking batteries on standard charging systems.


• 24 V Systems: Two matched 12 V in series. Replace as a pair; mixing ages creates imbalance and early failure.

• Increased Capacity: Two 12 V in parallel doubles RC while keeping 12 V. Use identical model and age with equal-length cables.

• Isolation: For machines with heavy accessories, consider a dual-battery with isolator so the starter battery stays full.


• Alternator Output
  • Verify alternator setpoint with a DMM. FLA/EFB: 14.2–14.4 V hot. AGM: 14.4–14.7 V. Gel: 13.8–14.1 V.

  • Undervoltage sulfates plates; overvoltage boils electrolyte and shortens life.

• Parasitic Draw
  • Telematics, ECUs, and security modules can draw 20–80 mA key-off. Over a week, that’s 3–13 Ah. Use a battery disconnect on machines parked for long periods.

• Cables and Grounds
  • Voltage drop kills cranking. Keep starter and ground cables clean, coat with dielectric grease, and spec 2/0 or 4/0 AWG on large diesels.


• Cold Regions
  • Favor AGM Group 31, 1,000–1,200 CCA. Install block heaters and intelligent maintainers when idle. Lithium cranking is risky below freezing unless preheated.

• Hot Regions
  • Heat is the top battery killer. Shield from engine bay hotspots, check electrolyte monthly on flooded cells, and consider AGM for longevity.

• Wet or Tilted Mounting
  • Choose sealed AGM if the tray sits at an angle or sees frequent water/mud ingress.


• Monthly
  • Inspect for swelling, leaks, or loose posts. Confirm hold-downs are snug.

  • On flooded cells, check electrolyte; top with distilled water only.

• Quarterly
  • Load-test to 50% rated CCA for 15 seconds; replace if voltage drops below 9.6 V at 21 °C.

  • Clean corrosion with baking soda solution; rinse and dry.

• Annually
  • Verify alternator output hot and under load.

  • Record in-service date; most fleet AGMs last 4–5 years, flooded 2.5–4 years in harsh duty.


• Cranks Slowly When Hot
  • Check voltage drop on positive and negative cables (< 0.5 V each during crank). Heat-soaked starters can mimic bad batteries.

• Random ECU Resets or DTCs
  • Look for momentary dips below 9 V on start—AGM’s lower internal resistance helps.

• Repeated Failures on Track Machines
  • Vibration cracking plates. Upgrade to AGM with reinforced case and add rubber isolation under the tray.

• Short Service Life in Standby
  • Parasitic drain. Add a cut-off switch and a solar or AC maintainer.


• Match BCI group, voltage, and terminals to OEM.

• Choose CCA ≥ OEM, RC equal or higher.

• Pick AGM/EFB for vibration or neglect-prone duty; FLA if budget and maintenance allow.

• Verify manufacture date (prefer < 90 days old).

• Confirm warranty and keep the test printout.


• Cold Quarry Loader
  • Replacing twin flooded Group 31s (950 CCA) with AGM 1,150 CCA ended jump-starts in −20 °C mornings and added two winters of life.

• Skid Steer on Demolition
  • Weekly battery failures traced to tray vibration and corroded grounds. Fix was AGM upgrade, new ground strap, and urethane tray pads—zero failures the next season.

• Excavator with Telematics Drain
  • Machine sat two weeks and died repeatedly. Installing a 200 A disconnect and a 10 W solar maintainer solved the issue without changing battery size.


• CCA (Cold-Cranking Amps): Current a 12 V battery can deliver at −18 °C for 30 s while staying ≥ 7.2 V. Higher CCA = stronger cold starts.

• RC (Reserve Capacity): Minutes a fully charged battery can supply 25 A at 25 °C before dropping below 10.5 V. More RC = longer accessory runtime.

• AGM: Absorbed Glass Mat; a sealed lead-acid type with fiberglass mat separators.

• EFB: Enhanced Flooded Battery; improved flooded design for better cycling and vibration resistance.

• Sulfation: Lead sulfate crystal buildup from partial-state-of-charge operation; reduces capacity.

• BMS: Battery Management System; required for lithium packs to protect cells during charge/discharge.


• Large Excavators and Dozers
  • Dual AGM Group 31, each 1,100–1,200 CCA, high RC, robust hold-downs.

• Skid Steers and Compact Track Loaders
  • AGM preferred due to shock and tilt; ensure alternator setpoint supports AGM.

• Backhoes and Mid-Size Loaders
  • EFB or AGM depending on vibration exposure; add a disconnect if parked off-season.

• Standby Generators
  • Gel or AGM for low maintenance; pair with a smart float charger.


The Purpose of a Brush Rake
A brush rake is a specialized attachment designed to clear vegetation, roots, and debris from land without excessively disturbing the soil. Unlike a standard bucket or blade, a rake allows fine control over what gets removed, making it ideal for pasture reclamation, firebreak creation, and post-logging cleanup. Farmers, landowners, and contractors often fabricate their own rakes to suit specific terrain and equipment, especially when commercial options are costly or unavailable.
Designing a Rear-Mounted Rake for a Backhoe
One practical approach involves mounting a custom rake to the rear of a backhoe, utilizing the existing outriggers and bucket for movement. This setup transforms the backhoe into a multi-functional land clearing tool, capable of raking brush while maintaining digging capability. The rake itself resembles the tines found on a box blade but is constructed with heavier steel to withstand the rigors of root pulling and log dragging.
The rake is typically attached at both ends to the D-rings located at the base of the outriggers. These connection points allow for vertical movement via the backhoe’s bucket while keeping the rake rigid in the horizontal plane. To prevent the rake from rolling forward or backward, a set of stabilizing links is added—rigid at the rake end and loosely pinned at the D-rings. This configuration ensures that the rake remains level during operation.
Adding an A-Frame for Lateral Stability
To maintain side-to-side alignment, an A-frame structure is often incorporated. This triangular brace connects the rake to the backhoe’s frame or outriggers, preventing lateral sway and ensuring consistent contact with the ground. The A-frame can be built from square tubing or angle iron, depending on available materials. It’s crucial that the rake runs flat across uneven terrain, especially when clearing brush on slopes or around stumps.
Material Selection and Fabrication Tips
For durability, the rake tines should be made from 1" thick hardened steel, spaced 6–8 inches apart. The frame can be constructed from 3" x 3" square tubing with cross braces for reinforcement. Welding should be done using 7018 low-hydrogen rods or MIG with flux core wire for maximum strength. If the rake will be used in rocky soil, consider hardfacing the tines to reduce wear.
Key fabrication tips include:

• Use gussets at all stress points to prevent bending

• Drill oversized holes for pins to allow easy removal and adjustment

• Paint with rust-resistant enamel to extend lifespan

• Add removable side wings to increase coverage area


• Outriggers: Extendable legs on a backhoe used for stabilization during digging

• D-rings: Steel loops used as anchor points for chains, straps, or attachments

• Box Blade: A rear-mounted implement used for grading and leveling soil

• Hardfacing: Welding a wear-resistant layer onto metal surfaces to reduce abrasion


• Install reflective tape on rake edges

• Use lock pins with safety clips

• Avoid operating on steep grades without stabilizers deployed


• Width: 6 to 8 feet

• Tine length: 18 to 24 inches

• Tine spacing: 6 inches

• Frame thickness: 3/8" to 1/2"


Company Background and Evolution
Established in 1958 in North Carolina, Bepco built its roots from a rebuilding ethos—reconditioning components to give them new life. Today, it remains proudly 100% U.S.-owned and continues restoring genuine truck parts—like brake systems, cooling assemblies, and steering units—while offering warranties and reducing environmental waste .
In parallel, there's a separate Bepco brand under the TVH group—specializing in agricultural, tractor, and machinery spare parts. Founded in Belgium and acquired by TVH in 2012, this Bepco offers over 230,000 unique parts and serves over 100 countries with fast delivery and expert support .
Reputation from the Field: Forum Insights
A user shared their dilemma between choosing OEM Case parts or Bepco for brake components on a Case backhoe loader. While Bepco was faster and cheaper, reliability remained paramount. One trusted user chimed in:

• “Bepco parts are generally pretty good… For brakes I would have no problems with them.”

• But noting prudence, the user preferred OEM if the price gap wasn’t significant .


• Extensive part range: More than 230,000 lines, including tractor engine components, hydraulic systems, and items for compact earth movers .

• Global availability with local support: TVH’s distribution network ensures fast delivery across continents, supported by technical advisors in 57 languages .

• Quality assurance: Many components are either OEM-made or meet those standards, offering value-driven and reliable alternatives to originals .

• Pricing advantage: Competitive pricing driven by scale, while still offering warranties and technical aid .


• Remanufacturing Legacy (USA Brand)
  • Restores and tests key components like brakes and cooling systems

  • Environmentally conscious reuse with performance guarantees

• TVH Agricultural Brand
  • Massive parts catalog for tractors and attachments

  • Strong logistics, fast delivery, global reach

  • Transparent support and technical guidance

• User Feedback
  • Bepco brake parts deemed satisfactory for heavy-duty tasks

  • OEM preferred if cost difference is minimal

  • Emphasis on safety for critical components like brakes


• For core safety items (brakes, hydraulic systems), OEM remains the safest bet if budget allows. But Bepco offers a trustworthy alternative—especially when OEM lead times are prohibitive.

• For routine or consumable components (filters, hoses, brackets), Bepco provides value and accessibility.

• TVH distribution ensures that parts are easily sourced globally, which is valuable for remote or resource-limited operations.


Understanding the Role of a Farm Dozer
Choosing the right bulldozer for farm use is a decision shaped by terrain, vegetation density, hauling capacity, and budget. Unlike construction sites where tasks are often predictable, agricultural land clearing demands versatility. A dozer must grub mesquite roots, push stumps, grade access roads, and occasionally rescue stuck vehicles. The ideal machine balances power, weight, and maneuverability, while offering attachments like winches or rippers for added utility.
Evaluating Size and Weight Classes
Dozers are typically classified by weight and horsepower. Entry-level models like the John Deere 450J weigh around 17,000 lbs and offer 80–90 hp, while mid-range units like the Caterpillar D6D tip the scales at 40,000 lbs with 140–160 hp. Larger machines such as the Allis-Chalmers HD21A exceed 60,000 lbs and are suited for heavy timber removal and deep ripping.
A key consideration is transport logistics. Owners with a 35-ton detachable trailer can move 25–30 ton dozers without special permits, making models like the D6D or JD 750J ideal. Once machines exceed 21 tons, oversize load regulations kick in, affecting cost and scheduling.
Brand Histories and Market Presence
Caterpillar, founded in 1925, remains the dominant force in the dozer market. Its D-series machines, especially the D6 variants, are known for reliability and widespread parts availability. The D6D, introduced in the late 1970s, became a staple in both construction and agriculture, with tens of thousands sold globally. Its mechanical simplicity—no onboard computers—makes it a favorite among rural operators.
John Deere entered the dozer market in the 1960s and gained traction with the J-series in the early 2000s. The 650J, for instance, offers hydrostatic transmission and pilot controls, making it easier to operate for those with limited seat time. Deere’s dealer network and parts support are strong in the Midwest and Southeast, contributing to its popularity.
Case and Dresser also produced competitive models like the Case 850 and Dresser TD15, though their market share has declined. These machines are often found at lower prices but may require more effort to source parts.
Bareback vs. Winch-Equipped Machines
A bareback dozer lacks rear attachments, while winch-equipped units offer towing and self-recovery capabilities. Though barebacks are common in flat farmland, many operators prefer winches for their versatility. A winch can pull stuck trucks, drag logs, or assist in repositioning equipment. Even if used sparingly, the added weight improves balance and traction.
Rippers, another rear attachment, are essential for breaking up hardpan soil or uprooting deep-rooted vegetation. While not always necessary for finish grading, they’re invaluable in rocky or compacted terrain.
Blade Configuration and Application
Dozers come with straight blades (S-blade), universal blades (U-blade), and six-way blades (PAT blade). The six-way blade allows for angle, tilt, and pitch adjustments, making it ideal for finish work. However, its open ends reduce dirt-carrying capacity and durability during tree grubbing. For heavy clearing, a straight or semi-U blade offers better resistance and material handling.
Fuel Consumption and Operating Costs
Fuel usage varies by model and task. A D6D consumes roughly 6 gallons per hour under load, while smaller machines like the JD 550J use closer to 3–4 gallons. Maintenance costs also scale with size. Older mechanical machines may require more frequent service but are easier to repair without diagnostic tools.
Operators should budget for:

• Hydraulic fluid changes every 500 hours

• Undercarriage wear (track pads, rollers, sprockets)

• Blade edge replacement

• Winch cable inspection and replacement


• If clearing dense brush or large trees, choose a machine over 20 tons with a winch and ripper

• For finish grading and light clearing, a 650J or D5G with a six-way blade may suffice

• Avoid bareback units unless budget-constrained or working exclusively on open fields

• Prioritize condition over age—well-maintained older machines often outperform newer neglected ones

• Test-drive or rent before buying to assess comfort, visibility, and responsiveness


• Bareback Dozer: A bulldozer without rear attachments like winches or rippers

• Winch: A mechanical device used to pull or recover equipment or materials

• Ripper: A rear-mounted tool for breaking up soil or roots

• PAT Blade: Power Angle Tilt blade offering multi-directional control

• Pilot Controls: Joystick-style controls replacing traditional levers for smoother operation


Freightliner trucks rely on a suite of carefully formulated and prescribed lubricants, oils, and coolants to ensure long-lasting performance and reliability. These specialized fluids are tailored to their Detroit diesel engines, transmissions, and axles—keeping everything running smoothly under demanding conditions.
** Freightliner and Detroit Diesel Heritage**
Freightliner, now part of Daimler Trucks North America (DTNA), has long paired its vehicle designs with Detroit Diesel engines and transmissions. The legacy spans decades, with both brands evolving fluid formulations and maintenance protocols to match increasingly stringent emissions and performance requirements. The result is a tight integration between engine, transmission, and fluid systems.
** Engine Oils**
Detroit-approved engine oils must adhere to Detroit Fluid Specifications—such as DFS 93K218 (CJ-4), DFS 93K222 (CK-4), and DFS 93K223 (FA-4), each aligned with API standards. These blends are engineered for soot dispersal, deposit control, and high resistance to thermal breakdown—crucial in heavy-duty diesel environments. They’re far superior to general-purpose oils even if they look similar in on-paper specs .
Typical oil drain intervals for Detroit Diesel’s highway engines range from about 20,000 to 30,000 miles (32,000–48,000 km) depending on engine series and operating conditions, while severe-use scenarios call for more frequent changes .
** Transmission Fluids**
For transmissions—particularly Detroit’s DT12 models—only DTNA-approved fluids are acceptable. These are viscosity-graded, such as 75W-85 for engines built before 2016, and newer multi-grade blends for later models . Selecting the correct fluid grade is vital: a lower viscosity delivers better fuel economy, while improper grades can damage transmission internals .
** Axle Fluids**
Freightliner axles require Detroit-approved lubricants as well. Similar to transmissions, choosing the lowest recommended viscosity improves both fuel economy and mechanical longevity .
** Coolants and Maintenance Systems**
Coolant systems in Freightliner trucks must follow Detroit’s coolant specifications, ensuring optimal heat transfer and corrosion prevention—especially crucial in long-haul or hot climates . Meanwhile, on-board maintenance systems monitor operating data like engine load and mileage to adjust maintenance intervals dynamically, relieving drivers and technicians of guesswork .
** Fluid Capacities**
Understanding fluid volume matters immensely. For Detroit’s DD13/15/16 engines:

• Total dry oil volume ranges from about 44 to 51 L (46.5–53.8 qt),

• Recommended oil capacity after filter change varies between 38 and 45 L,

• The dipstick minimum-to-maximum range is roughly 5 L (5.2 qt) .


• Oil and fluid changes: Stick with recommended intervals, typically 15,000–25,000 miles depending on operating severity and engine type .

• Filter changes: Follow every oil change with new fuel, air, and oil filters. Replace emissions-related filters—like air dryer coalescent filters—around 150,000 miles or 3,750 hours .

• Fluid analysis: Periodic oil sampling helps prevent unscheduled breakdowns, especially when pushing drain intervals .

• Grease and steering fluid: Power steering fluid should be changed annually; greasing should happen every 20,000–25,000 miles .


• Engine Oil
  • Specification: DFS 93K218 / 222 / 223 (API CJ-4, CK-4, FA-4)

  • Drain Intervals: approx. 20k–30k mi; shorter for heavy-duty use

  • Capacity: 38–51 L depending on engine

• Transmission Fluid
  • Use only DTNA-approved fluids (MB 235.16, 235.11)

  • Viscosity depends on model year (e.g., 75W-85 or 75W-90)

• Axle Fluid
  • Detroit-approved only; use lowest viscosity for fuel savings

• Coolant
  • Follow Detroit’s coolant guidelines; monitor temperature and corrosion

• Maintenance Intervals
  • Oil/filter: 15k–25k mi

  • Grease: every 20k–25k mi

  • Filters (fuel/air/emission): spaced per system recommendations


History of the Company
Link-Belt traces its roots back to 1880 in Belle Plaine, Iowa, founded to manufacture detachable-link chains for agricultural machinery. Over decades, it evolved into a leader in material-handling and excavator solutions. The company transitioned through steam, cable, gasoline, and ultimately hydraulic technologies—with early adoption of hydraulics by the mid-20th century a key to its survival and growth. Now known as LBX Company, it operates under Sumitomo Heavy Industries and continues to produce excavators under the Link-Belt brand.
Development and Model Details
The 160LX, part of the LX series of crawler excavators produced circa 2003–2012, exemplifies Link-Belt’s embrace of intelligent hydraulic control, durable structures, and operator comfort. It was introduced as a mid-class machine tailored for productivity, reliability, and efficiency.
Main Specifications

• Operating weight: approximately 16 tonnes (36,200 lb)

• Engine: Isuzu DD-4BG1T diesel, turbocharged, about 101 hp (75 kW) output

• Torque: up to 311 lb-ft (422 Nm) at ~1600 rpm

• Dimensions:
  • Operating length ≈ 24 ft 6 in (7.5 m)

  • Width ≈ 8 ft 5 in (2.56 m)

  • Height ≈ 9 ft 7 in (2.92 m)

• Boom/Arm options: 5.15 m boom and 2.7 m arm setup

• Digging depth: up to 6.45 m

• Bucket breakout force: Approx. 25,180 lb (11,421 kg) to 26,530 lb (12,034 kg) with Auto Power-Up engaged


• Inte-LX intelligent hydraulic control balances speed, power, and fuel economy through electronic engine and hydraulic coordination

• Auto Power-Up boosts hydraulic pressure by about 9 % for roughly 8 seconds automatically when encountering heavy loads

• Auto Power-Swing prioritizes swing torque under simultaneous swing and attachment operation

• Regenerative circuits and dual-pump hydraulics speed up cycle times

• Nephron® filtration and chrome/grease-impregnated bushings reduce wear and maintenance needs

• Anti-theft system, on-board diagnostics, auto-idle control, trip meter, LCD display, comfortable cab with AC/heater, and stereo radio enhance security, usability, and operator comfort


• Maintenance: Prioritize cleanliness of hydraulics, timely lubrication of bushes/pins, and checks on Nephron® filtration for optimal longevity.

• Operational tips: Use Auto Power-Up mode for challenging digs to avoid manual input. Utilize the LCD monitor for real-time system alerts and preventive maintenance scheduling.

• Customization: Select appropriate boom/arm lengths and bucket sizes (0.44–0.87 m³) based on site conditions for productivity gains.

• Operator safety & efficiency: Encourage use of anti-theft systems on unattended equipment and auto-idle to save fuel during idle times.


Kubota’s Rise in Compact Track Loader Innovation
Kubota Corporation, founded in Osaka in 1890, began as a cast iron pipe manufacturer and evolved into a global leader in agricultural and construction machinery. Its entry into the compact track loader (CTL) market came relatively late compared to giants like Caterpillar and Bobcat. However, the SVL series, introduced in the early 2010s, quickly gained traction due to its robust build, competitive pricing, and operator-friendly features. The SVL90, in particular, became a popular choice for land clearing and mulching tasks, especially in regions like Texas and the Southeast U.S., where vegetation management is a year-round necessity.
By 2015, Kubota had sold tens of thousands of SVL units across North America, with the SVL90 accounting for a significant portion of that volume. Its appeal lay in the balance between cost-efficiency and performance, especially when paired with aftermarket mulching heads.
Cab Comfort and Air Conditioning Limitations
One of the most discussed aspects of the SVL90 is its cab design, particularly the air conditioning system. Unlike some competitors that offer multi-vent climate control, the SVL90’s A/C vents are positioned only on the left side of the cab. This asymmetry leads to uneven cooling, especially problematic during hot summer operations on side slopes. Operators have reported that their right arm becomes drenched in sweat due to the lack of airflow, making long shifts uncomfortable and potentially hazardous due to reduced grip and fatigue.
A workaround involves removing the slider over the A/C intake vent behind the seat to improve airflow. While this modification is simple, it underscores the need for better cab ventilation in future models. In regions like Texas, where summer temperatures regularly exceed 95°F (35°C), such limitations can reduce productivity and increase operator stress.
Cooling System Challenges During Mulching
Mulching is one of the most demanding tasks for a CTL, requiring sustained hydraulic output and engine cooling. The SVL90’s stock hydraulic cooler struggles to maintain optimal temperatures during prolonged mulching sessions in high heat. On 90°F days, the machine’s performance can degrade as the hydraulic fluid overheats, leading to slower head rotation and reduced cutting efficiency.
To mitigate this, experienced operators recommend installing a roof-mounted auxiliary cooler. These units, often sourced from aftermarket suppliers, dramatically improve heat dissipation and extend operating windows. Some dealers have even fabricated custom swing-out guards to protect the rear-mounted coolers and provide a secure mount for fire extinguishers—a critical safety feature in dry brush environments.
Debris Intrusion and Loader Tower Vulnerabilities
The SVL90’s loader towers, which house the lift cylinders, have open channels that allow brush and debris to enter the engine compartment. This design flaw can lead to serious mechanical issues, such as bent lift arms or damaged hydraulic lines. Operators have reported incidents where accumulated debris wedged between the cylinders and tower walls, causing structural strain.
To address this, some users fabricate bolt-on plates to seal off the tower openings. These plates are typically made from 3/16" steel and can be removed for maintenance. Additionally, a reinforced cab floor plate is recommended to prevent upward intrusion from branches or stumps. One documented case involved a heavy branch piercing the cab floor and injuring the operator’s leg—an incident that led to widespread adoption of steel floor guards among forestry contractors.
Comparative Insights with Caterpillar 299C and 299D
Many operators transitioning from Caterpillar’s 299C or 299D models to the SVL90 cite differences in ergonomics and reliability. While the Cat machines offer superior A/C performance and more refined cab layouts, they are also significantly more expensive. The SVL90’s affordability makes it attractive for small businesses and independent contractors, especially when outfitted with mulching heads from brands like Fecon or Denis Cimaf.
However, the SVL90’s track system is more prone to derailment on uneven terrain, particularly when navigating stumps or ravines. This issue is not unique to Kubota but is exacerbated by the machine’s lighter frame and narrower stance compared to the Cat 299 series. Regular track tension checks and upgraded rollers can help reduce derailments.
Operator Anecdotes and Field Wisdom
One Texas-based land clearing contractor shared a story of using an SVL90 to reclaim overgrown pastureland. After installing a roof cooler and sealing the loader towers, the machine ran reliably through a 12-hour shift in 98°F heat. The operator noted that while the A/C was still underwhelming, the mechanical performance exceeded expectations, especially with a 60" drum mulcher.
Another operator in Wisconsin reported that the SVL90 performed well in cooler climates but struggled during peak summer months. He emphasized the importance of daily cleanouts and preventive maintenance, especially when working in dense brush environments.
Recommendations for Mulching Optimization
To maximize the SVL90’s mulching capabilities, consider the following upgrades:

• Install a roof-mounted hydraulic cooler rated for 40,000 BTU/hr

• Fabricate steel guards for loader towers and cab floor

• Use high-flow hydraulic mulching heads with pressure relief valves

• Upgrade track tensioners and rollers for better terrain handling

• Remove A/C intake slider to improve cabin airflow


• CTL (Compact Track Loader): A tracked machine used for earthmoving, mulching, and material handling.

• Mulching Head: An attachment that grinds vegetation into fine mulch using rotating teeth or blades.

• Hydraulic Cooler: A heat exchanger that dissipates heat from hydraulic fluid to maintain system efficiency.

• Loader Tower: Vertical structures on CTLs that house lift cylinders and support the loader arms.


The Importance of Structured Training
Heavy equipment training days are not just routine sessions but vital milestones in shaping competent operators. Unlike informal practice, structured training provides a foundation in both theory and application. It ensures that individuals understand machine dynamics, safety procedures, and the broader responsibilities tied to construction and earthmoving tasks. Industry studies reveal that properly trained operators can increase site productivity by up to 25%, while simultaneously reducing accident rates. This shows that investment in training is as crucial as investment in the machines themselves.
Historical Development of Operator Training
In the early decades of construction mechanization, training was almost entirely hands-on. Apprentices would spend years learning from senior operators. However, as machines like the Caterpillar D series dozers, Komatsu excavators, and later compact track loaders evolved, the controls became more complex. Hydraulic systems, electronic displays, and telematics demanded a new kind of literacy. By the 1980s, vocational schools and specialized training centers emerged to meet this need. Today, many companies combine classroom instruction, simulators, and supervised machine time to create well-rounded operators.
Key Aspects of Training Sessions
During a training day, participants are typically introduced to several essential areas:

• Machine Familiarization: Understanding the main components, from undercarriage to hydraulic cylinders.

• Safety Protocols: Reviewing lockout/tagout procedures, seatbelt use, and maintaining safe distances from other machines.

• Control Systems: Practicing joystick coordination, throttle management, and load balance.

• Operational Efficiency: Learning how to minimize fuel consumption, often by avoiding unnecessary idling.

• Maintenance Awareness: Performing pre-start inspections such as checking fluid levels, monitoring undercarriage wear, and ensuring track tension.




ID：1825785

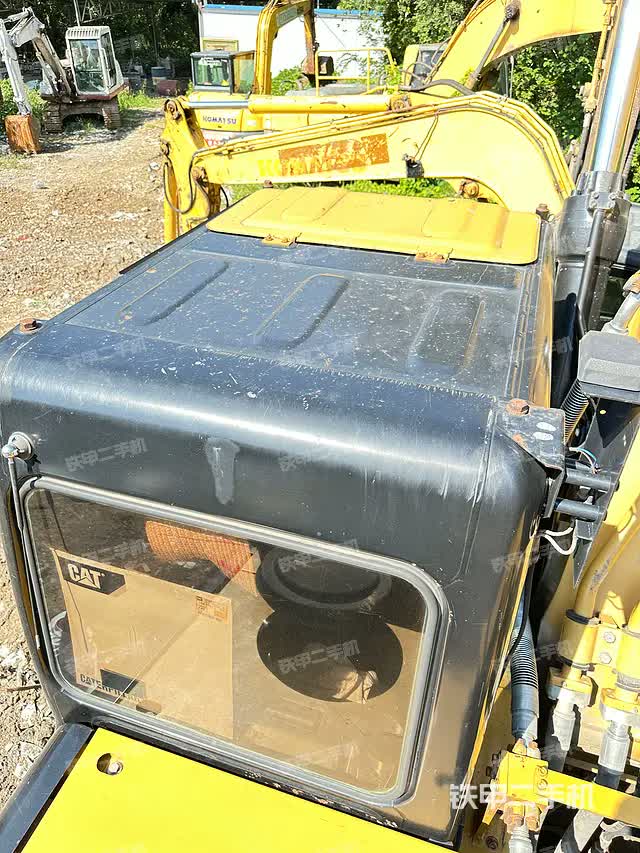

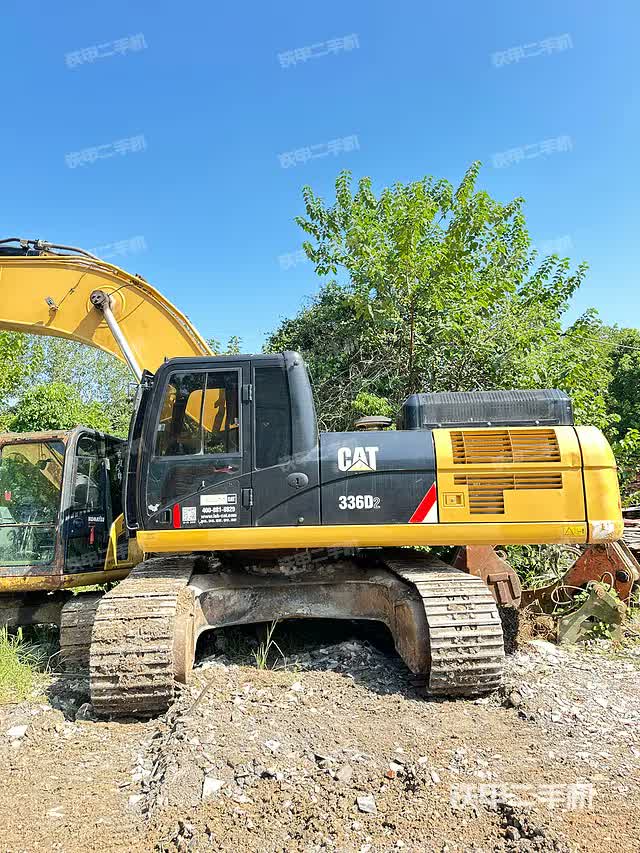

The Caterpillar 336D2 Hydraulic Excavator, introduced in 2017, is a heavy-duty, high-performance machine designed for a variety of construction and mining tasks. As part of the renowned Caterpillar family, this excavator is engineered for efficiency, durability, and productivity, making it a popular choice in the industry. In this article, we will break down its key features, specifications, performance, and applications to provide a comprehensive understanding of why the 336D2 remains a reliable and effective machine for many operators.
Brand and Model Introduction
Caterpillar, one of the largest manufacturers of construction equipment globally, has a long history of producing high-performance machines. The 336D2 model is a part of Caterpillar's D Series of hydraulic excavators, which are known for their fuel efficiency, smooth operation, and versatility. The 336D2 was designed to handle tough environments, including large-scale excavation, mining, and material handling.
This model was first introduced to the market in 2017, offering improved fuel consumption rates, enhanced hydraulic systems, and advanced technology to meet the demands of the modern construction industry.
Key Specifications
Here’s an overview of the Caterpillar 336D2 hydraulic excavator's specifications, which underline its performance and adaptability:

• Operating Weight: 34,600 kg

• Bucket Capacity: 1.88 m³

• Boom Length: 6,500 mm

• Arm Length: 2,800 mm

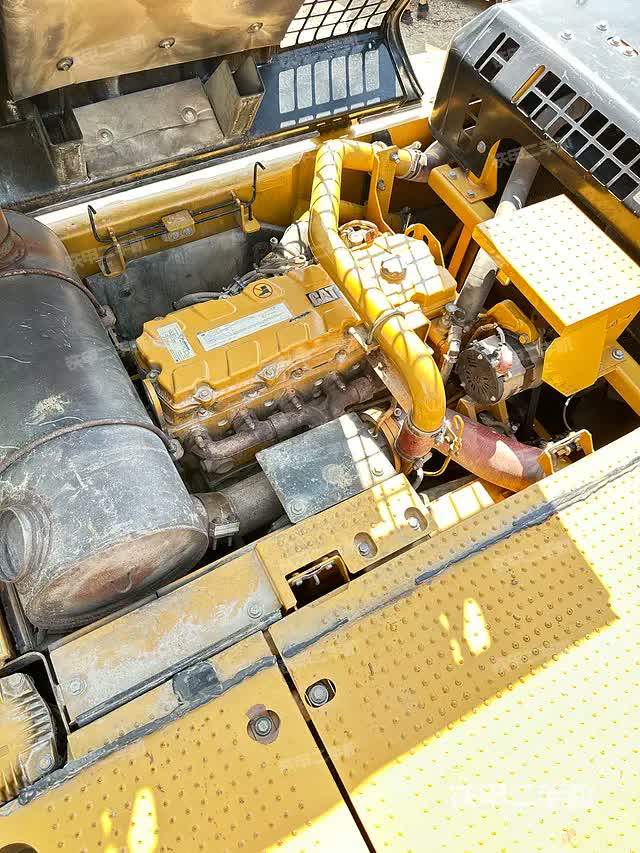

• Engine Model: Cat C9 ACERT
  • Rated Power: 208 kW at 2,000 RPM

  • Bore and Stroke: 112 mm × 149 mm

  • Displacement: 8.8 L

  • Maximum Torque: 1,080 Nm at 1,500 RPM

• Travel Speed: 4.6 km/h (high speed)

• Swing Speed: 8.3 RPM

• Hydraulic Flow: 281 L/min (maximum for the main pump)

• Hydraulic Pressure: Main relief pressure set at 35 Mpa

• Fuel Tank Capacity: 620 L

• Hydraulic Oil Tank Capacity: 175 L

• Engine Oil Capacity: 41 L


• Excavation and digging: Whether for large-scale earthmoving, foundation digging, or trenching, the 336D2 can dig deep and move large volumes of earth.

• Mining: In mining operations, where the earth is tougher and the demand for power is high, this excavator provides the necessary strength to break through heavy rock and soil.

• Demolition and material handling: The strong hydraulic system and durable structure make the 336D2 suitable for demolition jobs or material handling tasks on construction sites.




ID：1825791

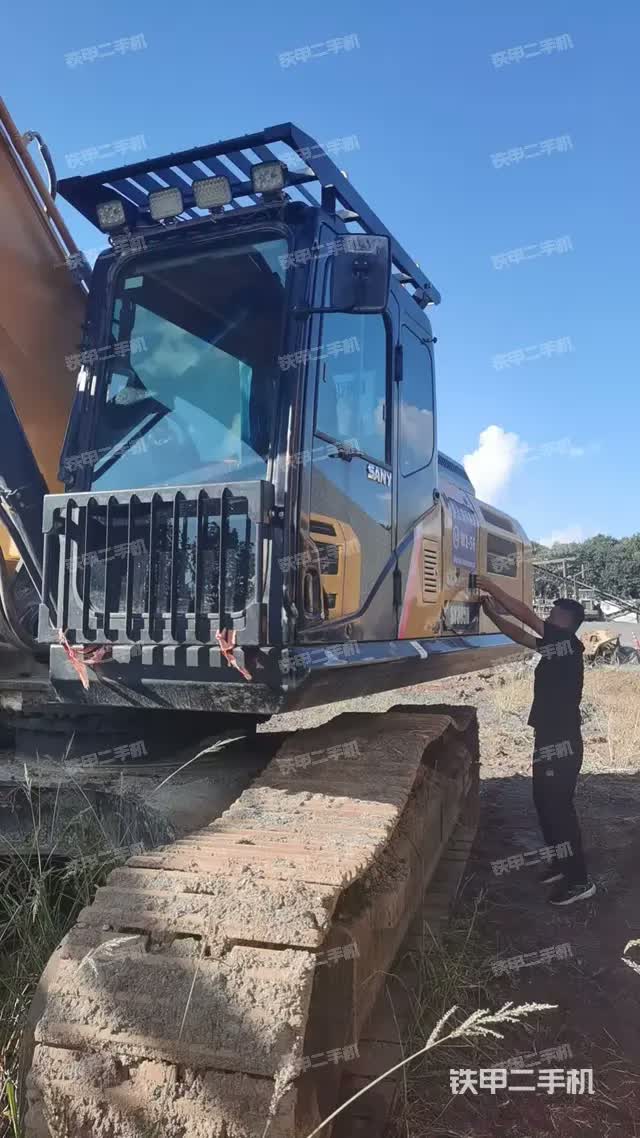

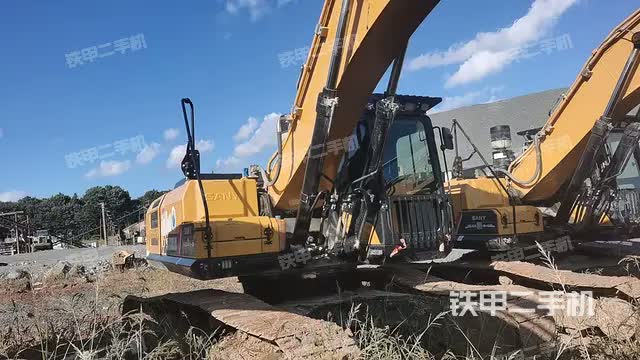

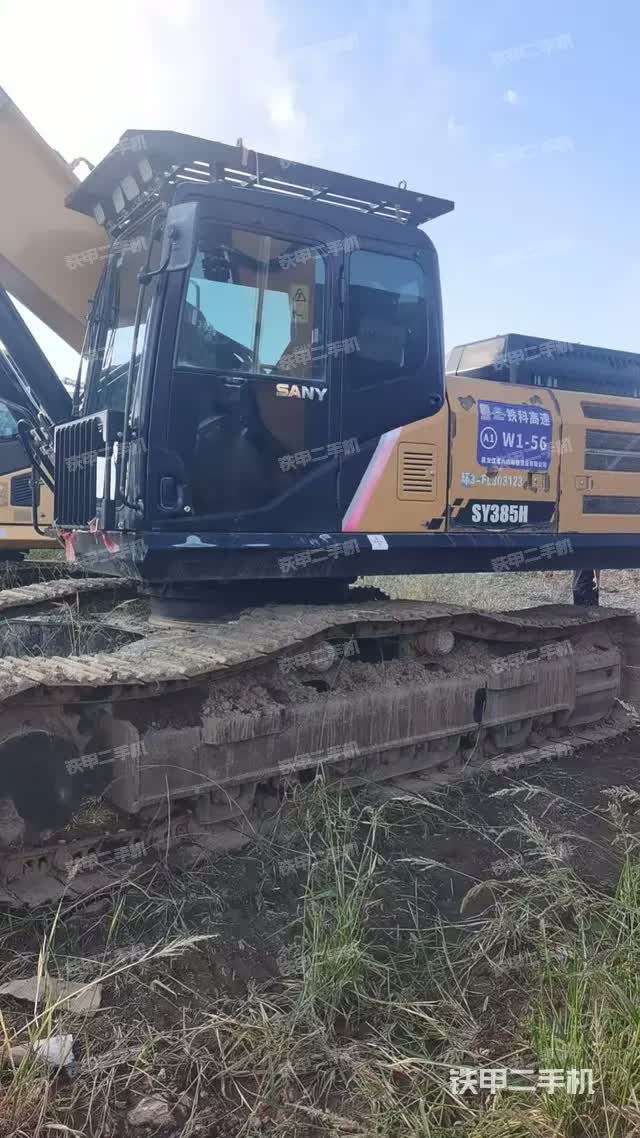

The SANY SY365H Pro is a remarkable piece of heavy construction machinery designed to handle demanding tasks in various industrial sectors. Launched in 2020, this powerful excavator is built for high performance and efficiency, particularly in demanding environments such as construction, mining, and earthmoving operations. Let’s explore the specifications, performance features, and the reputation behind this machine.
Brand History and Development
SANY Heavy Industry is a well-known global leader in manufacturing construction equipment. Founded in 1989, SANY has grown into one of the largest manufacturers of construction machinery, including cranes, excavators, concrete machinery, and road construction equipment. Over the years, SANY has focused on innovation and the development of high-performance machines, with a solid reputation for reliability and long-lasting durability. The SY365H Pro model is one of their premier excavators, showcasing the company’s commitment to quality engineering and cutting-edge technology.
Specifications and Features
The SANY SY365H Pro has a robust set of specifications tailored for heavy-duty operations. It weighs in at approximately 36 tons, with an operating weight of around 36,000 kg. The excavator’s digging power and capabilities make it suitable for a wide range of tasks, from heavy lifting to digging and trenching.

• Engine and Power System:

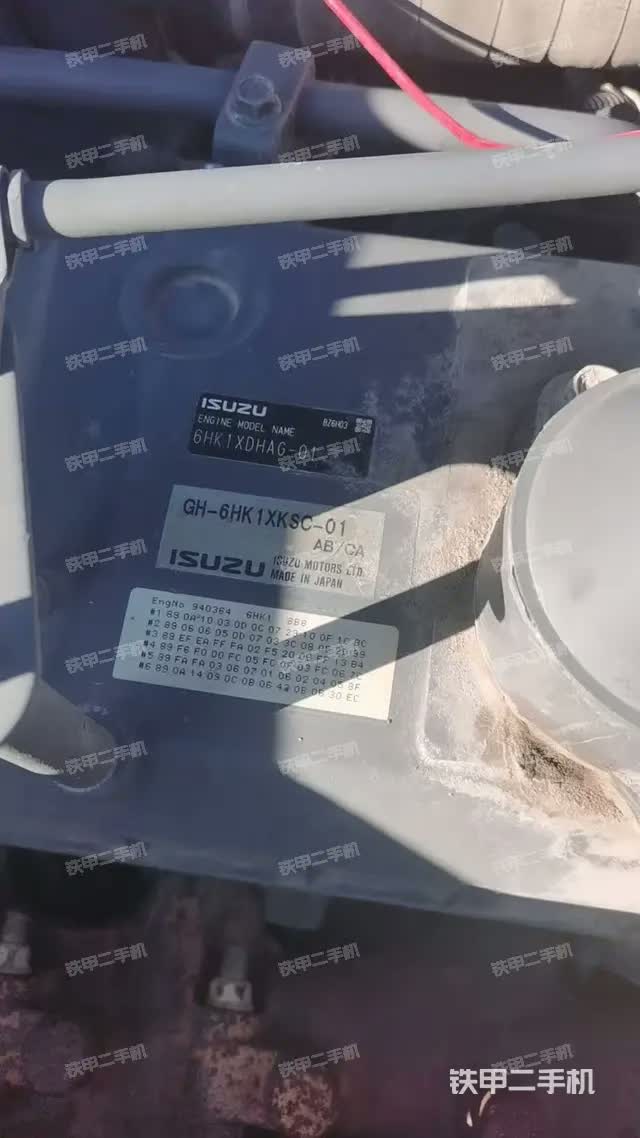

  • Engine Model: GH-6HK1XKSC

  • Rated Power: 212 kW @ 2000 rpm

  • Maximum Torque: 1080 Nm @ 1500 rpm

  • Displacement: 7.79 liters

  • The engine’s power output ensures the excavator can efficiently handle tough digging operations and work in challenging environments.

• Hydraulic and Performance Features:
  • The machine features a maximum bucket digging force of 235 kN and a boom digging force of 180 kN, providing the muscle needed to tackle the toughest digging and lifting tasks.

  • With a turning speed of 9.5 rpm, the SY365H Pro’s hydraulic system delivers precise control, allowing for efficient, smooth movements during operation.

  • The machine’s ground pressure is 65 Kpa, making it highly suitable for operations on soft or uneven terrain.

• Mobility and Handling:
  • The SY365H Pro boasts a travel speed of 5.5 km/h (high speed) and 3.5 km/h (low speed), offering excellent maneuverability in both slow and high-speed applications.

  • It features a robust undercarriage with 2 sprockets, 9 carrier rollers per side, and 49 track shoes per side, ensuring a steady and stable movement on rough terrain.


• Hydraulic System:
  • The machine is equipped with a powerful hydraulic system that features a large pump flow rate of 281 l/min, enabling quick and efficient movement of the machine's arms and other attachments.


• Total Transport Length: 12,095 mm

• Transport Width: 3,360 mm

• Transport Height: 3,790 mm

• Track Width: 600 mm

• Track Length: 5,440 mm

• Track Gauge: 2,740 mm


• Max Digging Depth: 7,490 mm

• Max Digging Radius: 11,860 mm

• Max Digging Height: 10,950 mm

• Max Dumping Height: 7,450 mm
