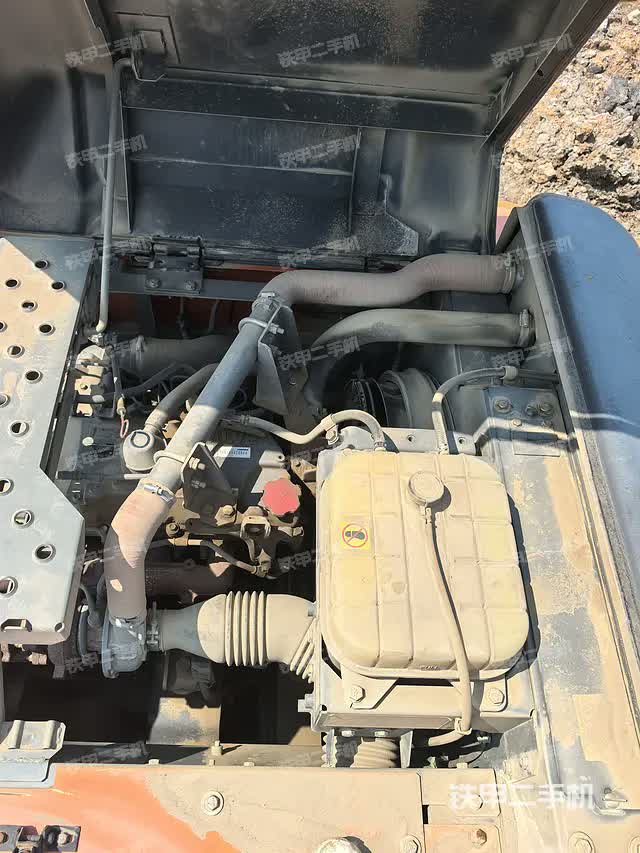

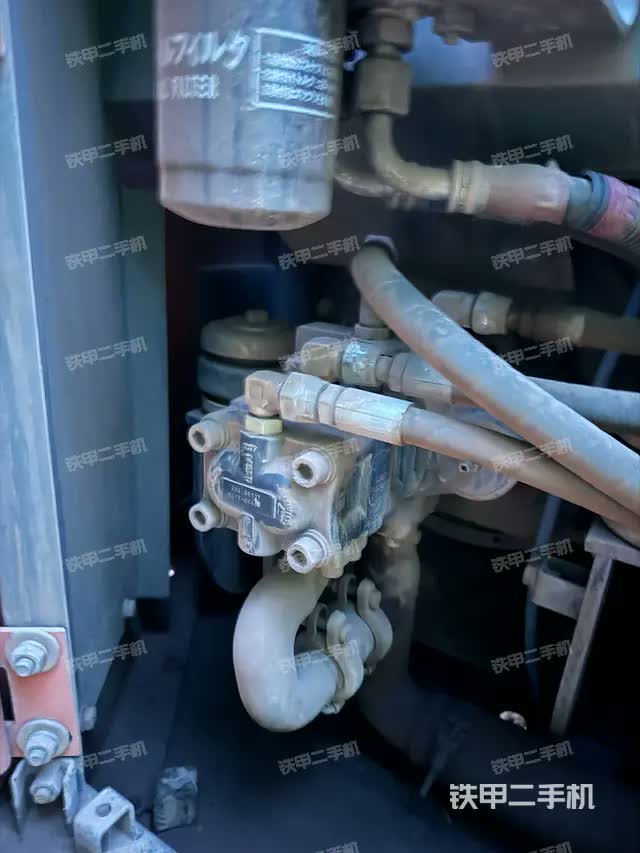

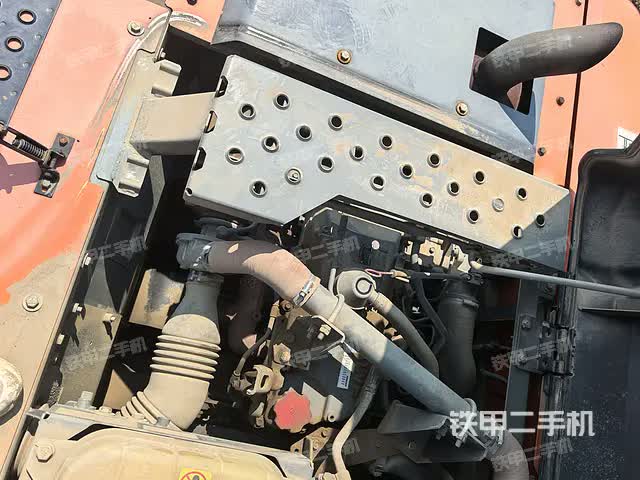

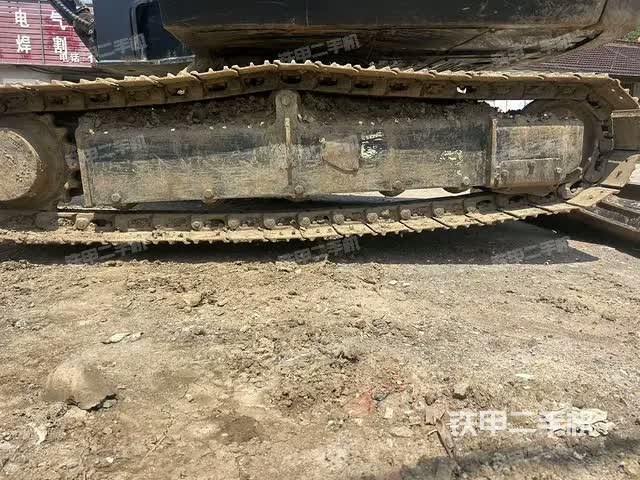

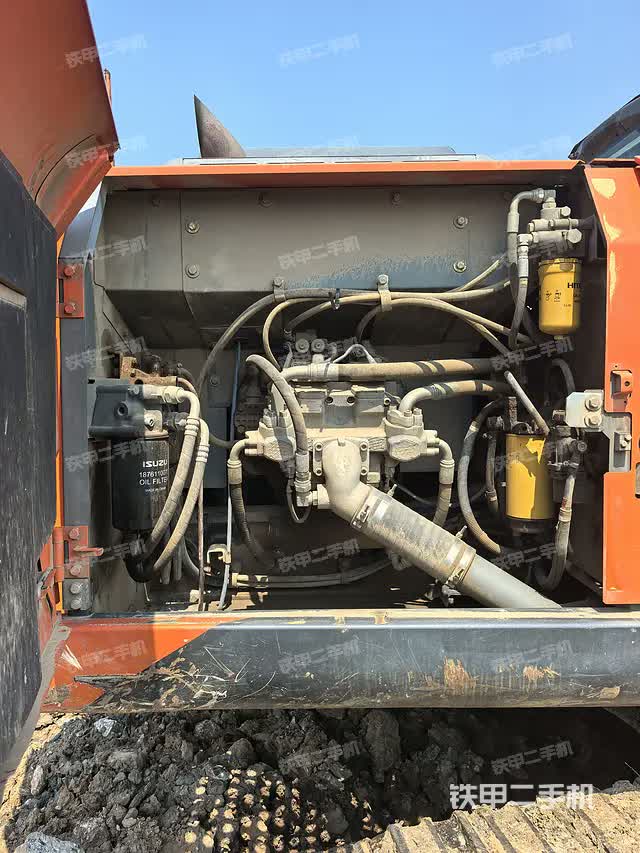

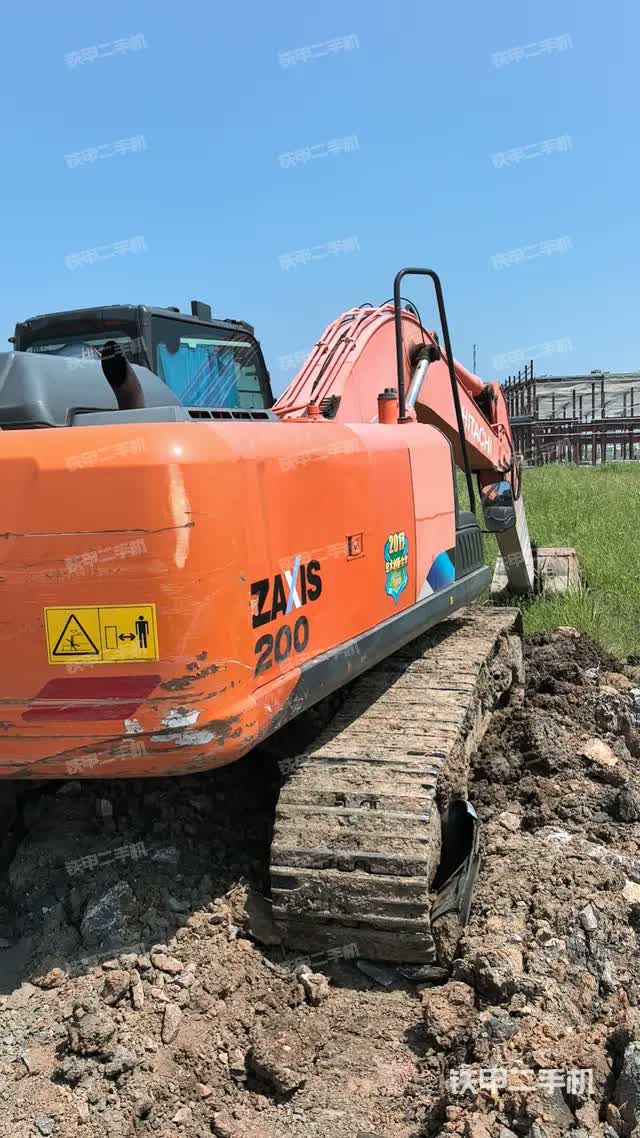

• Brand: Hitachi

• Model: ZX200-5A

• Year: 2018

• Hours: 90,000 hours

• Location: Anhui - Chaohu


• Brand: Hitachi

• Model: ZX200-5A

• Year: 2018

• Hours: 90,000 hours

• Location: Anhui - Chaohu


• Operating weight: 20,200–20,300 kg

• Bucket capacity: 0.91–1.0 m³

• Boom length: 5680 mm

• Arm length: 2910 mm

• Power type: Conventional

• Manufacturer: Joint venture/import

• Bucket type: Backhoe


• Engine model: Isuzu GI-4HK1XKSA-02

• Rated power: 113 kW @ 2000 rpm

• Cooling type: Water-cooled

• Bore × Stroke: 115 × 125 mm

• Max torque: 638 N·m @ 1500 rpm

• Cylinders: 4

• Displacement: 5.193 L

• Engine type: 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled


• Ground pressure: 45 kPa

• Swing speed: 13.5 rpm

• Gradeability: 70 %

• Bucket digging force: 158 kN

• Arm digging force: 114 kN

• Travel speed: 5.5/3.5 km/h

• Swing torque: 68 kNm


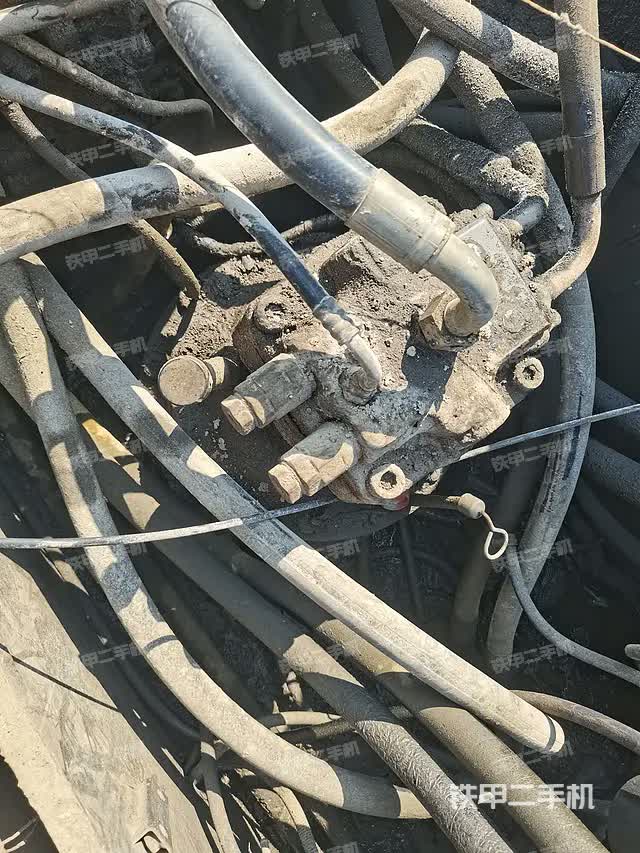

• Swing hydraulic motor type: 1 axial piston swash plate

• Travel hydraulic motor type: 2 variable axial piston

• Main pump max flow: 2×212 + 30.2 L/min

• Travel circuit pressure: 34.3 MPa

• Swing circuit pressure: 32.3 MPa

• Main pump type: 2 variable axial piston + 1 gear pump

• Working circuit pressure: 34.3 MPa

• Pilot circuit pressure: 3.9 MPa

• Bucket cylinder: 1×115×80 mm

• Arm cylinder: 1×135×95 mm

• Boom cylinder: 2×120×85 mm


• Fuel tank: 400 L

• Hydraulic tank: 135 L

• Engine oil change: 23 L

• Hydraulic system: 31 L


• Transport length: 9660 mm

• Transport width: 2860 mm

• Transport height: 3010 mm

• Cab height: 2950 mm

• Counterweight ground clearance: 1030 mm

• Minimum ground clearance: 450 mm

• Rear swing radius: 2890 mm

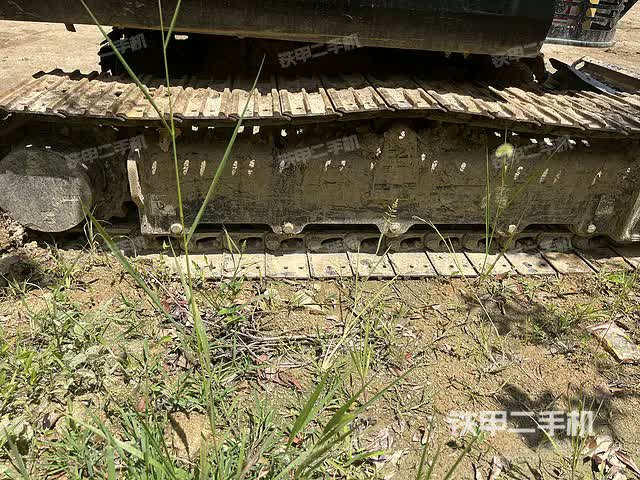

• Track length: 4170 mm

• Track gauge: 2200 mm

• Track shoe width: 600 mm

• Track overall width: 2800 mm

• Track contact length: 3370 mm

• Carrier rollers per side: 2

• Track rollers per side: 7

• Track shoes per side: 46


• Max digging radius: 9920 mm

• Max digging depth: 6670 mm

• Max digging height: 10040 mm

• Max dumping height: 7180 mm

• Max vertical digging depth: 5990 mm

• Max digging radius at ground level: 9750 mm




ID：1826237

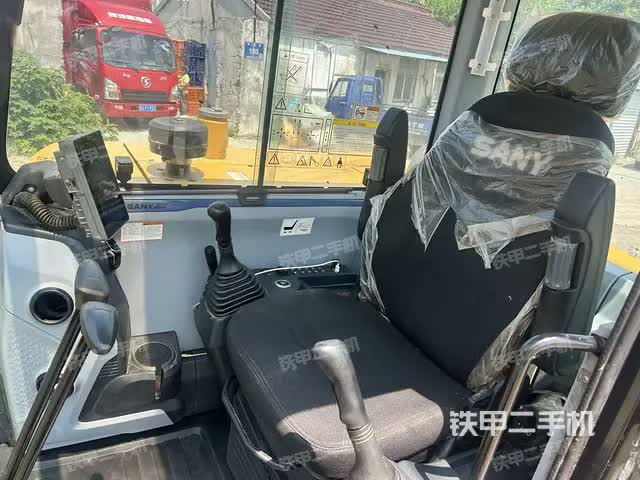

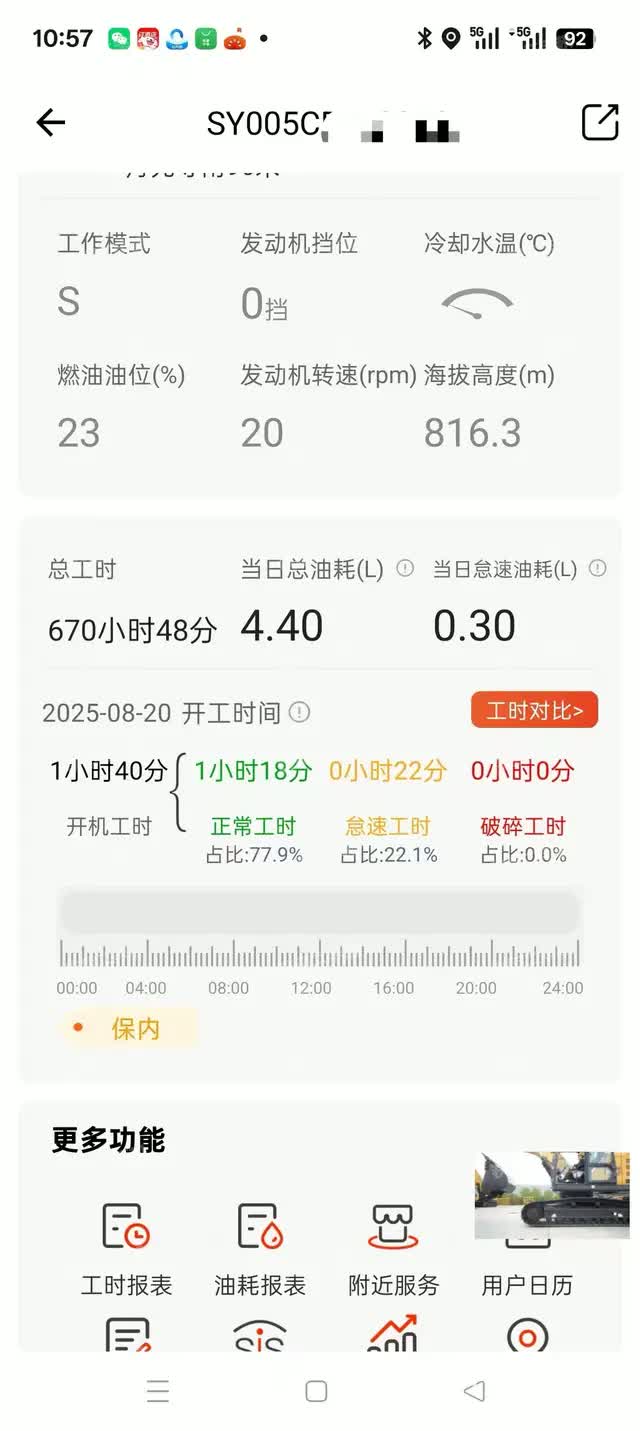

• Brand: SANY

• Model: SY55U

• Year of Manufacture: 2024

• Hours Used: 670 hours

• Location: Hunan-Changsha




ID：1826196

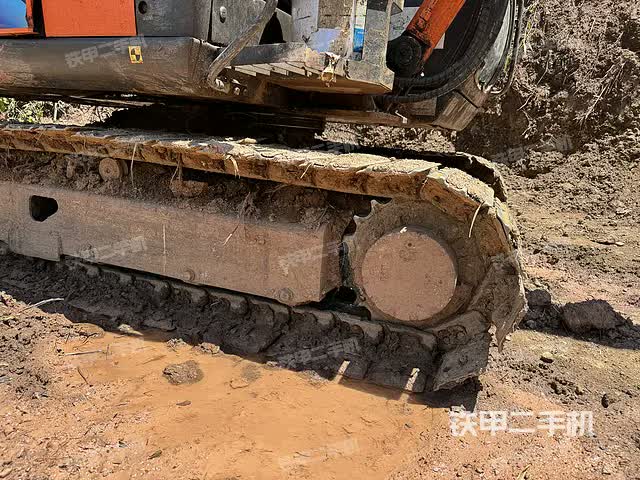

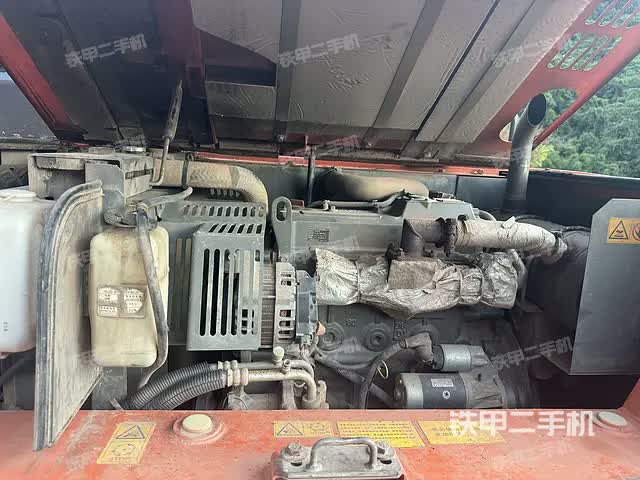

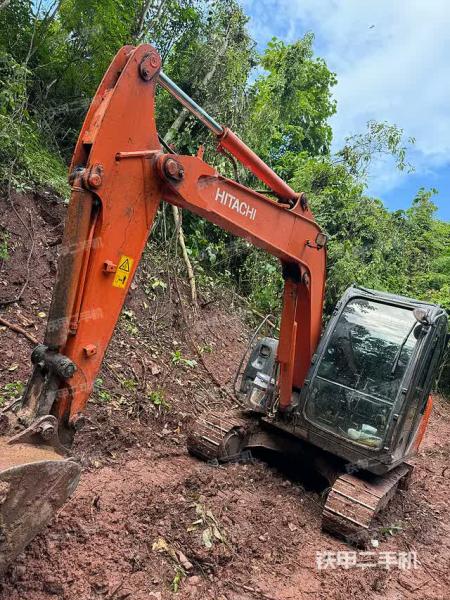

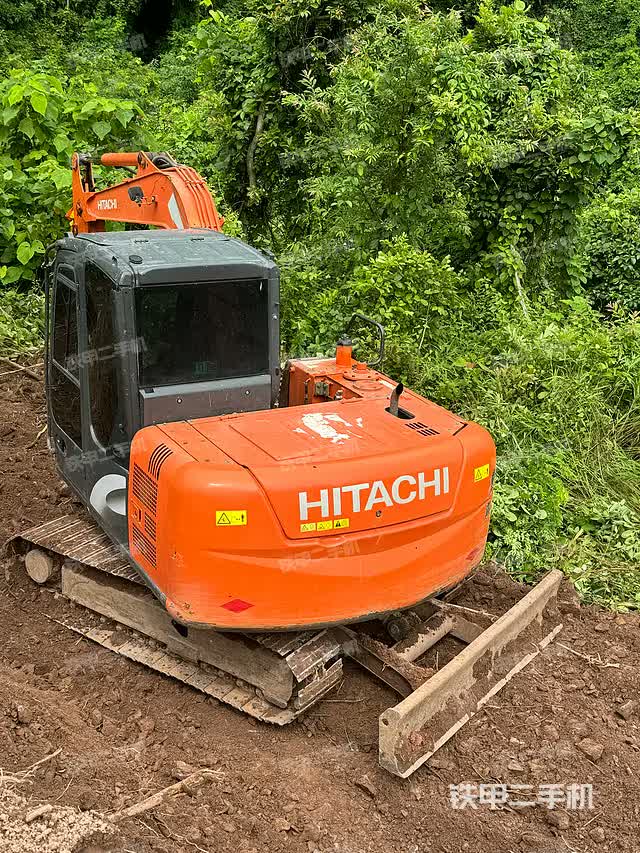

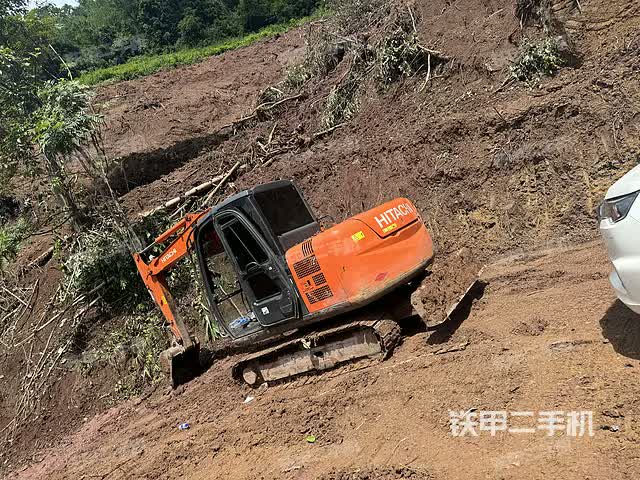

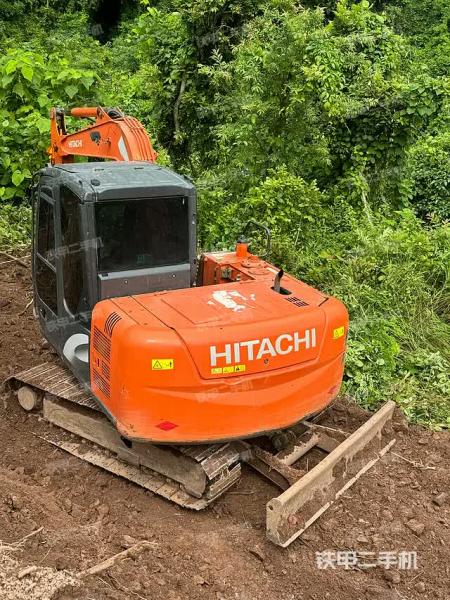

• Brand: Hitachi

• Model: ZX60-5A

• Year of Manufacture: 2018

• Hours: 9300 hours

• Location: Yunnan - Pu’er


• Brand: Hitachi

• Model: ZX60-5A

• Year of Manufacture: 2018

• Hours: 9300 hours

• Location: Yunnan - Pu’er


• Operating Weight: 5960 kg

• Bucket Capacity: 0.24 m³

• Power Type: Traditional engine

• Manufacturer: Joint venture/imported

• Bucket Type: Backhoe


• Engine Model: 4TNV98

• Rated Power: 42.4 kW / 2100 rpm

• Cooling System: Water-cooled

• Bore × Stroke: 98 × 110 mm

• Maximum Torque: 236 N·m / 1350 rpm

• Cylinders: 4

• Displacement: 3.318 L

• Engine Type: 4-stroke, direct injection, water-cooled


• Ground Pressure: 31 KPa

• Swing Speed: 9.1 rpm

• Gradeability: 70% (35°)

• Bucket Digging Force: 41.4 kN

• Arm Digging Force: 28.4 kN

• Maximum Traction: 38.5 kN

• Travel Speed: 0–4.5 km/h (high) / 0–2.5 km/h (low)

• Swing Torque: 10 Nm


• Swing Hydraulic Motor: 1 axial piston motor

• Travel Hydraulic Motors: 2 variable axial piston motors

• Main Pump Maximum Flow: 2 × 52.5 L/min

• Travel Circuit Pressure: 24.5 MPa

• Swing Circuit Pressure: 17.6 MPa

• Main Pump Type: 3 variable axial piston pumps

• Working Circuit Pressure: 24.5 MPa

• Pilot Circuit Pressure: 3.9 MPa

• Pilot Pump Flow: 9.5 L/min

• Bucket Cylinder: 1 × 80 × 50 mm

• Arm Cylinder: 1 × 85 × 55 mm

• Boom Cylinder: 1 × 105 × 60 mm


• Fuel Tank: 120 L

• Hydraulic Tank: 60 L

• Engine Oil Capacity: 12.3 L

• Coolant: 8 L

• Total Hydraulic System: 93 L


• Transport Length: 6060 mm

• Transport Width: 2060 mm

• Transport Height: 2085 mm

• Cab Height: 2475 mm

• Counterweight Ground Clearance: 620 mm

• Minimum Ground Clearance: 310 mm

• Front Working Radius: 2510 mm

• Rear Swing Radius: 1650 mm

• Upper Carriage Width: 2060 mm

• Track Gauge: 1600 mm

• Track Shoe Width: 400 mm

• Carrier Rollers per Side: 1

• Track Rollers per Side: 5

• Track Shoes per Side: 39


• Maximum Digging Radius: 6250 mm

• Maximum Digging Depth: 3850 mm

• Maximum Digging Height: 5800 mm

• Maximum Dumping Height: 4080 mm

• Maximum Vertical Digging Depth: 3440 mm

• Dozer Blade Lift or Push Depth: 430 × 400 mm

• Dozer Blade Width × Height: 2000 × 400 mm

• Parking Digging Radius: 6130 mm




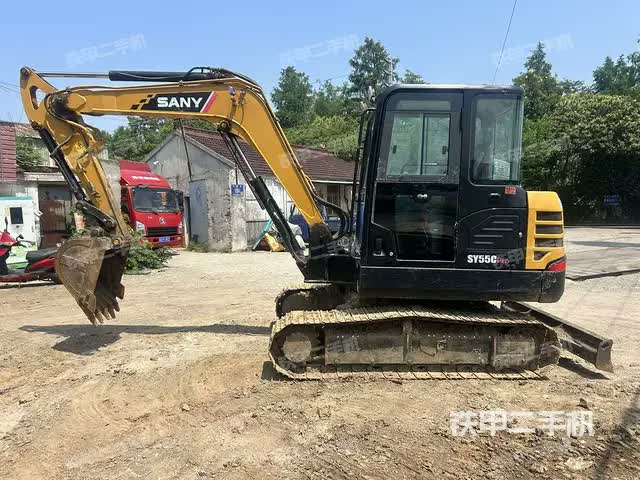

ID：1826222

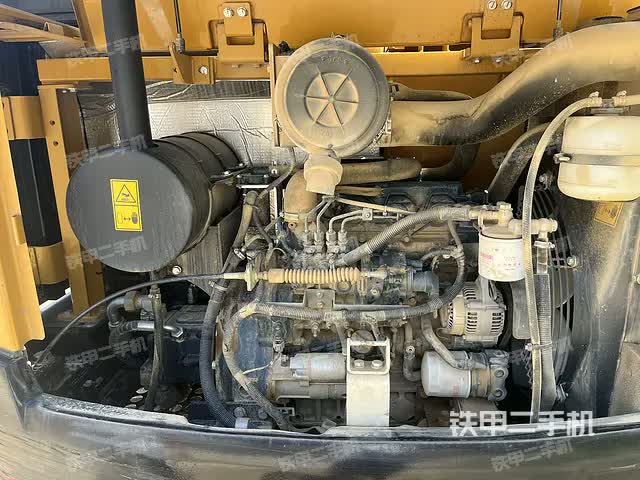

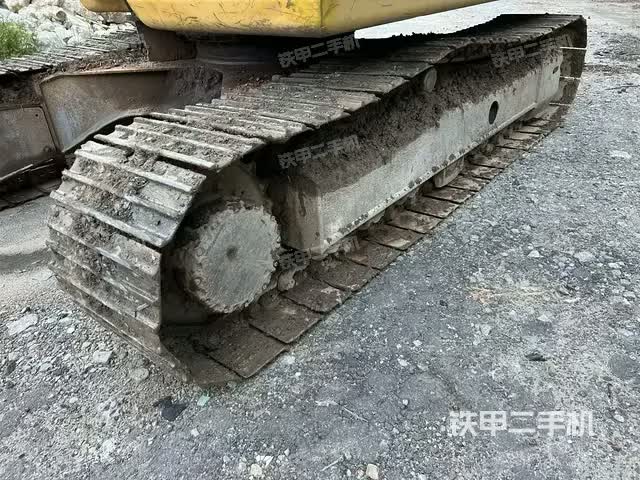

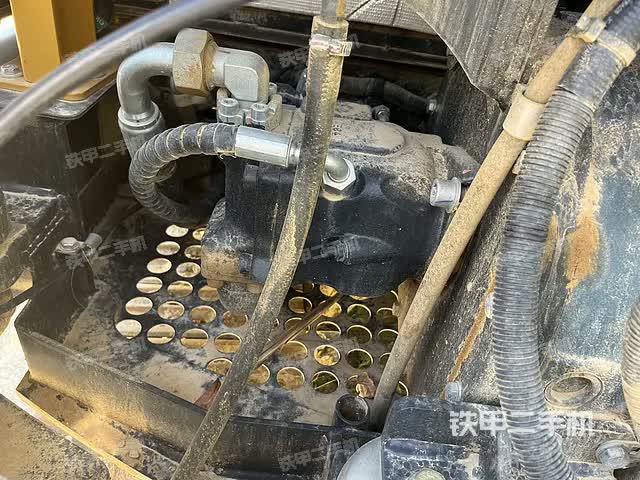

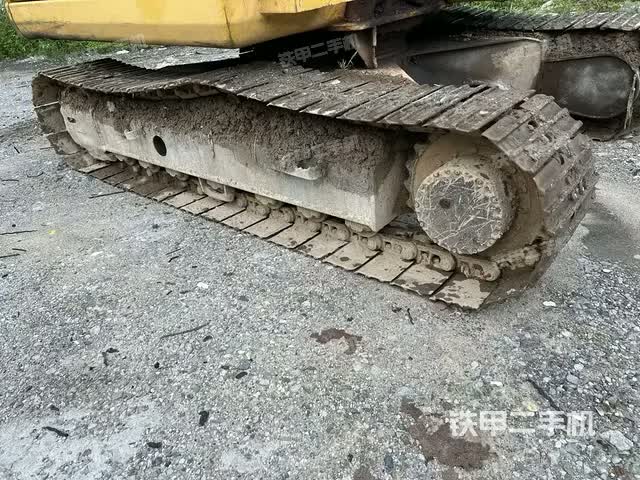

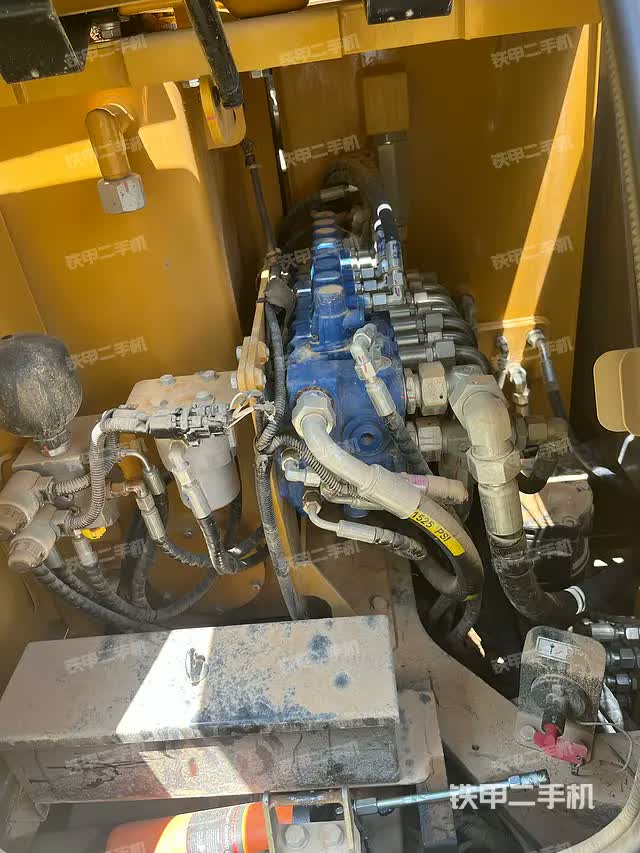

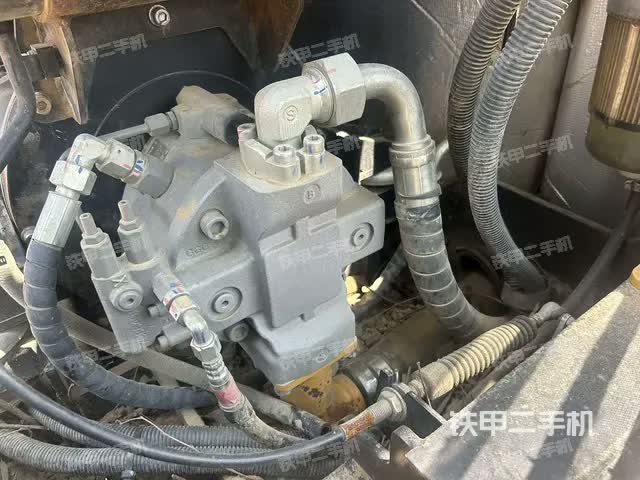

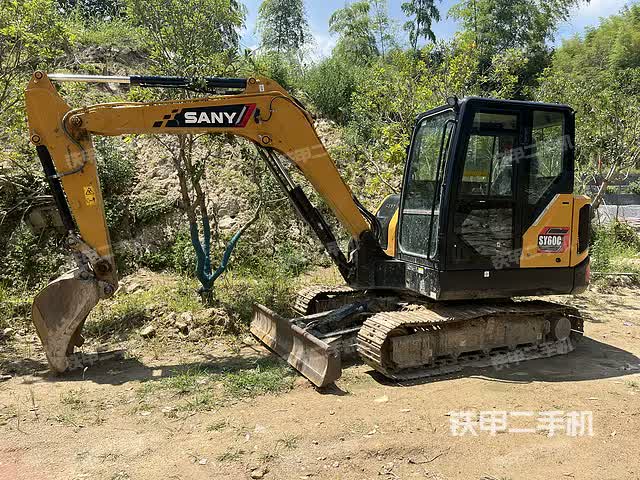

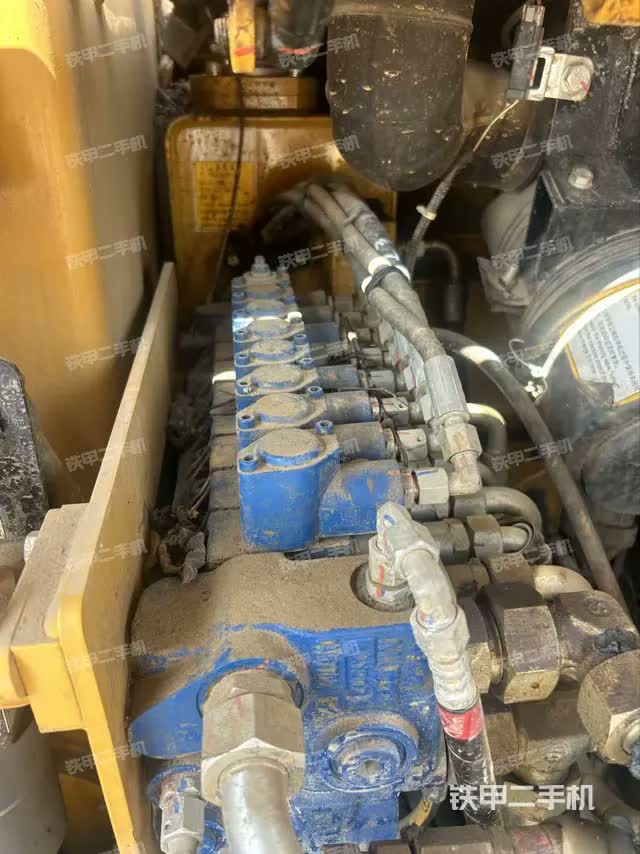

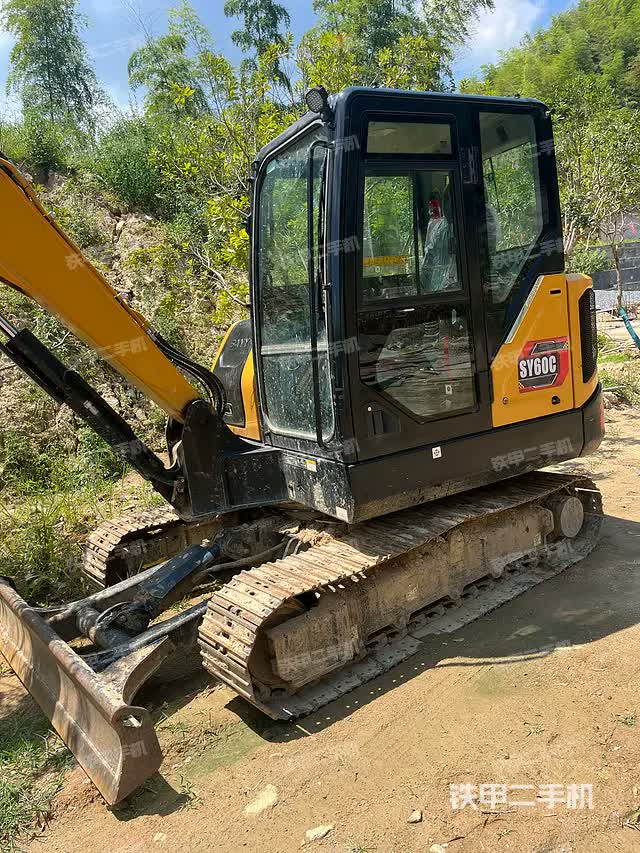

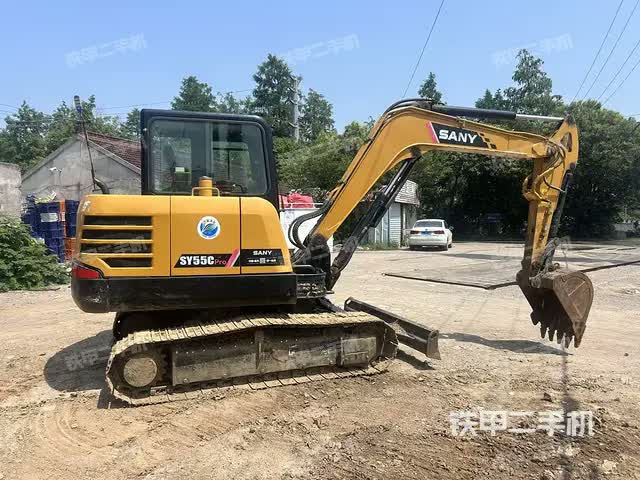

• Brand: SANY

• Model: SY55C

• Year of Manufacture: 2021

• Hours Used: 4000 hours

• Location: Jiangsu - Wuxi


• Brand: SANY

• Model: SY55C

• Year of Manufacture: 2021

• Hours Used: 4000 hours

• Location: Jiangsu - Wuxi


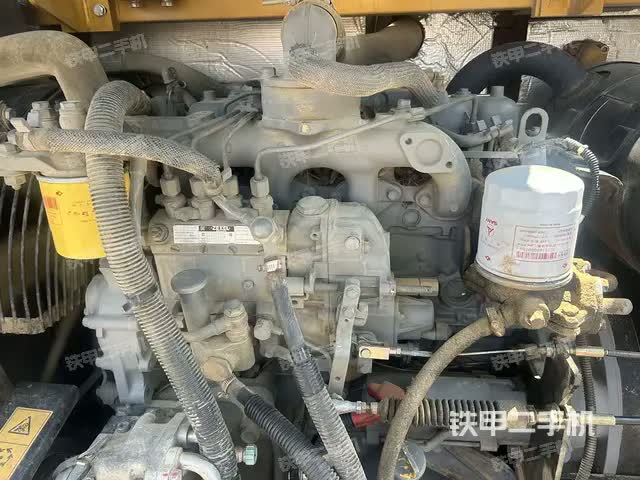

• Engine Model: 4JG1

• Rated Power: 36 kW / 2100 rpm

• Cooling System: Water-cooled

• Maximum Torque: 175 N·m / 1800 rpm

• Cylinders: 4

• Displacement: 3.059 L


• Ground Pressure: 32.75 kPa

• Swing Speed: 9.6 rpm

• Gradeability: 70% (35°)

• Bucket Digging Force: 45 kN

• Arm Digging Force: 33 kN

• Travel Speed: 3.73 / 2.4 km/h


• Fuel Tank: 130 L

• Hydraulic Oil Tank: 85 L

• Engine Oil Capacity: 9.6 L


• Transport Length: 5925 mm

• Transport Width: 2005 mm

• Transport Height: 2595 mm

• Minimum Ground Clearance: 330 mm

• Rear Swing Radius: 1640 mm

• Track Length: 2545 mm

• Track Gauge: 1600 mm

• Track Shoe Width: 400 mm

• Carrier Rollers (per side): 1

• Track Rollers (per side): 5

• Track Shoes (per side): 40


• Maximum Digging Radius: 6090 mm

• Maximum Digging Depth: 3815 mm

• Maximum Digging Height: 5690 mm

• Maximum Dumping Height: 3930 mm

• Maximum Vertical Digging Depth: 3070 mm

• Dozer Blade Lift / Depth: 385 / 380 mm

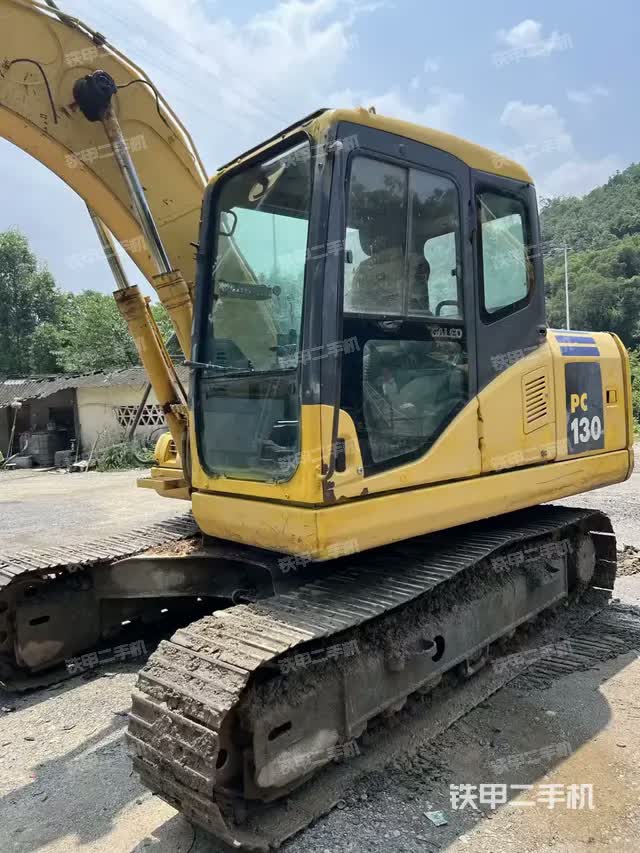

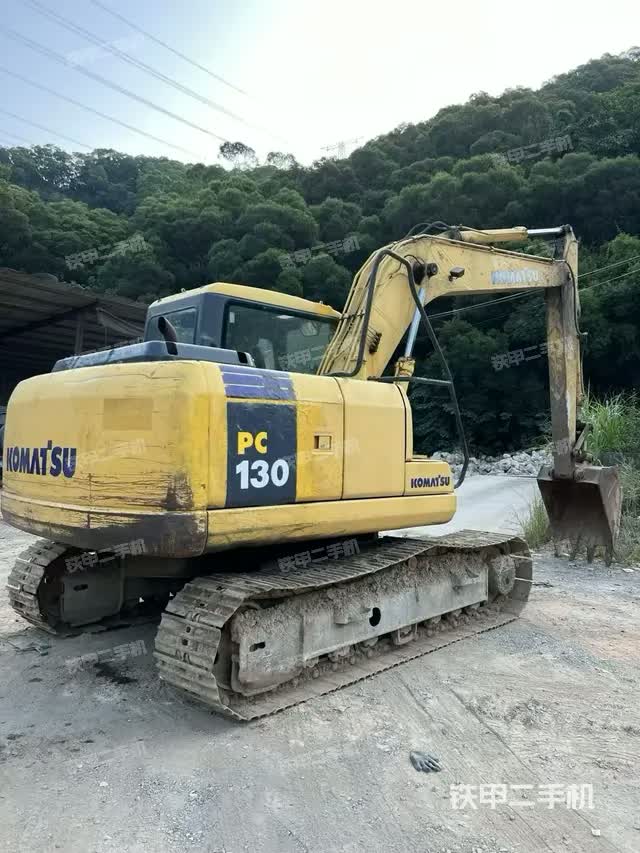

ID：1826195

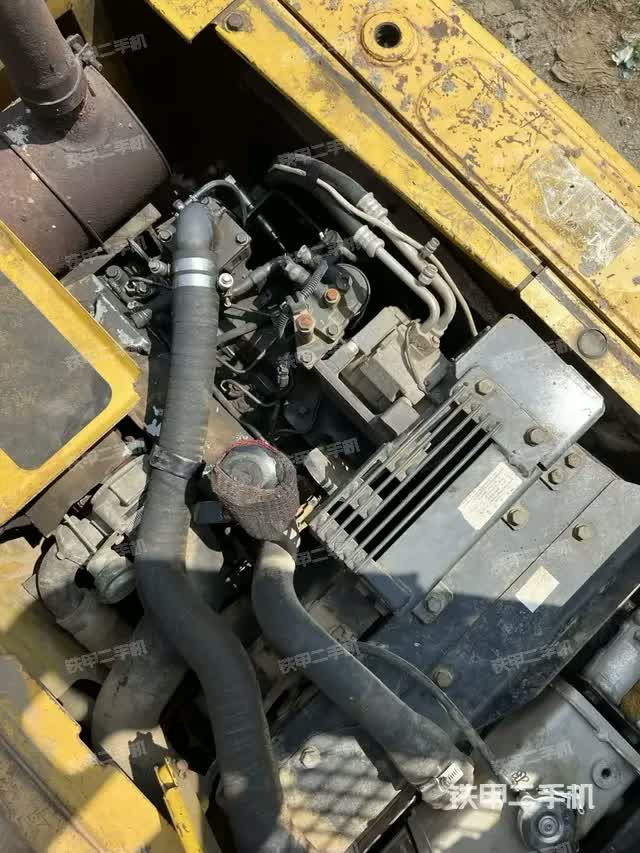

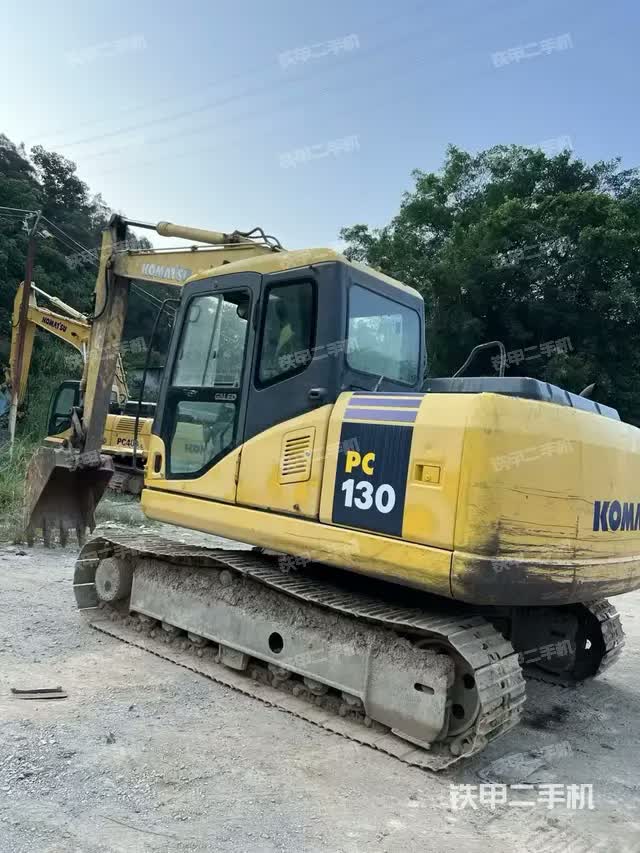

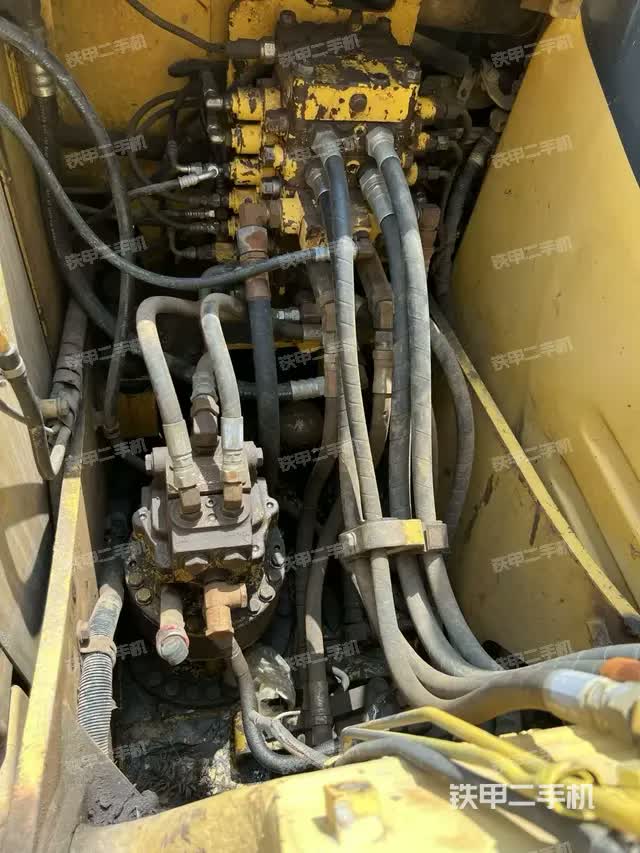

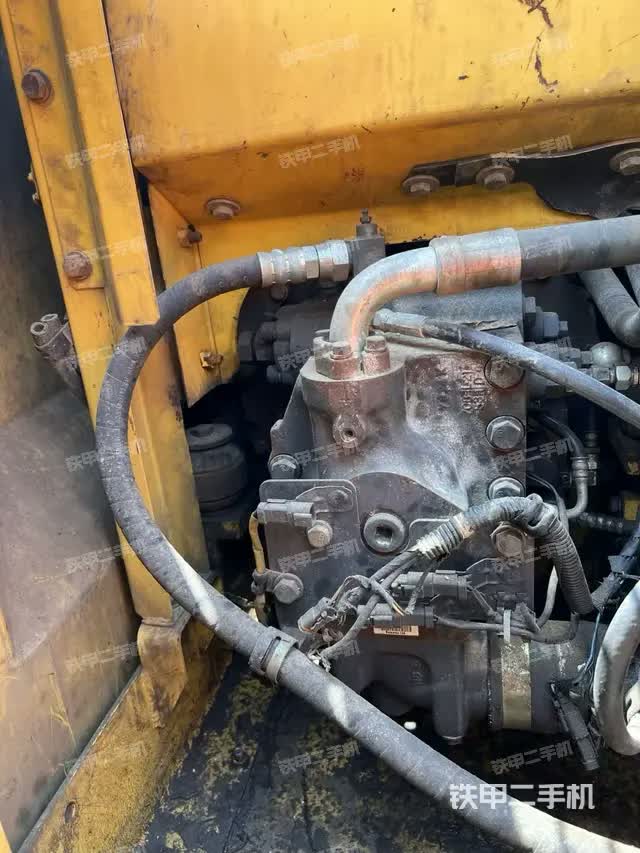

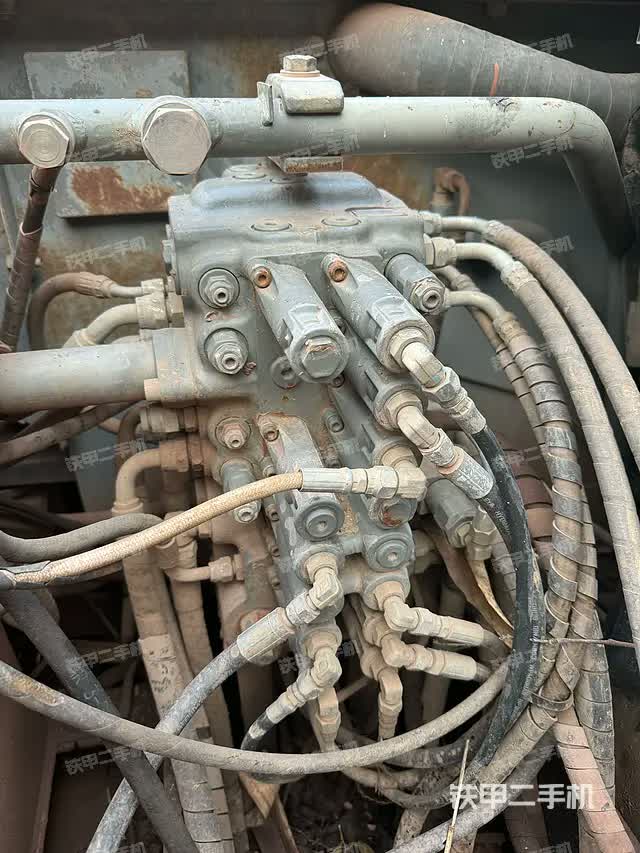

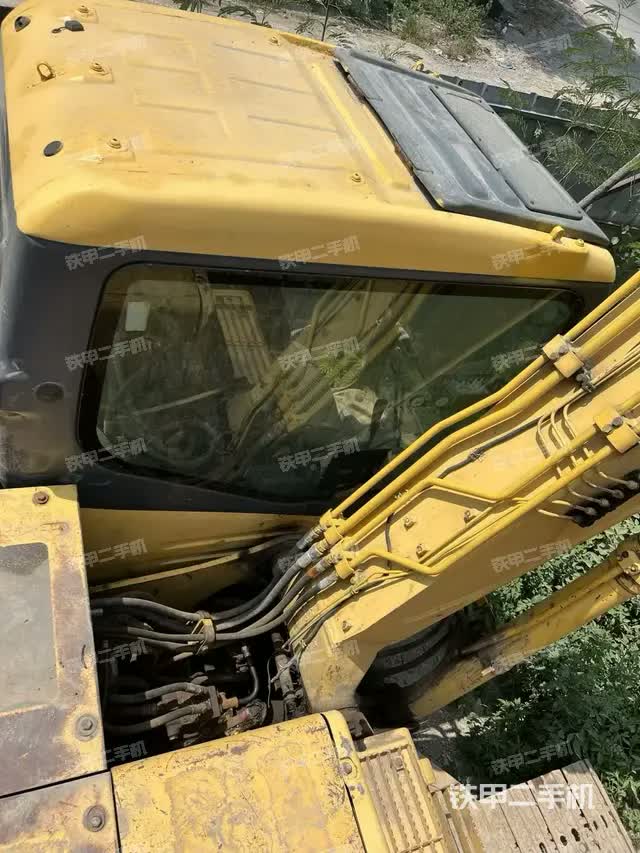

• Brand: Komatsu

• Model: PC130-7

• Year of Manufacture: 2010

• Hours: 10,000 hours

• Location: Fujian - Fuzhou


• Brand: Komatsu

• Model: PC130-7

• Year of Manufacture: 2010

• Hours: 10,000 hours

• Location: Fujian - Fuzhou

• Operating Weight: 12,600 kg

• Bucket Capacity: 0.53 m³

• Arm Length: 2,100 mm

• Origin: Jining, Shandong, China

• Engine Type: Conventional diesel

• Bucket Type: Backhoe


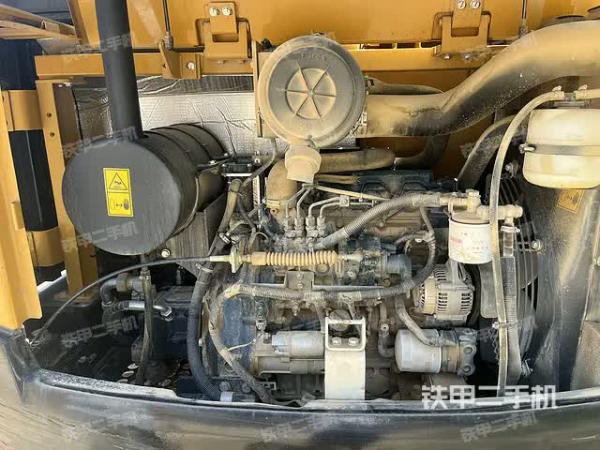

• Engine Model: Komatsu SAA4D95LE-3

• Rated Power: 66 kW / 2,200 rpm

• Cooling System: Water-cooled

• Displacement: 3.26 L

• Engine Features: Direct injection, turbocharged, intercooler


• Ground Pressure: 38 kPa

• Slew Speed: 11 rpm

• Gradeability: 70% / 30°

• Bucket Digging Force: 93.2 kN

• Arm Digging Force: 61.8 kN

• Travel Speed: 2.7–5.5 km/h


• Main Pump Max Flow: 226 L/min

• Travel Circuit Pressure: 35 MPa

• Swing Circuit Pressure: 29 MPa

• Control Circuit Pressure: 30 MPa

• Working Hydraulic Pressure: 32 MPa

• Hydraulic Breaker Circuit: Not standard


• Fuel Tank: 247 L

• Hydraulic Tank: 90 L

• Engine Oil Change: 11 L

• Coolant: 13.4 L


• Transport Length: 7,599 mm

• Transport Height: 2,175 mm

• Cab Height: 2,175 mm

• Counterweight Clearance: 855 mm

• Minimum Ground Clearance: 400 mm

• Rear Swing Radius: 2,110 mm

• Track Length: 3,610 mm

• Track Gauge: 1,990 mm

• Track Shoe Width: 500 mm

• Track Ground Contact Length: 2,880 mm


• Maximum Digging Radius: 8,290 mm

• Maximum Digging Depth: 5,520 mm

• Maximum Digging Height: 8,610 mm

• Maximum Dumping Height: 6,170 mm

• Maximum Vertical Digging Depth: 4,940 mm

• Maximum Effective Digging Depth: 5,315 mm

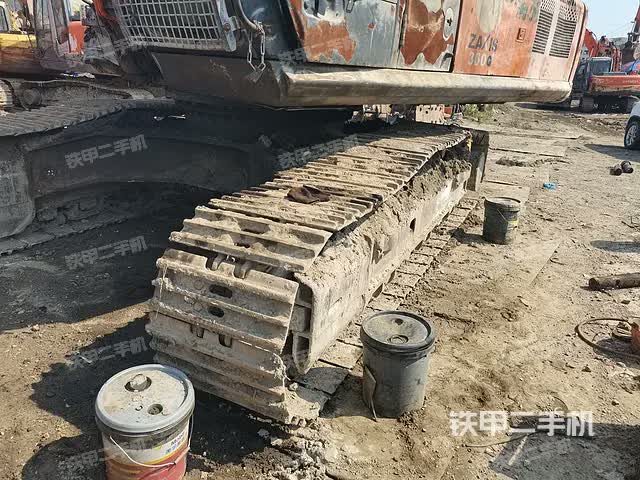

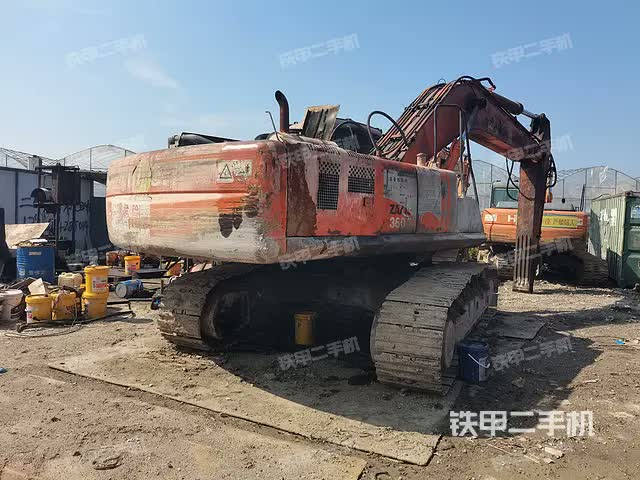

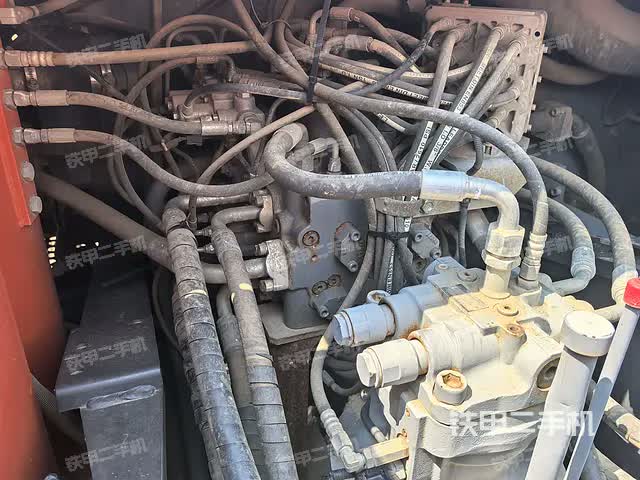

ID：1826206

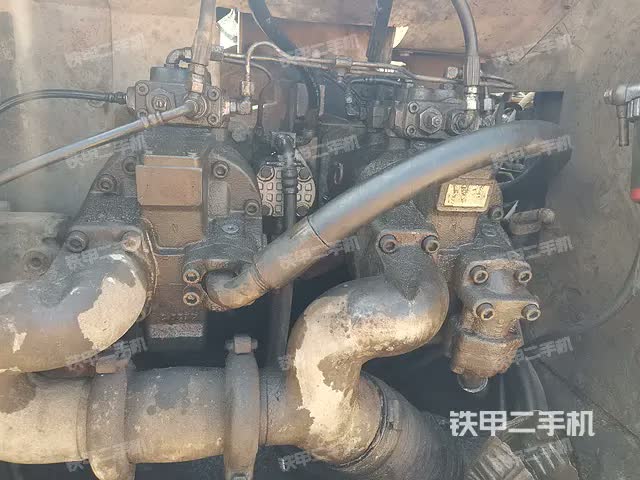

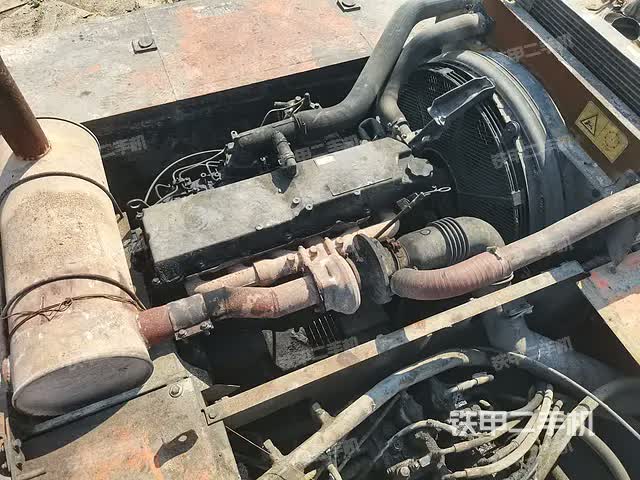

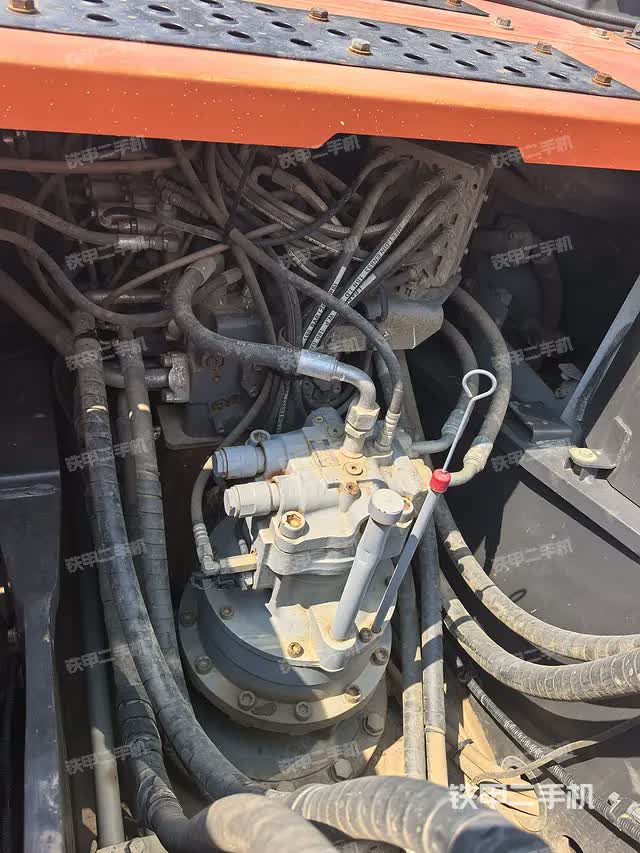

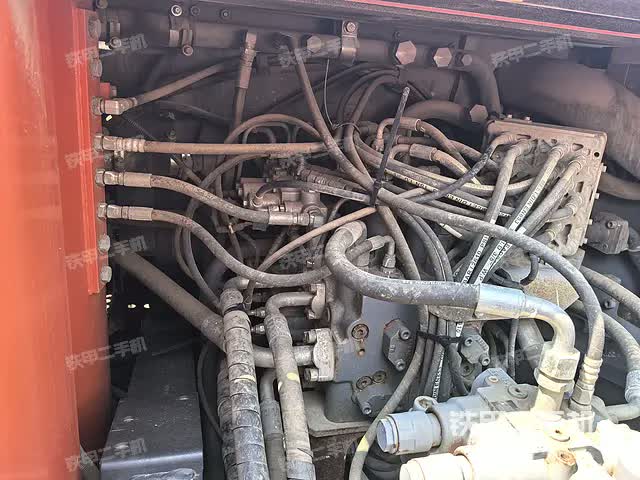

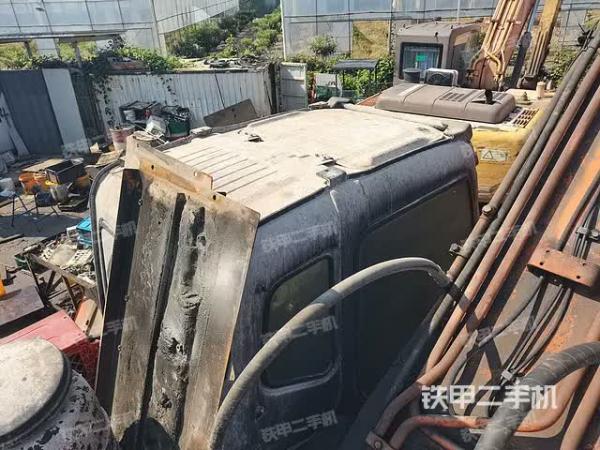

• Brand: Hitachi

• Model: ZX360H-3G

• Year of Manufacture: 2011

• Hours: 16,000 hours

• Location: Zhejiang - Ningbo


• Brand: Hitachi

• Model: ZX360H-3G

• Year of Manufacture: 2011

• Hours: 16,000 hours

• Location: Zhejiang - Ningbo


• Operating Weight (kg): 33,900

• Bucket Capacity (m³): 1.6 (Rock narrow bucket)

• Boom Length (mm): 6,400

• Arm Length (mm): 3,200 (H-type, 4 reinforcements)

• Origin: Anhui Hefei

• Power Type: Conventional Diesel

• Manufacturer: Joint Venture / Imported

• Bucket Type: Backhoe


• Engine Model: Isuzu AH-6HK1XQA

• Rated Power (kW/rpm): 184 / 2000

• Cooling Method: Water-cooled

• Bore × Stroke (mm): 115 × 125

• Cylinders: 6

• Displacement (L): 7.79

• Operation: Direct injection, turbocharged, intercooled


• Ground Pressure (kPa): 68

• Swing Speed (rpm): 11.8

• Gradeability (%): 70 / 35°

• Bucket Digging Force (kN): 237

• Arm Digging Force (kN): 172

• Travel Speed (km/h): 3.2 / 5.0


• Main Relief Pressure (MPa): 31.4

• Swing Hydraulic Motor: Axial piston ×1

• Travel Hydraulic Motor: Variable axial piston ×2

• Main Pump Max Flow (L/min): 2 × 288 + 30.2

• Travel Hydraulic Circuit Pressure (MPa): 34.3

• Swing Hydraulic Circuit Pressure (MPa): 32.4

• Hydraulic Breaker Circuit: Optional

• Main Pump Type: Variable axial piston ×2 + Gear pump ×1

• Work Hydraulic Pressure (MPa): 34.3

• Pilot Pressure (MPa): 3.9

• Bucket Cylinder (mm): 140 × 95

• Arm Cylinder (mm): 170 × 115

• Boom Cylinder (mm): 146 × 100


• Fuel Tank (L): 560

• Hydraulic Tank (L): 154 / full 272

• Engine Oil Change (L): 36

• Coolant (L): 32


• Transport Length (mm): 10,970

• Transport Width (mm): 3,190

• Transport Height (mm): 3,230

• Cab Height (mm): 3,140

• Counterweight Ground Clearance (mm): 1,160

• Minimum Ground Clearance (mm): 500

• Rear Swing Radius (mm): 3,320

• Track Length (mm): 4,650

• Track Gauge (mm): 2,590

• Track Shoe Width (mm): 600

• Total Track Width (mm): 3,190

• Track Ground Contact Length (mm): 3,730


• Max Digging Radius (mm): 11,100

• Max Digging Depth (mm): 7,360

• Max Digging Height (mm): 10,250

• Max Dumping Height (mm): 7,150

• Max Vertical Digging Depth (mm): 6,460

• Dozer Blade: Not equipped




ID：1826194

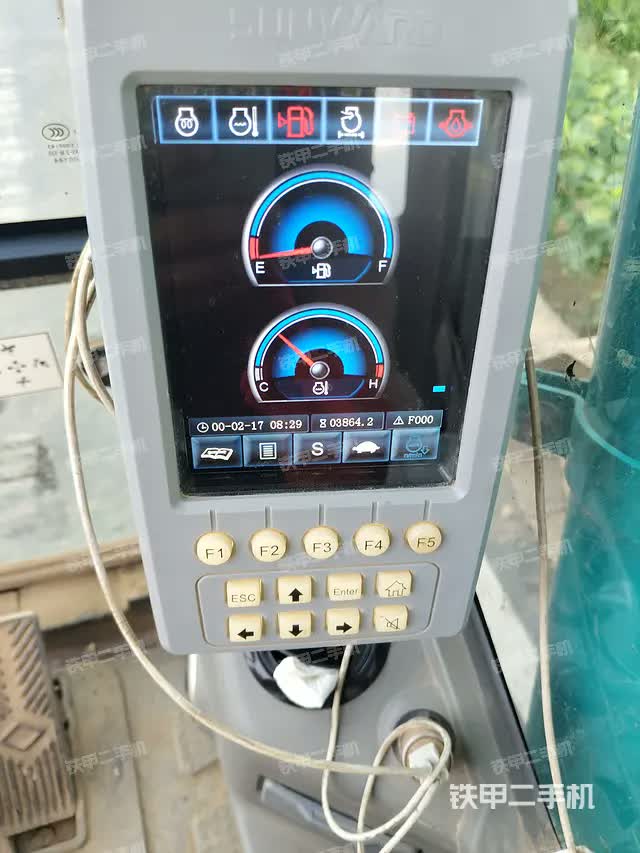

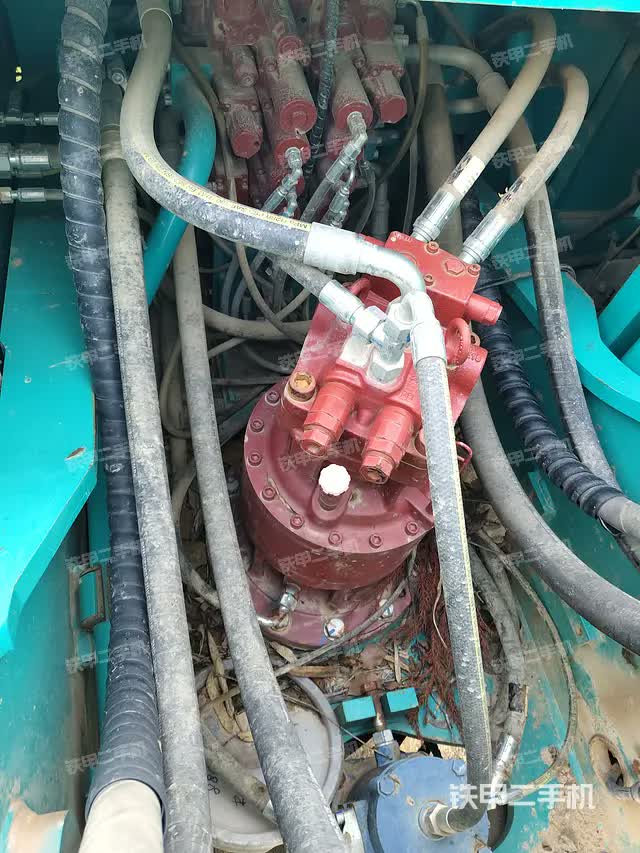

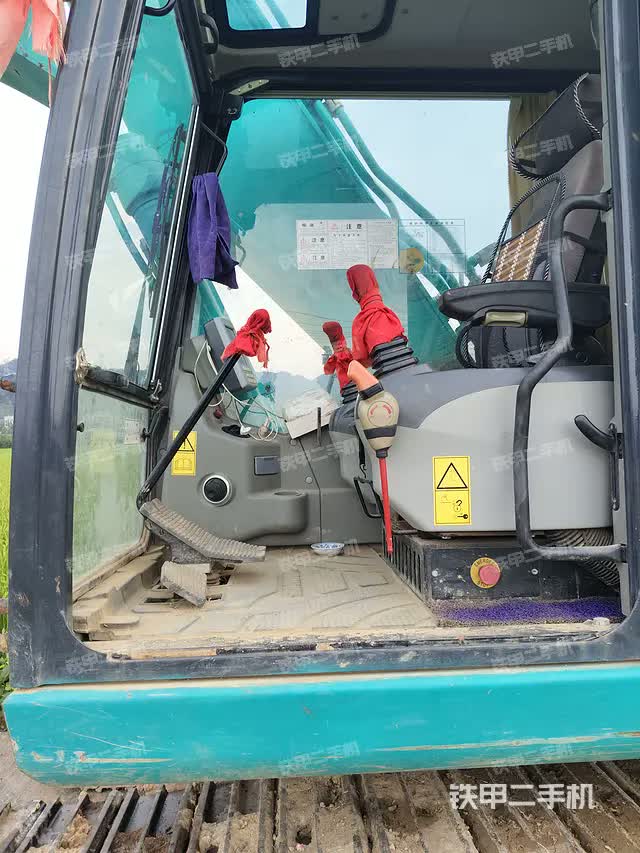

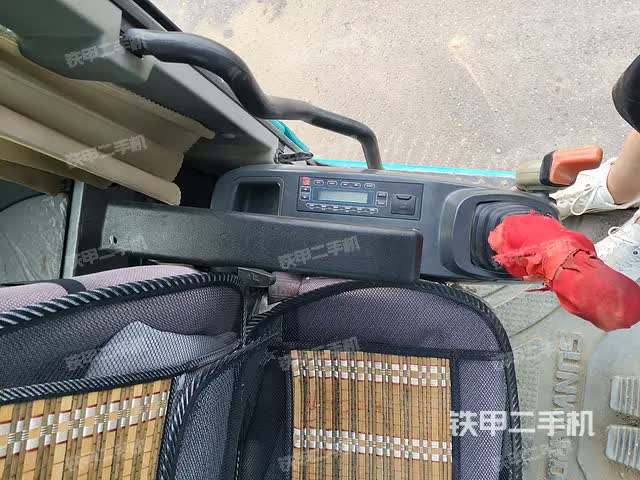

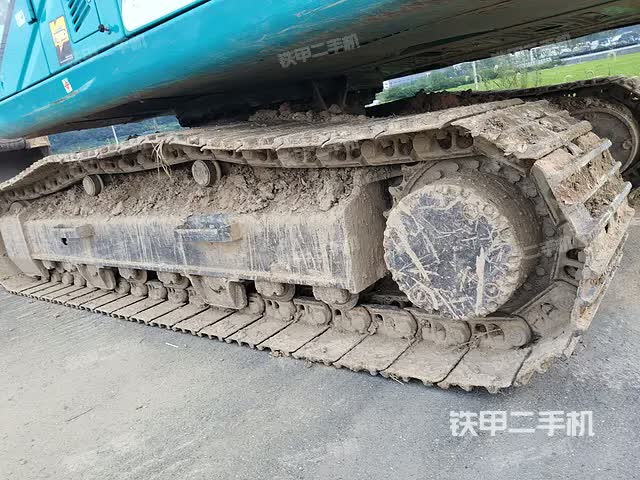

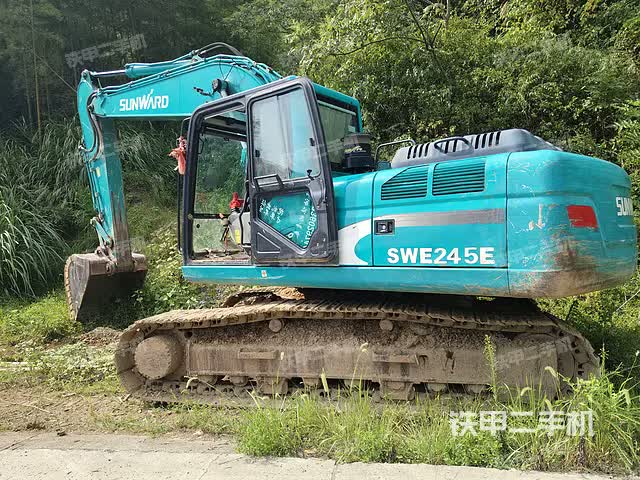

• Brand: Sunward

• Model: SWE215E-3H

• Year of Manufacture: 2021

• Hours: 3860 hours

• Location: Hangzhou, Zhejiang


• Brand: Sunward

• Model: SWE215E-3H

• Year of Manufacture: 2021

• Operating Hours: 3860 hours

• Location: Hangzhou, Zhejiang


• Operating Weight: 22,300 kg

• Bucket Capacity: 1.0 m³

• Arm Length: 5700 mm

• Boom Length: 2920 mm

• Engine Type: Traditional diesel

• Bucket Type: Backhoe


• Engine Model: QSB7

• Rated Power: 124 kW at 2050 rpm

• Bore × Stroke: 107 × 124 mm

• Max Torque: 658 N·m at 1200 rpm

• Cylinders: 6

• Displacement: 6.7 L


• Ground Pressure: 46 kPa

• Swing Speed: 11.8 rpm

• Gradeability: 70%

• Bucket Digging Force: 155 kN

• Arm Digging Force: 110 kN

• Maximum Traction: 232 kN

• Travel Speed: 3.3 / 5.2 km/h


• Main Pump Max Flow: 2 × 240 L/min

• Travel Hydraulic Circuit: 34.3 MPa

• Swing Hydraulic Circuit: 26 MPa

• Main Pump Type: Dual tandem variable displacement piston pump

• Working Hydraulic Pressure: 31.4 / 34.3 MPa

• Pilot Pressure: 3.9 MPa

• Pilot Pump Flow: 1 × 21 L/min

• Bucket Cylinder: 1 × 120 × 80 × 1055 mm

• Arm Cylinder: 1 × 135 × 95 × 1540 mm

• Boom Cylinder: 2 × 125 × 85 × 1240 mm


• Fuel Tank: 370 L

• Hydraulic Tank: 250 L

• Engine Oil Change Volume: 24 L


• Transport Length: 9570 mm

• Transport Width: 2990 mm

• Transport Height: 2945 mm

• Counterweight Clearance: 1060 mm

• Minimum Ground Clearance: 478 mm

• Front Working Device Min Turning Radius: 3560 mm

• Rear Swing Radius: 2750 mm

• Track Length: 4260 mm

• Track Gauge: 2390 mm

• Track Shoe Width: 600 mm

• Total Track Width: 2990 mm

• Track Ground Contact Length: 3465 mm

• Idler Wheels (per side): 2

• Carrier Rollers (per side): 8

• Track Shoe Count (per side): 47


• Max Digging Radius: 9940 mm

• Max Digging Depth: 6750 mm

• Max Digging Height: 9750 mm

• Max Dumping Height: 6980 mm

• Max Vertical Digging Depth: 5900 mm

• Max Digging Radius at Ground Level: 9775 mm


Manual thumbs are versatile attachments commonly used in conjunction with buckets on excavators and skid steers. They enhance the machine's ability to grip and manipulate objects, making them indispensable in a variety of tasks, such as lifting debris, moving logs, or handling rocks. However, stowing the manual thumb when not in use can be a challenging task, especially on machines that are used in tight or confined spaces.
In this article, we'll explore the methods to stow manual thumbs effectively and provide practical insights on how to solve common challenges. We'll also discuss the benefits of maintaining a well-functioning thumb and share some tips for making this process easier and more efficient.
Why Stowing a Manual Thumb is Important
A manual thumb is often used as an attachment that operates by connecting to the arm of an excavator or skid steer. It is primarily designed to enhance the machine's digging or handling capacity. When not in use, the thumb needs to be stowed in a position that does not interfere with the machine's performance and mobility.
Improperly stored thumbs can:

• Reduce efficiency: A thumb in the wrong position may obstruct other operations or attachments.

• Cause damage: If left in a position where it is exposed to heavy wear, the thumb may get damaged.

• Pose safety risks: Loose or improperly secured thumbs could become a hazard, especially when operating in areas with limited space or heavy traffic.


• Step 1: Release the thumb from its working position. This may involve releasing hydraulic pressure or manually disengaging it.

• Step 2: Fold the thumb back against the arm of the machine.

• Step 3: Insert the pin or bolt to secure the thumb in place. Ensure that the pin or bolt is tightly fastened to avoid movement during operation.


• Simple to use and maintain.

• Secure and reliable.


• Manual effort required to detach and attach the thumb.

• Can be time-consuming if done frequently.


• Step 1: Activate the thumb’s hydraulic system to move the thumb to its stowed position.

• Step 2: Once in place, ensure the thumb is fully secured through the hydraulic lock or detent system.


• Effortless and fast operation.

• Ideal for environments where the thumb is frequently used and stored.


• Requires maintenance and occasional troubleshooting to keep the hydraulic system in good working order.

• Can be expensive to install if not already integrated into the machine.


• Step 1: Physically fold the thumb into a compact position against the boom or arm.

• Step 2: Use a locking mechanism to secure the thumb in place. This can be a pin, latch, or bolt depending on the design.


• Simple and inexpensive solution.

• Doesn’t rely on hydraulics or electrical systems.


• Can be physically demanding for the operator.

• Takes time compared to hydraulic systems.


1. Thumb Jamming
   Sometimes, the thumb may not fold back easily due to dirt, debris, or wear in the pin or hinge mechanisms. This can make it difficult to stow the thumb properly.
   Solution: Regularly clean the thumb’s joints and ensure they are well-lubricated. If the thumb still jams, inspect the hinge pins for wear or damage and replace them as needed.

2. Hydraulic Failure
   Hydraulic-powered thumbs rely on the hydraulic system to move the attachment. A failure in the hydraulic circuit, such as a damaged hose or faulty valve, can render the stowage system inoperable.
   Solution: Maintain the hydraulic system regularly, checking for leaks, cracks, and wear. Also, ensure that the hydraulic fluid is at the correct level to avoid pump damage.

3. Wear on Locking Mechanism
   Over time, the locking mechanisms used to secure the thumb in place may wear out, making it difficult to keep the thumb stowed securely.
   Solution: Periodically check the locking pins and mechanisms for wear and replace them as necessary. This can prevent the thumb from becoming loose or shifting during operation.

4. Lack of Space for Stowing
   In some cases, there may not be enough room on the arm or boom to store the thumb in a compact position, especially if other attachments or tools are in use.
   Solution: Invest in attachments that can be easily removed or stowed away, allowing more flexibility with your thumb storage. Alternatively, consider using a thumb with a more compact design if space is a constant issue.


1. Regular Inspection
   Check the thumb and its components regularly for wear, damage, and signs of fatigue. The pin or locking system should be in good condition, and the thumb should move freely without obstruction.

2. Cleanliness
   Keep the thumb clean and free of debris. Dirt, sand, and other materials can get into the hydraulic components or locking mechanisms, causing them to malfunction.

3. Operator Training
   Ensure that operators understand the correct process for stowing the thumb. This helps avoid improper handling or damage.

4. Proper Lubrication
   Lubricate the thumb’s pins, hinges, and hydraulic components as required. Proper lubrication reduces friction and wear, extending the life of the thumb.

5. Use Proper Storage Position
   Always stow the thumb in the correct position when not in use. Improperly stored thumbs can interfere with other attachments or components and may even lead to damage.


The Cleveland Beacon Brand and Its Industrial Legacy
Cleveland Beacon has been a trusted name in industrial lifting solutions for decades, particularly known for its robust jib cranes used in manufacturing, warehousing, and maintenance operations. The company’s product line includes wall-mounted, freestanding, and mast-style jib cranes, with capacities ranging from ½ ton to 5 tons. The 3-ton freestanding jib crane with an 18-foot boom is one of its more popular configurations, offering a balance of reach, lifting power, and rotational flexibility.
Historically, Cleveland Beacon cranes have been deployed in automotive plants, steel fabrication shops, and municipal service yards. Their reputation for durability stems from precision-engineered components and conservative load ratings. While exact sales figures are not publicly available, industry estimates suggest thousands of units have been installed across North America since the 1980s.
Understanding Jib Crane Foundation Loads
A jib crane’s foundation must resist not only vertical loads from the lifted weight but also horizontal and torsional forces generated during boom rotation and load movement. For a 3-ton crane with an 18-foot span, the foundation must be engineered to handle:
• Vertical load: Up to 6,000 lbs plus dynamic factors
• Moment load: Resulting from the boom’s leverage at full extension
• Shear forces: From sudden stops or directional changes
• Uplift: When the load is swung rapidly or off-center
Terminology annotation:
• Moment load: A rotational force applied at a distance from the pivot point, calculated as force × distance.
• Shear force: A lateral force that acts parallel to the surface, potentially causing sliding or structural failure.
• Uplift: A vertical force that attempts to lift the base from the foundation due to counterweight imbalance or dynamic motion.
Recommended Foundation Specifications
While exact dimensions vary by soil type and installation environment, typical foundation requirements for a 3-ton freestanding jib crane include:
• Concrete pad thickness: Minimum 24 inches
• Pad diameter: 6 to 8 feet depending on boom length and rotation range
• Reinforcement: #5 rebar in a radial and concentric pattern
• Concrete strength: Minimum 4,000 psi
• Anchor bolts: Grade 8, embedded at least 18 inches with epoxy or mechanical expansion
In clay or sandy soils, additional measures such as pilings or grade beams may be necessary to prevent settlement or tilt. Engineers often recommend a geotechnical survey before installation to determine bearing capacity and frost depth.
Installation Anecdotes and Field Experience
A maintenance supervisor in Ohio shared his experience installing a Cleveland Beacon 3-ton jib crane in a municipal garage. The original plan called for a 5-foot diameter pad, but after consulting with a structural engineer, they expanded it to 7 feet and added double-layer rebar. The crane was used to lift snowplow blades and engine blocks, and after five winters, the foundation showed no signs of cracking or movement.
In contrast, a fabrication shop in Texas installed a similar crane on a 4-foot pad without consulting soil data. Within two years, the base began to tilt due to expansive clay shrinkage during drought conditions. Retrofitting the foundation cost more than the original installation, underscoring the importance of proper planning.
Foundation for Smaller Jib Cranes
For a ½-ton Cleveland Beacon jib crane, the foundation requirements are less demanding but still critical. Typical specs include:
• Pad thickness: 18 inches
• Diameter: 4 to 5 feet
• Concrete strength: 3,000 psi
• Rebar: Single-layer grid with radial ties
• Anchor bolts: Grade 5, embedded 12 inches
These cranes are often used for light-duty tasks such as tool handling, small part lifting, or maintenance support. Despite their lower capacity, improper installation can still lead to instability or premature wear.
Design Considerations and Safety Standards
Modern jib crane installations must comply with OSHA and ASME standards, particularly:
• ASME B30.11: Safety standards for jib cranes
• OSHA 1910.179: General requirements for overhead and gantry cranes
These standards mandate load testing, inspection intervals, and operator training. Additionally, manufacturers often provide installation manuals with torque specs, bolt patterns, and concrete curing guidelines.
For enhanced safety and longevity, consider:
• Installing rotation stops to prevent over-swing
• Using grout under the base plate to ensure full contact
• Applying rust-resistant coatings to anchor bolts
• Scheduling annual inspections for bolt torque and concrete integrity
Conclusion
Installing a Cleveland Beacon 3-ton jib crane requires careful attention to foundation design, soil conditions, and structural loads. While the crane itself is engineered for reliability, its performance and safety depend heavily on the integrity of its base. Whether lifting heavy components in a factory or supporting maintenance tasks in a garage, a properly designed foundation ensures years of trouble-free operation. For contractors and facility managers, investing in sound engineering upfront is the key to maximizing crane utility and minimizing long-term risk.

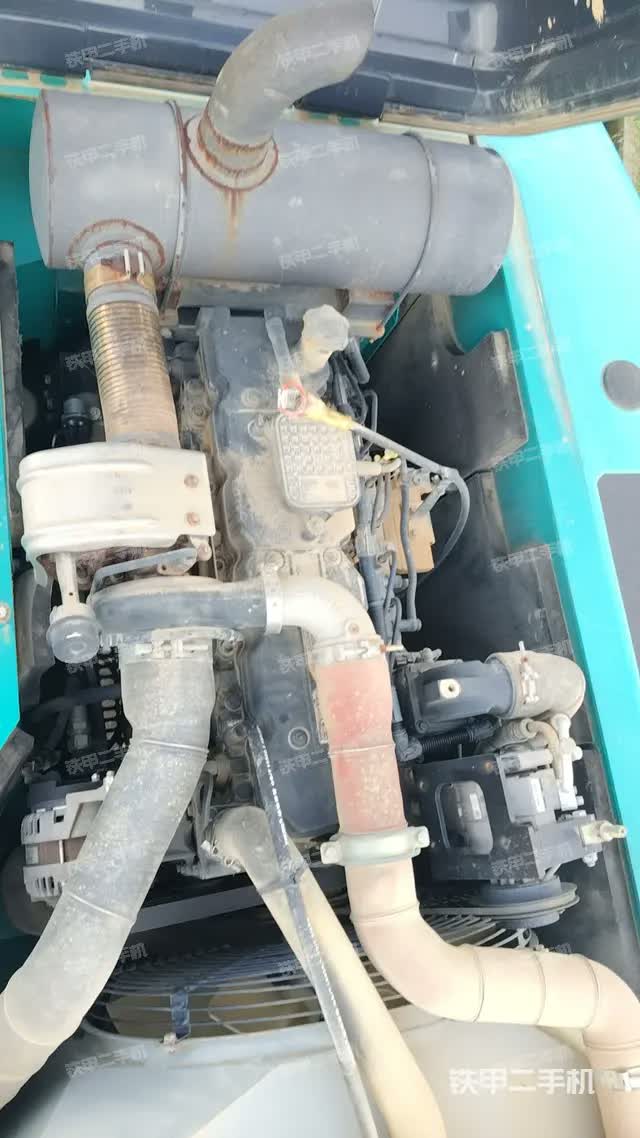

The Sumitomo SH-120-3 is part of the SH series, a line of excavators from Sumitomo Construction Machinery. Known for its reliability and performance, the SH-120-3 is frequently used in various industries, from construction to mining and landscaping. The model is widely regarded for its robustness and versatility in demanding work environments. In this article, we'll dive into the specifics of the SH-120-3, its features, common issues, and overall performance.
Background and Company Overview
Sumitomo Construction Machinery, part of the Sumitomo Heavy Industries group, has been a significant player in the global construction machinery industry. Established in the 1960s, the company developed a strong reputation for its high-quality excavators and cranes. The SH series excavators, including the SH-120-3, were engineered to provide superior operational performance, durability, and ease of maintenance, making them popular choices for a wide range of projects.
Sumitomo’s SH series excavators, including the SH-120-3, were designed with input from engineers and operators in the field. This allowed Sumitomo to address both the mechanical and operational needs that would best suit a wide variety of applications.
Specifications and Features
The Sumitomo SH-120-3 is a mid-sized, hydraulic crawler excavator known for its efficient operation and strong digging power. Here are some of its key specifications:

• Operating Weight: 12,000 kg (approximately 26,455 lbs)

• Engine: Powered by a Komatsu SAA6D102E-2 engine
  • Power Output: Around 85 kW (113 HP)

  • Fuel Tank Capacity: 400 liters (106 US gallons)

• Digging Depth: Approx. 6,100 mm (20 feet)

• Bucket Capacity: Around 0.5-0.6 cubic meters depending on the bucket used

• Hydraulic Flow: The SH-120-3 is equipped with a high-flow hydraulic system, offering ample power for a variety of attachments.

• Boom Length: 6 meters (19.7 feet)

• Arm Length: 2.7 meters (8.9 feet)


1. Excavation: The SH-120-3 excels in both heavy-duty excavation and fine grading tasks. Its powerful hydraulics enable smooth operation of attachments like buckets, breakers, and augers.

2. Construction: From foundation work to demolition, the SH-120-3 provides consistent performance on construction sites, with its robust undercarriage offering stability on various terrains.

3. Landscaping: In addition to heavy construction work, the SH-120-3 is commonly used in landscaping tasks, such as trenching for utilities and digging ponds or ditches.

4. Mining: The excavator’s powerful engine and hydraulic system make it suitable for mining operations, where it handles the extraction of materials such as coal, sand, or gravel.


1. Hydraulic System Leaks
   Hydraulic leaks are common in older excavators, especially if the machine has been used heavily in demanding environments. This could manifest as a loss of hydraulic fluid, causing the machine’s performance to degrade. Regular inspection of hoses, seals, and joints is critical to ensuring the hydraulic system remains in top condition.
   • Solution: Check all hydraulic connections, hoses, and seals for leaks. Replace any worn or damaged components. Regularly top off hydraulic fluid to ensure optimal performance.

2. Engine Overheating
   Overheating can occur if the engine is not properly maintained or if the cooling system is blocked or clogged. Dust and debris can accumulate on the radiator, reducing airflow and causing engine temperature to rise.
   • Solution: Ensure that the cooling system is regularly cleaned. Check coolant levels and look for any blockages in the cooling lines. It’s also a good idea to monitor engine performance and temperature readings during operation.

3. Track and Undercarriage Wear
   The undercarriage of the SH-120-3 is subject to significant wear due to constant movement on rough terrain. Track tension, sprocket condition, and track link wear can all contribute to a decrease in performance and fuel efficiency.
   • Solution: Inspect the undercarriage frequently. Replace worn track links, sprockets, and rollers as needed. Properly tension the tracks to reduce wear and prevent costly repairs.

4. Electrical and Sensor Issues
   Over time, the excavator's electrical system may develop faults, including issues with sensors or wiring. This can lead to the failure of crucial systems, including the engine control unit (ECU) or the hydraulic controls.
   • Solution: Regularly check the electrical wiring and replace any faulty sensors. Use diagnostic tools to identify and fix any electrical faults before they lead to major breakdowns.

5. Cabin Comfort and Ergonomics
   Operators may experience discomfort during long shifts, particularly if the cabin is not properly maintained. Issues such as air conditioning failure, seat wear, and poor visibility can negatively impact productivity.
   • Solution: Regularly clean the cabin, check the air conditioning system, and replace worn seats. Upgrading to ergonomic seating and ensuring proper visibility can greatly improve operator comfort.


1. Scheduled Maintenance
   Like all heavy machinery, following the manufacturer’s recommended maintenance schedule is essential. This includes checking fluid levels, changing filters, inspecting hydraulic lines, and replacing worn parts on a regular basis. Preventative maintenance helps extend the machine’s lifespan and reduce unexpected downtime.

2. Operator Training
   Proper operator training can prevent unnecessary strain on the machine. Teach operators to monitor gauges, avoid overloading, and maintain proper speeds and hydraulic pressures to optimize the machine’s performance.

3. Use OEM Parts
   When replacing parts, always use original equipment manufacturer (OEM) parts. These parts are specifically designed for your SH-120-3 and will ensure the best performance and durability.

4. Storage
   When the excavator is not in use for extended periods, store it in a dry, covered area to prevent rust and deterioration. Additionally, it’s important to drain any water from the fuel tank and change any fluids that could degrade over time.
