The CAT 301.5 mini excavator, like many other heavy equipment machines, is built for power and precision in tight spaces. However, when it refuses to start, it can halt operations and lead to significant downtime. This article explores common causes of starting issues in the CAT 301.5 mini excavator and provides step-by-step guidance on how to diagnose and address these problems. Whether you're an experienced mechanic or a new operator, understanding the underlying mechanics of your equipment can save you both time and money.
Common Starting Issues in the CAT 301.5 Mini Excavator
Starting problems in the CAT 301.5 can stem from various sources, from fuel delivery issues to electrical malfunctions. The mini excavator is equipped with an advanced system that integrates both electronic and mechanical components, so pinpointing the cause requires a systematic approach. Below are some of the most common issues to consider:

1. Battery Problems: One of the first things to check is the battery. If the battery is old, weak, or improperly charged, it may not have enough power to crank the engine. The mini excavator relies on a 12-volt battery, which is crucial for starting the engine. Corrosion on the battery terminals or loose connections can also cause intermittent power loss, preventing the machine from starting.

2. Fuel Delivery Issues: Another frequent cause of starting problems is fuel delivery. If the fuel filter is clogged or if there is air in the fuel system, the engine may not receive the proper fuel flow. The CAT 301.5 is designed to run on diesel fuel, and maintaining a clean fuel system is critical to ensuring proper engine operation.

3. Faulty Starter Motor: If the battery is in good condition and the fuel system is functioning properly, the next component to check is the starter motor. A faulty or worn starter motor can fail to engage the engine, leading to a no-start condition. Starter motors can wear out over time, especially if they are subjected to harsh operating conditions.

4. Ignition System Issues: The ignition system of the CAT 301.5 mini excavator includes components such as the glow plugs and relays. If the glow plugs are not functioning correctly, the engine may not be able to fire up, especially in cold weather. Faulty ignition relays can also prevent the starter from receiving the necessary electrical signals to operate.

5. Safety Interlocks: Mini excavators like the CAT 301.5 are equipped with various safety interlocks that prevent the engine from starting under certain conditions. These interlocks may include seat switches, hydraulic lockout switches, or other systems that ensure the machine is in a safe operating condition. If any of these interlocks are faulty or misadjusted, the engine may fail to start.

6. Fuses and Wiring Issues: A blown fuse or damaged wiring can also cause the mini excavator to fail to start. If any critical circuits are interrupted, such as those connected to the ignition system or fuel system, the engine may not crank. Regularly checking and maintaining the wiring harnesses can prevent these issues.


1. Check the Battery: Start by inspecting the battery for charge and condition. Use a multimeter to check the voltage. A fully charged battery should read around 12.6 volts. If the voltage is lower, recharge or replace the battery as needed. Also, inspect the battery terminals for corrosion and ensure they are tightly connected.

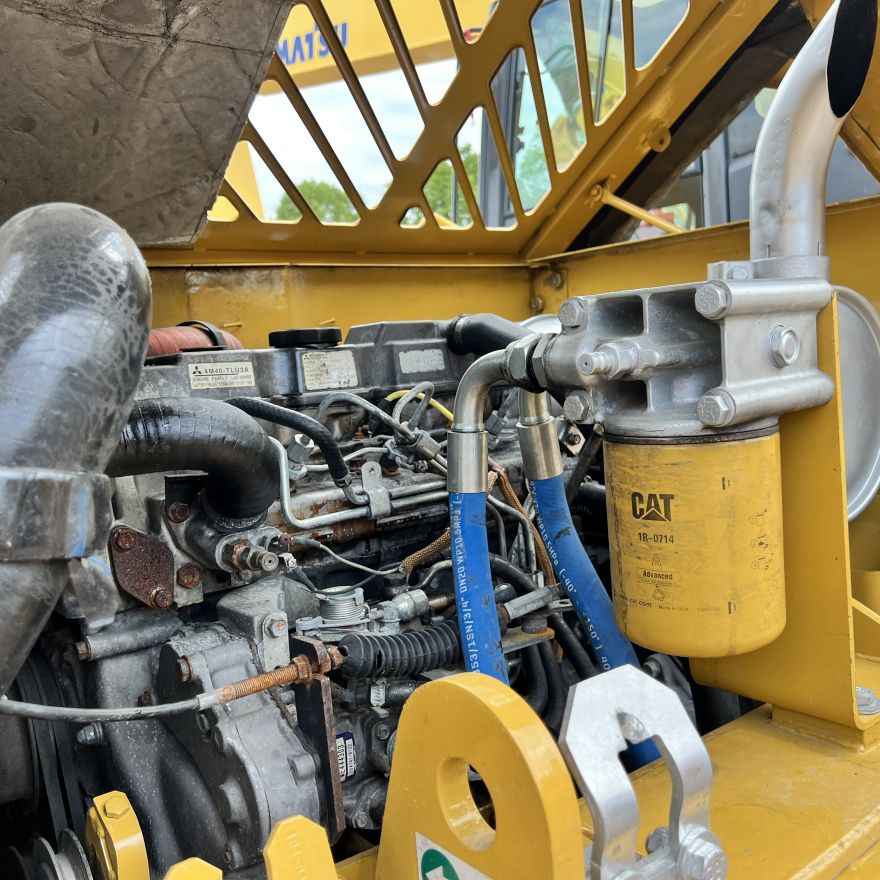

2. Inspect Fuel System: Check the fuel filter for clogs or signs of contamination. A dirty filter can restrict fuel flow, preventing the engine from starting. Inspect the fuel lines for leaks, and verify that the fuel tank is adequately filled. Bleed the fuel system if air is suspected to have entered.

3. Test the Starter Motor: If the battery and fuel system are in good condition, the next step is to check the starter motor. Test the starter relay and ensure that it is engaging when the ignition switch is turned on. If the starter motor does not engage, it may need to be repaired or replaced.

4. Check the Ignition System: Inspect the glow plugs, especially if starting in cold conditions. Glow plugs should heat up when the ignition is turned on and be visually checked for wear or damage. Verify the operation of the ignition relay by testing for continuity with a multimeter. If any issues are found, replace the faulty components.

5. Verify Safety Interlocks: Check the safety interlocks, such as the seat switch or hydraulic lockout. If the safety switches are malfunctioning, they can prevent the engine from starting. Test each switch and ensure they are in working condition.

6. Inspect Wiring and Fuses: Inspect the wiring for any visible damage, corrosion, or loose connections. Check all critical fuses related to the starting and fuel systems. Replace any blown fuses and repair any damaged wires.


1. Regular Battery Maintenance: Keep the battery terminals clean and tight. Test the battery voltage regularly and replace the battery every 3-5 years, depending on usage. Use a battery charger if the excavator is not used frequently.

2. Fuel System Care: Replace the fuel filter at recommended intervals and ensure the fuel tank is kept clean. Use fuel additives during the colder months to prevent gel formation in the diesel fuel.

3. Starter Motor Care: Check the starter motor during regular maintenance intervals, especially if you notice sluggish starting or clicking sounds when turning the key. Lubricate moving parts to reduce wear.

4. Electrical System Inspection: Inspect all electrical components and wiring regularly, checking for wear or corrosion. Replace fuses as necessary and clean the terminals to ensure optimal electrical flow.

5. Winterizing the Excavator: In colder climates, be sure to winterize the mini excavator by checking the glow plugs and fuel system. Adding a fuel stabilizer can help prevent gelling, while using an engine block heater can help with cold starts.


Trailer air brakes are a crucial component of heavy-duty vehicles, especially those that tow trailers, such as trucks and semi-trucks. Air brake systems are designed to handle the significant loads associated with these types of vehicles, providing reliable stopping power and ensuring safety on the road. This article will delve into the working principles of air brake systems, their components, common issues, and solutions for maintenance, providing a comprehensive guide to anyone looking to understand or maintain trailer air brakes.
How Trailer Air Brakes Work
Air brakes work by using compressed air to apply force to the brake shoes or pads that create friction with the brake drum or disc. The system is controlled through a combination of components that allow for smooth and safe braking.

1. Air Compressor: The air compressor is responsible for creating the compressed air that powers the braking system. It is typically driven by the engine and pumps air into the storage tanks.

2. Air Tanks: These tanks store the compressed air. There are usually two air tanks on a vehicle—one for the service brakes and one for the emergency or parking brake system. They ensure there is enough air pressure to operate the brakes effectively.

3. Brake Chambers: When the driver applies the brake, air is released from the air tanks into the brake chambers, which then push the brake shoes against the brake drum to slow down or stop the vehicle.

4. Slack Adjusters: These components are responsible for adjusting the distance between the brake shoes and the brake drum. As the brake shoes wear down over time, slack adjusters keep the system properly adjusted to ensure optimal braking performance.

5. Valves and Control Lines: The system includes various valves such as the relay valve and the quick release valve. These valves control the flow of air through the system to ensure that the brakes are applied in a timely and controlled manner.

6. Trailer Supply Line: This line carries air from the towing vehicle’s air brake system to the trailer. It connects to the glad hands on both the towing vehicle and the trailer. The supply line provides the necessary air pressure to operate the trailer’s brakes.


1. Air Leaks: One of the most common issues with air brake systems is air leakage. Even a small leak in the lines or components can cause the system to lose pressure, reducing braking effectiveness. Air leaks can occur in the supply line, brake chambers, or valves.

2. Lack of Air Pressure: If the air compressor fails or the air tanks are not properly charged, there may not be enough air pressure to apply the brakes. This is a critical issue that requires immediate attention to avoid brake failure.

3. Slack Adjuster Issues: Over time, slack adjusters can wear or become misadjusted. If the adjusters are not properly maintained, the brake shoes may not engage properly with the drum, leading to poor braking performance.

4. Frozen or Sticking Brake Components: In colder climates, moisture in the air brake system can freeze, causing the brakes to stick or not release properly. This can result in dragging brakes, which can cause excessive wear or damage.

5. Worn Brake Pads or Shoes: Just like any braking system, the brake shoes or pads on a trailer will wear down over time. Worn-out brake components reduce the braking power, and if not replaced in time, they can lead to brake failure.


1. Inspect for Air Leaks: Regularly check the air lines, connections, and brake chambers for leaks. Use soapy water to spray around the joints and fittings to identify any air escaping. If you notice bubbles forming, tighten the fittings or replace the faulty parts.

2. Check Air Pressure Regularly: Always monitor the air pressure in the tanks. Ensure that the air compressor is working efficiently and that the air tanks are properly charged. A low air pressure reading can indicate a problem with the compressor or air storage system.

3. Maintain the Slack Adjusters: Regularly inspect and adjust the slack adjusters to ensure that the brake shoes are engaging properly with the brake drum. This can be done manually or with an automatic slack adjuster mechanism. A well-maintained slack adjuster ensures that the brake shoes do not wear unevenly.

4. Protect the System from Moisture: To prevent moisture from freezing in the air brake system, regularly drain the air tanks and remove any accumulated moisture. Many vehicles are equipped with an automatic moisture ejector valve, but it is still important to check the system frequently in cold weather.

5. Replace Worn Brake Pads and Shoes: Inspect the brake pads and shoes regularly for wear. Replace them when they are worn to the recommended thickness. Worn-out brake components can significantly affect braking performance and safety.

6. Clean and Lubricate Components: Lubricate the moving parts of the air brake system, such as the slack adjusters and brake chamber linkages, to reduce wear and prevent rusting.


Understanding the CAT 345BL’s Swing System
The 2003 CAT 345BL hydraulic excavator is a heavy-duty machine built for mass excavation, demolition, and deep trenching. With an operating weight exceeding 90,000 lbs and a bucket breakout force over 50,000 lbf, it relies on a robust swing system to rotate the upper structure. This system includes two swing motors mounted on either side of the turntable, each driving a planetary gearbox that engages the swing ring. The swing drive is lubricated with gear oil, while the motors operate on high-pressure hydraulic fluid—two distinct systems that must remain isolated.
Symptoms of Cross-Contamination and Leakage
A recurring issue on older 345BL units involves fluid leaking from the turntable area, often appearing as a mix of hydraulic oil and gear oil. In one case, the operator discovered fluid pooling under the swing bearing after a pond excavation job. Upon inspection, the swing motor closest to the fuel tank—marked with a CAT remanufactured tag—was suspected to be the source.
The leak reappeared days after draining and resealing the hatch, suggesting internal contamination rather than external seepage. The gearbox oil level fluctuated, sometimes overflowing from the fill plug, while hydraulic fluid levels dropped—indicating a breach between systems.
Terminology Clarification

• Swing Motor: A hydraulic motor that drives the swing gearbox, enabling upper structure rotation.

• Planetary Gearbox: A gear system that multiplies torque from the motor to rotate the swing ring.

• Swing Ring Grease Bath: A sealed cavity around the swing bearing filled with grease to reduce friction.

• Dipstick/Inspection Plug: Used to check oil level and condition in the gearbox.


• Check gearbox oil levels in both swing drives. Sudden overfill suggests hydraulic intrusion.

• Inspect oil color and viscosity. Gear oil is typically darker and thicker; hydraulic oil is lighter and more fluid.

• Monitor hydraulic reservoir levels. A slow drop without external leaks points to internal loss.

• Use UV dye in hydraulic fluid to trace migration into the gearbox.


• Shaft seals

• O-rings

• Bearing sets

• Pressure relief valves


• Flush contaminated gear oil and refill with OEM-spec 80W-90 gear lubricant.

• Replace both swing motor seals if one has failed—symmetrical wear is common.

• Install a magnetic drain plug to monitor future contamination.

• Log fluid levels weekly to detect early signs of cross-leakage.


The Caterpillar 416B is a highly versatile backhoe loader known for its durability and performance in various construction and agricultural tasks. However, like all heavy equipment, the 416B can face mechanical challenges, especially in its transmission and converter systems. One of the most common issues reported by operators is related to the transmission converter, which plays a crucial role in transferring power from the engine to the transmission. When problems arise in the converter, it can lead to significant performance issues, including slipping, overheating, and loss of power. In this article, we will explore the common causes of transmission converter problems in the CAT 416B, along with potential solutions to address them.
Understanding the Transmission Converter in the CAT 416B
The transmission converter in the CAT 416B is part of the torque converter system, which serves as a coupling mechanism between the engine and the transmission. The torque converter uses a fluid coupling to transfer rotational power from the engine to the transmission, allowing the machine to operate smoothly at various speeds and under varying loads. It also acts as a clutch, providing smooth acceleration and deceleration without the need for a manual clutch.
The torque converter system consists of several key components:

1. Pump: The pump is driven by the engine and circulates fluid throughout the torque converter.

2. Turbine: The turbine is connected to the transmission and receives power from the fluid flow, transferring it to the transmission.

3. Stator: The stator redirects the fluid flow to improve efficiency and prevent loss of power.

4. Lockup Mechanism: In some systems, the torque converter features a lockup clutch, which locks the converter and allows a direct connection between the engine and transmission, improving fuel efficiency at higher speeds.


1. Slipping of the Torque Converter
   • Symptoms: A slipping torque converter results in a noticeable loss of power, delayed acceleration, or inconsistent operation. The engine may rev higher than normal without a corresponding increase in vehicle speed.

   • Cause: Slipping typically occurs when the torque converter’s internal components, such as the turbine or stator, become worn or damaged. Low fluid levels or contaminated fluid can also contribute to this problem.

   • Solution: Check the transmission fluid level and condition. If the fluid is low or dirty, replace it with fresh, manufacturer-recommended fluid. If the slipping persists, inspect the converter for internal damage and consider rebuilding or replacing the unit.

2. Overheating
   • Symptoms: Overheating can lead to a burnt smell, discoloration of the fluid, or even failure of the transmission system. The transmission may start to malfunction after prolonged use, especially under heavy loads or high-speed operation.

   • Cause: Overheating is often caused by a lack of proper fluid circulation, which can result from a failing pump or blocked cooler lines. Low fluid levels, poor fluid quality, or excessive strain on the system can also contribute to overheating.

   • Solution: Ensure that the cooling system is functioning correctly, and that the transmission cooler is not clogged or damaged. Inspect the fluid lines for blockages and leaks. If overheating continues, a new cooler or pump may be necessary.

3. Fluid Contamination
   • Symptoms: Contaminated fluid can cause erratic shifting, slipping, or difficulty engaging gears. It may also lead to the breakdown of internal components due to the presence of dirt, metal shavings, or other foreign particles.

   • Cause: Contamination typically occurs when the filter or seals within the system fail, allowing dirt and debris to enter the fluid. Regular wear and tear on internal components can also introduce debris into the fluid.

   • Solution: Replace the transmission filter and clean or replace any other components that may be contributing to fluid contamination. Ensure that the system is properly sealed to prevent debris from entering.

4. Inconsistent Shifting or No Shifting
   • Symptoms: If the torque converter or transmission system is malfunctioning, the machine may experience difficulty shifting gears or may fail to shift altogether. This can result in the backhoe becoming stuck in a particular gear or failing to move.

   • Cause: This issue could stem from a faulty torque converter, damaged shift solenoids, or problems with the transmission control valve.

   • Solution: Begin by inspecting the shift solenoids and control valves for wear or malfunction. If the issue is related to the torque converter, it may require rebuilding or replacement.


1. Regular Fluid Checks
   • Ensure the transmission fluid is at the proper level and is in good condition. Check for discoloration, contamination, or a burnt smell, which indicates that the fluid needs to be replaced.

2. Change Fluid at Recommended Intervals
   • Follow the manufacturer’s recommended service intervals for fluid changes to prevent the buildup of contaminants and keep the system running smoothly.

3. Inspect Seals and Filters
   • Regularly inspect the transmission seals and filters for wear or damage. Worn seals can lead to fluid leaks, while clogged filters can restrict fluid flow, causing overheating and internal damage.

4. Monitor for Unusual Sounds or Symptoms
   • Pay attention to any unusual noises, vibrations, or performance issues. If the backhoe experiences slipping, hesitation, or difficulty shifting, it’s important to address the issue promptly before further damage occurs.

5. Avoid Overloading the Machine
   • Overloading the machine or operating it at high speeds for extended periods can put unnecessary strain on the transmission system, leading to overheating and premature wear of internal components.


Choosing the Right Locator for Real-World Excavation
When a full day is lost searching for a buried water line that should have taken an hour, the need for a dependable underground utility locator becomes urgent. Excavators, utility contractors, and site managers face this challenge regularly—especially when dealing with undocumented lines, plastic pipes without tracer wires, or tangled networks of fiber, cable, and high-voltage feeders. The ideal locator must be accurate, durable, and intuitive under field conditions.
Pipehorn and Radio Detection as Proven Solutions
Two brands consistently earn praise from experienced operators:

• Pipehorn HL Series: Designed for high-frequency detection, the HL model excels at locating metallic pipes and cables even in congested areas. Its dual-frequency system allows for both shallow and deep detection. Operators appreciate its rugged build and simplicity. The HL is favored over the H model for its enhanced sensitivity and broader application range.

• Radio Detection RD Series: Known for precision and advanced signal processing, Radio Detection units offer multi-frequency options, GPS integration, and data logging. These locators are ideal for utility companies and contractors who need to document and verify line positions. The RD8100, for example, can detect signals from active lines, passive fields, and even sonde transmitters.


• Tracer Wire: A conductive wire laid alongside non-metallic pipes to allow electromagnetic detection.

• Sonde: A small transmitter inserted into a pipe or duct to emit a traceable signal.

• Passive Detection: Locating utilities by detecting naturally occurring electromagnetic fields.

• Active Detection: Using a transmitter to induce a signal onto a line for precise tracing.


• Hire a private locator service with specialized equipment.

• Use a conductive insert like fish tape or sonde for tracing.

• Expose known endpoints and trace between them using indirect methods.


Drainage is a critical aspect of construction and heavy equipment operations. Proper drainage systems are vital to maintaining the structural integrity of roads, foundations, and even the machines themselves. The management of water runoff, whether from rain or other sources, is essential to avoid soil erosion, prevent water accumulation, and ensure the longevity of construction sites and machinery. In this article, we will delve into the importance of drainage, the types of drainage systems, and practical considerations for maintaining optimal drainage conditions in heavy equipment operations.
The Importance of Proper Drainage
Proper drainage is fundamental in a wide range of applications, from road construction to mining operations. Without effective drainage, water can accumulate, leading to:

1. Soil Erosion: Water that flows uncontrollably can erode the soil beneath the surface, leading to instability in the ground, which could damage equipment and even compromise the foundation of buildings.

2. Structural Damage: If water is not channeled away from infrastructure like roads, bridges, or buildings, it can weaken the foundation and cause cracks or even collapse in extreme cases.

3. Operational Interruptions: For heavy equipment operators, improper drainage can create hazardous working conditions. Muddy terrain or waterlogged ground can limit mobility, increase the risk of machines getting stuck, and lead to costly downtime.


1. Surface Drainage
   • Purpose: This type of drainage addresses water that accumulates on the surface due to rainfall or melting snow.

   • Common Systems: Swales, ditches, and berms are commonly used to channel water off roads and construction sites.

   • Applications: Surface drainage systems are often employed in large-scale projects like highways, sports fields, and any area where significant water runoff is expected.

2. Subsurface Drainage
   • Purpose: This system targets water that accumulates beneath the surface, potentially compromising the foundation of roads, railways, or buildings.

   • Common Systems: French drains, perforated pipes, and underground drainage systems are used to allow water to flow beneath the ground.

   • Applications: Subsurface drainage is crucial for areas where surface water is not enough to prevent waterlogging and erosion. This system helps prevent the saturation of the soil, ensuring that the weight-bearing ground remains stable for heavy machinery and infrastructure.

3. Slope Drainage
   • Purpose: Slope drainage is designed to prevent the erosion of slopes, which can be particularly susceptible to water runoff.

   • Common Systems: Drainage channels and pipes installed along hillsides or embankments help control the flow of water to prevent soil from sliding down.

   • Applications: This system is crucial in mountain construction projects, highway embankments, and any location where significant changes in elevation create the potential for land erosion.

4. Rainwater Harvesting
   • Purpose: While not a traditional drainage method, rainwater harvesting involves collecting runoff for reuse, either for irrigation or other purposes.

   • Common Systems: Storage tanks, underground cisterns, or retention basins collect rainwater to reduce the burden on drainage systems and promote sustainable practices.

   • Applications: This approach is often used in construction projects where water conservation is a priority, such as in arid regions or eco-friendly developments.


1. Weather Variability
   • Heavy rainfall, snowmelt, and even seasonal changes can greatly affect drainage efficiency. Construction sites often need to adapt drainage systems based on weather patterns to prevent flooding and equipment damage.

2. Site Conditions
   • Different types of soil (e.g., clay, sandy, or loamy) affect drainage performance. For example, clay-rich soils may retain water, leading to puddling and erosion, whereas sandy soils may allow water to drain too quickly, undermining stability.

3. Surface and Soil Compaction
   • Heavy equipment such as bulldozers or excavators can compact the soil, reducing its permeability and impeding natural drainage. This can lead to water accumulation and the formation of unstable work conditions.

4. Blocked or Damaged Drainage Systems
   • Over time, drainage systems can become clogged with debris, sediment, or even damaged by equipment. It's essential to regularly inspect and clean drainage systems to ensure they continue to function properly.

5. Environmental Concerns
   • In some areas, environmental regulations require that drainage systems direct water away from construction sites without negatively impacting surrounding ecosystems, such as wetlands or water bodies. Properly designed drainage systems can help mitigate any environmental impact.


1. Regular Inspections
   • Inspecting drainage channels, pipes, and culverts is essential to identify potential blockages or areas where water may pool. Routine checks after heavy rainfall can also help ensure the system is operating as intended.

2. Cleaning and Clearing
   • Keep channels and drains free of debris. Trees, leaves, and other materials can block the flow of water and cause backup. Using equipment like excavators or high-pressure water jets can help clear debris and maintain proper drainage.

3. Maintenance of Pump Systems
   • If you’re using pump-assisted drainage systems, ensuring that pumps are well-maintained and functioning is critical. Regularly servicing pumps will prevent breakdowns during peak water flow periods.

4. Regrading and Repairing Soil
   • If erosion is causing water to pool in certain areas, regrading the soil may be necessary. Adding soil stabilizers or using erosion control mats can help prevent further damage and improve water flow.

5. Upgrading Drainage Systems
   • In areas where water runoff is persistent, it may be necessary to upgrade the drainage system. Installing more robust systems or increasing the capacity of drainage pipes can help better handle large volumes of water.


Understanding the Risk of Post-Operation Fires
The 2014 CAT 289D is a high-performance compact track loader designed for demanding tasks in construction, land clearing, and agriculture. With its Tier 4 emissions system, powerful hydraulics, and enclosed cab, it offers excellent operator comfort and productivity. However, like many modern machines, it carries an increased risk of fire due to heat buildup and debris accumulation—especially in brush-heavy environments.
One of the most overlooked dangers is the tendency for fires to ignite after the machine has been shut down. During operation, airflow from the cooling system helps dissipate heat and prevent ignition. But once the engine stops, residual heat from the turbocharger, exhaust manifold, and hydraulic lines can soak into dry debris lodged around the engine compartment. Fires often begin 30 to 60 minutes after shutdown, when operators have already left the site.

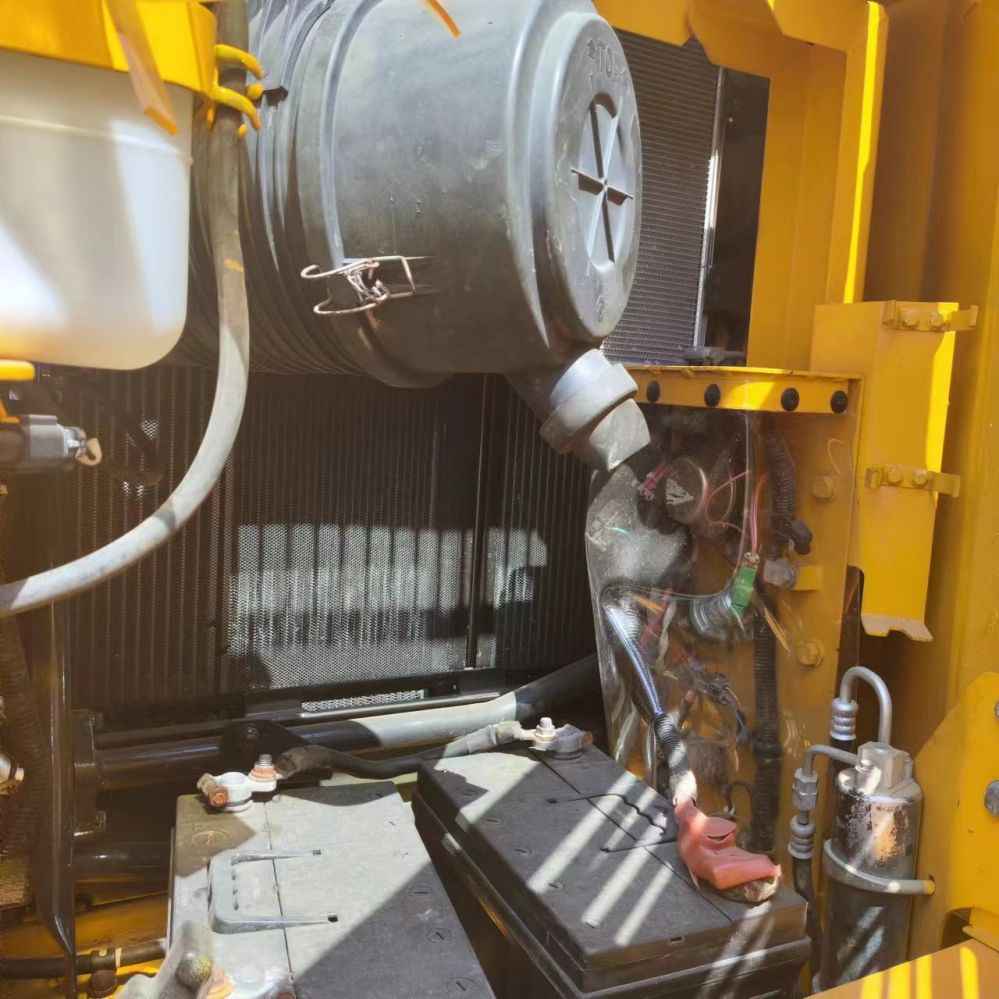

Key Fire Risk Zones on the CAT 289D

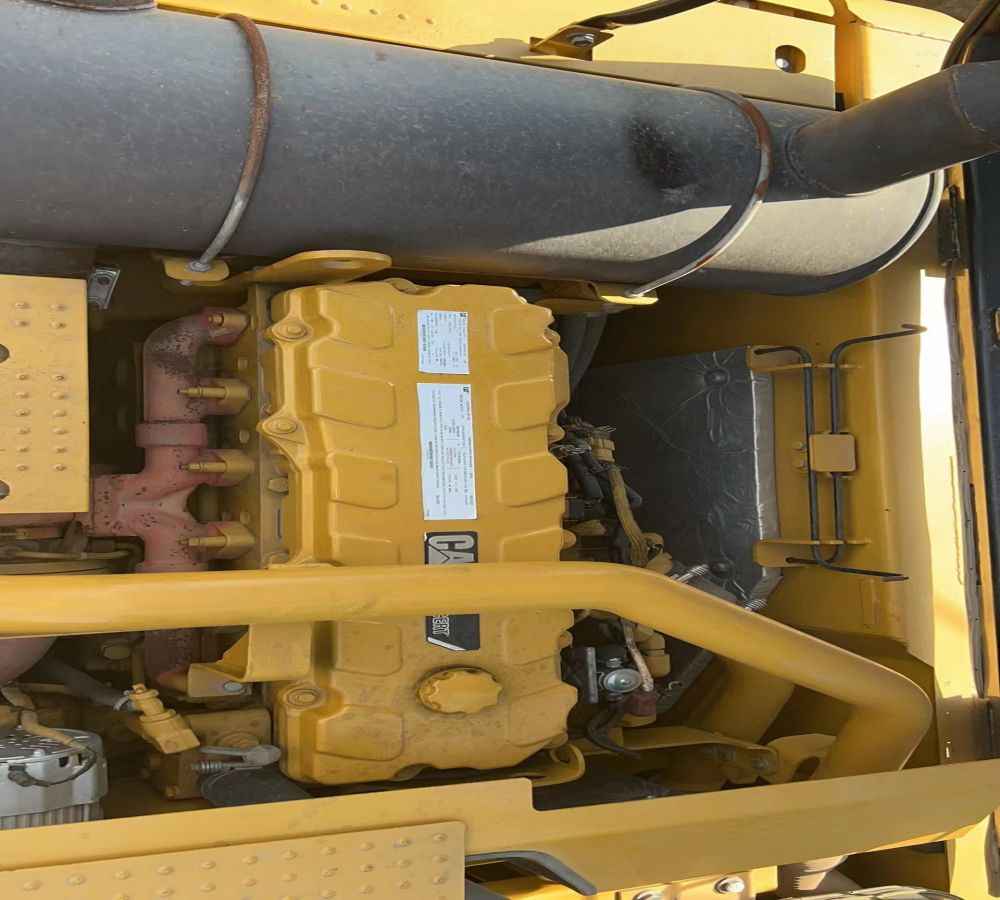

• Engine compartment: Accumulated leaves, twigs, and dust near the turbo and exhaust.

• Hydraulic lines and couplers: Leaking fluid can saturate debris and become flammable.

• Battery terminals and wiring harnesses: Loose connections or damaged insulation can spark.

• Under the cab and belly pan: Areas where airflow is limited and debris collects unnoticed.


• Tier 4 Emissions System: A regulatory standard requiring reduced particulate and NOx emissions, often involving diesel particulate filters and exhaust gas recirculation.

• Heat Soak: The process where residual heat continues to transfer into surrounding components after shutdown.

• Turbocharger: A device that increases engine efficiency by forcing more air into the combustion chamber, often reaching temperatures above 600°C.


• Daily cleaning routine: Use compressed air or a leaf blower to clear debris from the engine bay and undercarriage before leaving the site.

• Install a fire extinguisher: Mount a 10 lb ABC-rated extinguisher in an accessible location, such as the rear cab pillar or loader arm bracket.

• Cool-down walkaround: After shutdown, perform a visual inspection and smell check. The scent of burning oil or smoldering debris is an early warning.

• Avoid morning-only cleaning: Debris should be cleared after work, not before, to prevent overnight ignition.

• Check insurance coverage: Ensure your policy includes fire damage and replacement value for high-risk operations.


The CAT 330CL, part of Caterpillar’s series of tracked excavators, is renowned for its powerful performance, efficiency, and versatility. Whether you're working in construction, mining, or demolition, the 330CL offers a range of features to adapt to different tasks. One such feature is the auxiliary hydraulic system, which allows operators to connect and use various attachments. However, if you're looking to identify which auxiliary hydraulics are installed on a specific 330CL unit, it's essential to understand the different options available and how to check for them.
Understanding Auxiliary Hydraulics on the CAT 330CL
Auxiliary hydraulics provide the necessary hydraulic power to operate various attachments, such as hammers, shears, and thumbs, on an excavator. The CAT 330CL can be equipped with different auxiliary hydraulic configurations, depending on the specific needs of the operator. This system includes features like flow rate control, pressure settings, and the number of hydraulic circuits.
The main components involved in auxiliary hydraulics include:

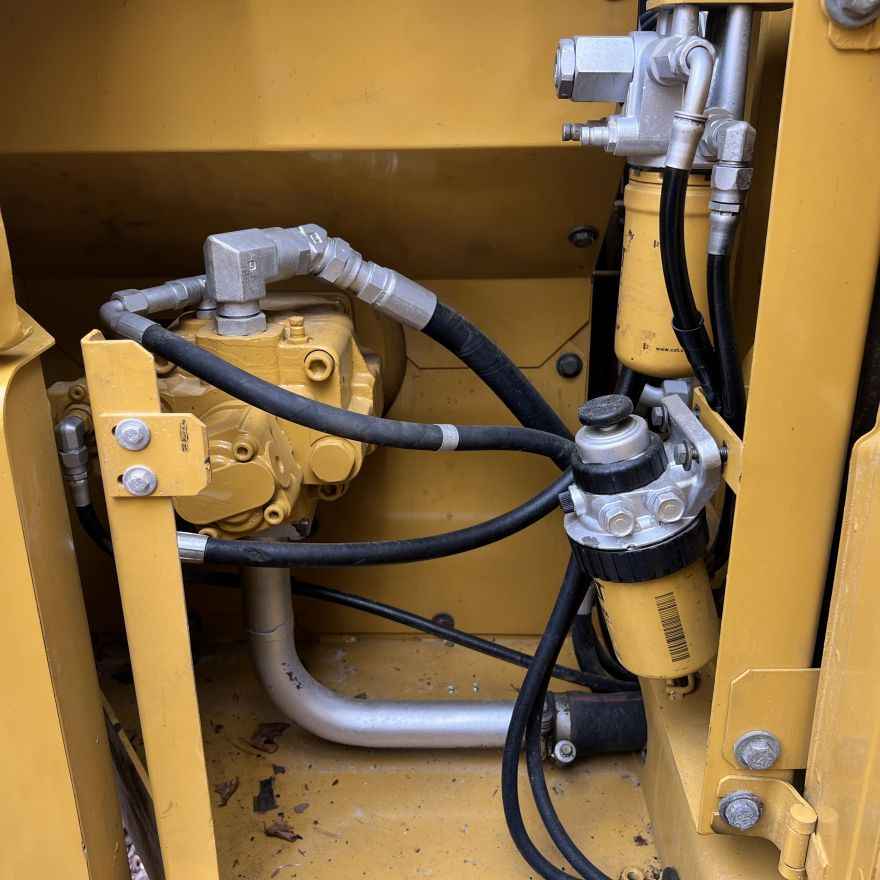

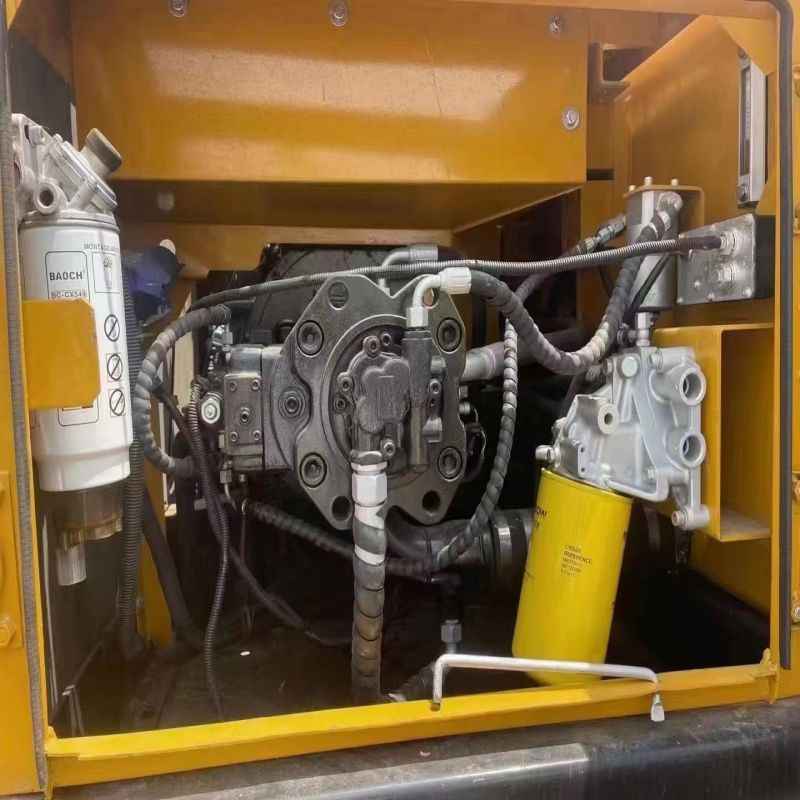

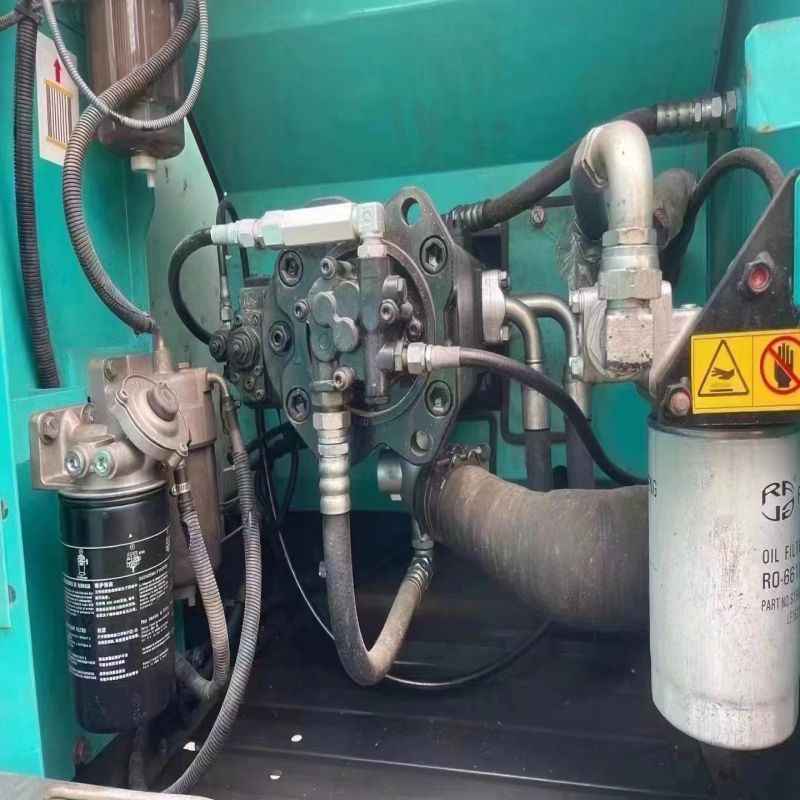

1. Hydraulic Pumps: These generate the hydraulic pressure required to operate attachments.

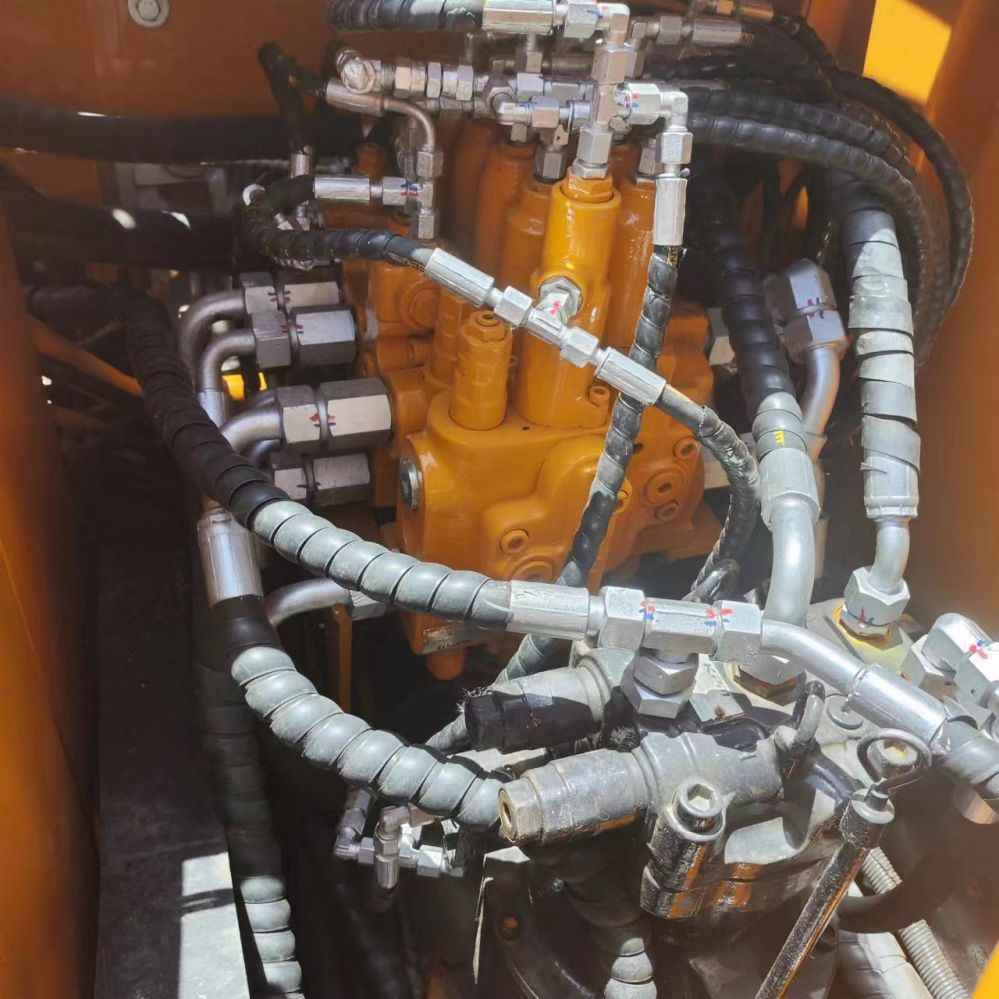

2. Control Valves: These regulate the flow of hydraulic fluid to the attachments.

3. Plumbing (Hoses and Lines): These transfer hydraulic fluid from the excavator to the attachment.

4. Quick Connects: These allow the easy connection of hydraulic tools to the system.


1. Single and Double Acting Circuits
   • Single Acting: A single hydraulic circuit, typically for attachments that require movement in one direction, such as a hammer or a bucket thumb.

   • Double Acting: A more complex configuration, where two hydraulic circuits are used to operate attachments that require movement in both directions, like a grapple or tiltrotator.

2. Flow Rate Options
   • Standard Flow: The basic hydraulic configuration providing a flow rate of approximately 150-180 liters per minute (LPM).

   • High Flow: A higher-flow system designed for more demanding attachments such as larger hydraulic hammers or mulchers. This system provides up to 200-250 LPM.

   • Variable Flow: Allows the flow rate to be adjusted based on the requirements of the attached tool, providing flexibility in operation.

3. Pressure Settings
   • Some auxiliary hydraulic systems on the 330CL feature adjustable pressure settings. These settings control the amount of pressure applied to the attachment, which can be critical for different tasks.


1. Check the Machine's Serial Number and Configuration
   Each machine has a unique serial number, which can be used to identify the exact configuration of the excavator when it was built. The serial number plate is typically located on the machine's frame, near the engine or under the cab. By entering the serial number into Caterpillar's online systems or contacting a dealer, you can find out if the machine was built with specific auxiliary hydraulic options.

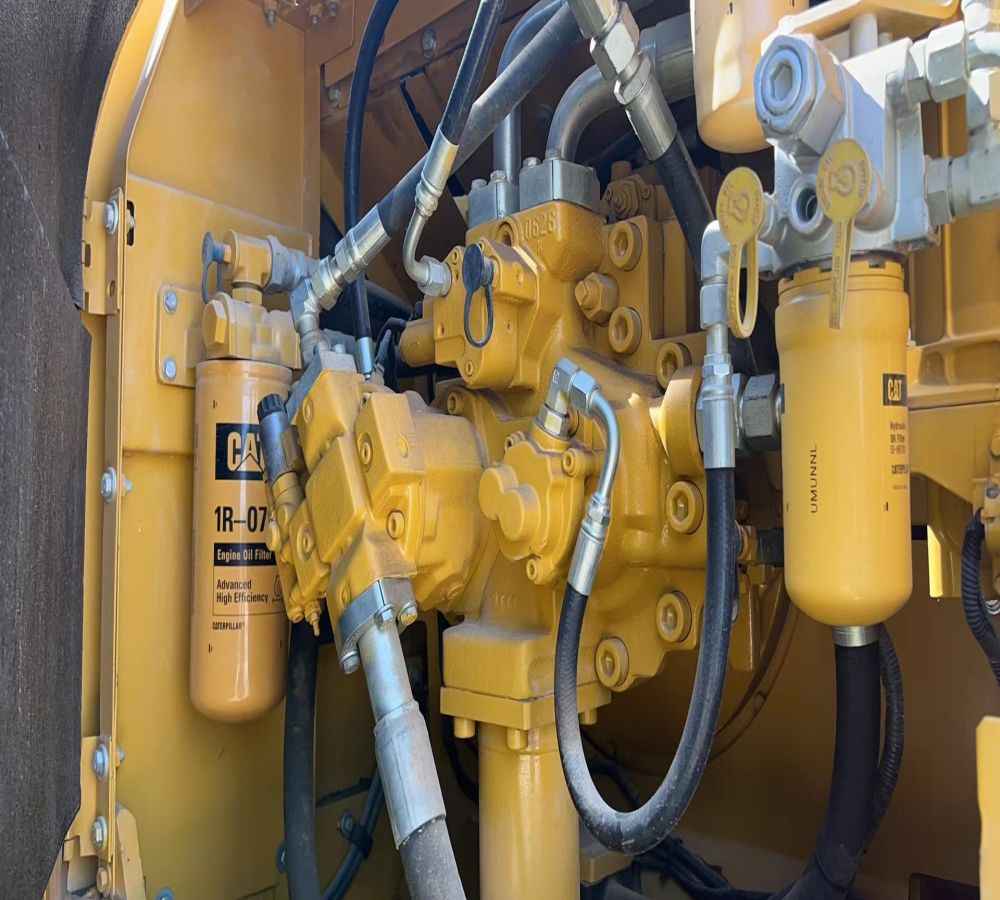

2. Examine the Hydraulic Connections

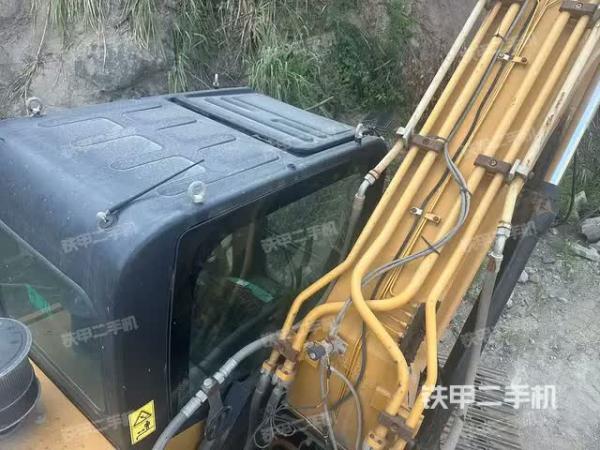

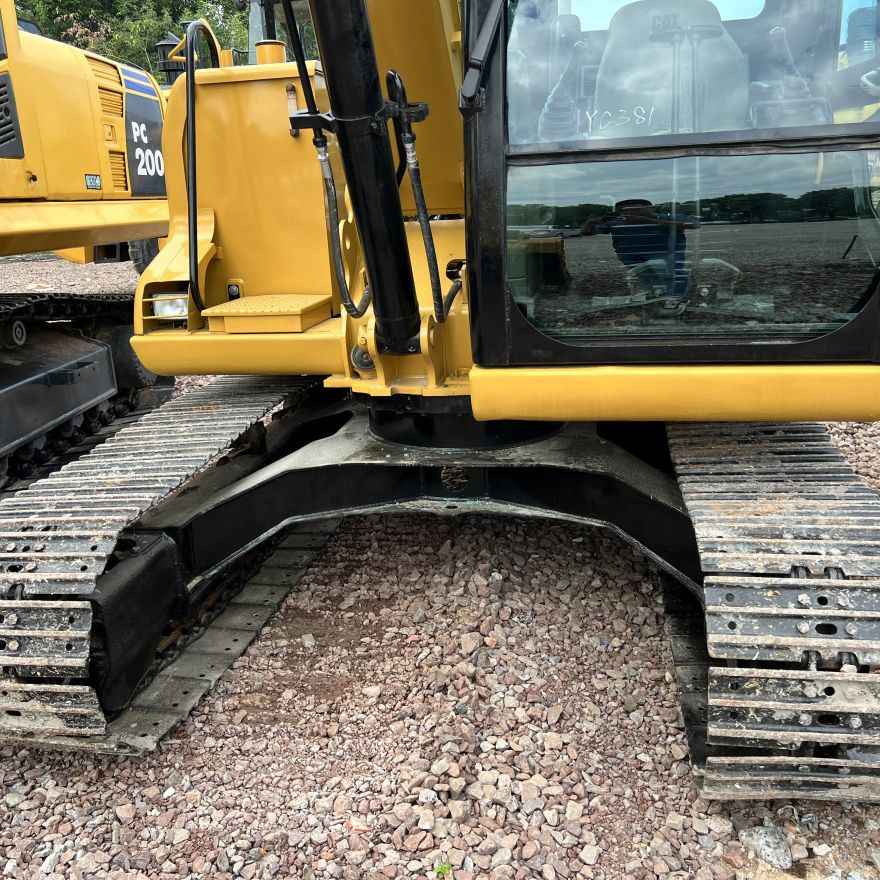

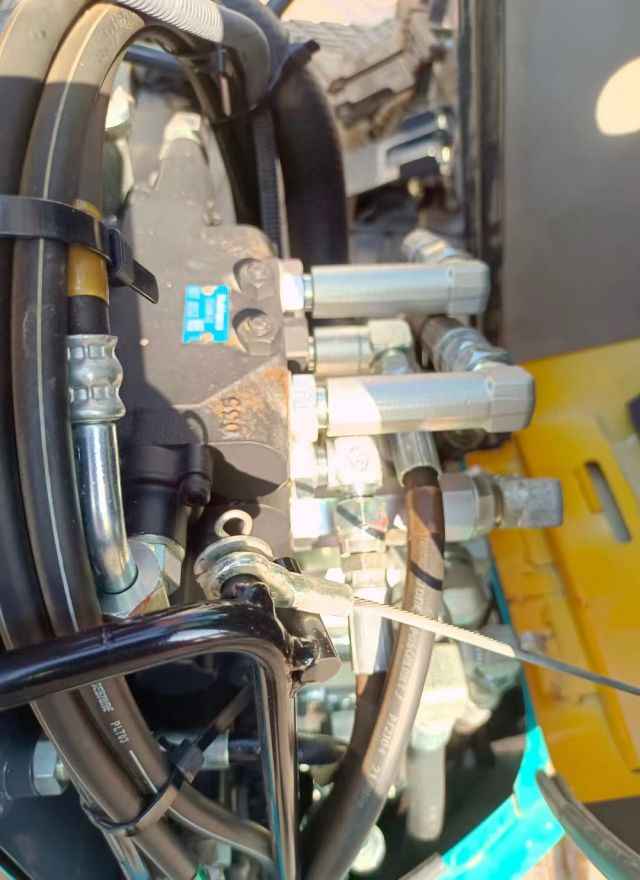

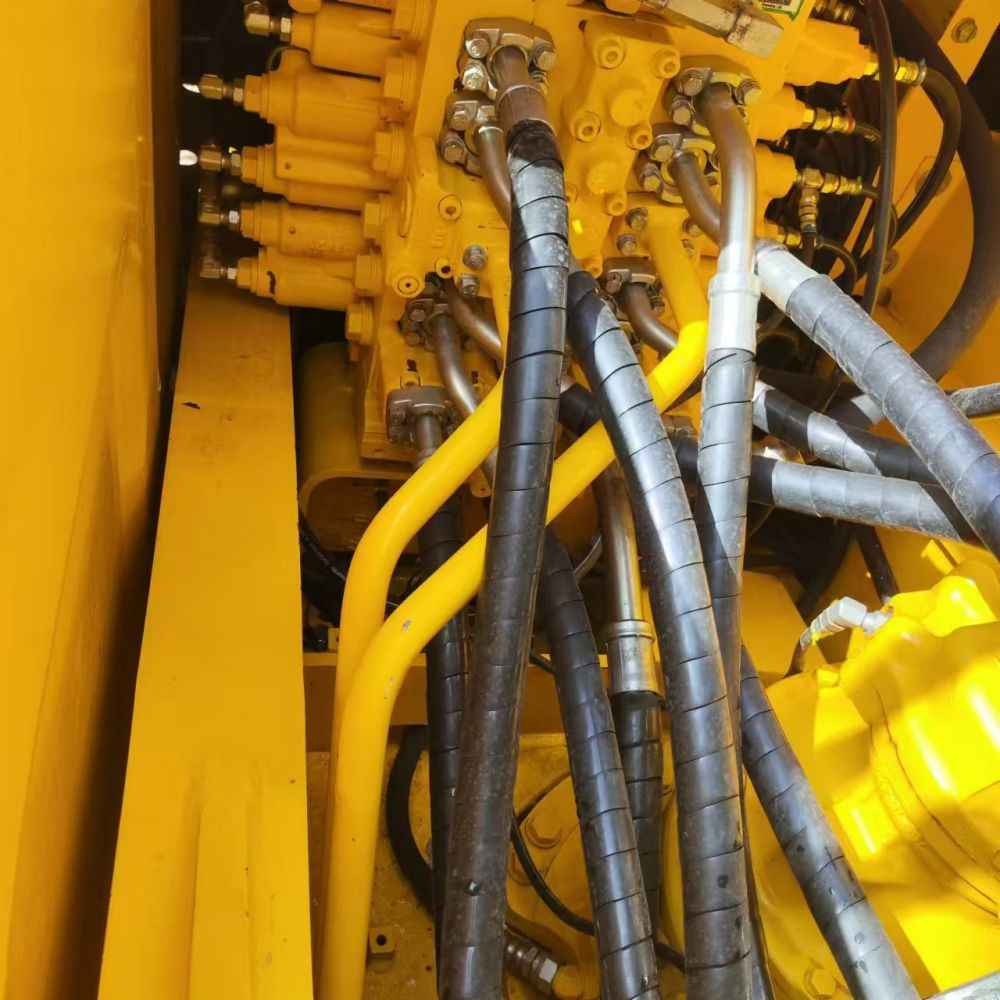

   The 330CL’s hydraulic lines are a tell-tale sign of its auxiliary capabilities. Check for the presence of additional hoses or quick-connect couplings on the arm or boom. Single or double acting auxiliary lines are usually connected via a quick-coupler system, with additional controls for adjusting flow and pressure. Inspect the hydraulic valves and controls on the machine to see if there are multiple settings for pressure or flow rate.

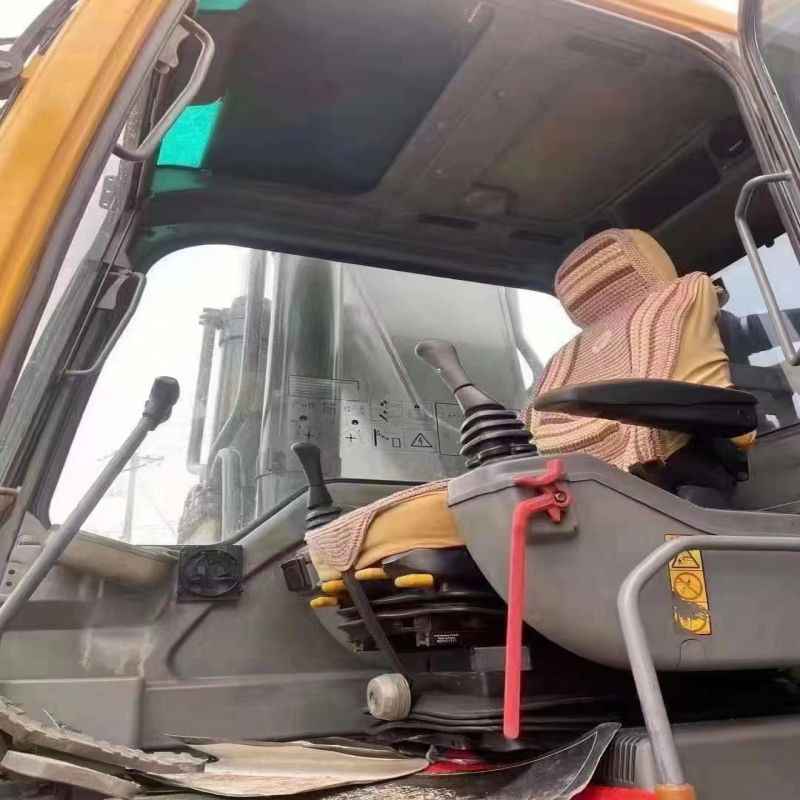

3. Look for the Auxiliary Hydraulic Control Lever

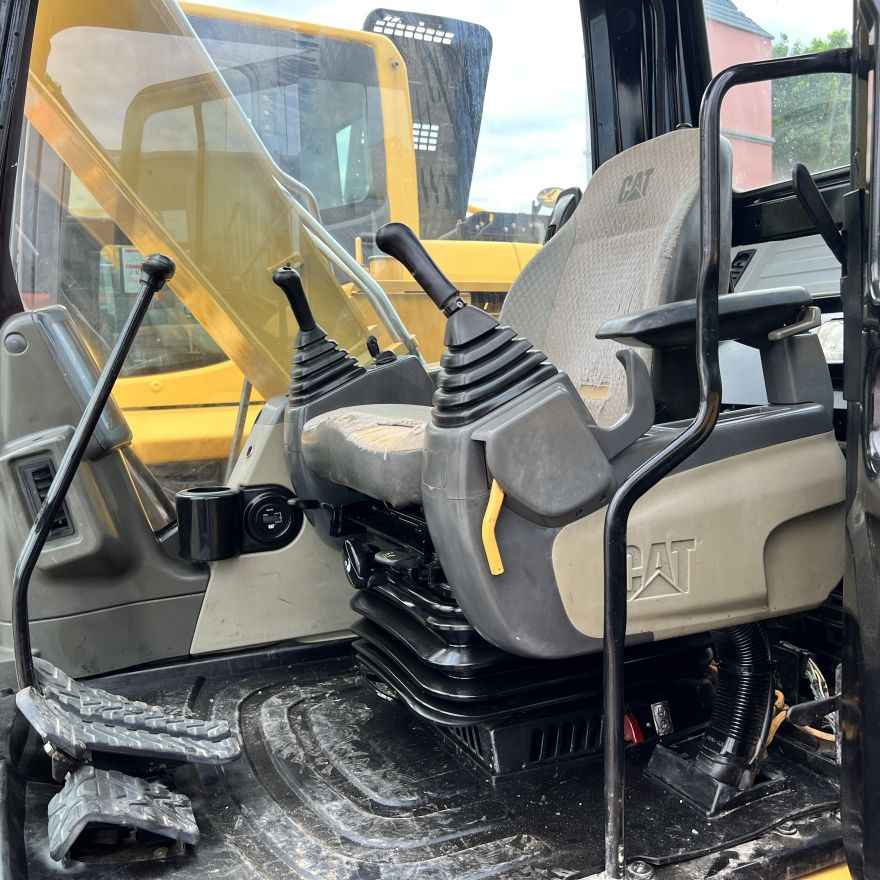

   The control lever inside the operator’s cabin plays a crucial role in regulating the auxiliary hydraulics. A dedicated lever for operating auxiliary functions, such as the thumb or grapple, can provide a clue as to the auxiliary system installed. In some models, you’ll also see a control panel with flow and pressure settings.

4. Consult the Operator’s Manual or Maintenance Logs
   If you have access to the operator's manual or maintenance records, these documents will often detail the specifications of the machine, including the type of auxiliary hydraulic system. Caterpillar’s maintenance and operator guides are a great source of information regarding the installed systems and their configurations.

5. Check the Dealer Documentation or Service History
   If the machine has been previously serviced by an authorized Caterpillar dealer, the service history may include detailed information about any auxiliary systems installed or upgraded. Service records can tell you whether a high-flow system or other attachments were added post-manufacture.


1. Leaks in Hydraulic Lines or Connectors
   Over time, hoses and connectors can wear out, leading to leaks. Inspecting the system regularly for signs of leaking hydraulic fluid is crucial. A small leak can quickly lead to a drop in hydraulic pressure, affecting performance.

2. Inadequate Flow or Pressure
   Sometimes, the flow rate or pressure may not meet the attachment’s requirements, resulting in poor performance. This could be due to a clogged filter, a malfunctioning valve, or issues with the hydraulic pump. Regular maintenance and fluid checks can help avoid these problems.

3. Faulty Controls or Wiring
   The auxiliary hydraulic controls inside the cab, if malfunctioning, can cause issues with operating the attachment. These controls should be periodically checked to ensure that they are responsive and working as expected.

4. Overheating
   If the hydraulic system is overworked or the fluid becomes too hot, it can cause overheating issues. This is often the result of prolonged use of high-demand attachments or inadequate cooling. Monitoring fluid temperature and using the system within its rated capacity can help prevent overheating.


Caterpillar’s Giant Earthmovers of the 1960s and 70s
The Caterpillar 660 and 666 scrapers were among the most powerful and visually imposing earthmoving machines of their time. Developed during the late 1960s and early 1970s, these twin-engine scrapers were designed for high-volume hauling in mining, highway construction, and large-scale land development. The 660 featured a tractor-scraper configuration with a single engine, while the 666 was a tandem-powered unit with engines at both the front and rear, delivering exceptional traction and load capacity.
The 666 scraper, in particular, became iconic for its massive size and distinctive sound, powered by two Caterpillar diesel engines—often D343 or D398 V8s—each producing over 400 horsepower. These machines were capable of hauling over 50 cubic yards of material in a single pass, making them ideal for long-haul, high-speed operations.
Tire Sizing and Configuration Variants
One of the most debated aspects of the 660 and 666 scrapers is their tire configuration. Factory specifications typically listed:

• Front steering axle: 18.00x25 bias ply or radial

• Drive axle: 37.5x39 bias ply or radial

• Scraper axle: 37.5x51 for high-speed haul applications


• Bias Ply Tire: A tire constructed with layers of fabric cords at alternating angles, offering durability but less flexibility than radial designs.

• Radial Tire: A tire with cords running perpendicular to the direction of travel, providing better heat dissipation and longer tread life.

• Scraper Axle: The rear axle supporting the bowl or pan of the scraper, often bearing the heaviest load during hauling.


• Use 37.5x39 tires for general accuracy, unless replicating high-speed haul variants.

• Consider dual tire setups on the drive axle for added realism.

• Reference CPH #3 manuals from 1973 for original specifications.

• Use sound clips of D398 engines to enhance display authenticity.


The Caterpillar 916 wheel loader is a trusted piece of machinery in various construction and agricultural industries. Known for its versatility and robustness, the 916 is often relied upon for heavy lifting and material handling. However, like any heavy equipment, it’s not immune to mechanical issues, especially when it comes to the transmission system. One common problem faced by operators of the Cat 916 is transmission failure or malfunction, which can severely impact the loader's performance. Understanding the causes of these issues and how to resolve them can help keep the loader running smoothly and avoid costly downtime.
Common Transmission Problems in the Cat 916
The transmission in the Cat 916 is responsible for transferring power from the engine to the wheels, allowing the loader to move efficiently. When transmission issues occur, they can manifest in a number of ways:

1. Loss of Power or Shifting Issues
   One of the most common problems is the loss of power or difficulty in shifting gears. Operators might notice that the loader is sluggish when shifting or that it becomes stuck in a particular gear. In some cases, the loader may fail to move at all, even though the engine is running.

2. Unusual Noises
   Grinding or whining noises when shifting gears can be a sign of internal damage within the transmission. This could indicate worn gears, a failing torque converter, or issues with the hydraulic system.

3. Slipping Gears
   Another issue that can occur is the transmission slipping out of gear unexpectedly. This could be accompanied by a decrease in power or the loader’s inability to maintain speed, leading to potential safety concerns.

4. Overheating
   Transmission overheating is another sign of potential failure. This could be caused by low fluid levels, improper fluid type, or a clogged transmission cooler.

5. Hydraulic System Failure
   Since the transmission on the Cat 916 is hydraulically operated, issues with the hydraulic system can also affect the transmission. If the hydraulic fluid is dirty or low, it can lead to poor transmission performance.


1. Low or Contaminated Transmission Fluid
   Low fluid levels or contaminated transmission fluid are the most common culprits behind many transmission problems. If the fluid is dirty or there’s not enough fluid in the system, it can lead to poor lubrication and overheating, which in turn causes the gears to wear down more quickly.

2. Worn Clutch Packs
   The clutch packs are responsible for engaging and disengaging the gears. Over time, these can wear out, especially under heavy usage. When the clutch packs become worn, the loader might experience slipping or difficulty shifting between gears.

3. Faulty Torque Converter
   The torque converter is an essential component in the transmission system, allowing smooth gear shifts and transferring engine power to the drivetrain. A malfunctioning torque converter can result in a jerky or unresponsive transmission.

4. Hydraulic Problems
   The transmission in the Cat 916 is hydraulically driven, and problems with the hydraulic system can lead to transmission failure. Common hydraulic issues include leaks in the hoses, clogged filters, or a malfunctioning pump.

5. Internal Gear Wear
   Over time, the internal gears in the transmission can become worn down due to continuous use, improper shifting, or running the loader under heavy loads for extended periods. When this happens, the gears can fail to mesh properly, leading to difficulty in shifting or power loss.


1. Check Fluid Levels and Condition
   Start by checking the transmission fluid levels. Low fluid can lead to slipping, overheating, and other problems. Make sure that the fluid is at the correct level and that the fluid appears clean and clear. If the fluid is dark or smells burnt, it may need to be replaced.

2. Inspect Hydraulic System
   Given that the transmission is hydraulically operated, inspecting the hydraulic system is crucial. Look for any signs of leaks or damage to hoses. Check the hydraulic fluid levels and replace any clogged or dirty filters. If there are issues with the hydraulic system, they can often be the cause of transmission malfunctions.

3. Test the Torque Converter
   If the loader is having issues shifting or the power seems to be slipping, the torque converter could be at fault. A mechanic may need to perform a hydraulic test to determine if the torque converter is functioning properly.

4. Inspect Clutch Packs and Gears
   If the fluid is clean and the hydraulic system appears to be functioning properly, the next step is to inspect the clutch packs and gears. A mechanic may need to disassemble parts of the transmission to inspect for any signs of wear. Worn clutch packs will need to be replaced, and damaged gears may need to be re-machined or replaced entirely.


1. Fluid Replacement and Top-Up
   If low or contaminated fluid is the cause, a simple fluid replacement may solve the problem. Be sure to use the correct type of transmission fluid recommended by Caterpillar to ensure proper operation. It’s also important to regularly check the fluid level to prevent future issues.

2. Replace Worn Clutch Packs
   If the clutch packs are worn out, they will need to be replaced. This is a fairly common issue in older machines that have been subjected to heavy workloads. Replacing the clutch packs will restore proper shifting and engagement.

3. Repair or Replace the Torque Converter
   If the torque converter is malfunctioning, it will need to be repaired or replaced. This is a more complex repair and may require the expertise of a mechanic familiar with Caterpillar transmission systems.

4. Hydraulic System Repair
   If hydraulic issues are the cause, repairing or replacing faulty hoses, pumps, or filters should restore normal function. Be sure to replace any worn seals or gaskets to prevent leaks from reoccurring.

5. Replace Worn Gears
   If the gears are worn or damaged, they will need to be replaced. Gear replacements can be costly, but they are essential to restoring full functionality to the loader. Be sure to use genuine Caterpillar parts to ensure a proper fit and function.


1. Regular Fluid Checks
   Make it a habit to check the transmission fluid regularly, especially before and after heavy use. Keeping the fluid clean and at the right level will help ensure smooth operation.

2. Proper Usage
   Avoid overloading the loader and always shift gears properly to prevent unnecessary strain on the transmission. Train operators on proper shifting techniques to reduce wear on the clutch packs and gears.

3. Scheduled Hydraulic System Maintenance
   Regularly inspect and maintain the hydraulic system. This includes checking for leaks, replacing filters, and ensuring the pump is functioning properly.

4. Keep an Eye on the Torque Converter
   The torque converter plays a critical role in the transmission system, so it’s important to keep it in good condition. Regular maintenance and inspections can help catch issues before they become major problems.
