Heavy equipment operators often deal with a wide range of challenges, many of which can be frustrating and costly. Whether it’s machinery that doesn’t start, unexpected breakdowns, or inconvenient repairs, the life of an operator is full of moments that make them question their luck. This article delves into some of the most common frustrations that operators face, offers solutions to these issues, and discusses preventive measures to avoid these mishaps.
The All-too-Common Start-up Problems
One of the most frustrating issues any operator faces is when a machine fails to start. This can occur for several reasons, and often it happens at the most inopportune time—right when you need the equipment for an important task.
Common Causes:

• Dead or Weak Battery: Over time, the battery in your equipment can lose its charge capacity. In extreme conditions, especially in colder climates, batteries can fail to start the machine.

• Fuel Issues: Problems like water contamination in fuel or old, degraded fuel can cause starting problems.

• Ignition Switch Failures: A malfunctioning ignition switch can prevent your machine from even turning over.

• Worn or Clogged Filters: A clogged fuel or air filter can prevent the engine from starting or running efficiently.


• Battery Maintenance: Regularly inspect the battery, clean terminals, and ensure it’s holding a proper charge. In colder climates, consider using a battery warmer during the winter months.

• Fuel System Care: Always use high-quality fuel, and change the fuel filters at regular intervals. Keep your fuel tank clean and dry.

• Ignition System Check: If the ignition switch is problematic, replacing it early can prevent further frustration and more expensive repairs down the road.

• Filter Replacements: Check and replace your filters regularly to ensure smooth airflow and fuel delivery.


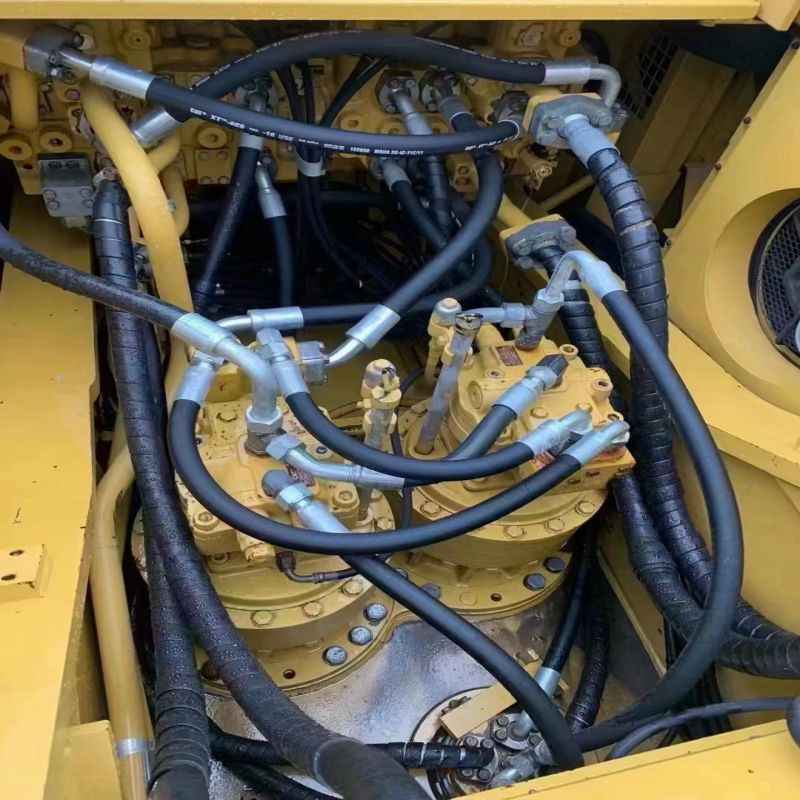

• Low Hydraulic Fluid Levels: If the fluid is low or contaminated, the hydraulic system won’t function efficiently.

• Leaking Hydraulic Hoses or Fittings: Over time, hoses can crack, wear out, or become brittle, leading to leaks that compromise the hydraulic system’s performance.

• Pump Failures: A hydraulic pump that fails will render most of the machine's movements inoperable.


• Regular Fluid Checks: Always monitor the hydraulic fluid levels and look for signs of contamination. Change the fluid regularly as per the manufacturer’s recommendations.

• Leak Detection: Routinely inspect hydraulic hoses and fittings for signs of wear or leaks. Replace any damaged hoses promptly to prevent major issues.

• Pump Maintenance: If you notice sluggish or uneven hydraulic performance, have the pump checked and replaced if necessary to avoid further damage.


• Dead Battery: A simple yet often overlooked issue is a dead battery. If your equipment is frequently sitting idle or if the battery is old, it may not hold a charge.

• Corroded Connections: Electrical connections, especially those exposed to moisture and dirt, can corrode and cause intermittent or total electrical failure.

• Blown Fuses: Fuses often blow due to electrical surges, which can occur when a system is overloaded or shorted.


• Battery Maintenance: Regularly inspect the battery, clean the terminals, and replace it when necessary. Install a battery disconnect switch if the equipment is frequently not in use.

• Corrosion Prevention: Use electrical greases and corrosion inhibitors on exposed connectors. Regularly check the connections and ensure they are tight and free from corrosion.

• Fuse Monitoring: Replace blown fuses immediately and always ensure you are using the correct rating to avoid overloads.


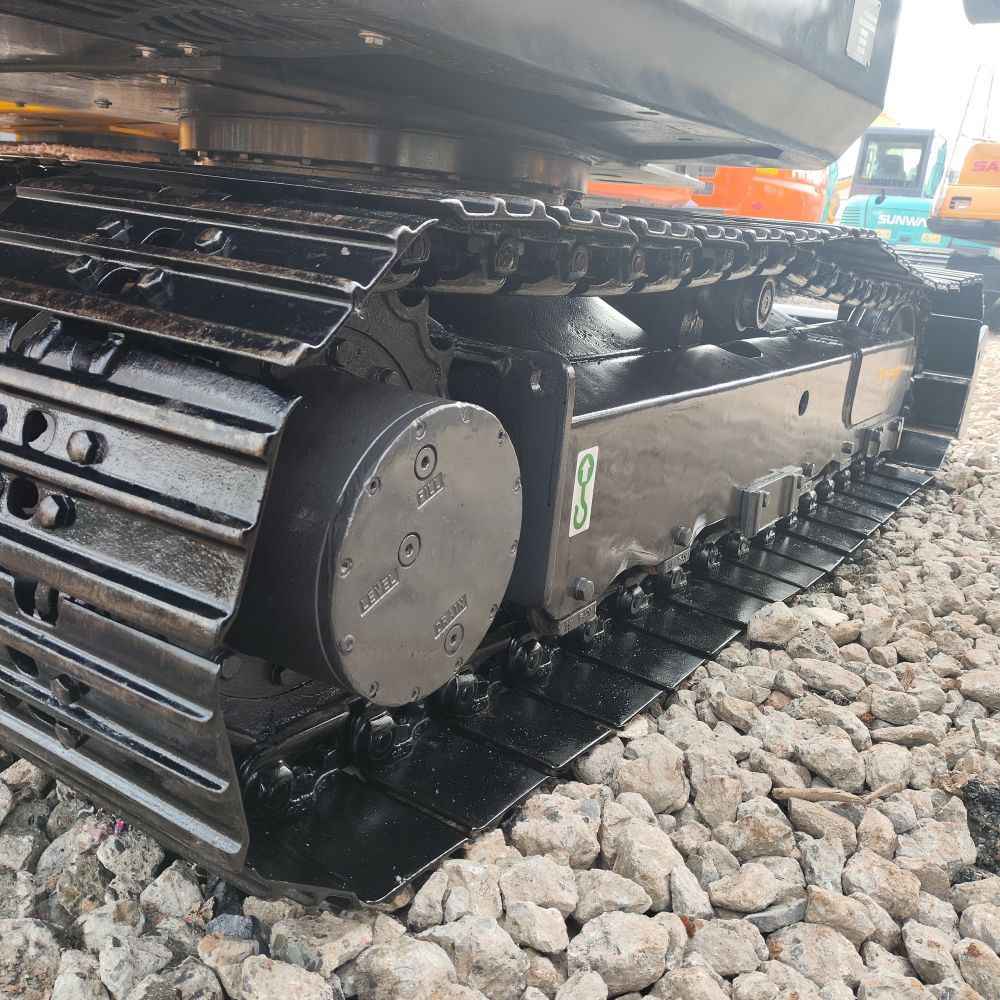

• Track Wear: Tracks can wear out unevenly, leading to poor traction and even the possibility of track failure.

• Track Tension Problems: Tracks that are too tight or too loose can cause excessive wear or even breakage.

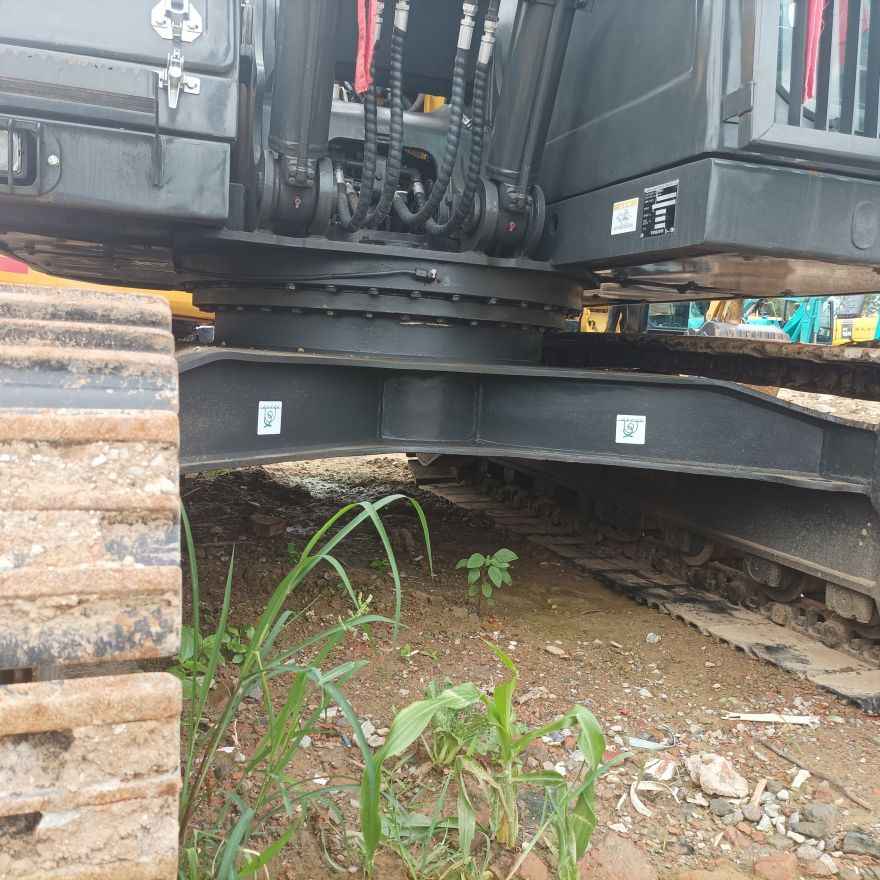

• Undercarriage Damage: Rollers, sprockets, and idlers can wear down, crack, or fail altogether.


• Track Inspection: Regularly inspect the tracks for uneven wear, cracks, and loose bolts. Adjust the track tension as needed to avoid undue strain on the system.

• Undercarriage Care: Keep the undercarriage clean and free of debris. Replace worn rollers and sprockets promptly to avoid causing further damage to the tracks.


• Clogged Air Filters: Dust and debris can clog the air conditioning filters, reducing airflow and cooling efficiency.

• Low Coolant Levels: If the coolant level is low, it can cause the engine to overheat, leading to severe damage if not addressed.

• Radiator Issues: Leaks in the radiator can result in coolant loss, causing the machine to overheat.


• Regular Filter Replacements: Change the air filters in both the air conditioning system and engine regularly.

• Monitor Coolant Levels: Ensure that the coolant is at the proper level and replace any damaged hoses or parts that could cause leakage.

• Radiator Maintenance: Inspect the radiator for any cracks, clogs, or signs of wear. Keep the cooling fins clean to improve airflow and heat dissipation.


1. Daily Inspections: Before starting your equipment, check all fluids, electrical connections, and the undercarriage for any signs of wear or leaks.

2. Scheduled Maintenance: Follow the manufacturer’s maintenance schedule for filter changes, fluid replacements, and component inspections.

3. Keep It Clean: Dirt, mud, and debris can cause various issues in your equipment. Keep your machine clean, especially around the engine and undercarriage.

4. Train Your Operators: Proper training on the use and care of equipment can minimize wear and tear, improve productivity, and extend the life of the machine.


The Link-Belt 130X3 and Its Engine Platform
The Link-Belt 130X3 is a compact, high-efficiency hydraulic excavator designed for urban construction, utility work, and light earthmoving. Manufactured by LBX Company, a subsidiary of Sumitomo, the 130X3 is powered by the Isuzu AM-4JJ1X engine—a 4-cylinder, turbocharged diesel unit known for its fuel efficiency and emissions compliance. This engine meets Tier 4 standards and incorporates advanced emissions systems including EGR (Exhaust Gas Recirculation), DPF (Diesel Particulate Filter), and SCR (Selective Catalytic Reduction).
Isuzu’s 4JJ1 series has been widely adopted across compact equipment platforms, with tens of thousands of units sold globally. While generally reliable, these engines can exhibit blow-by symptoms as they age, especially beyond 7,000 operating hours.
Understanding Blow-By and Its Implications
Blow-by refers to combustion gases escaping past the piston rings into the crankcase. These gases carry oil mist and pressure, which can exit through the valve cover or breather tube. In the case of the 130X3, excessive blow-by was observed when the oil fill cap was removed—oil splattered onto the operator’s hand, face, and surrounding deck within seconds. Surprisingly, the crankcase breather tube showed minimal discharge.
This behavior suggests elevated crankcase pressure, possibly due to:

• Worn piston rings

• Blocked breather system

• Valve guide wear

• Emissions system backpressure


• Blow-By: Leakage of combustion gases into the crankcase, often carrying oil vapor.

• DPF (Diesel Particulate Filter): A filter that traps soot from exhaust gases.

• SCR (Selective Catalytic Reduction): A system that reduces NOx emissions using urea injection.

• Crankcase Breather: A vent system that releases excess pressure from the engine block.


• Perform a compression test to assess ring and valve sealing

• Inspect and clean the breather assembly

• Check for oil contamination in the intake system

• Review DPF and EGR status—backpressure can elevate crankcase pressure


• Avoid removing the oil cap during operation unless testing for blow-by

• Use a manometer or pressure gauge to verify crankcase pressure

• Check service history for emissions system maintenance

• Plan for overhaul if compression is low or oil consumption is high

• Factor engine condition into resale value—blow-by can reduce buyer confidence


The 1993 Bobcat 331 mini excavator, part of the Bobcat company's renowned line of compact equipment, has been a reliable workhorse for many small to medium-scale construction, landscaping, and utility jobs. Despite its robust design and reputation for versatility, like all equipment, the Bobcat 331 can encounter some common issues over time. This article takes a deep dive into these issues, offering solutions and practical tips for maintaining and repairing this classic model.
Introduction to the Bobcat 331 Mini Excavator
The Bobcat 331 mini excavator, introduced in the early 90s, quickly became popular for its compact size, powerful hydraulic system, and ease of operation. Weighing in at approximately 7,000 pounds, it was designed to handle tight spaces while still providing strong digging force and lifting capacity for a wide range of construction tasks. With its ability to work in confined areas and maneuver through tough terrains, the Bobcat 331 became a go-to choice for operators requiring a small but efficient machine.
The excavator is powered by a 3-cylinder, 24.8 horsepower diesel engine and equipped with a hydraulic system capable of providing a digging depth of 8 feet and 3 inches. Its simplicity in design, combined with rugged performance, made it highly popular for smaller-scale excavation and trenching tasks.
Common Issues with the Bobcat 331
While the 1993 Bobcat 331 is a sturdy machine, it’s not without its share of issues, many of which arise due to its age. Some of the more commonly reported issues include:
Hydraulic System Failures
One of the most significant concerns with the Bobcat 331 involves the hydraulic system. The mini excavator relies heavily on hydraulic power to drive its movements, including the boom, arm, and bucket functions. Over time, components like the hydraulic pump, hoses, and valves can degrade.
Common Problems:

1. Sluggish or Uneven Performance: This can occur if there is air in the system, if the fluid levels are low, or if there are leaks in the hydraulic hoses.

2. Pump Failure: If the hydraulic pump fails, the excavator will struggle to perform its basic tasks like lifting, digging, and swinging the arm.

3. Contaminated Hydraulic Fluid: If the fluid is not changed regularly, it can become contaminated with debris, which may lead to clogs in filters or even damage to the pump and valves.


1. Regular Maintenance: Always monitor the hydraulic fluid levels and ensure that the system is free of leaks. Hydraulic oil should be changed according to the manufacturer's recommendations.

2. Fluid Filters: Replace hydraulic filters at regular intervals to ensure clean fluid is circulating throughout the system.

3. Pump Inspection and Replacement: If the pump starts to show signs of wear or failure (e.g., slow operation or whining sounds), it’s important to inspect and replace it before it causes more damage.


1. Hard Starting: If the engine is difficult to start, it could be due to a faulty glow plug, clogged fuel filter, or issues with the fuel injection system.

2. Loss of Power: A lack of power could be caused by a clogged air filter, poor fuel quality, or malfunctioning turbocharger (if equipped).

3. Excessive Exhaust Smoke: This could indicate worn-out piston rings or fuel system problems, such as a leaky injector.


1. Fuel System Maintenance: Regularly change fuel filters, inspect fuel lines for leaks, and ensure the fuel injectors are clean. Ensure that only high-quality diesel fuel is used.

2. Engine Diagnostics: If the engine shows signs of poor performance, a full diagnostic should be performed to check the compression levels and inspect the fuel injection system.

3. Air Filter Replacement: Regularly inspect and replace the air filter to prevent dirt and debris from entering the engine and causing wear.


1. Dead or Weak Battery: Over time, the battery can lose its charge capacity, especially if the excavator is not used for extended periods.

2. Loose or Corroded Wiring: Electrical connections can become loose or corroded, particularly in outdoor conditions where moisture and dirt can affect electrical contacts.

3. Faulty Ignition Switch: A malfunctioning ignition switch can cause starting problems or result in the engine not starting at all.


1. Battery Maintenance: Regularly inspect the battery, ensuring it holds a charge. Clean the battery terminals and replace the battery if it no longer holds a charge.

2. Wiring Inspection: Inspect all wiring and connectors for signs of wear, corrosion, or loose connections. Tighten and clean the terminals as necessary.

3. Ignition Switch Replacement: If the ignition switch fails, replace it promptly to avoid starting problems.


1. Worn Tracks: Tracks can become excessively worn or loose, affecting traction and mobility.

2. Damaged Rollers or Idlers: These components may develop cracks or wear down, causing a rough ride or increased vibration.

3. Track Tension Problems: If the tracks are not properly tensioned, they can cause uneven wear or even derail.


1. Track Inspection and Maintenance: Regularly inspect the tracks for signs of wear or damage. Ensure that they are properly tensioned and replace any damaged parts promptly.

2. Roller and Idler Replacement: Inspect the rollers and idlers for damage or excessive wear and replace them if necessary.

3. Track Lubrication: Apply proper lubrication to the undercarriage parts to reduce wear and friction.


• Fluid Checks: Regularly check and replace hydraulic fluid, engine oil, and coolant to ensure the machine runs smoothly.

• Filter Replacements: Change the air, fuel, and hydraulic filters at regular intervals to keep contaminants out of the system.

• Grease the Undercarriage: The undercarriage should be greased regularly to prevent excessive wear.

• Inspect Daily: Before every use, perform a quick inspection to ensure the machine is in good working order, checking for leaks, loose bolts, and overall cleanliness.


The Economics of Demo Recycling
Demolition contractors across the U.S. are increasingly turning to on-site recycling to reduce landfill fees and improve bid competitiveness. With landfill gate rates ranging from $20 to $32 per ton and round-trip hauls often exceeding two hours, the cost of disposal can quickly erode profit margins. Recycling concrete, steel, copper, and timber not only offsets these costs but can generate revenue when materials are sorted and sold strategically.
In one 27,000-square-foot shopping center demo, over 40,000 pounds of steel and tin were salvaged, along with rough-sawn pine beams from older roof sections. The concrete slabs, being unreinforced, were diverted to inert fill sites, while CMU blocks followed suit. This approach minimized landfill use and maximized material recovery.
On-Site Crushing and Regulatory Constraints
Crushing concrete on-site is often the most cost-effective strategy, especially when clean fill is needed for ravines or grading. However, regulations vary by state. In Missouri, for example, recycling must occur on-site—contractors cannot haul debris to their yard for later processing. This applies not only to concrete but also to tree logs and firewood, though enforcement is inconsistent.
Painted concrete presents a challenge. Many jurisdictions restrict its use in fill applications due to potential contamination. Contractors must separate painted sections and either dispose of them properly or explore encapsulation techniques.
Terminology Notes

• CMU (Concrete Masonry Unit): Standard concrete blocks used in commercial and residential construction.

• Inert Fill: Material that does not decompose or leach contaminants, suitable for non-structural backfill.

• Multi-Processor: An excavator attachment designed to crush concrete and shear rebar simultaneously.

• WWF (Welded Wire Fabric): Reinforcing mesh embedded in concrete slabs.


• Use dedicated containers for metal during demo

• Inspect roof structures for hidden steel decking

• Scan slabs for embedded copper or conduit

• Avoid relying on pre-demo walkthroughs—materials may vanish before work begins


• Cycle time and jaw force

• Compatibility with existing excavators

• Ease of maintenance and wear part replacement

• ROI based on projected scrap volume


• Include contingency for scrap recovery but avoid overestimating

• Plan for on-site sorting to comply with local regulations

• Use crushers or pulverizers to reduce hauling and landfill costs

• Separate painted concrete early to avoid contamination

• Track material weights for future bid calibration


Heavy equipment is built to handle the tough conditions of construction, mining, and other challenging environments. However, just like any machine, these vehicles require proper maintenance and occasional repairs to keep them running smoothly. One of the more common issues that operators may encounter is with the seat back mount, especially in older models such as the Caterpillar D4D dozer.
The seat in a heavy equipment machine isn’t just for comfort—it's an integral part of the operator's safety and efficiency. If the seat back mount fails, it can lead to discomfort or even safety risks. In this article, we will explore how to identify seat back mount issues, common causes of failure, and solutions for repair and replacement, with a focus on the D4D dozer.
Understanding the D4D Dozer and Its Seat Back Mount System
The Caterpillar D4D is a versatile track-type tractor used in a wide range of earthmoving applications. Known for its durability and reliability, the D4D features a robust construction that’s designed to handle rugged terrains and tough work environments.
The seat back mount in a dozer, like the D4D, plays a crucial role in securing the operator’s seat and ensuring it remains stable during operation. Over time, however, due to constant vibration, wear and tear, or improper adjustments, the seat back mount can loosen, bend, or even break. This can compromise the operator's comfort and potentially their safety, making repairs or replacements necessary.
Common Issues with Seat Back Mounts
Seat back mounts can face a number of issues, with some more common than others. The most frequent problems include:
Loose or Worn Mounting Bolts
Over time, the bolts that secure the seat back mount to the dozer's frame can loosen due to constant vibration from the machine’s movement. If the bolts are not regularly checked and tightened, the mount can become unstable, causing discomfort or even the seat to detach partially.
Cracks or Breakage in the Mounting Frame
The metal frame that holds the seat back mount can develop cracks or break due to excessive wear, impact, or improper maintenance. This is more common in older machines or those that have undergone heavy use without regular checks.
Misalignment of the Seat
A misaligned seat can be another issue that arises from a faulty seat back mount. This happens when the seat or the mounting brackets are not positioned correctly, making it difficult for the operator to adjust the seat to the proper position.
Diagnosing Seat Back Mount Problems
When a seat back mount fails, it’s often due to one or more of the issues mentioned above. To diagnose the problem:

1. Check for Movement: If the seat is loose or wobbly, it’s an indicator that the seat back mount or its bolts may be the issue.

2. Look for Visible Damage: Inspect the seat back mount assembly for cracks or broken parts. Pay special attention to the mounting frame and bolts.

3. Test Seat Adjustment: Try adjusting the seat position. If it moves or doesn’t lock into place properly, the seat mount could be misaligned.


1. Remove the Old Frame: This typically involves removing the seat assembly and the old mount frame. Be sure to take note of how the parts are connected so you can reassemble the new frame properly.

2. Install the New Frame: Secure the new frame into place, making sure it aligns properly with the seat and other components. Tighten all bolts to manufacturer specifications.

3. Reassemble the Seat: Once the new mount frame is installed, reassemble the seat assembly, ensuring all parts are securely in place.


1. Regular Inspections: Check the seat and its mount regularly, especially after heavy use. Look for signs of wear, loose bolts, or any cracks in the mounting frame.

2. Tighten Bolts Periodically: Ensure the seat mounting bolts are tightened to the proper torque settings. If unsure, refer to the equipment’s manual for specifications.

3. Avoid Excessive Impact: If the dozer is used in rough terrain, try to avoid excessive impact on the seat. Ensure the operator adjusts the seat properly to prevent strain on the frame.


The JCB JZ140 and Its Cab Design
The JCB JZ140 is a reduced tail swing excavator introduced in the mid-2000s, designed for urban and confined job sites. With an operating weight around 14 metric tons and powered by a 4-cylinder diesel engine, the JZ140 balances power, maneuverability, and operator comfort. One of its standout features is the fully enclosed cab with wide visibility panels—including a roof window that allows operators to monitor overhead loads and boom movement.
JCB, founded in 1945 in Staffordshire, England, has long emphasized operator ergonomics and safety. The roof window on the JZ140 is made of molded Perspex (acrylic), shaped to accommodate the overhead wiper motor and integrated into the cab’s steel frame. This design improves visibility during lifting operations and enhances safety when working near power lines or structures.
Challenges in Sourcing Replacement Roof Panels
Owners of older JZ140 units, particularly those manufactured around 2006, often face difficulty sourcing replacement roof windows. The original panel includes a molded recess for the wiper motor and is only available through official JCB parts channels. These genuine parts are priced significantly higher than standard acrylic sheets, often exceeding £300–£500 depending on region and dealer markup.
Aftermarket alternatives are limited due to the complexity of the molded shape and the need for precise fitment. Generic flat Perspex sheets do not accommodate the motor housing and may compromise sealing or visibility. Some operators have attempted custom fabrication using heat-molded acrylic, but results vary depending on tooling and skill.
Terminology Notes

• Perspex: A brand name for acrylic plastic, known for clarity and impact resistance.

• Molded Recess: A shaped indentation designed to house components like motors or brackets.

• OEM (Original Equipment Manufacturer): Parts produced by the original manufacturer, ensuring compatibility and quality.

• Cab Glazing: The transparent panels installed in the operator cab for visibility and protection.


• Heat-forming Perspex using a mold can replicate the motor recess. This requires a wooden or metal form, an oven or heat gun, and careful shaping.

• Polycarbonate sheets offer higher impact resistance than acrylic and can be drilled or shaped more easily, though they may yellow over time.

• 3D scanning and CNC routing can produce precise replacements, but cost and access to equipment may be prohibitive for small operators.

• Salvage yards occasionally stock used JCB cabs or panels. Inspect for cracks, UV damage, and mounting integrity before purchase.


• Remove the wiper motor first to avoid damaging the mounting bracket or wiring.

• Clean the mounting surface thoroughly to ensure proper adhesion and sealing.

• Use UV-resistant sealant to prevent degradation over time.

• Test fit the panel before final installation to confirm alignment and visibility.

• Check local regulations if operating near power lines—roof visibility may be a safety requirement.


The CAT D4H and Its Hydraulic Control System
The Caterpillar D4H dozer was introduced in the 1980s as part of CAT’s H-series, designed to offer improved power-to-weight ratios, enhanced operator comfort, and more refined hydraulic control. With an operating weight of approximately 10,000 to 12,000 kg depending on configuration, the D4H was widely used in grading, forestry, and utility work. Its hydraulic system includes a variable displacement pump equipped with a pressure and flow compensator—critical for regulating fluid delivery based on system demand.
Caterpillar, founded in 1925, has long been a leader in earthmoving equipment. The D4H was one of its most successful mid-sized dozers, with thousands sold globally. Its hydraulic system was engineered for efficiency, using compensator logic to reduce fuel consumption and heat buildup during partial load conditions.
Function of the Pressure and Flow Compensator
The pressure and flow compensator is a control mechanism mounted on the hydraulic pump. It adjusts the pump’s displacement based on system pressure and flow requirements. When the hydraulic demand is low, the compensator reduces pump output to minimize energy loss. When demand increases, it allows full displacement to maintain performance.
This system prevents over-pressurization, reduces wear on components, and improves fuel efficiency. It also ensures smooth operation of blade lift, tilt, and ripper functions, especially during simultaneous multi-function use.
Terminology Notes

• Variable Displacement Pump: A hydraulic pump that adjusts its output flow based on system demand.

• Compensator Valve: A control valve that regulates pump displacement using pressure feedback.

• Load Sense Line: A hydraulic line that transmits pressure data from actuators to the pump.

• Hydraulic Control Valve: A directional valve that routes fluid to specific cylinders or motors.


• Opening the engine side panel

• Identifying the hydraulic pump body—usually a cast aluminum or steel housing with multiple hose connections

• Locating the compensator block, which is bolted to the rear or side of the pump and includes adjustment screws or caps


• Do not adjust compensator settings without a pressure gauge and service manual. Incorrect settings can cause pump damage or erratic blade movement.

• Check for contamination in the compensator valve. Debris can block the spool and prevent proper modulation.

• Inspect the load sense line for kinks or leaks. A damaged line can cause the pump to default to low flow.

• Test system pressure at the control valve block using a diagnostic port. Compare readings with factory specifications.

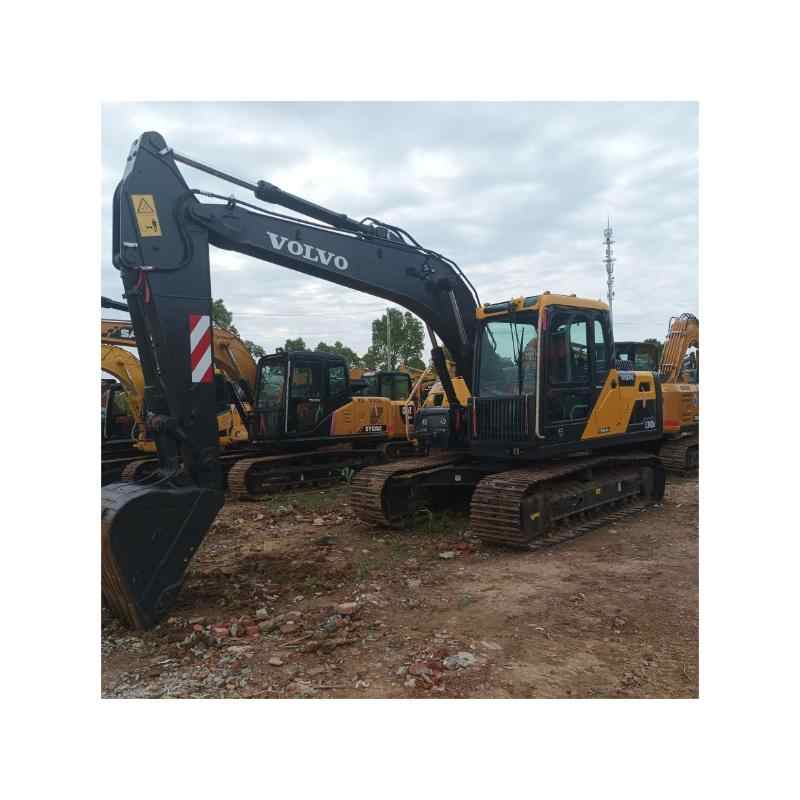

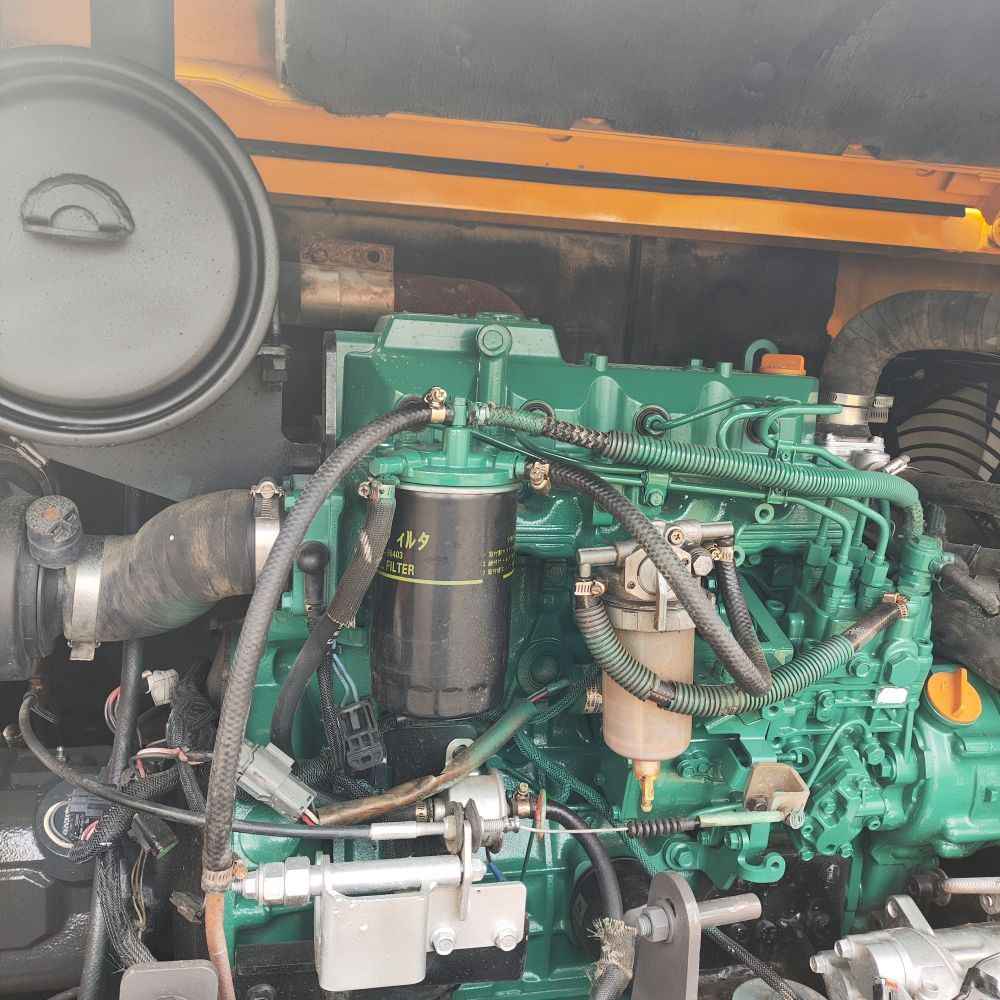

Volvo Construction Equipment, renowned for its advanced engineering and durable machinery, manufactures the EC210, a mid-sized hydraulic excavator that is widely used in the construction industry. With a focus on performance, fuel efficiency, and operator comfort, the EC210 has become a trusted choice for excavating tasks across various industries. However, like all machinery, the Volvo EC210 may encounter operational issues from time to time, and one of the most common problems that operators may face is ignition trouble.
In this article, we will delve into the causes of ignition problems in the Volvo EC210 excavator and offer a comprehensive troubleshooting guide. We will explore the potential culprits behind ignition failures, steps to diagnose the issue, and offer solutions to resolve it. Additionally, we will provide tips on how to prevent future ignition problems and ensure the longevity of your equipment.

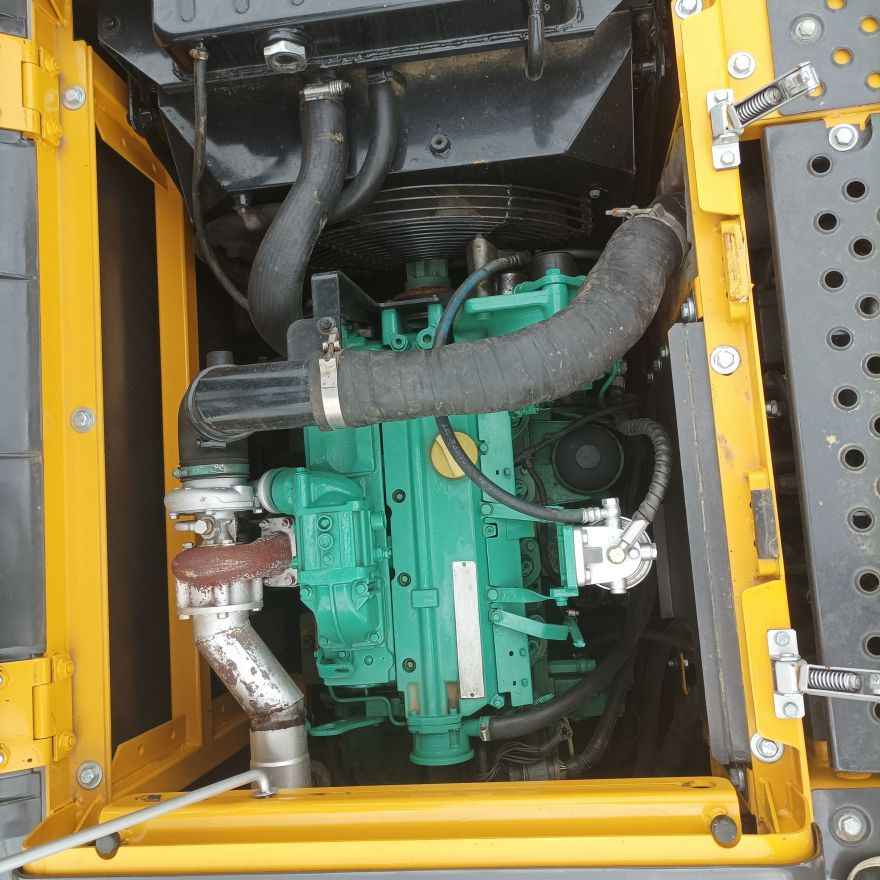

Understanding the Volvo EC210 Excavator
The Volvo EC210 is part of Volvo’s EC series of excavators, which are known for their robust design, fuel efficiency, and technological advancements. The EC210 features a powerful engine and high-performance hydraulics that make it ideal for medium- to heavy-duty tasks such as digging, lifting, and grading.
Introduced in the early 2000s, the EC210 has been praised for its reliability, comfort, and advanced features such as the Volvo CareTrack telematics system, which helps monitor and optimize machine performance. Despite these benefits, electrical and ignition issues can occur, especially in older models or those subjected to harsh working conditions.
Common Ignition Problems in the Volvo EC210
Ignition issues in excavators like the Volvo EC210 can range from minor electrical glitches to more complex mechanical failures. Understanding the symptoms and root causes can help operators and technicians efficiently diagnose and fix the problem. Here are some of the common ignition problems that may arise:

1. Starter Motor Failure: The starter motor is responsible for turning the engine over when starting the machine. If the starter motor fails, the engine will not crank, preventing the excavator from starting.

2. Battery Issues: A weak or dead battery is one of the most common causes of ignition problems. If the battery is not supplying sufficient power to the ignition system, the engine may fail to start or may struggle to start.

3. Fuel Delivery Problems: If the fuel system is clogged or not delivering the proper amount of fuel to the engine, ignition may be delayed or may not occur at all. Issues like a clogged fuel filter or malfunctioning fuel pump can prevent the engine from starting.

4. Faulty Ignition Switch: The ignition switch is responsible for sending power to the engine when the operator turns the key. If the switch is faulty, it may fail to activate the engine, causing ignition problems.

5. Electrical Connection Issues: Loose, corroded, or damaged wiring and connectors can interfere with the flow of electricity to essential components of the ignition system, causing failure to start. These issues can stem from normal wear and tear or exposure to harsh environmental conditions.

6. Glow Plug Failure (Cold Weather Start): In colder climates, glow plugs play a crucial role in preheating the engine for easier starting. If the glow plugs are malfunctioning, starting the engine in cold conditions can become difficult, and ignition may fail.

7. Sensor or Control System Malfunctions: Modern excavators like the EC210 are equipped with advanced sensors and control systems that monitor engine health and performance. A malfunctioning sensor or control unit may send incorrect signals to the ignition system, leading to starting issues.


1. Check the Battery: Start by checking the battery’s charge and condition. If the battery is weak or dead, it may need to be charged or replaced. Inspect the battery terminals for corrosion or loose connections, as these can prevent proper charging and starting.

2. Test the Starter Motor: If the battery is functioning properly, listen for any clicking sounds when turning the ignition key. A clicking noise typically indicates that the starter motor is not engaging, and it may need to be repaired or replaced.

3. Inspect the Fuel System: Check the fuel filter for any signs of clogging or contamination. If the fuel filter is clogged, replace it with a new one. Additionally, ensure that the fuel pump is operating correctly and that fuel is reaching the engine.

4. Test the Ignition Switch: If the engine fails to start despite a functional battery and starter motor, test the ignition switch for proper operation. If the ignition switch is not sending power to the engine, it may need to be replaced.

5. Examine Electrical Connections: Inspect all electrical wiring and connectors, especially those leading to the starter motor, ignition system, and control modules. Look for any loose, frayed, or corroded wires. Cleaning and tightening connections can resolve many ignition issues.

6. Check the Glow Plugs: If the excavator is having trouble starting in cold weather, test the glow plugs to ensure they are functioning properly. Replace any faulty glow plugs to ensure the engine can heat up properly before starting.

7. Scan for Fault Codes: Modern excavators like the EC210 are equipped with onboard diagnostics systems that can detect and store error codes. Use a diagnostic tool to scan for any stored fault codes related to the ignition system, sensors, or control units.


1. Replace the Battery: If the battery is old, weak, or damaged, replacing it with a new one will resolve most battery-related ignition issues. Be sure to select the correct battery type and size based on the manufacturer’s specifications.

2. Repair or Replace the Starter Motor: If the starter motor is not functioning properly, it may need to be repaired or replaced. Consult the manufacturer’s manual for detailed instructions on how to remove and replace the starter motor.

3. Replace Clogged Fuel Filters: If the fuel filter is clogged, replacing it with a new, clean filter will improve fuel flow and resolve any fuel delivery issues. Regularly replacing fuel filters as part of the machine’s maintenance schedule will help prevent this issue in the future.

4. Replace the Ignition Switch: A faulty ignition switch can prevent the engine from starting. Replacing the ignition switch with a genuine Volvo part will restore proper function.

5. Repair Electrical Connections: Loose or corroded electrical connections can often be fixed by cleaning and tightening them. If the wiring is damaged, it may need to be replaced.

6. Replace Faulty Glow Plugs: If the glow plugs are not working correctly, they will need to be replaced. Replacing faulty glow plugs will ensure the engine starts smoothly in colder weather.

7. Reset or Replace Faulty Sensors: If diagnostic codes point to faulty sensors or control modules, reset or replace the malfunctioning components to restore proper ignition system functionality.


1. Regular Maintenance: Adhere to the manufacturer’s maintenance schedule for the EC210. Regularly inspect and replace parts such as the battery, fuel filter, glow plugs, and wiring to ensure everything is in good working order.

2. Clean Electrical Connections: Routinely check and clean electrical connections to prevent corrosion, which can cause ignition issues. Pay particular attention to the battery terminals, starter motor connections, and ground wires.

3. Use the Correct Fuel: Always use the recommended fuel type for the EC210. Contaminated or poor-quality fuel can clog the fuel system and cause ignition issues.

4. Store the Excavator Properly: If the machine is going to be stored for an extended period, make sure it is stored in a dry, temperature-controlled environment to prevent battery drain, wiring damage, and fuel system issues.

5. Monitor Performance: Pay attention to any irregularities in the machine’s performance, such as difficulty starting or rough idle. Addressing minor issues early can prevent more significant ignition problems down the road.


The Michigan 55AG and Its Industrial Legacy
The Michigan 55AG wheel loader was produced by Clark Equipment Company during the mid-20th century, designed for agricultural and light industrial use. Clark, founded in 1903, became a major player in the heavy equipment sector through its Michigan line of loaders, which were known for their mechanical simplicity and robust construction. The 55AG model featured a Continental flathead six-cylinder gasoline engine, a torque converter transmission, and a mechanical linkage control system. It was widely used in sawmills, farms, and municipal yards, with thousands of units sold across North America.
The 55AG was not built for speed or finesse—it was a workhorse meant to lift, push, and haul. Its powertrain was tuned for low-end torque rather than acceleration, and its hydraulic system was designed to operate basic bucket functions reliably under heavy loads.
Initial Performance Observations and Gear Range Discovery
New owners often report sluggish performance, especially when climbing hills or operating under load. In one case, the loader struggled on a small incline until the operator discovered a hidden range selector lever buried beside the seat. This lever toggles between work range and travel range, offering two speeds in each mode. When properly engaged in work range, the loader’s torque and responsiveness improved significantly.
The range selector operates through a gear-driven reduction box. Shifting between ranges requires placing the transmission levers in neutral to avoid gear clash. This discovery highlights the importance of familiarizing oneself with all controls, especially on older machines where documentation may be missing or incomplete.
Terminology Notes

• Flathead Engine: An internal combustion engine with valves located beside the cylinders, known for simplicity and smooth idle but limited power output.

• Torque Converter: A fluid coupling that transmits engine power to the transmission, allowing smooth acceleration without a clutch.

• Work Range: A low-speed, high-torque gear setting used for lifting and pushing.

• Travel Range: A higher-speed setting for moving the machine across longer distances.


• Flush and replace all fluids, including engine oil, transmission fluid, and hydraulic oil

• Inspect and clean the fuel system, replacing filters and checking for sediment

• Test compression and oil pressure to assess engine health

• Rewire the electrical system using modern connectors and relays

• Check brake linkage and add a booster if needed

• Replace worn steering components to reduce play

• Fabricate bucket mounts or modify existing attachments for compatibility


The Buhler loader, known for its durability and versatility in a variety of applications, is a key piece of machinery in construction, farming, and heavy-duty material handling. However, like all heavy equipment, it is not immune to the rigors of harsh environments and tough workloads. Accidents happen, and sometimes, equipment can be damaged. One such issue that can arise with loaders is a bent frame or structural components, a situation that can cause a headache for any operator or business owner.
In this article, we will explore the steps to take when dealing with a bent Buhler loader, from assessing the damage to deciding whether to repair or replace parts. We’ll cover the common causes of such damage, repair techniques, and the pros and cons of repairing versus replacing equipment parts. By the end, you’ll have a better understanding of how to proceed if you ever find yourself in a similar situation.
Understanding the Buhler Loader: A Brief Overview
Buhler is a company known for producing high-quality agricultural and industrial equipment, including loaders, tractors, and various types of heavy machinery. Buhler loaders, such as the smaller models used in farming or the larger industrial versions, are designed to handle a variety of tasks with ease. They are particularly valued for their reliable performance, strength, and versatility in tasks like digging, lifting, and moving materials.
The design of Buhler loaders typically incorporates rugged frames and high-quality hydraulics, which allow them to carry heavy loads and operate in challenging environments. However, despite their strong build, these machines are not invincible. Frame bending or deformation can occur due to excessive weight, improper operation, or collisions with obstacles in the field.
What Causes a Bent Loader?
Several factors can contribute to a loader’s frame becoming bent or damaged. Understanding these causes is essential for preventing future issues and deciding on the best course of action. Here are some of the most common reasons:

• Overloading: One of the leading causes of frame bending in loaders is overloading. If the loader is tasked with carrying or lifting more weight than its rated capacity, the strain on the frame can cause it to bend or warp.

• Improper Usage: Using the loader incorrectly, such as performing tasks it wasn’t designed for, can result in structural damage. For instance, using the loader for excessive digging or pushing tasks can strain its frame.

• Collisions: Whether it’s a bump into a solid object or a heavy impact during transportation, collisions are one of the most direct ways to cause frame damage. The force of impact can warp or bend the loader’s frame, especially in areas where the frame is weakest.

• Wear and Tear: Over time, as a loader is used in rough conditions, the frame and other structural components can become weakened. Stress from constant movement, vibrations, and minor impacts can cause gradual deformation.

• Hydraulic Issues: Hydraulic systems are critical to the operation of loaders. If the hydraulic system malfunctions or is improperly maintained, it can cause uneven lifting or pushing, which may lead to stress on the frame.


1. Visual Inspection: Begin by visually inspecting the frame and key components such as the loader arms, lifting arms, and attachment points. Look for visible signs of bending, cracking, or misalignment. Be thorough in your inspection, and check for any other underlying issues that could have resulted from the bent frame, such as damaged hydraulic lines or uneven wear on the wheels.

2. Measure for Deformation: Using measuring tools such as a tape measure or laser alignment tools, measure the key dimensions of the loader’s frame. Compare these measurements with the manufacturer’s specifications. If the frame is significantly out of alignment, repair or replacement may be required.

3. Functional Test: Conduct a functional test to see if the loader still operates correctly. Check if it lifts and moves loads as expected, and observe for any abnormal behavior such as uneven movements or strained hydraulics. This can help you determine the extent to which the bent frame is affecting the loader’s performance.

4. Professional Assessment: In cases where the damage is not immediately obvious or when there is significant doubt about the structural integrity of the machine, it’s recommended to bring in a professional. A mechanic with experience in heavy equipment will have the tools and expertise to conduct a more thorough inspection and provide recommendations for repairs.


• Cost: Repairing a bent frame may be more affordable than purchasing a new loader, but if the damage is extensive, replacement might be the more cost-effective option in the long run.

• Downtime: Repairing a loader takes time, which means that the machine will be out of service for a period. If the loader is essential for operations, downtime could result in lost revenue. Replacing the loader may offer a quicker solution.

• Machine Age: If the loader is relatively old and has other underlying issues, it may be better to replace it entirely. Continuing to repair an aging machine can be costly in the long run, especially if it’s prone to further issues.

• Future Reliability: A repaired frame may still be prone to issues down the line. If you are concerned about the long-term reliability of the loader after repairs, replacement might offer better peace of mind.


• Regular Maintenance: Keep up with regular maintenance, including checking the hydraulic system, tires, and frame for signs of wear.

• Avoid Overloading: Stick to the manufacturer’s recommended load limits to prevent excessive strain on the frame.

• Proper Operation: Train operators on proper loader usage, and ensure that the machine is used within its design parameters.

• Frame Inspections: Conduct routine inspections of the loader’s frame and other key components to catch any issues early.
