The Caterpillar 12 grader, a reliable piece of heavy equipment, is commonly used for road construction, grading, and other civil engineering tasks. However, like all machines, it can sometimes experience issues, particularly with the engine. One of the more concerning problems is when the engine "dies" unexpectedly, leaving operators stranded and the machine inoperable. Understanding the potential causes and solutions for this issue can help reduce downtime and avoid costly repairs. This article explores the possible reasons why a Caterpillar 12 grader engine may fail, along with diagnostic steps and solutions to fix the problem.
Symptoms and Immediate Concerns
When the engine of a Caterpillar 12 grader stops running, several signs may accompany the issue:

• Complete engine shutdown: The engine suddenly stops running without warning.

• Power loss: The grader may experience a loss of power, making it difficult to continue operating.

• Erratic engine behavior: The engine may stutter, stall, or run rough before failing.


1. Fuel System Issues
   The fuel system is a critical component of any diesel engine, and a failure in this system can cause the engine to stop working. Possible issues include:
   • Clogged fuel filters: If the fuel filters become clogged with debris or contaminants, the engine may not get enough fuel to run properly. This is a common issue, especially if low-quality fuel is used.

   • Air in the fuel lines: Air bubbles in the fuel system can prevent the fuel from reaching the engine, causing it to stall. This may occur after fuel tank refills or when the fuel lines are disconnected for maintenance.

   • Faulty fuel pump: A malfunctioning fuel pump may fail to provide the necessary pressure for fuel injection, leading to a loss of power or complete engine failure.

   Solution: Begin by checking the fuel filters for any blockages or signs of dirt. Replace filters as needed. Bleed the fuel lines to remove any trapped air. If the fuel pump is suspected to be the issue, consult a mechanic or technician to test the pump’s pressure and functionality.

2. Electrical System Failures
   A fault in the electrical system can prevent the engine from starting or cause it to shut off unexpectedly. Key components include:
   • Battery failure: A weak or dead battery can cause an electrical system failure, preventing the engine from starting or keeping it running.

   • Alternator issues: If the alternator is not charging the battery correctly, the engine may shut down once the battery’s charge is depleted.

   • Faulty wiring or connections: Loose or corroded wires, particularly around the ignition or alternator, can cause the engine to lose power or fail to start.

   Solution: Test the battery voltage using a multimeter. If the voltage is low, recharge or replace the battery. Check the alternator’s output and inspect the wiring for signs of wear or corrosion. Reconnect any loose connections and replace damaged wires.

3. Engine Overheating
   Overheating is a common issue that can cause the engine to shut down as a protective measure. Some potential causes include:
   • Low coolant levels: Without enough coolant, the engine can overheat, triggering the engine shutdown system.

   • Blocked radiator: A clogged or blocked radiator will prevent proper heat dissipation, leading to an overheating engine.

   • Faulty thermostat: A malfunctioning thermostat may cause improper cooling, leading to overheating.

   Solution: Check the coolant levels and top off if necessary. Inspect the radiator for any blockages or debris. If the thermostat is suspected to be the problem, have it tested and replaced if needed.

4. Starter Motor Problems
   The starter motor is responsible for initiating the engine’s operation. If the starter motor is faulty or not engaging, the engine will fail to start.
   • Starter solenoid failure: A malfunctioning solenoid may prevent the starter motor from engaging, even when the ignition key is turned.

   • Wear and tear: Over time, the starter motor’s internal components can wear out, leading to difficulty starting the engine.

   Solution: Test the starter motor by attempting to engage it while monitoring for any clicking or abnormal sounds. If the starter does not engage, replace the solenoid or motor, depending on the severity of the issue.

5. Air Intake and Exhaust Blockages
   A blockage in the air intake or exhaust system can prevent the engine from breathing properly, leading to a loss of power or stalling.
   • Dirty air filters: Over time, air filters can become clogged with dust and debris, restricting airflow to the engine.

   • Exhaust system blockages: A blockage in the exhaust, such as a damaged muffler or buildup of soot, can restrict airflow and cause the engine to stall.

   Solution: Inspect the air filters and replace them if they are clogged. Also, check the exhaust system for any visible blockages or damage and clear any obstructions.


• Check for error codes: Many modern Caterpillar machines are equipped with diagnostic systems that store error codes when a failure occurs. Using a diagnostic tool can help pinpoint the exact issue.

• Review service history: If this issue is recurring, review the grader’s service history to determine whether the problem has been addressed before.

• Test individual components: Isolate and test individual components of the engine and its systems (fuel, electrical, cooling) to systematically identify the root cause of the failure.


• Regular fuel filter replacement: Replace fuel filters as per the manufacturer’s recommended intervals to ensure the engine receives clean fuel.

• Routine battery checks: Regularly inspect the battery for corrosion and test its charge capacity.

• Cooling system maintenance: Keep an eye on coolant levels, flush the radiator periodically, and ensure that the thermostat is functioning properly.

• Air filter inspections: Clean or replace air filters as needed to prevent clogging and maintain engine performance.


A 2006 John Deere 450LC excavator equipped with an Isuzu diesel engine experienced chronic overheating despite extensive repairs. The issue highlights the complexity of diagnosing thermal problems in electronically controlled hydraulic machines.
Machine Background and Cooling System Design
The JD 450LC is a large-class hydraulic excavator developed by John Deere in partnership with Hitachi. It features a robust undercarriage, electronically controlled hydraulics, and a fuel-efficient Isuzu 6-cylinder turbocharged engine. The cooling system includes a large radiator, thermostatically controlled coolant flow, and a hydraulically driven fan. The system is designed to handle high ambient temperatures and continuous heavy-duty operation.
Terminology Note

• Thermostat: A temperature-sensitive valve that regulates coolant flow between the engine and radiator.

• Hydraulic Fan Drive: A system where fan speed is controlled by hydraulic pressure rather than a belt or clutch.

• Coolant Capacity: The total volume of coolant in the engine, radiator, and hoses—typically around 55 liters for this model.

• Infrared Thermometer: A non-contact tool used to measure surface temperatures.

• Fan Speed Solenoid: An electronic valve that adjusts hydraulic flow to the fan motor.


• Infrared temperature readings confirmed that both coolant and engine oil reached 110°C during operation, returning to 83°C after cooldown.

• No hot spots were detected on the engine block or radiator, suggesting even heat distribution.

• Fan speed became a primary suspect. The fan is hydraulically driven and controlled by a solenoid. If the solenoid fails or the control logic is incorrect, the fan may not reach full speed under load.

• Fan speed test procedure involves unplugging the solenoid, setting the engine to fast idle, hydraulic oil at 50–60°C, and measuring fan RPM. It should fall between 1270–1370 RPM.


• Fan speed too low due to solenoid malfunction or incorrect control signal.

• Airlock in coolant system preventing full circulation, especially if coolant was not properly bled.

• Undetected restriction in the EGR cooler or internal coolant passages.

• Sensor calibration drift, though ruled out in this case as IR readings matched gauge output.

• Hydraulic load-induced heat not being dissipated due to insufficient airflow.


• Perform a fan speed test under load and compare to factory specs.

• Bleed the cooling system thoroughly using elevated fill and bleed ports.

• Inspect the hydraulic fan motor and solenoid for wear or contamination.

• Consider installing a mechanical override switch for fan speed to test full-speed cooling.

• Use a coolant pressure tester to check for combustion gas intrusion or internal leaks.

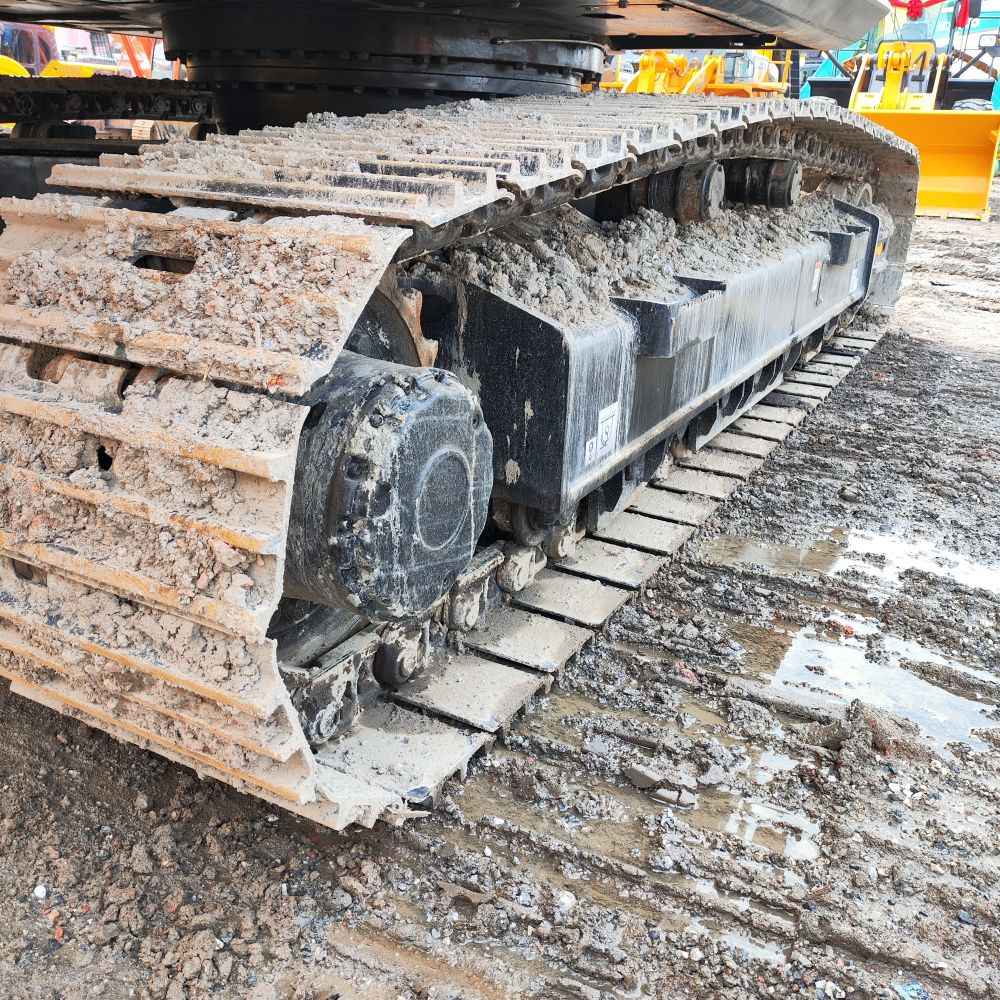

McLaren tracks are a popular choice for various heavy equipment, known for their durability and reliable performance in tough conditions. However, some users have reported experiencing track failure after as little as 300 hours of operation. This issue raises concerns about the quality, longevity, and maintenance of the tracks. In this article, we will explore the possible causes of such failures, the symptoms to look out for, and how to prevent these issues from happening.
The Importance of Tracks in Heavy Equipment
Tracks are an essential component of any tracked equipment, such as excavators, bulldozers, and skid steers. They provide stability, distribute the machine’s weight evenly, and allow it to operate on softer terrain without sinking. Tracks, therefore, must withstand harsh environments, heavy loads, and constant friction. When these components fail prematurely, it can lead to significant downtime, increased repair costs, and even operational hazards.
Why Are McLaren Tracks Failing After 300 Hours?
There are several reasons why McLaren tracks might fail after a relatively short time of 300 hours. Below are some of the most common causes:

1. Improper Track Tension
   Track tension is crucial for ensuring that the tracks operate efficiently. If the tracks are too tight, they experience excessive friction, leading to premature wear. On the other hand, if they are too loose, they can slip off the sprockets and cause damage to the undercarriage components. Incorrect track tension can result in the tracks wearing out quickly and might be the primary cause of premature failure.
   • Solution: Regularly check the track tension according to the manufacturer’s specifications. Make sure the tension is correct to avoid over-stretching or loosening. Adjusting the tension frequently will help prolong the lifespan of the tracks.

2. Inadequate Maintenance
   Proper maintenance is essential for extending the lifespan of tracks. Many users report issues when they fail to regularly inspect their tracks for signs of wear or damage. Dirt and debris can accumulate on the tracks, which increases wear and tear. Additionally, failing to maintain the undercarriage and track components, such as rollers and idlers, can lead to further issues.
   • Solution: Establish a maintenance schedule that includes routine inspections of the tracks and undercarriage components. Clean the tracks frequently to remove dirt, stones, and other debris. Keep the undercarriage well-lubricated to prevent unnecessary wear.

3. Operating Conditions and Terrain
   The operating conditions play a significant role in track longevity. If a machine is used in extreme environments, such as rocky, abrasive surfaces, or extremely wet or muddy areas, the tracks are subjected to more stress. Harsh conditions can cause the tracks to wear out faster, leading to failure in a shorter amount of time.
   • Solution: Be mindful of the environment in which your equipment operates. If operating on harsh terrains, consider investing in more durable, heavy-duty tracks designed for those conditions. Alternatively, adjust operational techniques to minimize wear on the tracks.

4. Overloading the Machine
   Operating the machine beyond its rated capacity can put excessive pressure on the tracks, leading to early degradation. When machines are overloaded, the tracks bear more weight than they are designed to handle, resulting in faster wear, especially in the sprockets and track links.
   • Solution: Always ensure that the machine is not overloaded beyond its capacity. Refer to the operator’s manual for load limits and try to maintain a margin to avoid unnecessary strain on the tracks.

5. Track Quality and Manufacturing Defects
   In some cases, premature failure of the tracks might be due to manufacturing defects or issues with the quality of materials used. McLaren tracks, like any other product, may occasionally have batches with flaws that cause them to wear out faster. This can be especially true if the tracks were subjected to extreme conditions in the manufacturing process or were improperly stored before installation.
   • Solution: If you suspect that the failure is due to a manufacturing defect, contact the supplier or manufacturer. In many cases, warranties or replacement options may apply. Always ensure that the tracks you are using are from a reputable supplier and meet the necessary quality standards.

6. Incorrect Installation
   The installation of the tracks is another factor that could contribute to early failure. If the tracks were not installed properly, they may experience uneven wear or malfunction. For example, if the sprockets or rollers were misaligned, it could lead to uneven track movement, causing excessive wear on one side of the track.
   • Solution: Always ensure that the tracks are installed by trained professionals or according to the manufacturer’s guidelines. Proper alignment of the components is critical for track performance and longevity.


1. Routine Inspections and Adjustments
   Perform regular inspections of the tracks, undercarriage, and drive system to catch signs of wear early. Adjust track tension as needed and replace any worn-out components, such as rollers or idlers, to prevent further damage.

2. Use Proper Track Lubricants
   Use high-quality lubricants recommended by the manufacturer to ensure smooth operation and to minimize friction between moving components. Regular lubrication prevents excessive wear and corrosion, especially in wet or muddy conditions.

3. Train Operators Properly
   Educating operators on the best practices for driving and maintaining the machine can greatly reduce track wear. Operators should be trained on how to avoid overloading the machine, how to properly adjust the tracks, and how to minimize the impact of harsh terrains.

4. Invest in Higher-Quality Tracks for Harsh Environments
   If your machine frequently operates in abrasive or tough terrains, investing in specialized tracks designed for such conditions can be more cost-effective in the long run. These tracks are made from more durable materials and are designed to withstand extreme conditions, providing better performance and longevity.


A sudden loss of braking in the Case 580 Super L backhoe is often linked to internal axle seal failure, hydraulic contamination, or worn-out brake linings. Early detection and proper inspection can prevent costly axle overhauls and ensure safe operation.
Case 580SL Backhoe Overview
The Case 580 Super L (580SL) was introduced in the mid-1990s as part of Case Construction Equipment’s long-running 580 series, which dates back to the 1960s. Known for its rugged design and ease of maintenance, the 580SL featured a 4-cylinder diesel engine, powershift transmission, and hydraulically actuated wet disc brakes. With thousands of units sold globally, it became a staple in municipal fleets, utility contractors, and agricultural operations.
Terminology Note

• Wet Disc Brakes: Enclosed brake system using hydraulic pressure to compress friction discs submerged in oil.

• Master Cylinder: A hydraulic pump actuated by the brake pedal to pressurize the brake circuit.

• Parking Brake Pawl: A mechanical lock that engages the transmission or brake discs to hold the machine stationary.

• Axle Seal: A component that prevents hydraulic oil from leaking into the brake cavity or vice versa.

• Brake Warning Light: An indicator triggered by low pressure or fluid loss in the brake circuit.


• Internal axle seal failure: Hydraulic oil may leak past the piston seals into the rear axle housing, overfilling it and reducing brake pressure. Check axle oil level—if overfilled, suspect internal leakage.

• Worn brake linings: If the friction material is completely worn, the pistons may overextend, causing fluid loss and ineffective braking. This also disables the parking brake, which relies on the same discs.

• Damaged brake lines: External leaks from cracked or corroded lines can cause sudden pressure loss. Inspect all visible lines and fittings.

• Hydraulic foaming: Long-distance travel at high RPM may cause aeration in the hydraulic system, especially if fluid is old or contaminated. Foamed oil reduces braking efficiency and can trigger warning lights.

• Incorrect gear usage: Starting in fourth gear places excessive load on the drivetrain. Always begin in first or second gear and shift progressively.


• Drain and inspect rear axle oil for contamination or overfill. If brake fluid is present, the axle must be overhauled.

• Replace both master cylinders and flush the brake circuit with fresh hydraulic-compatible brake fluid.

• Inspect and replace brake linings and seals as needed. Use OEM or high-quality aftermarket kits.

• Replace the parking brake pawl or adjust the linkage if linings are intact but engagement is weak.

• Upgrade to synthetic hydraulic oil with anti-foaming additives if operating in extreme temperatures.


• Check brake pedal firmness weekly and monitor for gradual fade.

• Inspect axle oil level monthly—sudden increases may indicate internal leaks.

• Replace hydraulic filters every 500 hours and use only approved fluids.

• Avoid prolonged high-speed travel without load, especially on older machines.

• Keep a service log to track brake performance and fluid changes.


When operating a SkyTrak telehandler or similar machines, encountering issues where the unit won’t move unless a hydraulic function is engaged can be perplexing. This problem is relatively common and can be caused by a range of issues, from simple mechanical failures to more complex hydraulic system problems. Understanding the potential causes, how to diagnose the issue, and steps to resolve it is essential for ensuring your equipment runs smoothly.
Common Causes for SkyTrak Not Moving Without Engaging Hydraulic Function

1. Hydraulic Lock or Low Hydraulic Fluid:
   One of the most frequent causes for a SkyTrak or any telehandler not moving until the hydraulic system is engaged is a hydraulic lock or insufficient hydraulic fluid. The telehandler's hydraulic system is responsible for various critical functions, including the movement of the drive wheels. If the hydraulic fluid level is low or there is a restriction, the fluid cannot flow properly, preventing movement.
   • Solution: Begin by checking the hydraulic fluid levels. If they are low, top them up with the correct type of fluid as specified by the manufacturer. If the levels are fine but the issue persists, inspect the hydraulic lines for any signs of leaks or blockages that could restrict fluid flow. In some cases, a clogged hydraulic filter can also prevent proper fluid circulation, so check and replace the filter if necessary.

2. Hydraulic Pump Issues:

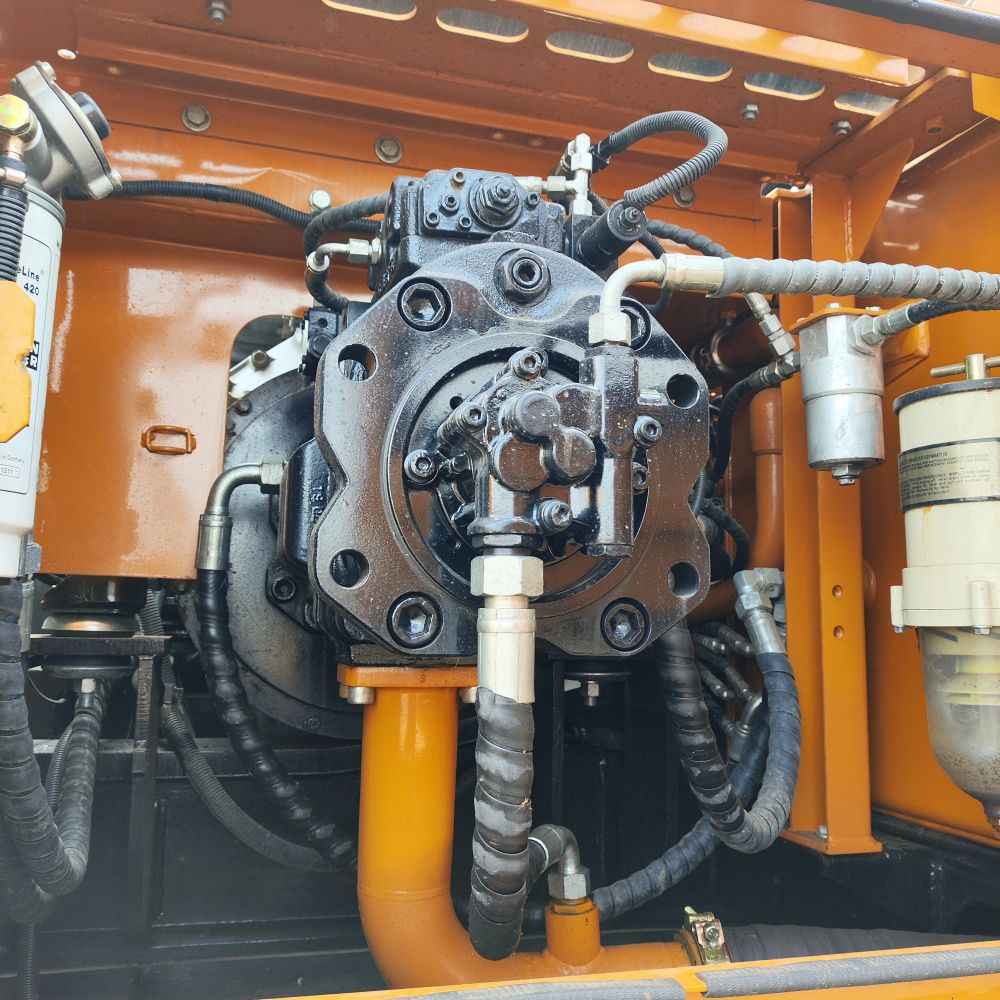

   The hydraulic pump on a SkyTrak is responsible for supplying pressure to the hydraulic system. If the pump is malfunctioning or if there is an issue with the pump’s seals or bearings, the system may not function properly, preventing the machine from moving until a hydraulic function is engaged.
   • Solution: Test the hydraulic pump’s output pressure. If it’s below the required threshold, the pump may need to be serviced or replaced. In some cases, air may have entered the hydraulic system, leading to cavitation and a loss of pressure. Bleeding the system may help restore normal operation.

3. Transmission or Drive System Problems:
   SkyTrak units rely on a combination of hydraulic and mechanical systems to transfer power to the wheels. A malfunction in the drive system, such as a problem with the transmission or the drive motor, can result in the machine being unable to move unless the hydraulics are engaged. This could be due to worn-out components or damage within the transmission.
   • Solution: Inspect the transmission fluid and ensure it is at the proper level. If there’s any sign of contamination or deterioration in the fluid, it may be necessary to flush and replace it. Additionally, check for any mechanical issues with the drive system, such as slipping gears or worn-out clutches, that could be preventing movement.

4. Electronic Control Issues:
   SkyTrak units are equipped with an advanced electronic control system that governs the interaction between the engine, hydraulics, and transmission. If there is a fault in the electronic system, such as a malfunctioning sensor or a failed controller, it can prevent the machine from moving normally until a hydraulic function is activated.
   • Solution: Check for any error codes or diagnostic messages on the machine’s control panel. Use a diagnostic tool to connect to the SkyTrak’s onboard computer system and retrieve any fault codes. If an issue is identified, it may require resetting the system or replacing faulty components. In some cases, a software update may be necessary to correct electronic glitches.

5. Bypass Valve Malfunction:
   Many telehandlers, including SkyTrak units, are equipped with a bypass valve that directs hydraulic pressure to specific functions, such as lifting the boom or moving the wheels. If the bypass valve is malfunctioning, it may prevent the system from properly directing power to the wheels, requiring the operator to engage a hydraulic function to allow movement.
   • Solution: Inspect the bypass valve for signs of wear or malfunction. If the valve is stuck or not operating correctly, it may need to be cleaned, repaired, or replaced. Check for any debris or contaminants that could be preventing proper valve operation.

6. Drive Motor Issues:
   The drive motors on a SkyTrak telehandler are responsible for converting hydraulic power into mechanical motion to drive the wheels. If a drive motor is faulty, it may not generate enough force to move the machine without additional hydraulic function being engaged.
   • Solution: Test the drive motor for functionality. If it’s not performing as expected, it could indicate issues with the hydraulic pump or a fault in the motor itself. Inspect the motor for leaks, unusual noises, or signs of wear. If necessary, the drive motor may need to be rebuilt or replaced.


1. Check Hydraulic Fluid Levels:
   Start with the most straightforward solution—check the hydraulic fluid levels. Low fluid can often lead to issues with hydraulic pressure, so ensuring the system is properly filled is crucial. If you notice a significant drop in fluid levels, inspect the hydraulic lines and components for leaks.

2. Examine the Hydraulic Pump and Filters:
   The hydraulic pump is vital to the operation of the system. Ensure it’s working properly by testing its pressure output. If the pump is underperforming, it may need to be replaced. Also, check the hydraulic filters and replace them if they are clogged or damaged.

3. Inspect the Transmission and Drive Components:
   If the hydraulic system seems fine, it’s time to move on to the mechanical components of the drive system. Inspect the transmission fluid and look for any issues with gears or clutches. If there are worn-out components, they may need to be repaired or replaced.

4. Check Electronic Controls and Diagnostics:
   SkyTrak units feature electronic systems that manage the machine’s functions. If the machine is experiencing issues, checking for error codes is essential. Use a diagnostic tool to scan for fault codes and address any electronic malfunctions.

5. Test the Bypass Valve and Drive Motors:
   If the above steps don’t resolve the issue, inspect the bypass valve and the drive motors. A faulty valve or motor can cause the machine to operate erratically, so addressing any issues in these areas should be a priority.


The instrument panel on a Kobelco 250LC excavator may fail to display due to internal circuit damage, power supply issues, or screen degradation. Replacement options depend on whether the panel is sold as a standalone unit or part of a larger assembly.
Kobelco 250LC Excavator Overview
The Kobelco 250LC is a mid-size hydraulic excavator designed for heavy-duty earthmoving, demolition, and utility work. Manufactured by Kobelco Construction Machinery Co., Ltd., a subsidiary of Kobe Steel, the 250LC series gained popularity in North America and Asia for its fuel-efficient engine, smooth hydraulic control, and durable undercarriage. The LLU0188 serial number range corresponds to early 2000s production models equipped with a digital command center display.
Terminology Note

• Instrument Panel: The electronic interface displaying engine parameters, hydraulic status, fuel level, and fault codes.

• Command Center Display: Kobelco’s integrated LCD unit that combines visual alerts with control inputs.

• CAN Bus: A communication protocol used to transmit data between electronic control units.

• Backlight Failure: A common issue where the LCD screen remains dark due to failed illumination.

• Cluster Assembly: A combined unit housing multiple gauges and displays, often sold as a single part.


• Internal circuit board failure due to vibration, moisture, or age.

• Power supply interruption, often caused by corroded connectors or blown fuses.

• LCD backlight burnout, making the screen unreadable in daylight.

• CAN Bus communication loss, preventing data from reaching the display.


• Standalone display availability varies by region. In some cases, Kobelco dealers only offer the panel as part of a larger cluster assembly, which may include switches and housing.

• Used or refurbished panels can be sourced from salvage yards or online equipment parts suppliers. Compatibility must be verified using the serial number and connector type.

• Third-party repair services may offer circuit board rework, backlight replacement, or screen refurbishment. Turnaround time ranges from 5 to 15 business days.

• Upgrading to newer display modules is possible if the machine’s ECU supports backward compatibility. This may require harness adapters or software updates.


• Seal the cab electronics against moisture intrusion, especially in humid or rainy environments.

• Use dielectric grease on connectors to prevent corrosion.

• Avoid pressure washing near the instrument panel or cab roof.

• Check voltage stability during startup—low voltage spikes can damage sensitive electronics.

• Keep a printed copy of fault codes and operating parameters in the cab in case of display failure.


When faced with the task of identifying an unmarked loader, operators, technicians, and even heavy equipment enthusiasts often encounter a challenging puzzle. A loader, being a versatile piece of machinery, is found in numerous industries, including construction, mining, and agriculture, but without clear identification, it can become difficult to pinpoint its exact make, model, and specifications. This article delves into the common challenges associated with identifying loaders and provides solutions and suggestions for making the process easier.
Common Problems in Identifying Loaders

1. Lack of Manufacturer’s Labels or Badges:
   The most obvious challenge in identifying a loader is when it lacks clear markings, such as the manufacturer's label or serial number badge. These details are typically found on the frame, under the seat, or on the engine, but if these labels have worn off, been removed, or are otherwise illegible, identification becomes significantly harder.
   • Solution: The first step is to closely inspect the loader for any remaining labels or imprints that may still offer clues. Even if the main serial number is missing, sometimes smaller labels or stamps on engine components, hydraulics, or electrical parts can help narrow down the search. If no visual identifiers are available, examining the loader’s features—such as its bucket design, lifting capacity, and engine size—can provide valuable hints.

2. Aftermarket Modifications:
   Many loaders are modified after leaving the factory to meet specific needs or preferences, making them difficult to identify based on stock specifications. These modifications could include changes to the bucket, lifting arms, or even the powertrain. In some cases, loaders are fitted with non-original parts that obscure the original design.
   • Solution: If the loader has undergone modifications, understanding the scope of those changes is crucial. Carefully evaluate any changes made to the machine's structure, such as the type of bucket or any hydraulic modifications. Cross-referencing these features with typical loader configurations can help deduce the original model. Additionally, speaking with the previous owner or operator can sometimes reveal more about any modifications made.

3. Different Generations or Versions of the Same Model:
   Sometimes, different generations or versions of the same loader model may appear quite similar, especially if the exterior has remained largely unchanged. In such cases, identifying the loader can be tricky without distinguishing the subtle differences in specifications or design.
   • Solution: To identify the exact version, focus on any distinguishing features, such as the engine type, the shape of the lift arms, or the arrangement of the operator’s cabin. Manufacturers often update the design or introduce new features in later models, and these differences can be helpful when narrowing down the year or specific version of a loader. When in doubt, searching online for similar models or consulting with experts in loader identification can provide useful insights.

4. Engine or Powertrain Clues:
   If you cannot find the typical identification markers, examining the loader’s engine or powertrain can offer valuable clues. The engine is often a key part of a loader’s identity, with specific models having unique engine types or configurations. These features can sometimes reveal the manufacturer and model year.
   • Solution: Checking the engine's serial number or model number can be a helpful starting point. This number is typically found on the engine block or near the fuel pump. Once located, the engine number can be cross-referenced with the manufacturer’s databases or industry websites to identify the corresponding loader model.

5. Online Forums and Communities:
   The online community of equipment enthusiasts and professionals is an invaluable resource when identifying unknown loaders. Many online forums and social media groups are dedicated to heavy machinery and can offer expert advice or even direct you to someone who has encountered the same loader model.
   • Solution: If visual clues and specifications aren’t enough, you can share high-quality images of the loader in online forums, providing as much detail as possible, such as the shape of the body, the configuration of the bucket, or any unique features. Often, experienced operators and mechanics in these communities will be able to offer guidance or direct you to resources that can help you identify the machine.


1. Inspect the Loader Thoroughly:
   Start by performing a thorough inspection of the loader, paying attention to the components that remain unmodified. Look for any logos, numbers, or tags on the engine, frame, bucket, or wheels. Take detailed notes on the machine’s size, capabilities, and unique features.

2. Check the Engine Serial Number:
   If the loader’s serial number is missing or illegible, look for the engine’s serial number. Most manufacturers print engine serial numbers on the engine block, usually on a flat surface for easy identification. Once found, this number can be a valuable asset in tracking down the loader's details.

3. Research Based on Features:
   If the loader’s nameplate is missing, researching based on its features is the next best step. Focus on the bucket design, hydraulic systems, lift arm configuration, and any other distinguishable aspects. Compare these features to similar models from various manufacturers to narrow down potential matches.

4. Consult the Manufacturer’s Database:
   Some manufacturers offer online databases or tools to identify loaders based on the serial number or model features. It’s worth visiting the official websites of companies like Caterpillar, Komatsu, or Volvo to check their identification tools.

5. Engage with Equipment Experts:
   If you are still unable to identify the loader, reaching out to equipment dealers, mechanics, or specialists who deal in construction machinery could be a helpful step. These experts often have extensive knowledge and might be able to identify the loader based on your descriptions or photos.


Summary of Issue
Persistent overheating in the CAT 330CL excavator is often linked to fan motor faults, hydraulic suction hose restrictions, and improper installation procedures. Addressing these root causes can restore cooling efficiency and prevent long-term engine damage.
CAT 330CL Excavator Overview
The CAT 330CL is a high-production hydraulic excavator introduced in the early 2000s by Caterpillar Inc., designed for heavy-duty earthmoving, demolition, and quarry operations. Powered by a CAT C9 diesel engine, it features a variable displacement hydraulic system and electronically controlled cooling fans. With over 20,000 units sold globally, the 330CL remains a staple in large fleet operations.
Terminology Note

• Fan Motor: A hydraulic motor that drives the cooling fan, regulating engine temperature.

• Limit Valve: A pressure-regulating valve that controls hydraulic flow to the fan motor.

• Suction Hose: A low-pressure hose that feeds hydraulic fluid to the fan pump.

• Aeration: The introduction of air into hydraulic fluid, causing cavitation and reduced performance.

• Overheating: Engine temperature exceeding safe operating limits, typically above 220°F (104°C).


• Improper hydraulic refill procedure: If the fan motor is not filled correctly or bled of air, it can cavitate, reducing fan speed and cooling efficiency.

• Incorrect limit valve pressure setting: If the valve is set too low, the fan motor may not receive sufficient flow to maintain optimal RPM.

• Undersized suction hose: The original 212-5520 hose has a smaller internal diameter, which can restrict flow in cold conditions. This creates negative pressure and aeration in the pump.

• Fan pump aeration: Air bubbles in hydraulic fluid reduce pump efficiency and cause erratic fan behavior.


• Upgrade to the 296-7207 suction hose, which has a larger internal diameter and reduces flow restriction. This is especially critical in cold climates.

• Verify fan motor installation procedures, including proper hydraulic fill and bleeding steps.

• Check and adjust limit valve pressure to match factory specifications. Consult service manuals or CAT dealer support.

• Inspect for aeration signs, such as foamy hydraulic fluid or erratic fan speed. Replace fluid and filters if contamination is present.

• Replace the fan motor only if internal damage is confirmed, and ensure the new unit is compatible with the updated hose and valve settings.


• Inspect hydraulic hoses quarterly for wear, swelling, or cracking.

• Monitor engine temperature during high-load operations and idle periods.

• Replace hydraulic filters every 500 hours or sooner if contamination is suspected.

• Use infrared thermometers to check fan motor housing temperature during diagnostics.

• Keep radiator and oil cooler fins clean to maximize airflow.


The Bobcat 1838 is a versatile compact forklift designed for material handling in tight spaces, construction sites, and various agricultural applications. Known for its maneuverability and durability, this machine is frequently used in industries where high lifting capability and small footprint are essential. However, like any piece of equipment, the 1838 is prone to certain issues that owners and operators may encounter. In this article, we explore the common troubles faced by Bobcat 1838 owners and provide solutions to ensure optimal machine performance.
Common Problems with the Bobcat 1838

1. Engine Starting Issues:
   One of the most common problems with the Bobcat 1838 involves starting difficulties. This issue can arise due to several factors, such as:
   • Battery Problems: A weak or dead battery is a frequent cause of engine start failures. Regularly checking battery voltage and ensuring it is in good condition can help prevent this issue.

   • Fuel Delivery Problems: If the fuel system is clogged, the engine may struggle to start. This can be caused by old fuel, a blocked fuel filter, or air entering the fuel lines. Replacing the fuel filter and ensuring the fuel system is free from debris can solve this problem.

   • Starter Motor Issues: Over time, the starter motor may wear out, causing difficulty in starting the engine. This could require a simple repair or replacement of the starter motor.

   • Electrical Connections: Loose or corroded electrical connections, particularly at the battery or starter, can cause intermittent starting issues. Checking and cleaning connections can often resolve these problems.

2. Hydraulic System Failures:
   The hydraulic system in the Bobcat 1838 is crucial for lifting and controlling attachments. When the hydraulic system fails or shows signs of weakness, the machine’s performance can be significantly compromised. Common hydraulic issues include:
   • Low Hydraulic Fluid: The most common reason for poor hydraulic performance is low fluid levels. Checking and topping off the hydraulic fluid regularly can prevent this problem. Additionally, ensure that the correct type of hydraulic fluid is used to maintain system efficiency.

   • Leaking Hydraulic Hoses: Over time, hydraulic hoses can develop cracks or wear out, leading to leaks. This not only affects the performance of the machine but can also cause damage to other components. Inspecting hoses regularly and replacing them when necessary can prevent this issue.

   • Faulty Hydraulic Pump: A failing hydraulic pump can lead to a lack of power or erratic movements of the lift arms or other attachments. If the hydraulic pump is damaged, it may need to be replaced or rebuilt to restore proper function.

3. Transmission Problems:
   Some Bobcat 1838 owners report transmission-related issues, including difficulty shifting gears or the machine not moving as expected. These problems can be attributed to:
   • Low Transmission Fluid: Low or contaminated transmission fluid can cause shifting problems or even prevent the transmission from working altogether. Regular checks and fluid changes can help keep the transmission in good working order.

   • Clutch Issues: If the machine is experiencing problems with engaging or disengaging the clutch, it could be due to a worn-out clutch or faulty clutch components. Clutch replacement is often necessary in such cases.

   • Transmission Leak: Transmission fluid leaks can occur over time, particularly in older machines. Inspecting the seals and gaskets regularly can help detect any leaks early, allowing for timely repairs.

4. Overheating:
   Overheating is another issue that can arise with the Bobcat 1838, particularly during extended use or in hot climates. Overheating can be caused by:
   • Clogged Radiator: The radiator can become clogged with dirt, debris, or dust, preventing proper cooling of the engine. Regular cleaning of the radiator can help prevent overheating.

   • Coolant System Problems: A lack of coolant or issues with the coolant system, such as a malfunctioning thermostat, can cause the engine to overheat. It’s important to monitor the coolant level and replace it when necessary.

   • Faulty Fan Belt: The fan belt plays a key role in engine cooling, and if it’s worn or broken, the engine can overheat. Checking the fan belt for wear and tear and replacing it as needed can resolve this issue.

5. Tire Wear and Suspension Issues:
   Over time, tire wear and suspension problems can affect the machine’s performance, particularly its ability to handle rough terrain. Some common issues include:
   • Uneven Tire Wear: Uneven tire wear can be caused by improper tire pressure, misalignment, or an imbalanced load. Regularly checking and maintaining proper tire pressure can prevent this problem.

   • Suspension Wear: The suspension system on the Bobcat 1838 is designed to absorb shocks and reduce strain on the machine. Over time, the suspension components can wear out, leading to a rough ride or difficulty in maneuvering the machine. Inspecting and replacing worn suspension components, such as shocks or bushings, can ensure smooth operation.

6. Control System Malfunctions:
   Issues with the machine’s control system can cause erratic or unresponsive movements. This may be due to:
   • Faulty Joystick or Controls: The Bobcat 1838 uses joystick controls to maneuver the machine. Over time, the joysticks can wear out or become unresponsive. Replacing or repairing faulty control components is often necessary to restore functionality.

   • Electrical Issues: Electrical malfunctions can affect various systems, from engine performance to lifting functions. Checking the wiring and fuses regularly can help detect any issues with the electrical system.


• Regular Fluid Checks: Ensure that all fluids (engine oil, hydraulic fluid, transmission fluid, coolant) are checked and topped off regularly. Fluid changes should be performed according to the manufacturer’s recommended intervals.

• Inspect for Leaks: Regularly inspect the machine for signs of fluid leaks, particularly from the hydraulic system and transmission. Early detection of leaks can help avoid more serious issues down the line.

• Clean the Machine: Keep the machine clean, particularly around the engine, radiator, and hydraulic components. Removing dirt, dust, and debris can prevent overheating and system failures.

• Monitor Tire Pressure: Proper tire pressure ensures better traction and reduces tire wear. Check the tire pressure regularly, particularly when operating on rough terrain.

• Lubricate Moving Parts: Regularly lubricate the moving parts, including the joints, lift arms, and control linkages, to prevent premature wear and maintain smooth operation.


Most backhoes use standard 12V batteries, but choosing the right type and configuration is critical for reliable cold starts and long-term durability.
Backhoe Electrical System Overview
Backhoes like the New Holland LB75.B or John Deere 5103 are equipped with diesel engines that require high cranking amperage, especially in cold weather. These machines often sit idle for weeks, and their batteries must deliver enough power to overcome cold oil viscosity and compression resistance. While some models use two smaller batteries in parallel, others rely on a single high-capacity unit.
Terminology Note

• CCA (Cold Cranking Amps): The amount of current a battery can deliver at 0°F for 30 seconds while maintaining at least 7.2 volts.

• Group Size: Battery dimensions and terminal configuration standardized by BCI (Battery Council International).

• AGM (Absorbent Glass Mat): A sealed battery type with better vibration resistance and lower self-discharge.

• Trickle Charger: A low-current charger that maintains battery voltage during long idle periods.

• Dry Cell: Often used interchangeably with AGM, though technically different in chemistry.


• Match or exceed OEM CCA ratings. For example, replacing two 750 CCA batteries with a single Group 31 battery rated at 1100 CCA is viable in moderate climates.

• Consider AGM or dry cell batteries for machines exposed to vibration or extreme temperatures. These offer better cold-start performance and longer life.

• Check physical fit. Some aftermarket batteries may not align with tie-down bars or terminal recesses, especially in New Holland models.

• Avoid underpowered car batteries, even if they appear similar. Backhoes demand higher cranking power and deeper cycling capacity.


• OEM batteries often include features like recessed terminals and custom tie-down compatibility.

• Aftermarket batteries may require minor modifications to the battery box or terminal connectors.

• AGM batteries can cost $200 or more but offer superior performance in cold climates and long idle periods.


• Use a solar-powered trickle charger if the machine sits idle outdoors.

• Start the engine monthly to circulate oil through the turbocharger and prevent seal drying.

• Inspect battery terminals for corrosion and clean with baking soda solution.

• Replace batteries every 3–4 years, even if they still hold charge, to avoid sudden failure during critical use.
