Introduction
Excavating across utilities within a right-of-way (ROW) presents significant challenges due to the complexity of underground infrastructure and the potential risks involved. Proper planning, adherence to safety protocols, and utilization of appropriate techniques are essential to ensure both the safety of workers and the integrity of existing utilities.
Understanding Right-of-Way and Utility Crossings
A right-of-way refers to a legal right to pass through grounds or property owned by another party. In construction and infrastructure projects, ROWs are designated corridors that accommodate various utilities such as water, gas, electricity, and telecommunications. Excavating across these utilities requires careful coordination to prevent damage and service disruptions.
Pre-Excavation Planning
- Utility Location and Marking
- Call Before You Dig: In many regions, it's mandatory to contact a local utility notification center before commencing excavation. In the U.S., this service is commonly known as "Call 811."
- Utility Mapping: Obtain and review as-built drawings or utility maps to understand the exact locations and depths of existing utilities.

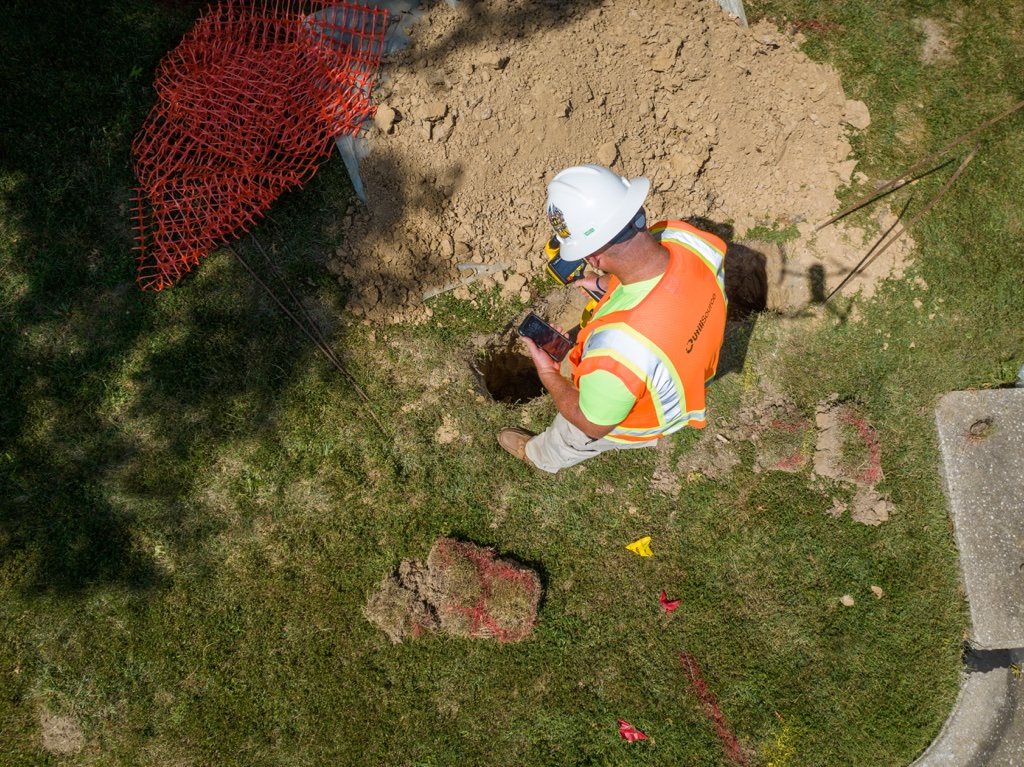

- Physical Verification: Use utility locators or ground-penetrating radar (GPR) to confirm the presence and exact positioning of utilities.
- Call Before You Dig: In many regions, it's mandatory to contact a local utility notification center before commencing excavation. In the U.S., this service is commonly known as "Call 811."
- Risk Assessment
- Identify Potential Hazards: Assess the types of utilities present and the risks associated with each, such as gas leaks, electrical shocks, or water contamination.
- Environmental Considerations: Evaluate soil conditions, groundwater levels, and weather patterns that may affect excavation safety.
- Identify Potential Hazards: Assess the types of utilities present and the risks associated with each, such as gas leaks, electrical shocks, or water contamination.
- Hand Digging
- Tools: Utilize hand tools like shovels or spades to carefully expose utilities.
- Method: Begin digging at a distance from the marked utility line and gradually work towards it, removing soil in layers to prevent sudden shifts.
- Tools: Utilize hand tools like shovels or spades to carefully expose utilities.

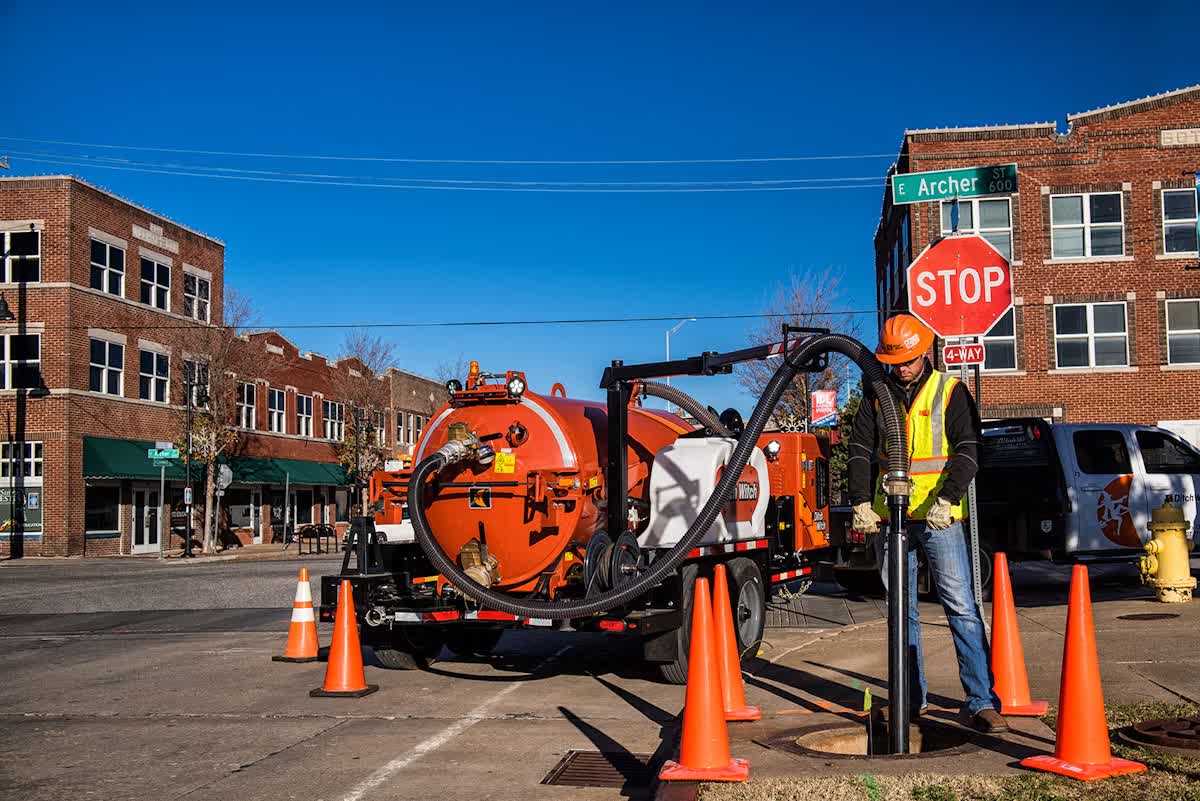

- Hydro Excavation
- Process: Employ high-pressure water to loosen soil, combined with vacuum suction to remove debris.
- Advantages: This method is non-destructive and ideal for locating and exposing utilities without causing damage.
- Process: Employ high-pressure water to loosen soil, combined with vacuum suction to remove debris.
- Directional Boring
- Application: Used for installing utilities beneath existing infrastructure without open excavation.
- Procedure: A drill is guided along a predetermined path, minimizing surface disruption.
- Application: Used for installing utilities beneath existing infrastructure without open excavation.
- Personal Protective Equipment (PPE)
- Essential Gear: Ensure all workers wear appropriate PPE, including helmets, gloves, high-visibility clothing, and steel-toed boots.
- Essential Gear: Ensure all workers wear appropriate PPE, including helmets, gloves, high-visibility clothing, and steel-toed boots.

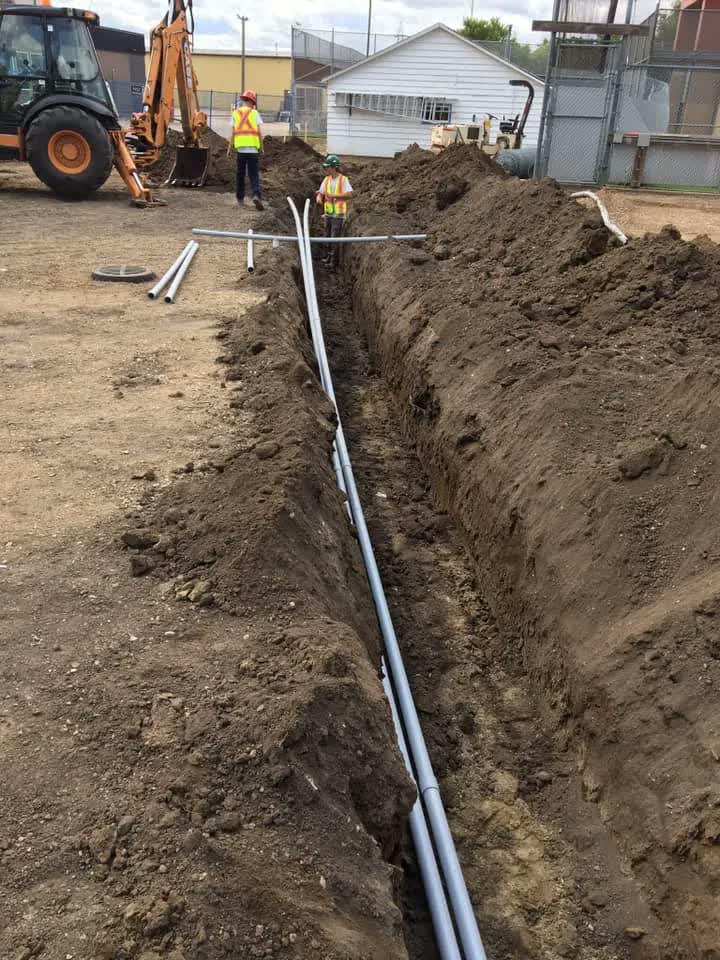

- Trench Safety
- Shoring and Shielding: Implement trench boxes or shoring systems to prevent cave-ins.
- Access and Egress: Provide safe entry and exit points for workers within trenches.
- Shoring and Shielding: Implement trench boxes or shoring systems to prevent cave-ins.
- Emergency Preparedness
- First Aid Training: Equip workers with basic first aid knowledge and access to first aid kits.
- Emergency Contacts: Maintain a list of emergency contacts, including local utility companies and medical facilities.
- First Aid Training: Equip workers with basic first aid knowledge and access to first aid kits.
- Inspection

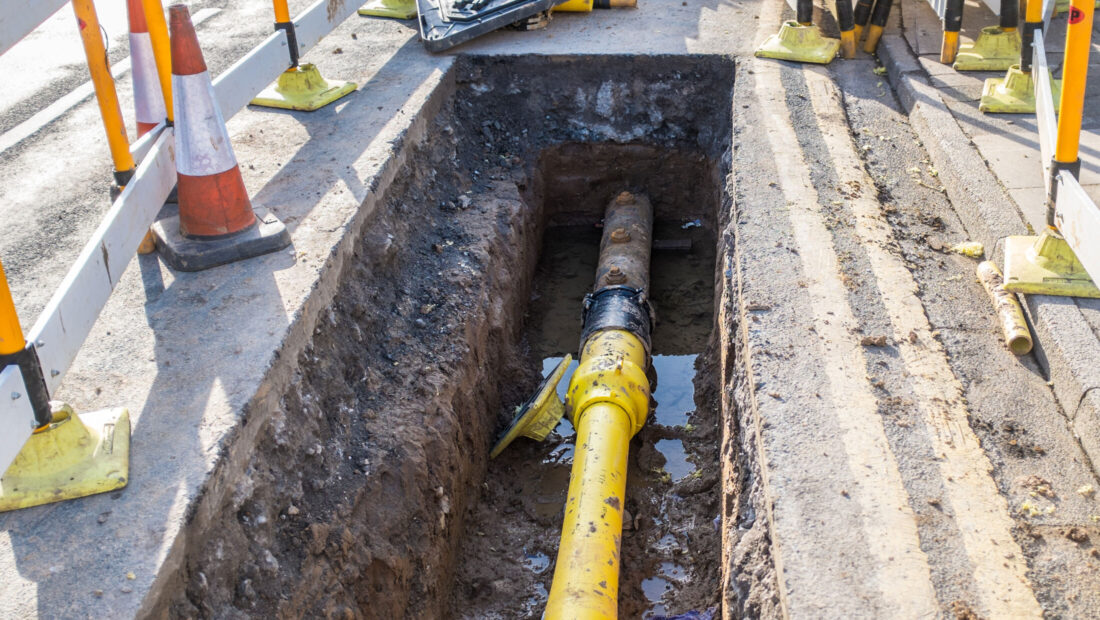

- Utility Assessment: After excavation, inspect exposed utilities for any signs of damage or wear.
- Documentation: Record the condition and location of utilities for future reference.
- Utility Assessment: After excavation, inspect exposed utilities for any signs of damage or wear.
- Backfilling
- Material Selection: Use suitable backfill materials that provide adequate support and prevent future settling.
- Compaction: Compact the backfill in layers to ensure stability and prevent voids.
- Material Selection: Use suitable backfill materials that provide adequate support and prevent future settling.
- Restoration
- Surface Repair: Restore the surface to its original condition, including repaving or replanting as necessary.
- Surface Repair: Restore the surface to its original condition, including repaving or replanting as necessary.
In a recent urban development project, contractors faced the challenge of excavating across multiple utility lines within a congested ROW. By employing hydro excavation techniques, they were able to expose utilities without causing disruptions. Additionally, real-time utility mapping and constant communication with utility providers ensured the project's success and safety.
Conclusion
Excavating across utilities in a right-of-way requires meticulous planning, adherence to safety standards, and the use of appropriate excavation methods. By implementing these practices, construction projects can proceed efficiently while minimizing risks to workers and existing infrastructure.
