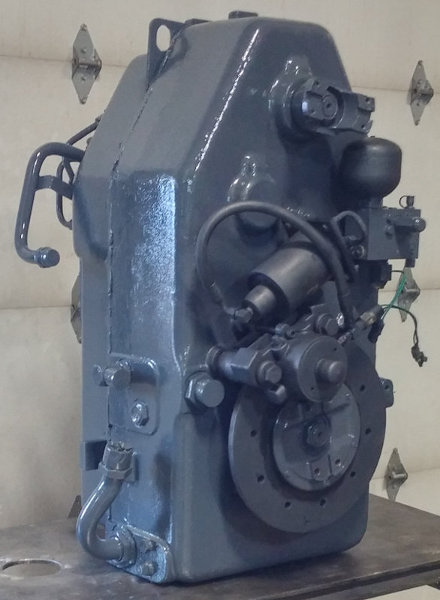

The Champion 8400 transmission, integral to Champion Series 700 motor graders, has been a cornerstone in heavy machinery for decades. Introduced in the mid-1980s, this transmission system was designed to offer durability and performance in demanding grading operations. However, like all mechanical systems, it is susceptible to wear and issues, particularly concerning the clutch mechanism.
Common Clutch Issues
Operators have reported several recurring issues with the 8400 transmission clutch:
- Clutch Slippage: Under heavy load conditions, the clutch may slip, leading to a loss of power transmission.
- Erratic Engagement: Clutch engagement may become inconsistent, causing jerky movements or delayed responses.
- Incomplete Lock-Up: The clutch may fail to fully engage, resulting in reduced efficiency and potential overheating.
To address these issues, a systematic approach is essential:
- Visual Inspection: Check for external leaks, damaged seals, or worn components.
- Hydraulic Pressure Test: Measure system pressure to ensure it meets specifications. Low pressure can indicate pump wear or blockages.
- Clutch Pack Examination: Disassemble and inspect clutch packs for wear, scoring, or contamination.
- Electrical System Check: For electronically controlled models, verify solenoid function and wiring integrity.
To prolong the lifespan of the 8400 transmission clutch:
- Regular Fluid Changes: Use the manufacturer-recommended oil and change it at specified intervals to prevent contamination.
- Monitor Operating Conditions: Avoid prolonged operation under maximum load to reduce stress on the clutch system.
- Component Upgrades: Consider upgrading to improved clutch materials or components if available.
When issues are identified, timely repair is crucial. Rebuilding the clutch packs involves disassembling the transmission, inspecting each component, and replacing worn parts. In some cases, replacing the entire transmission may be more cost-effective, especially if multiple components are failing.
Conclusion
The Champion 8400 transmission clutch, while robust, requires regular maintenance and prompt attention to issues. By adhering to recommended practices and addressing problems early, operators can ensure continued reliable performance of their equipment.
