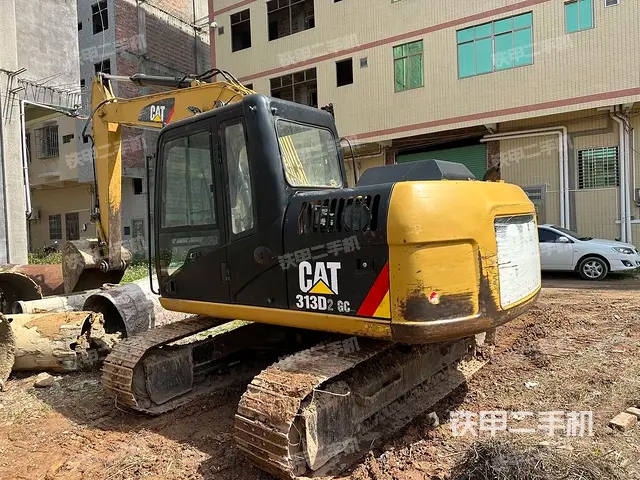

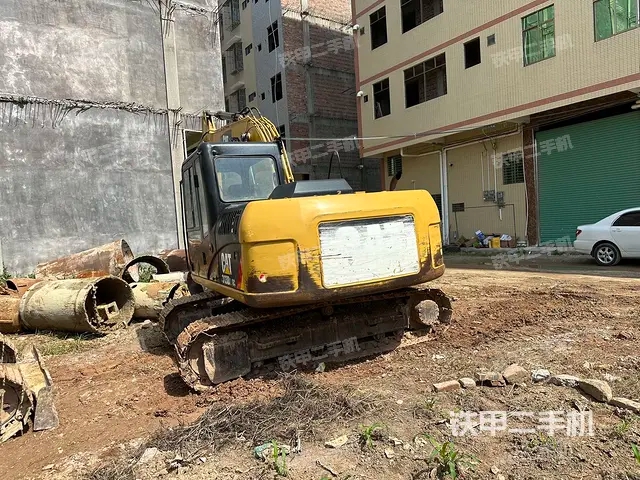

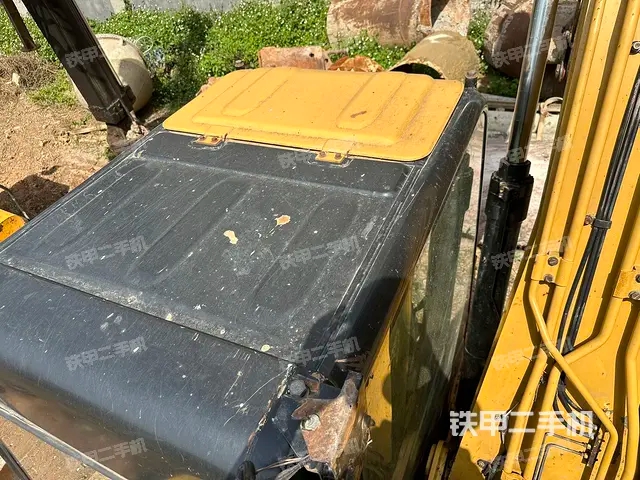

2015 Caterpillar CAT®313D2 GC Mini Hydraulic Excavator Guangdong - Guangzhou $24,297

[MikePhua]



ID：1825166

The Caterpillar CAT®313D2 GC is a compact and powerful hydraulic excavator designed for a range of construction and digging tasks. This machine, manufactured by Caterpillar—a global leader in heavy machinery—boasts a mix of reliability, efficiency, and durability. Its design and performance capabilities are suited for diverse applications, from general excavation to specialized construction tasks.
Brand History and Background
Caterpillar Inc. is an American corporation known for its wide range of heavy equipment. Established in 1925, it has become synonymous with construction and mining machinery. Its products, like the CAT®313D2 GC, are famous for their longevity and ruggedness, ensuring they stand up to the toughest work environments. Over the years, Caterpillar has established itself as a leader in machinery manufacturing, with equipment sold worldwide, making a significant mark on both the construction industry and the broader global economy.
Basic Specifications

• Brand: Caterpillar

• Model: CAT®313D2 GC Mini Hydraulic Excavator

• Year of Manufacture: 2015

• Operating Hours: 8,100 hours

• Location: Guangdong, Guangzhou, China

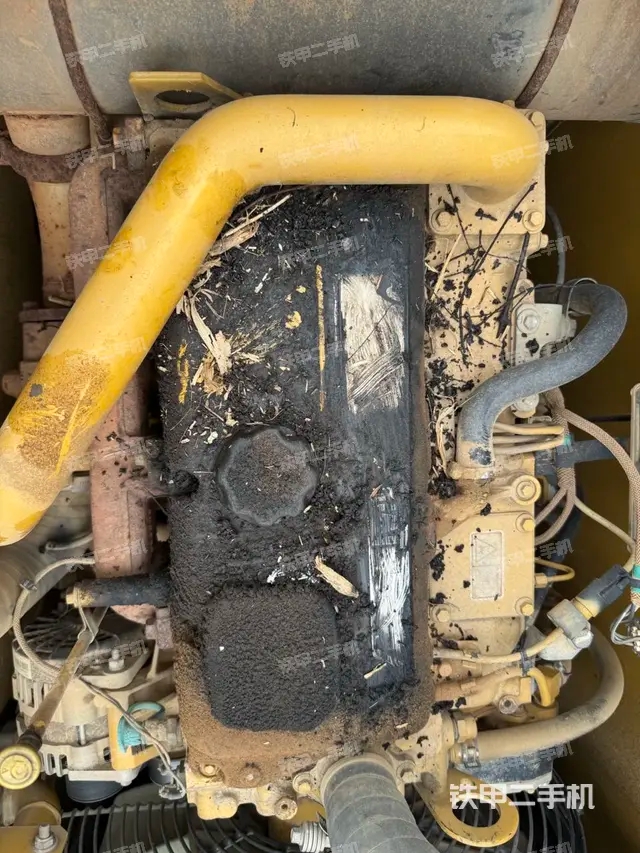

Engine and Power System
The CAT®313D2 GC is powered by a Cat C4.4 engine, known for its efficient fuel consumption and low emissions. This engine is a 4-cylinder, water-cooled turbocharged unit with a displacement of 4.4 liters. With a rated power output of 74.5 kW at 2,100 rpm, the engine delivers the reliability and power necessary for continuous operation in demanding conditions.

• Engine Model: Cat C4.4

• Rated Power: 74.5 kW at 2,100 rpm

• Cooling System: Water-cooled

• Bore x Stroke: 105 x 127 mm

• Displacement: 4.4 liters


Performance Features
The CAT®313D2 GC boasts excellent performance specifications, with a high digging force and impressive traction capabilities.

• Swing Speed: 11.2 rpm

• Bucket Digging Force: 95 kN

• Arm Digging Force: 58 kN

• Maximum Traction Force: 114 kN

• Travel Speed: 5.1 km/h

• Swing Torque: 30.9 Nm


These features allow the excavator to perform a variety of tasks, from lifting heavy loads to digging in challenging conditions.

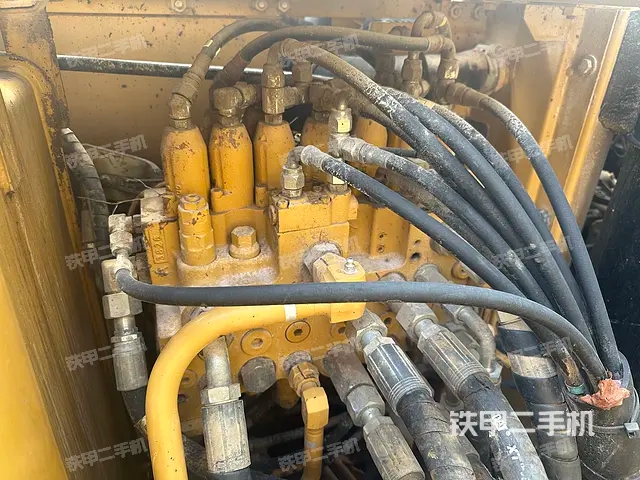

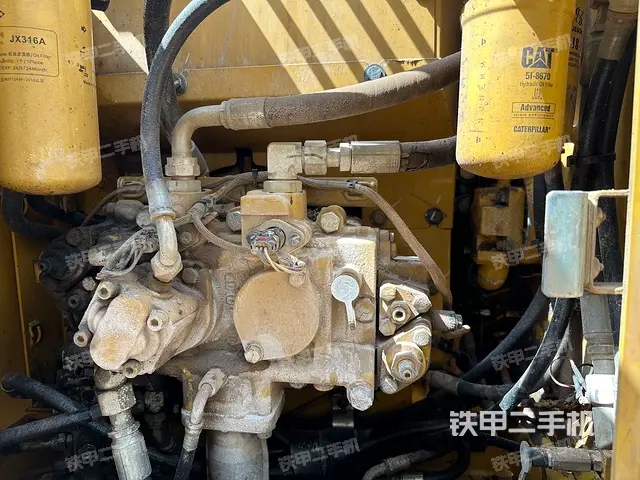

Hydraulic System
The hydraulic system of the CAT®313D2 GC plays a critical role in its overall efficiency and versatility. With a maximum flow rate of 232 L/min, the machine ensures high productivity in every task. The pilot pump flows at 21.9 L/min, providing a stable response during operation.

• Main Pump Flow Rate: 232 L/min

• Pilot Oil Pressure: 4120 MPa

• Pilot Pump Flow Rate: 21.9 L/min

• Swing System Flow Rate: 116 L/min


Fuel and Oil Capacities

• Fuel Tank Capacity: 250 L

• Hydraulic Tank Capacity: 91 L

• Engine Oil Capacity: 16 L

• Cooling Fluid Capacity: 18 L


These capacities allow for extended operation without frequent refueling or oil changes, which is essential for large construction projects.

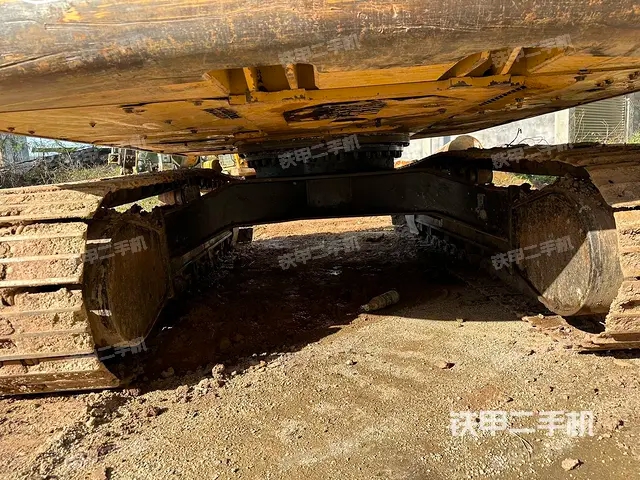

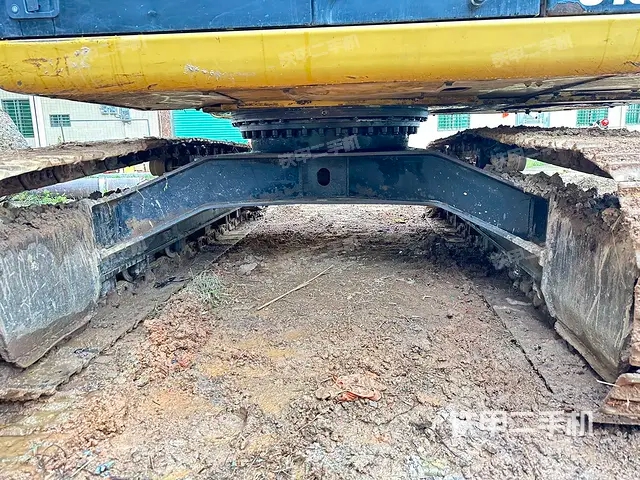

Dimensions and Operational Range
The CAT®313D2 GC is compact yet capable, making it suitable for tight spaces and crowded job sites. It has a transport length of 7,610 mm and a transport width of 2,760 mm. Its undercarriage provides a minimum ground clearance of 440 mm, ensuring it can navigate uneven terrain.

• Transport Length: 7,610 mm

• Transport Width: 2,760 mm

• Transport Height: 2,830 mm

• Ground Clearance: 440 mm

• Rear Swing Radius: 2,140 mm

• Track Length: 3,490 mm

• Track Gauge: 1,990 mm


In terms of operation, the CAT®313D2 GC can achieve impressive digging depths, heights, and radii.

• Maximum Digging Depth: 5,540 mm

• Maximum Digging Height: 8,490 mm

• Maximum Dump Height: 6,100 mm

• Maximum Vertical Digging Depth: 4,610 mm

• Maximum Digging Radius: 8,180 mm


These specifications make it highly effective for tasks like trenching, lifting, and loading in construction, demolition, and landscaping jobs.
Key Advantages

1. Fuel Efficiency: Powered by the Cat C4.4 engine, the CAT®313D2 GC offers excellent fuel efficiency, lowering operational costs for long-term projects.

2. Compact Design: Its compact size and impressive reach make it versatile for both small and large job sites.

3. Durability: Built to withstand harsh environments, the CAT®313D2 GC is ideal for continuous operation in construction zones.

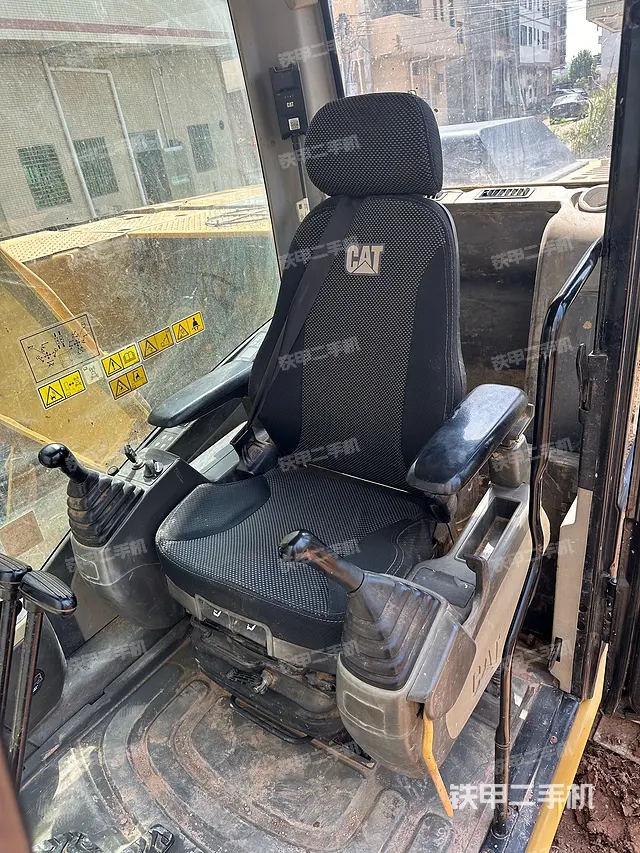

4. Ease of Operation: Its user-friendly controls and hydraulic system make it easy for operators to perform complex tasks with precision.


Suggested Applications
The CAT®313D2 GC is ideal for a range of applications, including but not limited to:

• Excavation: Efficient in digging trenches, foundations, and utility installations.

• Landscaping: Suitable for digging and shaping earth for landscaping projects.

• Demolition: The strong bucket and arm digging force make it perfect for light demolition tasks.

• Material Handling: With its high traction and lifting capacity, it is ideal for lifting and moving heavy materials.


Conclusion
The 2015 Caterpillar CAT®313D2 GC mini hydraulic excavator represents an excellent combination of power, versatility, and durability. Whether used for construction, landscaping, or demolition, it excels in various applications. With its low operating hours and solid performance history, it offers a great value for businesses in need of reliable, cost-effective machinery.
By combining modern technologies with Caterpillar's renowned engineering expertise, this machine is built to deliver on the most demanding job sites.
