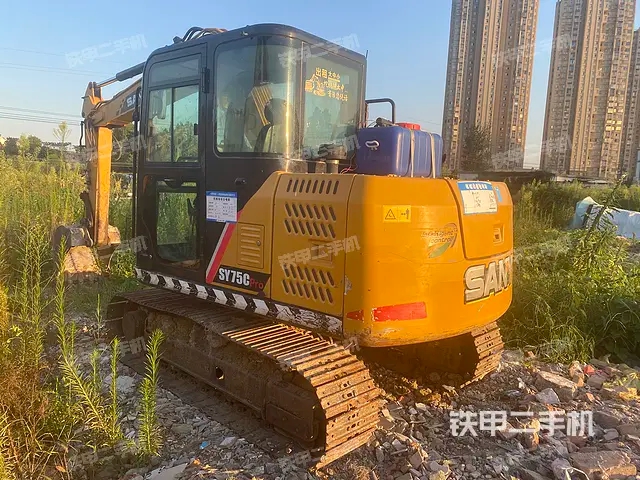

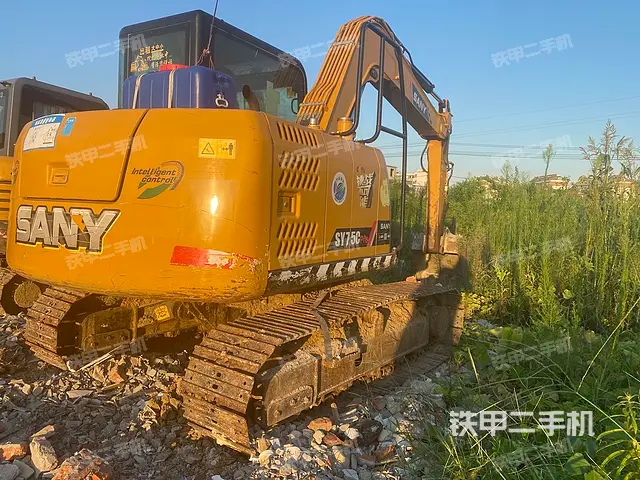

2022 SANY SY75C Excavator, Anhui - Hefei City, $22,893

[MikePhua]



ID：1825092

The SANY SY75C is a robust, versatile 7-ton excavator that packs substantial power into a compact frame. Launched in 2022, this model continues to serve as an efficient choice for a variety of construction and heavy-duty projects, particularly in urban settings where space constraints require a balance of power, maneuverability, and versatility. The excavator is especially useful in landscaping, road construction, utility work, and material handling.
Key Specifications and Features

• Weight and Dimensions
  • Operating Weight: 7,280 kg (16,053 lbs)

  • Overall Length: 6,120 mm

  • Overall Width: 2,220 mm

  • Overall Height: 2,720 mm

  • Minimum Ground Clearance: 380 mm

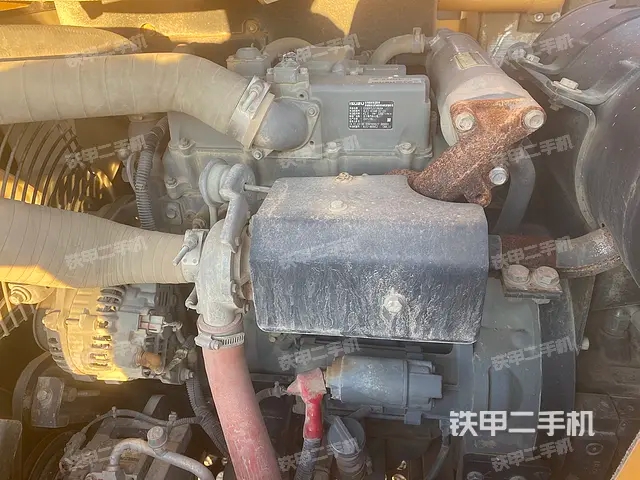

• Engine and Power System
  • Engine Model: Isuzu AU-4LE2X

  • Rated Power: 43 kW @ 2200 rpm

  • Maximum Torque: 200 Nm @ 1600 rpm

  • Cylinder Configuration: 4 cylinders

  • Displacement: 2.179 L

  • Cooling System: Water-cooled

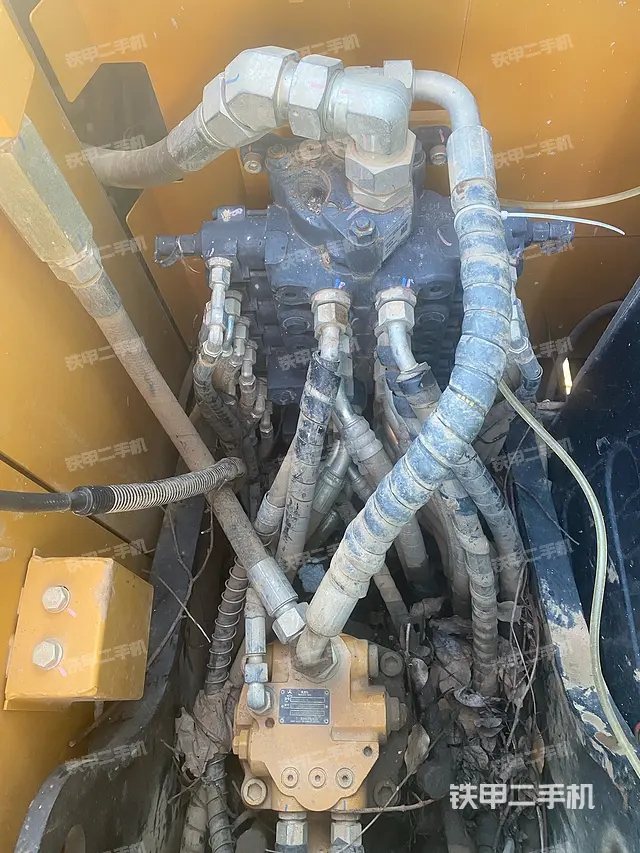

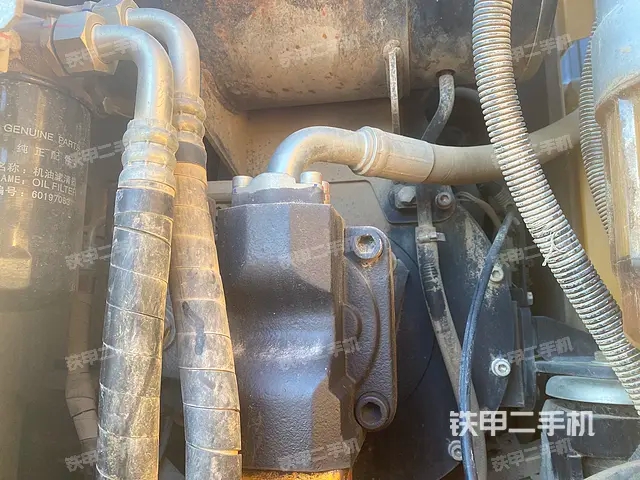

• Hydraulic and Performance Specs
  • Bucket Capacity: 0.12-0.32 m³

  • Bucket Digging Force: 56 kN

  • Arm Digging Force: 38 kN

  • Ground Pressure: 33 kPa

  • Swing Speed: 11.5 rpm

  • Gradeability: 70% (35°)

  • Travel Speed: 4.4 km/h (low) / 2.4 km/h (high)

• Fuel and Hydraulic Systems
  • Fuel Tank Capacity: 150 L

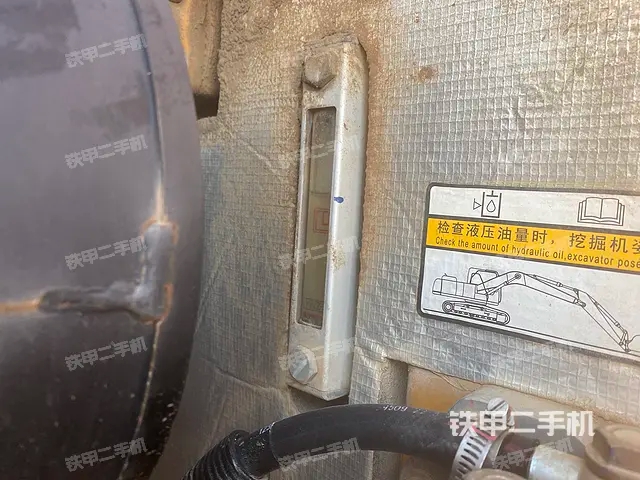

  • Hydraulic Oil Tank Capacity: 120 L

  • Engine Oil Capacity: 9.5 L

• Work Range
  • Maximum Digging Radius: 6,240 mm

  • Maximum Digging Depth: 4,020 mm

  • Maximum Digging Height: 7,060 mm

  • Maximum Dumping Height: 5,155 mm

  • Maximum Vertical Digging Depth: 3,290 mm


Design Philosophy and Market Reception
The SANY SY75C is part of the highly respected SY Series, known for its adaptability and power in confined spaces. Since its launch, it has become a staple in the 7-ton excavator market, especially due to its fuel-efficient engine and high hydraulic performance. This model is ideal for users looking for a machine that provides excellent digging power and mobility, all while maintaining a relatively low operational cost.
SANY, a global leader in construction machinery, designed the SY75C with a focus on performance and user comfort. SANY's expertise in integrating advanced technology ensures the SY75C delivers a superior balance of power and fuel economy. Over the years, the SANY SY Series has achieved widespread success, especially in rapidly developing economies and construction zones that demand versatility without compromising on reliability.
Applications and Versatility
The SANY SY75C is primarily used in construction projects requiring high digging force and maneuverability, such as landscaping, roadwork, and trenching. With its compact size, it can efficiently operate in congested urban environments, where larger equipment would be inefficient. It's often deployed for utility work, including pipe installation, sewer trenching, and material handling, owing to its ability to transport materials and perform precise digging tasks with ease.
Additionally, its strong digging performance, particularly in tough soil conditions, has made it an excellent choice for demanding tasks. Whether working in hard rock or soft earth, the machine maintains exceptional efficiency, a crucial factor in mining and foundation work.
Future-Proof Features and Operator Experience

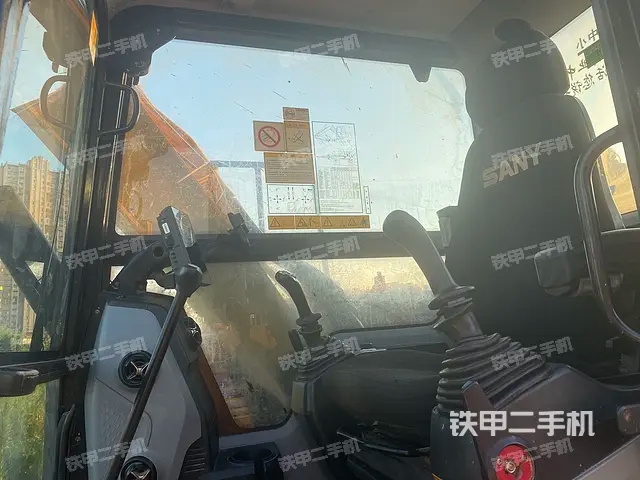

SANY has included several user-friendly features in the SY75C, enhancing operator comfort and ease of use. The operator cabin is designed for long shifts, equipped with ergonomic controls, air conditioning, and enhanced visibility. The advanced hydraulic system offers smooth operation, allowing for precise control and responsive movements.
SANY has continued to improve on aspects such as fuel efficiency and maintenance intervals, helping operators keep their costs low. The SY75C incorporates telematics technology that allows operators to remotely monitor equipment health and performance. This predictive maintenance feature enhances the longevity of the excavator, ensuring fewer breakdowns and more uptime.
Conclusion
The 2022 SANY SY75C excavator is a formidable option for contractors and businesses looking for a compact yet powerful machine. Its versatile performance, solid fuel economy, and durable construction make it a solid investment for small and medium-sized projects. With SANY’s commitment to continuous improvement and after-sales service, the SY75C is poised to maintain its reputation as a dependable workhorse on construction sites worldwide.
