2013 Takeuchi TB150C Excavator Chengdu, Sichuan $3,511

[MikePhua]



ID：1825080

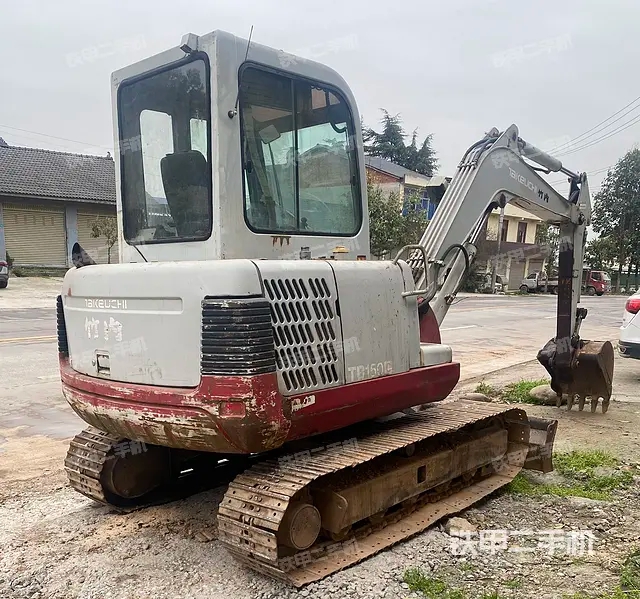

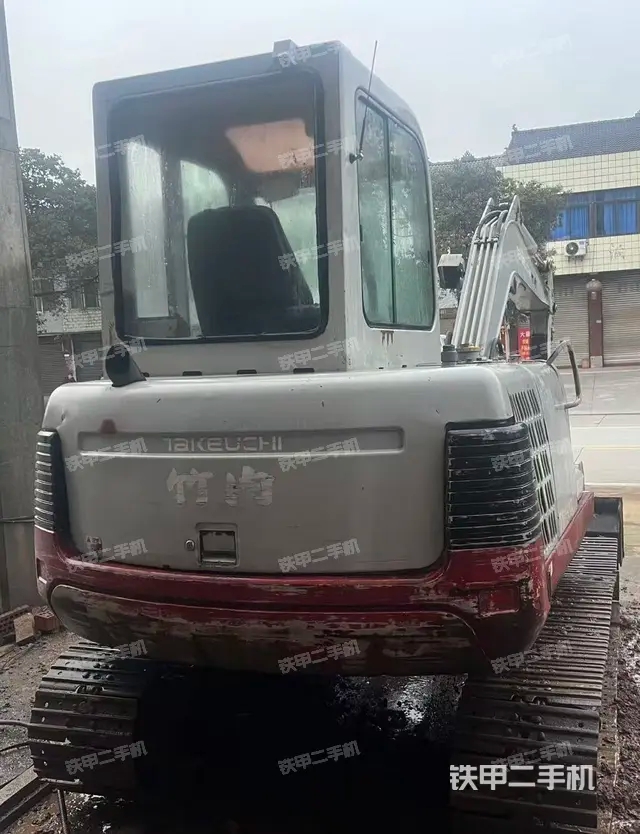

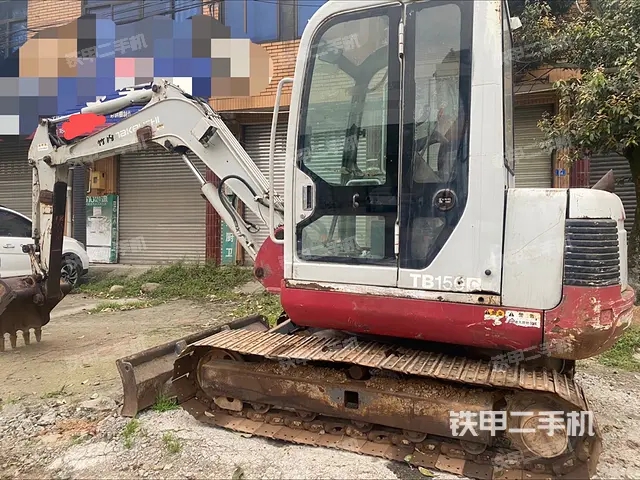

The Takeuchi TB150C excavator, introduced in 2013, is a compact yet powerful machine that has earned a reputation for reliability and high performance in a variety of construction and excavation applications. This particular model, with 5000 operating hours, is stationed in Chengdu, Sichuan, and continues to serve as an essential piece of equipment in the heavy machinery industry.
Brand Overview: Takeuchi
Takeuchi, a renowned Japanese manufacturer, has been a leader in compact construction equipment since 1963. Known for their innovation and engineering prowess, Takeuchi revolutionized the excavator market by introducing the world's first compact crawler excavator in 1971. Over the years, the company has expanded its product line to include compact excavators, wheel loaders, and skid-steer loaders, all designed to deliver excellent performance in tight spaces.
Key Specifications and Features
The TB150C is a 5-ton class compact excavator designed for tight spaces, offering both power and versatility. Below are its key specifications:

• Weight and Dimensions:
  • Operating Weight: 4,730 kg

  • Bucket Capacity: 0.2 m³

  • Overall Length: 5,515 mm

  • Overall Width: 1,840 mm

  • Overall Height: 2,555 mm

  • Ground Clearance: 325 mm

  • Minimum Swing Radius: 1,470 mm

• Engine and Performance:
  • Engine Model: Yanmar 4TNV88-QTBC

  • Rated Power: 28.4 kW @ 2,300 rpm

  • Torque: 145 Nm @ 1,600 rpm

  • Displacement: 2.19 L

  • Cylinders: 4

  • Cooling System: Water-cooled

• Hydraulic System:
  • Main Pump Flow Rate: 55.9 x 2 + 37.3 x 1 + 10.4 x 1 L/min

  • Pilot Pump Flow Rate: 56 L/min

  • Maximum Operating Pressure: 20.6 × 2 + 19.6 × 1 + 3.4 × 1 MPa

• Undercarriage:
  • Track Length: 2,500 mm

  • Track Gauge: 1,440 mm

  • Track Width: 400 mm

  • Ground Contact Length: 1,965 mm

• Digging Performance:
  • Maximum Digging Radius: 5,850 mm

  • Maximum Digging Depth: 3,510 mm

  • Maximum Digging Height: 5,590 mm

  • Maximum Dumping Height: 3,960 mm

  • Vertical Digging Depth: 2,760 mm


Design and Build Quality
The TB150C is a hydraulically powered, compact excavator designed for versatility in a range of construction tasks, including excavation, trenching, and material handling. The Yanmar engine powers this machine, delivering high torque and fuel efficiency. The small design of the excavator allows it to maneuver effectively in confined spaces, while its robust construction ensures durability and stability under demanding work conditions.
Hydraulic Efficiency
The machine’s hydraulic system, featuring a combination of variable pumps and high-pressure settings, ensures that the TB150C performs efficiently, even in demanding tasks. The system allows for powerful digging, lifting, and grading capabilities, which makes it perfect for urban construction or smaller job sites.
Undercarriage and Maneuverability
Equipped with tracks that provide exceptional stability and traction, the TB150C is built to handle a variety of terrain types. The short swing radius allows for easier navigation in confined spaces, and the adjustable tracks make it adaptable to different job requirements, further enhancing its versatility.
Operational Performance and Efficiency
The TB150C is known for its efficiency in digging, even in challenging ground conditions. The maximum digging depth of 3,510 mm and the impressive digging radius make it a reliable choice for trenching and digging applications. Its high lifting height and vertical digging capacity also make it useful for handling materials and performing tasks that require precision.
Application in Construction Projects
Compact and powerful, the Takeuchi TB150C is highly suitable for urban and small construction projects, where space limitations often restrict the use of larger equipment. Its compact size and performance make it ideal for work in areas like road construction, landscaping, and utility installation.
Longevity and Maintenance
With a total of 5,000 hours of operation, this machine has proven its durability. Regular maintenance and proper care ensure that these machines can continue operating efficiently for years. Takeuchi has designed the TB150C with ease of maintenance in mind, allowing for quick access to components and simple routine checks.
Conclusion
The Takeuchi TB150C compact excavator combines strength, reliability, and efficiency into a machine that is perfectly suited for a wide variety of applications. Whether it’s for digging, lifting, or trenching, the TB150C is a tool that professionals in the construction industry trust. The machine's compact size, impressive performance, and high-quality build make it a valuable asset in tight or crowded work environments.
