2014 Komatsu PC360-7 Excavator, Jiangxi - Ji'an City, $20,786

[MikePhua]




ID：1825057


The Komatsu PC360-7 is a robust and reliable hydraulic excavator designed to tackle a wide variety of construction and excavation tasks. Manufactured in 2014, this 36-ton machine stands out for its durability, advanced hydraulic systems, and powerful engine. With over 12,000 working hours on the clock, the Komatsu PC360-7 remains a popular choice in the construction industry, offering a blend of performance, precision, and fuel efficiency.
Overview of Komatsu PC360-7
Komatsu, a global leader in the construction and mining equipment sector, has built a reputation for producing high-quality machines known for their reliability and performance. The PC360-7 model is one of the cornerstone products in the company's line of hydraulic excavators. Designed for heavy-duty tasks, it is commonly used in earthmoving, road construction, and mining operations.
Key Specifications and Features
The PC360-7 is built to handle tough working environments, combining advanced technology and high performance. Let's break down some of the key specifications:

• Operating Weight: 33,000 kg

• Engine Model: Komatsu SAA6D114E

• Engine Power: 180 kW at 1,900 rpm

• Bucket Capacity: 1.6 m³ (standard bucket)

• Arm Length: 6,470 mm

• Boom Length: 3,185 mm

• Hydraulic System: Axial piston pump with a maximum flow rate of 535 L/min

• Travelling Speed: 3.2 km/h (low), 4.5 km/h (medium), 5.5 km/h (high)

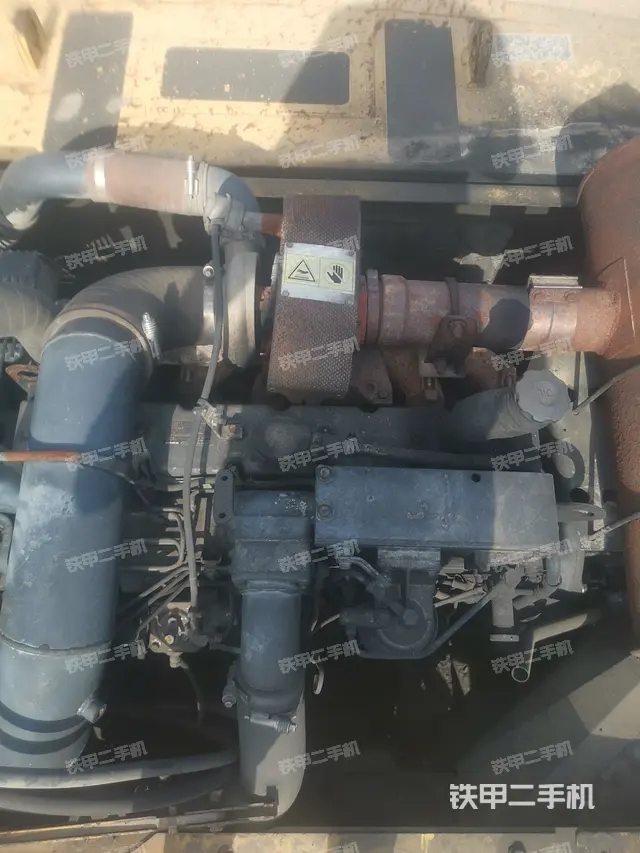

The machine also features a 6-cylinder, water-cooled, turbocharged engine with a displacement of 8.27L, providing a good balance of power and fuel efficiency.
Performance and Efficiency
The PC360-7 excels in both performance and operational efficiency, thanks to its well-designed hydraulic and engine systems. Here’s a closer look at its capabilities:

• Ground Pressure: 67.7 kPa – Low ground pressure makes it suitable for working on soft or uneven terrain without causing excessive ground disturbance.

• Swing Speed: 9.5 rpm – This allows the excavator to rotate quickly, improving productivity, especially in tight spaces.

• Gradeability: The PC360-7 can climb inclines of up to 70% or 35°, demonstrating its impressive ability to work on steep and challenging terrains.

• Bucket Digging Force: 227 kN – The digging force ensures the machine can efficiently handle hard materials, including compacted soils and rocky surfaces.

• Arm Digging Force: 171 kN – This ensures precise and strong digging capabilities when working with heavy-duty tasks like trenching and material handling.


These features make the PC360-7 an excellent choice for heavy-duty excavation work, where efficiency and productivity are paramount.

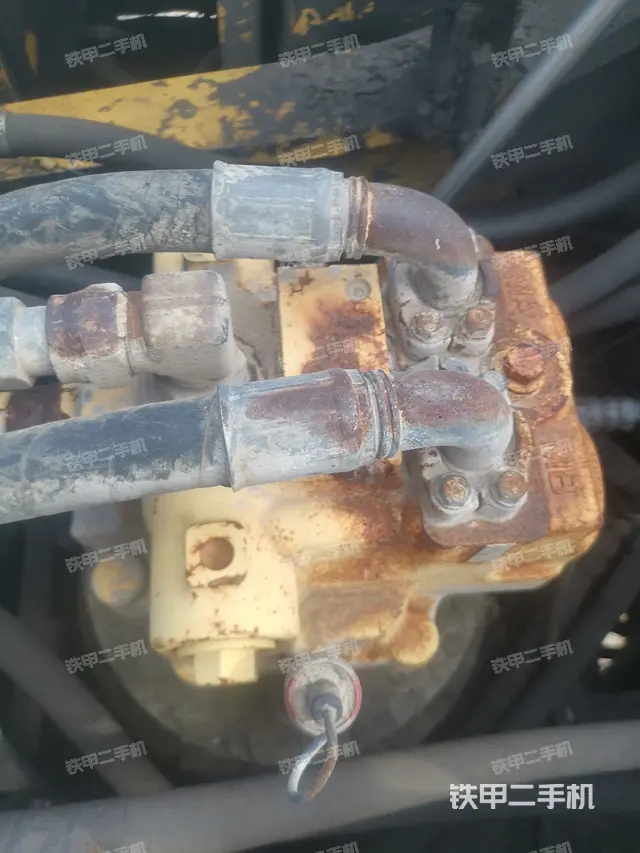

Hydraulic System
The hydraulic system is one of the key strengths of the PC360-7, allowing for smooth, precise, and powerful movements during operations. The hydraulic system is powered by axial piston pumps, which provide maximum flow and pressure to meet the demands of high-performance tasks:

• Main Pump Flow: 535 L/min

• Travel Hydraulic Pressure: 37.3 MPa

• Swing Hydraulic Pressure: 27.9 MPa

• Control Hydraulic Pressure: 3.2 MPa


This configuration ensures that the machine can operate seamlessly across a range of tasks, from digging and lifting to material handling.
Fuel Efficiency and Capacity
The Komatsu PC360-7 is equipped with a 605L fuel tank and a 188L hydraulic oil tank, allowing it to run for extended periods without frequent refueling. This contributes to overall productivity by minimizing downtime during operations. Additionally, the machine's engine oil change capacity is 35L, and the coolant capacity is 32L, making maintenance relatively simple and straightforward.
Size and Dimensions
The PC360-7 is designed to deliver impressive performance while maintaining a compact enough size for maneuverability in tight spaces. Here are its key dimensional details:

• Transport Length: 11,140 mm

• Transport Width: 3,190 mm

• Transport Height: 3,280 mm

• Track Length: 4,625 mm

• Track Width: 600 mm

• Ground Clearance: 500 mm (minimum)

• Rear Swing Radius: 3,450 mm

• Track Gauge: 2,590 mm


Despite its large size, the PC360-7 is relatively easy to transport and maneuver on-site, especially when operating on uneven or congested terrain.
Working Range and Digging Performance
The PC360-7 is designed to handle tough excavation tasks with a wide operating range. Its digging depth, height, and radius make it suitable for large-scale projects where reach and depth are critical:

• Maximum Digging Depth: 7,380 mm

• Maximum Digging Radius: 11,100 mm

• Maximum Digging Height: 10,210 mm

• Maximum Dump Height: 7,110 mm

• Vertical Digging Depth: 6,480 mm


With its versatile boom and arm design, the PC360-7 is capable of reaching deep into trenches and excavation sites, making it ideal for tasks such as digging foundations, trenching, and digging for utilities.
Durability and Reliability
Komatsu machines, including the PC360-7, are known for their long-lasting durability and low maintenance requirements. With a focus on ruggedness and reliability, the PC360-7 is designed to withstand harsh working conditions and long operating hours. The machine’s sturdy frame, reinforced components, and advanced cooling systems help extend its operational lifespan, making it a reliable choice for construction and excavation contractors.
Applications
The Komatsu PC360-7 is an extremely versatile excavator that can be used for a wide range of tasks, including:

• Earthmoving: With its powerful digging force, the PC360-7 excels in moving large quantities of dirt, rock, and other materials.

• Road Construction: Its impressive digging depth and reach make it ideal for roadworks, including the excavation of trenches for pipelines, cables, and foundations.

• Demolition: The strength and precision of the PC360-7 make it suitable for demolition work, including breaking through concrete and other tough materials.

• Mining and Quarrying: With its durability and power, the PC360-7 is well-suited for mining and quarrying operations, where heavy lifting and deep digging are necessary.


Conclusion
The Komatsu PC360-7 is a powerhouse excavator that combines strength, reliability, and efficiency for heavy-duty construction projects. With its advanced hydraulic system, powerful engine, and versatile working range, it offers exceptional performance in a variety of demanding applications. Whether you're working on large-scale infrastructure projects, road construction, or earthmoving, the PC360-7 provides the reliability and productivity needed to get the job done effectively.
