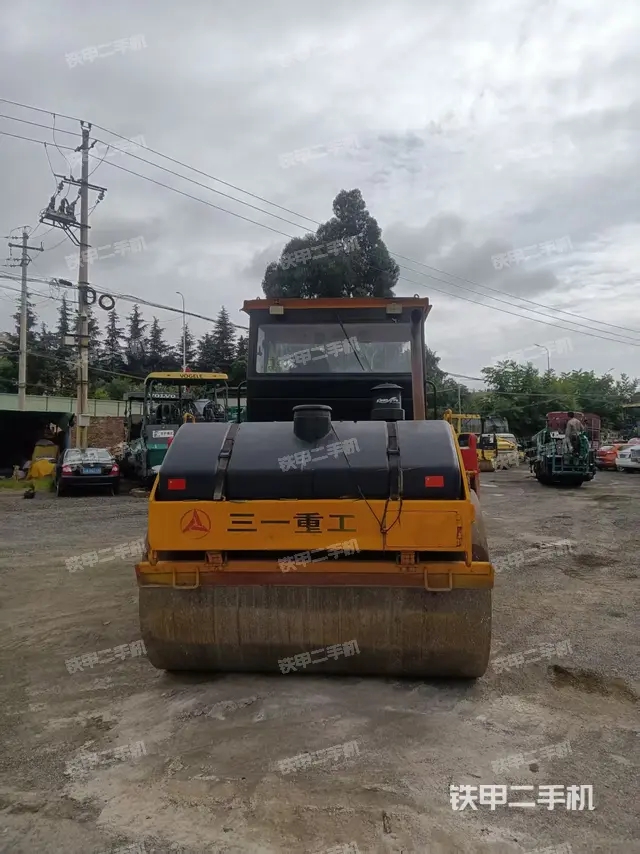

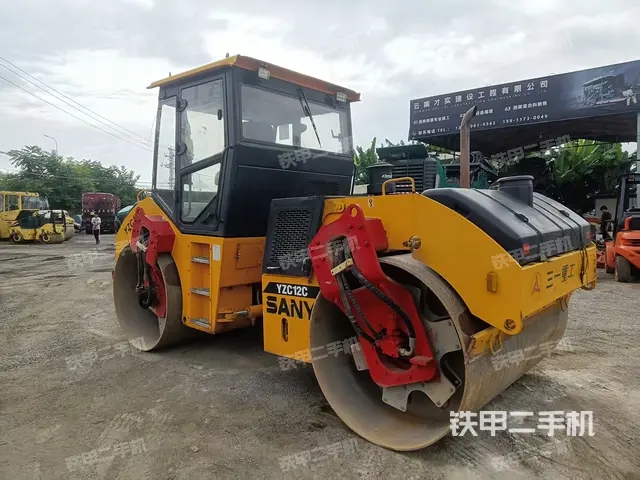

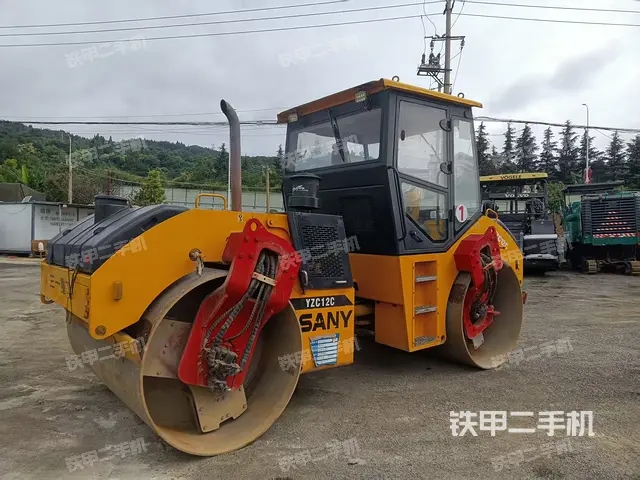

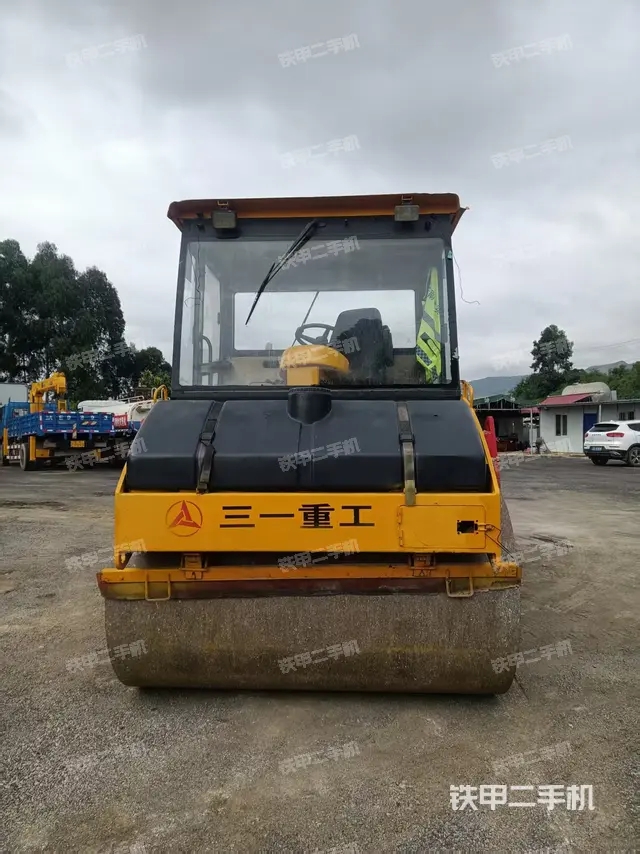

2010 SANY YZC12II Road Roller, Kunming City, Yunnan - $16,853

[MikePhua]



ID：1825051

The 2010 SANY YZC12II road roller is a robust and efficient piece of equipment designed for the heavy demands of road construction, soil compaction, and other large-scale infrastructure projects. With a powerful engine, advanced compaction technology, and a focus on operator comfort, this machine is engineered to meet the challenges of both urban and rural construction sites. In this article, we explore the key features and specifications of the SANY YZC12II road roller, along with its application in real-world projects and the company’s legacy in the industry.
Introduction to SANY and the YZC12II Road Roller
SANY Heavy Industry Co., Ltd., founded in 1989, is a global leader in the manufacture of construction equipment, including excavators, cranes, concrete machinery, and road rollers. Headquartered in Changsha, China, SANY has a solid reputation for producing high-performance and durable machinery that serves the construction, mining, and heavy equipment industries worldwide.
The YZC12II is part of SANY’s line of road rollers, designed for efficient compaction of soil, gravel, and asphalt. Released in 2010, the YZC12II has quickly become a popular model in both domestic and international markets due to its reliable performance, advanced technology, and ease of operation. This 12-ton roller is widely used in road construction, landscaping, and infrastructure development, particularly in projects requiring high compaction efficiency and maneuverability.
Key Features and Specifications of the SANY YZC12II Road Roller
The YZC12II road roller is designed with a focus on both performance and operator safety. Below are the key specifications that define the machine's capabilities:

• Engine System:
  • Rated power: 88 kW at 2,300 rpm

  • Engine model: Deutz BF6M1013

  • Fuel tank capacity: 200 L

  • Hydraulic oil tank capacity: 110 L

  • Battery: 24V x 100 Ah


The powerful Deutz BF6M1013 engine ensures reliable operation for long periods, delivering the performance needed for demanding tasks. With a rated power output of 88 kW, the engine is designed to handle both high-speed and low-speed operations efficiently. The 200L fuel tank and 110L hydraulic oil capacity allow for extended working hours without frequent refueling or maintenance.

• Machine Dimensions:
  • Wheelbase: 3,280 mm

  • Minimum ground clearance: 400 mm

  • Overall length: 5,000 mm

  • Overall width: 2,350 mm

  • Overall height: 3,000 mm


These dimensions provide a balanced profile for the YZC12II, making it both stable and versatile in the field. With a relatively low height and compact width, the roller can navigate through tight spaces while still offering excellent stability during compaction work.

• Maneuverability and Speed:
  • Steering angle: 35 degrees

  • High-speed travel speed: 12 km/h

  • Low-speed travel speed: 6.5 km/h

  • Theoretical gradeability (vibration): 35%

  • Theoretical gradeability (no vibration): 40%

  • Oscillation angle: 10 degrees

  • Minimum turning radius: 12,460 mm

  • Crab walking distance: 170 mm


The YZC12II is designed with excellent maneuverability, allowing operators to handle tight corners and limited spaces with ease. The maximum speed of 12 km/h provides an efficient travel time between different work sites, while the low-speed travel of 6.5 km/h ensures a smooth compaction process.

• Compaction Mechanism:
  • Vibration frequency: 42 Hz / 50 Hz

  • Nominal amplitude: 0.75 mm / 0.37 mm

  • Exciting force: 130 kN / 85 kN

  • Vibration wheel diameter: 1,250 mm

  • Working width: 2,135 mm

  • Vibration wheel thickness: 20 mm


The YZC12II features an advanced compaction system with a dual-frequency vibration feature, ensuring superior compaction results in a variety of soil and asphalt conditions. The 130 kN exciting force ensures that the machine delivers high compaction energy, while the 2,135 mm working width allows for efficient coverage of large areas.
Performance and Efficiency
The YZC12II is a reliable performer in both soil and asphalt compaction applications. Its efficient vibration system, powerful engine, and large compaction force make it well-suited for heavy-duty tasks in road construction and other large-scale projects.

• Compaction Power:
  The high exciting force and dual-frequency vibration allow for effective compaction of a wide range of materials, including soil, gravel, and asphalt. The nominal amplitude of 0.75 mm and 0.37 mm ensures that even granular and fine materials are compacted effectively, resulting in a strong, durable foundation for roads, parking lots, and other infrastructure projects.

• Efficiency in Operation:
  With its ability to climb slopes up to 35% with vibration and 40% without, the YZC12II provides excellent performance even on challenging terrains. The efficient use of fuel and hydraulic oil ensures that the machine operates for long hours with minimal downtime, maximizing productivity on construction sites.


Operator Comfort and Safety
SANY has designed the YZC12II with the operator’s comfort and safety in mind. The roller features a spacious cabin, ergonomic controls, and a reliable suspension system that helps reduce operator fatigue during long hours of work. The cabin is designed to provide excellent visibility, ensuring that operators can perform their tasks with precision and safety.

• Ergonomic Design:
  The controls are strategically placed for easy access, ensuring that operators can make quick adjustments during compaction. The cabin is also designed to reduce vibrations, providing a smoother and more comfortable ride during operation.

• Safety Features:
  The YZC12II is equipped with multiple safety features, including a reinforced cabin structure, safety monitoring systems, and high-visibility lights for night operations. The roller’s design ensures that it can handle heavy-duty tasks while keeping the operator safe in various working environments.


Applications in Real-World Projects
The SANY YZC12II road roller has been widely used in road construction projects, infrastructure development, and land reclamation. Its efficiency and power make it an excellent choice for compaction tasks in both urban and rural settings. Contractors in China and internationally rely on the YZC12II for building reliable and long-lasting roads, highways, and other essential infrastructure.
For example, the roller has been used in urban road projects in China, where its ability to perform in tight spaces and navigate through congested areas makes it an ideal choice. It has also proven effective in building rural roads, where strong compaction is needed to create solid foundations for lasting infrastructure.
SANY’s Commitment to Innovation
SANY’s legacy of innovation in the construction industry continues to be reflected in the YZC12II road roller. The company has been producing cutting-edge construction equipment for over three decades, with a focus on improving the quality, efficiency, and safety of its products. The YZC12II is a prime example of SANY’s commitment to providing high-performance machinery that meets the evolving needs of the construction industry.
Conclusion
The 2010 SANY YZC12II road roller is a powerful, efficient, and versatile machine that excels in a variety of compaction applications. With its reliable engine, advanced hydraulic system, and robust compaction technology, it is well-suited for heavy-duty construction projects that demand high performance and efficiency. Whether used for road construction, soil compaction, or infrastructure development, the YZC12II continues to deliver exceptional results. SANY’s focus on innovation, quality, and operator safety ensures that this model remains a top choice for contractors and operators around the world.
