The undercarriage of an excavator is fundamental to its performance, supporting the machine's weight and enabling mobility across various terrains. Understanding its components and maintenance is crucial for operators and fleet managers to ensure longevity and efficiency.

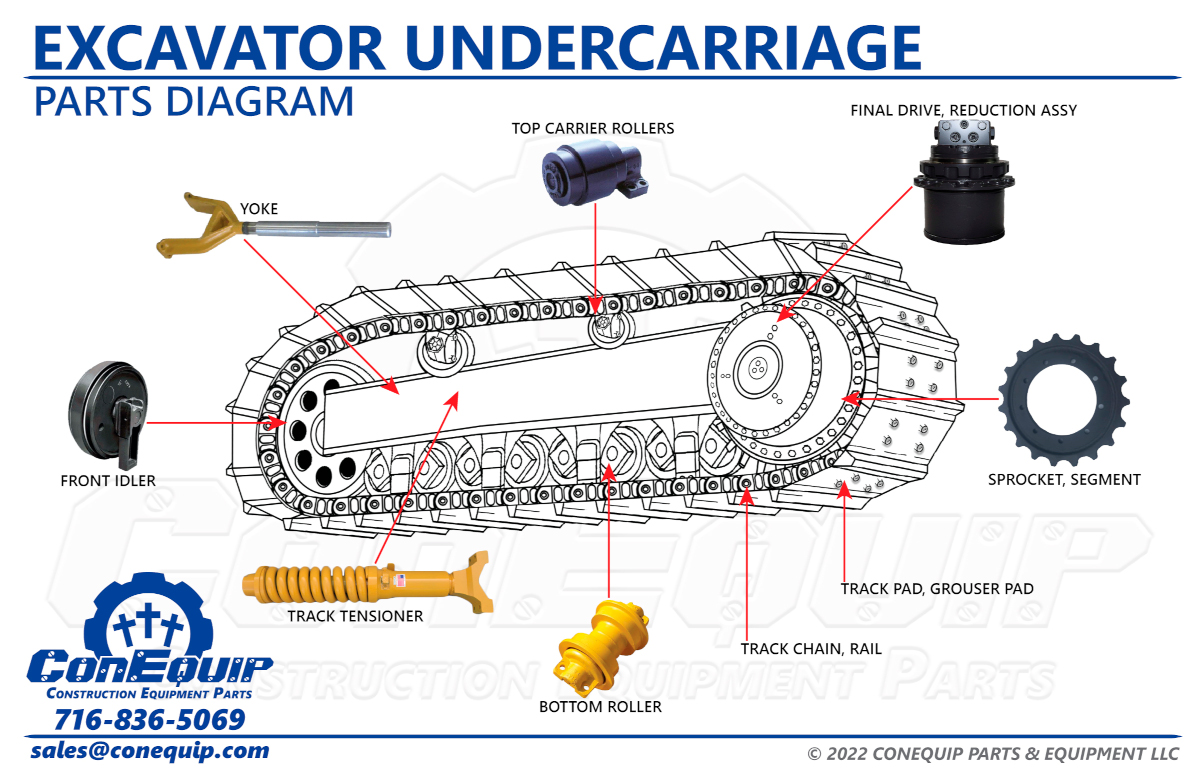

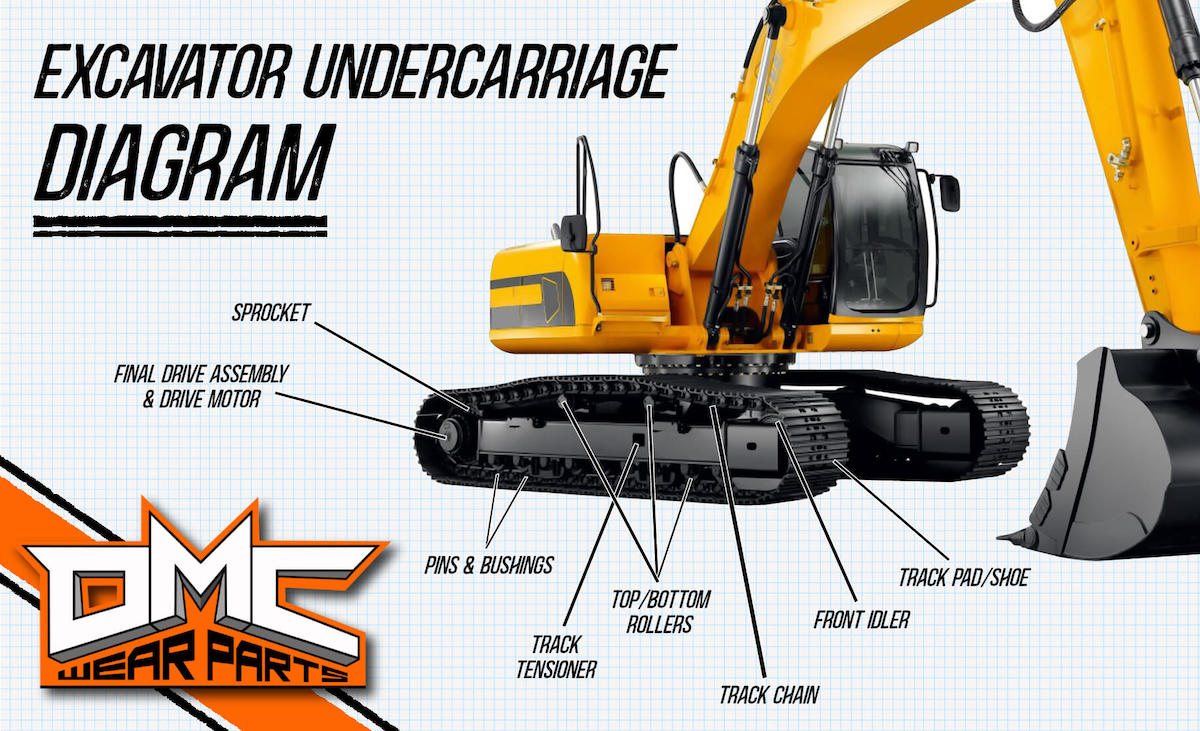

Key Components of Excavator Undercarriage
- Track Chains: Forming the continuous loop around the undercarriage, track chains bear the machine's weight and facilitate movement. They are composed of multiple metal links designed to withstand heavy use.
- Track Shoes: Attached to the track chains, track shoes provide traction. Their width and design vary based on terrain; wider shoes are suited for soft ground, while narrower ones are ideal for rocky surfaces.
- Rollers:
- Bottom Rollers: Located beneath the track chains, they support the machine's weight and guide movement.
- Carrier Rollers: Situated above the track chains, they maintain track tension and assist in guiding the tracks.
- Bottom Rollers: Located beneath the track chains, they support the machine's weight and guide movement.
- Idlers: Found at the front of the undercarriage, idlers help maintain track tension and prevent the track from derailing.
- Sprockets: These toothed wheels engage with the track chain, driving the excavator forward or backward.
- Recoil Springs: Absorb shocks and vibrations, enhancing the comfort and stability of the machine.
- Frame and Bottom Guard: The structural foundation of the undercarriage, providing protection to internal components.
- Regular Cleaning: Debris accumulation can accelerate wear. Use a shovel or pressure washer to clean the undercarriage, especially after working in muddy or rocky conditions.
- Track Tension Adjustment: Both loose and tight tracks can lead to premature wear. Regularly check and adjust track tension according to the manufacturer's specifications.
- Lubrication: Proper lubrication of moving parts reduces friction and prevents corrosion. Follow the manufacturer's guidelines for lubrication intervals and types.
- Component Inspection: Regularly inspect parts for signs of wear or damage. Replace worn components promptly to prevent further damage and ensure optimal performance.
- Operational Practices:
- Avoid sudden starts and stops to reduce stress on the undercarriage.
- Operate the machine at consistent speeds to minimize uneven wear.
- When possible, dig toward the idlers and avoid digging backward toward the sprockets.
- Avoid sudden starts and stops to reduce stress on the undercarriage.
- Uneven or excessive wear on track shoes.
- Oil leaks from rollers or idlers.
- Loose or damaged track chains.
- Excessive vibration during operation.
- Misalignment of tracks or components.
Upgrading certain undercarriage components can enhance performance, especially in challenging terrains:
- Heavy-Duty Rollers: Designed for high-impact applications, they offer increased durability.
- Swamp Tracks: Wider track shoes and extended frames provide better flotation in soft, marshy conditions.
- Enhanced Sprockets: Durable sprockets reduce wear and improve engagement with track chains.
The undercarriage is a vital component of an excavator, influencing its performance and longevity. Regular maintenance, timely upgrades, and adherence to operational best practices are essential to maximize the efficiency and lifespan of the machine. Investing in quality undercarriage parts and maintenance can lead to significant cost savings and reduced downtime.
