Introduction

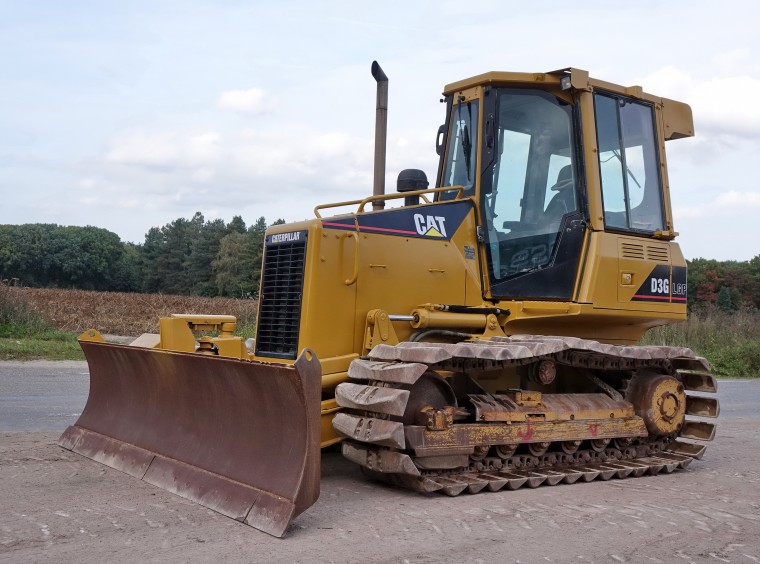

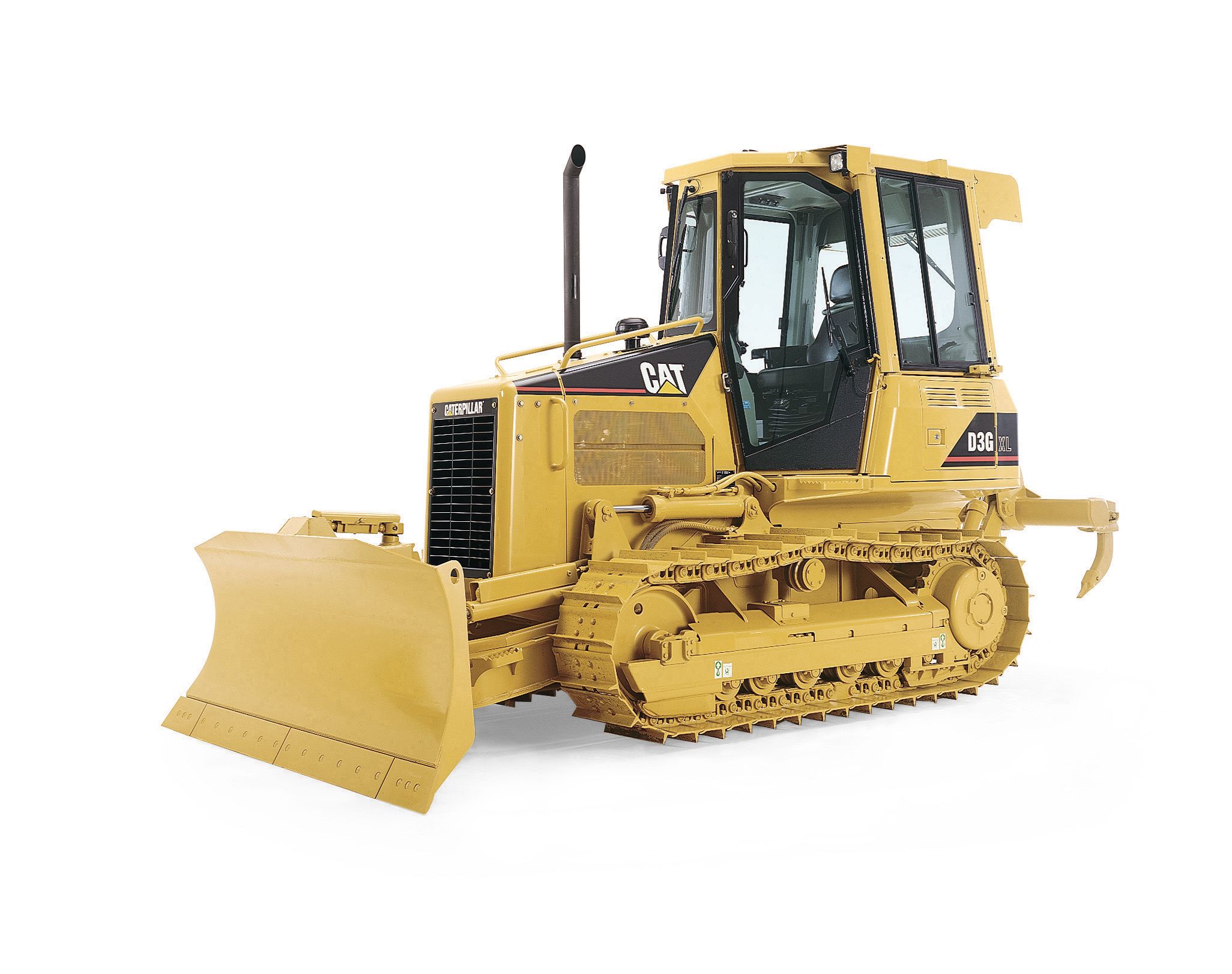

The Caterpillar D3G Crawler Dozer stands as a testament to Caterpillar's commitment to producing durable and efficient machinery for various earthmoving tasks. Introduced in the early 2000s, the D3G series has been a reliable choice for contractors and operators worldwide. This article delves into its specifications, common issues, maintenance practices, and real-world applications.
Technical Specifications
The D3G is equipped with the Cat® 3046T engine, delivering a net power of 70 horsepower (52 kW). Its operating weight varies between 16,227 to 17,160 pounds, depending on the configuration. The dozer features a dual-path hydrostatic transmission, providing smooth and responsive control. The standard blade capacity is approximately 1.9 cubic yards, making it suitable for tasks ranging from grading to light dozing.
Dimensions
- Length with Blade: 13.19 ft (4.02 m)
- Width Over Tracks: 6.09 ft (1.85 m)
- Height to Top of Cab: 8.92 ft (2.72 m)
- Length of Track on Ground: 10.19 ft (3.1 m)
- Ground Clearance: 1.23 ft (0.37 m)
- Track Gauge: 4.76 ft (1.45 m)
- Standard Shoe Size: 16 in (40.6 cm)
- Ground Pressure: 6.27 psi (43.3 kPa)
- Number of Shoes per Side: 39
- Number of Track Rollers per Side: 6
Despite its robust design, the D3G has encountered certain operational challenges:
- Hydraulic System Concerns: Operators have reported instances where the dozer's movement becomes erratic or stalls. This issue is often linked to hydraulic filter blockages or low fluid levels. Regular maintenance, including timely filter replacements, is crucial to prevent such problems.
- Ground Speed Sensor Failures: Some users have experienced the ground speed reading sticking at zero, even when the machine is in motion. This malfunction may be due to faulty sensors or wiring issues. Inspecting the sensor near the final drive and ensuring proper connections can help resolve this.
- Hydrostatic Transmission Calibration: Inconsistent movement or jerking motions can indicate the need for a hydrostatic calibration. Over time, the system may require adjustments to maintain optimal performance.
To ensure the longevity and efficiency of the D3G:
- Regular Fluid Checks: Monitor hydraulic fluid levels and temperatures. Overheating can lead to system failures.
- Scheduled Filter Replacements: Change hydraulic and fuel filters at recommended intervals to prevent clogging and ensure smooth operation.
- Undercarriage Inspections: Regularly inspect tracks, rollers, and idlers for wear. Addressing issues promptly can prevent costly repairs.
- Software Updates: Stay updated with the latest software calibrations to maintain the dozer's performance and address any known issues.
The D3G has proven its versatility across various projects:
- Land Development: Its compact size and maneuverability make it ideal for residential and commercial site preparation.
- Road Maintenance: The dozer's grading capabilities are beneficial for maintaining and repairing roads.
- Agricultural Projects: Farmers have utilized the D3G for tasks like land clearing and leveling.
The Caterpillar D3G Crawler Dozer remains a reliable and efficient machine in the construction and earthmoving industry. With proper maintenance and timely interventions, it can continue to serve operators effectively for years. Understanding its specifications, potential issues, and maintenance needs ensures optimal performance and longevity.
