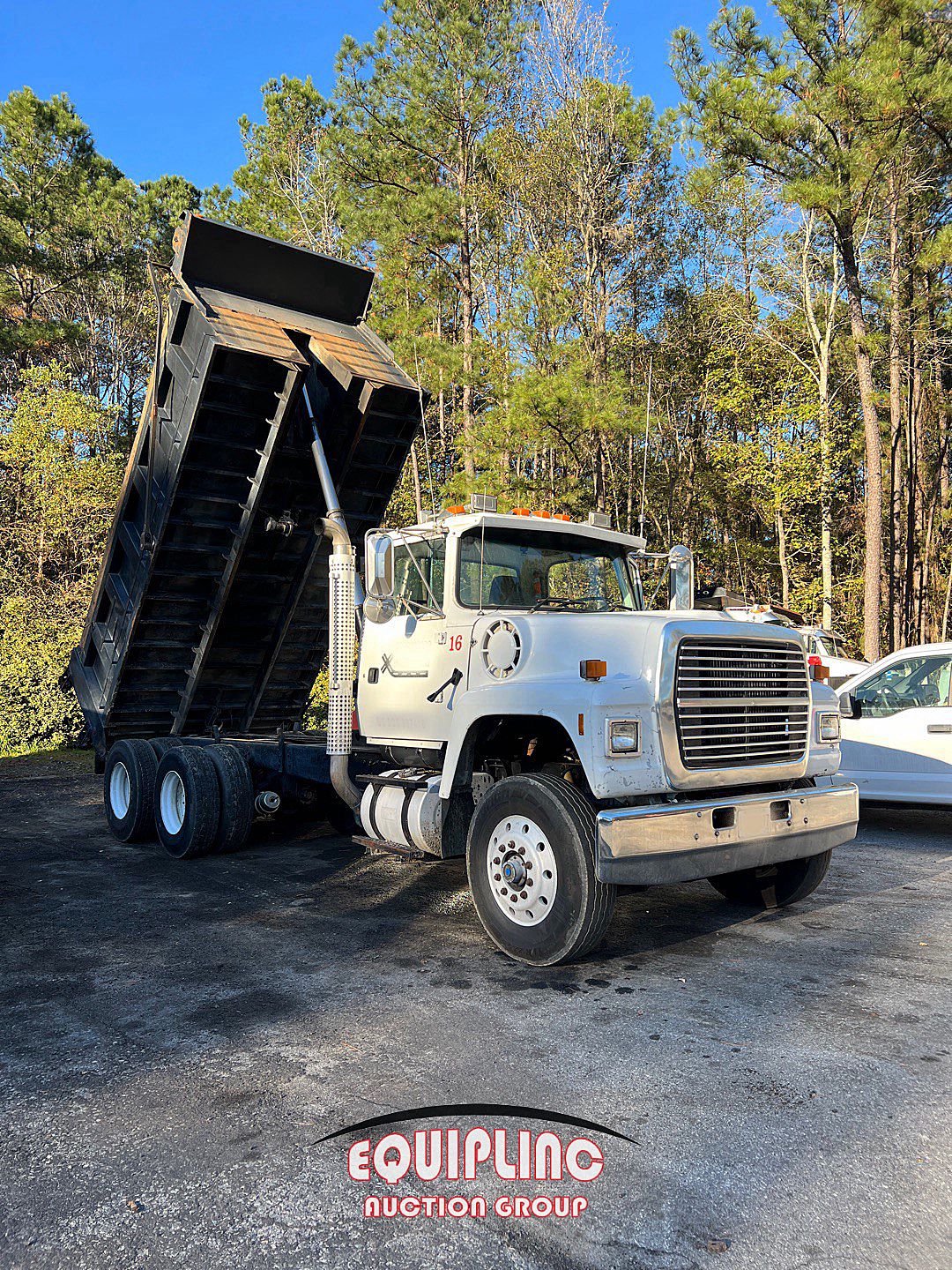

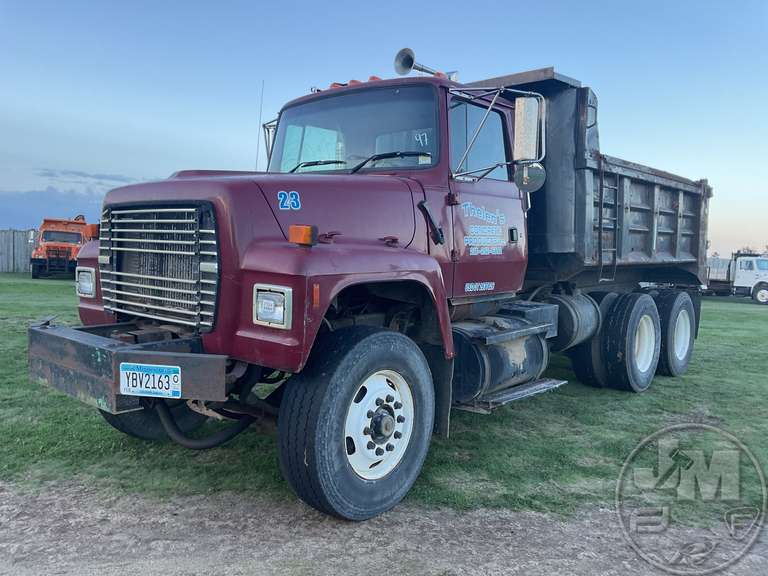

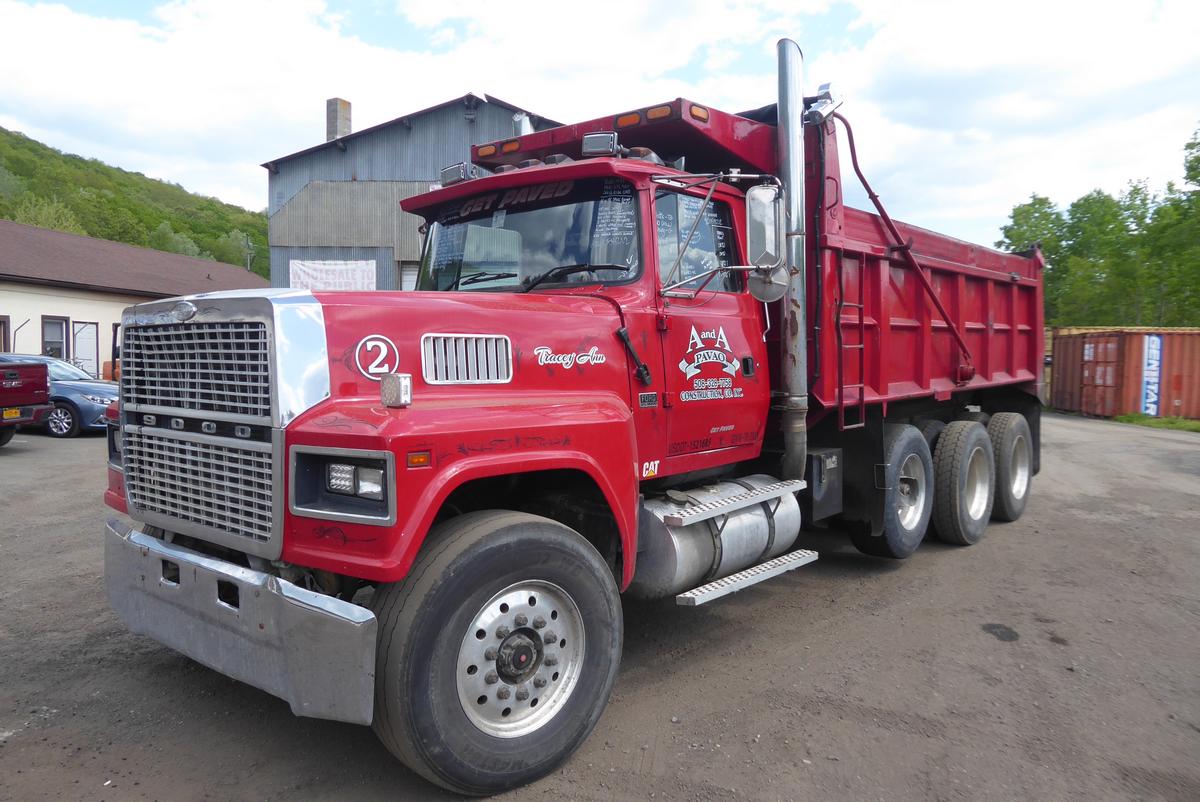

The 1997 Ford LT9000 tandem dump truck stands as a testament to Ford's commitment to heavy-duty performance and durability. Part of the L-Series, which spanned from 1970 to 1998, the LT9000 was designed for demanding applications such as construction, mining, and municipal services. Its robust build and versatile configurations have made it a popular choice among operators seeking reliability and power.
Engine and Powertrain
The LT9000 was typically equipped with the Cummins L10 engine, a 10.0L inline-six diesel engine known for its balance between performance and fuel efficiency. This engine produced approximately 280 to 300 horsepower, depending on the specific configuration and tuning. Paired with an Eaton Fuller manual transmission, often a 9-speed or 13-speed, the LT9000 offered operators precise control over power delivery, essential for navigating challenging terrains and heavy loads.
Chassis and Suspension
Built on a double-frame chassis, the LT9000 was designed to withstand the stresses of heavy hauling. The front axle typically had a Gross Axle Weight Rating (GAWR) of 16,000 lbs, while the rear tandem axles were rated up to 40,000 lbs, allowing for a Gross Vehicle Weight Rating (GVWR) of up to 56,000 lbs. The suspension system often featured a Hendrickson walking beam or air ride, providing stability and comfort, especially when loaded.
Body and Payload Capacity
The LT9000's dump body was usually constructed from steel, with lengths ranging from 12 to 16 feet. These bodies were designed to handle various materials, from sand and gravel to construction debris. With a typical payload capacity of 10 to 15 tons, the LT9000 was well-suited for tasks requiring frequent unloading and material transport.
Common Issues and Maintenance Tips
While the LT9000 is known for its durability, certain issues have been noted by operators:
- Transmission Concerns: Some users have reported issues with the transmission, particularly with components like shift forks, poppet balls, and detent springs. These problems can lead to difficulty in shifting or unexpected gear disengagement. Regular inspection and maintenance of the transmission system are recommended to prevent such issues.
- Brake System Anomalies: Instances of the low-pressure warning light remaining illuminated, even when air pressure is normal, have been observed. This could indicate issues with the brake valve or related components. It's advisable to inspect the brake system thoroughly to ensure all components are functioning correctly.
- Rust and Corrosion: As with many heavy-duty trucks, especially those used in regions with harsh winters, rust can be a concern. Areas like the cab corners, frame rails, and suspension components should be inspected regularly for signs of corrosion. Implementing preventive measures, such as undercoating and regular washing, can help mitigate rust formation.
Operators have shared various experiences with the LT9000:
- One operator mentioned that their LT9000 was a former plow truck, with only the dump box currently in use. Despite its age, the truck remained reliable, thanks to the absence of salt exposure in Alberta. This highlights the importance of operating conditions in the longevity of the vehicle.
- Another operator noted that while the truck had a 9-speed transmission, they rarely needed gears beyond the lower ones for off-road applications. This suggests that the LT9000's gearing is well-suited for heavy-duty tasks requiring low-speed control.
The 1997 Ford LT9000 tandem dump truck remains a robust and reliable choice for heavy-duty applications. Its powerful engine, durable chassis, and versatile body configurations make it well-suited for a variety of tasks. By adhering to regular maintenance schedules and addressing common issues promptly, operators can ensure the LT9000 continues to perform at its best for years to come.
