Restoring the Side Tilt Ram Assembly of the Fiat-Allis FD5 Crawler Dozer

[MikePhua]




Introduction
The Fiat-Allis FD5 crawler dozer, introduced in the early 1980s, was a robust machine designed for heavy-duty earthmoving tasks. A critical component of this dozer is the side tilt ram assembly, which allows for precise blade angle adjustments. Over time, wear and tear can compromise the functionality of this assembly, leading to operational challenges. This article delves into the specifics of the side tilt ram assembly, common issues faced, and potential solutions for restoration.
Understanding the Side Tilt Ram Assembly

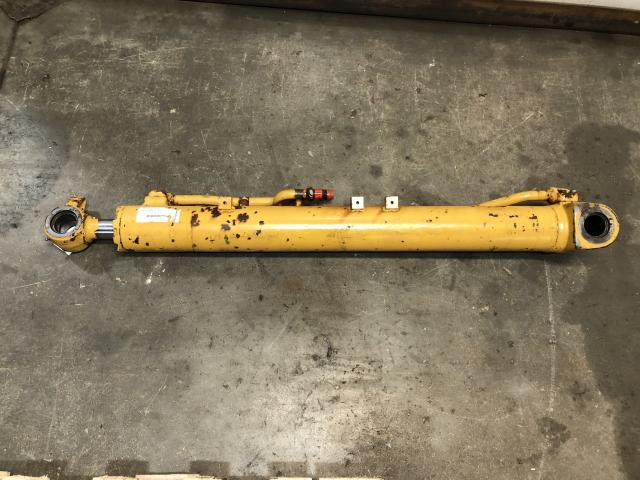

The side tilt ram assembly is a hydraulic cylinder responsible for tilting the dozer blade laterally. This function is essential for tasks such as grading and contouring, where precise blade positioning is crucial. The assembly typically consists of a cylinder housing, piston rod, gland, seals, and mounting brackets. Hydraulic fluid under pressure actuates the piston, causing the blade to tilt accordingly.
Common Issues and Challenges
Owners of vintage Fiat-Allis FD5 dozers often encounter several issues with the side tilt ram assembly:

• Seal Degradation: Over time, seals within the hydraulic cylinder can degrade, leading to hydraulic fluid leaks and loss of pressure.

• Corrosion: Exposure to harsh environmental conditions can lead to rust and corrosion, compromising the integrity of the cylinder.

• Worn Components: Continuous use can cause wear on the piston rod and gland, affecting the smooth operation of the assembly.

• Obsolete Parts: Given the age of the FD5 model, sourcing original replacement parts can be challenging.


Restoration and Repair Options
For those looking to restore or repair the side tilt ram assembly, several options are available:

1. OEM Replacement Parts: Original Equipment Manufacturer (OEM) parts ensure compatibility and maintain the authenticity of the dozer. However, these parts may be scarce due to the age of the machine.

2. Rebuilt Assemblies: Purchasing a rebuilt side tilt ram assembly can be a cost-effective solution. Rebuilt units are refurbished to meet OEM specifications and often come with warranties.

3. Custom Fabrication: For those with machining capabilities, custom fabricating the side tilt ram assembly is an option. This approach requires precise measurements and expertise in hydraulic systems.


Maintenance Tips
To prolong the lifespan of the side tilt ram assembly and ensure optimal performance:

• Regular Inspection: Periodically check for signs of hydraulic fluid leaks and address them promptly.

• Seal Maintenance: Replace seals at regular intervals to prevent leaks and maintain pressure.

• Protective Coatings: Apply anti-corrosion coatings to exposed metal parts to prevent rust.

• Proper Storage: When not in use, store the dozer in a sheltered environment to protect it from the elements.


Conclusion
Restoring the side tilt ram assembly of the Fiat-Allis FD5 crawler dozer requires careful consideration of the available options and a commitment to maintaining the machine's performance. Whether opting for OEM parts, rebuilt assemblies, or custom fabrication, ensuring the functionality of this critical component is essential for the dozer's operational efficiency. With proper maintenance and timely repairs, the Fiat-Allis FD5 can continue to serve effectively in various earthmoving applications.
