The Importance of a Healthy Battery

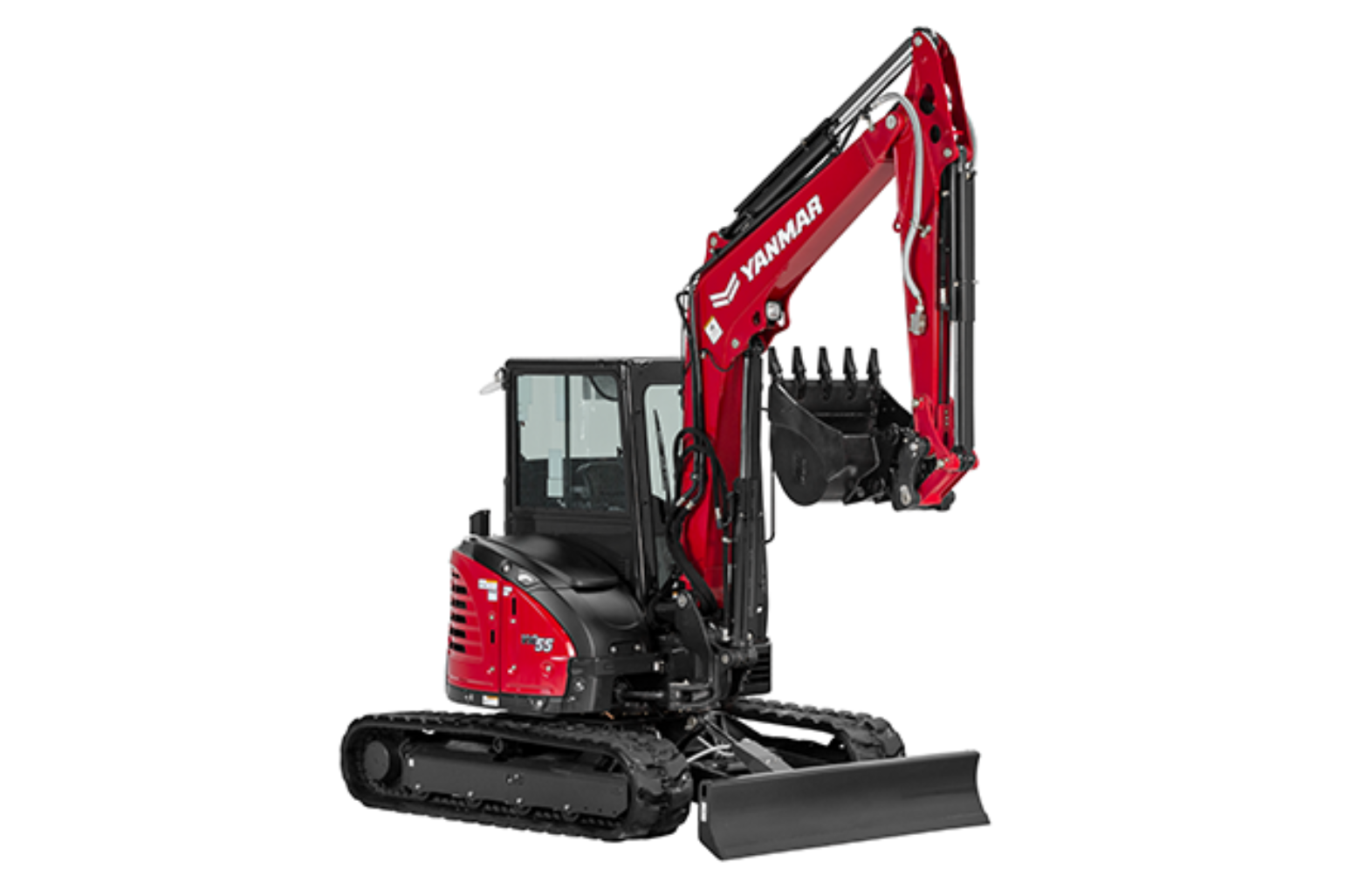

Replacing the battery in a Yanmar VIO55 isn’t just about getting the machine to crank—it ensures reliable engine starts in cold weather, keeps your on-board electronics functional, and supports the auxiliary hydraulics and remote monitoring systems.
Symptoms Indicating Battery Replacement
Common signs that your battery may be failing include:
- Slow engine crank or no crank at all
- Warning lights on the display panel or error codes
- Reduced performance of hydraulic systems at startup
- Visible corrosion or a bulging case on the battery itself
While official documents may not always list battery specs, technicians recommend looking for batteries that align with these general points for compact excavators like the VIO55:
- Voltage: 12 V (standard for this machine class)
- Cold Cranking Amps (CCA): Sufficient to handle low‑temperature starts—typically 600–800 CCA for a 3–5‑ton excavator
- Physical size: Group 31 or equivalent, to fit the machine’s battery compartment and hold‑down tray
- Type: Maintenance‑free sealed lead‑acid (AGM or comparable), favoring corrosion resistance and longevity
Here’s a careful breakdown of the battery swap process:
- Park on level ground, lower boom and attachments, turn off the engine, and remove the ignition key.
- Wear safety gloves and eye protection to guard against acid exposure.
- Locate the battery—typically found beneath service panels or near the access step.
- Clean any corrosion from cable clamps and nearby surfaces.
- Always disconnect the negative (–) terminal first, then the positive (+)—this prevents short circuits.
- Remove battery hold‑down hardware, then lift the old battery free.
- Clean the tray and terminals with a baking soda and water solution to neutralize acid residue; dry completely.
- Position the new battery securely; reconnect the positive (+) terminal first, followed by the negative (–).
- Tighten clamps to a firm, snug fit—avoid over‑torquing plastic components.
- Apply a light layer of dielectric grease or terminal protectant to inhibit future corrosion.
- Start the engine to verify normal cranking and confirm no error codes appear.
- Consider performing a short engine idle and cycling the hydraulic systems to confirm system readiness.
- CCA (Cold Cranking Amps): The current in amps that a battery can deliver for 30 seconds at 0 °F while maintaining at least 7.2 V; a key measure of starting power.
- Battery Group Size: Standardized dimensions and terminal placement for easier fitment; Group 31 often matches compact excavator frames.
- Maintenance‑Free Battery: A sealed design that doesn't require topping off—common in modern equipment.
- Dielectric Grease: Silicone-based grease that protects terminals from corrosion and dirt.
One equipment technician recalled a winter where the excavator refused to start on a frigid morning—just a soft click. After replacing the corroded battery with a high‑CCA AGM unit and adding powder-coated terminal guards, the machine roared to life even in sub‑zero temperatures. The crew considered the battery replacement a small fix with big returns in uptime and dependability.
Safety & Environmental Tips
- Disposal: Always recycle old batteries at a certified center—lead and acid are hazardous to the environment.
- Handling caution: Avoid skin or eye contact with acid, and never lay battery tools across both terminals simultaneously.
- Preventive maintenance: Clean battery terminals quarterly and visually inspect for swelling or cracked casing to catch issues early.
A robust battery keeps the Yanmar VIO55 reliable, particularly under tough conditions and heavy cycles. By choosing the right spec, installing it carefully, and maintaining it wisely, operators avoid downtime—and ensure the excavator performs when it matters most.
